Center ventilation
opening

Air, after being conditioned, is directed
into vehicle by two center ventilation
openings.  Setting grids can change
airflow direction

Side ventilation opening

Conditioned air is directed into vehicle by
two side ventilation openings.

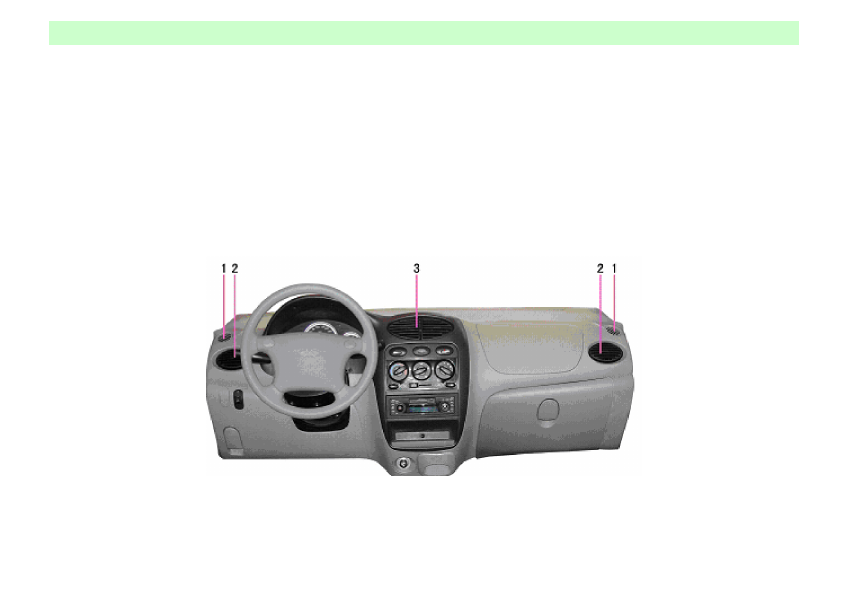

Front windshield
defroster ventilation
opening

Cold and warm air is directed to Side
window by front windshield defroster
ventilation openings(controlled within the
scope of outer back view mirror)

1

Front windshield defroster ventilation opening2

Side ventilation opening3

Center ventilation opening

Ventilation and A/C system

55

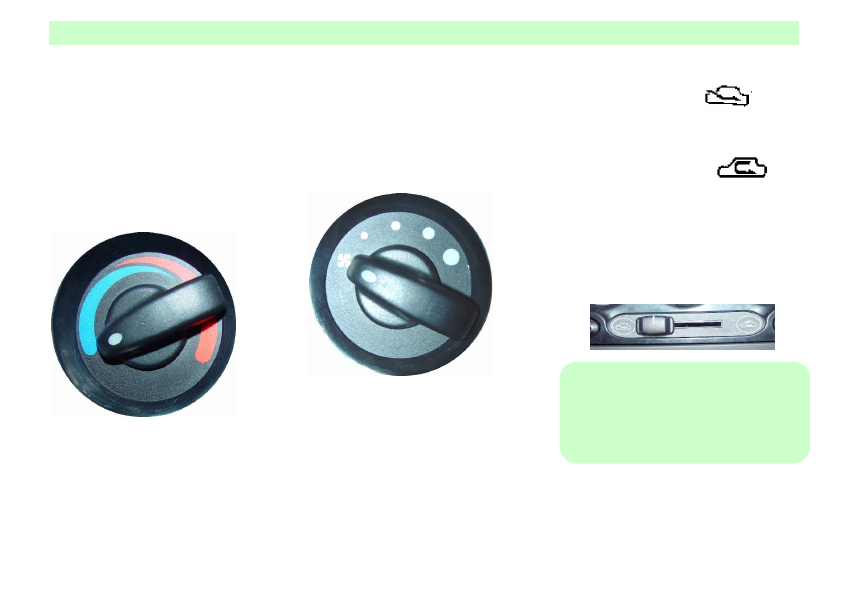

Temperature control
switch

Temperature control switch is used to
control the air temperature of ventilation
opening.
Blue position:Cold
Red position:Hot

Blower motor switch

Blower motor switch is used to control
blower motor speed (four positions in all).
Blower regulates wind speed. Blower
may be turned on to improve comfort
during driving.

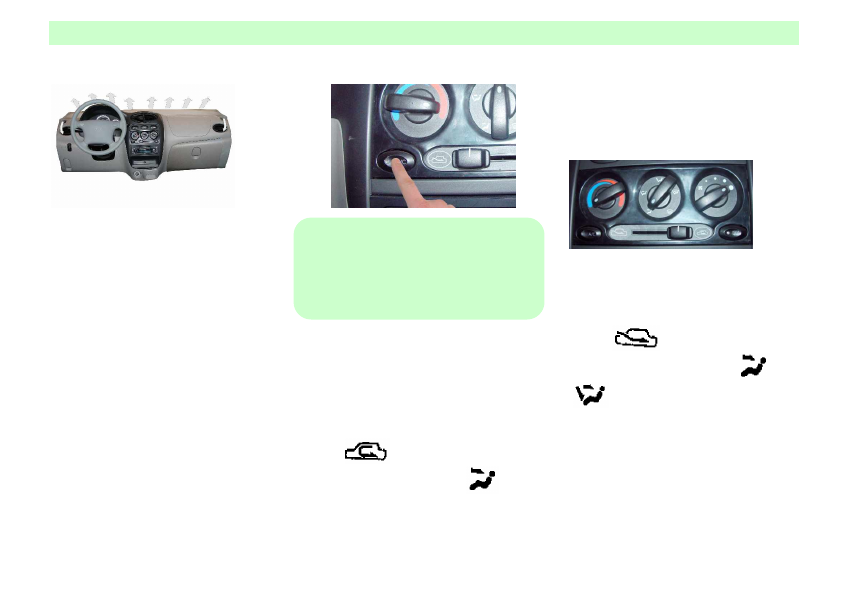

Internal and external
circulation control lever

It is used to select exterior fresh air or
interior circulating air.

Outer circulation mode (

)

Allow outer air get into vehicle.
Used for normal ventilation, heating and
cooling.

Internal circulation mode (

)

It is used when a internal circulation is
needed for the air in vehicle. This mode
is used to prevent outside waste gas from
getting into vehicle especially in dusty
environment, it is also applied when fast
cooling or heating of interior air is
requested.

Notice

Continuous application of internal
circulation mode will cause interior
mugginess and   fog on glass,So internal
circulation mode could not be engaged
for a little while.

Ventilation and A/C system

56

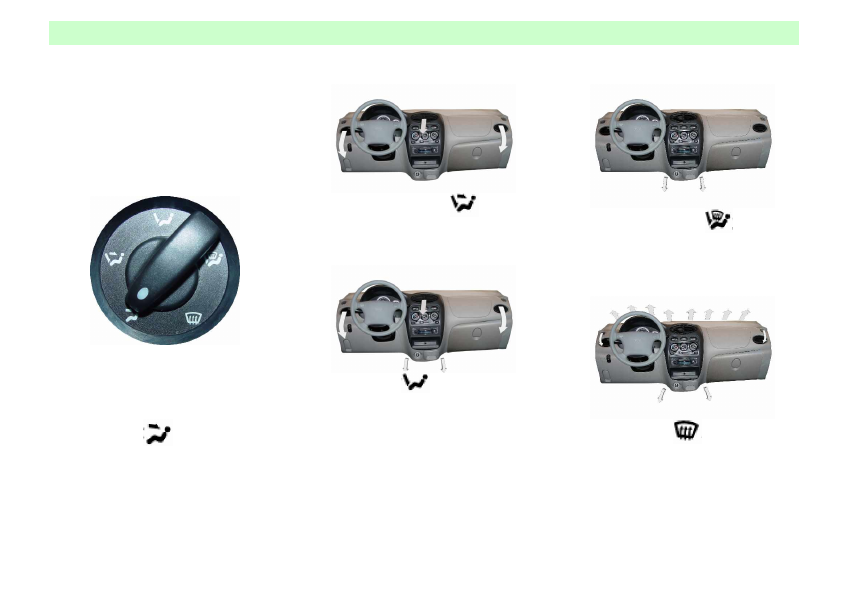

Airflow distribution
switch

Airflow distribution switch is used to
select airflow direction.There are five
positions for switch:

Head
Head and foot
Foot
Foot/defrost
Defrost

" head" position(

)

Air flows out from center ventilation
opening and side ventilation opening.

" head and foot" position(

)

Air flows out from center ventilation
opening and front bottom  exhaust
opening.

" foot" position (

)

Air mostly flows from front bottom
exhaust opening.

" foot / defrost" position(

)

Air flows out from front bottom exhaust
opening, windshield defrosting
ventilation opening and front windshield
defrosting ventilation opening.

" defrost" position(

)

Air flows out from windshield defrosting
ventilation openings and front windshield
defrosting ventilation openings.

Ventilation and A/C system

57

A/C system

Ventilation, heating and cooling system
parts compose a control system which
could(in any cold condition ant at any
outdoors temperature)supply maximal
comfort .A/C system cooling element
cools down air and removes moisture and
dust such as   pollen.
A/C switch
It is used to turn on or off A/C.
After engine is started , turn blower
switch to desirable speed   and engage A/
C switch to activate A/C. When A/C is
turned on ,indicator light will come on.
A/C could be shut if A/C switch button is
pressed once more. When blower switch
is set in " OFF " (turned off) position,
A/C compressor will not be engaged.

Notice

When vehicle is riding on a long slope or
in heavy traffic, A/C application will
cause engine overheating. Monitor water
temperature gauge and shut off A/C if
engine is overheated.

Maximum cooling
In torrid weather, vehicle window should
be opened for a little while to let out
indoor hot air quickly if vehicle is
exposed to sunlight for a long time.
A/C switch:On
Internal and outer circulation control

lever:(

)

Airflow distribution switch:(

)

Temperature control switch:turn anti
clockwise fully
(Blue)
Blower motor switch:Full speed

Normal cooling
Cooling for long distance travel and
express travel.
A/C switch:On
Internal and external circulation

switch:(

)

Airflow distribution switch: (

) Or

(

)

Temperature control switch:Blue
Blower motor switch:Random
