Chery  QQ  Maintenance Manual         465 Engine Mechanical System

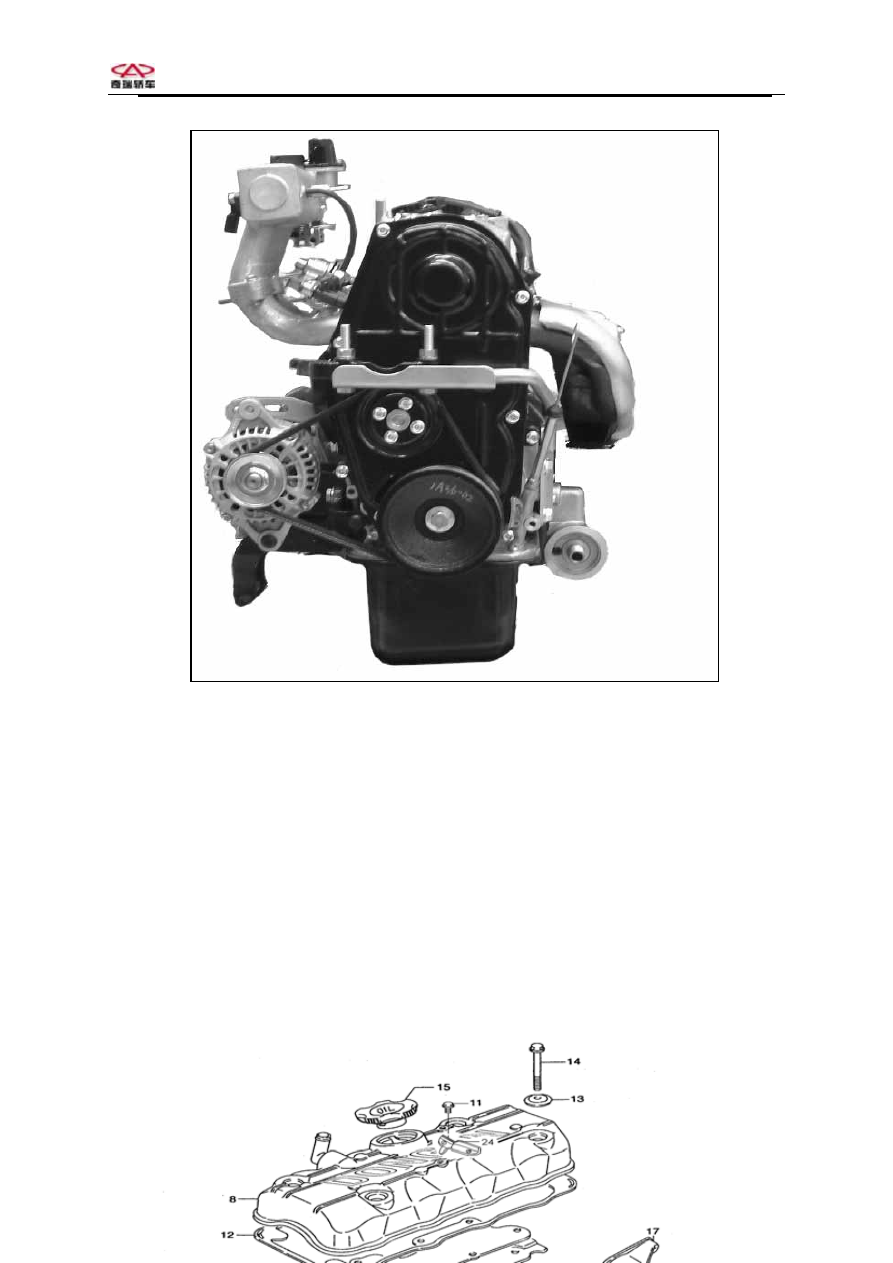

II.Cylinder head



- 22 –








Chery  QQ  Maintenance Manual         465 Engine Mechanical System




























1 cylinder head 2 valve guide bushing 3 restricted flow valve 4 gasket 5 cylinder head
gasket 6 locating bush 7  screw 8 cylinder head cover 9 baffle 10 gasket 11 screw 12
gasket 13 gasket 14 screw 15 filling cover 16 spark17 distributor built-up connection 18
gasket 19 locating bush 20 bolt 21 bolt 22 intake valve insert 23    exhaust valve insert 24
stay

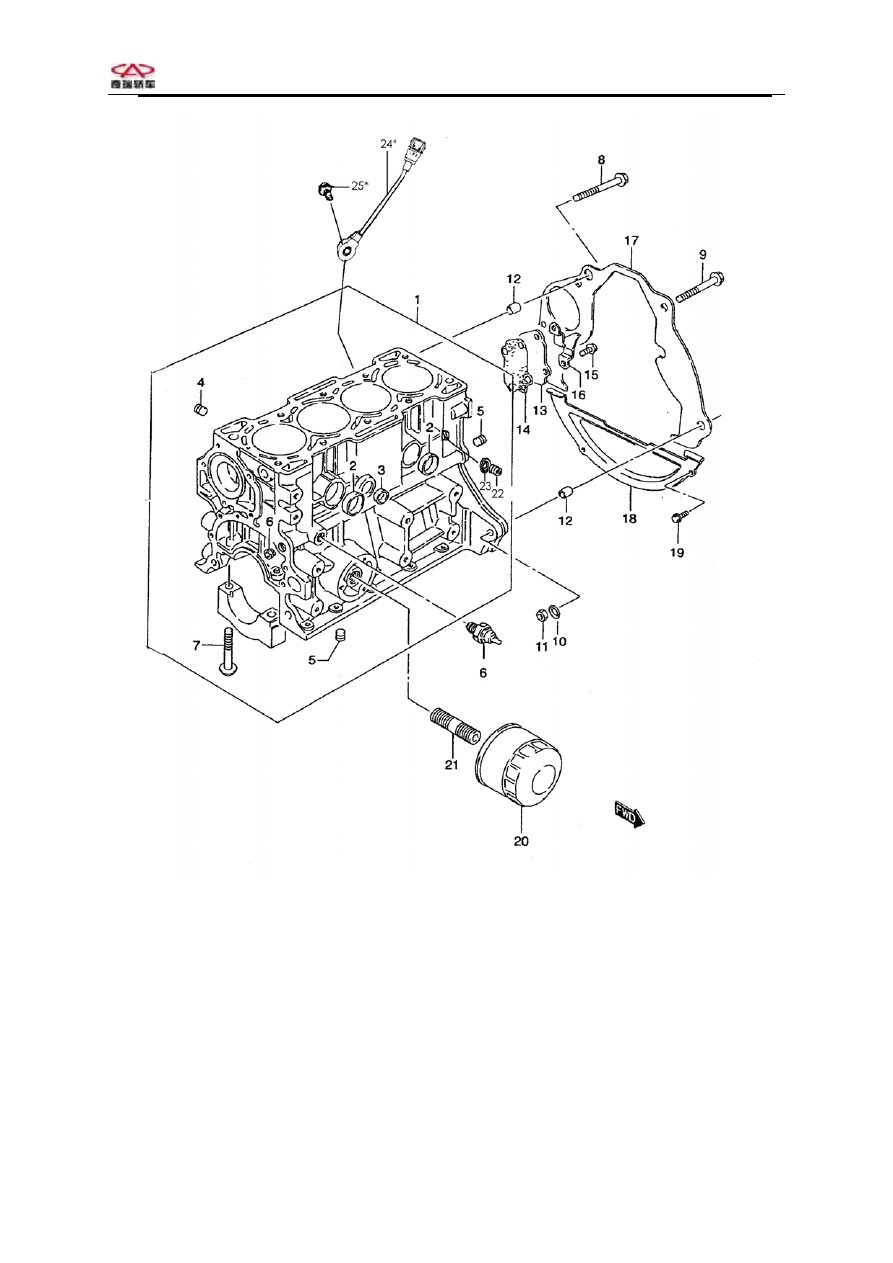

III.Cylinder block

- 23 –



Chery  QQ  Maintenance Manual         465 Engine Mechanical System





1- cylinder block 2- O-ring;3- O-ring；

4- blockage；5- blockage；6- oil pressure
switch；7- screw；8- screw；9- screw；10-
facing ring；11- nut；12- locating bush；
13- lap；14- gasket；15- screw；16- stay；

17- upper baffle wall    18- furrow
baffle wall；19- bolt 20- oil filter21- union
bolt 22- water jacket blockage23- gasket
24- knock sensor 25- screw

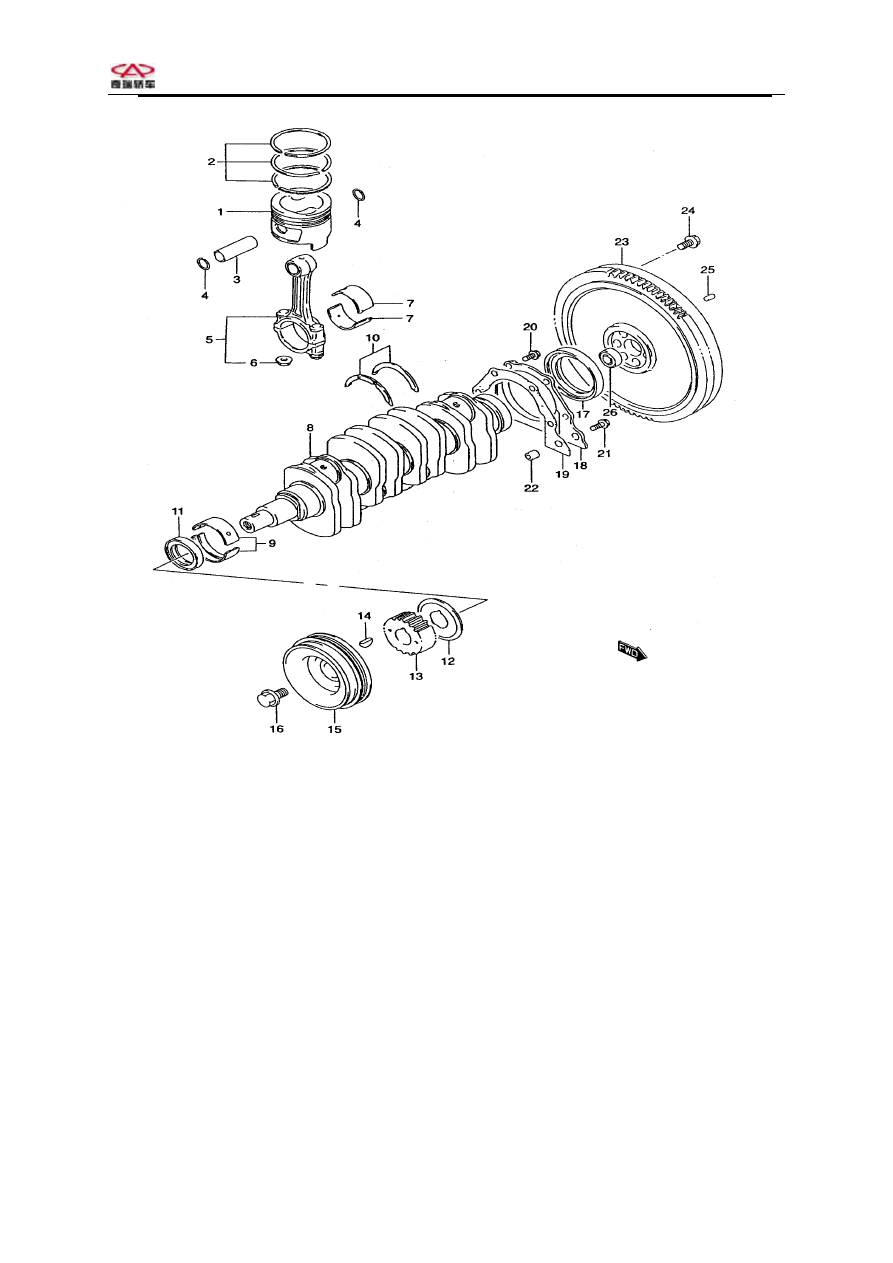

IV.Crankshaft，piston and connecting rod assembly

- 22 –



Chery  QQ  Maintenance Manual         465 Engine Mechanical System



































1.piston 2-1.No.1piston ring
2-2. No.2 piston ring
2-3.piston ring assembly 3.piston pin
4.piston pin lock ring 5.connecting rod
6.nut
7.connecting rod bu
8.crankshaft9.main bearing bush
10 crankshaft thrust washer 11. crankshaft
front oil seal

12.apron  13.timing  gear
14.woodruff key 15.crankshaft pulley
16.fastening screw 17.crankshaft rear oil
seal
  18 rear oil seal retainer 19.gasket20.screw
21.screw
22.locating sleave
23.flywheel 24 screw
25. locating sleave
26.bearing







- 23 –
