Chery    QQ    Maintenance Manual                                          Body System





3.2 Maintenance guide
Disassembly of front door

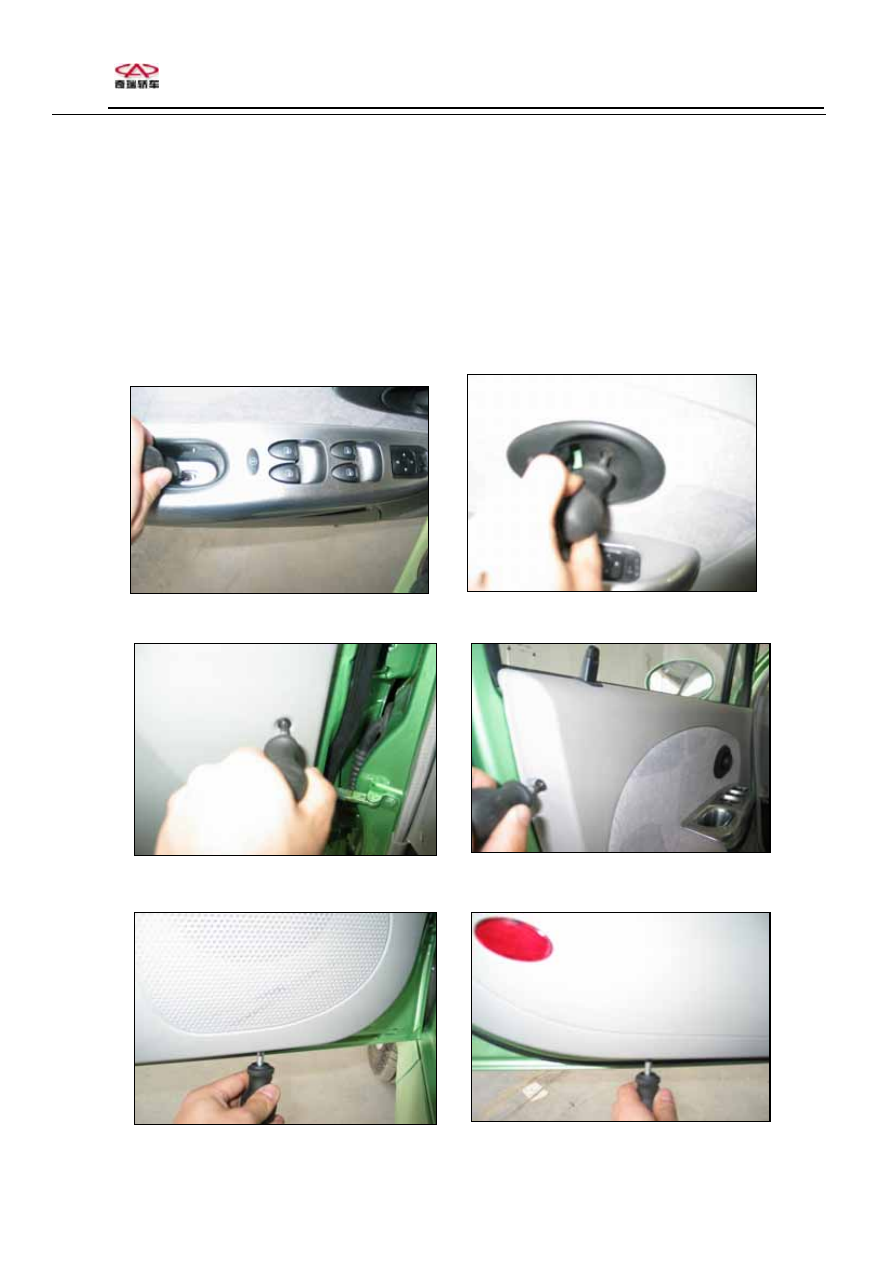

3.2.1  Removal of inner door panel of front door
(1)  Remove set bolt on the fixed handle base plate with cross screwdriver.
(2)  Remove bolts of fixed handle with cross screwdriver.
(3)  Remove 4 set bolts of inner door panel.
(4) Sway the door inner door panel from top to bottom by hand, take out the inner door panel
upwards.







































48





Chery    QQ    Maintenance Manual                                          Body System

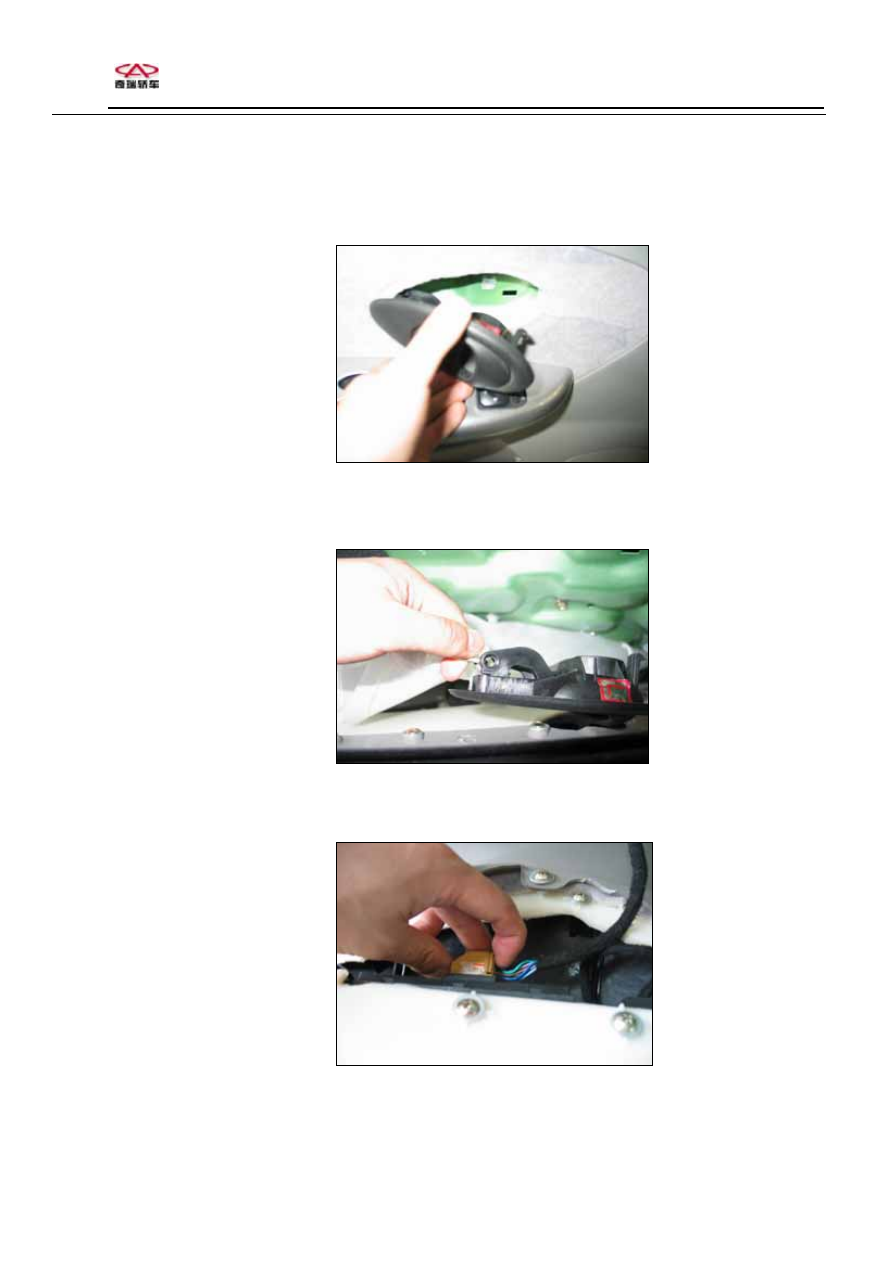

  (5) From the rear of inner door panel, separate the connecting rod of fixed handle, then take out
the fixed handle.














(6) Disconnect the wire harness plug of central lock main switch from the rear of door inner door
panel, and then take out the base plate of door handle.











(7) Take out inner door panel.























49





Chery    QQ    Maintenance Manual                                          Body System

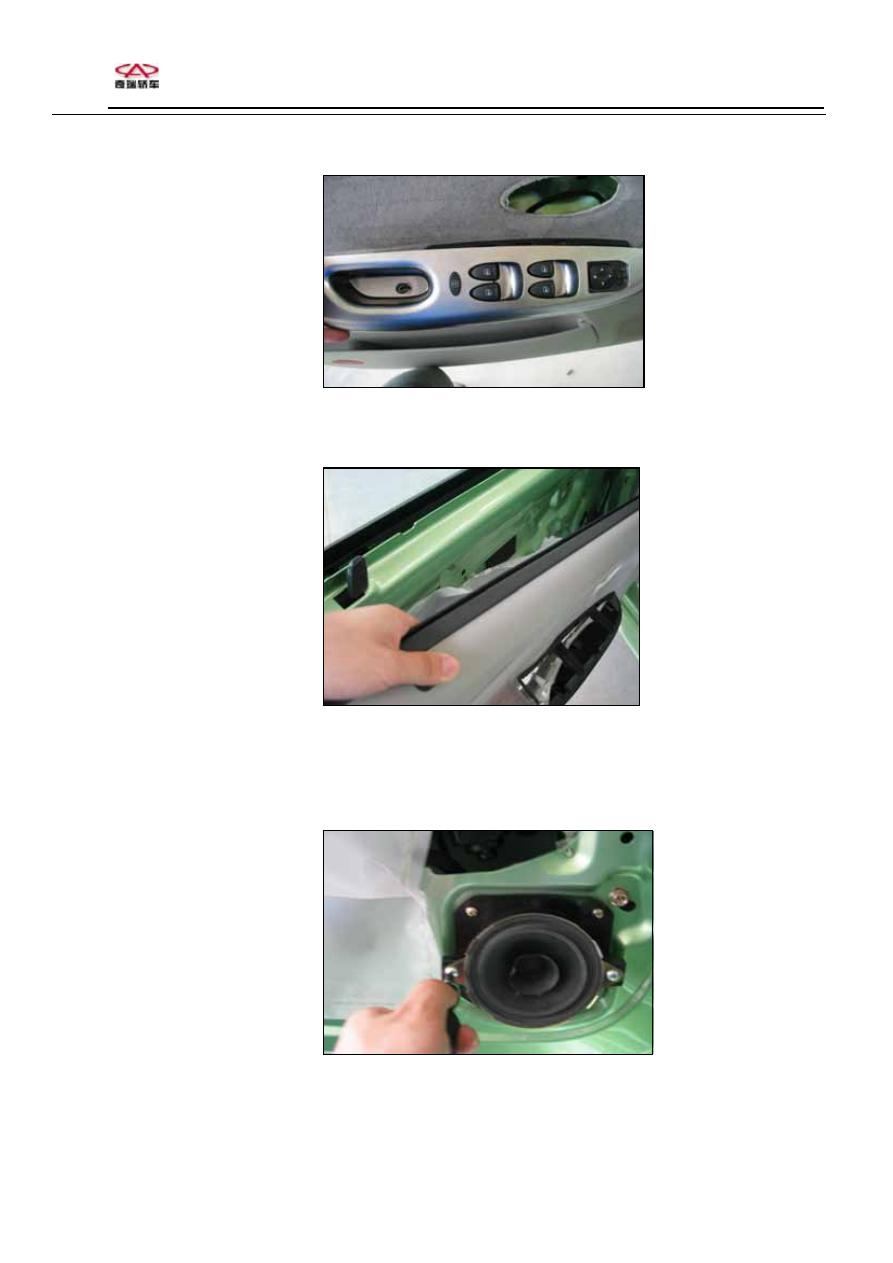

  (8)Take-off door fixed handle












(9)Take-off door inner panel












3.2.2Removal of Front door Horn
(1)  Remove the inner door panel; see “removal of the interior decorative panel”for reference.
(2)  Remove 4 set bolts of the horn.
(3) Remove the horn plug, take the horn out.















3.2.2  Removal of    front indoor light



50





Chery    QQ    Maintenance Manual                                          Body System

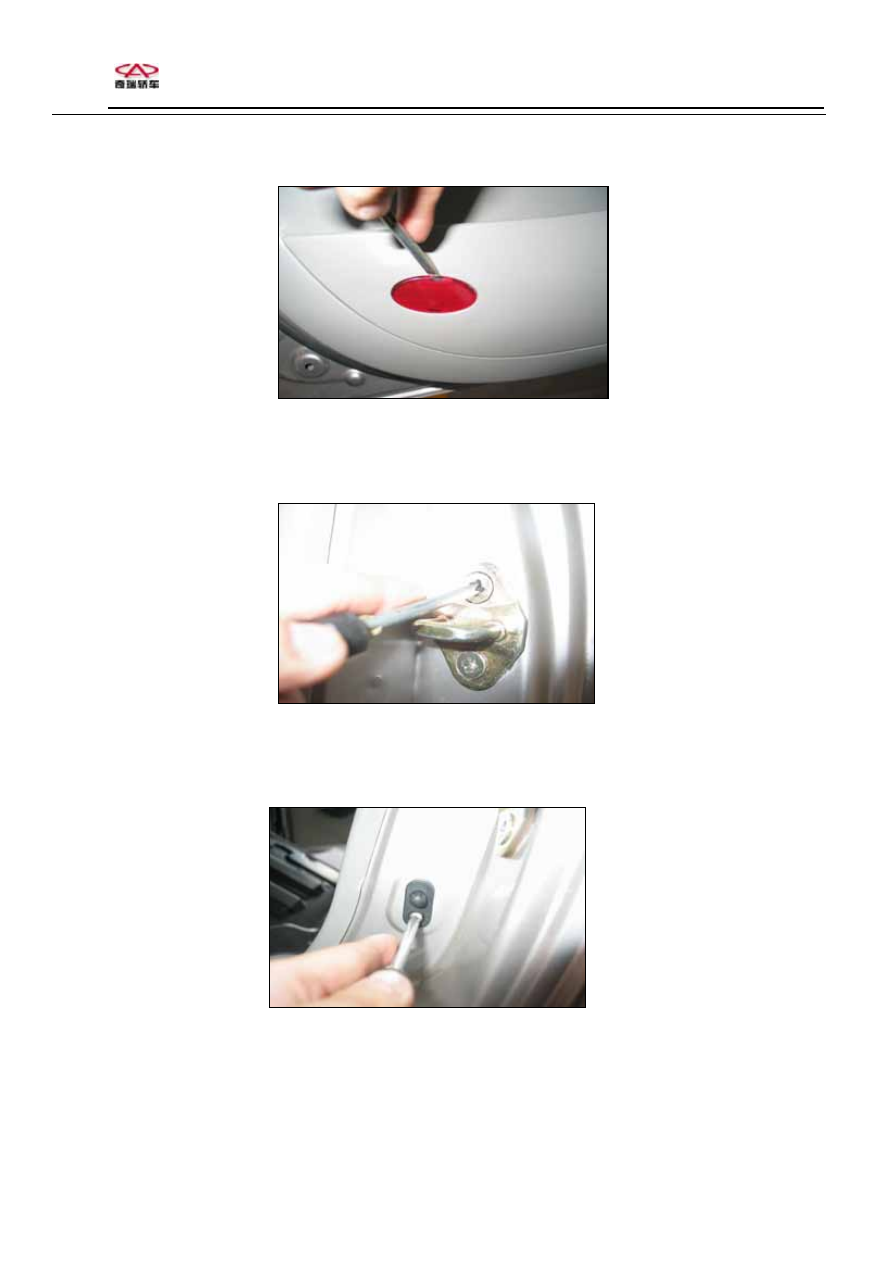

(1) Remove indoor lamp cover with flat screwdriver.
(2) Take the indoor lamp assembly out.











3.2.4 Removal of front door switch
(1) Remove set bolts of front door switch with Cross screwdriver.
(2) Take the door switch assembly out.










3.2.5 Removal of front door locks institution
(1) Remove 2 set bolts on the lock buckle with cross screwdriver.
(2) Take the lock buckle assembly out.













3.2.6 Removal of door check strap and set bolts of front door
(1)Remove Bolts on door check strap and vehicle body
