Chery    QQ    Maintenance Manual                                                    Body System

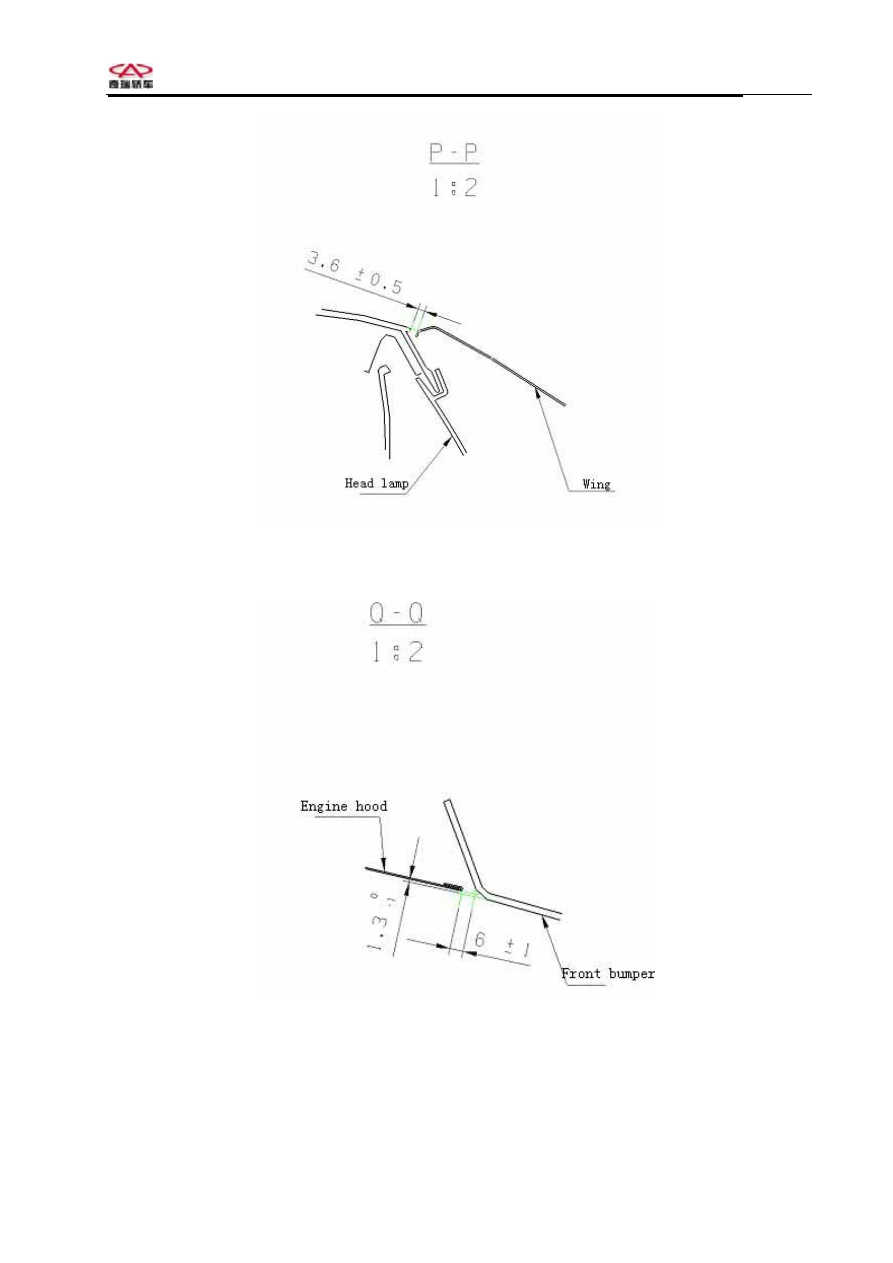

Q-Q The cross section, request of clearance and plane

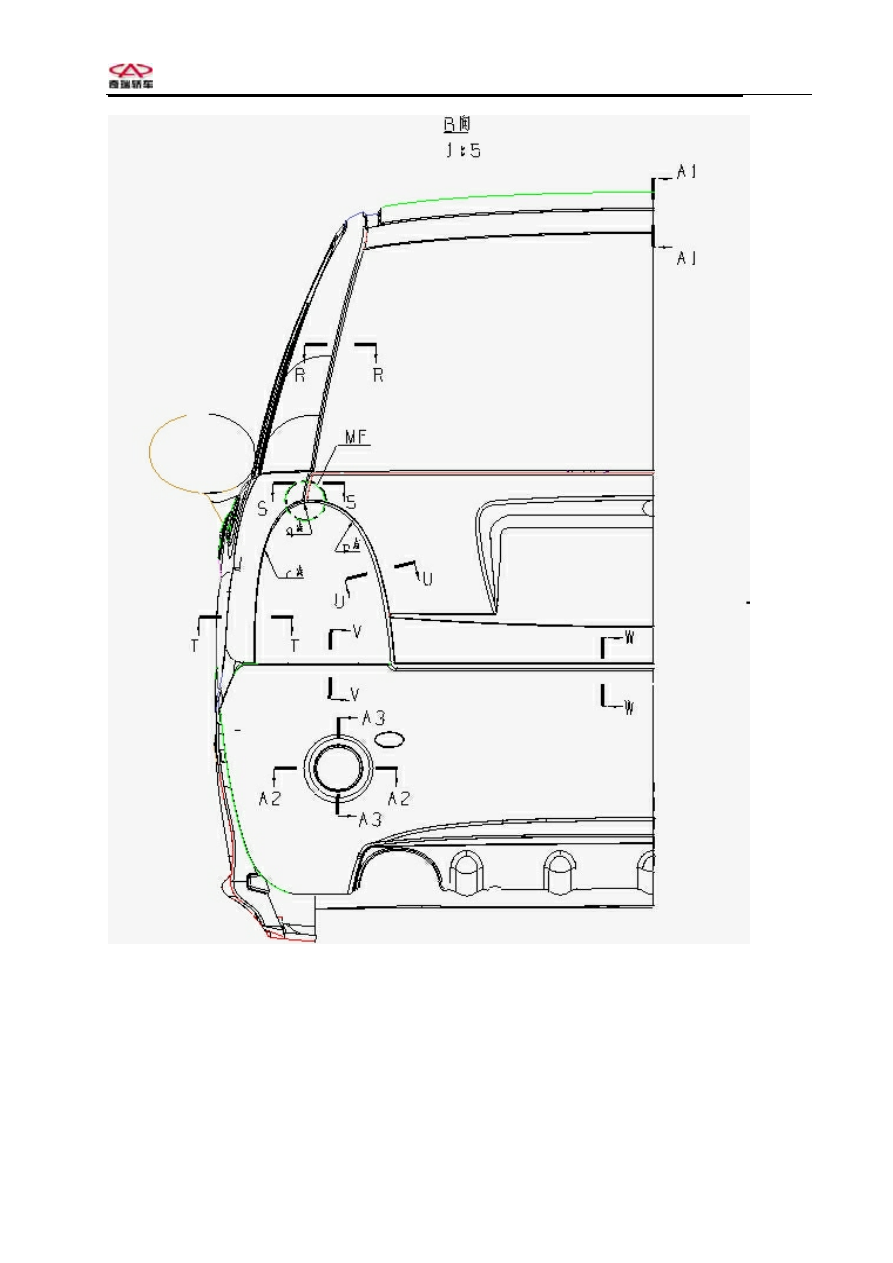

2.5.2.3 Rear view figure


- 31-





Chery    QQ    Maintenance Manual                                                    Body System










R-R The cross section, request of clearance and plane


- 32-





Chery    QQ    Maintenance Manual                                                    Body System

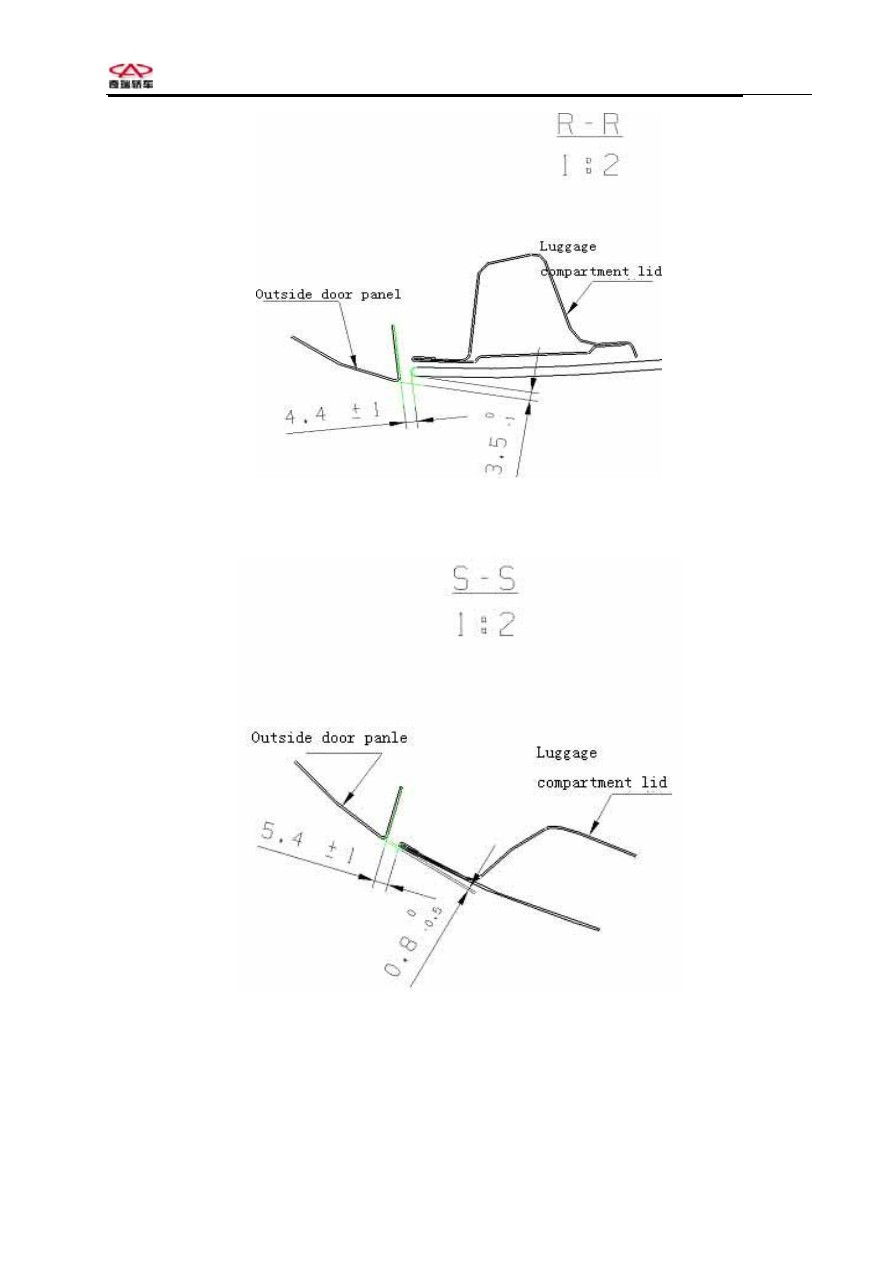

S-S The cross section, request of clearance and plane

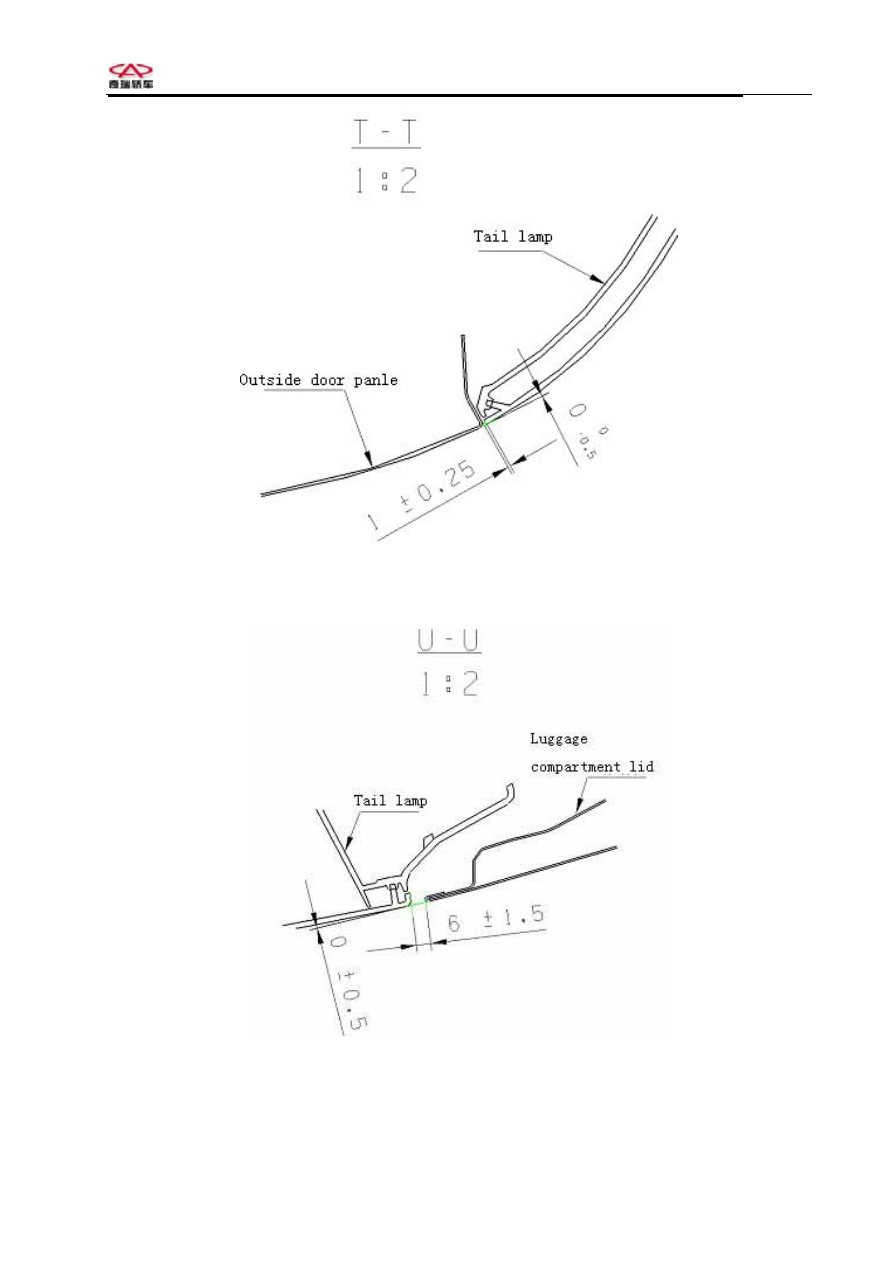

T-T The cross section, request of clearance and plane


- 33-





Chery    QQ    Maintenance Manual                                                    Body System






U-U The cross section, request of clearance and plane






V-V The cross section, request of clearance and plane


- 34-
