Chery    QQ    Maintenance Manual                                                    Body System














2.5.2 Dimension of vehicle body

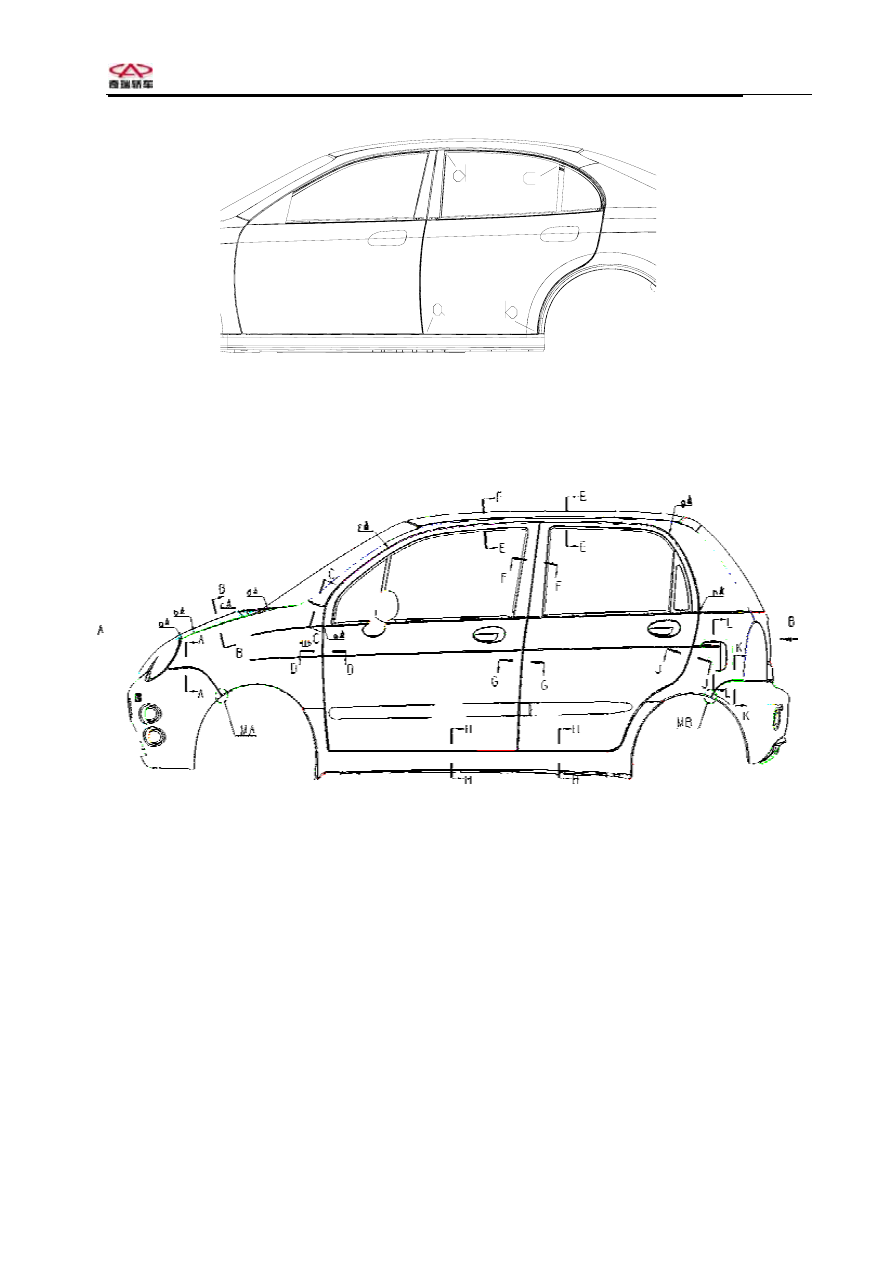

2.5.2.1 Side view



















In the illustration: point a to point b, point d to point c, alignment is transitive evenly from 0 to
1,point e to point f, point h to point g, the clearance is transitive evenly from 4 to 4.5.other The
cross section is introduced as follows:

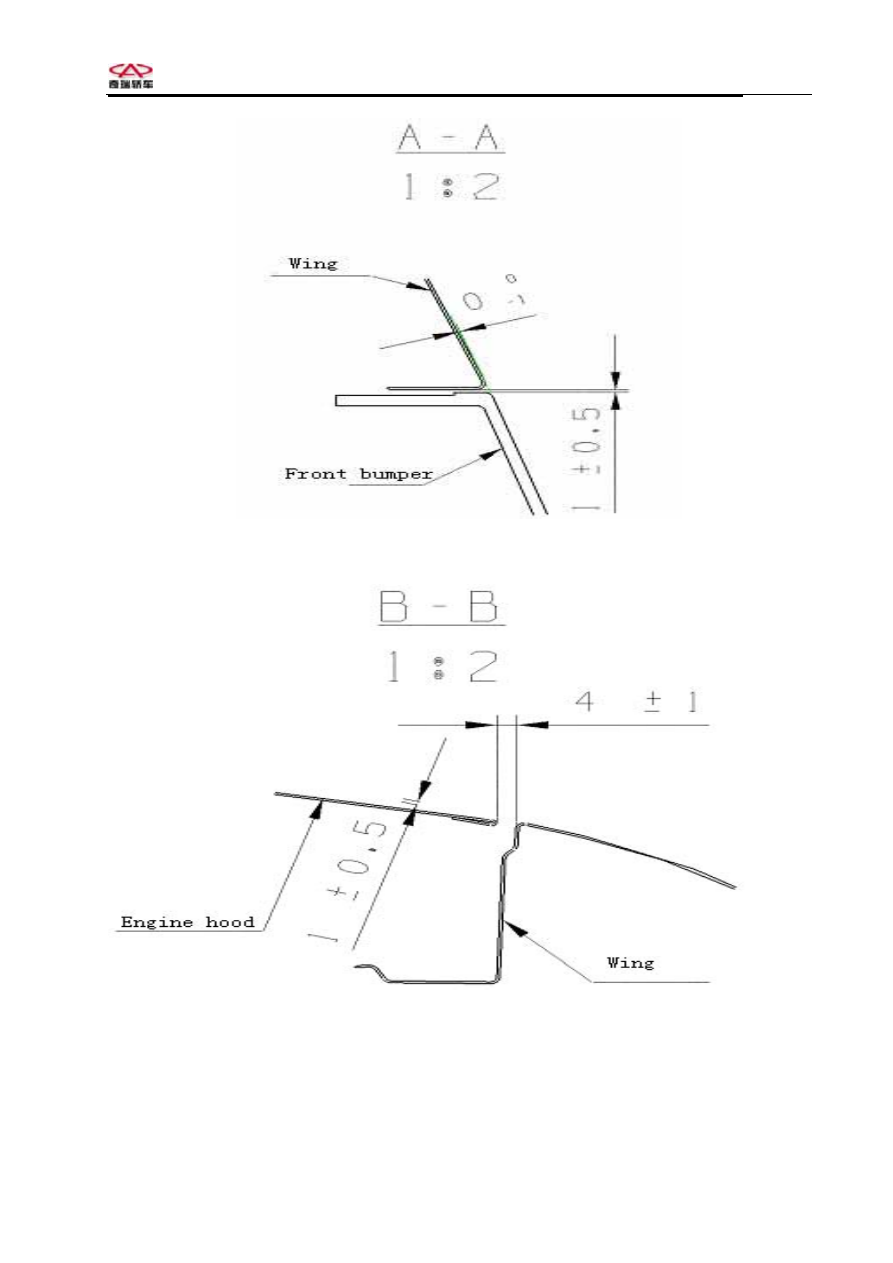

A-A The cross section, the request of clearance and plane








- 19-





Chery    QQ    Maintenance Manual                                                    Body System






B-B The cross section, request of clearance and plane

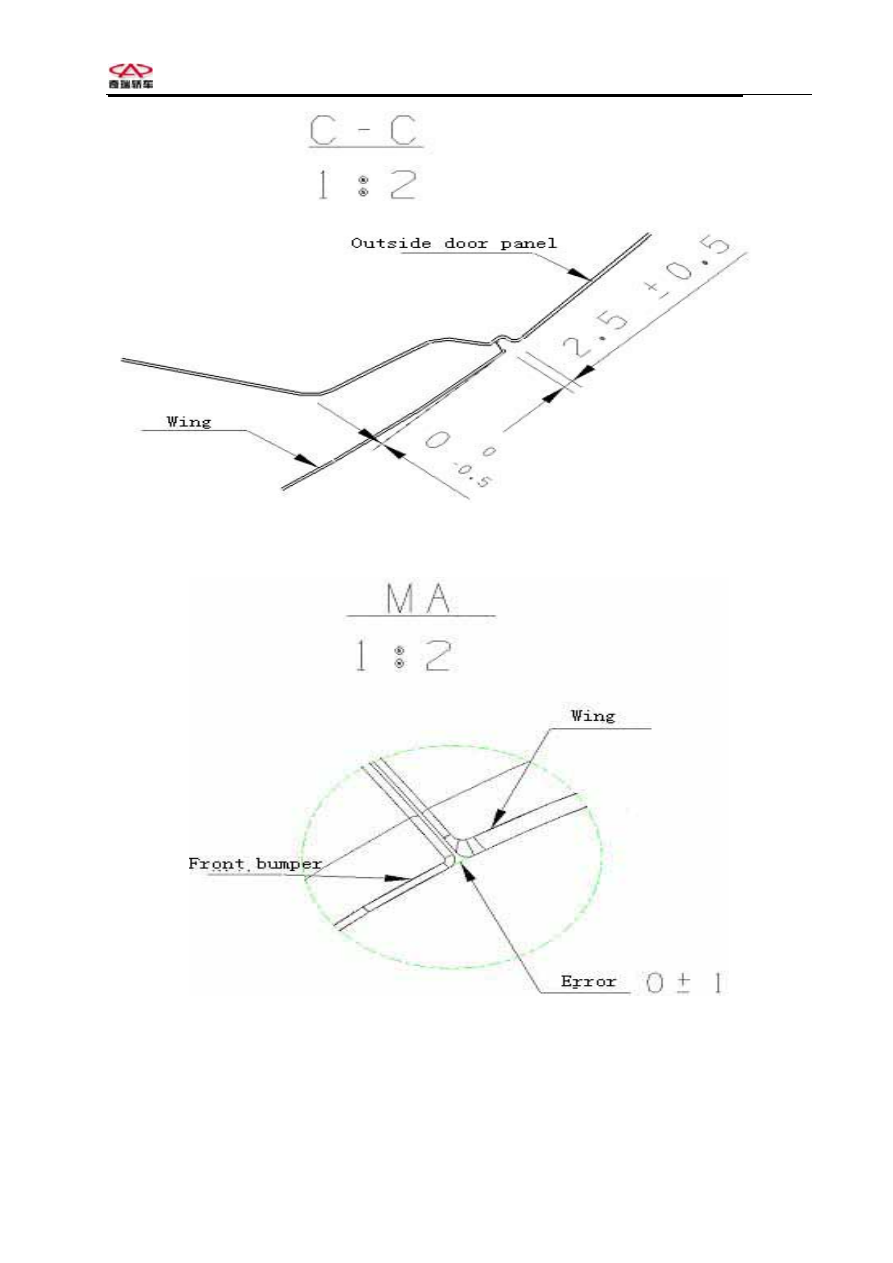

C-C The cross section, request of clearance and plane


- 20-





Chery    QQ    Maintenance Manual                                                    Body System







MA The cross section enlarging figure, request of plane is 0±1

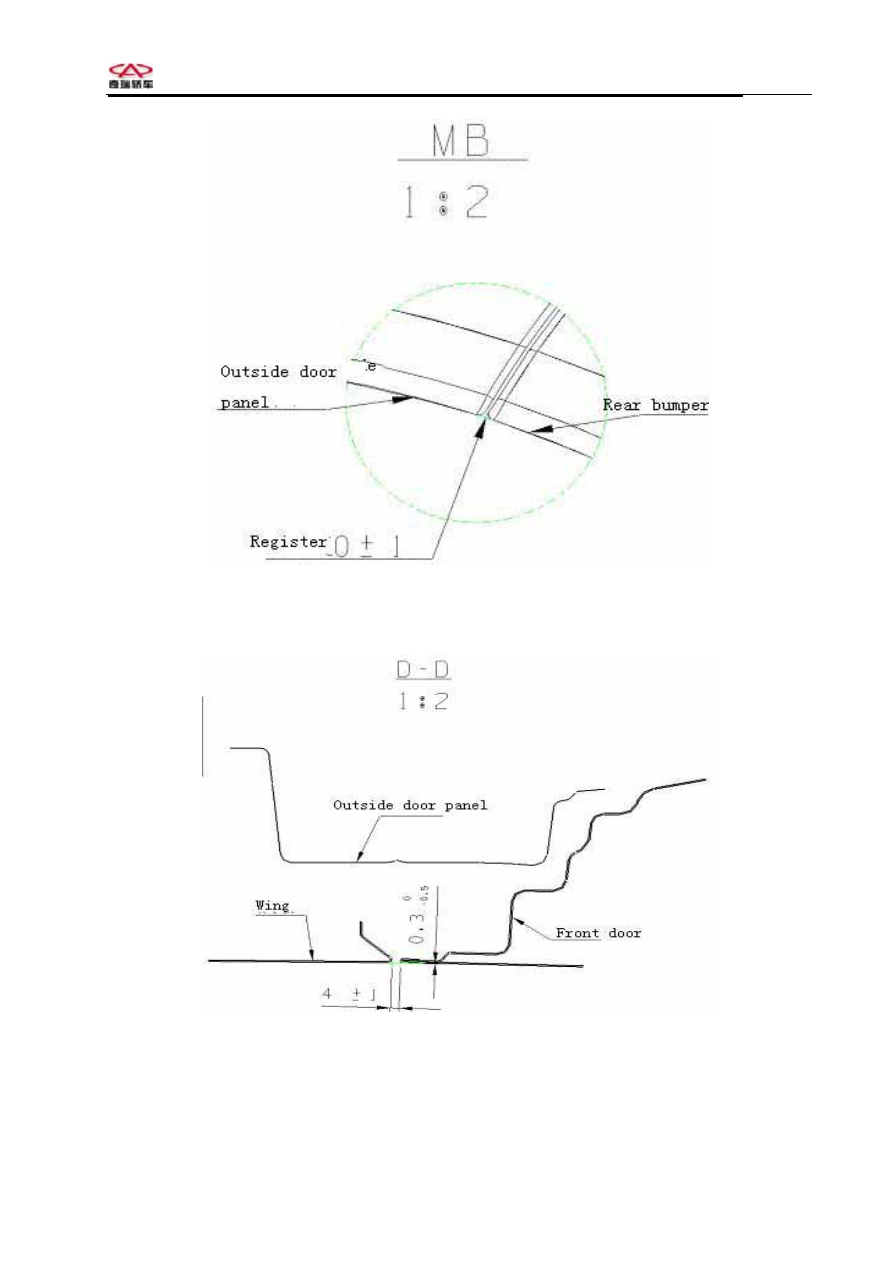

MB The cross section enlarging figure, request of plane is 0±1

- 21-





Chery    QQ    Maintenance Manual                                                    Body System






D-D The cross section, request of clearance and plane







E-E The cross section, request of clearance and plane
