Cherry  QQ  Maintenance Manual                  Body System

6 Tune-up right/left buttons of the engine hood to guarantee the normal clearance.

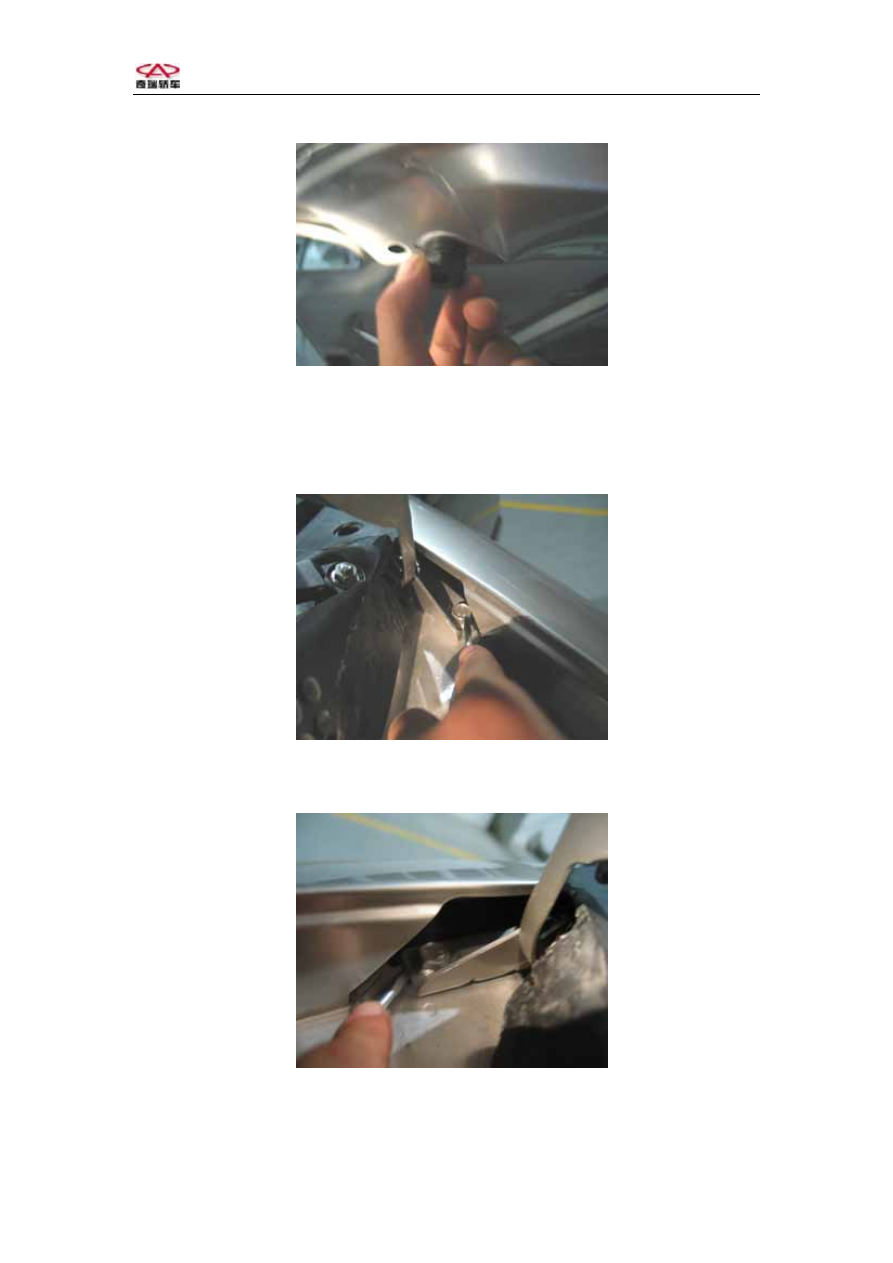

1.2.2 Removal of front engine hood hinge
1 Remove leaf plate (See the removal of leaf plate for reference)
2 Loosen 2 set bolts on the left.


















3 Loosen 2 set bolts on the right, take down engine hood hinge





















3

1.2.3 Replacement of bonnet support stay





Cherry  QQ  Maintenance Manual                  Body System

1 Disassemble the bonnet support stay from the bonnet, loosen the bolts, disassemble
the bonnet support stay from the bonnet.
Hint: Supporting the bonnet by hand, take out the bonnet.
2 Disassemble the bonnet support stay from the vehicle body, disassemble the bolts
and the bonnet support stay.
3 Replace the bonnet support stay.
4 Install the bonnet support stay
Torque: 22 N/.m

1.2.4 Adjustment of front engine hood
Loosen the set bolts of bonnet hinge, tune-up the bonnet forwards, backwards and
perpendicularly.
Torque: 11.5 N/m

1.2.5 Installation of bonnet locks control institution
1 Before installing the parts, smear the grease on the lock; smear the versatile grease
on the sliding surface of the lock.
2 Installation of control zipper of the bonnet lock
Hint: Use adhesive tape to wrap the tip of screwdriver to avoid rubber ring being
damaged.
(1)  Push rear end of control zipper to make it go through the rubber ring.
(2)  Use screwdriver to push the control zipper dog into rubber ring.
(3)  Clamp front end of the control zipper on junction box.
(4) Push the front end of the control zipper to go through radiator upper support.
3. Install engine hood lock release lever
4. Check if engine hood lock works normally
Check if engine hood lock works normally, then tighten the bolt and nut, install the
lock properly.
5. Install the following parts:

(1) Head

lamp

(2)  The front bumper lamp shade
(3)  The front fender lining
(4)  The front fender insertion strip
(5)  The radiator support shade
(6)  Engine lower cover plate













4

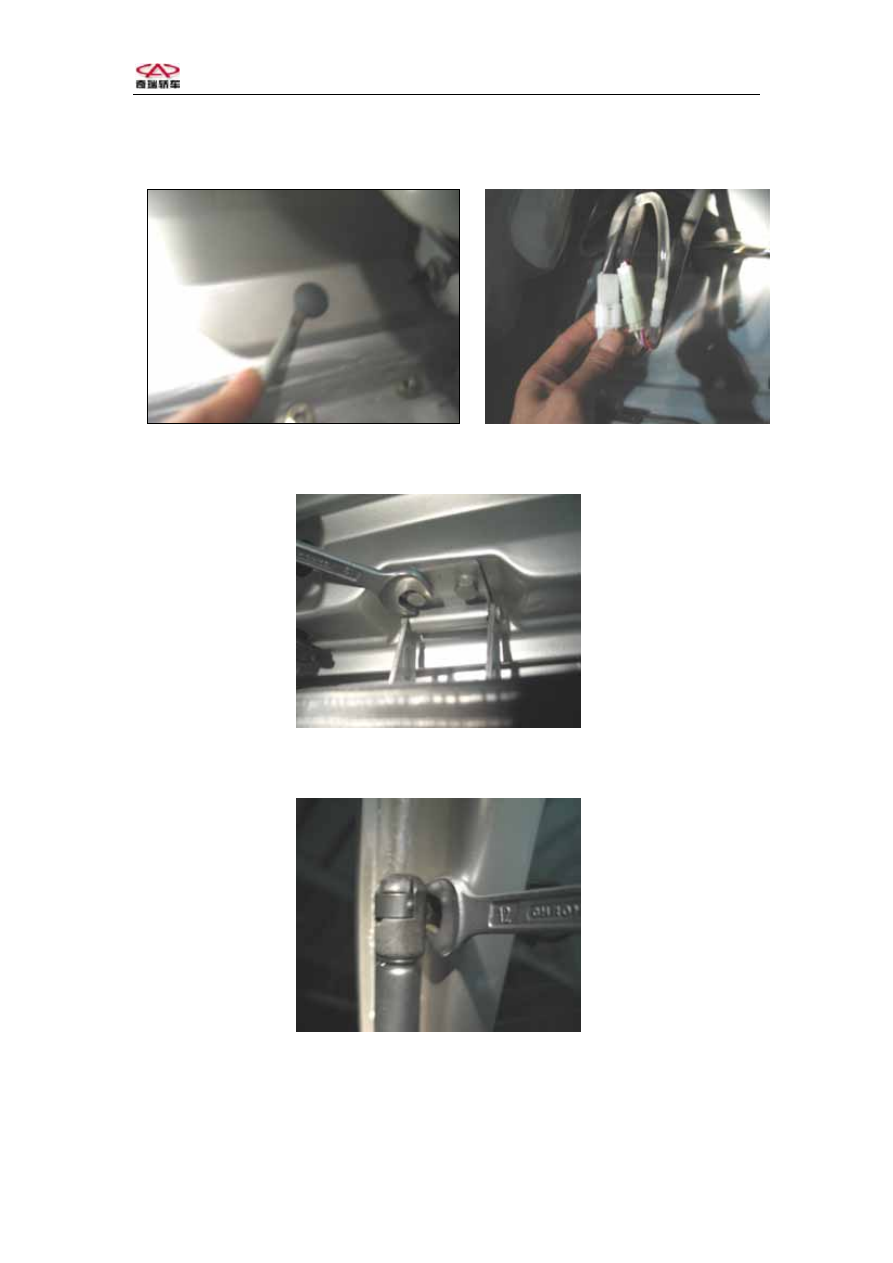

1.2.6 Removal of luggage trunk





Cherry  QQ  Maintenance Manual                  Body System

1 Loosen and take out 5 bolts on the left decorative plate.
2 Loosen the wire harness and wiper injector of the luggage trunk.





3. Support the luggage trunk by hand, loosen 4 set bolts of hinge.














4 Remove the hydraulic lever and take down the luggage trunk assembly.

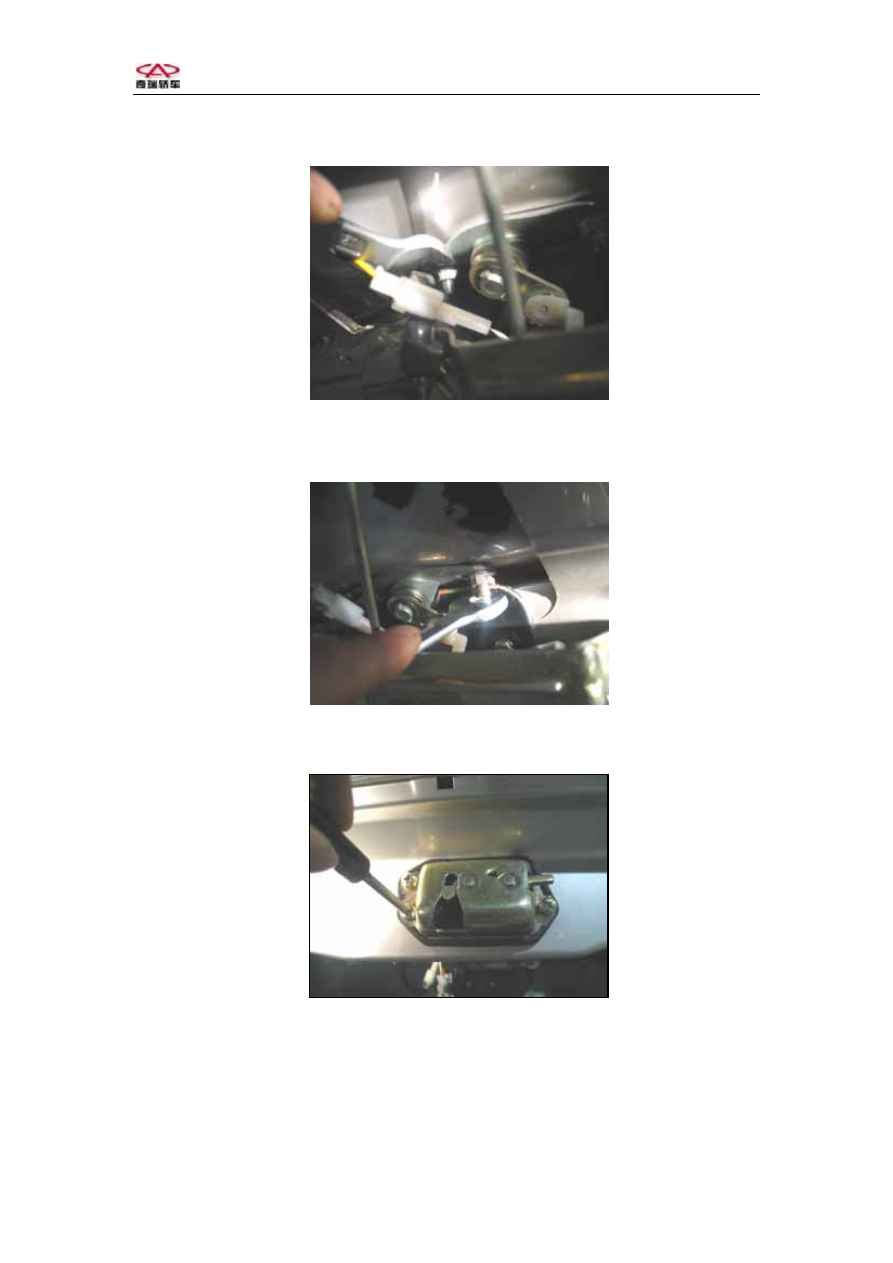

1.2.7 Removal of mechanical lock of the luggage trunk
1 Take the connecting rod apart.



5





Cherry  QQ  Maintenance Manual                  Body System

2 Loosen 2 set bolts, take out the mechanical lock from inside.
















1.2.8

Disassembly of luggage trunk lock

1 Loosen connecting rod
















2 Loosen 3 set bolts, remove the lock outwards and disconnect the electrical wire.















1.2.9 Disassembly of motor-driven switch
(1) Remove set bolts of rear luggage trunk.



6
