Chery QQ Service Manual                              BCM Computer Control System





④

Stop condition of the door windows: it is the same as that of power windows. In the

stepping mode, once another switch is turned on, the operation (of lowering switch in

raising operation/lowering switch/raising switch in raising operation) stops.



2. Supplying circuit of power window (see theftproof computer)



3. Inspection of the circuit of the power window

（

1）In this circuit, for the BCM computer (theftproof computer) controlled power

window, the direction of the current through the power window motor is changed

automatically to make the motor rotating clockwise or anticlockwise, so that the door

window is raised or lowered.

（

2）If the start-up switch turned on, the BCM computer (theftproof computer) actuates

the power window by supplying operating signal to the power window switch.

（

3）If the start-up switch turned off, the BCM computer (theftproof computer) actuate

the power window relay within the operating delay of 30s, i.e. after the start-up switch

turned off, all the door windows can be actuated within 30s.

（

4）Push the power window switch upward or downward (over 0.3s), the BCM

computer (theftproof computer) instructs with signal to supply forward or backward

current, so as to rotate the power window motor clockwise or anticlockwise.

（

5）With the start-up switch on, push the power window switch upward or downward,

check if there is forward or backward current output on the terminals of the BCM

computer (theftproof computer). If not, the switch is defective, if voltage is output

thereon, but the power window wouldn’t rise or lower, then the power window motor is

defective.



The power window hoister





4.

Inspection and Repair

 of Electric Components

（

1）control device of the power window

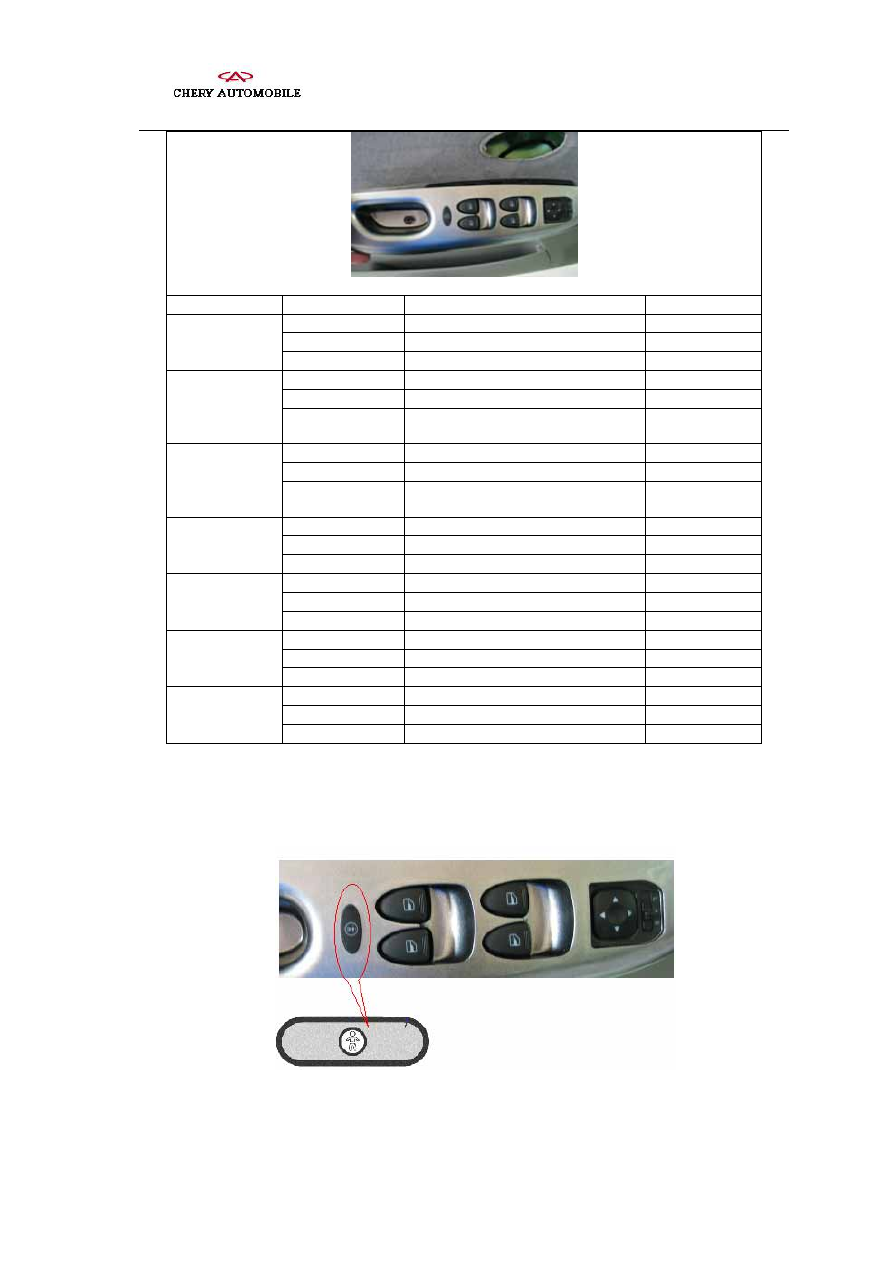

Check the conductance of the power window main switch as shown in the figure. If it

does not conform to the figure, replace the power window main switch.





- 112 -



Chery QQ Service Manual                              BCM Computer Control System









switch switch

position

Connection to the instrument

conductance

UP 13-12 Yes

OFF 3-12 Yes

Switch on the

driver side

DOWN 14-12  Yes

UP

5-12  3-12  5-3

Yes

OFF 3-12 Yes

Switch on the

by-driver

side(window

unlocked)

DOWN

6-12  3-12   3-6

Yes

UP 5-12 Yes

OFF -

Switch on the

by-driver

side(window

locked)

DOWN 6-12  Yes

UP

9-12  3-12  9-3

Yes

OFF 3-12 Yes

Rear left

switch(window

unlocked)

DOWN

10-12  3-12  3-10

Yes

UP 9-12 Yes

OFF -

Rear left

switch(window

locked)

DOWN 10-12  Yes

UP

1-12  3-12  1-3

Yes

OFF 3-12 Yes

Rear right

switch(window

unlocked)

DOWN

2-12  3-12  2-3

Yes

UP 1-12 Yes

OFF -

Rear right

switch(window

locked)

DOWN 2-12  Yes



Figure    Inspection of conductance of power window main switch



（

2）window secure switch

















- 113 -



Chery QQ Service Manual                              BCM Computer Control System





switch

position

connection to the

instrument

conductance

ON 12-11

Yes

Front driver side secure

switch

OFF 3-12

Yes



On the door interior panel of the drive side, an rear window secure switch button is

provided. Push the button, the power windows switches of the by-driver side and the

both rear door windows are deactivated. Then the corresponding window switches can

only be controlled from the window switch on the driver side.

Description of the switches

Among all the four doors, the control switch for the other three doors, rearview mirror

adjust switch and secure switch are only provided on the front left door.

Note:  with the secure switch the switched on the rear doors can be locked. Only when

the secure switch is pulled out, the rear windows can be opened and closed with these

switches.

（

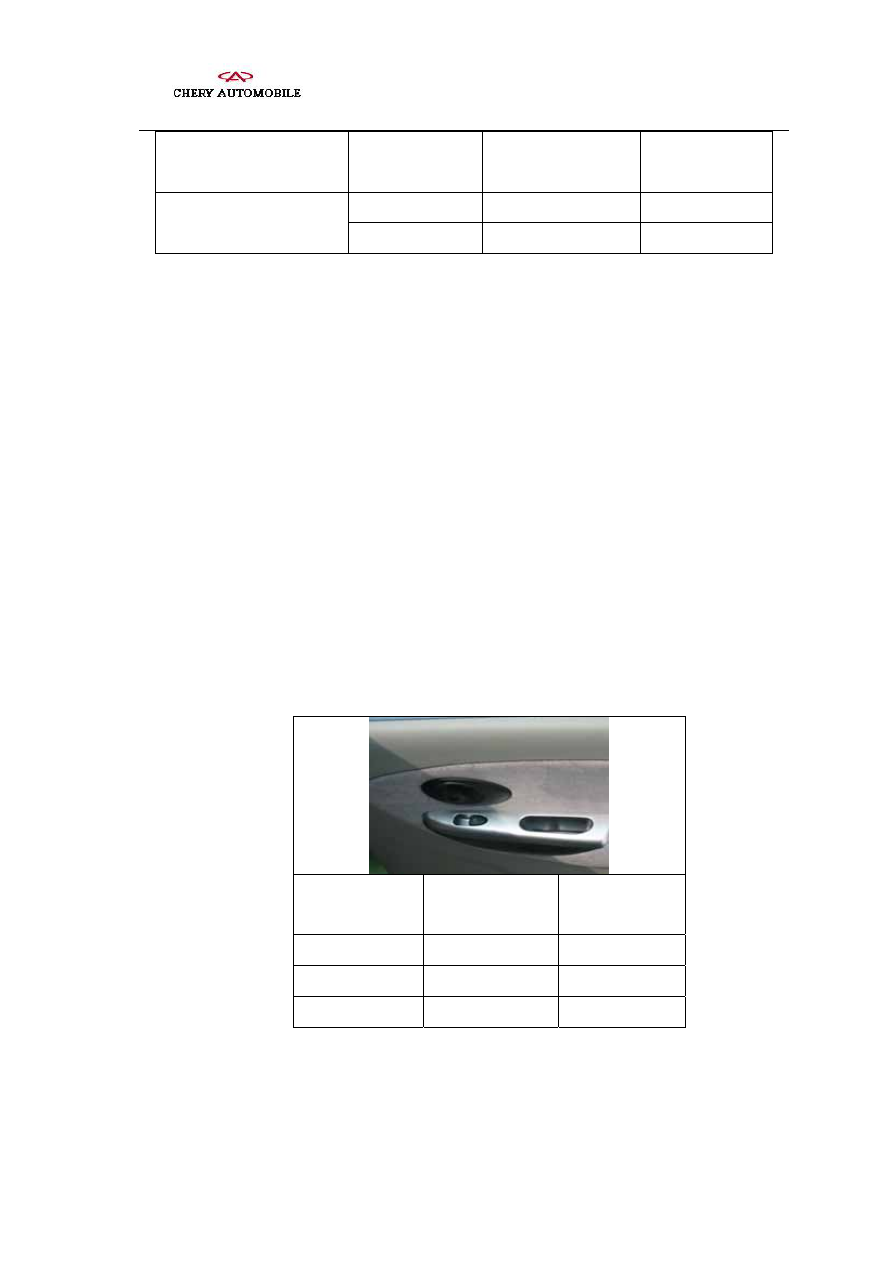

3）Check the conductance of switches on the passenger door window, rear left door

window and rear right window as shown in the figure. If it does not conform to the figure,

replace the power window switch.



Switch position

Connection to

the instrument

Conductance

UP 1-5 Yes

OFF -

DOWN 3-5  Yes


Inspection of conductance of power window switch



（

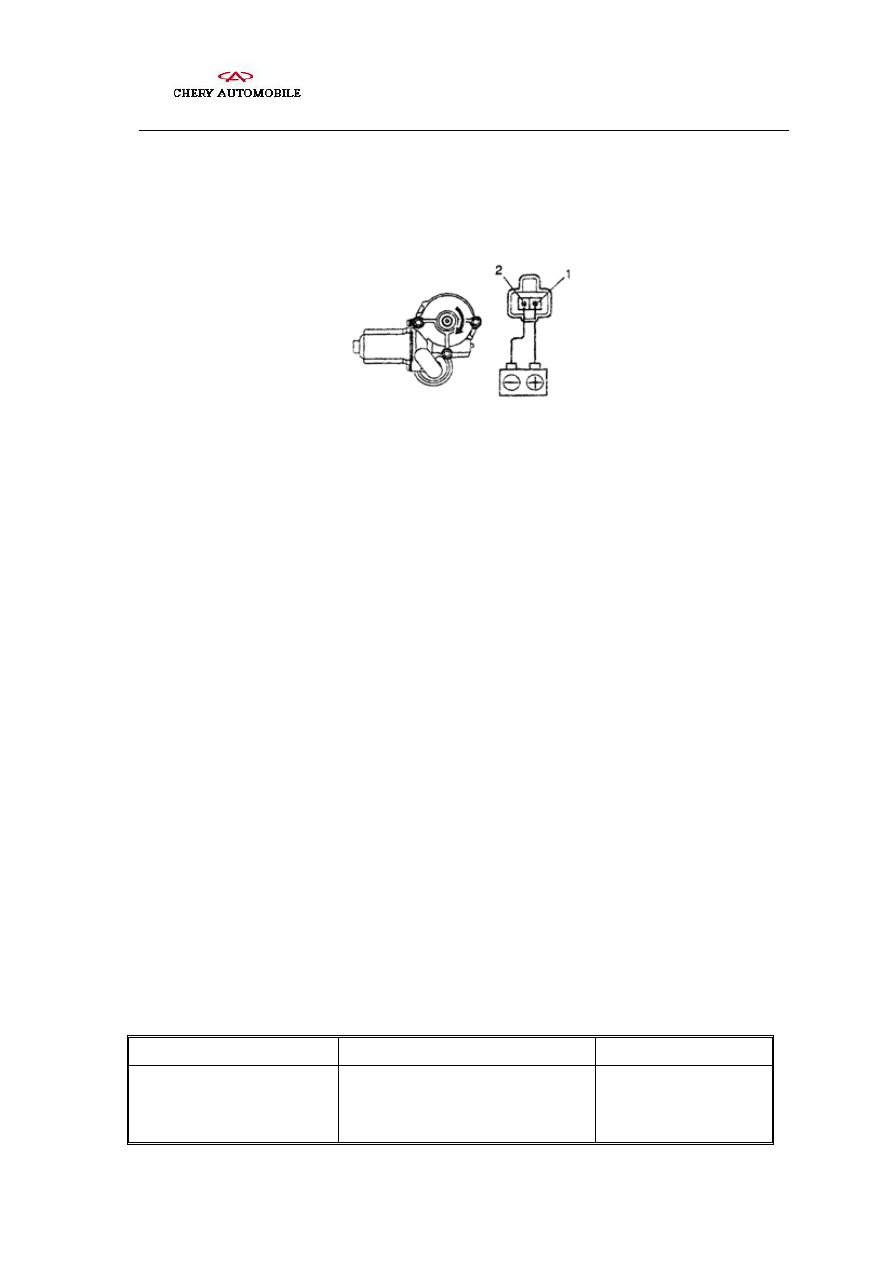

4）Inspection of conductance of power window motor on the front left door

Connected the terminal 1 to positive pole of the secondary cell, the terminal 2 to the

- 114 -



Chery QQ Service Manual                              BCM Computer Control System





negative pole of the secondary cell, and check if the motor rotates clockwise as shown in

the figure; connect the terminals reversely, check if the motor rotates anticlockwise. If

the result is not as mentioned, replace the front left power window motor.





Figure      Inspection of left front door motor







（

5）Inspection of conductance of power window motor on the front right door

Connected the terminal 2 to positive pole of the secondary cell and the terminal 1 to the

negative pole of the secondary cell, and check if the motor rotates clockwise as shown in

the figure; connect the terminals reversely, check if the motor rotates anticlockwise. If

the result is not as mentioned, replace the front left power window motor.

（

6）Inspection of conductance of power window motor on the rear left door

Connected the terminal 1 to positive pole of the secondary cell, the terminal 2 to the

negative pole of the secondary cell, and check if the motor rotates clockwise as shown in

the figure; connect the terminals reversely, check if the motor rotates anticlockwise. If

the result is not as mentioned, replace the rear left power window motor.

（

7）Inspection of conductance of power window motor on the rear right door

Connected the terminal 1 to positive pole of the secondary cell, the terminal 2 to the

negative pole of the secondary cell, and check if the motor rotates clockwise as shown in

the figure; connect the terminals reversely, check if the motor rotates anticlockwise. If

the result is not as mentioned, replace the rear left power window motor.

（

8）Typical troubleshooting of power windows

Table    Typical troubleshooting of power windows

symptom

possible reasons

solution

Start up switch on, power

window does not work

FuseFuse blowing out
power window switch

theftproof computer

replace

repair or replace
repair or replace
