Section 2 Lamplight System Operation Guide



Please abide by relating Highway Code when use lighting facilities below.

1. Small lamp, headlight switch













OFF – close vehicle outside lamp

1

st

 gear

  - lighten parking lamp/sidelights, illuminating lamp of instrument and

switch, license plate lamp.

2

nd

 gear



  – lighten headlight (lower beam or upper beam).

Notice:  only open the ignition switch, headlight can work. Headlight put out

automatically if the ignition switch has been closed.

2. Headlight change beam switch





With headlight low beam on, headlight upper beam will be turned on when control

- 38 -



Chery QQ Service Manual



lever is pushed towards dashboard and upper beam indicator light will light up

simultaneously. Headlight low beam will be lit up when control lever is pulled back

to original position.。

3. Headlight glitter switch




If you want headlight glitter when you drive, you can pull control lever towards
steering wheel to the change point, then control lever may be released. Repeat this
action time after time, headlight can glitter continuously.







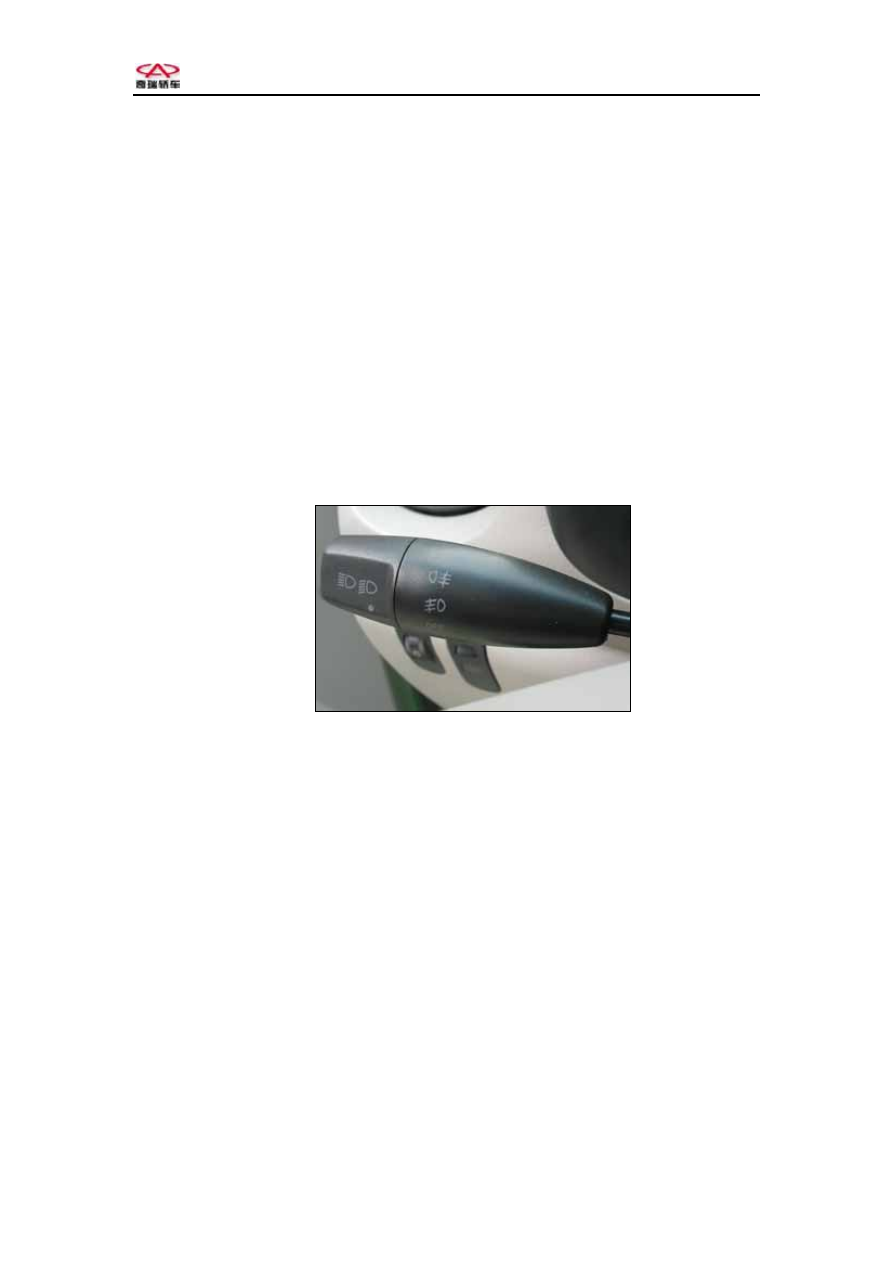

4. Front foglight / rear foglight switch





Front foglight switch and rear foglight switch are located on the headlight change

beam switch and at left lower of the steering wheel.

- 39 -



Chery QQ Service Manual



With the headlight switch on, turn on the front foglight switch, front foglight can

operate but rear foglight can not.

With the headlight switch on, turn on the rear foglight switch, rear foglight can

operate with front foglight simultaneously.

When front foglight operate, the front foglight switch inner indicator lamp will

illuminate.

Rear foglight are allowed to apply only when there is a very low visibility (with a

visibility distance less than 50 meters) for their stronger dazzle.

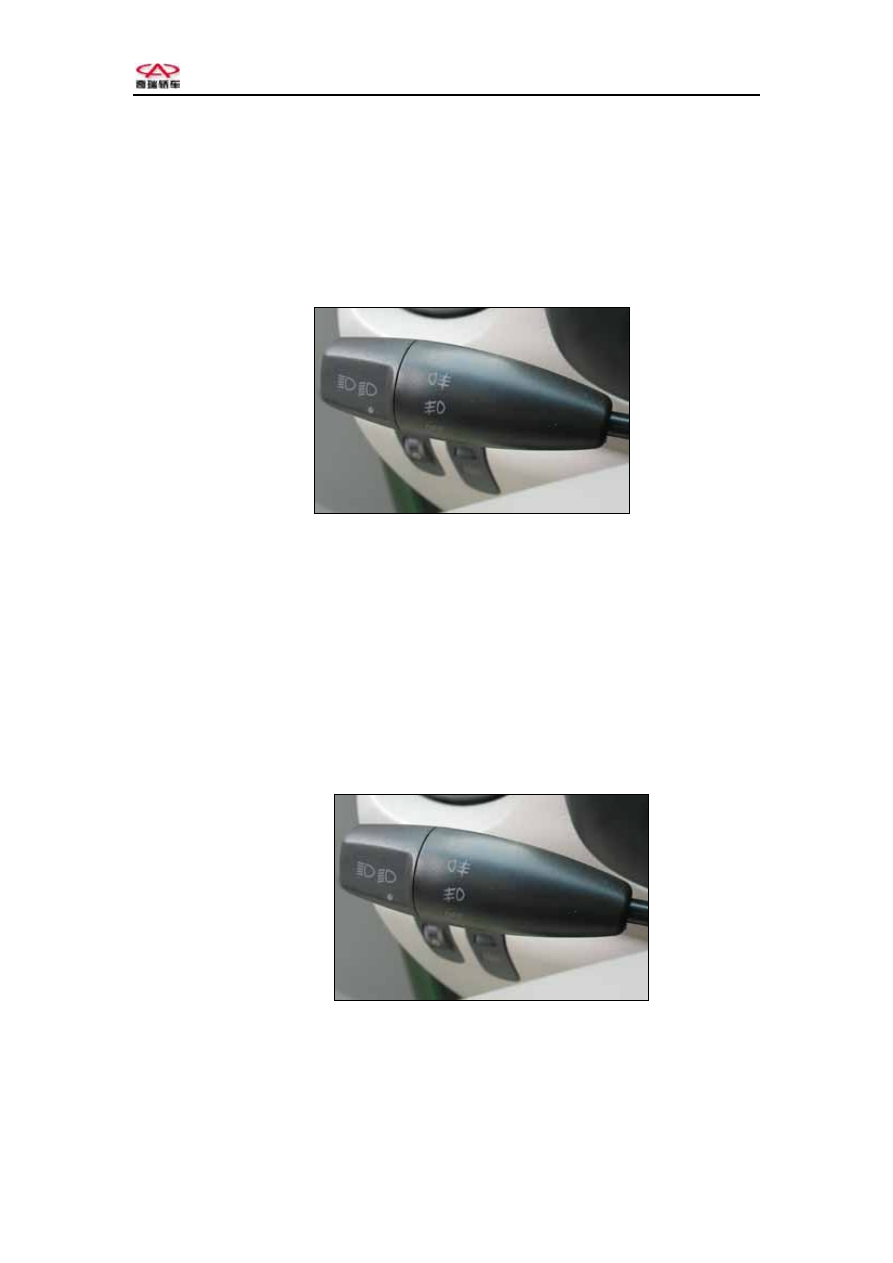

5. Turn signal light switch





Turn signal lights may work only when ignition switch is turned on.

Left turn signal light—move the handle downwards

Right turn signal light—move the handle upwards

When turn signal light is turned on, turn signal indicator light flash simultaneously.

- 40 -



Chery QQ Service Manual



Change driveway signal light









Pull the handle upwards or downwards to change point and hold on, corresponding

turning light will flash. At the same time, the turn signal indicator light of

corresponding direction on the instrument panel will flash simultaneously.

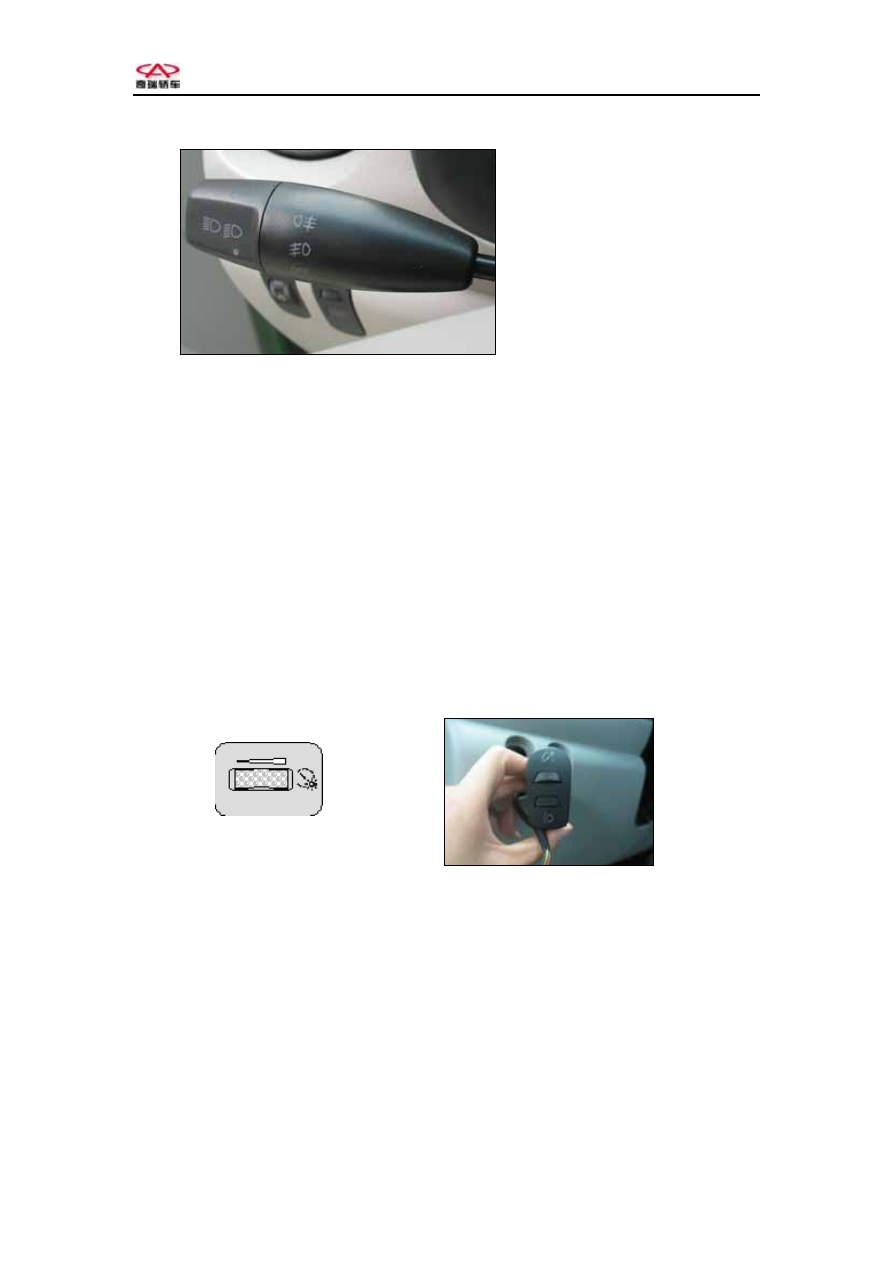

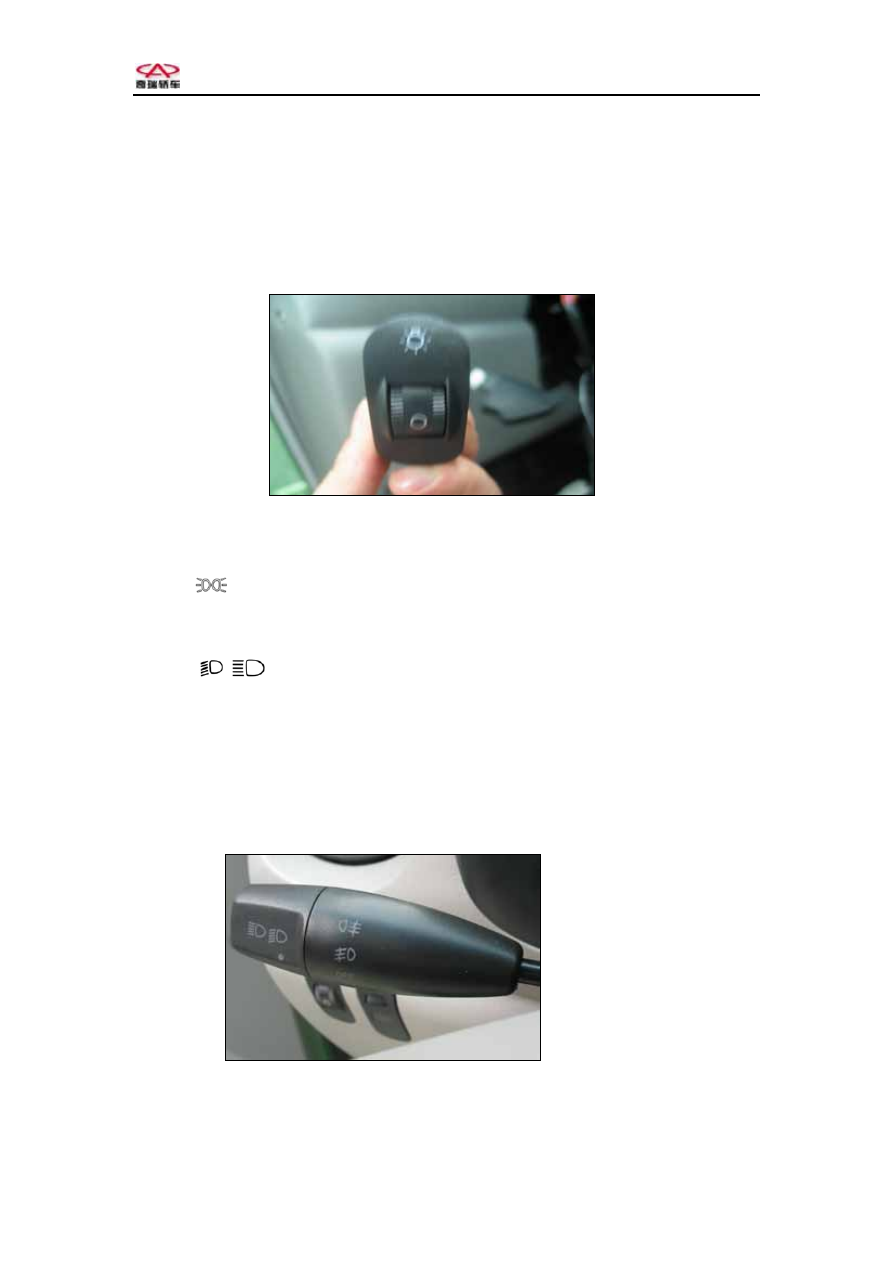

6. Regulator of instrument illumination and headlight beam

height











With the headlight switch on, you can use regulator to adjust the intensity of

instrument panel indicator light.

When you operate the vehicle exterior lamp, you can use regulator to adjust the

illumination intensity of instrument panel.

When you operate the lower beam light, you can use regulator to adjust the beam

height of the headlight.
