Chapter Two Decomposition of QR513 Transmission I. Decomposition Process for QR513 Transmission 1. Bleeding lubricant in transmission First, drive the vehicle onto a maintenance platform or hoist the vehicle and keep it on a horizontal plane, screw off the bleeding plug as shown by the arrowhead, and then use a clean container to accommodate lubricant of the transmission to completely bleed the lubricant in the transmission.

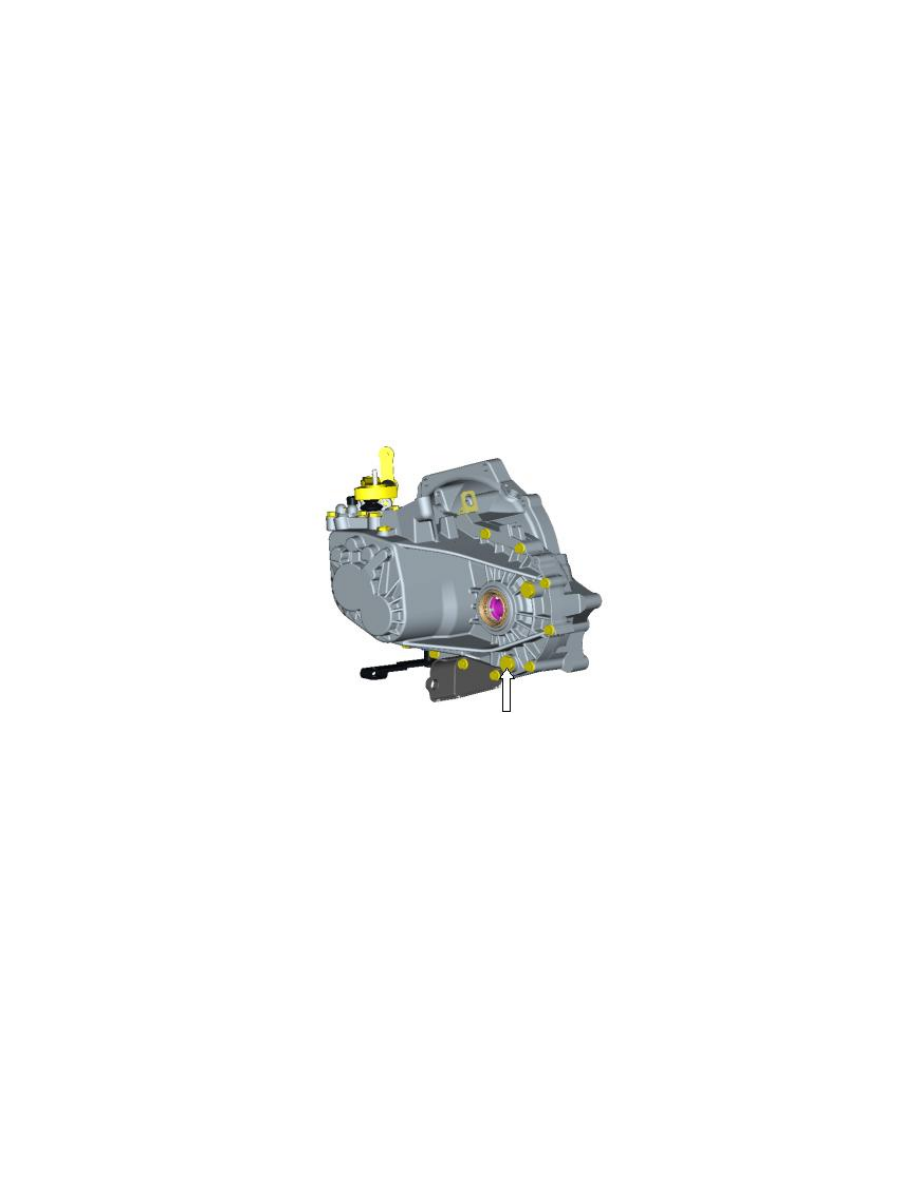

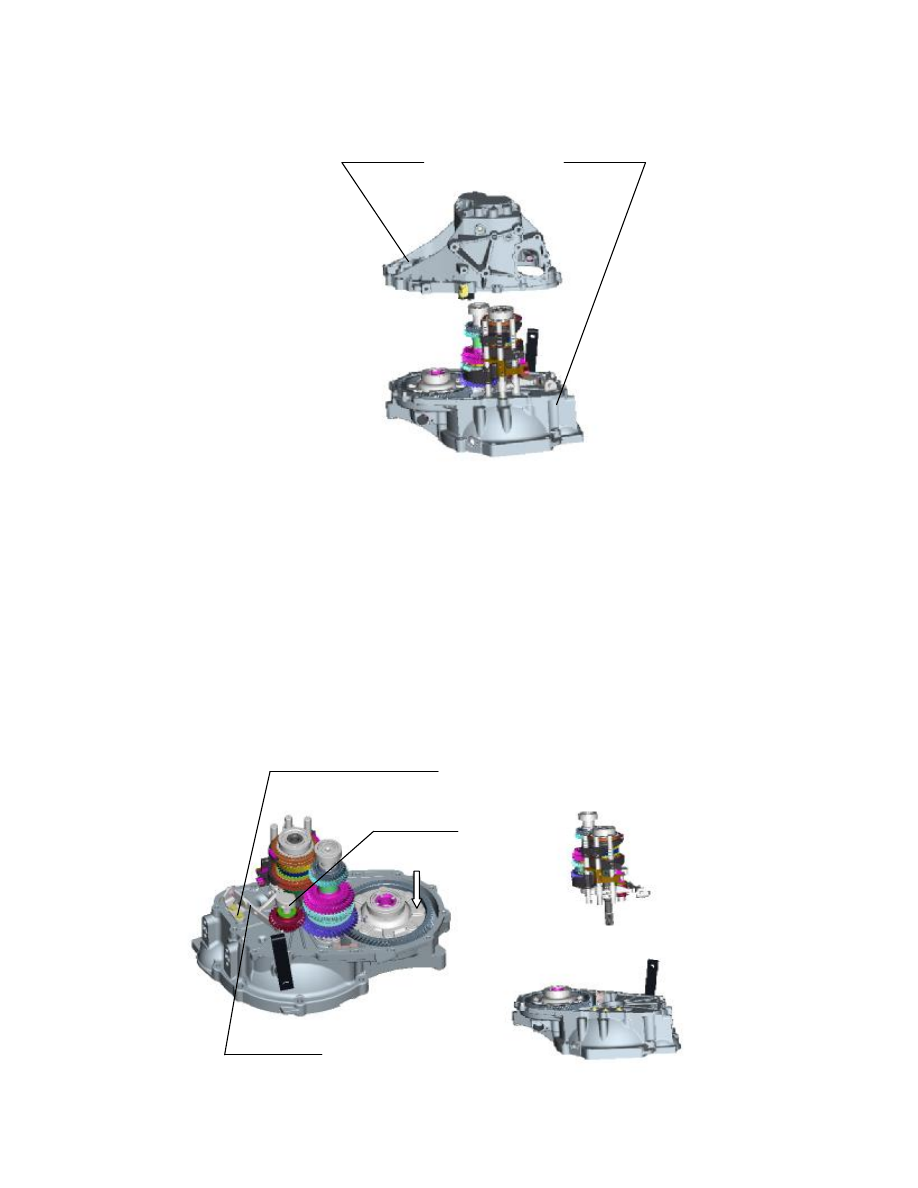

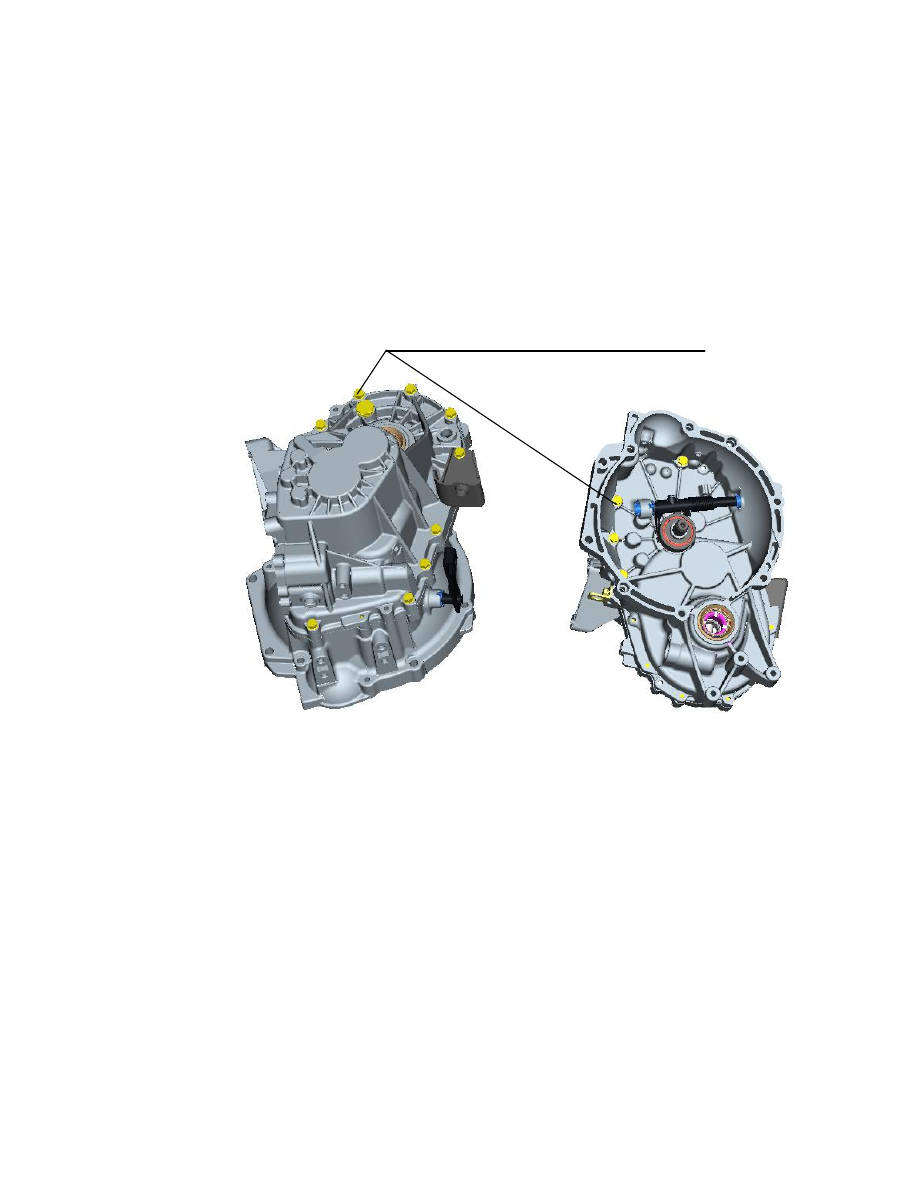

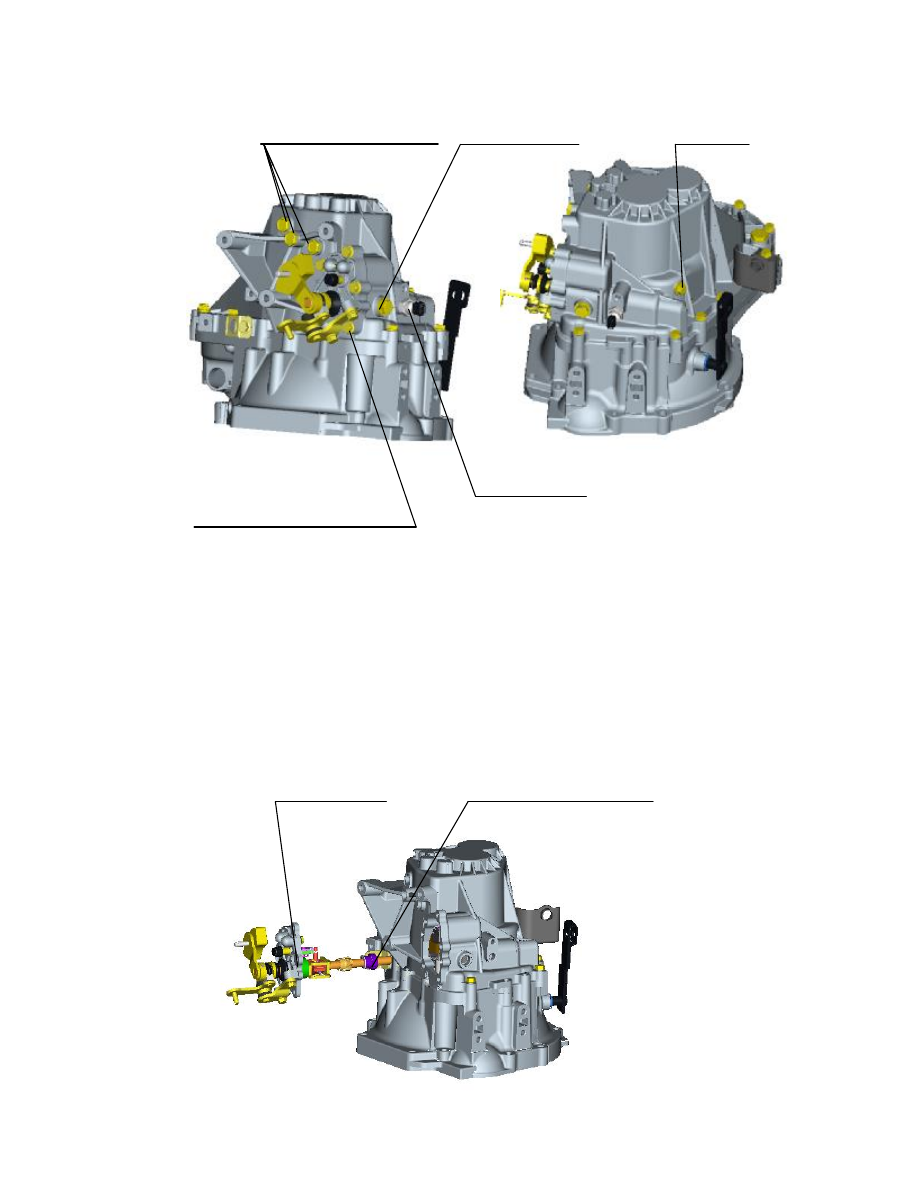

Figure 1 2. Disassembly of external parts of transmission Switch the transmission to NEUTRAL position; use an appropriate tool to remove the locating seat of the fork shaft as shown in Figure 2; Connecting bolts for gearshift housing and transmission housing and the screws for backup lamp switch and idler shaft.
|
