Chery QQ6 (S21) / S12LHD. Manual - part 160







127

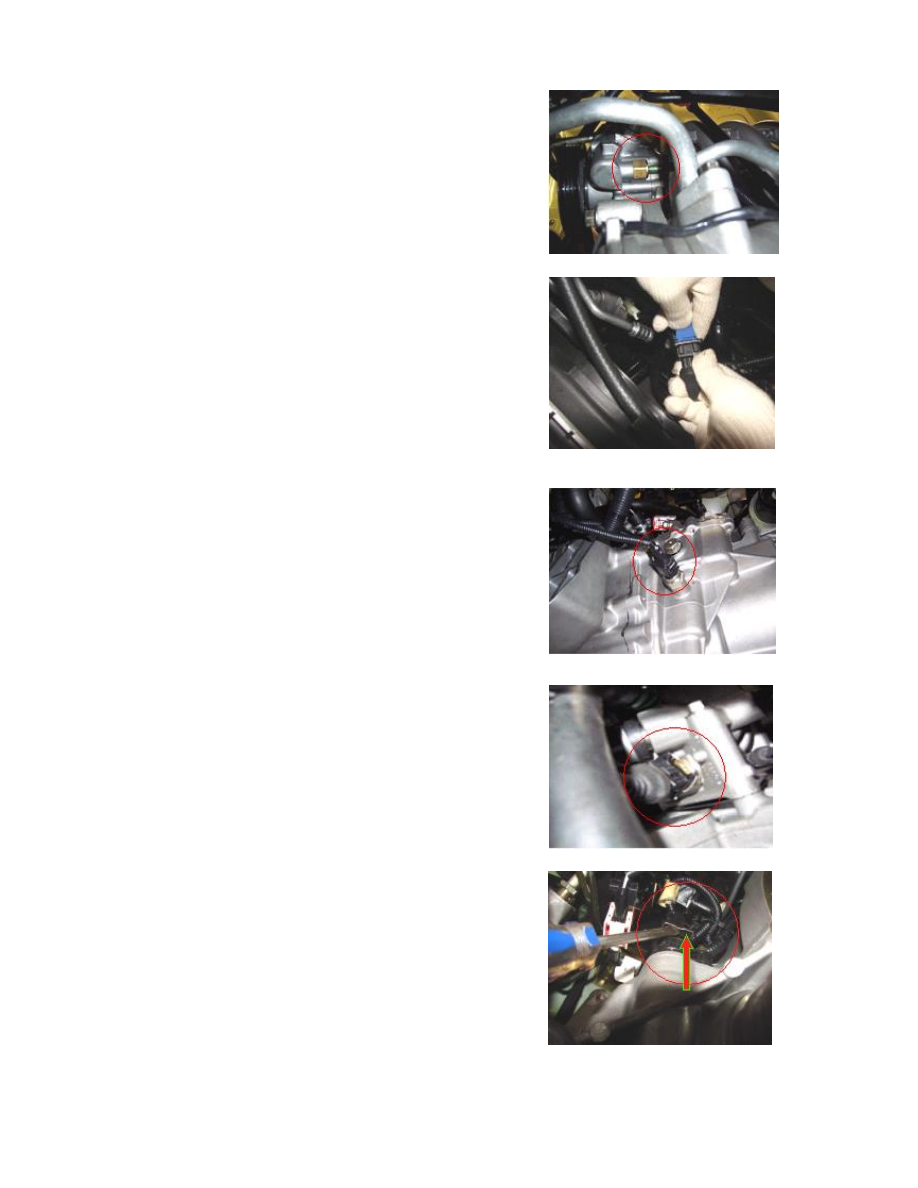

2.1.11. Disassemble the power steering pump connector.










2.1.12. Disassemble the knock sensor connector.












2.1.13. Disassemble the reverse light switch connector.









2.1.14. Disassemble the water thermostat connector.











2.1.15. Disassemble the  front/rear oxygen sensor connector. Simply
pull out the red lid on the connector as shown in the figure.








128

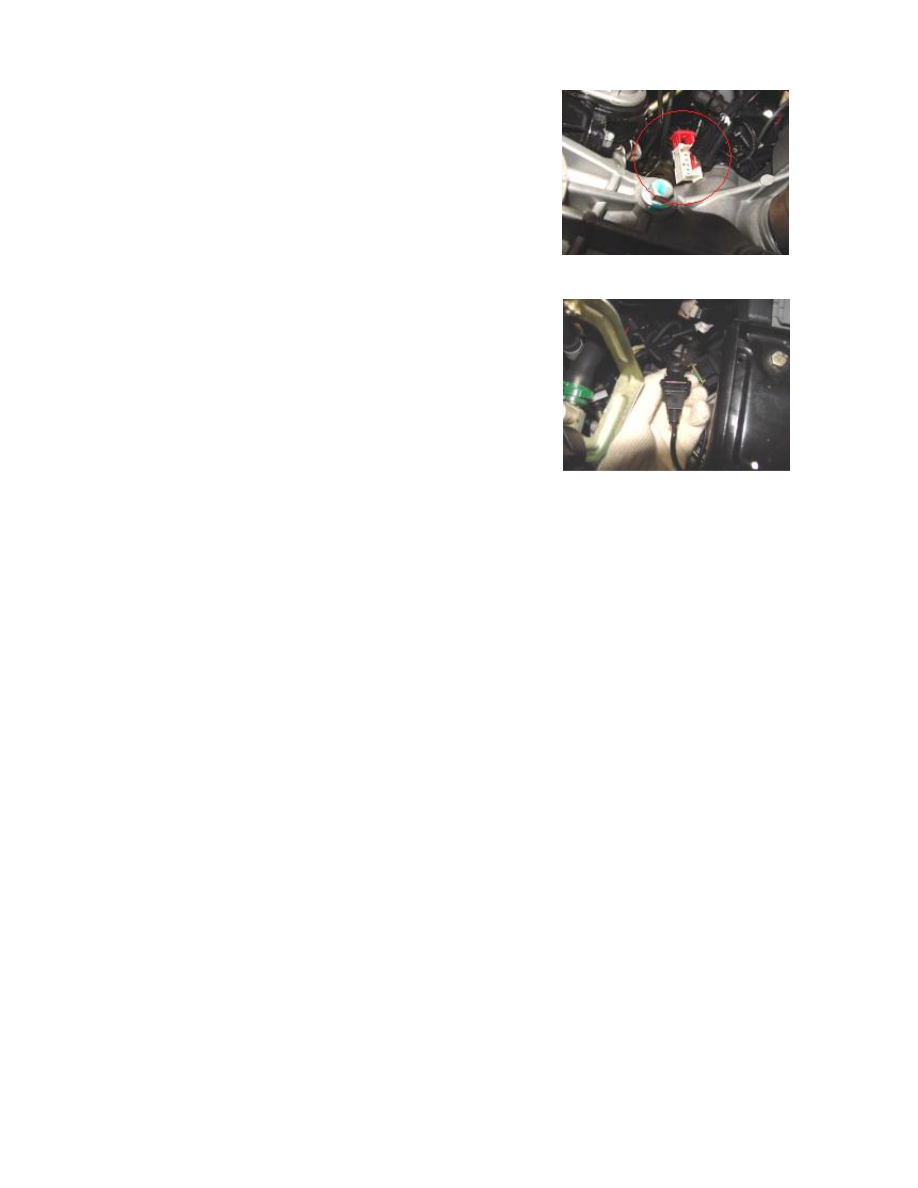

2.1.17. Disassemble the vehicle speed sensor connector.
Use  a  flat  head  screwdriver  to  pry  open  the  clips  on  the  connector
and then pull it out.








2.1.18. Disassemble the engine rotation speed sensor connector.








2.1.19. Take out the electronic fuel injection harness assembly.

2. Installation of harness

The installation steps are reverse to those for removal..






Section IV In-door Harness:

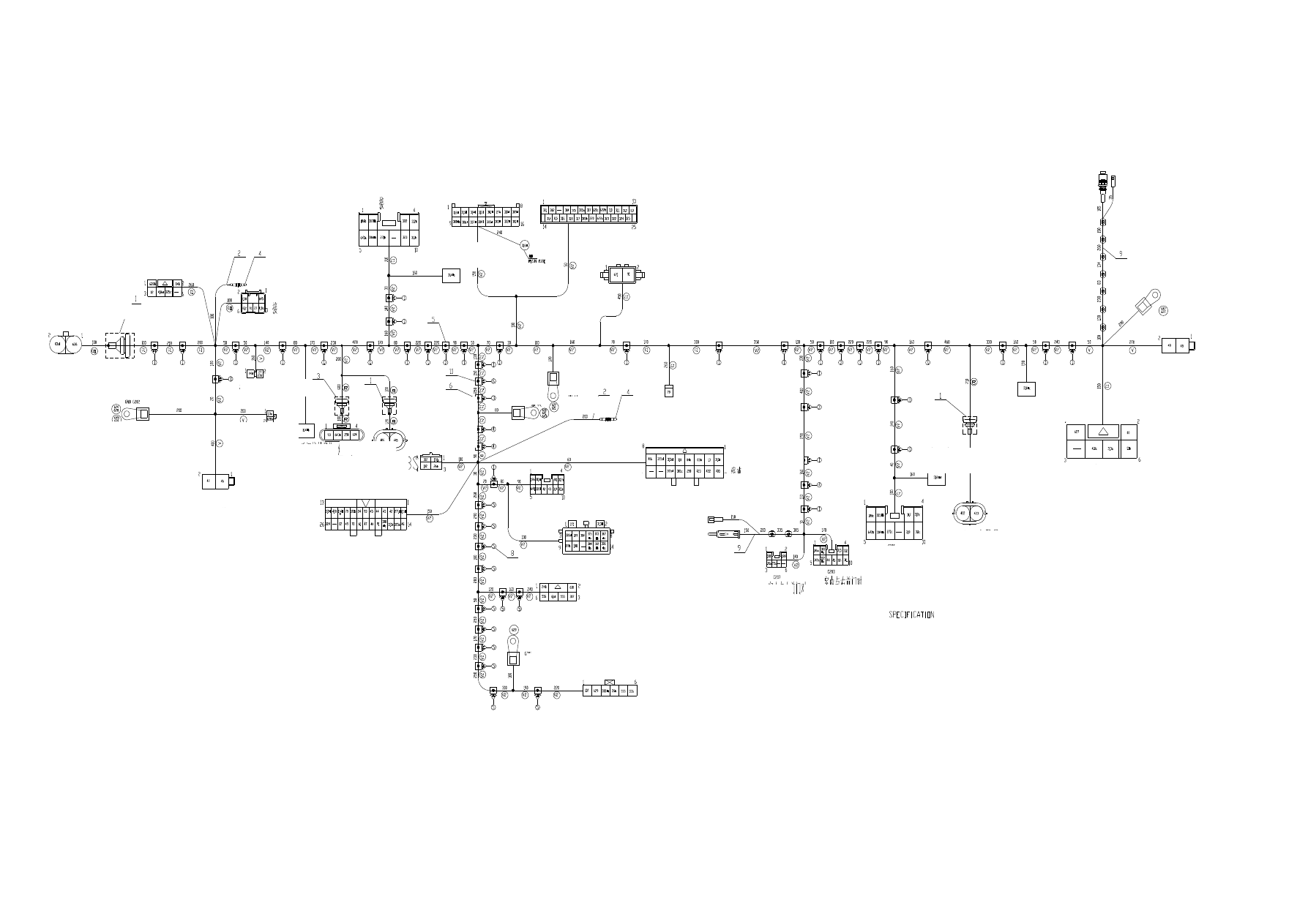

I. Harness Sketch











LR group tail lamp

Butt  joint  with  back
door

Butt  joint  with  LR
door

BCM module A

Seat belt switch

LF  door  contact
switch

License plate lamp

LR loudspeaker

To  abut  joint  with
instrument harness

Trunk light

Ground

Fuel pump

RR  wheel
ABS
sensor

Abut joint
with
instrument
harness

Ground

Hand brake switch

Abut  joint  with
left front harness
(1)

Ceiling light

Dormer
controller

Ground

Cab  interior
abut

joint

with

right

front

door

(1)

RR

wheel

ABS

sensor

Cab

interior

abut  joint  with
right rear door

RR group tail lamp

RR

door

contact

switch

RF

door

contact

switch

Rear loudspeaker

BCM module B

Ground

Cab  interior
abut

joint

with

right

front

door

(2)

To

front

compartment

Harness

Abut  joint  with
left front harness
(2)

Ground

RR

door

contact
switch

Reverse radar
power



III. Instructions on Main Connectors



No

Connector Name

Pins

Connection

Remark

  1

License plate lights connector

License plate lights harness



  2

Left-rear combination tail light connector

10

Left-rear combination tail light harness



  3

Trunk light connector

Trunk light harness



  4

Left-rear speaker connector

Left-rear speaker harness



  5

Fuel pump connector

Fuel pump harness



  6

Right-rear speaker connector

Right-rear speaker harness



  7

Right-rear combination tail tights connector

Right-rear combination tail lights harness



  8

BCM Module A connector
BCM Module B connector

16
25

BCM Module A harness
BCM Module B harness



  9

Hand brake switch connector

Hand brake switch harness




10

Ceiling light connector

Ceiling light harness




11

Seat belt switch connector

Seat belt switch harness




12

Connect the instrument harness butt joint

26

Butt jointed with instrument harness




13

Butt jointed with instrument harness

Butt jointed with instrument harness




14

To front compartment harness connector

16

To front compartment harness




15

Left-rear wheel ABS sensor connector

Left-rear wheel ABS sensor harness




16

Right-rear wheel ABS sensor connector

Right-rear wheel ABS sensor harness




17

Reverse radar power connector

Reverse radar power harness




18

Butt jointed with tail door harness

  6

Butt jointed with tail door harness




19

Ground

  1

Connected with ground wire

Inside  the  left  C-pillar
inner shield


20

Left-rear door contact switch connector

  1

Left-rear door contact switch harness




21

Right-rear door contact switch connector

  1

Right-rear door contact switch harness




22

Ground

  1

Connected with ground wire

Inside the right C-pillar
inner shield


23

Connector to front door harness butt joint 1

  10

Front door harness butt joint 1




24

Connector to front door harness butt joint 2

  14

Front door harness butt joint 2




25

Connector  to  interior  and  right-front  door
butt joint 1

  6

Interior and right-front door butt joint 1




26

Connector  to  interior  and  right-front  door
butt joint 2

  10

Interior and right-front door butt joint 2




27

Right-front door contact switch connector

  1

Right-front door contact switch harness




28

Left-front door contact switch connector

  1

Left-front door contact switch harness




29

Forming  butt-joint  with  left-rear  door
harness

  10

Forming  butt-joint  with  left-rear  door
harness




30

Interior  forming  butt-joint  with  right-rear
door

  10

Interior forming butt-joint with right-rear
door




31

Ground

  1

Connected with ground wire

In  the  carpet  under
below left A-pillar


32

Ground

  1

Connected with ground wire

On  the  left  of  BCM
module box


33

Ground

  1

Connected with ground wire

In  the  left  ceiling
handle


34

Dormer controllerconnector

  6

Sunroof controller harness
