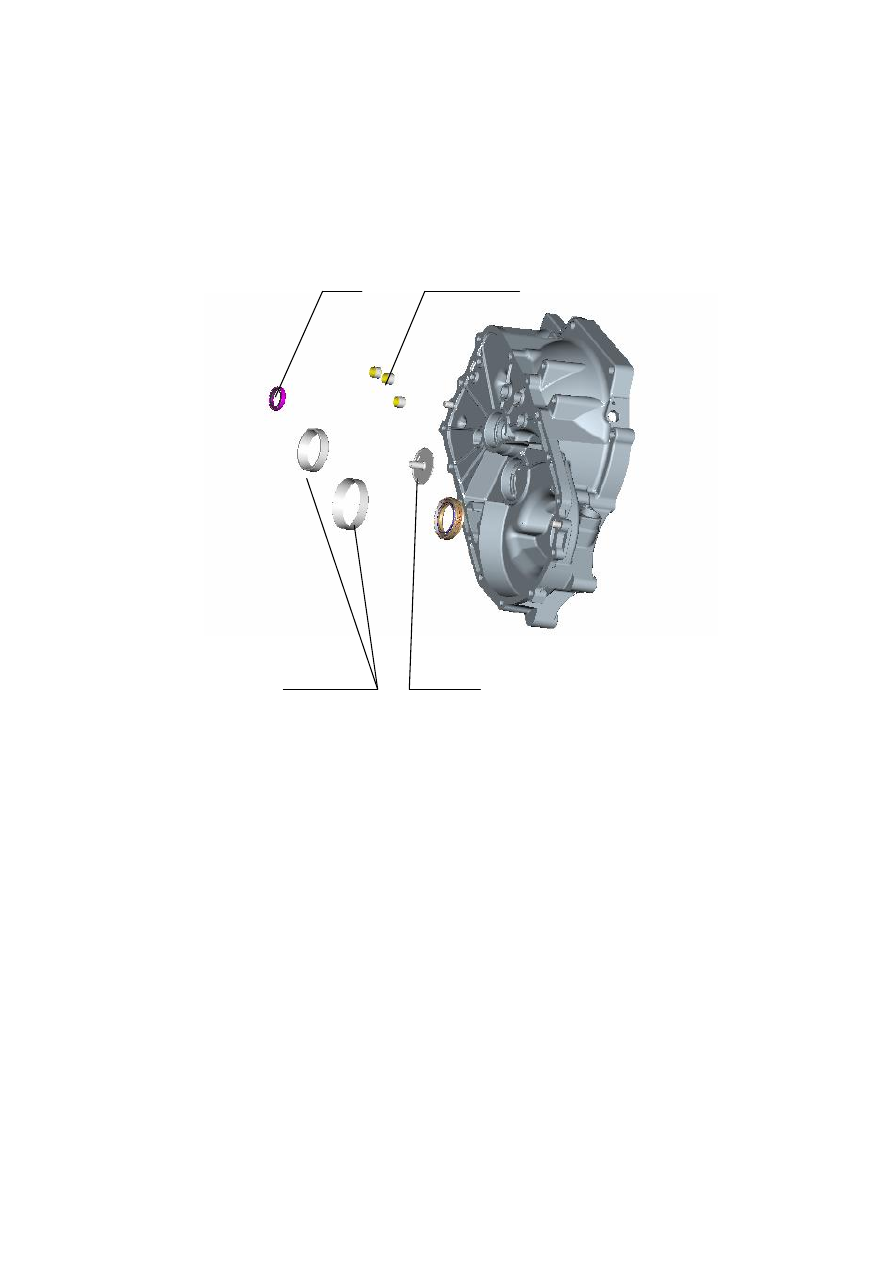

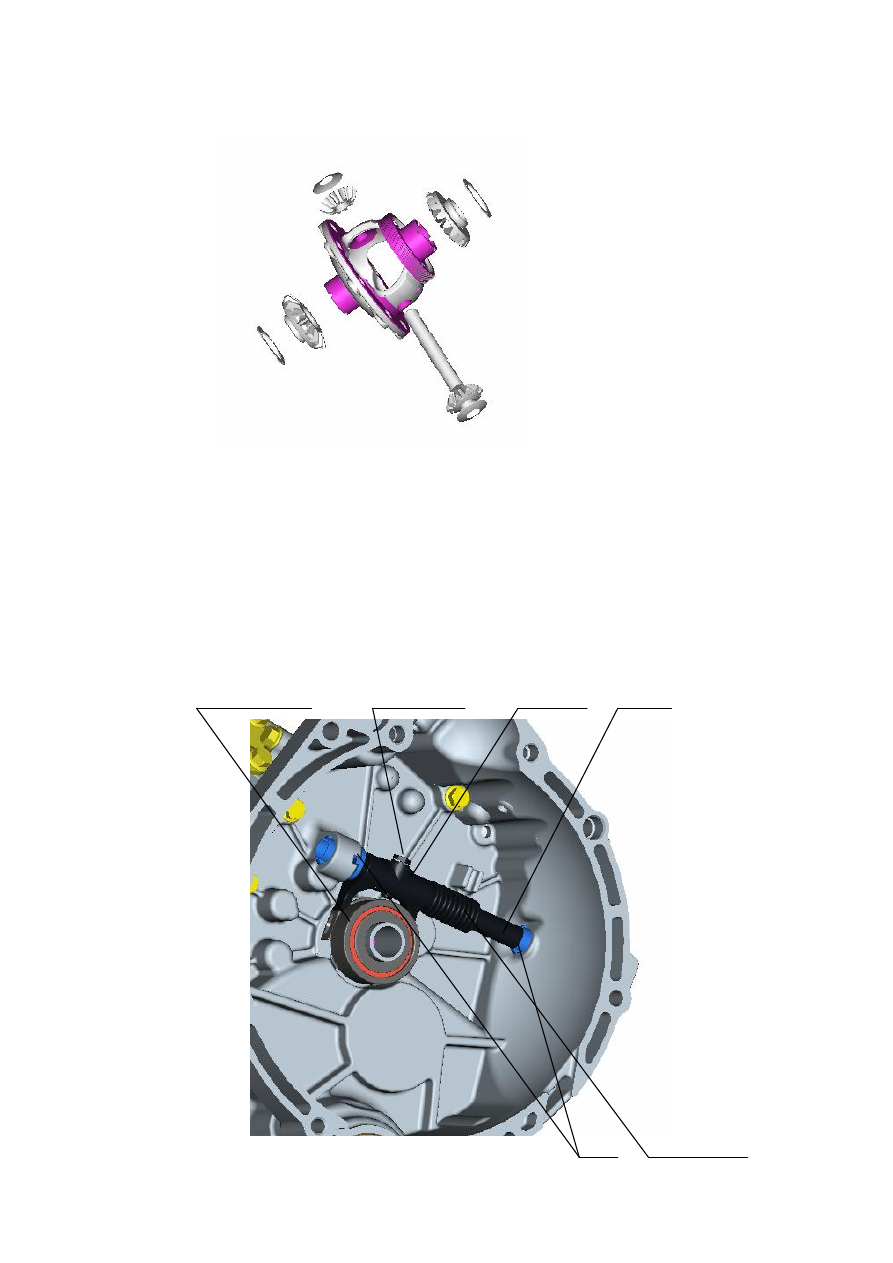

Figure 14 13. Disassembly of release mechanism of clutch As shown in Figure 15, take off release bearing of the clutch first, remove the bolts for release fork, and then draw the release shaft assembly off the clutch housing (during the drawing off process, be sure to prevent the release return spring from ejection); also, remove the bush and dismount release mechanism of the clutch from the clutch housing.

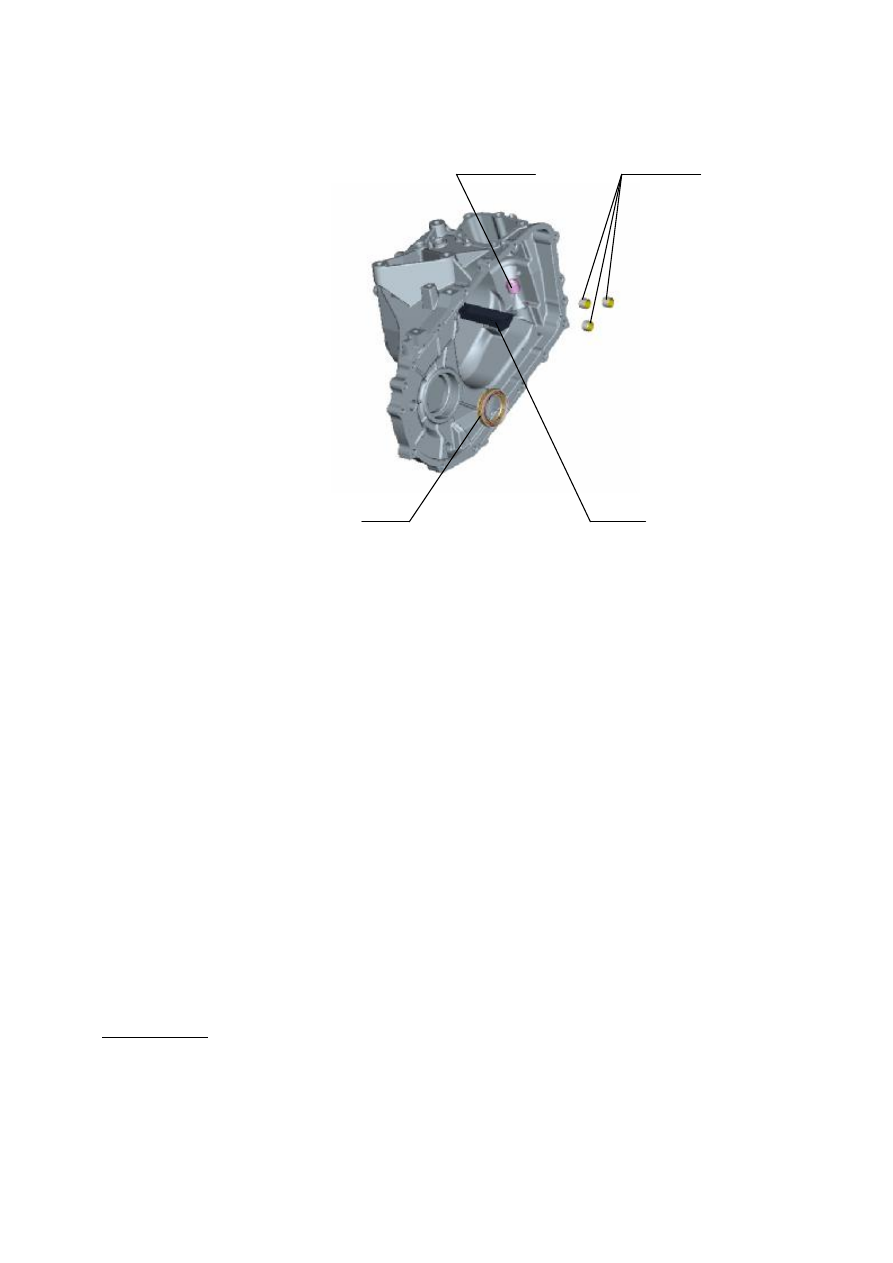

Release bearing of clutch Bolts for release fork Release fork Release arm
Bush Release return spring |
