Chery QQ6 (S21) / S12LHD. Manual - part 3







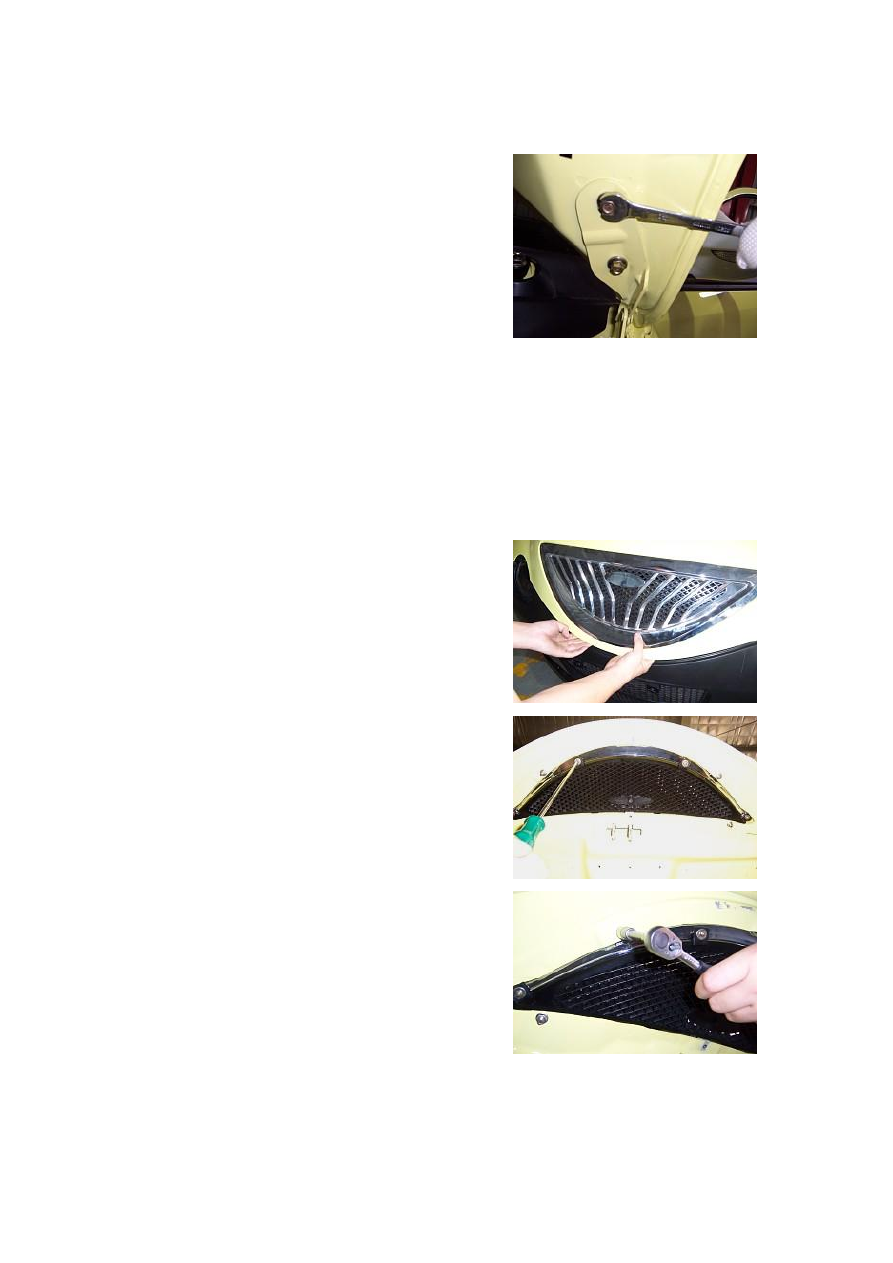

4.  Disassembly  and  adjustment  of  the
engine hood assy.

Preparation of tool(s): 13# wrench

4.1.  Take  off  four  adjusting  bolts  from  engine

hood. And remove the engine hood.

At  the  same  time,  unscrew  four  adjusting  bolts

to  adjust  the  front/rear  position  and  right/left

position of the engine hood.

4.2. Installation of engine hood assy.:

The  installing  steps  are  reverse  to  those  for

removal.

Installation torque is 30±1Nm

5.  Disassembly  and  assembly  of  air
intake grille assy.

Preparation of tool(s): cross screwdriver, socket

wrench

5.1. Removal Step

5.1.1. Open the engine hood by hand.











5.1.2. Use a cross screwdriver to remove the fix

screw from the intake grille.













5.1.3.  Utilize  a  socket  wrench  to  remove  the

fixing bolts from the intake grille.











5.1.4. Detach the intake grille.

5.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.

Installation torque is 5±1Nm





10



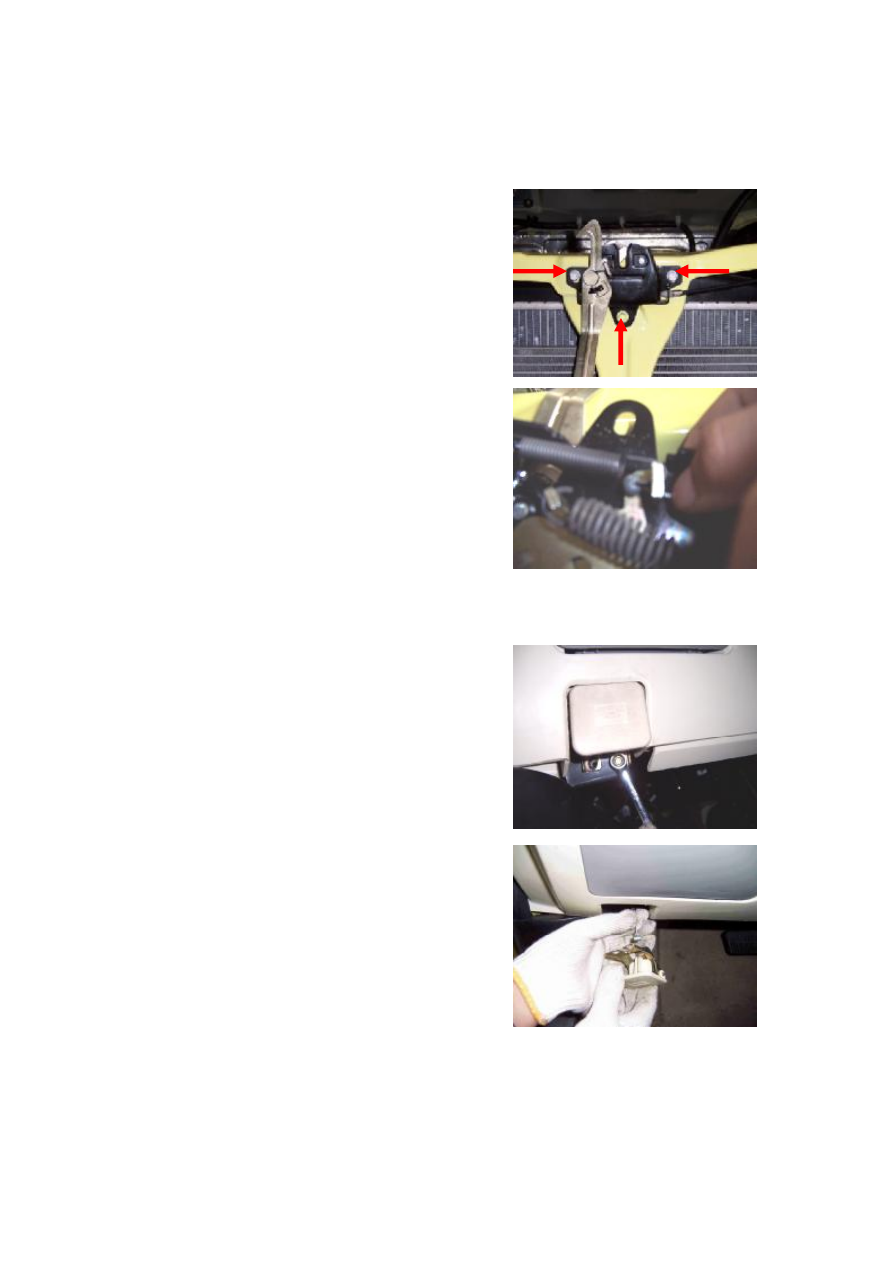

6.  Adjustment  and  assembly  of  the
engine hood lock

Preparation of tool(s): 10# wrench

6.1. Removal Step

6.1.1.  Unscrew  three  centering  bolts  from  the

engine  hood, and then remove  the  engine  hood

lock.

Also  unscrew  these  three  bolts  to  adjust  the

position of engine hood lock.

Torque: 9±1 Nm

6.1.2.  Remove  the  lock  cable  of  front  engine

hood from engine hood lock assy.











6.2. Installation of engine hood lock

The  installing  steps  are  reverse  to  those  for

removal.

Installation torque is 9±1Nm



7. Removal of hood lock control cable

Preparation  of  tool(s):  8#  wrench,  10#  wrench,

flat head screwdriver

7.1. Removal Step

7.1.1. Open  the engine hood inside the  driver’s

cab,  and  remove  two  fixing  bolts  from  the

handle.

Installation torque is 9±1Nm















7.1.2.  Remove  the  front  hood  cable  from  the

hood.



























11



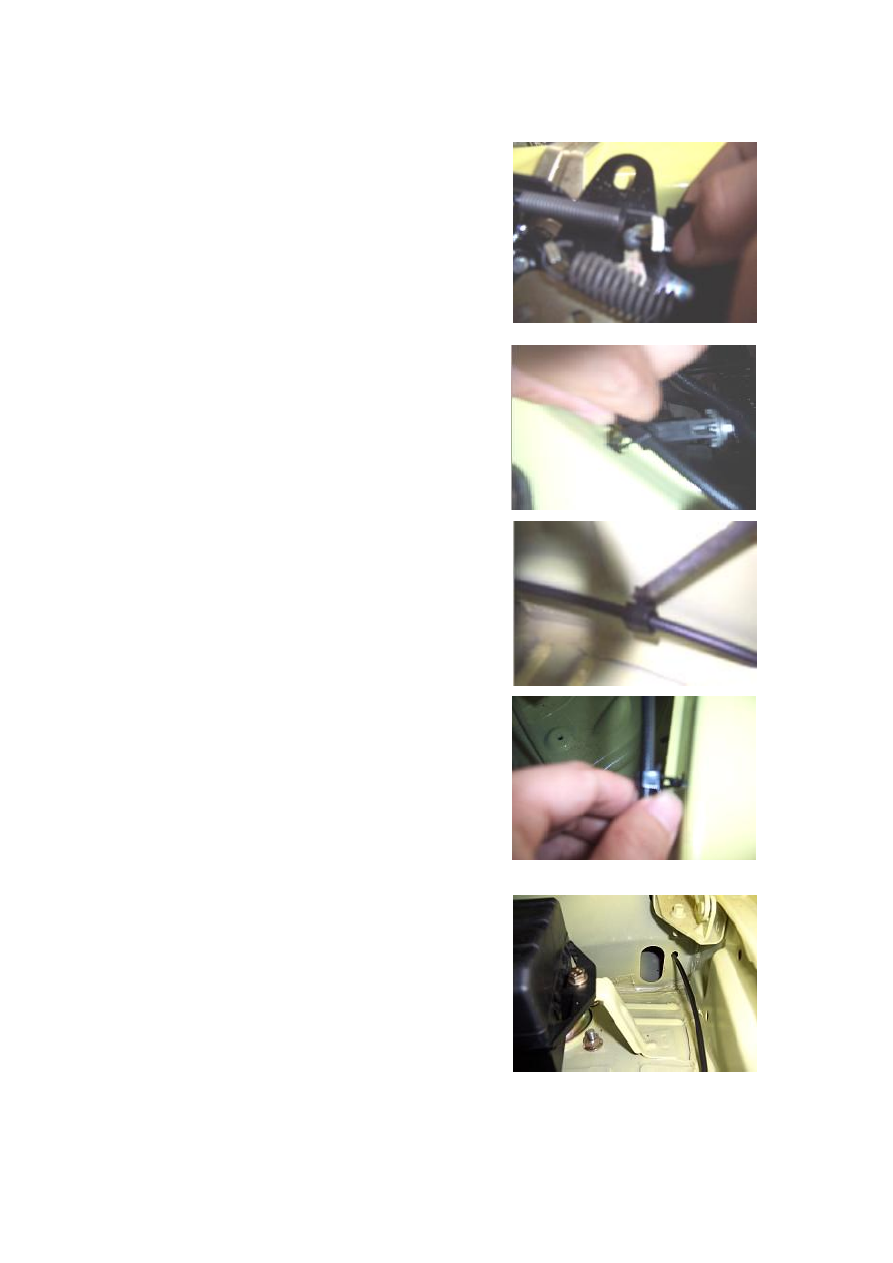

7.1.3.  Remove  the  hood  lock  and  detach  the

engine  hood  lock  control  cable  from  the  hood

lock assy..













7.1.4. Remove three clips used to fix the control

cable by hand or with a flat head screwdriver.











































7.1.5.  Draw  out  the  control  cable  from  the

engine compartment.





















12

7.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.

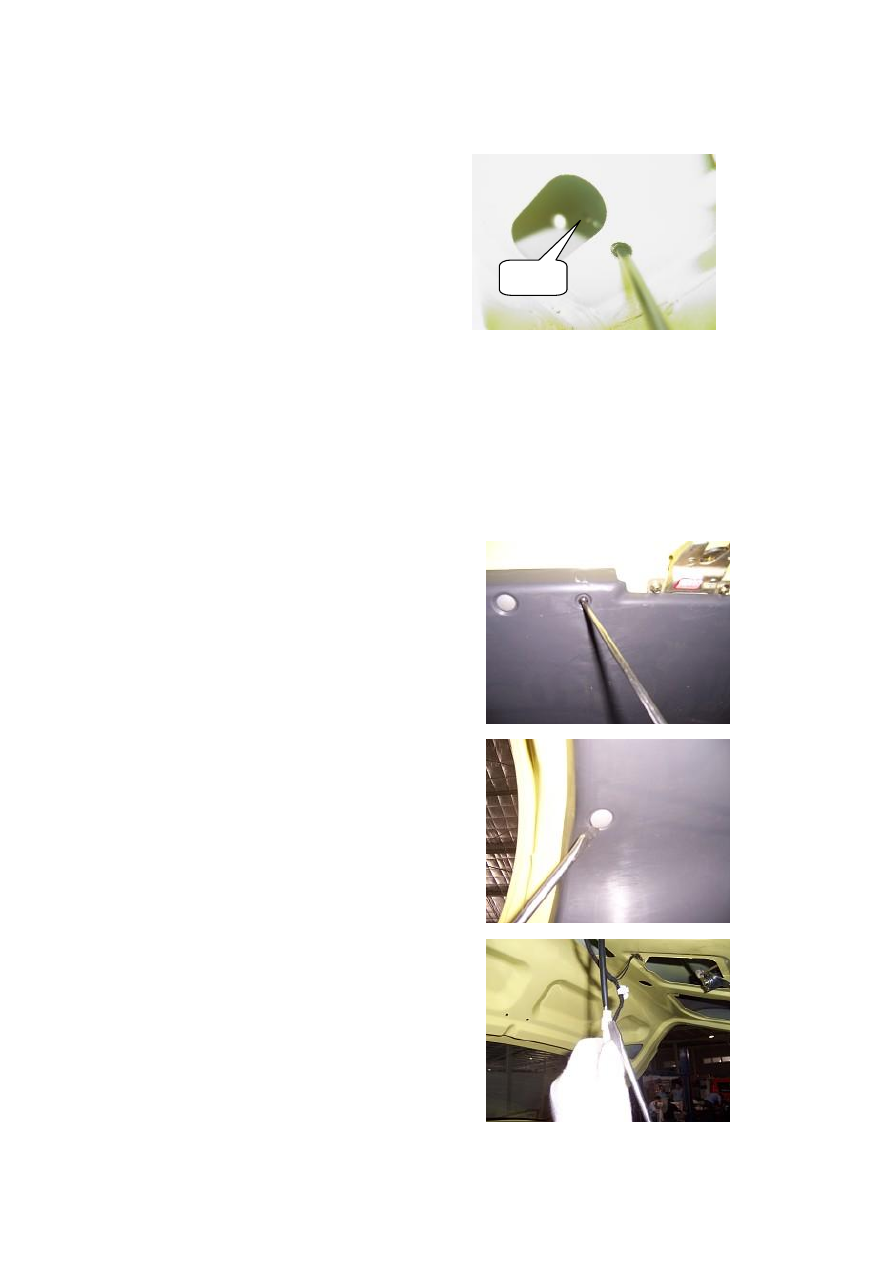

CAUTION:  In  case  of  installation,  the  groove

on  control  cable  shall  be  inserted  into  the  pull

groove; the control cable penerates into driver’s

cab  through  the  engine  compartment,  and  shall

passes through a small hole and then enters into

the cab, as shown in the figure.

II.  Disassembly/Reassembly  of

rear boot lid

1. Preparation

Tools:  Flat  head  and  cross  screwdriver,  socket

wrench, open-end wrench

Materials: clip

2.  Removal  of  Trunk  Lid  Ornament
Plate

2.1. Removal Step

2.1.1.  Remove  the  screws  from  the  fixed

luggage  boot  internal  guard  plate  with  a  cross

screwdriver.







2.1.2.  Remove  the  disposable  clips  from  the

fixed  luggage  boot  internal  guard  plate  with  a

flat  head  screwdriver,  and  then  remove  the

luggage boot internal guard plate.







2.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.

3. Installation of luggage boot lock

3.1. Removal Step

Preparation of tool(s): 10# wrench

3.1.1.  Detach  the  connectors  of  the  luggage

boot lock body motor.









Small hole
