CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

47



6.2



Installation

1)  Clean the oil seal seat ring. Clean the oil

seal seat ring with clean oiled gauze.





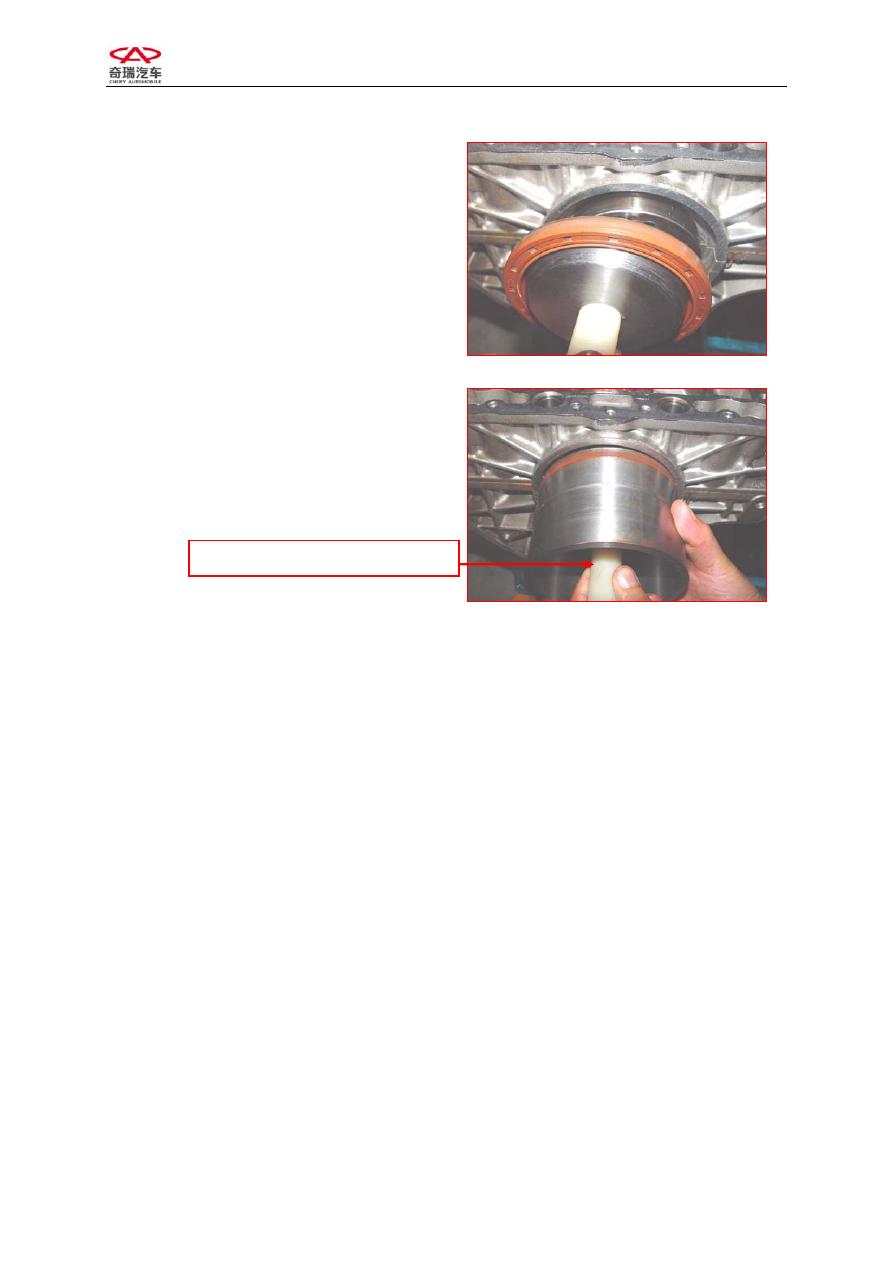

2)  Spread the oil at the lip of crankshaft

front oil seal.

Enclose the

guide sleeve of crankshaft oil

seal

, special tool, with that oil seal. Then

press it into oil seal seat ring.



3)  Mount the flywheel and the clutch

pressure plate, and then mount the
engine on the vehicle.

Torque:25±5N.M, then screw 30°±5°.

7. Replace crankshaft and thrust washer

7.1  Needed tools and auxiliary materials

A set of open end wrenches, a set of sleeve
tools, a small hoist, Le Tai glue, Engine oil,
feeler gauge, feeler gauge, micrometer gauge.

7.2  Process of Removal

1)  Suspend the engine assembly from

vehicle (See “suspending of engine

assembly” for details

）.

2)  Drain out the engine oil.

3)  Remove the timing belt (see “replace

timing belt” for details).







Guide Sleeve of Crankshaft Oil Seal



CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

48



4)



Dismantle the accessories, such as
dynamo, A/C compressor, power

steering pump and bracket.

（See the

“replacement of engine accessory” for

details

）

5)  Dismantle the engine cylinder head

assembly.

（ See the “replacement of

cylinder head” for details

）

6)  Dismantle the engine clutch pressure

plate, the flywheel and the timing belt
pulley.

7)  Remove the oil pan and engine oil

strainer.

（See the “replacement of oil pan

and strainer” for details.

）

8)  Remove the piston connecting rod

assemblies for 4 cylinders and Put them
in order.

Note: You’d better stick the number on each
piston connecting rod assembly to prevent
from wrong mounting.

9)  Dismantle engine oil pump assembly.

10) Dismantle the frame assembly under

cylinder block and remove the
crankshaft and thrust washer.





CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

49

7.3 Inspection

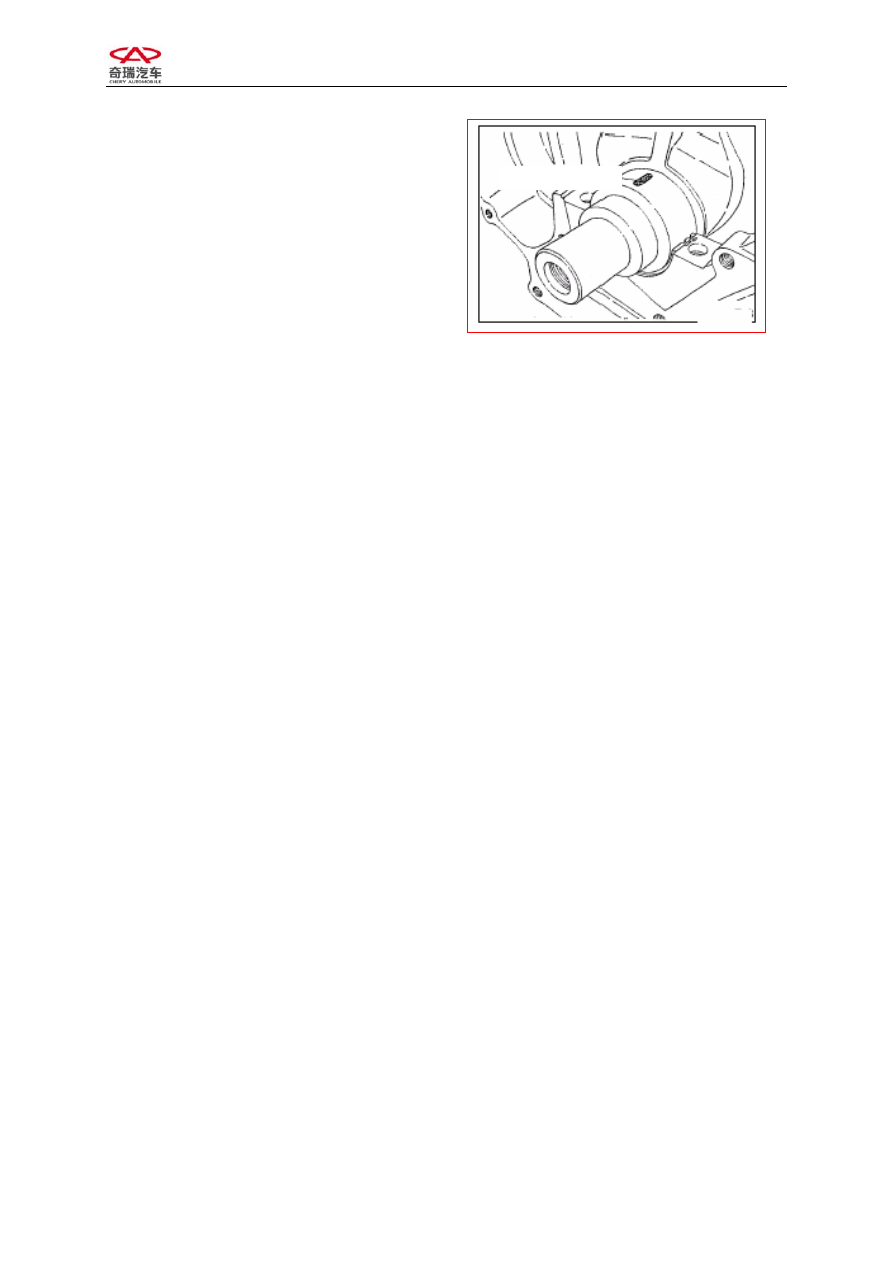

1)  radial clearance of crankshaft

a):  Clean the journal and bearing bushing.

b): Install

crankshaft

c):  Make the length of plastic clearance

gauge equal to the width of bearing.
Then put it on the journal paralleling the
axis.





Clearance Gauge

CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

50



d):



Mount the main bearing cap carefully
and screw down the bolt with
specified torque.



e):



Dismantle the main bearing cap
carefully.

f):



Measure the width at the most bread
part of pressed plastic line with ruler on
plastic clearance gauge package, then
get clearance value.

 Standard

Value

Clearance -0.0035-0.034

Replace the new bearing bushing if the
measured clearance value exceeds the limit
value.

Note: Replace the whole group when
replacing bearing bushing.





Selecting method of main bearing bushing:

By observing the sign on cylinder (see the
picture), we could see 5 As which correspond
to bearing bushings respectively.

There two kinds of signs on this vehicle, A
and B, corresponding to two kinds bushing,
red one and blue one (the color can be
recognized on the new bushing but it is
possible unrecognized the color on the old
one.) A corresponds to red bushing, and B
corresponds to blue bushing.
