Chery B14. Manual - part 38

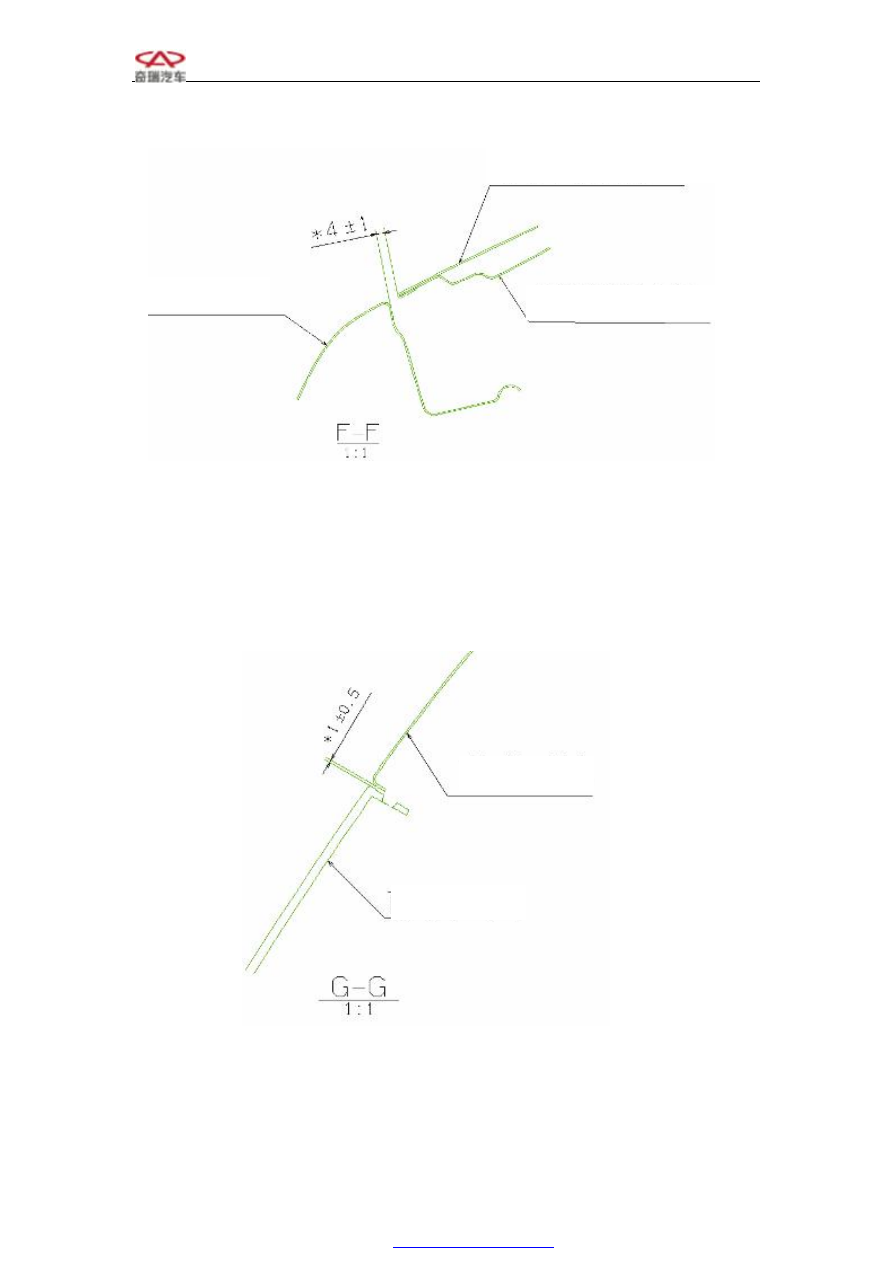

3.1 Clearance between F-F engine hood and front fender is 4±1mm

3.2 Clearance between G-G fender and front bumper is 1±0.5mm

Front bumper

Front fender

Front engine cover outside panel

Front engine cover inside panel

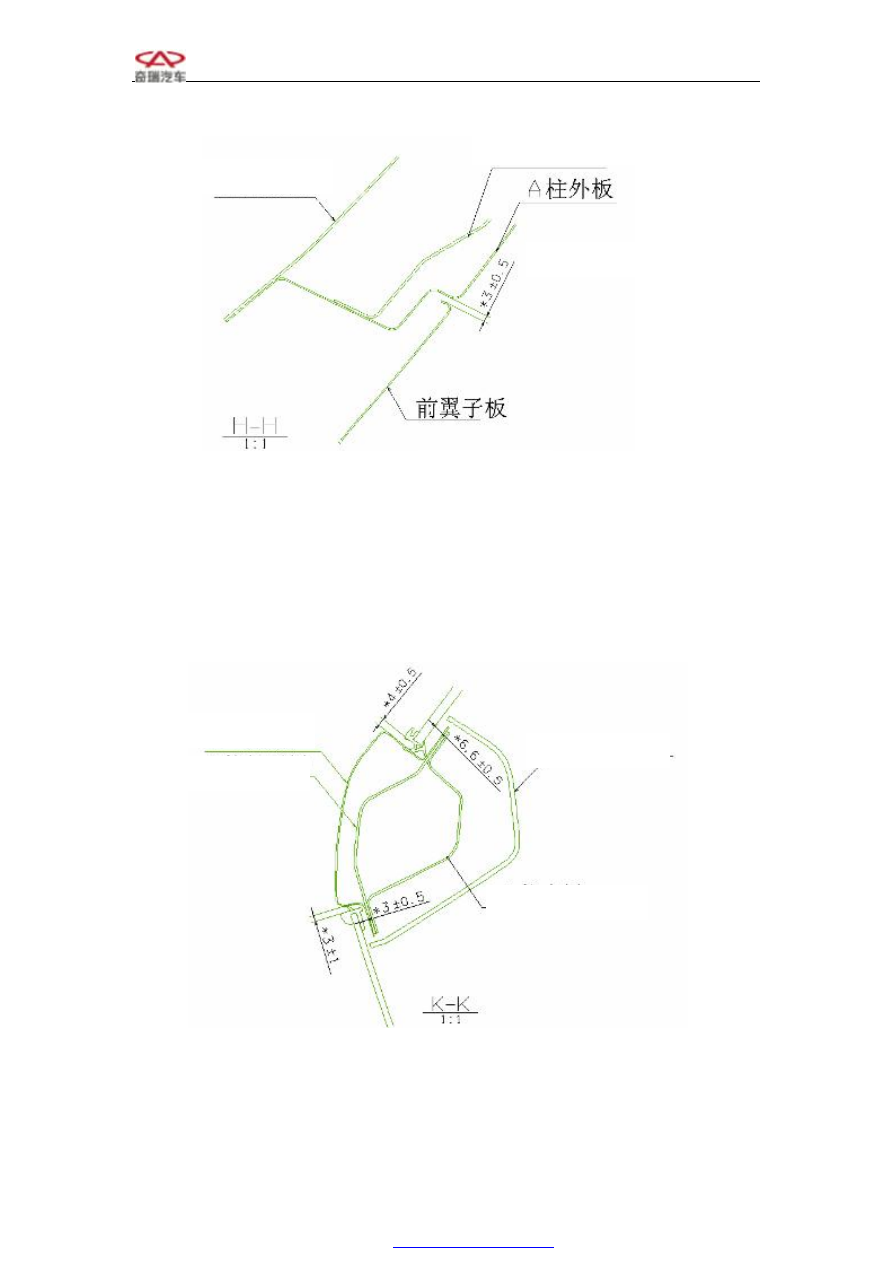

3.3 Clearance between H-H A pillar and fender is 3±0.5mm

3.4 Clearance between K-K A pillar and quarter window glass is 3±1mm

Clearance between K-K A pillar and front windscreen is 4±0.5mm

A pillar reinforcement

A pillar trim panel

A pillar outside panel

A pillar reinforcement

A pillar inside panel

Front fender

A pillar outside panel

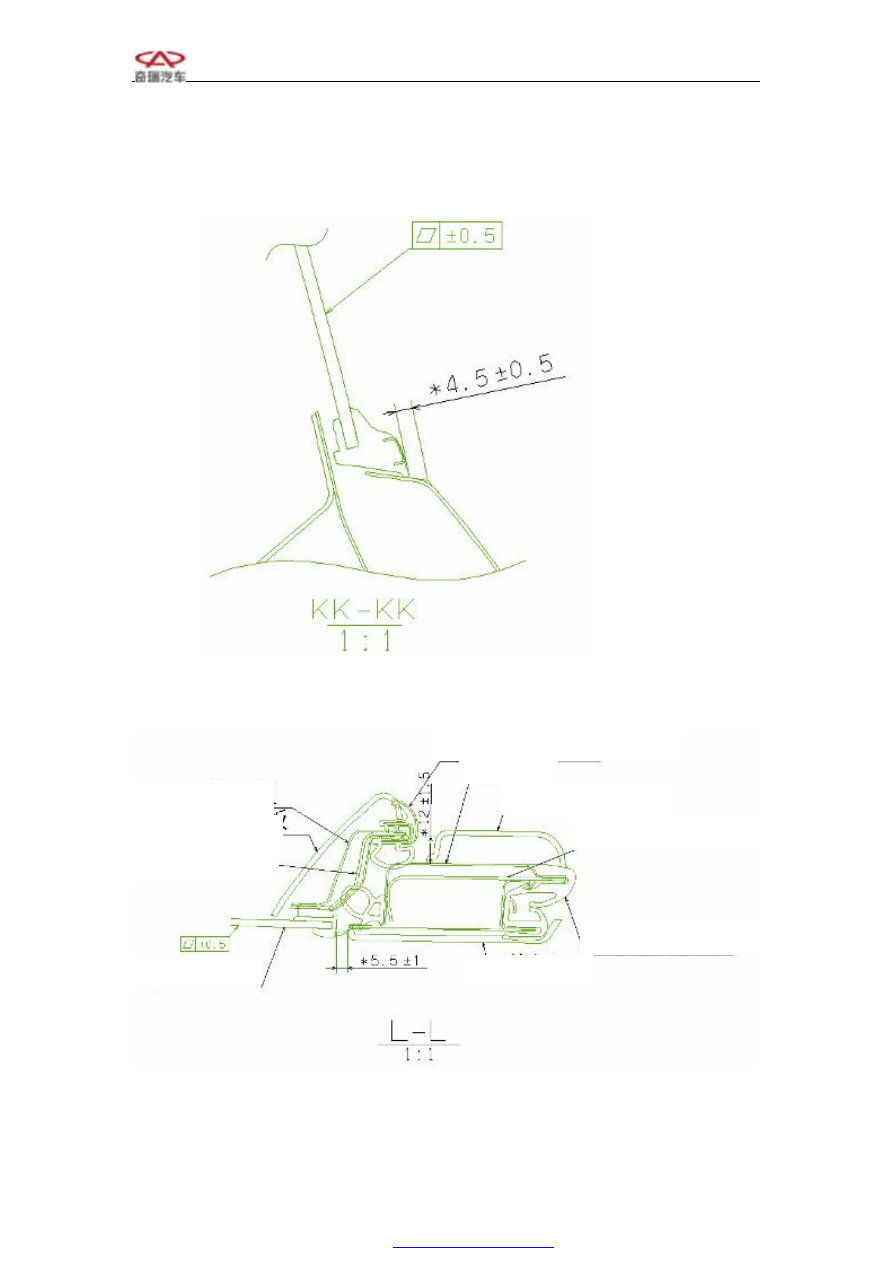

3.4 Assembly dimension between KK-KK quarter window glass and instrument
panel is 4.5±0.5mm

3.5 Clearance between L-L quarter window and front door is 5.5±1mm

前三角窗

Front door opening weather strip

Front door

Front door trim panel

Front door inside reinforcement

Pillar inside panel

Pillar inside trim panel

Pillar reinforcement

Front quarter window

Front door glass slot

Front door

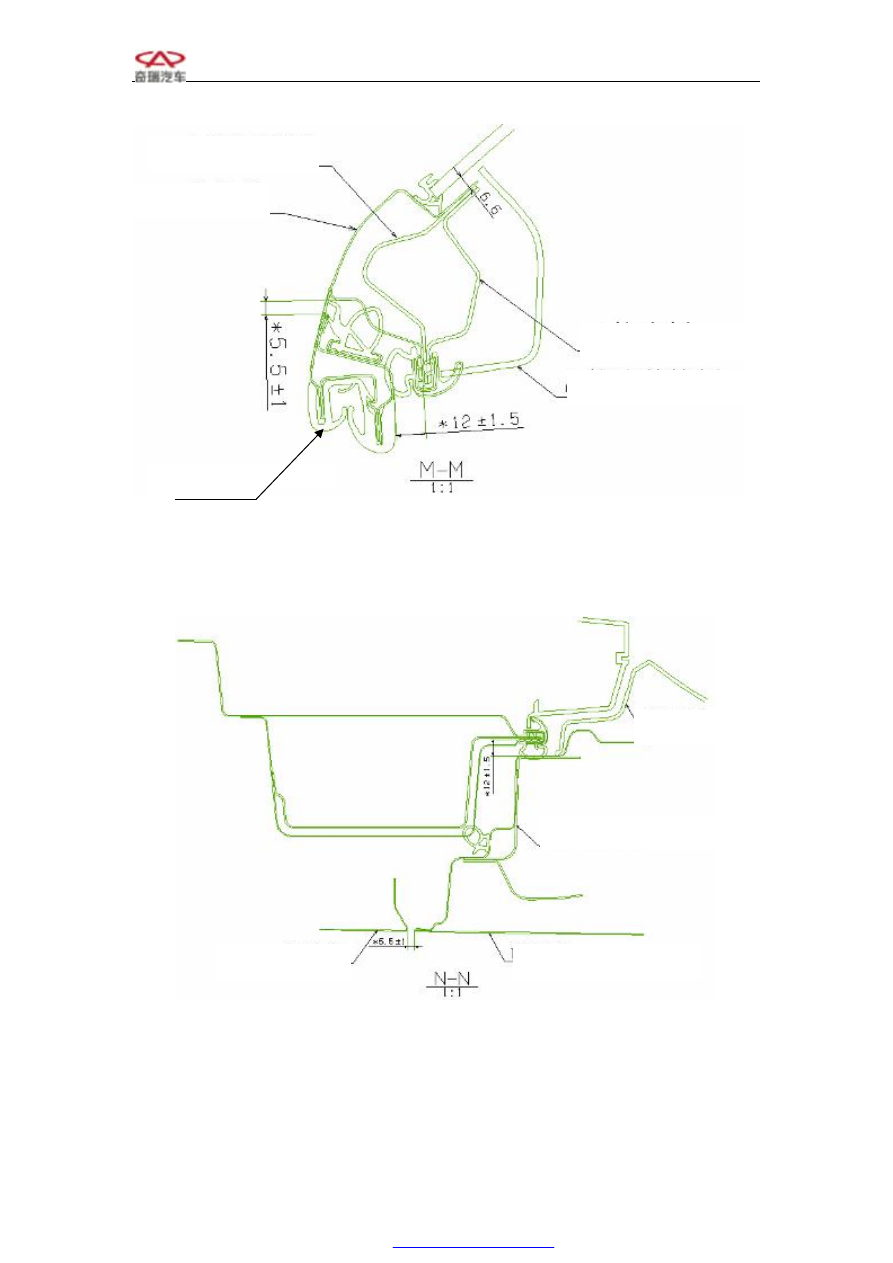

3.6 Clearance between M-M A pillar and front door is 5.5±1mm

3.7 Clearance between N-N front door and front fender is 5.5±1mm

前门

A pillar body

A pillar inside trim panel

Front inside panel

Front inside reinforcement

Front fender

Front door outside panel

A pillar reinforcement

Front door

A pillar inside panel
