Chery Automobile Maintenance Manual



47





V. Alternator

Disassembly and Installation





Chery Automobile Maintenance Manual



48

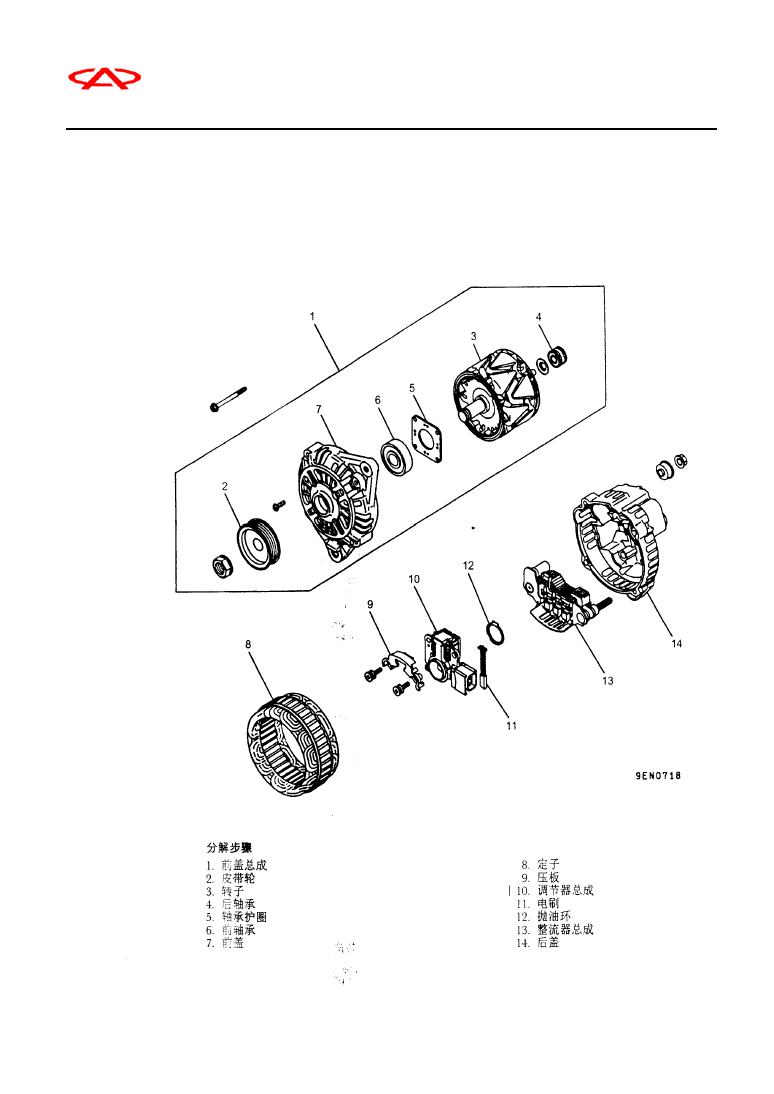

分解步骤 Disassembling steps

8.

定子 stator

9.

压板 pressure board

10.  调节器总成 regulator assembly

11.  电刷 electric brush

12.  抛油环 oil slinger

13.  整流器总成 rectifier assembly

14.  后盖 rear cover

1.

前盖总成 front cover assembly

2.

皮带轮 pulley

3.

转子 rotor

4.

后轴承 rear bearing

5.

轴承护圈 bearing collar

6.

前轴承 front bearing

7.

前盖 front cover



Disassemble Operation Tips

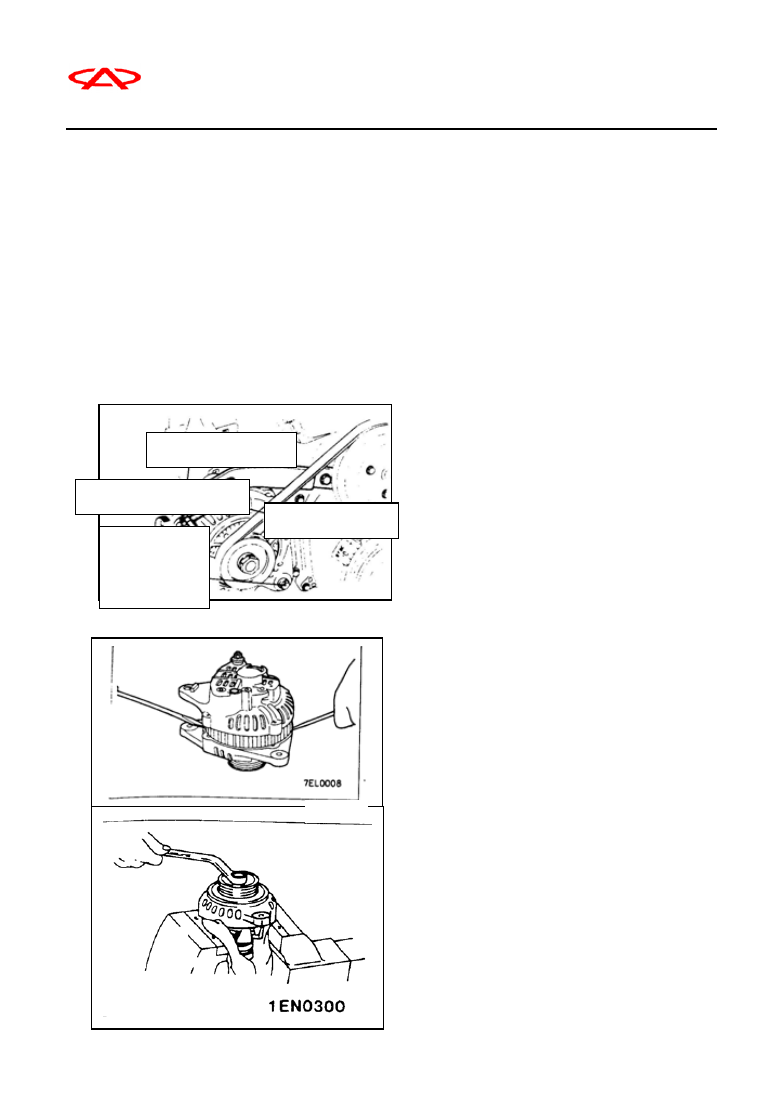

Transmission Belt Disassemble

increase

belt tension

pivot bolt



locking bolt



decrease belt tension

regulation bolt



1.Loosen pintle bolt/nut and locking bolt

as shown.

2.Loosen regulation bolt and uplift it.

3.Push alternator towards engine and then

disassemble transmission belt.










Front Cover Assembly Disassemble

1、Disassemble all bolts.

2、Insert flat head screwdriver between front

cover and stator iron core and pry it adown to

separate them.

Caution:

Do not insert screwdriver too deep so as to

avoid damaging stator iron core.



Pulley Disassemble

Place pulley upwards and fix rotor on table

vice, disassemble pulley.

Caution:

Don’t destroy rotor.

Chery Automobile Maintenance Manual



49









we

lding

points



Stator/Regulator assembly disassemble

1.Use electric iron    (180-250W) to un-weld stator,

which should be finished in 4 seconds, preventing

heat transfer to diode.

2.When rectifier is removed from electric

brush bracket, the two welding points on the

rectifier should be un-welded.

焊点 welding points

Caution

(1)When welding/un-welding welding points,

please finish welding/un-welding as soon as

possible instead of letting heat transferring

from electric iron to diode.

(2)Don’t pull diode cable forcibly.







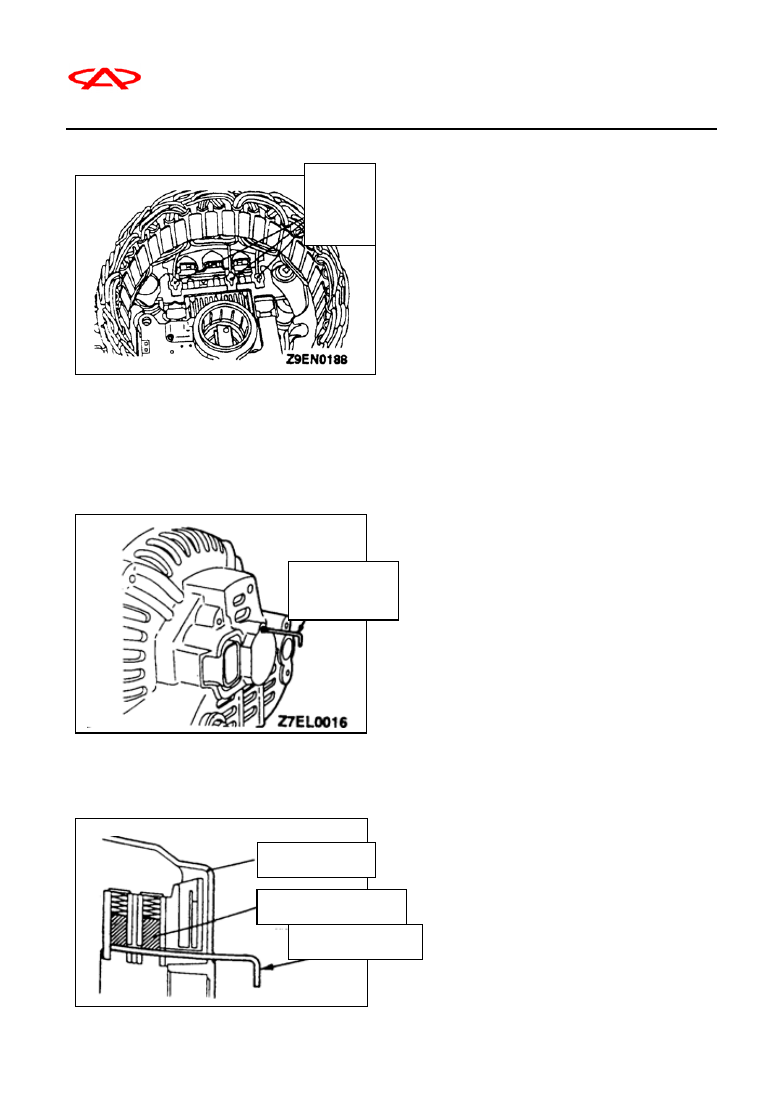

Reassemble Operation Tips

Regulator assembly installation

After installing regulator assembly, push

electric brush inside and at the same time insert

metal wire into the hole of rear cover to fix the

electric brush.

metal

wire

Remarks

Insert metal wire to fix electric brush and it

will make rotor installation earlier.















metal wire

electric brush

rear cover

CHERY Automobile Maintenance Manual

48







Chapter 6 ECU Control Unit



Mandrin















































2.Engine ECU Terminal

Configuration



Terminal configuration is as below:









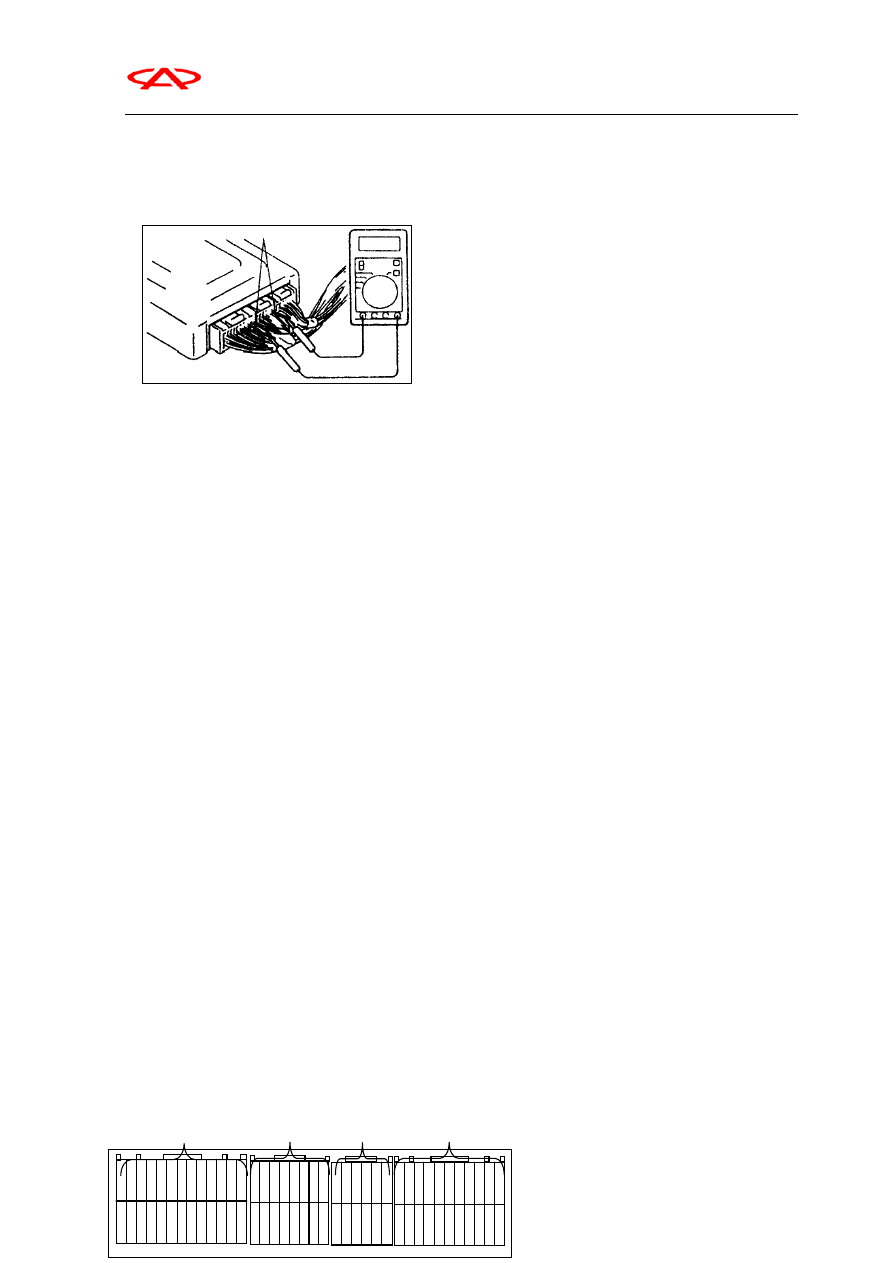

Engine ECU Terminal Check







Terminal voltage check

1.Connect mandrin(test cable:MB991223 or

return pin) to the detect pin on voltmeter.

2.Plus mandrin into the terminal of every ECU

joint from harness side, and then measure the

voltage of every terminal according to check

table.

Note:



(1)Measure the voltage when ECU

terminal and harness joint are

connected.



(2)Pull harness joint a little out from ECU

terminal and let detect pin easily touch joint

terminal, which is convenient to check.

(3)You needn’t check it according to the

sequence of check table.

Caution:

If plus terminal by mistake during check, which

causes short, harness, sensor, ECU or other

components may be destroyed. Please be very

careful during check.

3.If the voltage check result is different from

standard value, please check related sensor,

actuator and harness. If necessary, it should be

repaired or replaced.



4.After repair or replace, check again with

voltmeter to confirm if the failure is eliminated.
