Chery B11. Manual - part 40

Capacity and Specification

161

Dimension

Capacity and Specification

162

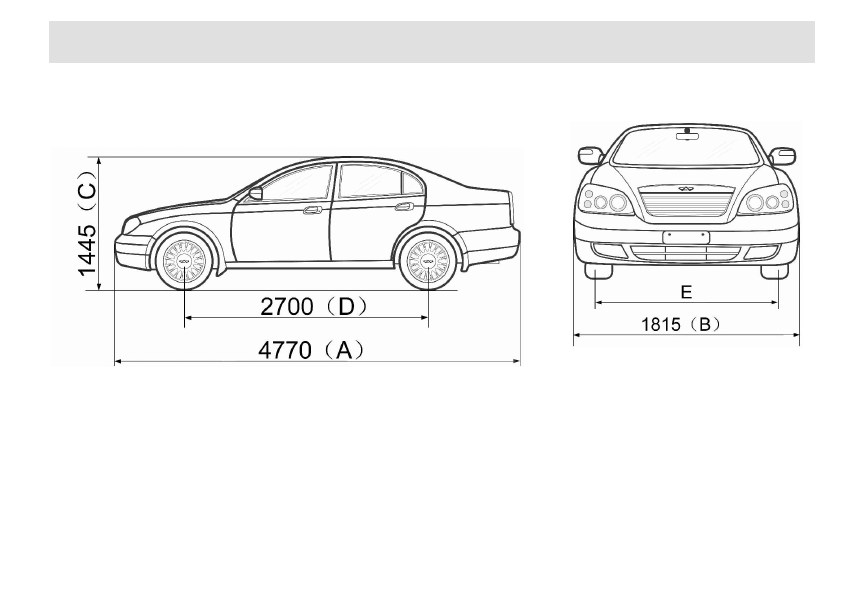

Dimensions

mm

Car

A=max length

4770

B=full width

1815

C=

kerbed mass

height

1445

D=axle distance

2700

E=wheel distance front wheel

1550



rear

wheel

1530

Note: The height may vary slightly due to different installed tires.

Specification

Minimum clearance departing from

the ground (oil pan)     mm

125

Rolling radius       mm

314(205/65R15)

307(205/55R16)

Static radius      mm

294(205/65R15)

291(205/55R16)

Approach angle

16.9°

Departure angle

17.5°

Camber of front wheel

-30 ±1°

Caster of main pin

3.13°±1°

front wheel toe-in

0.29°±1°

Camber of rear wheel

-0.57°±0.1°

toe-in of rear wheel

0.15°±0.1°
