Two. System component engine control module
(ECM)
1. Functions and principles
The engine control module is one microprocessor
based on a singlechip. Its main function is to
process the data from all sensors located in
different parts of the vehicle and judge the
working status of the vehicle for the accurate
control of the engine through the actuator.
CPU parameters
16-digit main chip
16M clock frequency;
128K FLASH memory
8K RAM memorizer;
2K EEPROM memorizer;
Working parameters
- Working voltage range
- Normal working voltage range: 9.0V – 16V
- Overvoltage and reversed polarization protection:
+24V/-12V < 60s
- Location

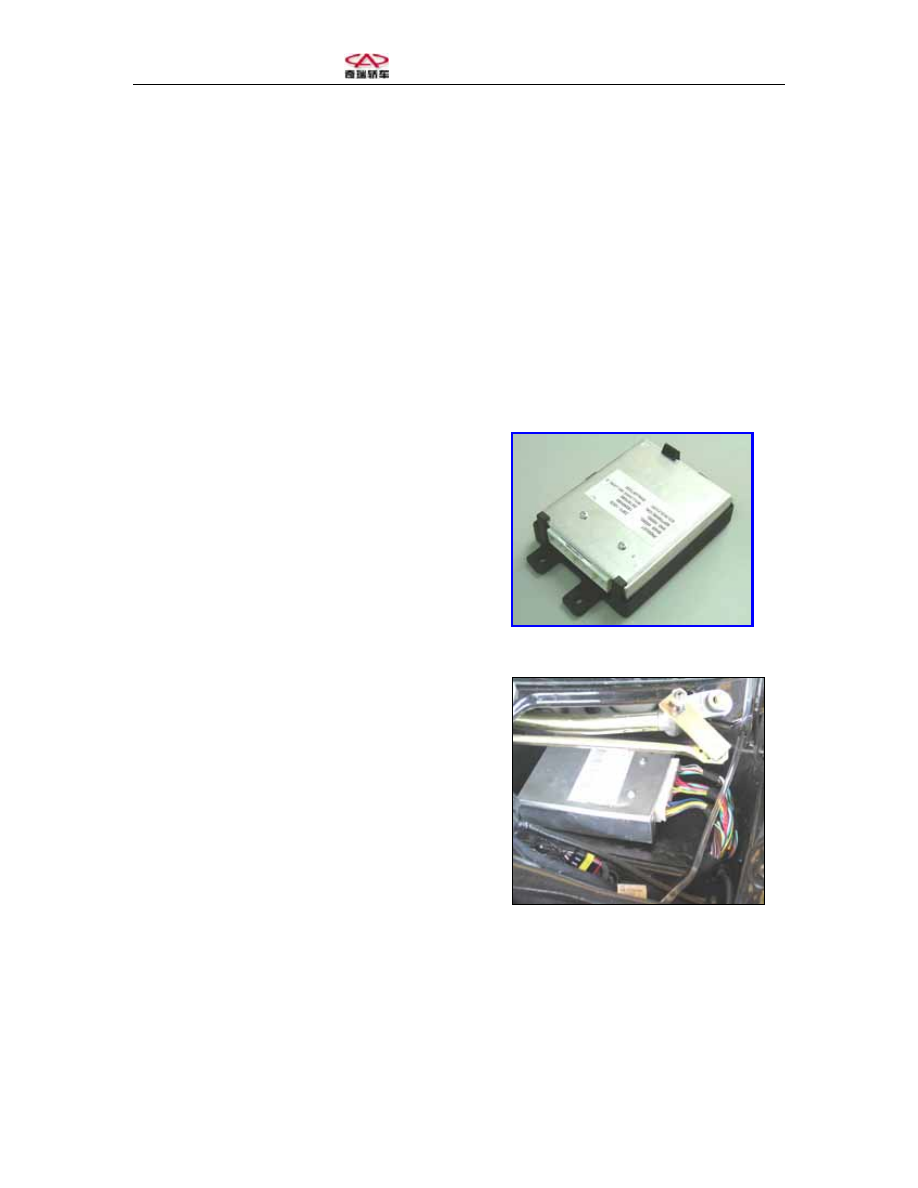

ECM is located inside the engine room and on the
lower left part of the windscreen;
ECM casing and set bolts must be insulated from
the vehicle body.
- Temperature
- Storage temperature: -40 ~125℃
- Working temperature: -40 ~105℃
- Fittings




















ECM wire harness fittings are 17+24+31 three-pin plugs.
3. Fault diagnosis
Tips
: All the following judgments are based on the normal operation of the vehicle, wire
harness and other system components.
ECM faults:
System’s failure to communicate with the outside;
Signal input system fault: failure to receive sensor signals; generator adjustor fault and
over output voltage to damage the ECM; output control system fault; ECM internal drive
damage to disable the operation of the drive actuating mechanism.
4. ECM terminal definition











62

60

61

59

57

58

56

54

55

53

51

52

33

31

32

30

28

29

27

25

26

12

10

11

9

7

8

72

70

71

68

69

66

67

65

63

64

41

39

40

37

38

36

34

35

17

16

15

13

14

50

48

49

46

47

45

44

42

43

23

24

22

20

21

18

19

6

4

5

3

1

2

5. Computer plug description

High speed fan control

38

Vehicle speed sensor signal

Air conditioner relay control

39

Crank shaft position sensor

——

40

Water temperature sensor

——

41

Crank shaft position sensor

——

42

——

Grounding

43

——

Idle speed motor “D”

44

——

Low-speed fan control

45

Grounding

Fuel pump control

46

Ignition coil A

10

Canister solenoid valve

47

Troubleshooting data output

11

Turning speed “TN” output

48

Fault light control

12

——

49

Second cylinder fuel spray
nozzle

13

Idle speed motor “C”

50

Ignition coil B

14

Idle speed motor “B”

51

——

15

Idle speed motor “A”

52

——

16

——

53

——

17

——

54

——

18

IGN power source

55

Oxygen sensor grounding

19

——

56

Troubleshooting wire






Continued

20

Battery power source

57

Ignition coil A

21

Grounding

58

Battery power source

22

——

59

Water thermostat
signals

23

Knock sensor signal

60

Fourth cylinder fuel
spray nozzle

24

——

61

Third cylinder fuel
spray nozzle

25

MAP signal

62

Ignition coil B

26

Throttle position signal

63

——

27

MAP power source

64

——

28

MAP/MAT grounding

65

——

29

Grounding

66

——

30

Camshaft position sensor
“A”

67

Air conditioner high
and low-voltage switch

31

Front oxygen sensor signal

68

——

32

Rear oxygen sensor signal

69

——

33

Crank shaft position sensor

70

First cylinder spray
nozzle

34

Water temperature sensor
signal

71

Grounding

35

Air intake temperature
signal

72

Grounding

36

Throttle reference voltage

73

——

37

Sensor grounding






























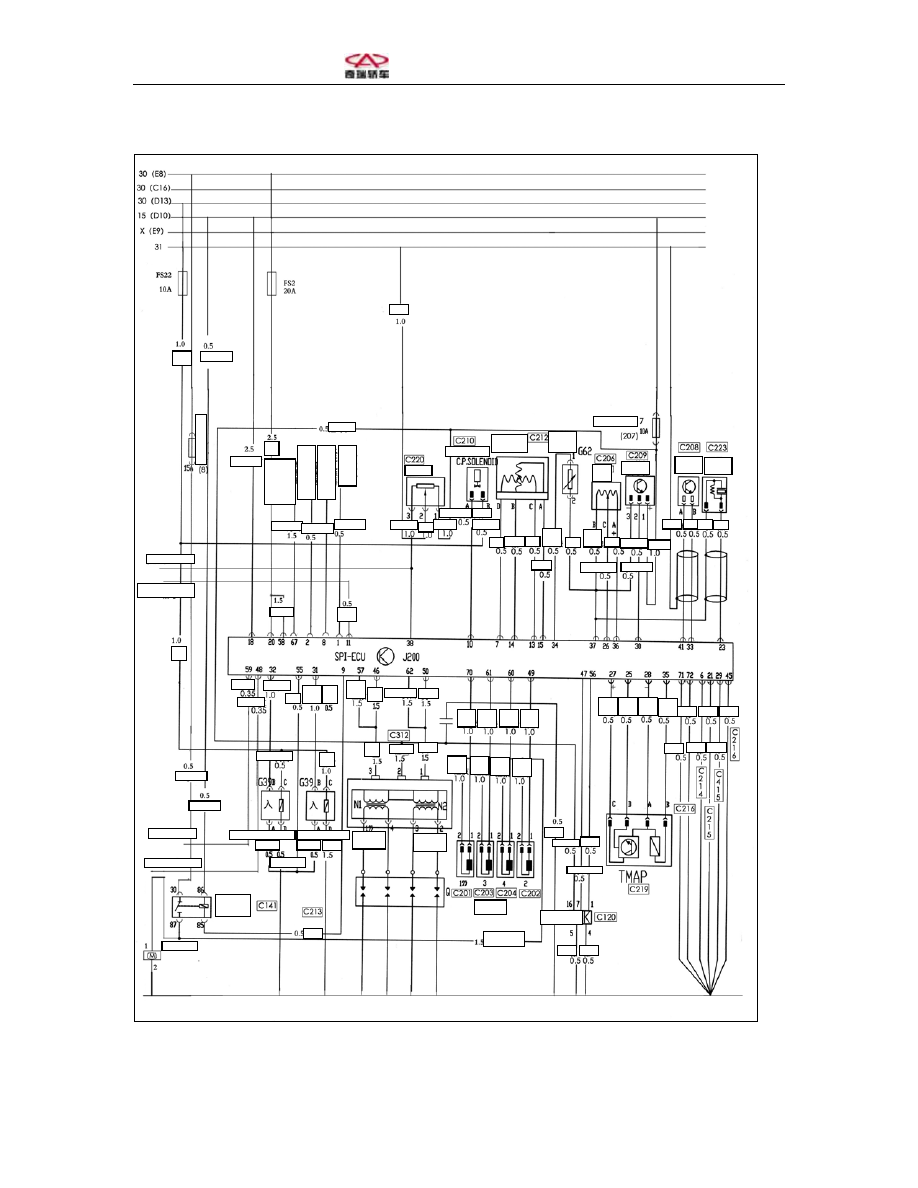

6. Computer control schematic diagram









Brown




Pink

Black/white





F

u

el

 p

u

m

p

 f

u

se

Front cabin fuse



Red/white

Water

temperature

sensor

Idle speed

relay

Charcoal canister



Red

Water
tank
high
speed
relay

Ho
wa
tank
lo
sp
fa
rel

C

o

m

p

re

ss

o

r r

ela

y

ter

eed

ay

Air
conditioner
high and
low-voltage
switch

Red/yellow

Knock

sensor



Crankshaft

sensor





Camshaft

sensor

Throttle

position

Mileage




Brown

Red green

Yellow

Red blue

Green red

Light green

Black

Black

White
 green

Black

White

Orange

Red blue

Green blue

Brown
black

Grey

Green

White

Purple

Black/white

Green/white Brown/white




Meter vehicle speed

Orange

Yellow brown Green white




To meter RPM signal



Red /blue

Green



Pink




Green/red

Black

White
 brown

Red
blue

Blue white

Grey red

Blue
purple  Blue Yellow white Yellow



Brown

Brown
white

Brown
green

Yellow
green

Red
green

Brown  Brown

Brown
purple

Brown
yellow

Brown
grey

Brown
green




Blue

Red blue

Yellow

Brown  Brown

Brown



Yellow white

Pink

Red
yellow

Red
purple

Red
black

Red
grey

Green/red




Black/white



Brown

Yellow

Redwhite

To water thermostat

Red blue

Red blue  Orange

Major oxygen sensor

Supporting oxygen sensor

1-4 ignition
coil

2-3 ignition
coil




Yellow red

Fault indicating lamp

Brownwhite



Fuel pump
relay



Injector

Diagnostic relay



White

Black/purple



Fuel pump

Brown

Brown
