 Oxygen sensor

 Air intake pressure sensor

 Camshaft position sensor

 Knock sensor

 Ignition coil and capacitor

 Throttle body assembly

 Spray nozzle

 Water temperature sensor


(34) Connect the vacuum tube on the
throttle.
(35) Connect the ground wire on the
cylinder cover.
(36) Connect the air intake pipe of the
throttle.
(37) Connect the storage battery cathode.
(38) Add appropriate engine oil.
(39) Adjust the torsion bar.


Two. Valve chamber cover
1. Unfix the valve chamber cover
(1) Detach the storage battery cathode
fittings.
(2) Detach the PVC vacuum tube on the
cylinder cover.
(3) Detach the ignition coil and vacuum
capacitor plug.
(4) Detach the spark plug’s power live
wire and screw off the high-voltage wire.
(5) Screw off the ignition coil bolts and
take out the ignition coil.
(6) Unfix the ignition coil capacitor.
(7) Unscrew the valve chamber bolts.
(8) Unfix the valve chamber cover
(Figure 41).
2. Cleaning
Clean the cylinder cover and valve
chamber cover with proper detergents.
3. Checking
Check the evenness of the valve
chamber cover. See the Checking
Measures of the Cylinder Cover.






























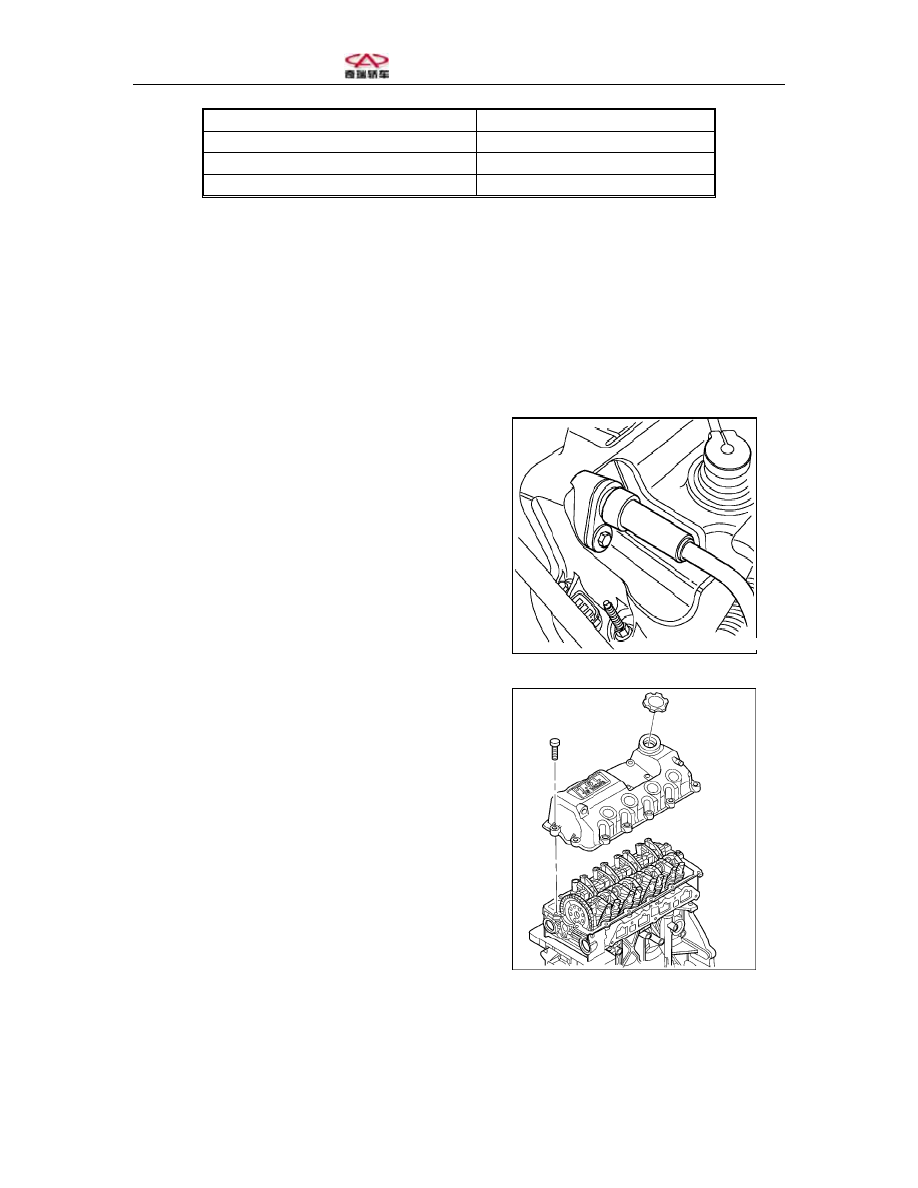

Figure 40 Position of PVC Valve

















Figure 41 Valve Chamber Cover







4. Fixing
(1) Check the gasket and seal (Figure
42), replace spark plug conduit (see
Engine/Cylinder Cover/Spark Plug
Sealing – Unfixing) and (see
Engine/Cylinder Cover/Spark Plug
Conduit – Fixing).


1-Valve chamber gasket
2-Seal
3-Bolt
4-Spark plug conduit






(2) Fix the valve chamber cover and
gasket. Screw on the bolts of the valve
chamber cover bolts in sequence.
Step 1: screw with a torque of 6N.m
(60in.lbs).
Step 2: screw with a torque of 12N.m
(105in.lbs) (Figure 43).




(3) Fix the ignition coil capacitor
(optional).
(4) Fix the ignition coil and high-voltage
cable and ensure that the rubber ring is
placed in the ignition coil (Figure 44)
and the screwing torque is 12N.m
(105in.lbs).


1-Rubber spacer ring
2-Ignition coil

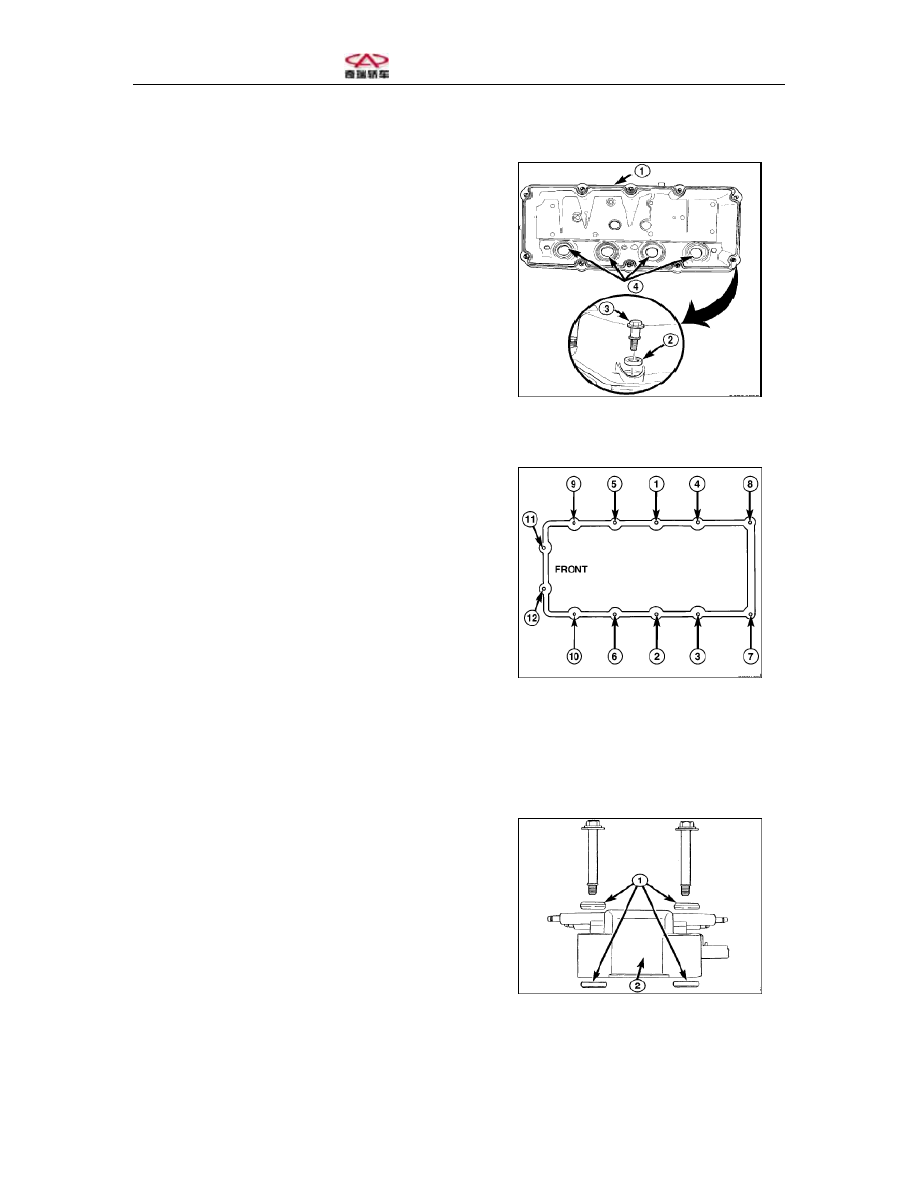

Figure 42 Valve Chamber Cover Gasket

and Seal














Figure 43 Valve Chamber Cover

Screwing Sequence















Figure 44 Ignition Coil and Rubber

Spacer Ring





(5) Connect the PVC vacuum hose
(Figure 40).
(6) Connect the ignition coil and
capacitor.
(7) Connect the storage battery cathode
fittings.


Three. Spark plug conduit seal
1. Unfixing
(1) Unfix the valve chamber cover (see
Engine/Cylinder Cover/Valve Chamber
Cover – Unfixing)
(2) Carefully unfix the spark plug
conduit sealing with proper tools. Do not
damage the sealing surface of the
cylinder cover.


1-Spark plug conduit sealing
2-Cylinder chamber cover


2. Fixing
(1) Clean all oil sealing surfaces.
Note: use oil seal fixing tool (Figure
46).
(2) Use special tools (Figure 46) and fix
the oil seal.


1-Special tool
2-Spark plug conduit oil seal





(3) Fix the valve chamber cover (see
Engine/Cylinder Cover/Valve Chamber
Cover – Fixing)
(4) Cylinder cover (see Engine/Cylinder
Cover/Valve Chamber Cover – Fixing)

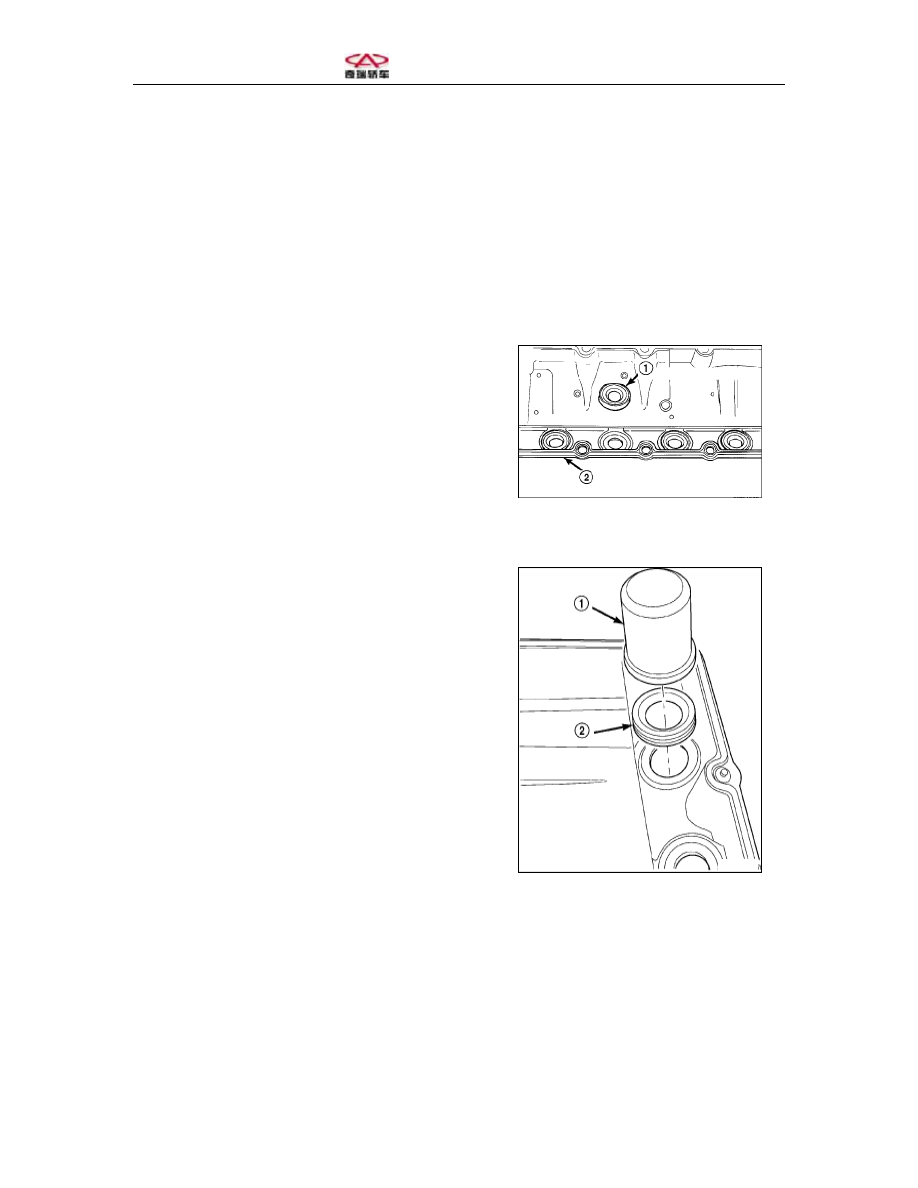

Figure 45 Spark Plug Conduit Sealing



















Figure 46 Fixing the Spark Plug Conduit

oil Seal











Four. Spark Plug Conduit Oil Seal
1. Unfixing
(1) Unfix the cylinder cover (see
Engine/Cylinder Cover/Valve Chamber
Cover – Fixing).
(2) Fix the spark plug conduit tools and
screw on the set screws with a torque of
16N.m.
(3) Unfix the valve conduit off the
cylinder cover with special tools.



1-Special tool
2-Special tool
3-Set screw




(4) Release the set screw, turn the
special tools and take out the conduit.
2. Fixing
(1) Clean the spark plug surrounding.
(2) Clean the bearing seat and fix special
tools.
(3) Fix the spark plug.
(4) Fix the special tools (Figure 48).





1-Special tool

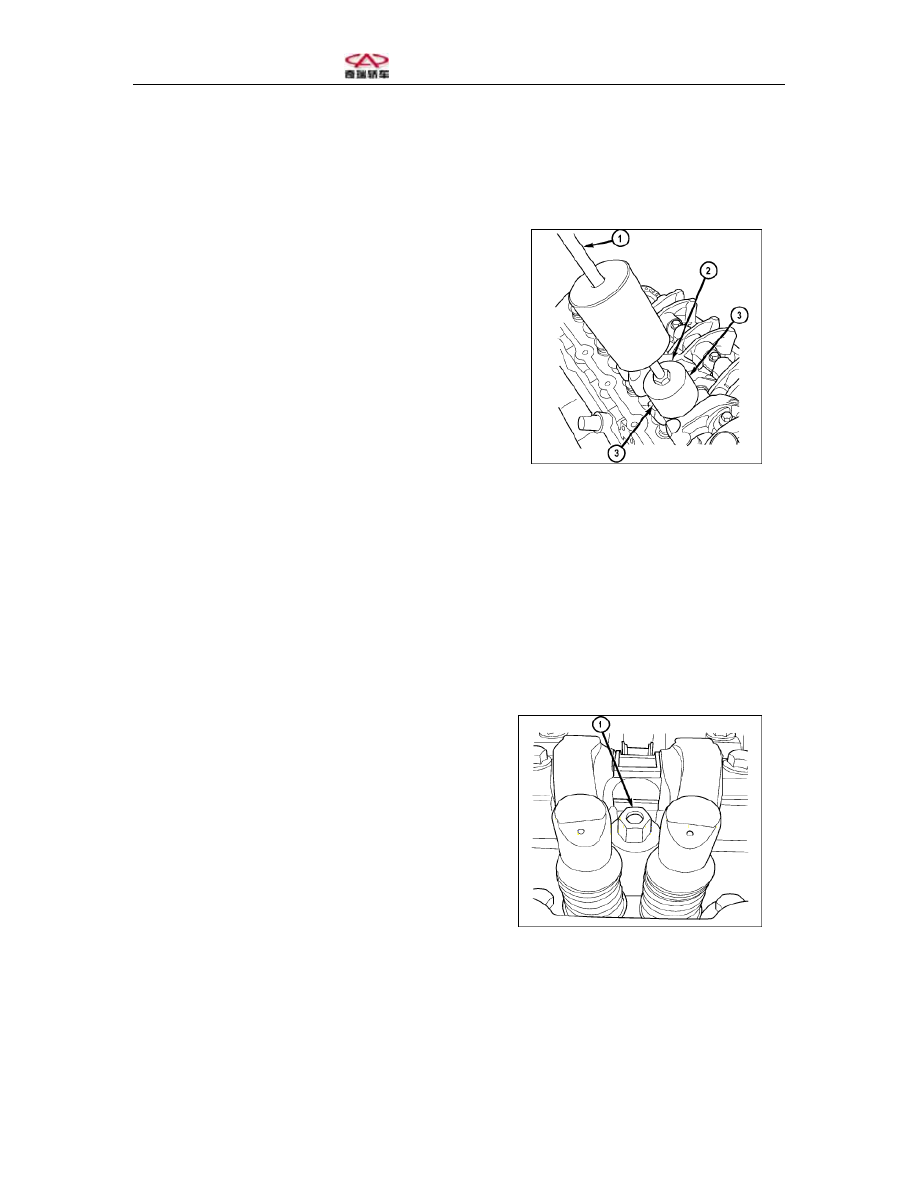

Figure 47 Unfixing the Spark Plug

Conduit Oil Seal






















Figure 48 Special Tool
