A/C SYSTEM COMPONENTS

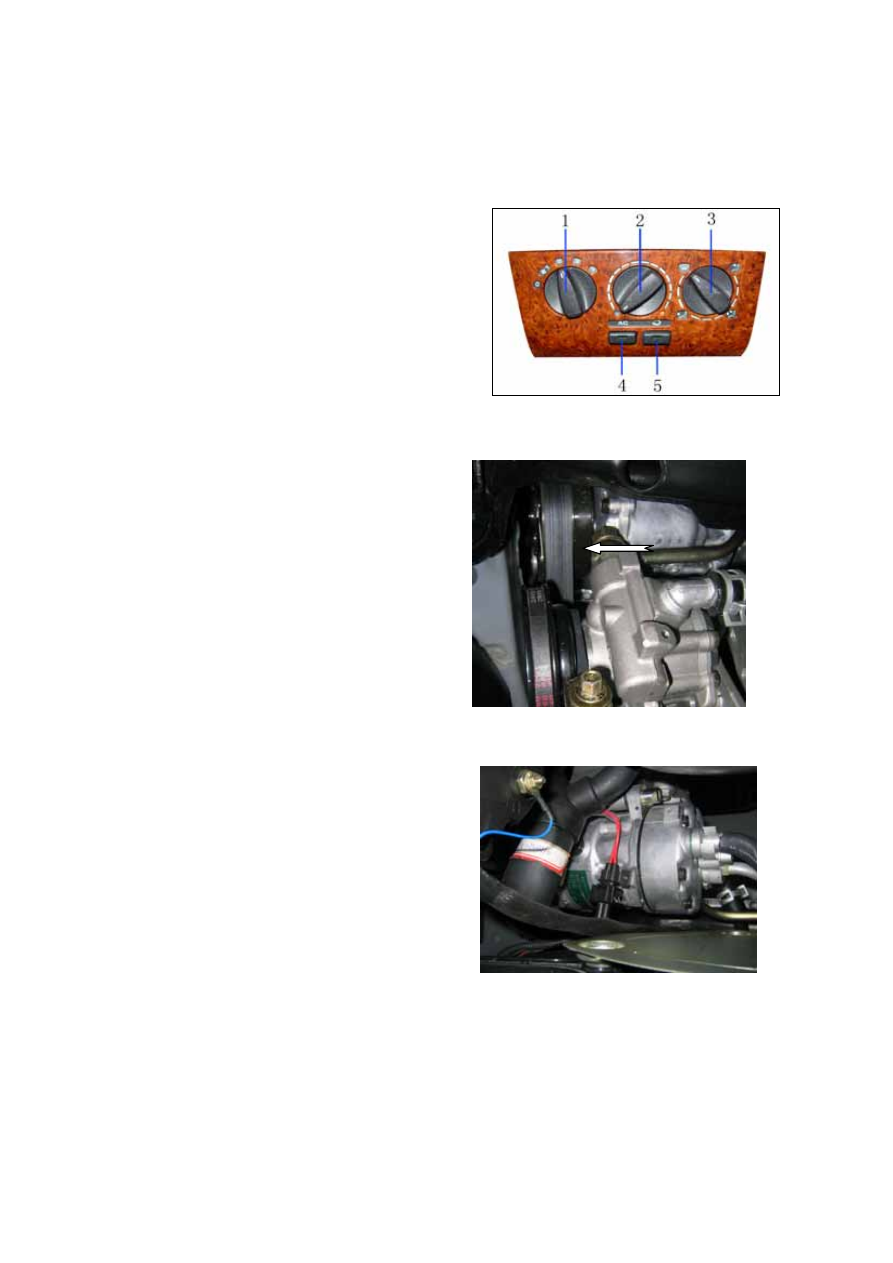

1. Function description of A/C control panel



















(1) Blower switch

(2) Temperature control switch

(3) Air-flow distribution switch

(4) A/C ON/OFF

(5) Internal circulation switch



2. Removal/Installation of A/C compressor

(1) Drain off the coolant (see the coolant

recycling procedure)

(2)  Loosen the drive belt, and remove it

(3)  Remove the air filter and generator

(4) Remove the refrigerator pipes, and pull out

the electromagnetic clutch connector

(5) Remove the two bolts (M10*110) (with

tightening torque of 45±5N·m) used to
secure the compressor and its support.

(6)  Install it in the reverse order of removal



Compressor Position and Related
Performance Parameters:

Chery A15LHD with the electronic fuel
injection type engine adopts the SD7V16 type
compressor, the performance parameters of
which are shown in the table below.



















U-14











 Swash

Plate

Number of cylinders

7

Cylinder diameter (mm)

29．3

Travel (mm)

max

min



34．2

2．2

Displacement (cm³/r)

max

min



161．3

10．4

Allowable maximum instantaneous speed
(r/min)

8000

allowable maximum continuous speed
(r/min)

7000

Coolant R134a

Refrigerant oil (cm

3

) 115±15

Electromagnetic clutch mass (kg)

2．2

Rated voltage (V)

12

Rated power (W)

48







U-15



The compressor is driven by engine crankshaft pulley via the M belt. When the shift lever
on the A/C control mechanism is shifted to the refrigeration position, the electromagnetic
clutch of A/C compressor engages, and the compressor pulley make the main shaft and
swash plate rotate and then pull the rocking plate to swing. The swinging of the rocking
plate pushes the piston to move, which creates the air pumping effect to compress the
low-temperature and low-pressure air-state coolant into the high-temperature and
high-pressure air-state coolant.

The motion parts of compressor are lubricated using the sputtered refrigerant oil and the oil
in coolant. During the operation of compressor, due to the rotation and swing of the swash
plate, the refrigerant oil will be sputtered to anywhere. In addition, due to the intersolubility
of coolant and oil, when the coolant flows into the compressor, it also carries a part of
refrigerant oil which is available to lubricate the motion parts inside the compressor.

ADJUSTMENT OF ELECTROMAGNETIC CLUTCH

1. Use a thickness gauge to measure the clearance between the platen and A/C compressor

pulley.

2. Check whether the clearance is in the range specified by the technical specification.

• If it is found that the result doesn’t conform to the requirement of technical specification,

remove the platen, and use one or several shims to adjust the clearance.

Clearance:

0.6mm±0.2mm



3. Removal/Inspection of condenser

(1). Drain off the coolant from the system (see the

coolant recycling procedure)

(2). Remove the front bumper and headlamp crossbeam

assy.

(3). Remove the fluid reservoir and the refrigeration

pipes connecting to the condenser.

Check the condenser:

(1) Check the crack, damage or oily fluid leakage.

·Replace the condenser if any failure above occurs.

(2) Check whether the fender position is blocked by dust
or not.

·Clean it if blocked.

(3) Check the bent condition of fender position.

·Use a flat headed screwdriver to straighten the fender







U-16



position if the bent is found.

Installation of Condenser

(1) Use some self-tapping screws to secure the

condenser and radiator, and assemble the related
screw bush and spacer, with the tightening torque
of 6±0.6N·m;

(2) Use the bolts (M6) and spacer to secure the

condenser support on the front crossbeam, with the
tightening torque of 1.5±0.15N·m;

(3) Assemble the integrated condenser-radiator into the

related fixing holes;

(4) Use spacer, shim block and two nuts to fasten the

condenser and front crossbeam, where the tightening
torque of nut is 1.5±0.15N·m.

The condenser is designated to cool the coolant vapor
discharged from the compressor and condense the vapor
to make it give off its heat and become to the coolant
fluild.

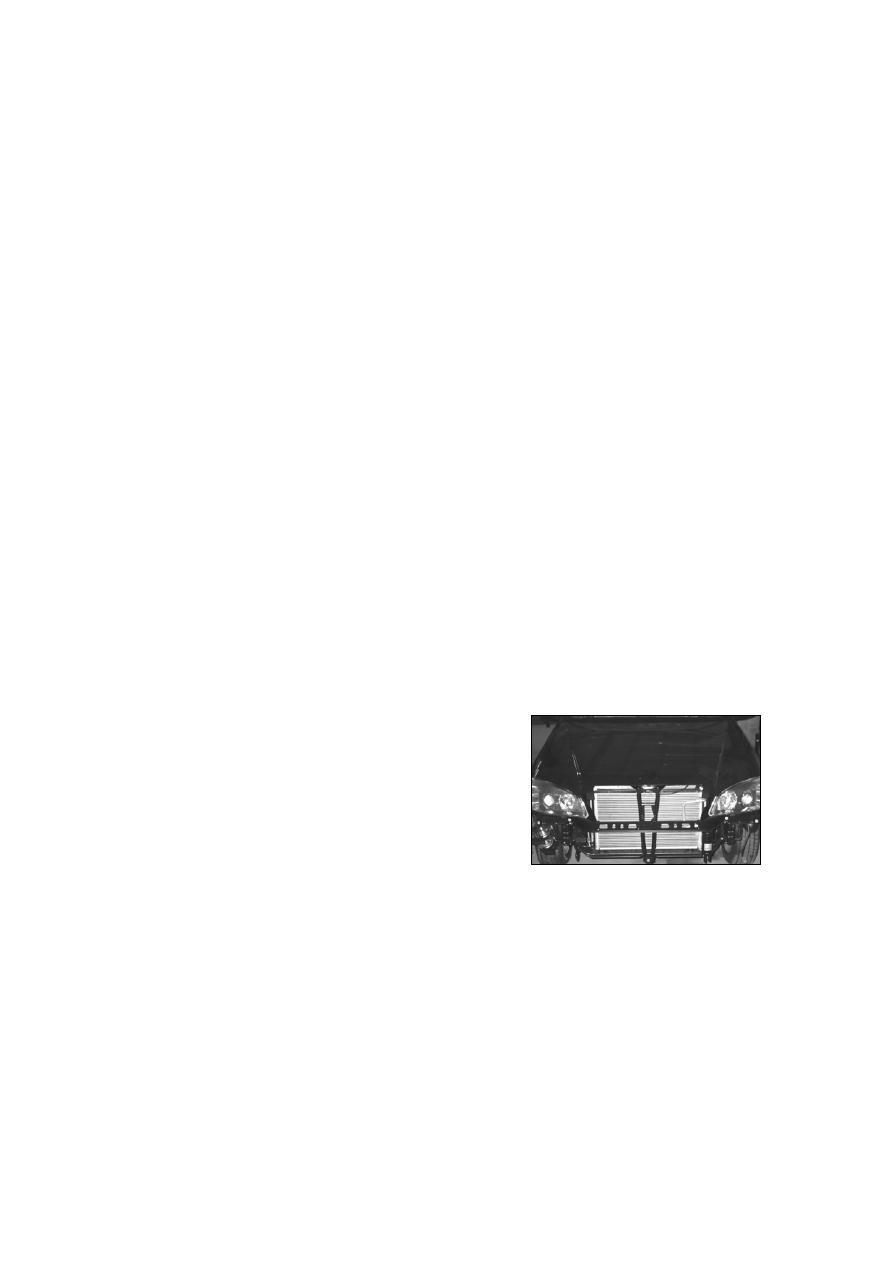

Chery A15LHD adopts the serpentine condenser, as
shown in the figure. The condenser is secured with
engine radiator in a row, and there is an axial fan, which
is driven by a DC motor, behind them to forcedly cool
the condenser and radiator.

Introduction to the fluid reservoir:

Removal/Installation (see the Removal of Condenser)

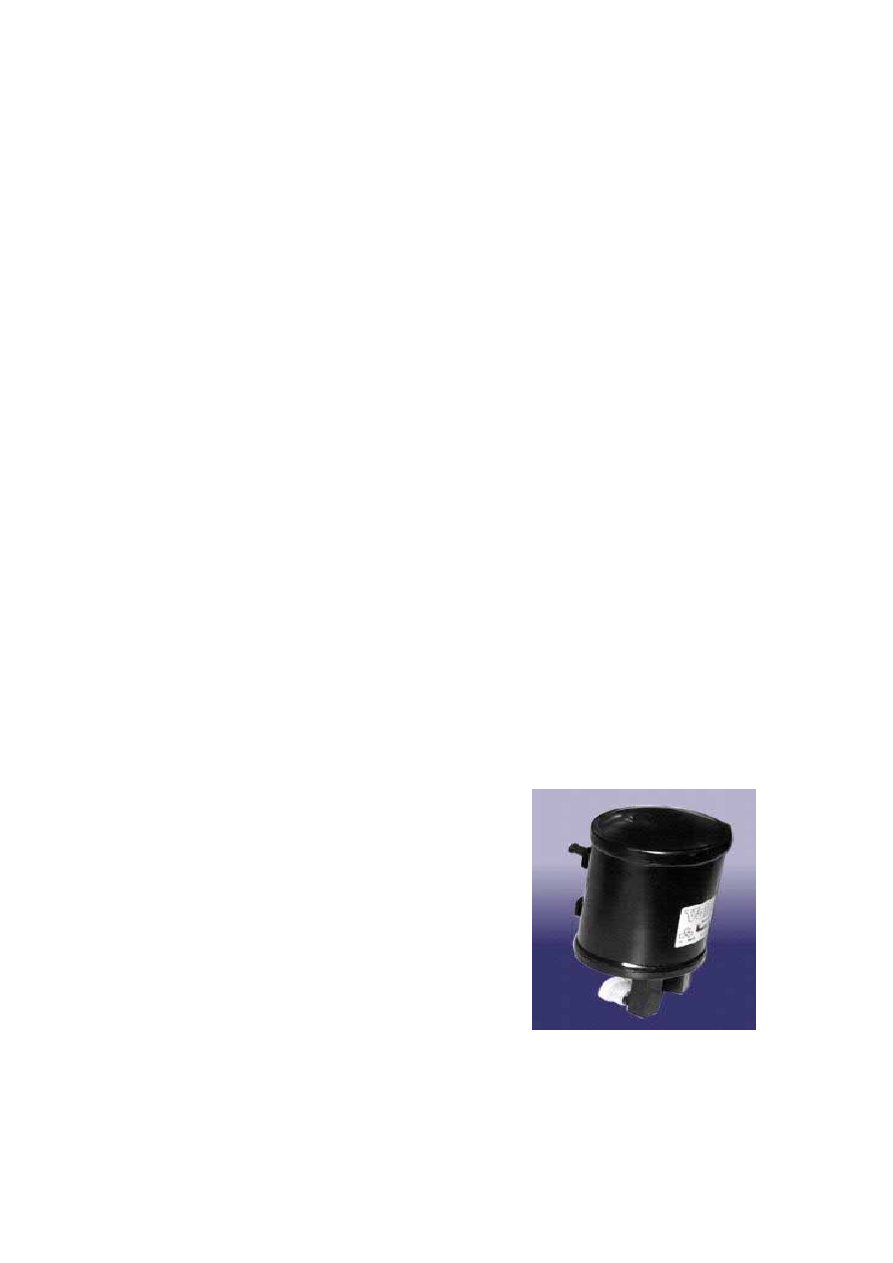

Chery A15LHD’s fluid reservoir is located under the
condenser (i.e., the outlet of condenser), the structure of
which is shown in the figure.

In fact, the fluid reservoir is a pressure container used to
store the coolant, and it is available to delivery the
fluid-state coolant to the expansion valve at a specified
flow rate. The filter screen of fluid reservoir is applied to
filter the all kinds of foreign materials from the coolant.
The drying agent silicon oxide with powerful water
absorptivity is filled in the drying unit, which is used to
absorb the water content in the coolant. In addition, a
fusible plug is also installed on the reservoir. If the poor
heat emission of condenser or other causes result the
rapid rise of temperature and pressure of the
