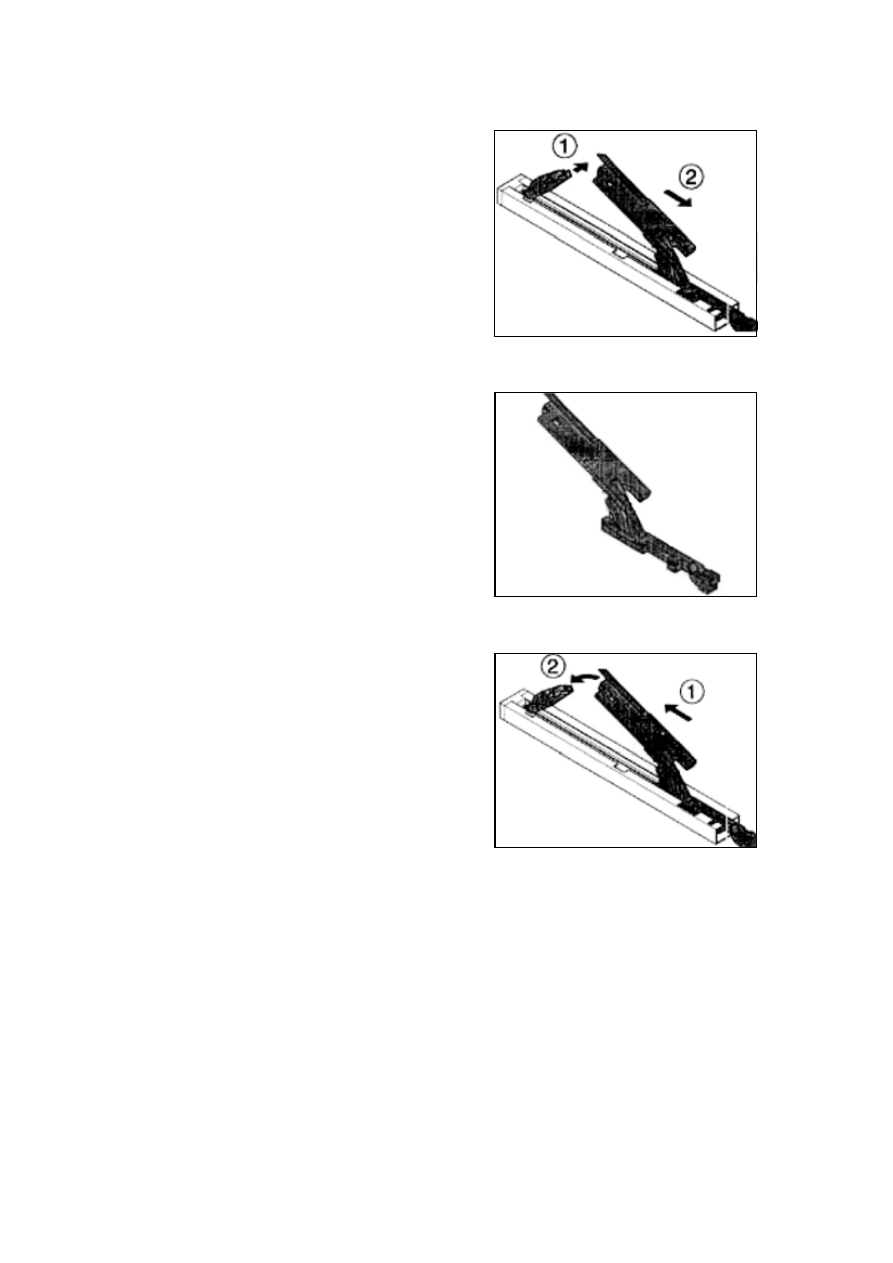

16. Disengage the front riser and the rail slide

device, then remove the latter.















17. Inspect the new rail slide device.















18. Install in the reverse order of step 16.



















S-86

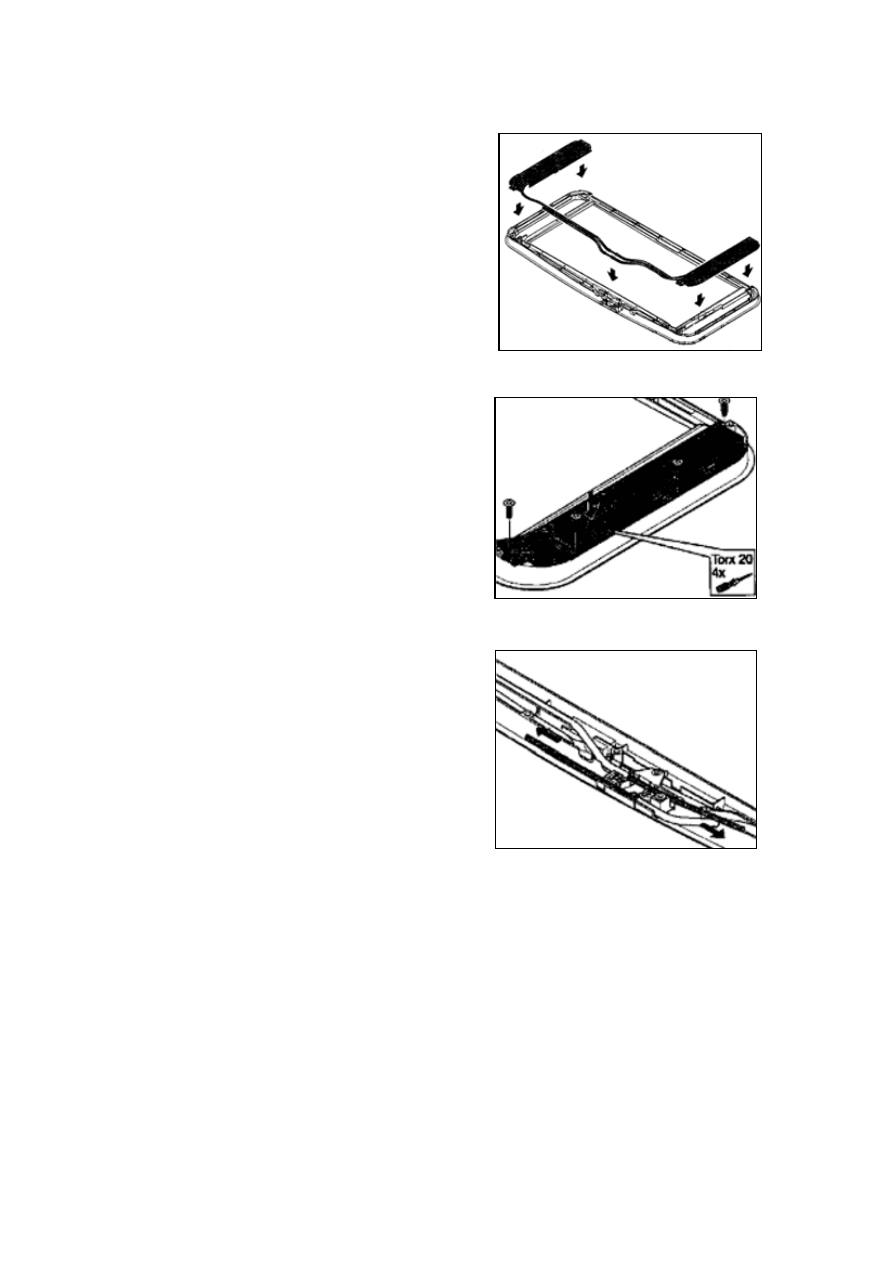

19. Install in the reverse order of step 11.















20. Install in the reverse order of step 10.















21. Install in the reverse order of step 9.















22. Install in the reverse order of step 8.





































S-87

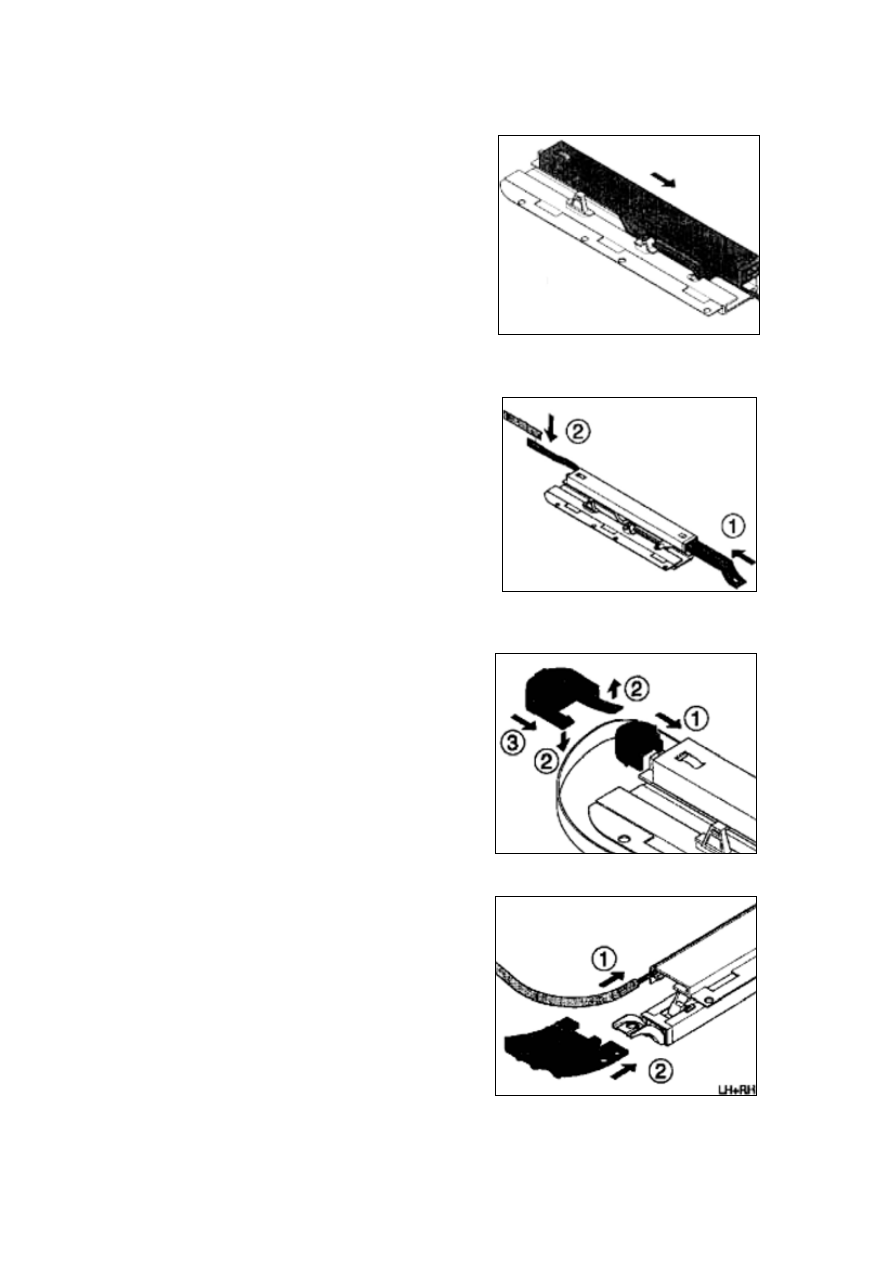

23. Install in the reverse order of step 7.

















24. Install in the reverse order of step 6.

















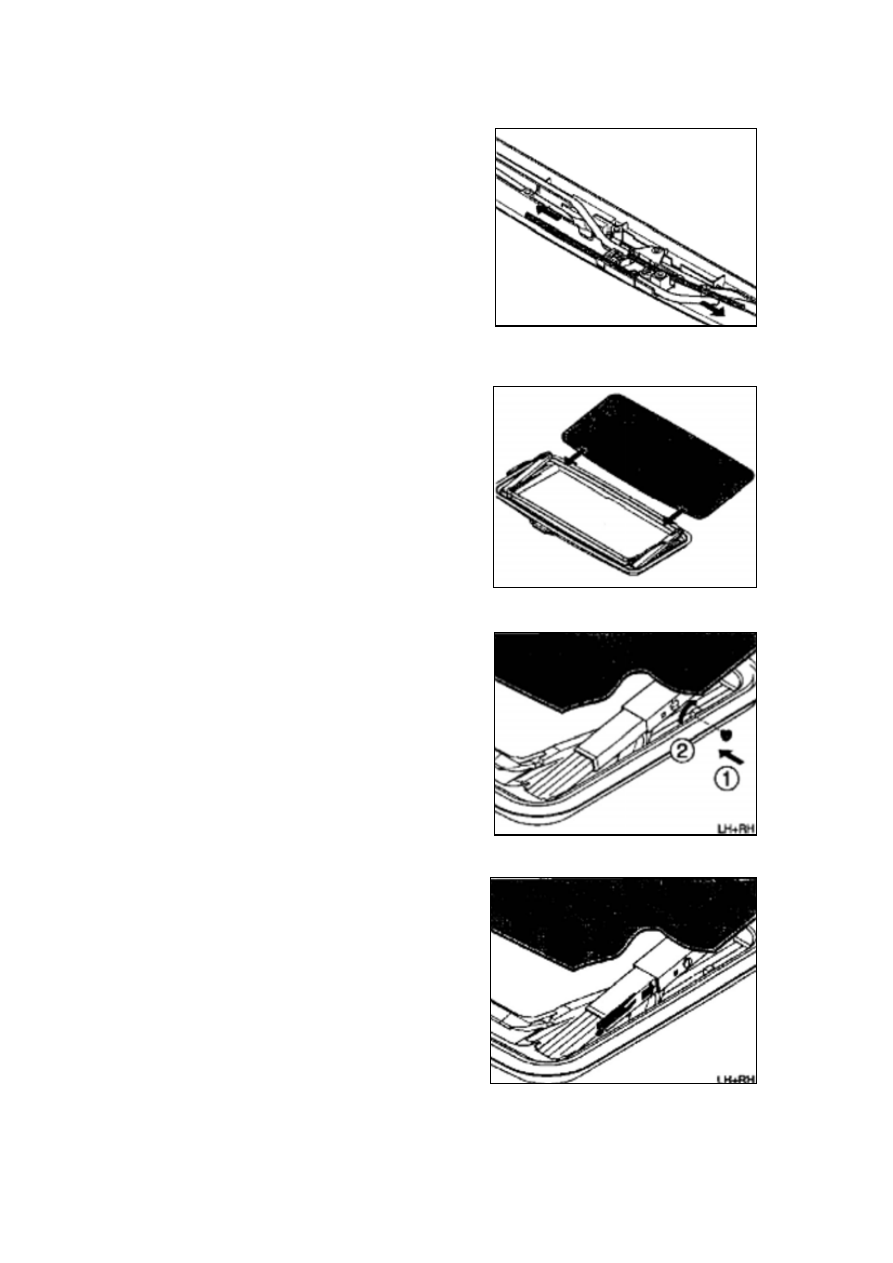

25. Fully close the sunroof by pulling the rack

(make sure that it is done properly), and
verify that the pin joint not being jammed
in the mechanical devices.



















S-88

26. Install the rack, the pinion and the pinion

cover. Note that the pinion should be
placed at the center.













27. Slide the glass panel into the mechanical

devices in parallel.













28. Install the fastening pin of glass panel

through rotating 90 degrees only.











29. Push the lock of glass panel to the proper

position.













S-89
