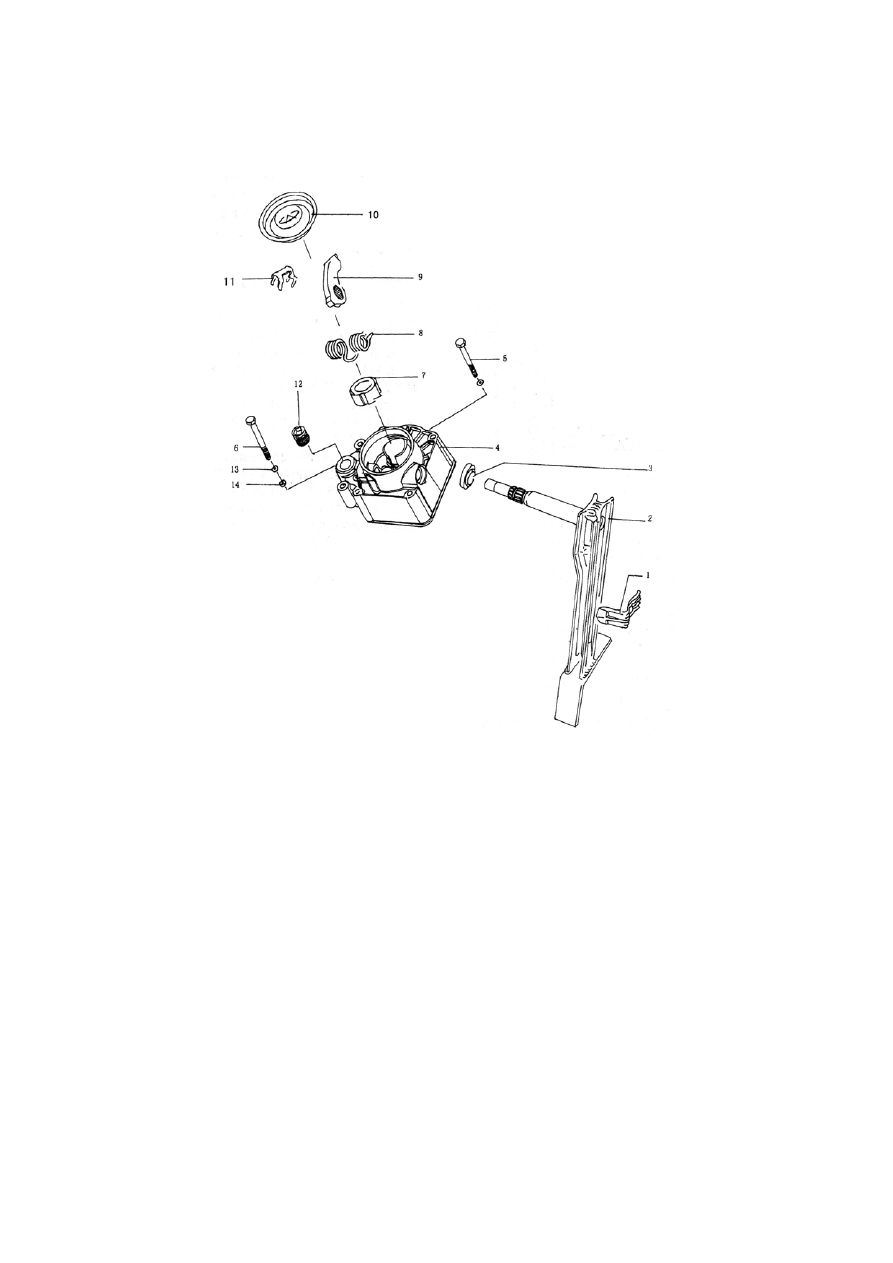

Resolution graph:



1. Clamp—release arm    2. Release arm assembly    3. Clutch release shaft oil seal    4. Rear
housing    5. Fixing bolt    6. Rear housing fixing bolt  7. Clutch release bearing  8. Return
spring  9. Clutch release finger  10. Back cover  11. Fixing clip  12. Drain bolt    13. Flat
spacer  14. Spring washer



Assembly：

The assemble process of rear housing is opposite to it’s disassemble process.











J-27

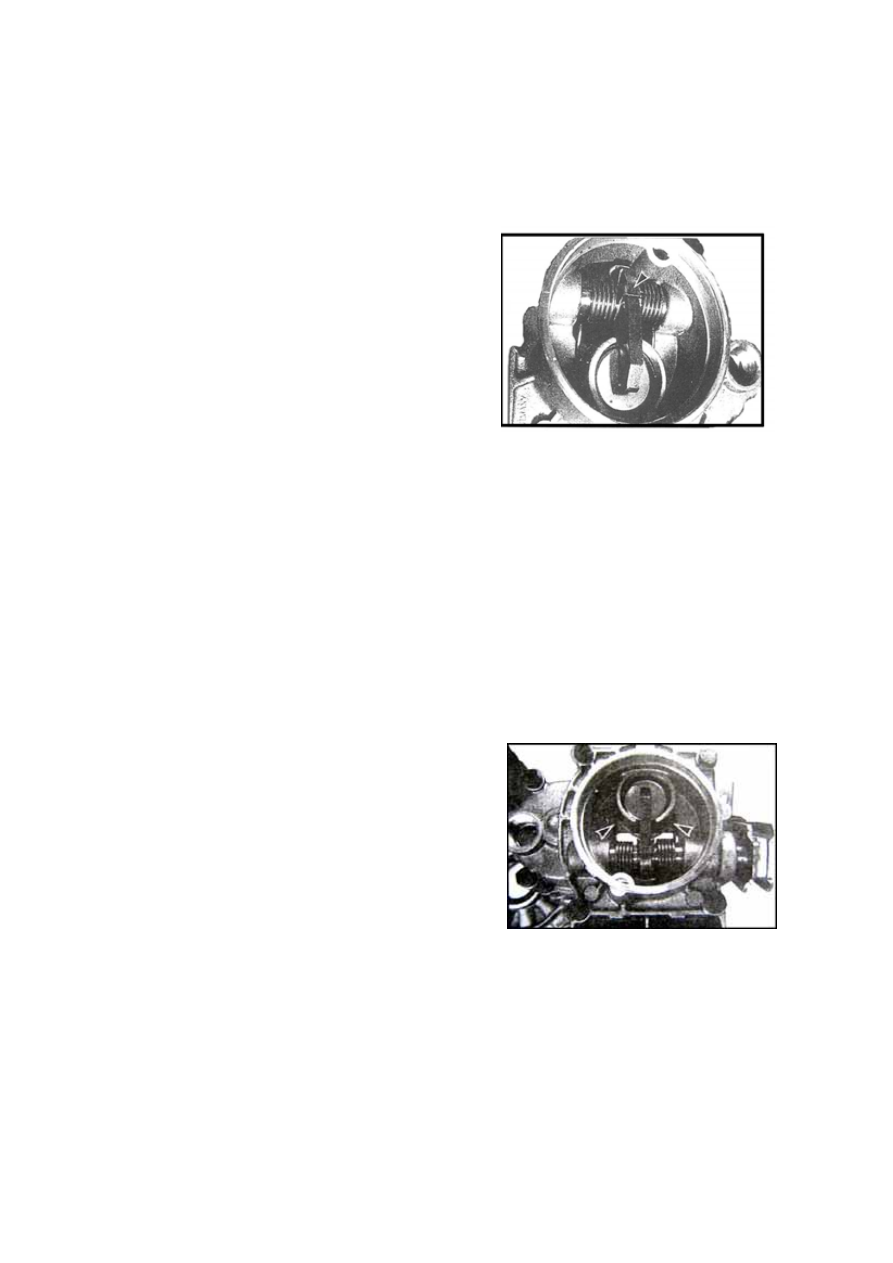

DISASSEMBLY AND ASSEMBLY OF CLUTCH CONTROL ARM, CLUTCH

RELEASE SHAFT OIL SEAL, AND CLUTCH RELEASE BEARING



Disassembly:

——Drive car to the platform.

——Disassemble the clutch control cable

assembly.

——Disassemble engine bracket on the

transmission side.

——Lift the vehicle by lifter.

——Discharge all the transmission oil by screw

off the drain bolt under the differential.

——Get off the back cover by punch, do not hurt

the contact surface. Disassemble the fixing
clip of the separated finger; pull off clutch
release shaft, separated finger and spring.

——Take off clutch release bearing, and punch off

clutch release shaft oil seal assembly. Do not
hurt the contact surface.




Assembly:

Assembly is opposite to the disassembly process,
pay attention to the following items:

——Lubricate the oil seal surface and put it in by a

special tool.

——Assemble clutch separated finger to the

position shows in the picture, and then
assemble release bearing, spring and clip. The
spring position shows in the picture.

——Press the new back cover to its right position

by special tool. If it is assembled on the
vehicle, extra work as below: fill transmission
oil to the specified level.

——Lower the vehicle on the platform and

connect to clutch control cable.






J-28

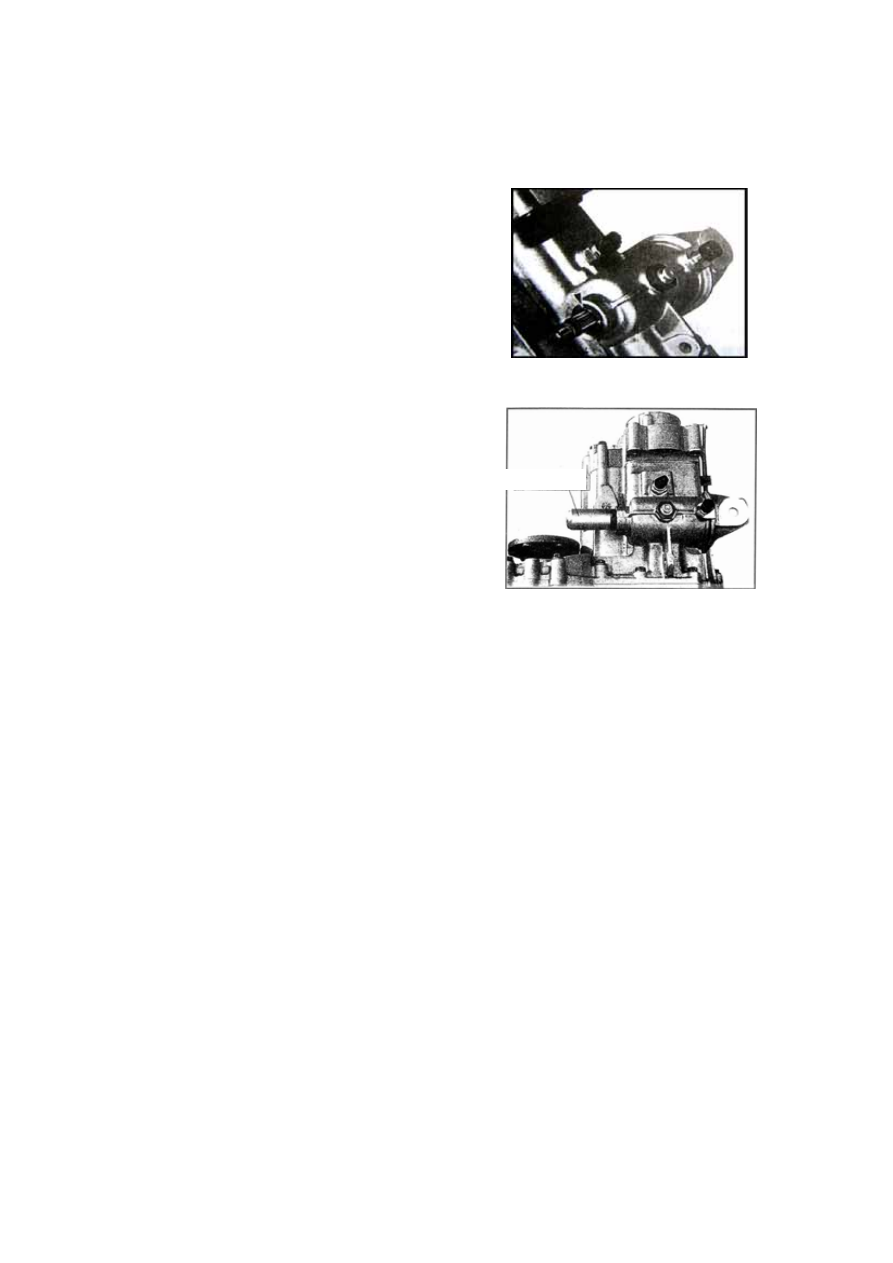

DISASSEMBLY AND ASSEMBLY OF THE GEARSHIFT SHAFT OIL SEAL



——The disassembly and assembly of the

gearshift shaft oil seal can be done when the
transmission is not broke down.

Disassembly:

——See the picture, remove the oil seal by a flat

spade or punch.





Assembly:





——Lubricate the lip of oil seal and press oil seal

into transmission housing completely by a
special tool.



Special Tool





























J-29

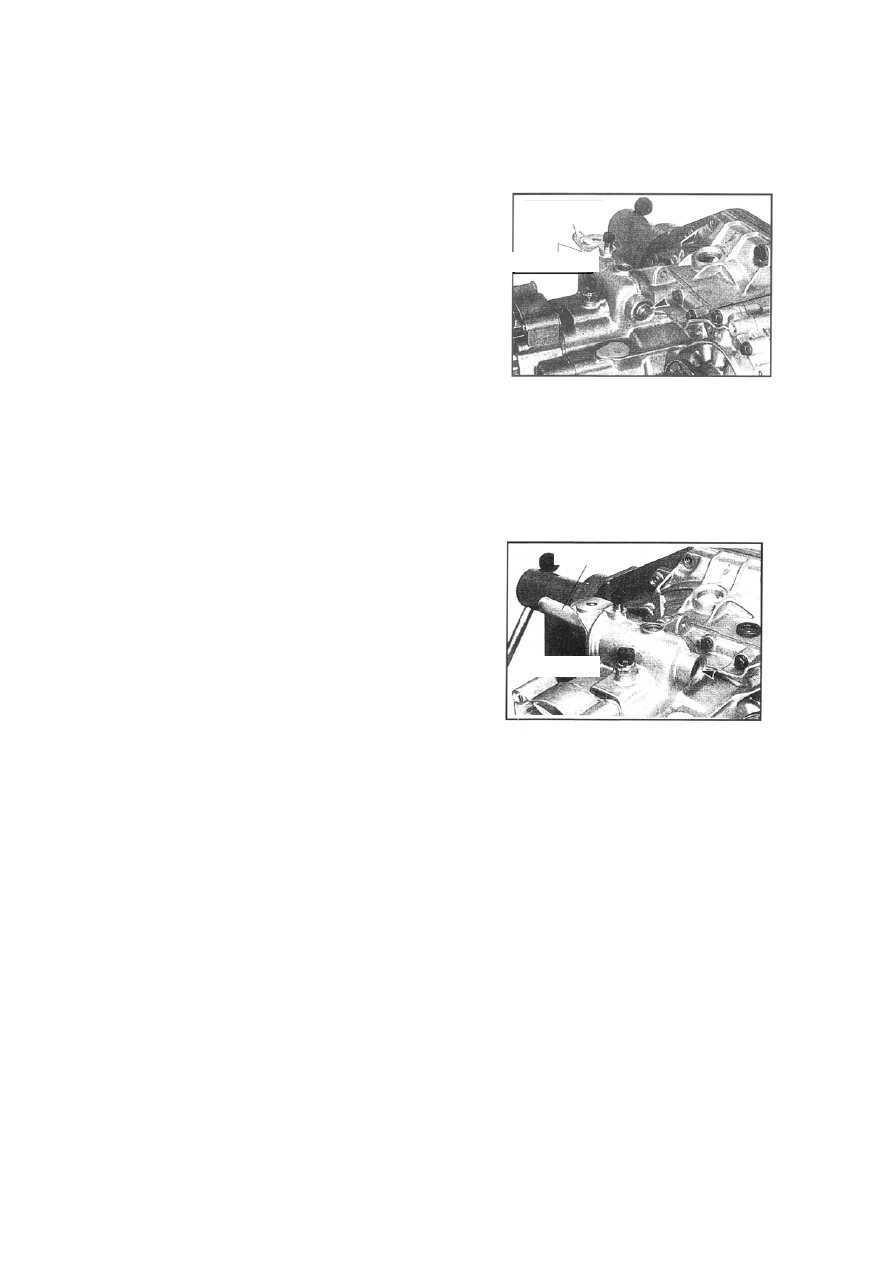

DISASSEMBLY AND ASSEMBLY OF THE GEARSHIFT SHAFT BEARING



Disassembly:
——It needs to take off the gearshift shaft and oil

seal as changing the gearshift shaft bearing.

——Penetrate the special tool into gearshift shaft

housing, see the picture, and tap it slightly
until the gearshift shaft out from the other
side.









Special Tool

Special Tool







Assembly:



——Assemble the bearing inside of the position

which can contain the gearshift shaft.

— — Press the bearing to its right position by

special tool and then assemble the gearshift
shaft.








Special Tool

Special Tool





















J-30
