ELECTRICAL TROUBLESHOOTING TOOLS

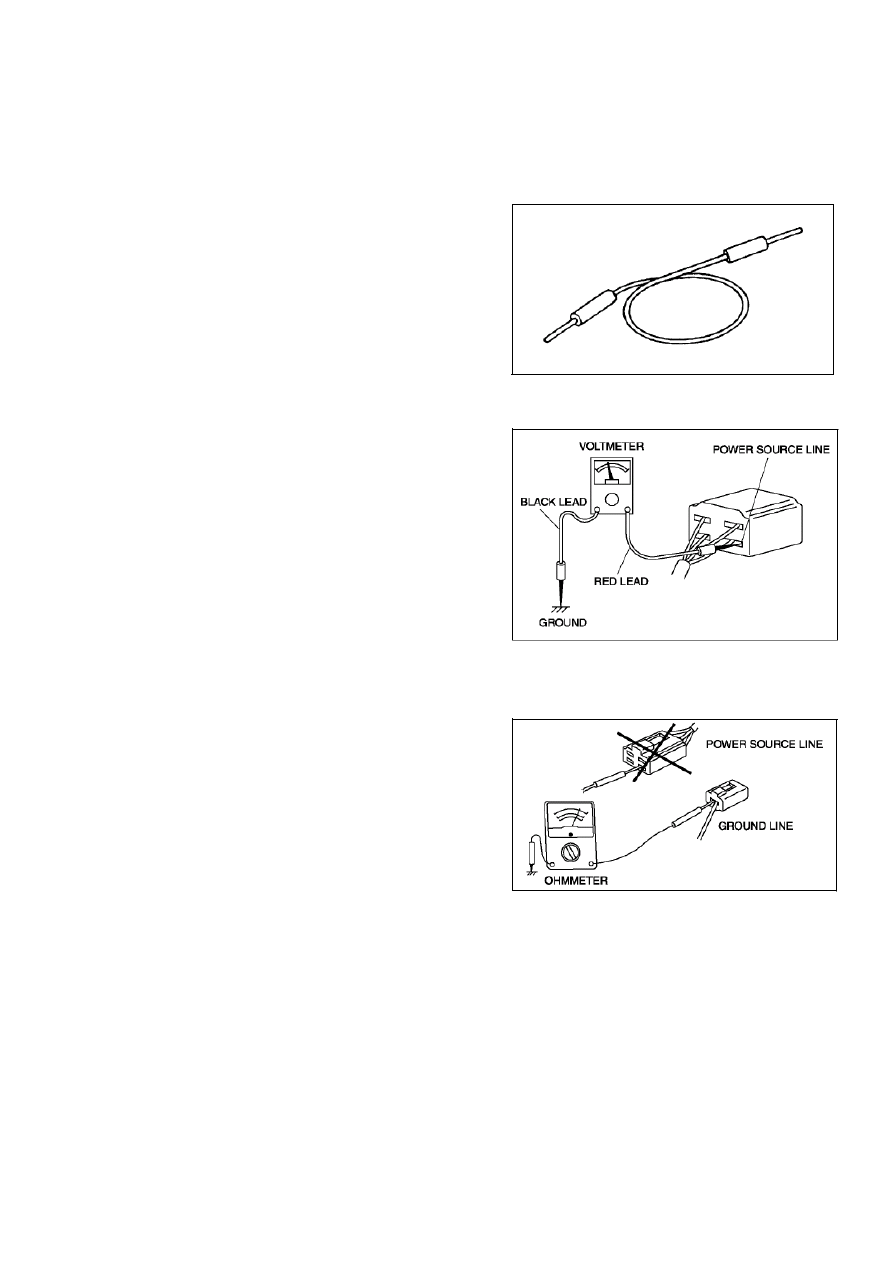

Jumper wire
·A jumper wire is used to create a temporary
    circuit. Connect the jumper wire between the
    terminals of a circuit to bypass a switch.


Caution

      ·Do not connect a jumper wire from the

  power source line to a body ground. This
  wiring harnesses or electronic
 components.


Voltmeter
·The DC voltmeter is used to measure circuit
    voltage. A voltmeter with a range of 15V or more
    is used by connecting the positive (+) probe (red
    lead wire) to the point where voltage will be
    measured and the negative (-) probe (black lead
    wire) to a body ground.




Ohmmeter
·The ohmmeter is used to measure the resistance
    between two points in a circuit and to inspect for
    continuity and short circuits.
      Caution
      ·Do not connect the ohmmeter to any

circuit where voltage is applied. This will

GI-11

damage the ohmmeter.














TOWING

TOWING

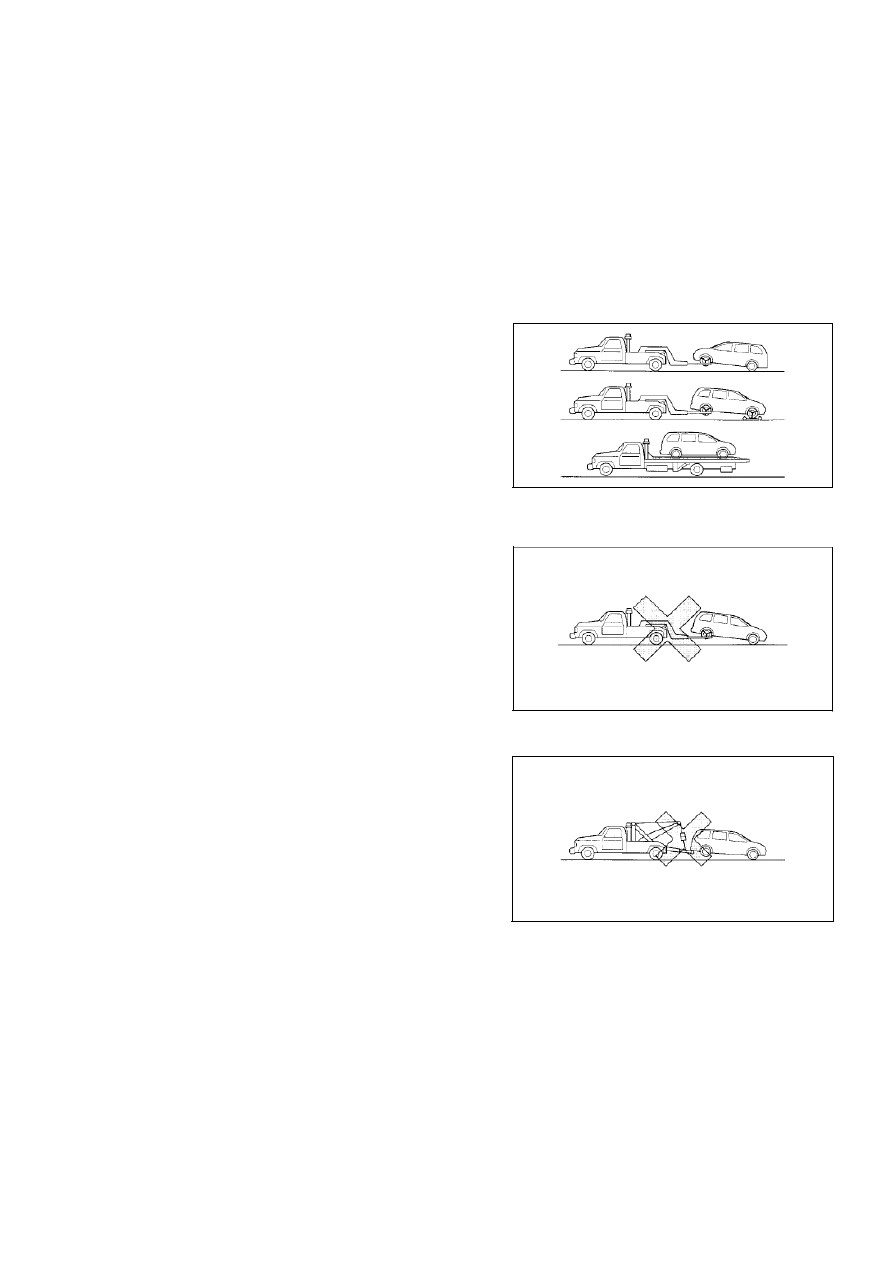

·Proper lifting and towing are necessary to prevent damage to the vehicle. Government and

local laws must be followed.

·A towed vehicle should have its front wheels off the ground. If excessive damage or other

conditions prevent this, use wheel dollies.

·When towing with the rear wheels on the ground, release the parking brake.

    Caution
    ·Do not two the vehicle backward with
        driving wheels on the ground. This may
        cause internal damage to the transaxle.







Caution
·Do not tow with sling-type equipment.

This could damage your vehicle. Use
wheel-lift or flatbed equipment.






Caution
·Do not use the hook loops under the
    front and rear for towing. They are
    designed ONLY for tying down the
    vehicle when it is being transported.




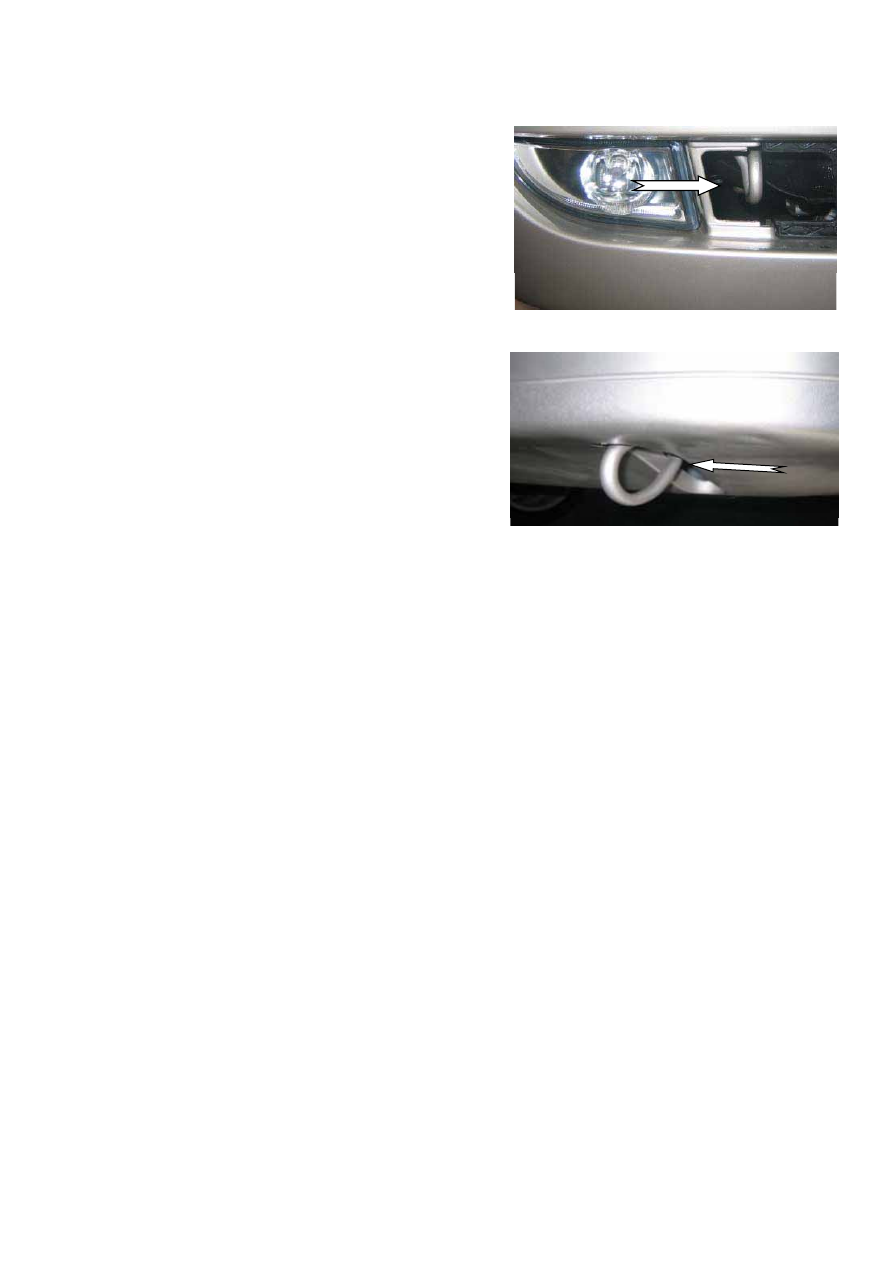

TOWING HOOKS
  Caution
    ·The towing hooks should be used only in an emergency(to get the vehicle out of a

ditch or a snow bank, for example).

    ·when using the towing hooks, always pull the cable or chain in a straight direction

with respect to the hook. Apply no sideways force.





GI-12





FRONT












REAR

























































GI-13

IDENTIFICATION NUMBER LOCATIONS



VEHICLE IDENTIFICATION NUMBER (VIN)

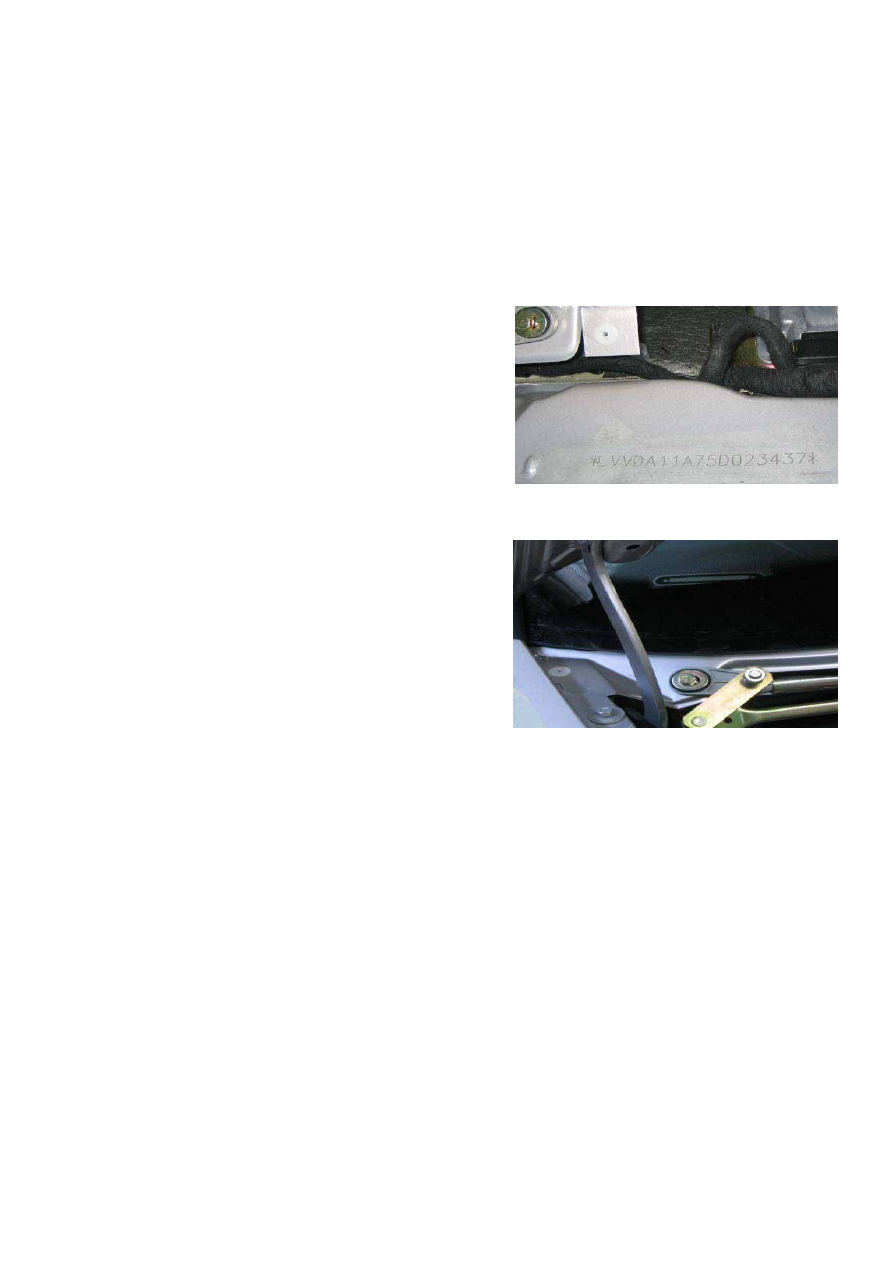

The VIN of Chery A series vehicle is available at two places of the engine compartment. The
specific position are illustrated in the following pictures:





·VIN on Wiper Groove









·VIN on the right foot of front glass










DESCRIPTION OF VIN

LVV: International identity code of manufacturer
D: Brand of the Vehicle
A: Type of Vehicle Chassis
1: Type of Transmission
1: Type of Engine
A: Constrain System
7: Check Digit
5: Manufacture Year
D: Assembly Factory Code
023437: Production Serial Number

2.  The fourth digit of VIN code stands for the brand of the vehicle. The brand “Chery” is

represented by letter “D”.
