  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





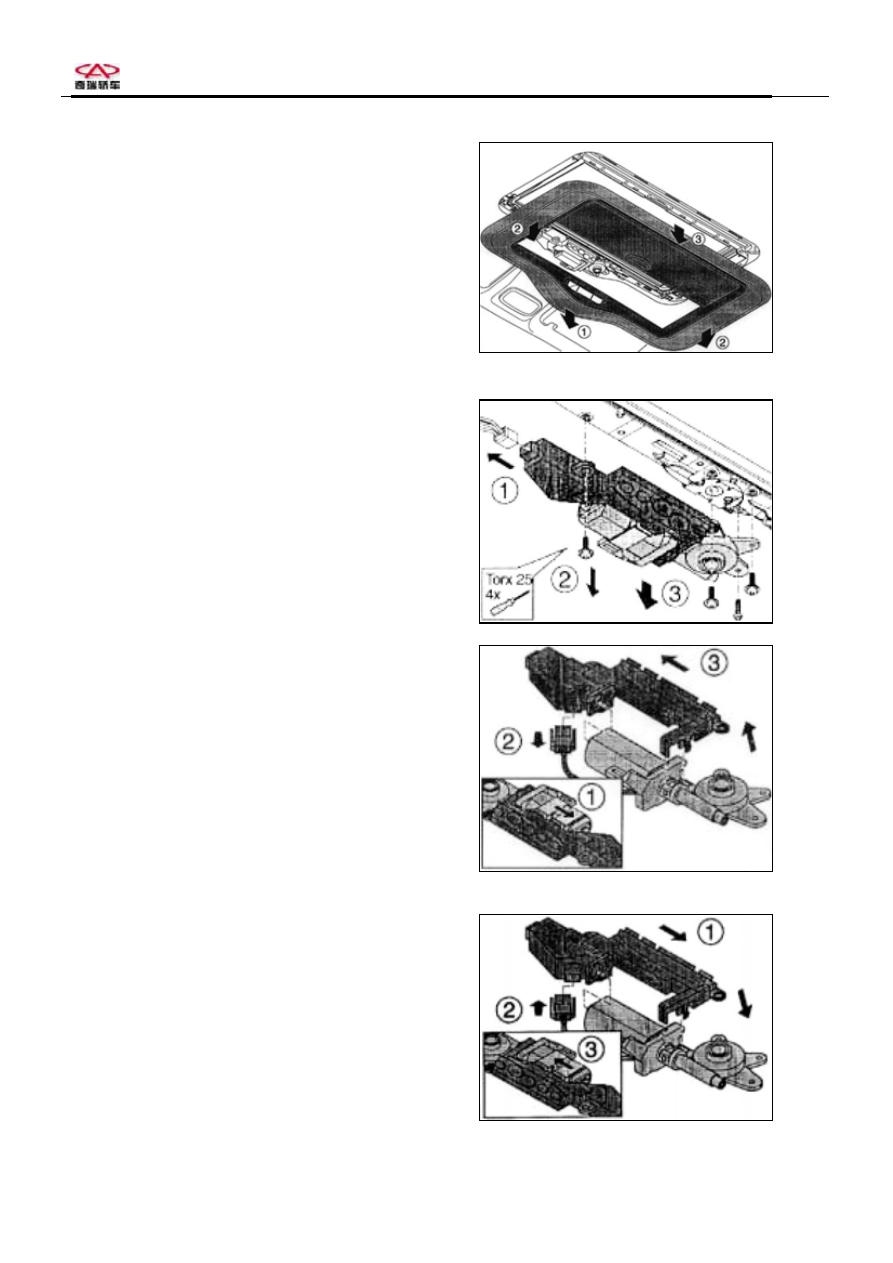

4.1.5 Remove the interior decorative frame (pull it down

in the direction shown in the figure). Take care not

to damage control buttons.



















4.1.6 Move the fixing clip toward computer case, unplug

the connection between motor and SCU, then

detach the fixing hook between SCU and motor to

separate motor and SCU for replacement.













4.1.7 Unplug wire harness connecting SCU and remove

the four fixing bolts to take off motor and SCU.



















4.1.8 Install new motor and SCU in the reverse order in

step 7.

Page 9 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof

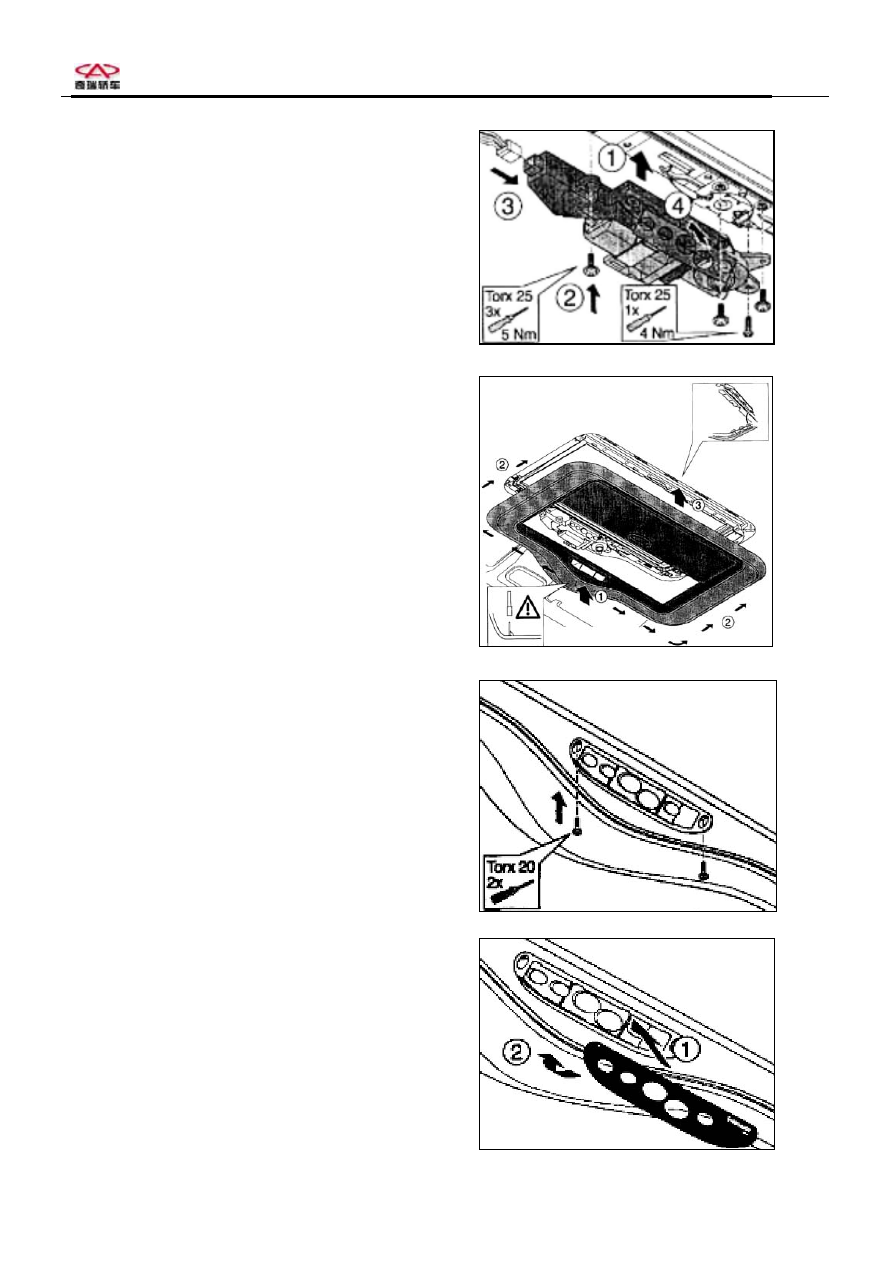

4.1.9 Proceed with installation in the reverse order in

step 6.

Pay attention to the engagement between motor

driving shaft and gear.















4.1.10 Fix interior decorative frame (push it up in the

direction shown in the figure with clip aligned

with clip slot). Add an under-laying strip if

necessary.



















4.1.11 Tighten the fixing bolts of interior decorative

frame.



















4.1.12 Fix control panel cover plate.

Page 10 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





4.2 Disassembling/assembling sunroof





Disassembling procedure

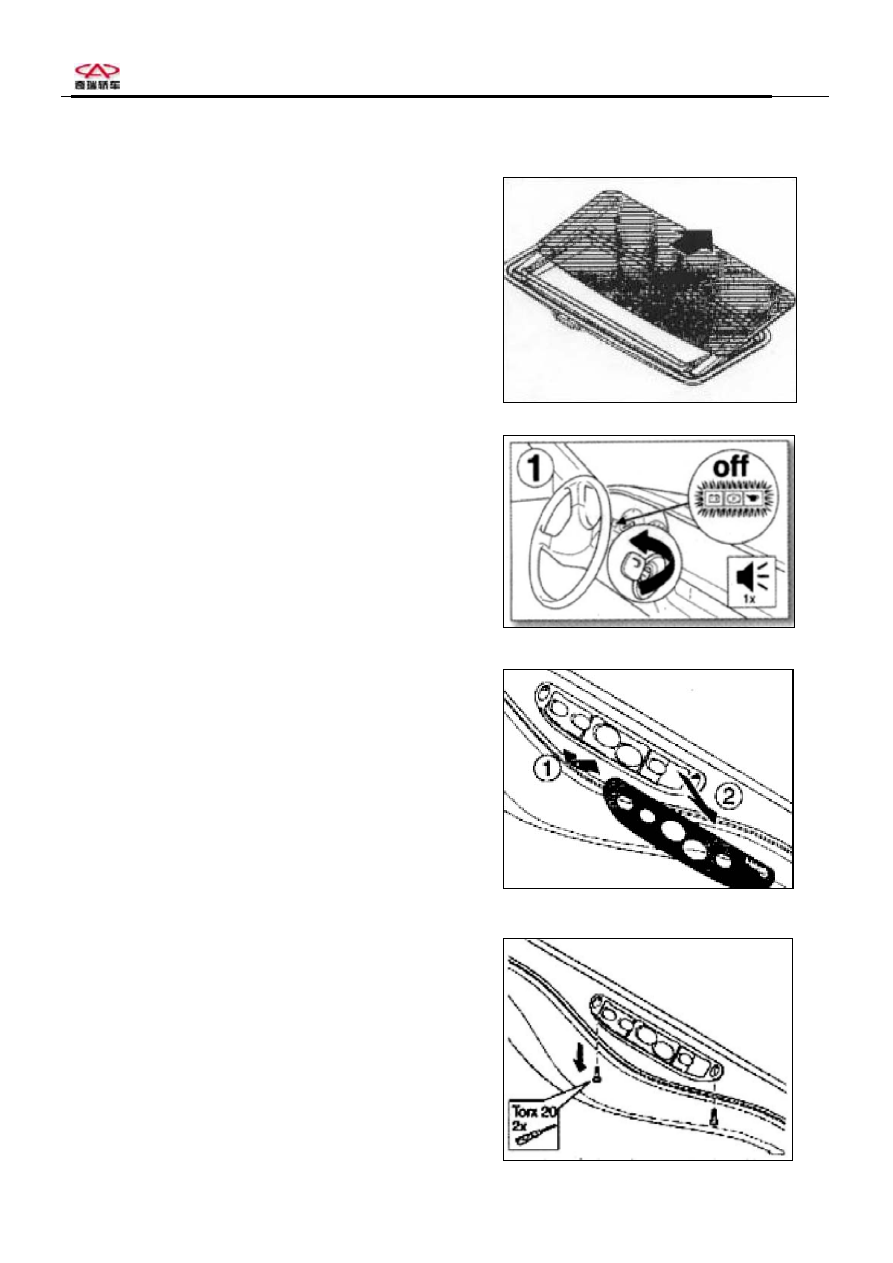

4.2.1 Open sunroof.



















4.2.2 Turn off ignition switch and press and hold control

button to prevent sunroof from automatically

shutting.















4.2.3 Take off the control panel cover plate.





















4.2.4 Remove the two fixing bolts in front part of interior

decorative frame.





















Page 11 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof

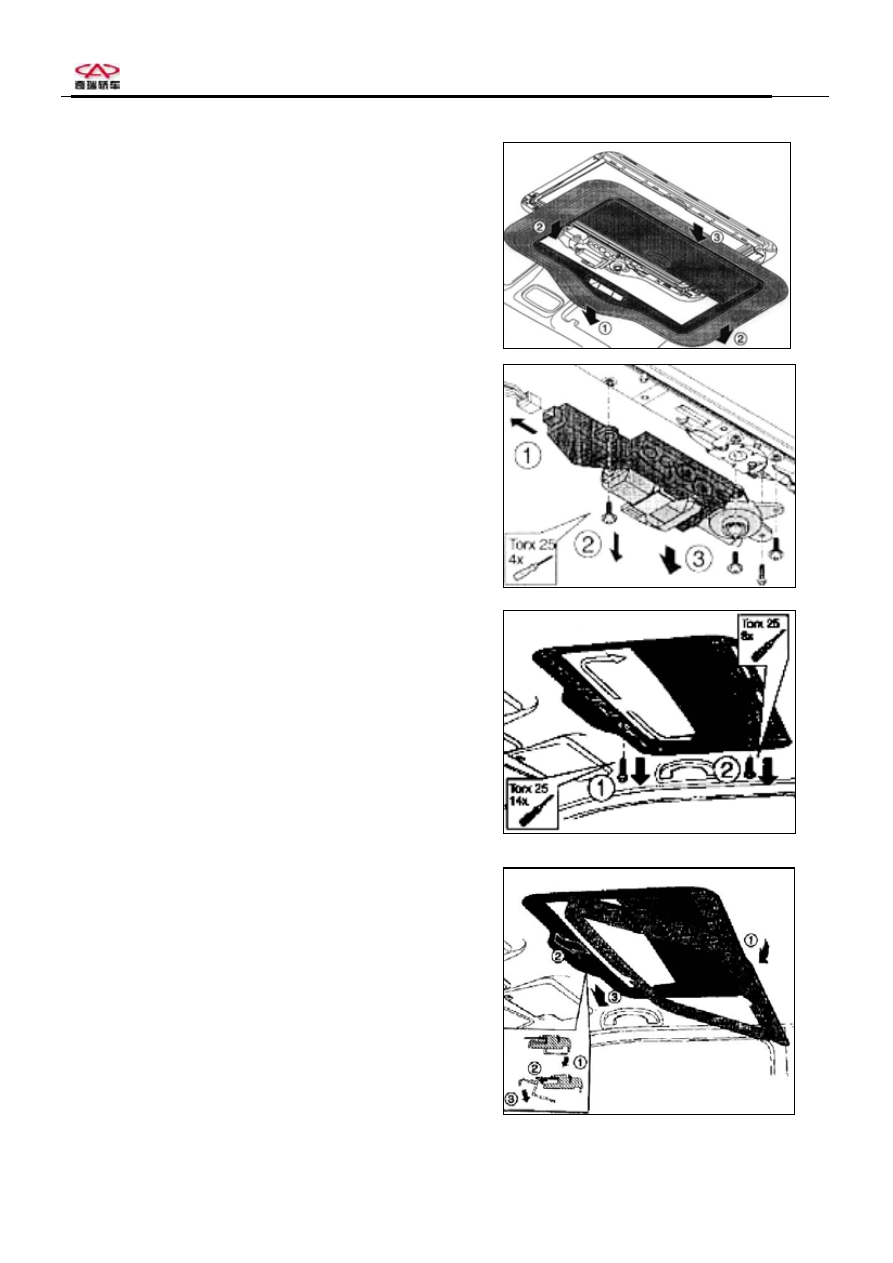

4.2.5 Remove the interior decorative frame (pull it down

in the direction shown in the figure). Take care not

to damage control buttons.















4.2.6 Unplug wire harness connecting SCU and remove

the four fixing bolts to take off motor and SCU.

















4.2.7 Remove frame fixing bolts.





















4.2.8 Take off interior fixing frame: incline the rear end

downward, then push it forward to take it off.
