Chery A series. Manual - part 129



z Align it at the correct direction and press the speaker cover into it.



5. INSTALLATION OF CD EXCHANGER

z Disconnect the negative grid of the battery.

z Install the bracket of the CD exchanger onto the two sides of the exchanger with washers
and screws.

z Fasten the base onto the flat surface of the trunk with the self-tapping screws.

z Ensure the wires between instrument panel and trunk are connected properly.

z Ensure the front of the CD box upwards, and install the CD exchanger vertically on the
base bracket.

The installing steps are reverse to those for removal.



T-74



TROUBLESHOOTING

Note: The sound system in the maintenance manual may be different with the actual situation
of the user. We request our staff of the service stations to notify the vehicle owners that there
is a user’s manual for sound system delivered together with all the instruction material of the
vehicle. Thank you!





Malfunction Reasons/Troubleshooting

No power supply

Connection malfunction. Please check the connection.

The player fails to function
and display.

Check the fuse (player and vehicle) and the connector.

The player functions but
without sound or with poor
sound effect.

Adjust the volume of the player.
Check the sound balancing function.



Check the antenna and its connection.

The player fails to receive the
signal of desired station.

Verify that the antenna is sufficiently spread out and the
connection is proper.
Verify that the negative grid is grounded.
The signal of desired station is too poor.

Displaying “NO DISC” when
searching disc

The disc is incorrectly placed. Insert the disc again correctly.
There is water vapor or dirt on the disc.
Remove the vapor or dirt away from the disc.

Noise, jumping of music

The disc is too dirty. Please clean it.
The disc is twisted or seriously damaged. Compare it with
other discs.
If the disc is defective, please discard it.

Lack of treble sound or lose
tracks when the tape is
playing

Clean the magnetic head.

Tape is loosened.

Check and ensure that the loosened tape has been tightened
properly before inserting it into the recorder again.

The disc ejects when it is
inserted into the player.

The disc has been inserted incorrectly. Insert it correctly
again.

T-75



AIR CONDITIONER SYSTEM

AIR CONDITIONING SYSTEM OVERVIEW … … … … … … …… …… …… … U-2

REFILLING OF REFRIGERANT AND REFRIGERANT OIL … … … … … … … U-6

A/C SYSTEM COMPONENTS … … … … … … …… … … … … … …… ……… U-14

FAILURES AND SHOOTING ANALYSIS SHEET … … … … … … …… … … … U-20

PRECAUTIONS ON THE SECURITY OF A/C SYSTEM … … … … ……… …U-21



































































U-1



AIR CONDITIONING SYSTEM OVERVIEW

Based on its function, the Chery A15LHD air
conditioning unit may be divided into such five
basic components as the refrigeration system,
heating system, ventilation system, control system
and air purification system.

1. Refrigeration system     It is available to cool
the air inside the vehicle based on the refrigeration
principle of vapor compression refrigerator. The
temperature of evaporator as the cold source is
lower than the dew-point temperature of air, so the
refrigeration system also play the role of
dehumidification and air purification. The
refrigeration system of Chery's electronic fuel
injection type engine adopts the coolant R134a. As
shown in the figure, the refrigeration system
mainly consist of the compressor, condenser,
expansion valve, evaporator and etc. In the
evaporator, the coolant fluid absorbs the heat from
the air inside vehicle and is gasified to the
low-pressure, low-temperature coolant vapor, and
then is inhaled into the compressor.

















































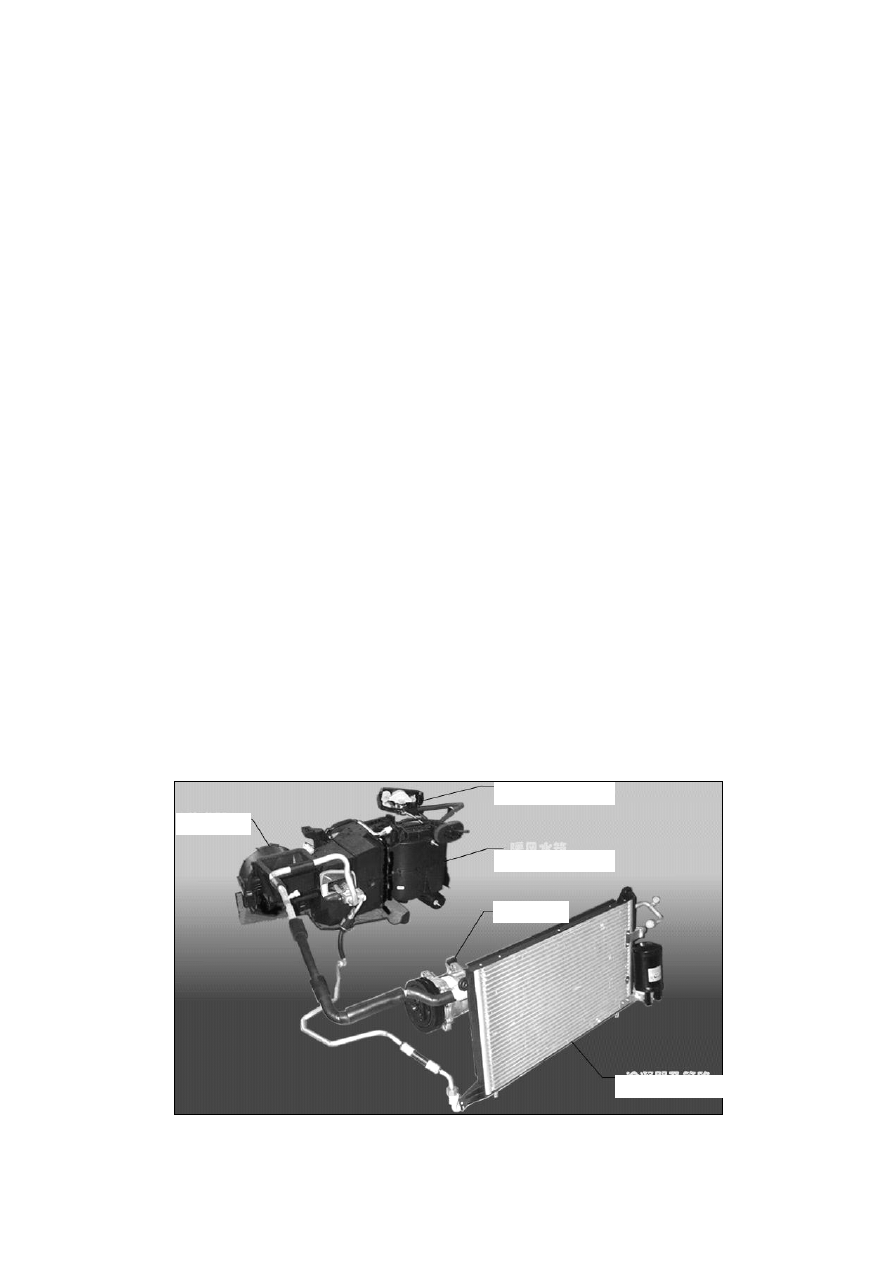

Compressor

Condenser and Circuit

Warm air radiator

A/C Control System

Evaporator





U-2
