the wiper motor
does not
function.

be reset.

contact

of

the

short-time wiping of
the wiper switch has a
poor contact. Replace
the switch.
(2) Improve the
flexibility of the wiper
switch. When the
handle is being
released, the switch
can automatically
reset.

The wiper fails
to be reset
automatically.

When the wiper
motor is
working
respectively
under the
intermittently
wiping, slowly
wiping, fast
wiping and
short-time
wiping position,
turn off the
wiper switch,
and the wiper
blade fails to
stop at the
original position.

(1) There is
malfunction in
the wiper
switch.
(2) There is
damage in the
speed reducer.

(1) Check the 0
position contact of the
wiper switch. If it is
poor contact, replace
it.
(2) If the contact
works properly, check
the automatic stop
conducting strip
installed on the back
of the worm output
shaft of the speed
reducer, and 3
conducting contacts
installed on the cover
of the speed reducer. If
they are defective,
replace them.



The washer
motor does not
function.

When the
ignition switch
is turned on, turn
the wiper switch
to the spray
position, the
washer motor
does not
function.

(1) The circuit
of the washer
motor is open.
(2) There is
malfunction in
the ignition
switch.

(1) Ignition switch.
(2) If the ignition
switch works properly,
then verify that the
wiper spray switch has
a poor contact or is
defective. If it has a
poor contact or is
defective, replace the
wiper switch.
(3) If the wiper spray
switch works properly,
verify that the circuit
of washer motor power





T-42



is open.
(4) If the circuit of the
motor power works
properly, replace the
washer motor.

The washer
functions, but
the wiper does
not function.

When the
ignition switch
is turned on, turn
the wiper switch
to the spraying
position, the
washer
functions, but
the wiper does
not function.

The intermittent
controller of the
wiper is
defective.

The washer functions,
but the wiper does not
function, it is mainly
because a malfunction
in the wiper
intermittent controller
results a circuit open
to the wiper motor, so
the wiper cannot
function. Replace the
wiper intermittent
controller.
































T-43



ELECTRIC WINDOW REGULATOR SYSTEM

SYSTEM DESCRIPTION

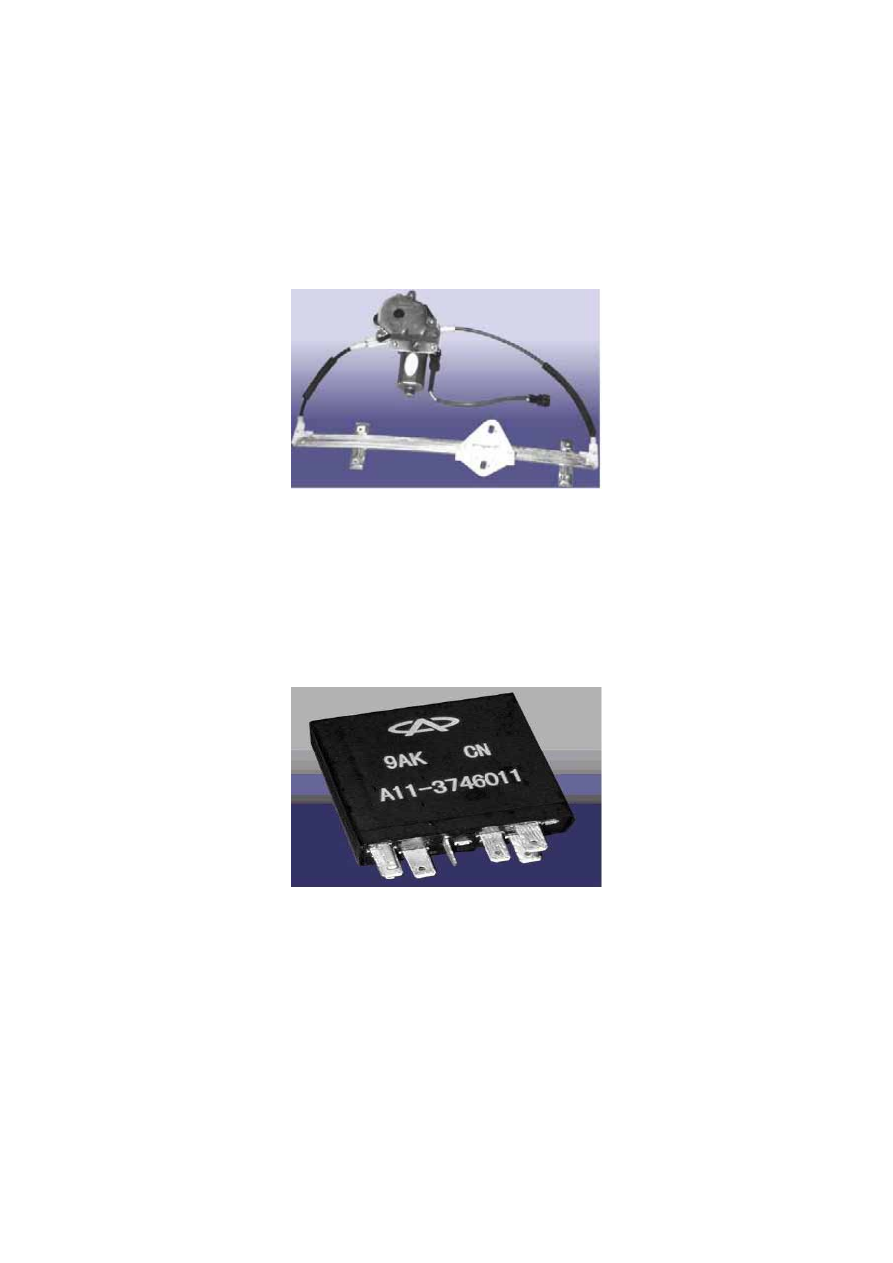

The Chery sedan A15LHD employs an electric steel wire type window regulator. The
structure is shown in figure (window-1).



Electric window regulator (window-1)



The up/down operation of the window can be centrally controlled by the driver through
pushing buttons, and also can be controlled individually by the door switch to adjust the door
window opening. The mechanism transmission route is as follows: motor → speed reducer →
steel wire roller → steel wire → window supporting bracket → window up/down. The
control module is installed under the left-hand rear seat, as shown in the figure (window-2).



Electric window control module














T-44



FAULT DIAGNOSIS AND TROUBLESHOOTING

1. THE ELECTRIC WINDOW CAN NOT BE ACTIVATED

When the electric window can not be activated, the followings should be checked:

(1) Whether the voltage of the battery is normal;

(2) The voltage supply of the thermo-sensitive fuses and the control relay;

(3) The window regulator switches and the voltage supply, including the front left, front right,

rear left and rear right windows;

(4) The contact switches of each door and motor signals;

(5) The working current of each window regulator motor;

(6) The function of the mechanical linkage device for each window regulator.

2. THE ELECTRIC WINDOW REGULATOR DOES NOT FUNCTION

When the electric window regulator does not function, the followings should be checked:

(1) Whether the voltage of battery is normal;

(2) Whether the security switch (installed at the front left armrest) was depressed;

(3) Whether the circuit between the rear window regulator and the security switch is open;

(4) Whether the rear window regulator motor and the mechanical linkage device are jammed;

(5) Whether the security switch and the control push buttons are ineffective.



T-45
