Bobcat S150. Manual - part 1





Operation

&

Maintenance

Manual

S/N 526811001 & Above

© Bobcat Europe 2005

Printed in Europe

EQUIPPED WITH

BOBCAT INTERLOCK

CONTROL SYSTEM (BICS™)

6902684-EN (07-05)

EN

OPERATOR SAFETY WARNINGS

1. SEAT BELT: Check belt fasteners and check for damaged webbing or buckle.
2. SEAT BAR: When up, it must deactivate travel and hydraulic functions.
3. OPERATOR CAB (ROPS and FOPS): It must be on the loader with all fasteners tight.
4. HANDBOOK: Must be in the cab.
5. SAFETY SIGNS (DECALS): Replace if damaged.
6. SAFETY TREADS: Replace if damaged.
7. GRAB HANDLES: Replace if damaged.
8. LIFT ARM SUPPORT DEVICE: Replace if damaged.
9. PARKING BRAKE

10. BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

WARNING

Operator must have instructions

before running the machine.

Untrained operators can cause

injury or death.

W-2001-1285

Do not use loader in atmosphere
with explosive dust or gas or
where exhaust can contact
flammable material.

Never exceed rated operating
capacity.

Never leave loader with engine
running or with lift arms up.
To park, engage parking brake
and put attachment flat on the
ground.

Always carry bucket or
attachments as low as possible.
Do not travel or turn with lift
arms up.
Load, unload and turn on flat
level ground.

Never modify equipment.

Use only attachments approved
by Bobcat Company for this
model loader.

Safety Alert Symbol: This symbol with a warning statement,

means: “Warning, be alert! Your safety
is involved!” Carefully read the message
that follows.

Never use loader without operator
cab with ROPS and FOPS
approval. Fasten your seat belt.

OSW09-0903

B-15576

WRONG

B-15577

WRONG

B-15578

WRONG

WRONG

B-15575

B-15573

WRONG

CORRECT

B-15570

B-15572

WRONG

B-15571

WRONG

B-15574

WRONG

Always use the seat bar and
fasten seat belt snugly.
Always keep feet on the pedals or
foot rest when operating loader.

CORRECT

B-10731a

Never carry riders.

Keep bystanders away from work
area.

Never use loader as man lift or
elevating device for personnel.

The Bobcat loader must be equipped with safety items necessary for each job. Ask your dealer about attachments and
accessories.

SAFETY EQUIPMENT

Never use the loader without

instructions. See machine signs

(decals), Operation & Maintenance

Manual and Handbook.

U.S. Publication 6902684 (10-04) Revised (6-05) (7)

S150 Bobcat Loader

V

Operation & Maintenance Manual

BOBCAT COMPANY IS ISO 9001:2000 CERTIFIED

ISO 9001:2000 is a set of international standards that control the processes and procedures which we use to design,
develop, manufacture, distribute, and service Bobcat products.

British Standards Institute (BSI) is the Certified Registrar Bobcat chose to assess the Company’s compliance with the
ISO 9001:2000 set of standards. The BSI registration certifies that the two Bobcat manufacturing plants and the Bobcat
corporate offices (Gwinner, Bismarck & West Fargo) in North Dakota are in compliance with ISO 9001:2000. Only certified
assessors, like BSI, can grant registrations.

ISO 9001:2000 means that as a company we say what we do and do what we say. In other words, we have established
procedures and policies, and we provide evidence that the procedures and policies are followed.

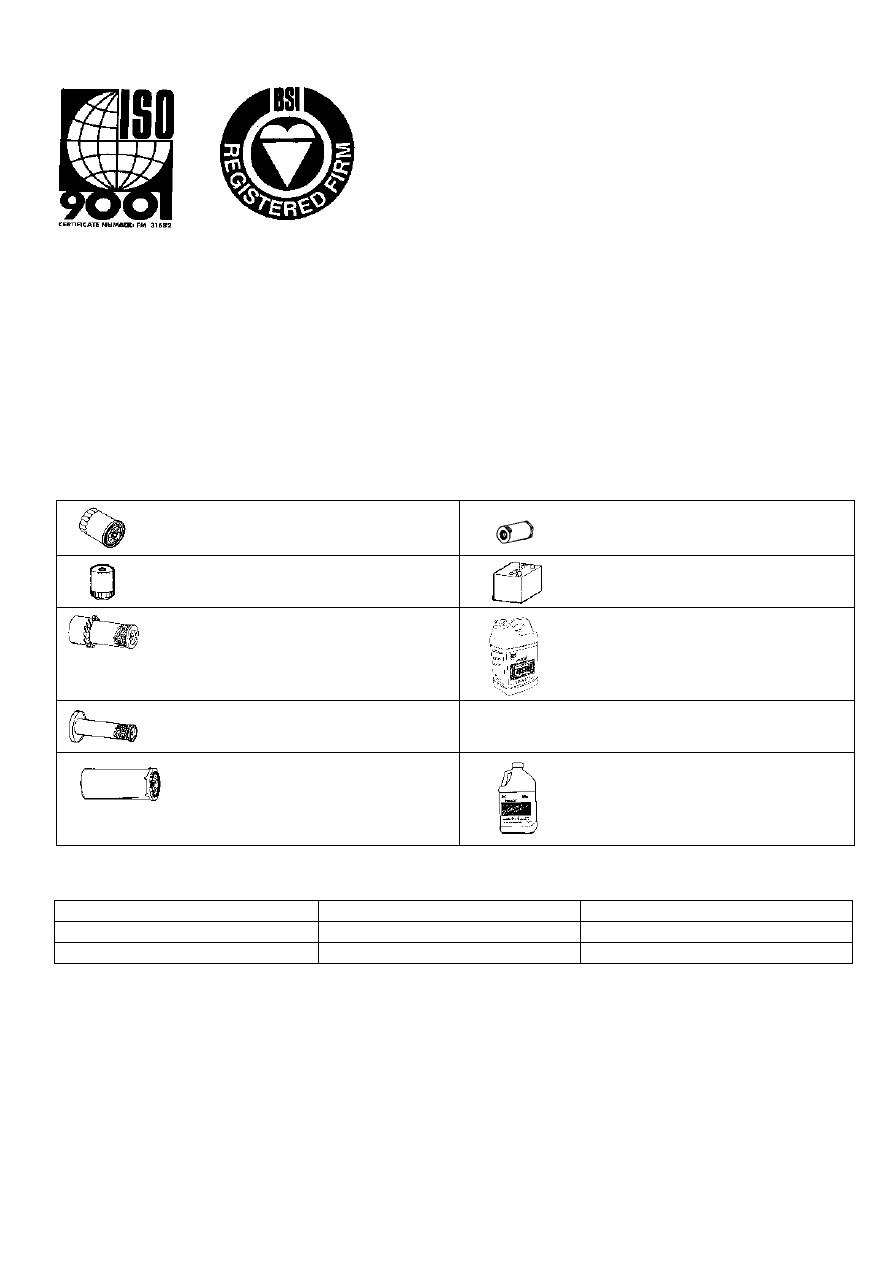

REGULAR MAINTENANCE ITEMS

MOTOR OIL

ENGINE OIL FILTER (6 Pack)
6678233

HYDROSTATIC FILTER, In-Line
6661807

FUEL FILTER
6667352

BATTERY
6665427

AIR FILTER, Outer
6681475

FLUID, Hydraulic/Hydrostatic (19 L)
6563328 - Two 8-2 L containers
6722344 - One 19 L container

AIR FILTER, Inner
6681474

Radiator Cap
6733429

HYDROSTATIC FILTER
6661248

Propylene Glycol
Premixed - 6724094
Concentrate - 6724354

6667299 SAE 15W40 CE/SG (12 L)

6724558 SAE 15W40 CE/SG (3.8 L)

6674204 SAE 15W40 CE/SG (9.5 L)

6657301 SAE 10W30 CE/SG (12 L)

6724557 SAE 10W30 CE/SG (3.8 L)

6674205 SAE 10W30 CE/SG (9.5 L)

6657303 SAE 30W CE/SG (12 L)

6724559 SAE 30W CS/SG (3.8 L)

6674206 SAE 30W CS/SG (9.5 L)
