BYD F3DM. Service Manual - part 14

- 209 -

F3DM Owner’s Manual

Aluminum Wheel Specifications

N·m(kgf.m)

Wheel Nut
Torque

110(10.5)

Battery Model

Brand

Model

Camel

12V 60AH

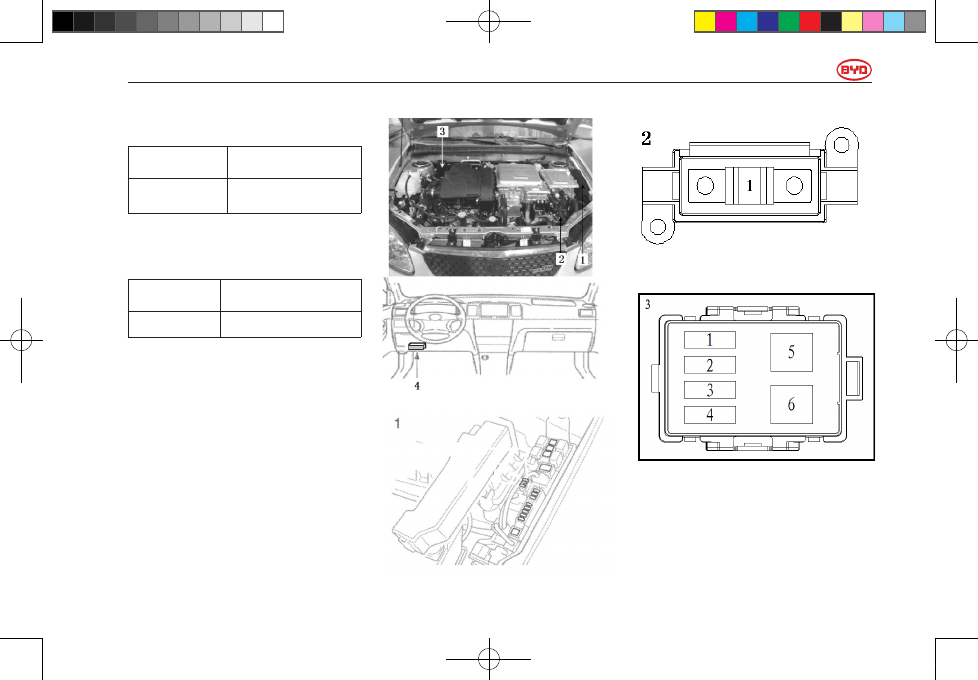

Fuse and Relay

Front Compartment and Instrument
Panel

Power distribution box of front hook 1#

Power distribution box of front hook 2#

Power distribution box of front hook 2#

使用手册小330.indd   209

2011-4-13   18:36:57

- 210 -

F3DM Owner’s Manual

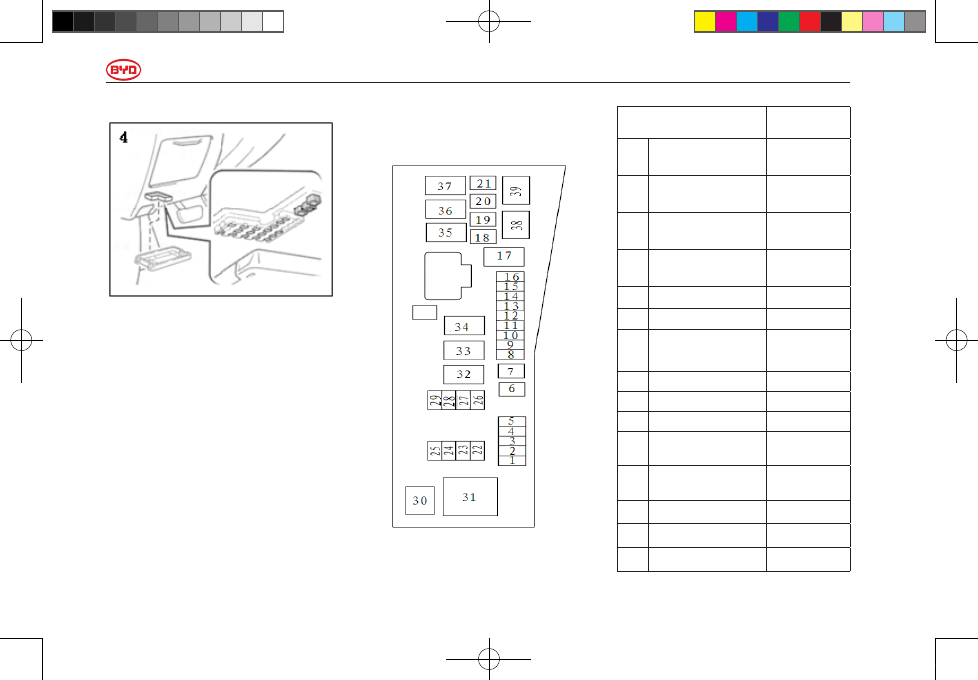

Power distribution box of front hook 4#

Front Engine Compartment Distribution
Box 1#

Fuse

Amperage

1

Left front high
beam

10A

2

Right front high
beam

10A

3

Right front low
beam

10A

4

Left front low
beam

10A

5

 Vacuum pumpⅠ

15A

6

IG1 power Ⅱ

30A

7

Front headlight
fuse protector

40A

8

Solenoid valve

5A

9

Water pump

10A

10 Interior light

15A

11

Power
administrator

10A

12

Gear  P  electric
engine

20A

13 Electronic horn

10A

14 Warning light

10A

15 EFI main relay

30A

使用手册小330.indd   210

2011-4-13   18:36:57

- 211 -

F3DM Owner’s Manual

16

Vacuum  pump
Ⅱ

15A

17 Major power

100A

18

Hydraulic oil
pump

40A

19 Electronic fan

30A

20 ABS

25A

21 ABS

40A

22 Backup fuse

5A

23 Backup fuse

7.5A

24 Backup fuse

10A

25 Backup fuse

15A

26 Backup fuse

20A

27 Backup fuse

25A

28 Backup fuse

30A

29 Backup fuse

NO

Relay

30

Battery charging

31

Front headlight

32

Pump

33

Vacuum pumpⅠ

34

Electrical horn

35

Fan 2

36

Fan 3

37

Fan 1

38

Vacuum pump Ⅱ

39

Gear P

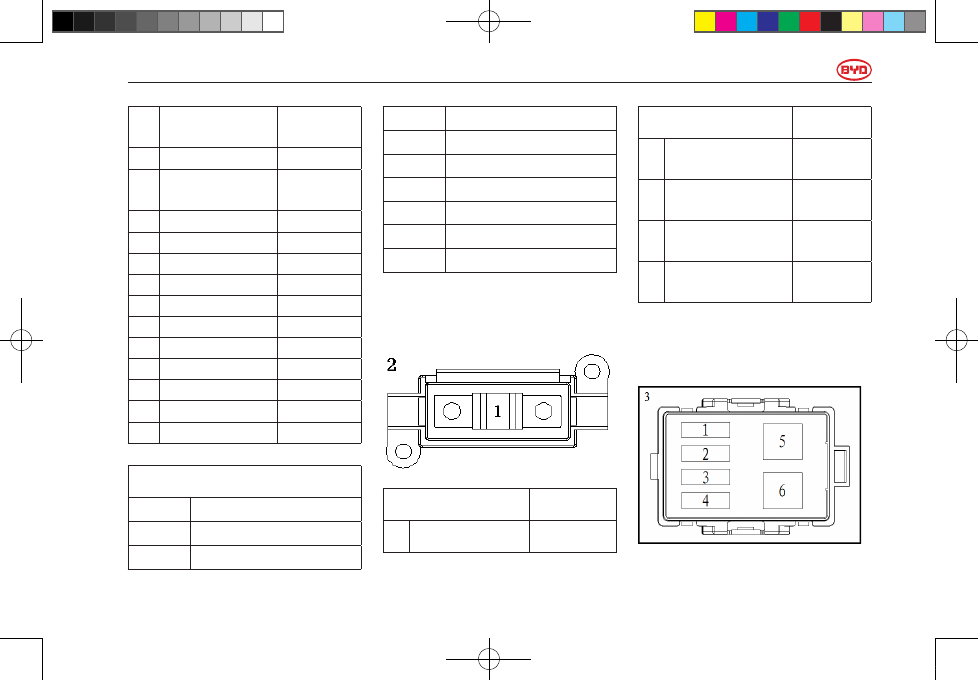

Front Engine Compartment Distribution
Box 2#

Fuse

Amperage

1

EPS insurance

80A

Fuse

Amperage

1

Major electric
engine controller

15A

2 Transmission ECU

7.5A

3

Master control
ECU

7.5A

4

Module second
gear power

10A

Front Engine Compartment Distribution
Box 3#

使用手册小330.indd   211

2011-4-13   18:36:58

- 212 -

F3DM Owner’s Manual

Relay

5

IG1 relay Ⅱ

6

DC relay Ⅱ

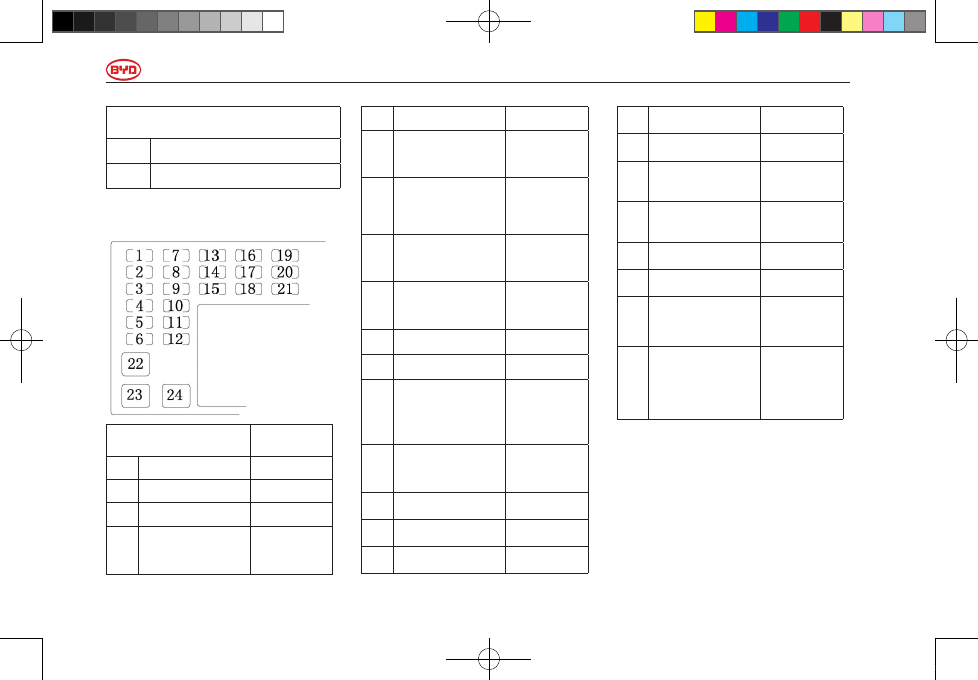

Instrument Panel Connecting Box 4#

Fuse

Amperage

1

ABS-ECU

10A

2

SRS-ECU

15A

3

Instrument

10A

4

A/C control
module

5A

5

Warning light

10A

6

2# ignition
switch power

7.5A

7

Vehicle
diagnostic
system

7.5A

8

Windscreen
wiper

20A

9

Width-indicator
lights

15A

10 Braking light

15A

11 Car door

25A

12

2# door and
window power
supply

30A

13

Ignition switch
power supply

25A

14 Rear fog light

15A

15 Front fog light

10A

16 Backup relay

15A

17 Air conditioner

10A

18 Fuel pump

20A

19

Defrost
compensation

10A

20

Headlight
control system

5A

21 Cigar lighter

15A

22 Heater

40A

23

Rear window
defroster

30A

24

1# door and
window power
supply

30A

使用手册小330.indd   212

2011-4-13   18:36:58

- 213 -

F3DM Owner’s Manual

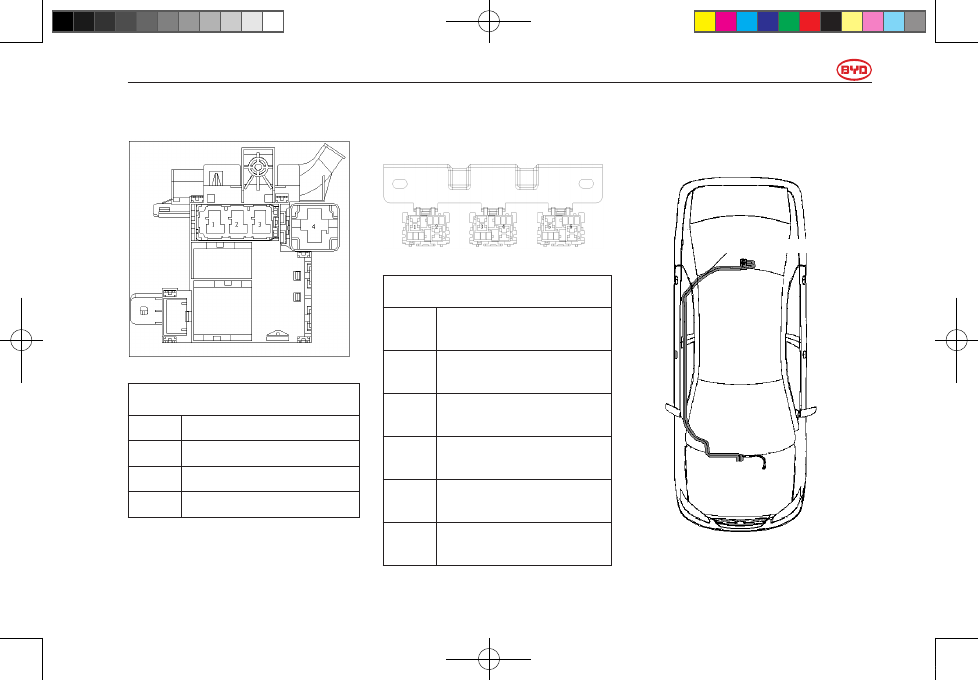

Instrument Panel Cable Plug-in Relay

Relay

1

Width-indicator light relay

2

Backup light relay

3

Front fog light relay

4

Blower relay

Floor Cable Plug-in Relay

Relay

1

Air conditioner contactor
relay

2

DC contactor relay

3

Positive pole contactor
relay

4

Pre-charging contactor
relay

5

Negative pole contactor
relay

6

Charging contactor relay

High-voltage Cable

High-voltage Cable
