(i) SRS Indicator
This indicator will come on when the
“IG-ON” mode is enabled. After about
5 seconds, the indicator will go off.
This means the system of the airbag is
operating properly.
This indicator system is intended to
monitor airbag ECU, crash sensor, air
charging device, warning indicator,
interconnecting wiring and power
sources..
If either of the following conditions
occurs ,this indicates a malfunction
somewhere in the parts monitored by
the indicator system.  Please contact
BYD authorized dealer as soon as
possible to service the vehicle:
●  The  indicator  does  not  come  on
when the “IG-ON” mode is enabled or
remains on.
● The indicator comes on while driving.

(j) High Coolant Temperature Indicator
The indicator operates to warn that
engine and electric motor are almost
overheating. Park the car immediately
to cool down the engine or electric
motor.
The engine or electric motor may get
overheated in the following cases:
Driving up a long hill on a hot day;
lack of or leakage of the coolant fluid.
When the car is through the stop-and-
go pattern in driving, the AC device
is on together with the engine idle
running for a long time.
When the car is used to tow a trailer

(k) Hybrid System Warning Indicator
This indicator will come on when
the  “IG-ON”  mode  is  enabled.  If
the Dual Model system is working
normally, the indicator will go off after
several seconds. Later if the system

malfunctions, this indicator comes on
again.
If any of the following cases occurs,
this indicates a malfunction somewhere
in the parts monitored by the indicator
system and please contact BYD
authorized dealer as soon as possible.
The indicator does not come on
when the “IG-ON” mode is enabled or
remains on.
The indicator comes on while driving.

NOTICE

Do not drive the vehicle with the
indicator on—even for one block. It
may ruin the power system.

使用手册小330.indd   81

2011-4-13   18:36:46

- 82 -

F3DM Owner’s Manual

(l)  Electric  Power  Steering  System
Warning Indicator
This indicator will come on when
the  “IG-ON”  mode  is  enabled.  If
EPS  system  is  working  normally,
the indicator will go off after several
seconds. Later if there is a fault in the
system, this indicator will come on
again.
If any of the following cases occurs,
this indicates a malfunction somewhere
in the parts monitored by the indicator
system and please contact BYD
authorized dealer as soon as possible.
●  The  indicator  does  not  come  on
when the “IG-ON” mode is enabled or
remains on.
● This indicator comes on while driving.

CAUTION

If any of the following cases
o c c u r s ,   i m m e d i a t e l y   s t o p
your vehicle and contact BYD
authorized dealer immediately.
In this case, swerve would be
very inflexible. You should hold
the steering wheel firmly while
driving.



y

The indicator does not come

on  when  the  “IG-ON”  mode  is
enabled or remains on.
In  this  case,  EPS  system  may
not work normally, so please park
your car in a safe place.



y

This indicator comes on while

driving.

(m) Low Power Indicator
The indicator comes on when the
power is low, warning that driver shall
lower the car speed and charge the
battery immediately after parking.

(n) Power Battery Failure Indicator
T h i s   i n d i c a t o r   c o m e s   o n   w h e n
something was wrong.
If any of the following cases occur, this
indicates a malfunction somewhere in
the parts monitored by the indicator
system and please contact BYD
authorized dealer as soon as possible.
● The indicator remains on when the
“IG-ON” mode is enabled.
● The indicator comes on while driving.

(o) Electric Motor Failure Indicator
The indicator comes on when there is
a failure in electric motor system.

!

使用手册小330.indd   82

2011-4-13   18:36:47

- 83 -

F3DM Owner’s Manual

If any of the following cases occur, this
indicates a malfunction somewhere in
the parts monitored by the indicator
system, and please contact BYD
authorized dealer as soon as possible.
●  The  indicator  does  not  come  on
when the “IG-ON” mode is enabled or
remains on.
● The indicator comes on while driving.

(p) Key Reminder Buzzer
This buzzer reminds you to remove the
key if you open the driver’s door when
the ignition key is on “ACC” or “LOCK”.

(q) Light Reminder Buzzer
This buzzer reminds you to turn off the
light if you open the driver’s door, with
parking light or headlight on,

Check Maintenance Indicator Lights
1. Pull up the brake parking handle.
Braking system warning light will come
on.
2. Open a door.
The open door indicator comes
on when the door does not close
completely.
3. Close all the doors.
The open door indicator goes off when
all doors closed completely.
4. When the “IG-ON” mode is enabled,
apart from indicator for opened door,
all the maintenance indicator lights
come on. Several seconds later, ABS
system fault indicator and SRS fault
indicator go out.
If any maintenance indicator light or
buzzer does not function as per the
procedure above, please have the car
checked in BYD authorized dealer as
soon as possible.

NOTICE

If the red warning indicators (such
as auxiliary battery charging system
indicator, parking brake system
indicator, low oil pressure indicator,
high coolant temperature indicator ,Hybrid
system warning indicator, Electric
Power  Steering  System  Warning
indicator, power battery failure
indicator, electric motor failure
indicator on the instrument panel
come on while driving, please park
your car immediately and check
for fault as per instructions in this
manual. If necessary, please contact
BYD authorized dealer for help

使用手册小330.indd   83

2011-4-13   18:36:47

- 84 -

F3DM Owner’s Manual

使用手册小330.indd   84

2011-4-13   18:36:47

- 85 -

F3DM Owner’s Manual

Chapter 1

Section 1-6

—————————————————————————————

Operations of Instruments and Controllers

Ignition Switch, Parking Brake and Parking Assistance

System

Ignition  Switch  Equipped  with  Steering  Wheel Auto-locking
Mechanism ………………………………………………………… 86
Parking Brake ……………………………………………………… 86
Parking Assistance System ……………………………………… 87

使用手册小330.indd   85

2011-4-13   18:36:47

- 86 -

F3DM Owner’s Manual

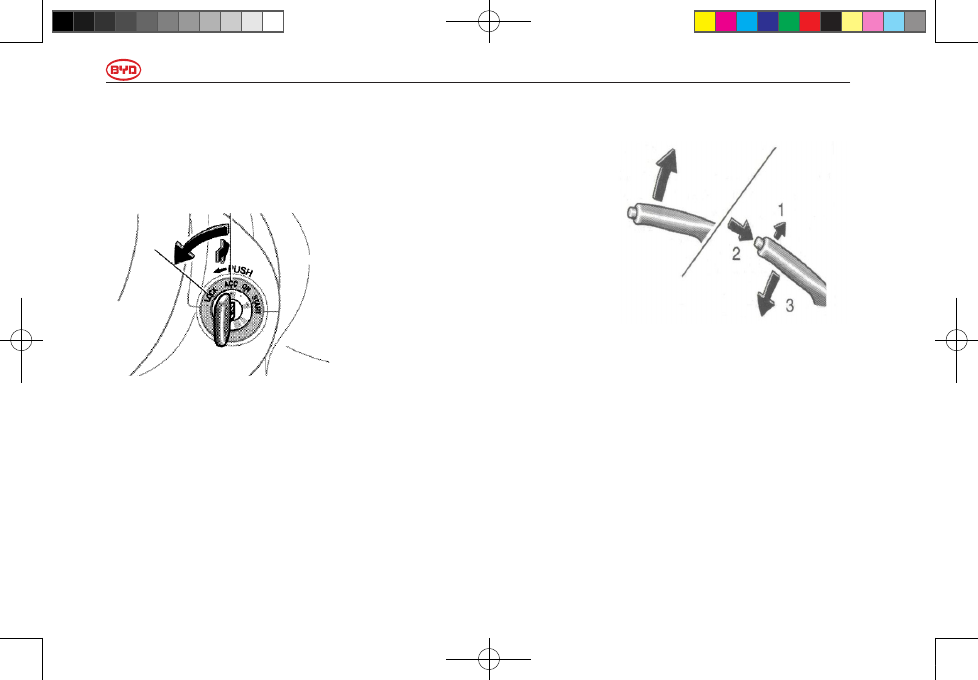

Ignition Switch Equipped with

Steering Wheel Auto-locking

Mechanism

“START” – reserved gear.
“ON” – start DM system and turn on all
the auxiliary equipment.
When  the  ignition  switch  is  turned
to “ON”, each system of the vehicle
performs self-detection function.
“ACC” – only auxiliary equipment such
as radio can be operated, but other

high-voltage  equipment  cannot  be
operated.
If you open the driver-side door
with the key in the position “ACC”
or “LOCK”, the buzzer will sound to
remind the driver to remove the key.
“LOCK” – DM system stops working
and steering wheel is locked. You can
remove the key only in this position.
M a k e   s u r e   y o u   i n s e r t   t h e   k e y
completely before turning it from “ACC”
to “LOCK”.
When you start DM system, if the key
seems to be locked in the position
“LOCK”, firstly you should make sure
the key is inserted completely and then
turn the key while turning the steering
wheel gently

Parking Brake

When parking your car, you must pull
up the parking brake firmly to prevent
the car from sliding.
To set: Pull up the parking brake
handle .For better parking effect, firstly,
depress the brake pedal until the
vehicle completely stops, then pull up
the parking brake handle firmly.
To release: pull up the parking brake
handle (as shown mark 1 in picture
above) gently, then press down the

使用手册小330.indd   86

2011-4-13   18:36:47

- 87 -

F3DM Owner’s Manual

button (as shown mark 2 in the picture
above) and then release it (as shown
mark 3 in the picture above).
To remind you that the parking brake
has been set, the parking brake
indicator light in the instrument panel is
on until you release the parking brake.

NOTICE

Before driving, make sure that
parking brake is fully released and
the parking brake indicator is off.

Parking Assistance System

WARNING

Please follow the instructions
below, otherwise it may cause
unsafe driving which may result
in an accident:
Do not use the parking assistance
system when the speed exceeds
10Km/h (6.21miles/h).



y

Do not add anything to the

parking assistance system within
the working scope of the sensor.

NOTICE

Before washing your BYD F3DM,be
sure to observe the following
instruction to avoid the risk of
damage to your vehicle:
Do not wash the sensor with water
or steam, otherwise it may cause
malfunction of the sensor.

When  parking  the  car,  the  parking
assistance system, which can probe
barriers through a sensor, will remind
the driver of the distance between
the car itself and the barriers through
the buzzer. Please make sure to pay
attention to the area around your
vehicle when using this system.

!

使用手册小330.indd   87

2011-4-13   18:36:47

- 88 -

F3DM Owner’s Manual

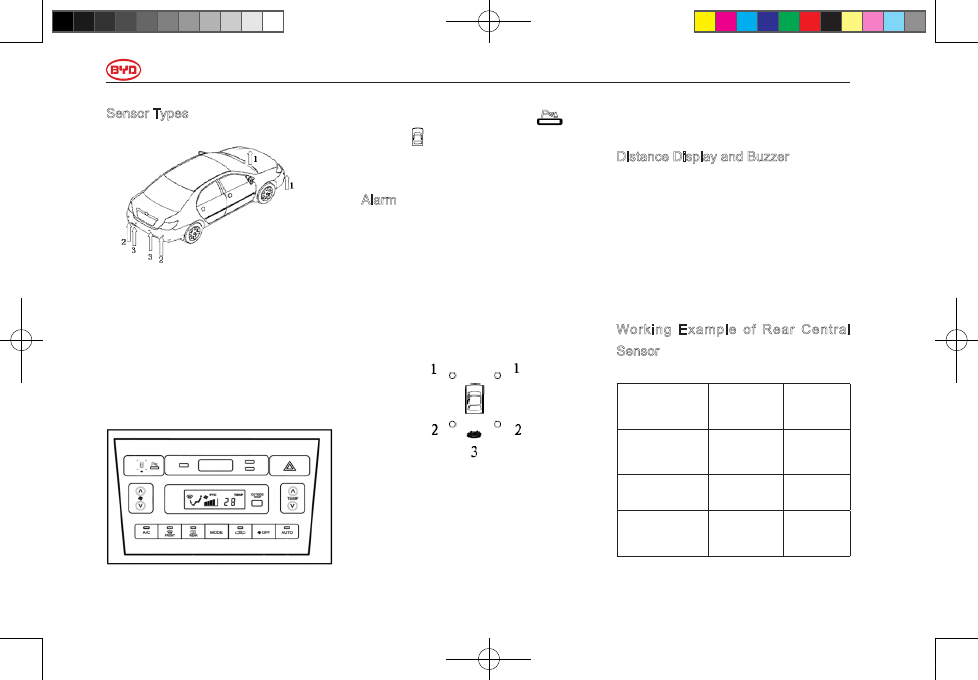

Sensor Types

1. Front Corner Sensor
2. Rear Corner Sensor
3. Rear Central Sensor
Parking Assistance Sensor Switch
When the power supply is at “ON” and
the switch turns on, the system enters
working status.

When  pressing  the  switch

, the

button ( ) will light up to remind the

drivers that the system is working.

Alarm
When  any  obstacles  obstacle  are
detected by the sensor, the system
will give off different alarms according
to the shape of the obstacles and the
distance between the vehicle and the
obstacles,

1. Front corner sensor is working
2. Rear corner sensor is working
3. Rear central sensor is working
When any obstacles are detected, the
indicator in corresponding position will

light up.

Distance Display and Buzzer
When  any  obstacles  are  detected
by the sensor, the indicator in
corresponding position will flash
according to the distance between
the obstacles and the vehicle with the
buzzer giving off the sound for warning.

Working  Example  of  Rear  Central
Sensor

Approximate

Distance

Indicators

Alarm

120 to 80
cm

Flash

Slow

80 to 50cm

Flash

Fast

50cm or
shorter

Always
On

Last for
seconds

使用手册小330.indd   88

2011-4-13   18:36:47

- 89 -

F3DM Owner’s Manual

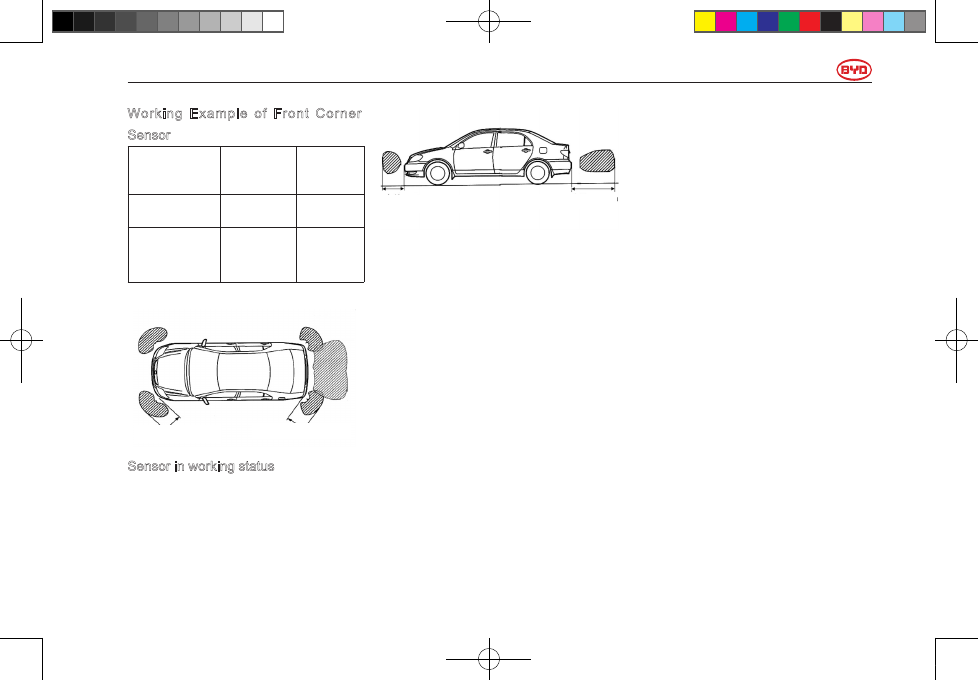

Working  Example  of  Front  Corner
Sensor

Approximate
Distance

Indicators  Alarm

60 to 50cm

Flash

Fast

50cm or
shorter

Always
On

Last for
seconds

About 600mm

About 1200mm

Sensor in working status
Front sensor will work when vehicle is
driven forwards; and all the sensors
will work when vehicle is driven
backwards.

About 600mm

About 1200mm

The probing range of sensor is
displayed in the figure above. Please
note that object extremely closed to the
car may not be detected by the sensor
and the probing range of sensor may
vary with the shapes and materials of
the obstacles.
Sensor-Detected Information
A c c u r a c y   o f   d e t e c t i o n   m a y   b e
affected by some car conditions and
surroundings. Possible causes are
listed below:
● The sensor is dirty, wet or misty;
● The sensor is snowy or frozen;
● The sensor is covered;
● The car leans to one side obviously

or overloaded;
● Driving on the rugged road, slope,
gravel road or grassland;
● The sensor is repainted;
● It is noisy around the car, due to the
sound of horn, motorcycle’s engine, air
brake of large vehicles or other noises
generating ultrasonic waves.
● There is another car equipped with
parking assistance system nearby;
● Towing ring is installed in the car;
● The bumper or sensor is hit strongly;
● The  car  are  close  to  a  higher  or
zigzag road curb;
● In very hot or cold weather;
●  Install  a  non-original  suspension
which is lower than the original one;
Beside conditions above, the actual
distance between some objects and
car may not be detected by the sensor
due to the shapes of the objects.
Shapes and materials of the obstacles

使用手册小330.indd   89

2011-4-13   18:36:47

- 90 -

F3DM Owner’s Manual

may prevent the sensor from detecting.
Pay more attention to obstacles below:
● Electric wire, fence, rope, etc;
●Cotton,  snow  and  other  materials
absorbing radio wave;
●Objects  with  sharp  edges  and
corners;
●Low barrier;
●High barrier with its top part extending
towards your car;
● Objects under the bumper;
● Objects close to the vehicle;
● People nearby the car (depending on
the type of clothing the people wear)
If the buzzer screams, any barriers
may be detected by the sensor or
the sensor may be interfered by
the external environment. If this
phenomenon continues to exist, please
contact your BYD authorized dealer to
have your vehicle inspected.

NOTICE

Parking assistance system can only
perform an auxiliary function and
cannot replace the driver to observe
when driving. So please be careful
when driving your vehicle.

使用手册小330.indd   90

2011-4-13   18:36:47

- 91 -

F3DM Owner’s Manual

Chapter 1

Section 1-7

—————————————————————————————

Operations of Instruments and Controllers

Auto Sound System

Use of Vehicle CD ………………………………………………… 92

使用手册小330.indd   91

2011-4-13   18:36:47

- 92 -

F3DM Owner’s Manual

Use of Vehicle CD

Functions and Features
1. CD usable
2. Built-in AM/FM radio
3. Shock-proof mechanism
4. 25W×4 maximum output power
5. Audio input usable.

NOTICE

When  vehicle  is  not  started  and
there is no need to use CD system,
in order not to exhausting the
battery, please turn off CD system.
Please do not splash drinks or other
liquids on CD system.
Disassembling any part of Vehicle
CD is not allowed.
Using mobile phone may affect the
effect of CD system.

Major Technical Parameters

Items

Parameters

Unit

Working
voltage

DC:11～16

V

Maximum
output power

25W×4

W

Maximum
working
electric
current

10

A

FM frequency
range

87.5～

108.0

MHZ

AM frequency
range

522～1620

KHZ

Operation Instructions
Multimedia CD sound system, one
of  the  Vehicle  CD  series  products
developed by BYD Auto Co., Ltd.

can not only be used to play CD/MP3
music,  but  also  to  receive AM/FM
radio which can satisfy your demands.
Advanced and innovative design and
humanized use interface can make you
a fashion leader.
Major features:
Multimedia CD sound system can
play both CD and CD-R (burning CD
format) disk; MP3 audio input; built-in
AM/FM stereo radio; 30W×4 maximum
output power.

Caution:
Caution for using disk:
1. Do not use disks of the following
types, or it may damage the player
or  disable  the  function  of  inserting/
ejecting disk.

使用手册小330.indd   92

2011-4-13   18:36:47

- 93 -

F3DM Owner’s Manual

√   ×

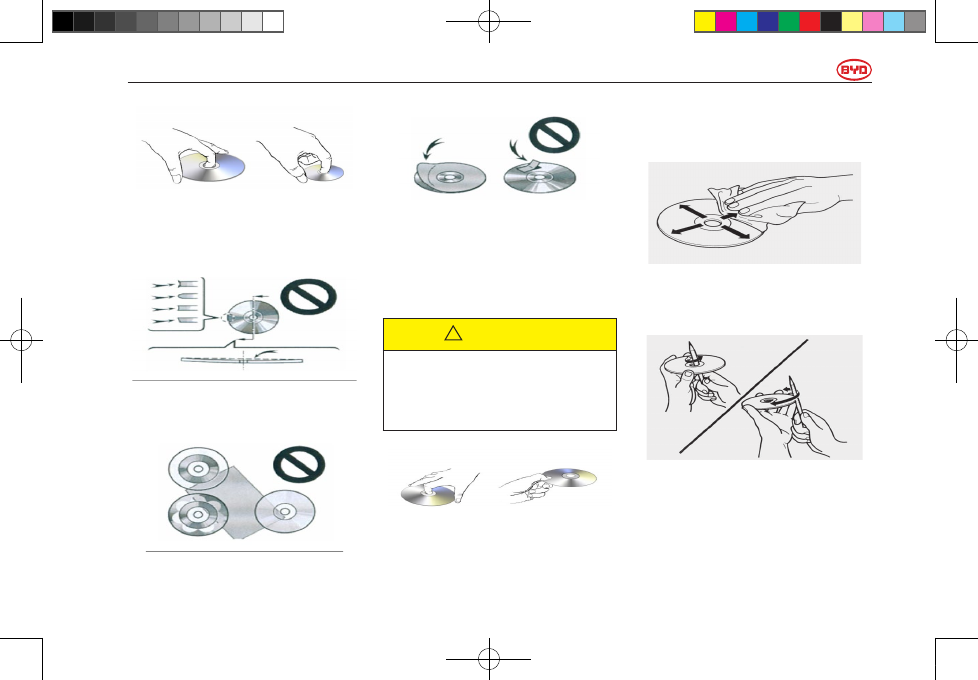

1) Only use disks with diameter of 12cm

2)

 Inferior or deformed disks

3)  Disks  with  transparent  or  semi-
transparent burning area
4) Disks sticked with adhesive tape
and label

WARNING

In case of traffic accident, please
take care when adjusting vehicle
CD system.



√     ×

1) Do not touch the surface of disk with

your hands when taking the disk

2) Wipe the disk from the inside out
with soft cloth

3)  Rub  the  inner  and  outer  edge  of
new disk with the side of pencil or pen
to remove chippings on the edge

!

使用手册小330.indd   93

2011-4-13   18:36:47

- 94 -

F3DM Owner’s Manual

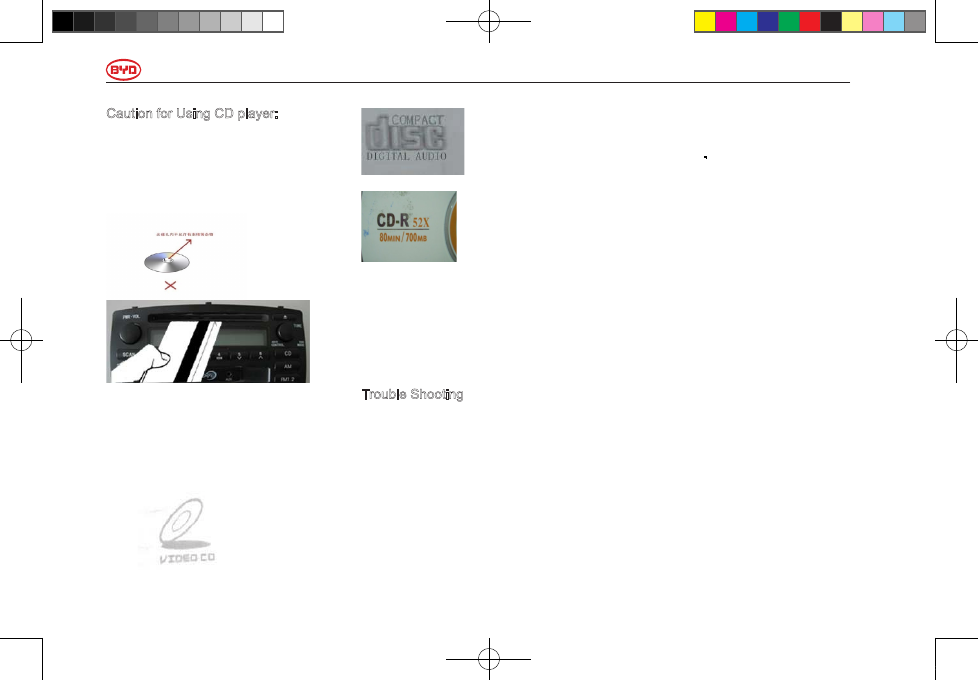

Caution for Using CD player:
1. You are not allowed to put two disks
in the CD player at the same time and
do not put/take anything other than CD
into CD player (coin, name card, etc.);

1 )   D i s k   w i t h
foam or other
things

2) Do not insert other things in the disk
entry, such as bank card and coin.
2. Multimedia CD sound system can
play CD and CD-R (burning CD format)
disk;



×

VCD disk



√

CD disk



√

Recording disk
(Only for CD music)

3. Go to service store or buy specific
cleaning disk in BYD authorized
service station regularly (clean it every
5,000km) for cleaning your CD player.

Trouble Shooting
1. Failure of CD Playing
1) Check if the specifications of disk
are in compliance with the right status
and please use 12 cm genuine CD
disk;
2)  Check  if  the  disk  is  scratched,
diaphanous or dirty; if so, replace it
with a genuine disk.

2. Failure of Sound Playing
1) Check if CD player system is mute;
if so, press “

” on the control panel

to cancel mute setting;
2) Check if connection wires of speaker
are disconnected; if so, reconnect
them.
3) Check if the speaker is damaged;
if so, replace the speaker with a new
one. If these three conditions above
are normal, it usually may be caused
by short circuit between certain group
of speakers and the car body.
3. No Sound Coming Out from Certain
Speaker when Playing CD
In this case, please check if CD player
system has a setup error. Solutions:
enter channel shift settings, set the
following modes BAS, TRE, BAL, FAD
to “BAS: 0; TRE: 0; BAL: 0; FAD: 0”
according to standard settings, and
exit; then the sound will return to

使用手册小330.indd   94

2011-4-13   18:36:48

- 95 -

F3DM Owner’s Manual

normal.
4. Poor Reception of FM/AM Radio in
CD player
1) Check if the car is in an environment
interfered by strong electromagnetic
field or in a comparatively closed place
underground.
2)  Check  if  the  radio  station  stops
broadcasting in a specified time, which
leads to no radio signal.

使用手册小330.indd   95

2011-4-13   18:36:48

- 96 -

F3DM Owner’s Manual

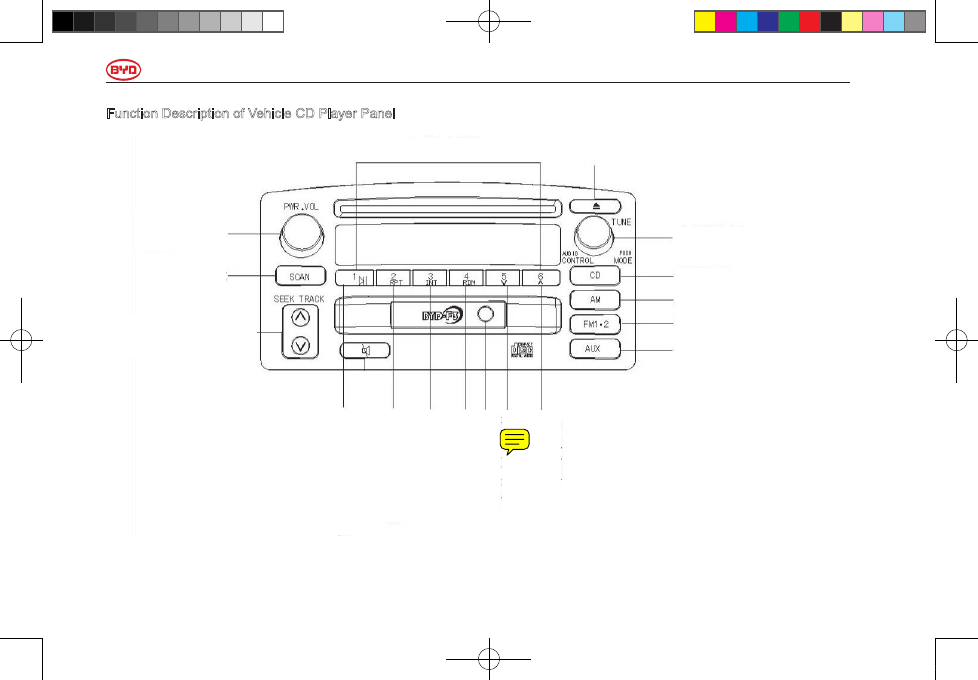

Function Description of Vehicle CD Player Panel

Power/Volume
Adjusting Knob

Auto Channel-
Saving Button

Radio  Tuning  /  Disk
Track Selection Button

Play/Pause

Repeat Button

Ten-second Disk Preview



Button

Random Play Button

Audio Input Port

Last Disk Button

Stop

Next Disk Button

1-6 Channel Pre-selection

Disk Ejecting Button

Audio Tuning / Manual

Tuning Button

CD Switch Button
AM Radio Selection

Button

FM Radio Reception and

Selection Button

Audio Input Reception and
Switch Button

Mute
Button

使用手册小330.indd   96

2011-4-13   18:36:48
