NOTICE



y

Your F3DM is equipped with high voltage electric power drive equipment. Do not touch the electric components such as

cables, switches, etc. To avoid electric shock.



y

To avoid any injury, do not check and repair your vehicle by yourself. If your vehicle was breakdown, please contact

your BYD authorized dealer.



y

If your F3DM has to be repaired, it must be operated by BYD authorized dealer or professional person wearing

insulation gloves(the gloves can resist at least 500 voltage).

使用手册小330.indd   17

2011-4-13   18:36:39

- 18 -

F3DM Owner’s Manual

使用手册小330.indd   18

2011-4-13   18:36:39

- 19 -

F3DM Owner’s Manual

Chapter 1

Section 1-1

—————————————————————————————

Operations of Instruments and Controllers

Appearance of Instrument Panel

Appearance of Instrument Panel ………………………………… 20
Appearance of Main Instrument Panel ………………………… 21
Appearance of Combination Instrument ………………………… 22
Sign on Combination Instrument ………………………………… 23

使用手册小330.indd   19

2011-4-13   18:36:39

- 20 -

F3DM Owner’s Manual

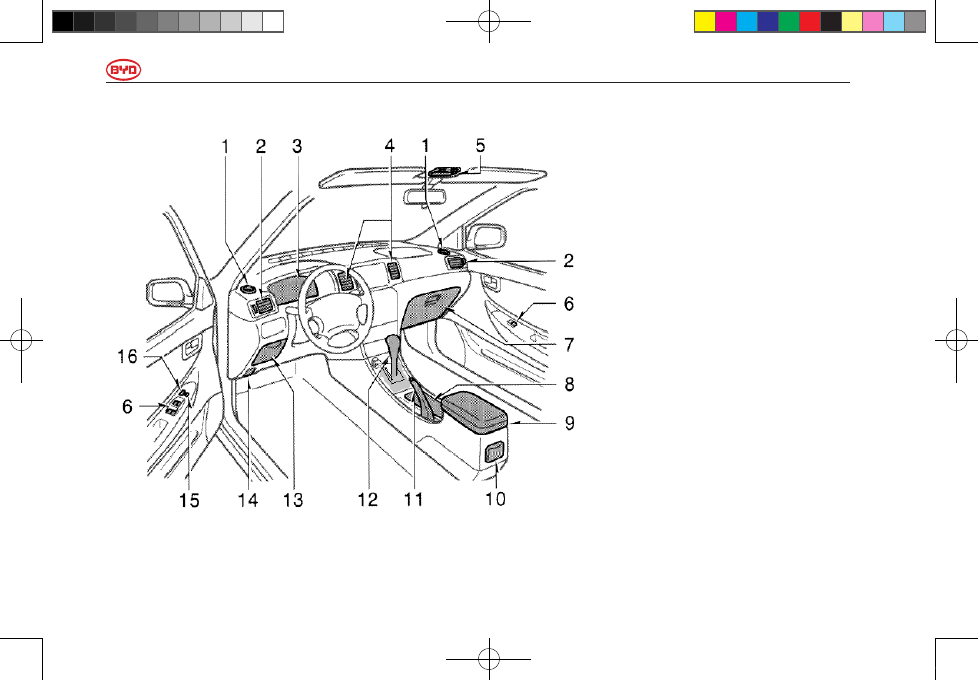

Appearance of Instrument Panel

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Remote calling device (optional)
6. Power window switches
7. Right glove box
8. Cup holder
9. Central glove box
10. Rear ashtray
11. Parking break
12. Transmission gear
13. Left small glove box
14. Hood release handle
15. Door and window lock switch (contained

in the power window switch of left front
door)

16. Central door lock switch (contained in

the power window switch of left front
door)

使用手册小330.indd   20

2011-4-13   18:36:39

- 21 -

F3DM Owner’s Manual

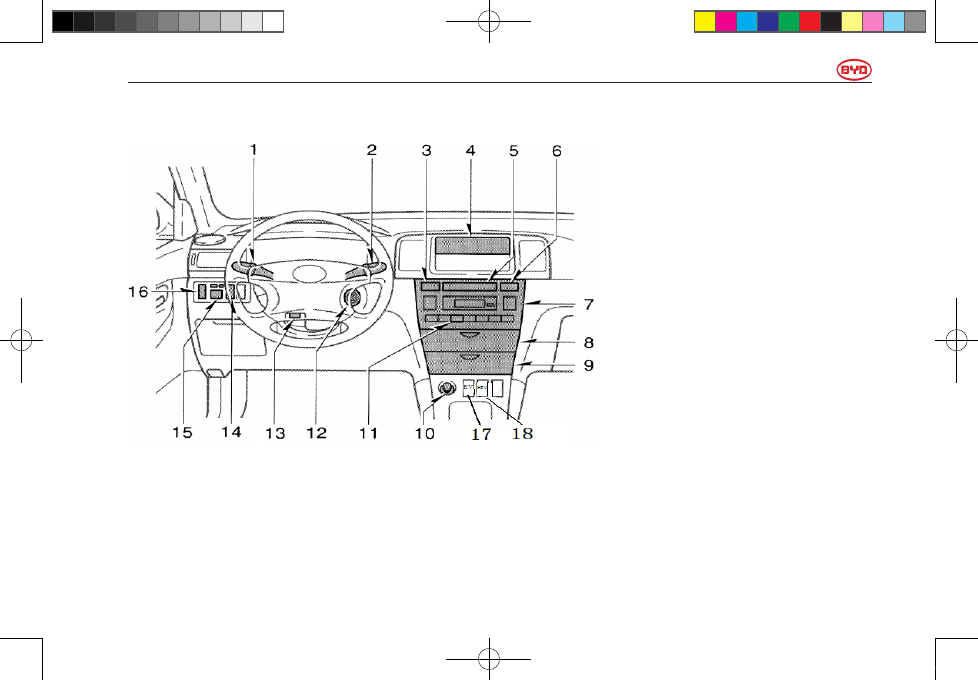

Appearance of Main Instrument Panel

1. Headlight and turn signal switches
2. Wiper and washer switches
    (windshield wiper and washer)
3. Parking assistance system
    switch and indicator
4. Car audio
5. Electronic clock
6. Emergency flasher switch
7. A/C control module
8. Small glove box
9. Front ashtray
10. Cigar lighter assembly
11. Rear defrosting switch
12. Ignition switch assembly
13. Steering column regulating mechanism
14. Multi - function switches
15. Power exterior rearview mirror switch
16. Rear fog light switch
17. EV mode switch
18. HEV mode switch

使用手册小330.indd   21

2011-4-13   18:36:39

- 22 -

F3DM Owner’s Manual

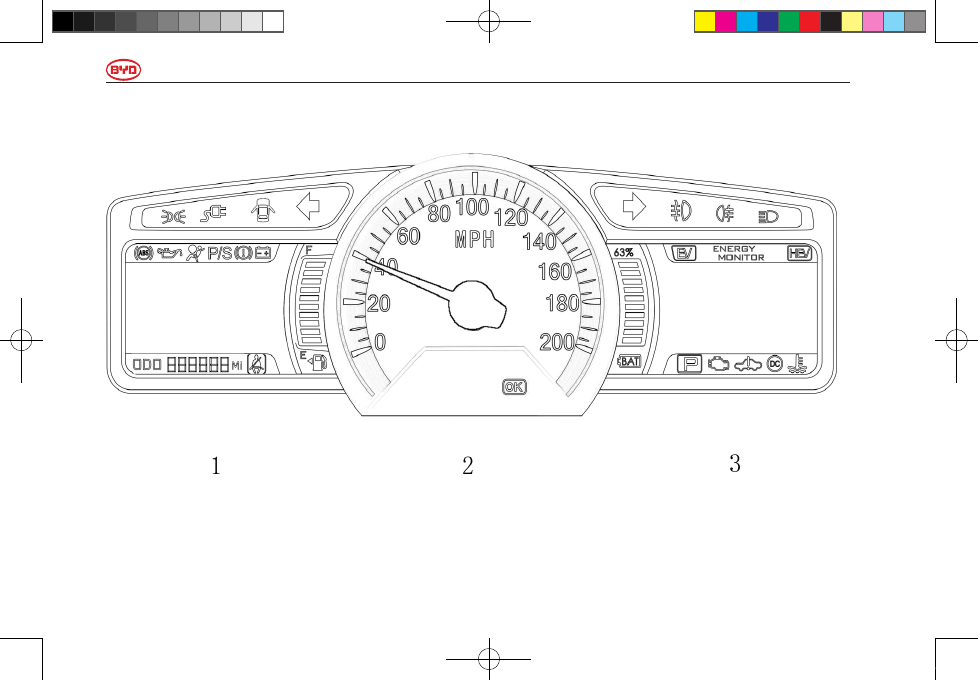

Appearance of Combination Instrument

1. Left Display Screen                                2. Speedometer                                      3. Right Display Screen

使用手册小330.indd   22

2011-4-13   18:36:40

- 23 -

F3DM Owner’s Manual

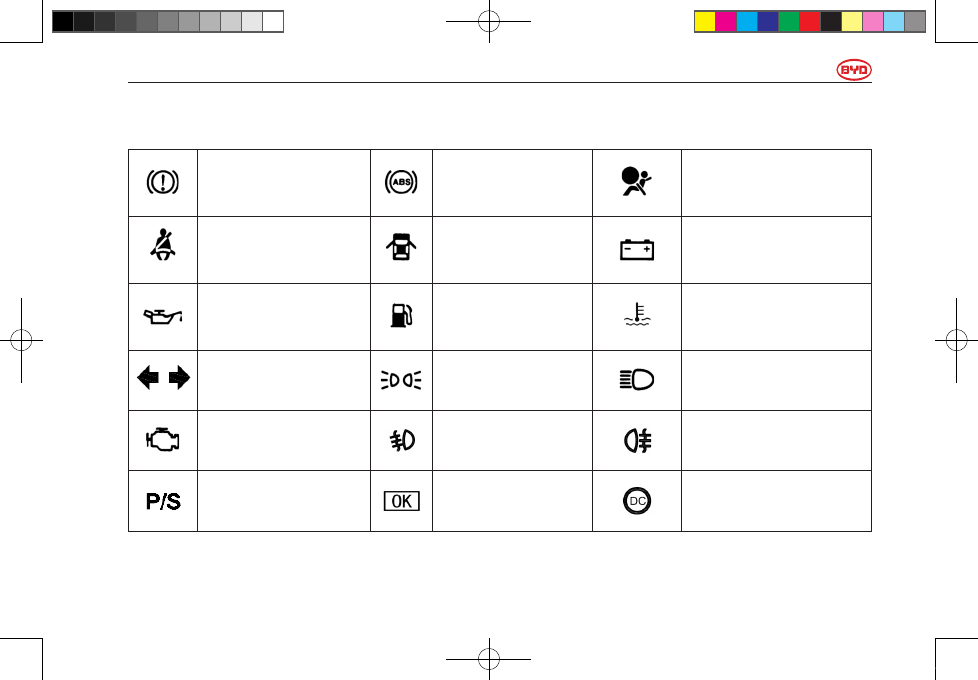

Sign on Combination Instrument

Brake system warning
lights*1
 *

Anti–lock brake system
warning light
 *

SRS Fault Warning Light *

Driver’s seat belt reminder
light
 *

Open door warning light
 *

Discharge warning light
 *

Low engine oil pressure
warning light
 *

Lower Fuel Oil Warning
Light*

High  coolant  temperature
warning light*

Turn signal indicator lights

Tail light indicator light

H e a d l i g h t   h i g h   b e a m
indicator light

Malfunction indicator lamp
 *

Front fog light

Rear fog light

Electric  power  steering
system warning light
 *

OK Indicator

DC Fault Warning Light *

使用手册小330.indd   23

2011-4-13   18:36:40

- 24 -

F3DM Owner’s Manual

Charging Connection
Indicator

Low  Power  Warning
Light *

Power System Fault Warning
Light *

P o w e r   B a t t e r y   F a u l t
Warning Light *

Electric  engine  Fault
Warning Light *

Items marked with “*” are maintenance indicators. For details, please refer to
 “Maintenance of Indicators and Warning Buzzer” in Section 1-5.

使用手册小330.indd   24

2011-4-13   18:36:40

- 25 -

F3DM Owner’s Manual

Chapter 1

Section 1-2

—————————————————————————————

Operations of Instruments and Controllers

Key and Car Door

Key ………………………………………………………………… 26
Side Car Door ……………………………………………………… 27
Wireless Remote Control ………………………………………… 29
Replace Battery of Remote Control ……………………………… 31
Power Windows …………………………………………………… 33
Luggage Compartment Lid ……………………………………… 34
Hood ………………………………………………………………… 36
Anti-theft System ………………………………………………… 37
Fuel Tank Cap ……………………………………………………… 41

使用手册小330.indd   25

2011-4-13   18:36:40

- 26 -

F3DM Owner’s Manual

Key

Two keys are provided for the vehicle,
which can open all the doors of your
car.

NOTICE

The doors may lock automatically
b y   a n t i - t h e f t   s y s t e m .   I t   i s
recommended to keep a spare key
with you, in case the doors locked
with the key inside the car.

If you need additional keys, contact
your BYD authorized dealer to create a
duplicates.

NOTICE

To avoid the key damaged or
improperly performance, observe
the following instructions.



y

The key should be operated with

a clean hand and fingers.



y

Do not insert the key forcefully.



y

Do not insert any key other than

genuine formal keys into the key
slot.



y

Do not pull out the key forcefully

when it cannot be removed.



y

Do not put water, oil, foreign

objects, etc. into the key slot.



y

Do not insert a wet, oily or

damaged key into the key slot.



y

Do not stick a seal on the key.



y

Do not insert the key in the wrong

way.

Should you find anything unusual,
contact BYD authorized dealer as
soon as possible.

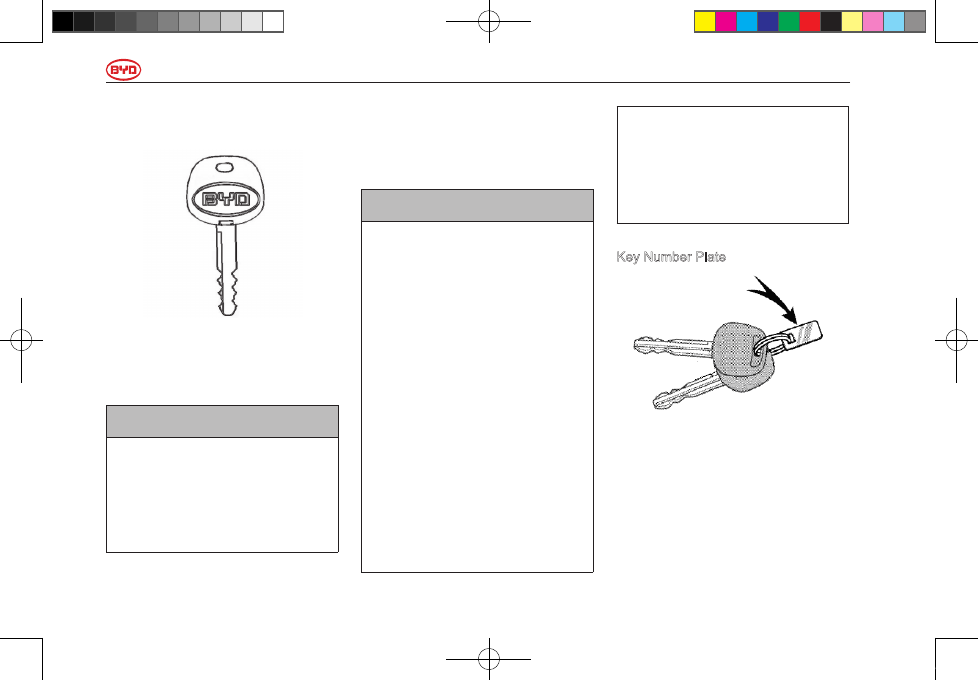

Key Number Plate

Your key number is shown on the
plate. Keep the plate in a safe place,
not in the vehicle.
BYD authorized dealer can create
a new key with the key number. We
recommend writing down the key
number and storing it in a safe place in

使用手册小330.indd   26

2011-4-13   18:36:40

- 27 -

F3DM Owner’s Manual

case that you need a duplicates.

If your key is locked in the car with the
backup key unavailable, we strongly
urges you to contact BYD authorized
dealer for help. If you must get the
key urgently through breaking the
vehicle window, consider breaking the
smallest window to reduce the repair
cost to be the lowest one. Do take care
of yourself to avoid an injury when
breaking the vehicle window.

Side Car Door

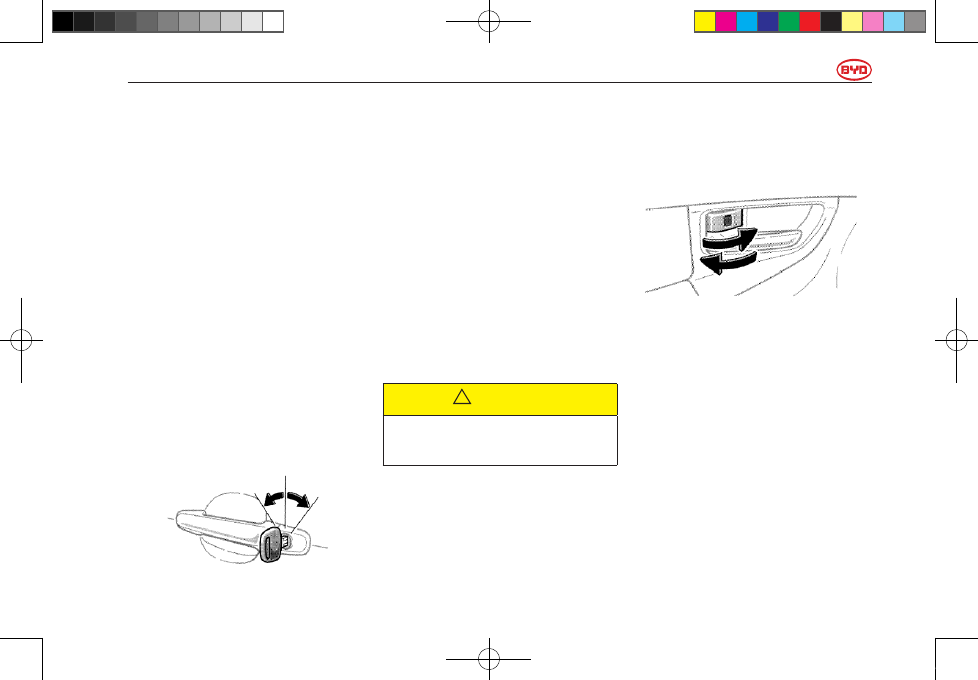

LOCKING AND UNLOCKING
THE DRIVER’S DOOR WITH
MECHANICAL KEY



LOCKING AND UNLOCKING
THE DRIVER’S DOOR WITH
MECHANICAL KEY
Insert the key into the keyhole and turn
it.
To unlock: turn the key clockwise.
To lock: turn the key anti-clockwise.

If the vehicle equipped with a central
control door lock, all the doors will be
locked or unlocked simultaneously with
the driver’s door.


Warning

Do not put your finger into the keyhole.
Your finger might be injured.

LOCKING AND  UNLOCKING  WITH
INSIDE LOCK KNOB

Move the lock knob as shown in the
picture above.

To unlock: Pull the knob backward.
To lock: Push the knob forward.

If you need to lock the car door outside
without key or wireless remote control,
set the lock knob to locked position
before closing the door. The exterior
handle outside has to be lifted when
closing the front doors.

!

使用手册小330.indd   27

2011-4-13   18:36:40

- 28 -

F3DM Owner’s Manual

Notice: Do not to lock the key in your
vehicle.
The driver’s door can be opened inside
by pulling the door handle even if the
lock knob is depressed.
The driver’s door cannot be locked if
the key is in the key slot.

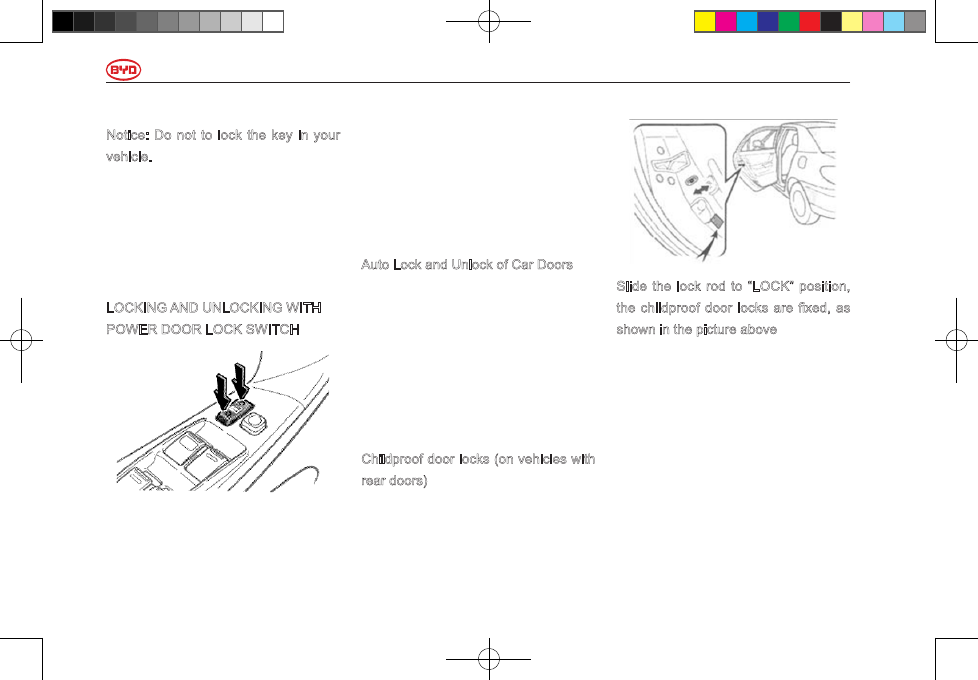

LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH


Push the switch as shown in  t h e
picture above.
To  unlock:  Push  the  switch  (with  a

small pit) down on the rear side.
To lock: Push the switch (with a small
bump) down on the front side.
All the doors can be locked or unlock
simultaneously with the central lock
switch.

Auto Lock and Unlock of Car Doors
When the car speed exceeds 20km/h,
all the car doors will lock automatically.
Turn  the  ignition  key  from  “ON”  to
“ACC” or “LOCK” to unlock all the car
doors.
These systems can be cancelled.
Please refer to “Settings of Optional
Functions” in this section for details.
Childproof door locks (on vehicles with
rear doors)

Slide the lock rod to “LOCK” position,
the childproof door locks are fixed, as
shown in the picture above
When  these  locks  are  set,  the  rear
doors cannot be opened from the
inside.
The rear doors can be opened from the
outside when the doors are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each door.
Setting the lock for one door will not
automatically fix the lock for both
doors.

使用手册小330.indd   28

2011-4-13   18:36:41

- 29 -

F3DM Owner’s Manual

Provided any children stay in the car,
you’d better use this function.

WARNING

Ensure vehicle doors are locked
before driving, especially when
any children are in the car. Use
the seat belt properly and locking
all vehicle doors can prevent
the driver and passengers from
being thrown out in an accident.
Meanwhile, it can also prevent
the vehicle doors from accidental
opening.

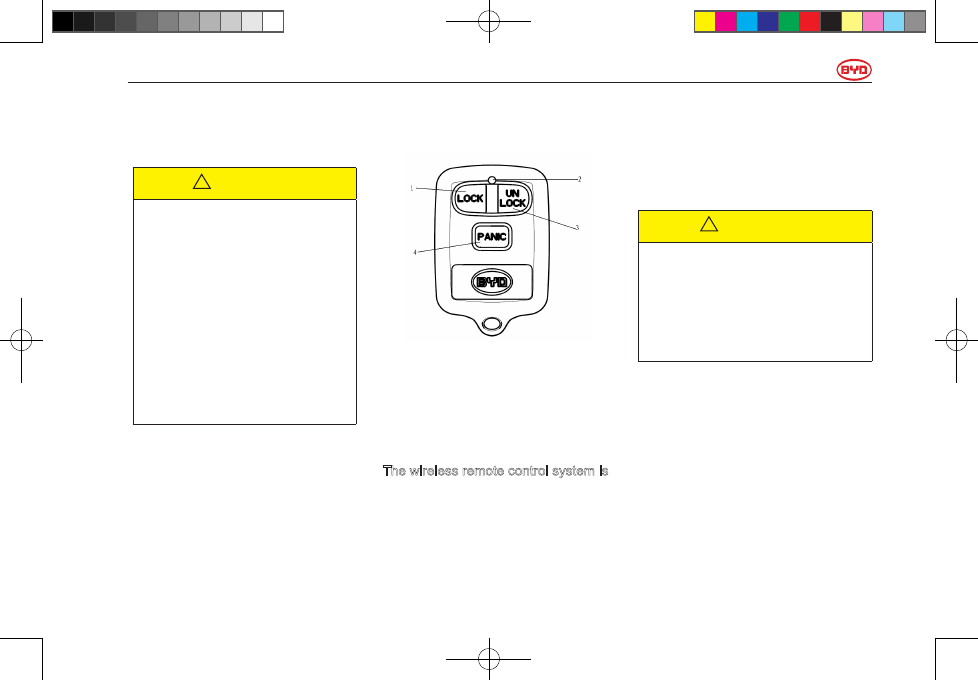

Wireless Remote Control

1. LOCK button
2. Indicator
3. UNLOCK button
4.Panic switch

The wireless remote control system is
used to lock or unlock all doors, or
activate the theft deterrent system
from a distance about 2m nearby the
vehicle.

The doors can be locked and unlocked
by pushing the switches slowly and
securely. The indicator light on the key
will flash once.

WARNING

Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.

Please observe the instructions below
to avoid any damage when using
remote control:



y

Keep the key away from high

temperature, such as on the
dashboard.



y

Do not disassemble it.



y

Do not knock it or dropp it.



y

Do not put it in water.

!

!

使用手册小330.indd   29

2011-4-13   18:36:41

- 30 -

F3DM Owner’s Manual

If the wireless remote control key does
not perform properly, please check as
below:



y

Check for any radio transmitter, such

as a radio station or an airport which
can interfere with normal operation
of the key.



y

The battery may be low.  Check

the battery in the key. Replace the
battery when necessary,

please refer to “Replace Battery of
Remote Control” in this Section for
detail.
If you lose your key, contact your BYD
authorized dealer as soon as possible
to avoid theft, or an accident.

LOCK button
Press the switch once for one action.
The operation will not be repeated if
the button is held for a long period of
time. Release it and press it again for

another operation.
Lock Car: press LOCK button, then all
doors will be locked simultaneously
and the turn signal lights will flash
once.
If the key is in the ignition switch, you
can not lock the car doors with LOCK
button.
If the key is not in the ignition switch,
press LOCK button on the remote
control, then all the doors will be locked
once, and the buzzer will buzz once
without entering anti-theft status.
When  the  doors  are  locked  but  the
vehicle does not enter anti-theft status,
press LOCK button on the remote
control and then all the doors will be
locked once.

Search Car: When  the  car  is  under
anti-theft status, press LOCK button
and the vehicle will buzz a long sound

with the turn signal lights flashing
for  about  15  seconds.  (When  you
uncertain the location of your vehicle,
this  function  is  helpful  to  locate  it.)
Press LOCK button again to enter the
searching status for the second time.

Warning  Release: when the car is
under anti-theft mode with the alarm
being activated, press LOCK button,
then all the doors will be locked once
and the warning will be released.  The
vehicle will remain under anti-theft
status.

UNLOCK button
Press the switch once for one action.
The operation will not be repeated if
the button is held for a long period of
time. Release it and press it again for
another operation.


使用手册小330.indd   30

2011-4-13   18:36:41

- 31 -

F3DM Owner’s Manual

Unlock: press UNLOCK button, then all
the doors are unlocked simultaneously
and the turn signal lights will flash
once. The turn signal lights will flash
three times if the vehicle is under anti-
theft status.
The vehicle can be unlocked even the
key is in the ignition switch,
.When the vehicle is under anti-theft
mode with the alarm being activated,
insert the ignition key into the ignition
switch and press UNLOCK button to
exit anti-theft status and unlock all the
doors.
If all doors are unlocked by remote
control, the rear interior light and
ignition key indicator (optional) will be
on for about 30 seconds. (This function
is optional; for details, please refer to
“Settings of Optional Functions”).
After unlocking the door by remote
control, all the doors will be opened

for 30 seconds.  If you do not open it
within the said period, all the doors will
be locked again automatically.

Cancel Anti-theft Status: The anti-theft
status (including that anti-theft alarm is
enabled) can be cancelled by pressing
UNLOCK  button,  then  all  the  doors
will be locked once and the turn signal
lights flash three times and.

Panic Button
Press panic button at any time for 1.5
seconds or longer, the alarm sounds
intermittently and the turn signal lights
flash. The warning sound will last
for 30 seconds, if you want to stop
warning earlier, press unlocking button
once or press the panic button again.
(Do not press this button in driving.)

NOTICE

Do not drop or throw the Wireless
Remote Control
Protect the wireless remote control
from extreme temperature.
Do not immerse the wireless remote
control in any liquid.

Replace Battery of Remote

Control

Please use CR2016 lithium battery
or equivalent to replace the battery,
or contact BYD authorized dealer for
replacement. Follow the steps below
for replacement:

使用手册小330.indd   31

2011-4-13   18:36:41

- 32 -

F3DM Owner’s Manual

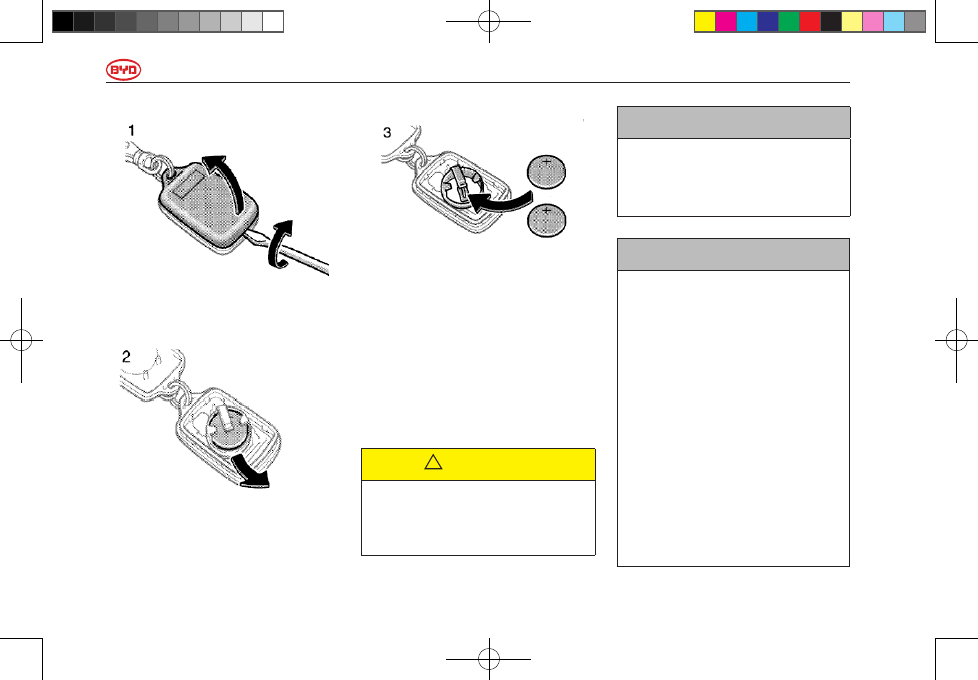

1.Open the remote control with a
slotted screwdriver or a similar tool.

2.Remove the depleted battery of the
remote control.

3. Install a new battery with positive (+)
side up. Please get the lid on for the
remote control.
After replacing the battery, please
check whether the remote control
can work normally. If it can not
work normally, please contact BYD
authorized service station for repair.

WARNING

To avoid a choking hazard, keep the
battery and component away from a
child.

NOTICE

Dispose of the depleted battery
according to local laws or
regulations.

NOTICE



y

Make sure the positive side and

negative side of the battery are



y

installed correctly



y

Do not replace the battery with

wet hands to avoid rust.



y

Do not touch or move any

component of the remote control,
or it may affect proper operation.



y

Do not bend the electrode of the

battery insertion and that dust or
oils do not adhere to the case.



y

Close the lid of remote control

tightly.

!

使用手册小330.indd   32

2011-4-13   18:36:41
