BYD F0. Service Manual - part 1
BYD AUTO
F0 Owner’s Manual
Whole-vehicle Performance Parameters of BYD F0
Product Model and Name
1.0MT
length
mm (millimeter)
3460
Dimension
width
mm (millimeter)
1618
height
mm (millimeter)
1465
Wheelbase
mm (millimeter)
2340
track front
mm (millimeter)
1420
Track
track rear
mm (millimeter)
1410
Curb Weight
kg (kilogram)
870
Gross Weight
kg (kilogram)
1245
Tire Size
165/60 R14
Approach Angle
°(degree)
17
Departure Angle
°(degree)
31
Front Overhang
mm (millimeter)
655
Rear Overhang
mm (millimeter)
465
Passengers
5
Maximum Speed
km/h (kilometer/hour)
≥151
Engine Model
BYD371QA
in-line 3-cylinder, 12-value, 4-stroke, water cooled, dual overhead cam,
Pattern
closed-loop electric fuel injection control
Displacement
ml (milliliter)
998
Maximum Power Output kw/rpm (kilowatt/round per minute)
50/6000
Maximum Gradeability
%
≥30
Constant-speed One-hundred-kilometer Fuel Economy
≤4.2
(90km/h)
L/100km
Emission Standard
European III/European IV
1
BYD AUTO
F0 Owner’s Manual

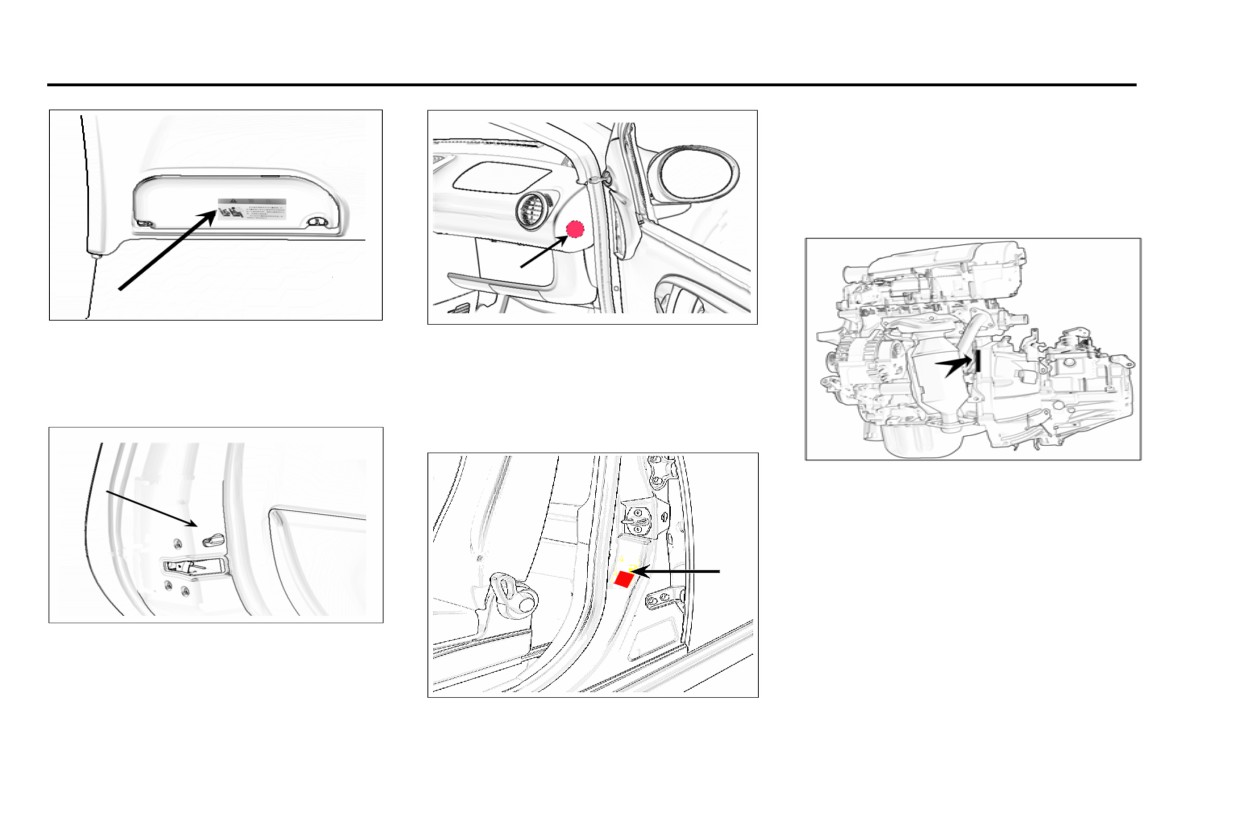

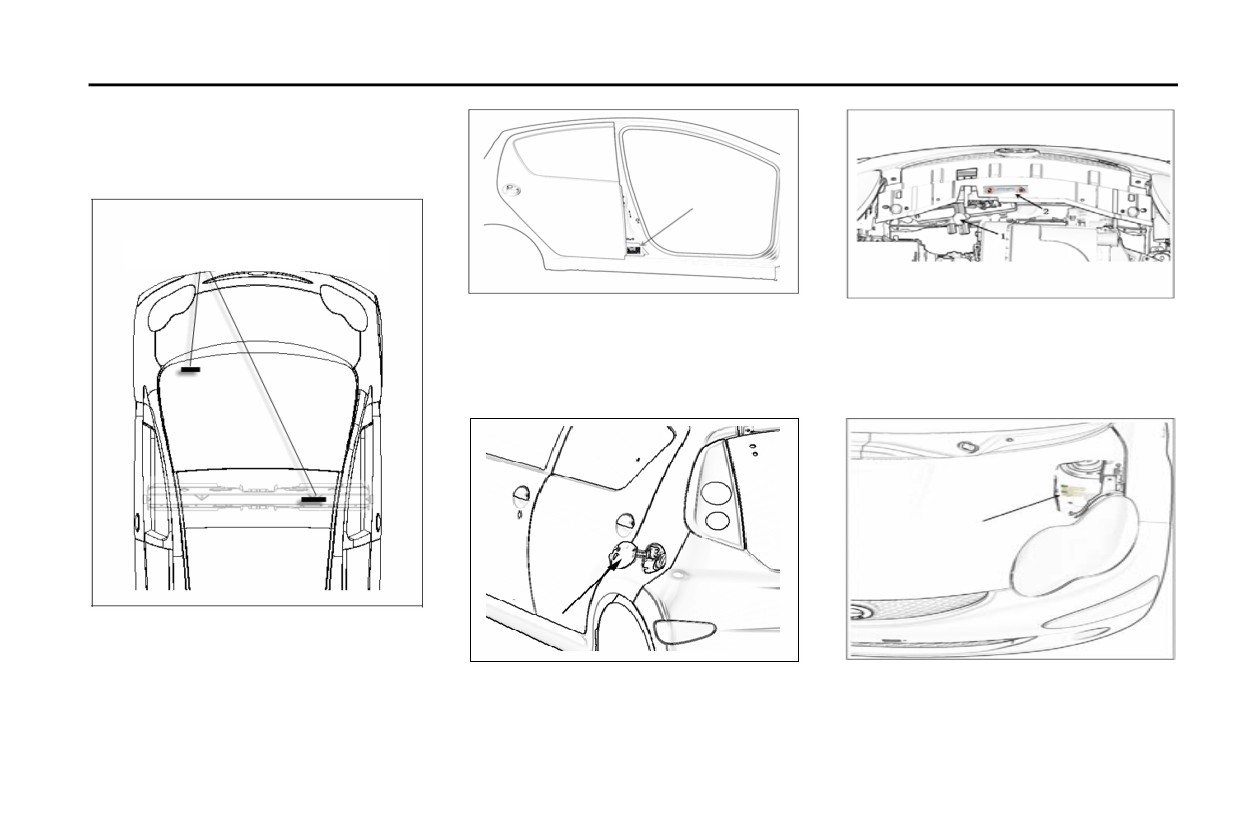

Vehicle Identification of BYD F0
Vehicle Identification Number
Vehicle Identification Number
The vehicle identification number is also
In the above figure, 1 is the indication sign
marked on the manufactory nameplate at the
of engine coolant, and 2 is the warning sign
bottom of the right side-frame B column as
of cooling fan.
shown in the above figure.
Two vehicle identification number labels are
pasted respectively on the left upper side of
the instrument panel and the floor beam
Figure above shows the fuel grade
Warning sign of the air conditioning system
under the co-driver seat as shown in the
indication sign, which is pasted on the inner
above figure.
side of the fuel lid.
2
BYD AUTO
F0 Owner’s Manual
indication sign of the tire pressure, which is
pasted on the lower part of the left front
door lock.
Engine Number
What the above figure shows is the warning
What the above figure shows is the warning
sign of the air bag, which is pasted on the
sign of the co-driver air bag, which is pasted
sun visor at the driver side.
on the right side of the lower body of the
instrument panel.
The engine number is marked on the engine
cylinder body as the above figure shows.
What the above figure shows is the
indication sign of the child protection
device, which is pasted above the child
protection lock on the back of the rear
What the above figure shows is the
vehicle door.
3
BYD AUTO
F0 Owner’s Manual
Section 1-1
Chapter 1 Operation of Instruments and Controllers
1. Instrument Panel Exterior
Instrument Panel Exterior
5
Combined Meter Exterior
7
Indication signs on the combined meter
8
4
BYD AUTO
F0 Owner’s Manual

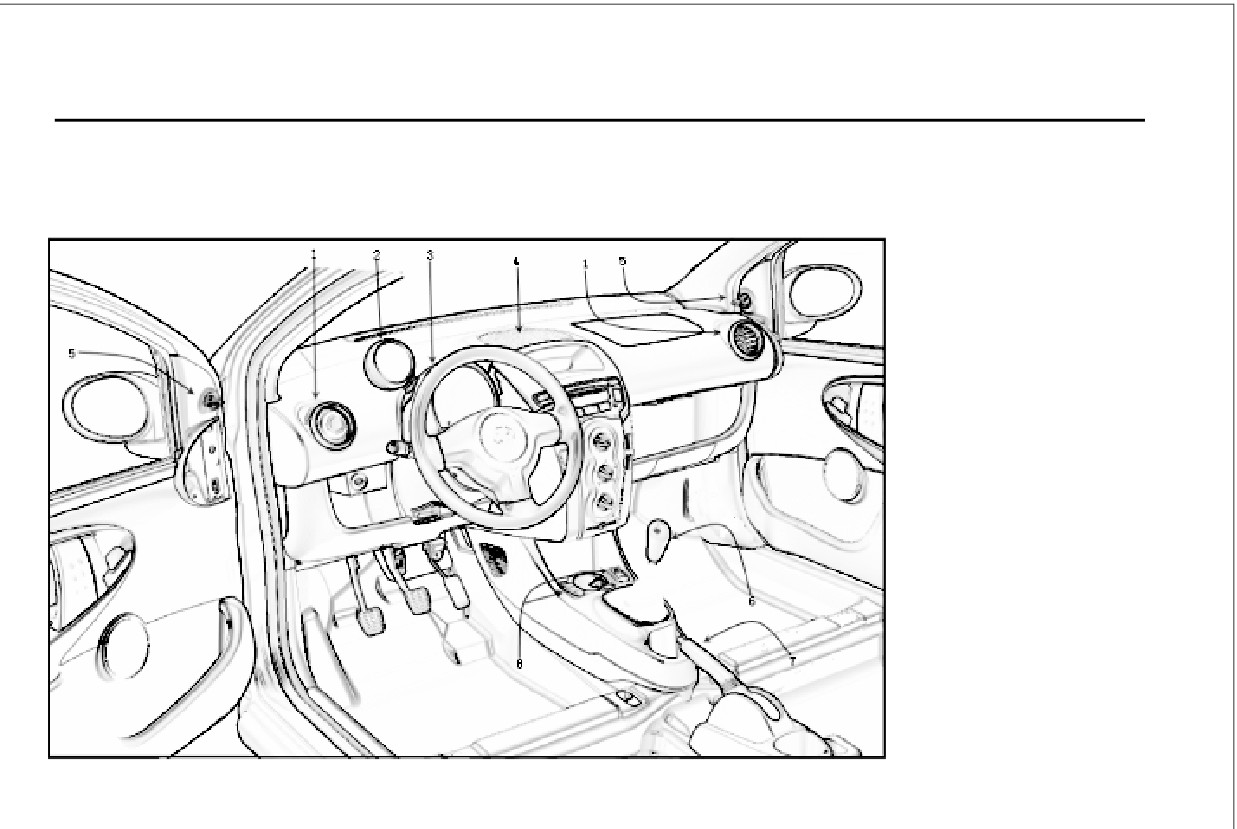

Instrument Panel Exterior
1.
Side duct
2.
Tachometer (if equipped)
3.
Combined instrument
4.
Central air outlet
5.
Rearview mirror control
handle
6.
Manual
transmission
shift handle
7.
Parking brake handgrip
8.
Power window switch (if
equipped)
5

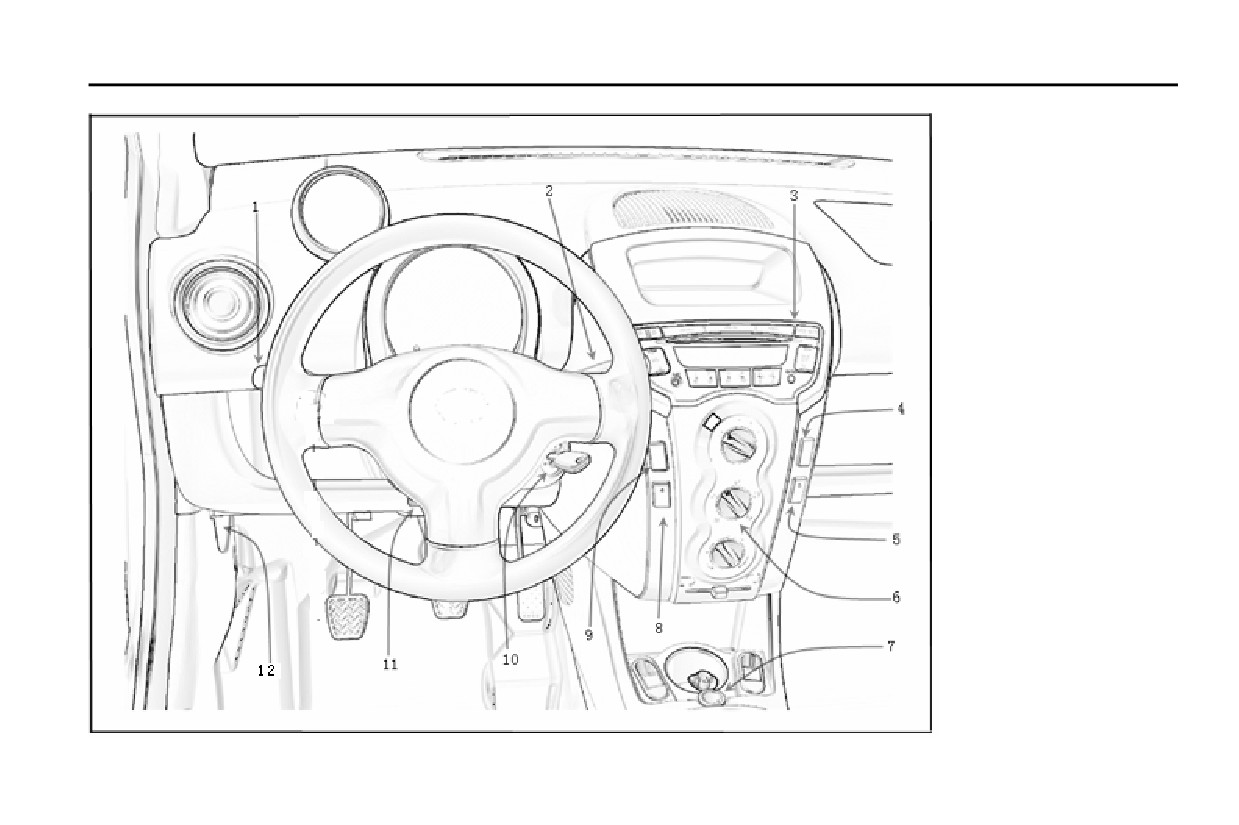

BYD AUTO
F0 Owner’s Manual
1.
Switch of head lights,
turn signal lights and
rear fog lights
2.
Switch of wipers and
washers
3.
Audio system
4.
Switch of front fog
lights (if equipped)
5.
Rear defroster switch (if
equipped)
6.
Air conditioner control
panel
7.
Cigar
lighter
(if
equipped)
8.
A/C switch
9.
Emergency alarm light
10.
Ignition switch
11.
Steering wheel position
adjustment mechanism
12.
Engine hood opening
handle
6
BYD AUTO
F0 Owner’s Manual

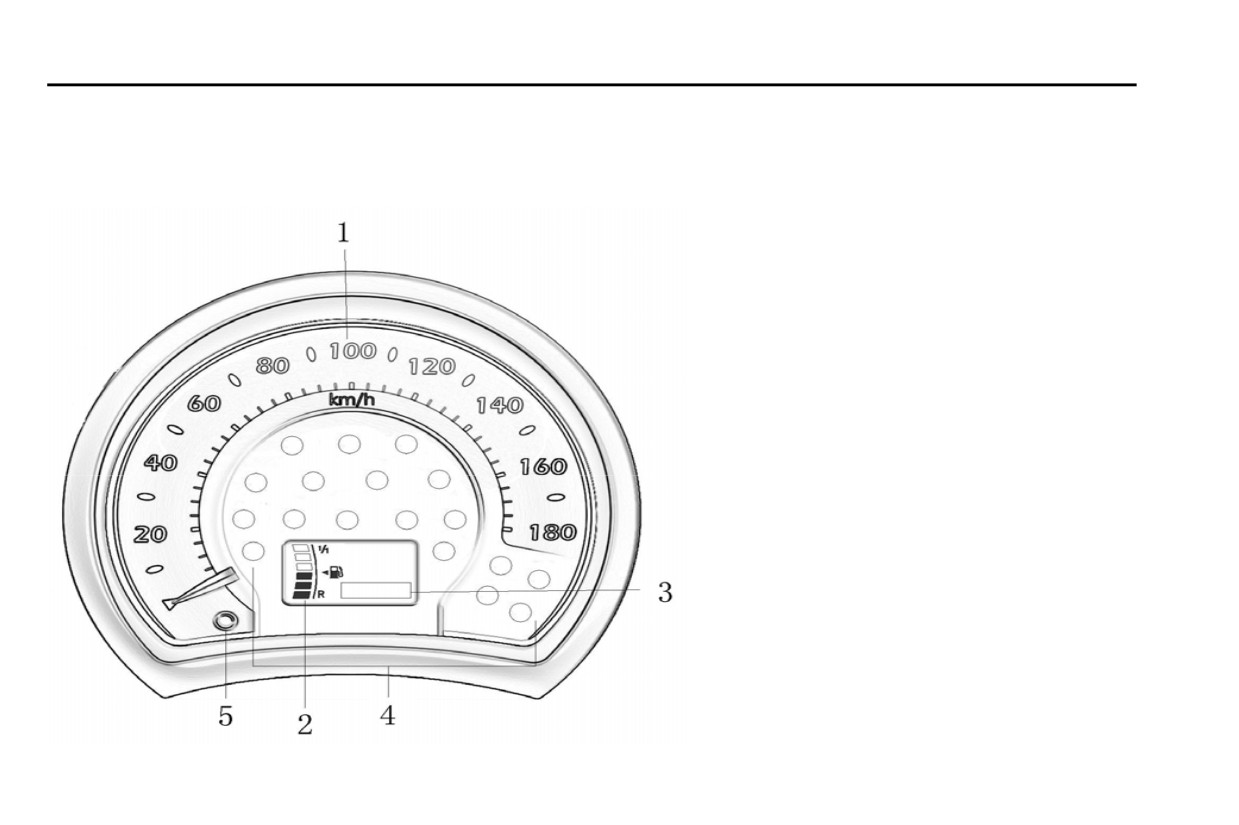

Combined Meter Exterior
1．Speedometer
2．Fuel gauge
3．Odometer
4．Maintenance indicator
5．Short trip reset button
7
BYD AUTO
F0 Owner’s Manual

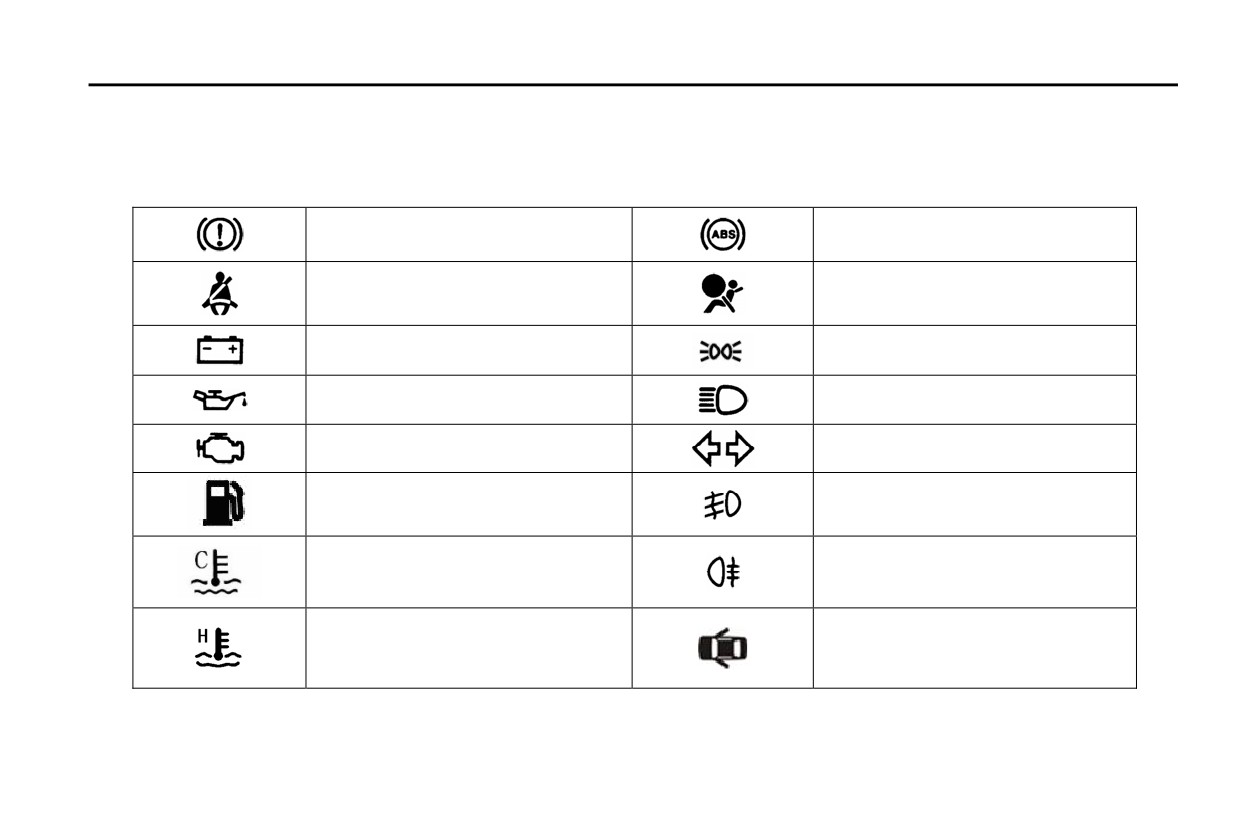

Indication signs on the combined meter
braking system warning light *
ABS system warning light *
seat belt indicator *
SRS warning light *
battery discharge indicator *
position indicator
low engine oil pressure indicator *
high beam indicator
turn indication and danger warning
engine fault indicator *
light
low fuel level reminding light *
front fog light indicator
low coolant temperature warning light *
rear fog light indicator
high coolant temperature warning light*
door-open warning light
Items marked with “*” are maintenance indicators. Refer to “Maintenance indicators and warning buzzers” in Section 1-5 for details.
8
BYD AUTO
F0 Owner’s Manual
Section 1-2
Operation of Instruments and Controllers
2. Keys and doors
Keys
10
Side door
11
Remote controller (if equipped)
12
Rear side door windows
15
Rear back door
16
Engine hood
16
Fuel tank cap
18
9
BYD AUTO
F0 Owner’s Manual
Friendly Tips: Please carry a spare key with

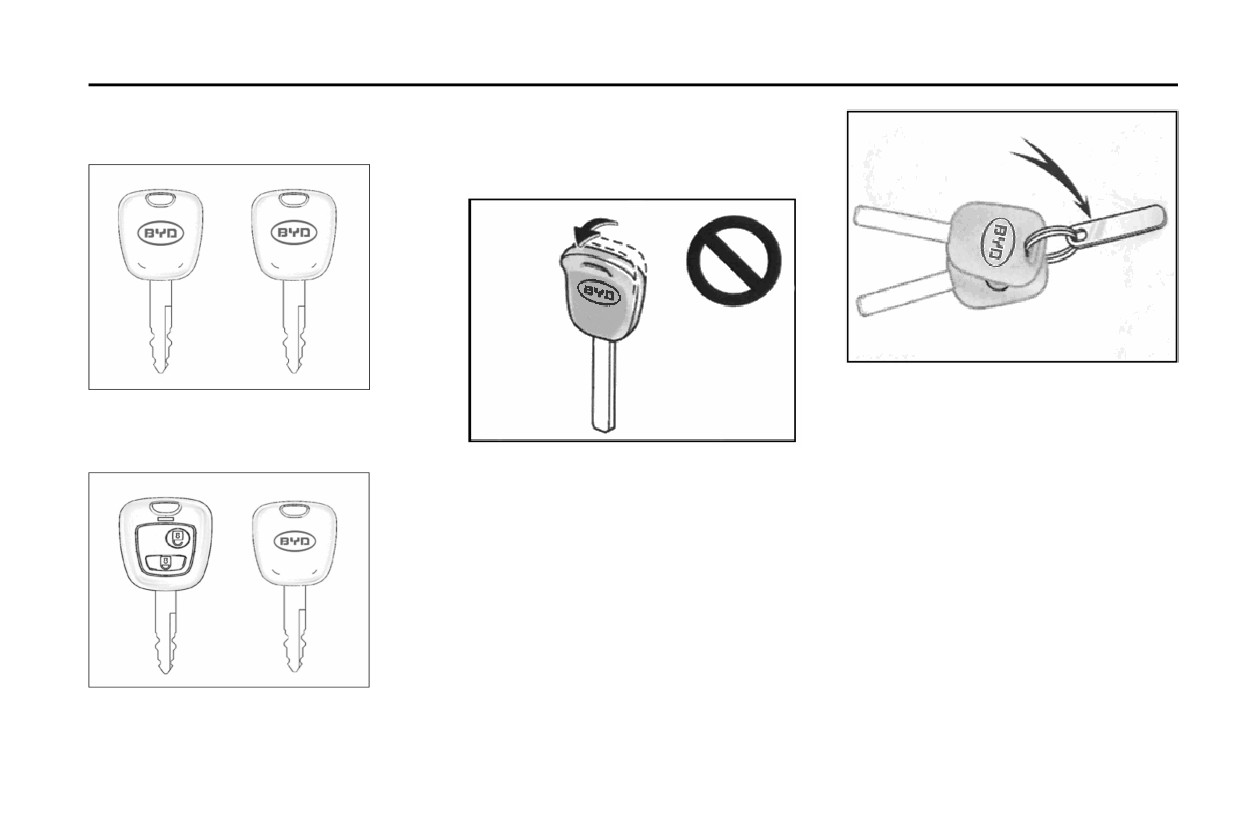

Keys
you for use when you have left the key
locked in the auto.
Key number plate
Main and auxiliary keys for autos
The key number is indicated on the key
without central door lock control systems
number plate. Put the key number plate in a
1)
Do not bend the key handle.
safety place. Do not put in the car.
2)
Do not knock at other objects with the
We suggest you write the key number down
key.
and save it in a safety place.
3)
Do not place the key where the
temperature is high, e.g. on the
instrument panel or the engine hood
under direction solar irradiation.
4)
Do dot dip the key into water or wash
it in ultrasonic cleaning solution.
Main and auxiliary keys for autos with
central door lock control systems
10
BYD AUTO
F0 Owner’s Manual

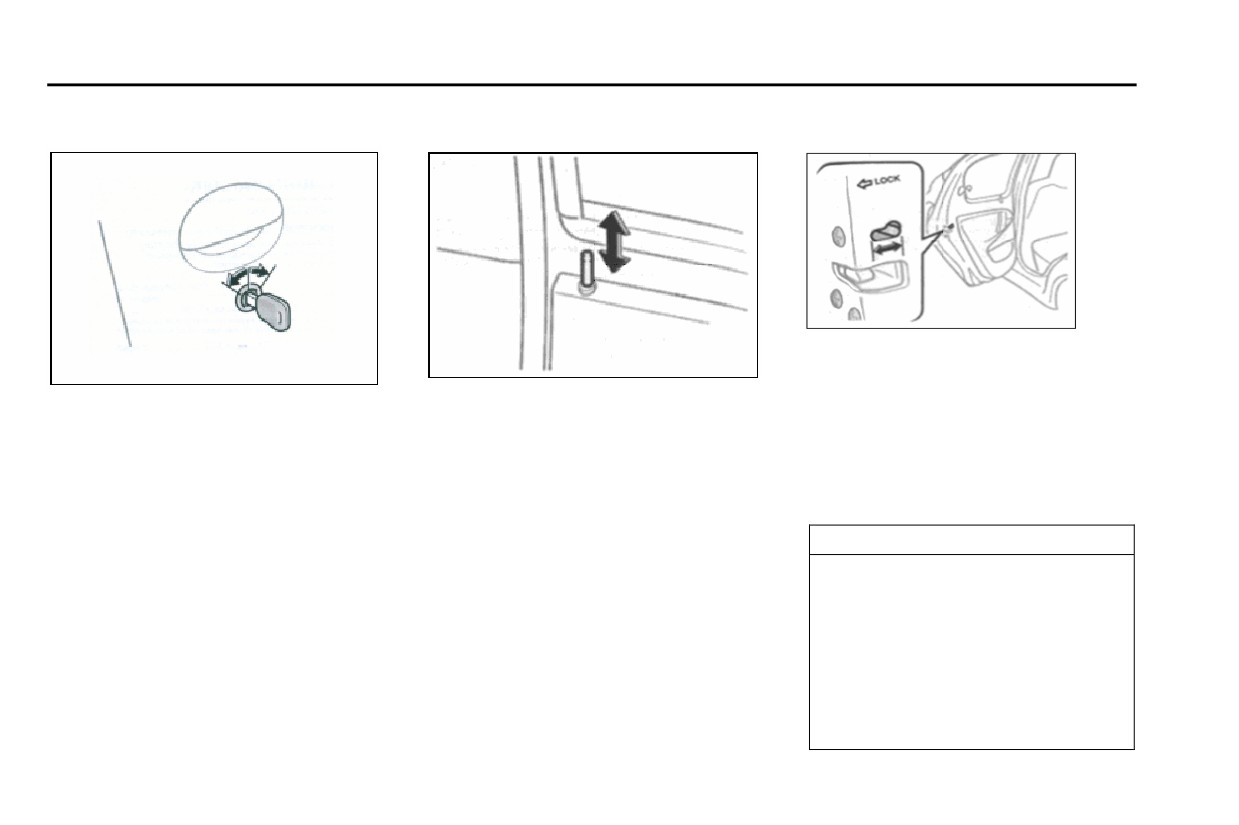

Side door

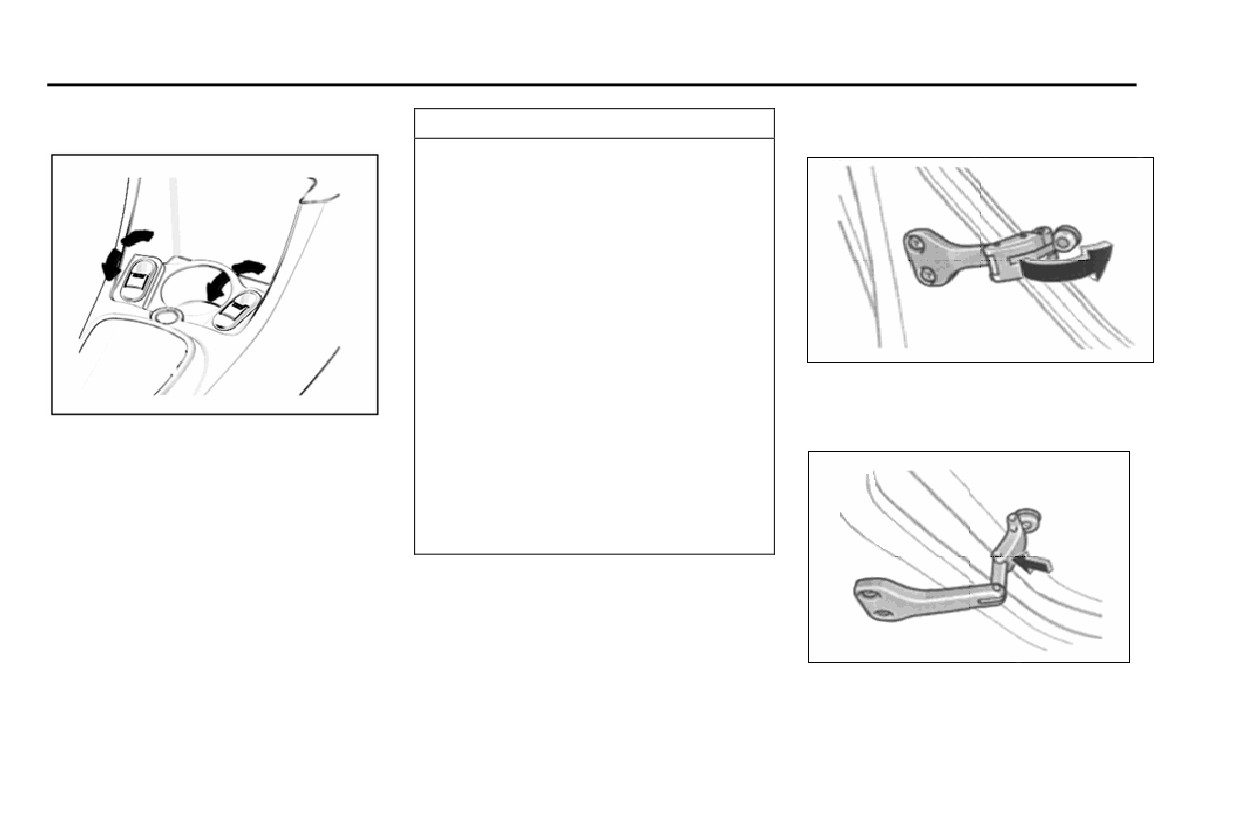

Unlocking and locking of the lock knob
Rear-door child protection lock
Shift the lock lever to the
“LOCK”
position as the above figure
When the child protection lock is locked up,
Unlocking and locking with the key
Unlock: Pull the lock knob upward.
the rear door cannot be opened with the
Lock: Press the lock knob downward.
inner catch handle (can be opened with the
Insert the key into the key hole and turn it.
outer pull handle). We suggest you use this
Unlock: Turn the key rightward.
Friendly Tips: To lock the auto doors from
function as long as there is a child in the car.
Lock: Turn the key leftward.
the side side, set the lock know at the
locking position before closing the front
side door, and then lift the side outer pull
Friendly Tips
When the auto is equipped with central door
lock control systems, the side doors and the
handle and close the door. Take care not to
Before actuating the auto, especially
drive-side door will be simultaneously
lock the key in the car.
when there is any child in the car,
locked and unlocked.
please make sure the door is closed
and locked. Correct seat belt use and
door lockup is helpful to prevent the
driver and passengers from being
thrown out in case of accidents and
prevent unexpected opening of the
doors.
11
BYD AUTO
F0 Owner’s Manual

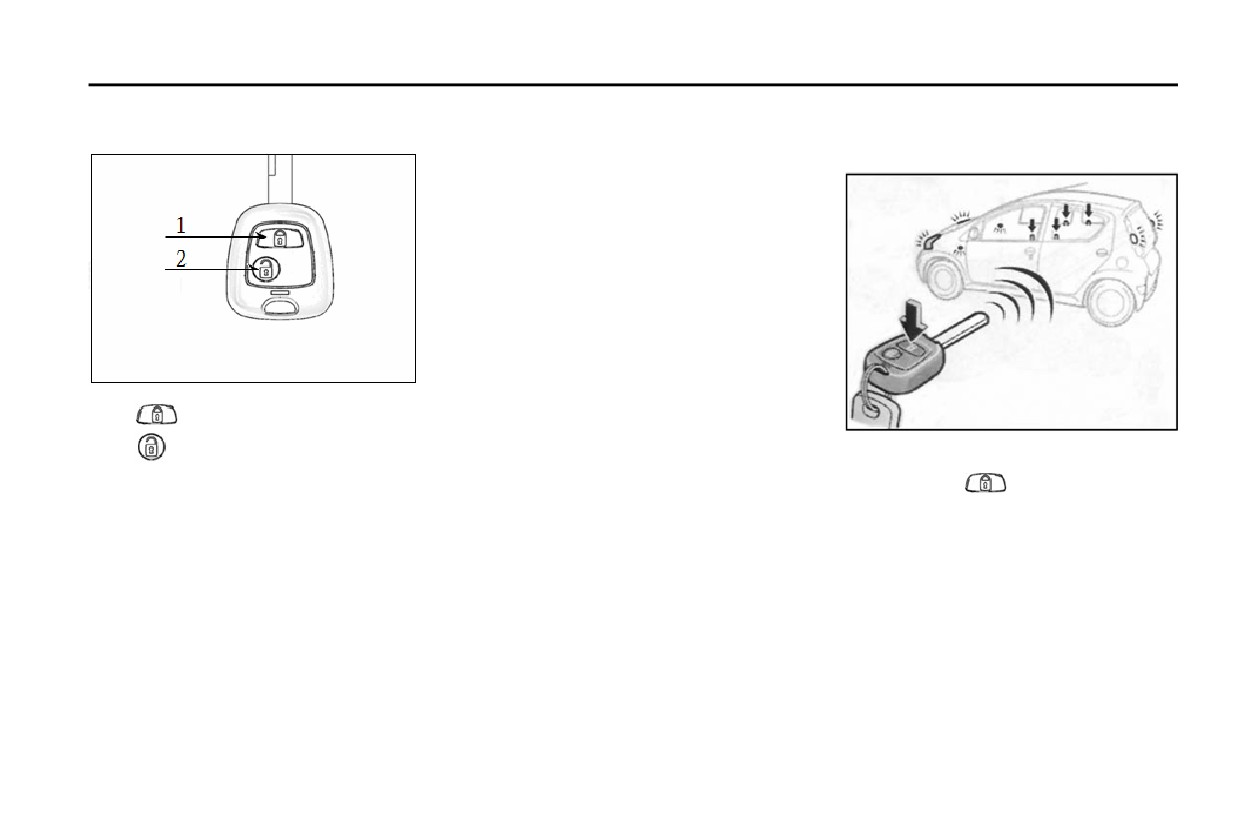

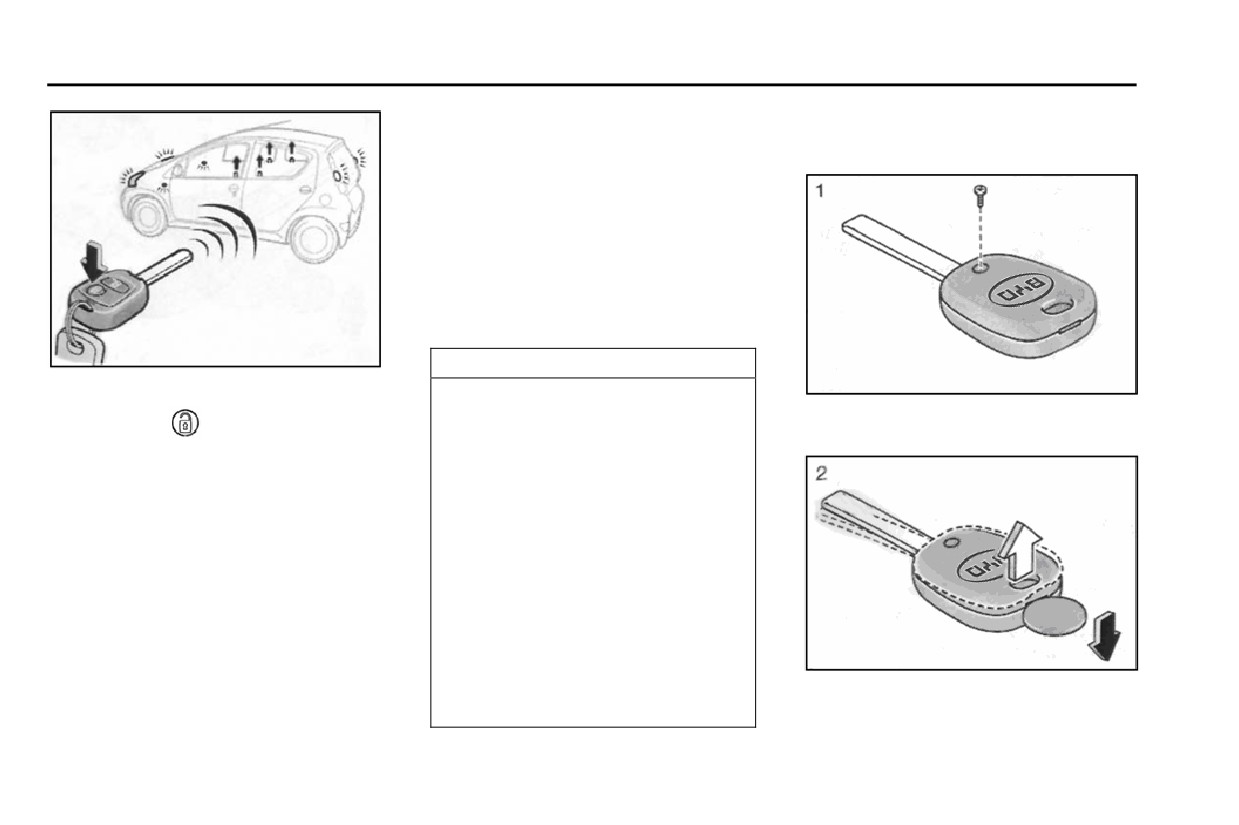

Remote controller (if equipped)
z
Do not knock in violently against
other objects or throw it on the
Door lockup and opening
ground.
z
Avoid putting it in water.
If the remote controller does not work,
please check:
z
Whether there is any wireless radio
station or airport radio transmitter
nearby that may interfere with the
normal operation of the transmitter.
z
Whether the battery power has run out.
Check the battery in the transmitter.
For battery replacement, please refer
1、“
“ locking button
to
“remote controller battery
replacement” in this section.
2、“
“ unlocking button
Door lockup
For manipulating any button, press it down
If the problem cannot be solved, please
Lock: Press “
“. All side door lock
slowly and correctly. For locking, the turn
contact authorized service stations of BYD.
motors simultaneously execute locking
lights will flash once; for unlocking, the
If the remote controller is lost, please
action once and the turn signal lights flash
turn lights will flash twice.
contact immediately authorized service
once.
Follow the following instructions for
stations of BYD for avoidance of burglary
Check whether all doors are truly closed.
avoidance of remote controller damage:
accidents.
z
Do not place the remote controller
where the temperature is possibly high,
e.g. on the instrument panel.
z
Do not disassemble it without
permission.
12
BYD AUTO
F0 Owner’s Manual
z
The remote controller won’t work.
Replace the remote controller battery
according to the following procedures:
z
The operation range of remote control
becomes very narrow.
Battery replacement
CR2016 lithium batteries or equivalent
should be used for replacement. It is
suggested to have the battery replaced in a
BYD authorized service station.
Notice
Door opening
Do not have relevant part lost in
battery replacement.
1.
Screw off the screw.
Open: Press “
“. All side door lock
motors simultaneously execute unlocking
Only a battery of the specified
action once and the turn signal lights flash
model or suggested by the BYD
twice.
authorized service station can be
used for replacement.
The action will be executed once if the
button is pressed once. Continual press of
Used batteries should be
the button won’t repeat the action. To
disposed according to local laws and
execute the action once again, release the
regulations.
button and press it again.
The following phenomena suggest that
Take care not to let children
power in the battery of the remote controller
swallow replaced remote controller
has possibly run out and battery
batteries or parts.
2.
Open the remote controller with a coin
replacement is needed
(see
“Battery
or a similar tool.
replacement” in this page):
13
BYD AUTO
F0 Owner’s Manual
Notice
Notice
Make sure the anode and cathode
Without permission, do not
of the remote controller battery are
alter the emission frequency, increase
correctly positioned.
the emission power (by including but
not limited to adding emission
Do not replace the battery with
frequency amplifiers), equip external
wet hands; water may lead to
antennas or use other emission
unexpected rustiness.
antennas.
Do not touch or move any part in
Use of the remote controller
the remote controller; otherwise, correct

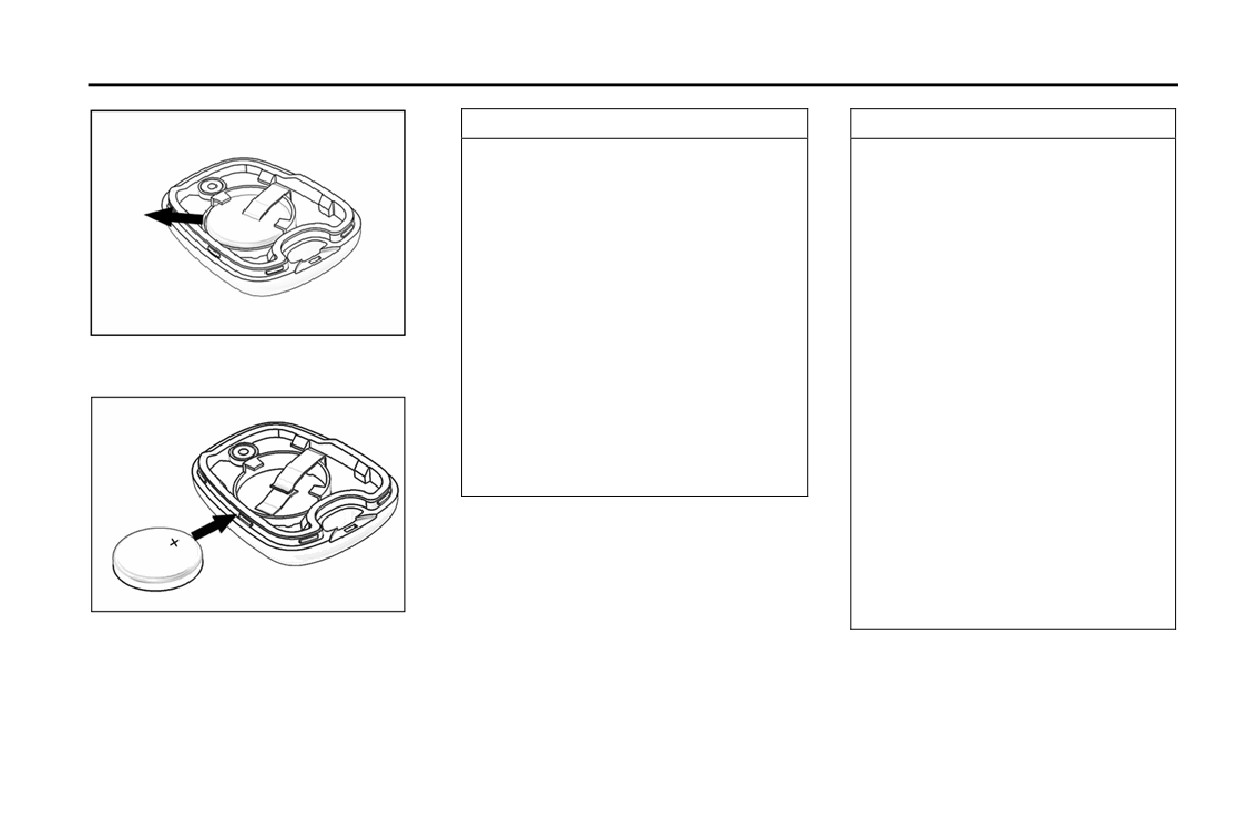

3.
Take the used battery.
should not produce any harmful
operation may be affected.
interference to any legal wireless
communication services; stop use of
When positioning a new battery in
the remote controller immediately if
the remote controller, pay attention not
any interference is found and do not
to bend the electrodes and remove dust
use it until measures have been taken
and oil in the remote controller box.
and the interference has been
eliminated.
After battery replacement, check whether
the remote controller can work normally. If
it
still
cannot work, please contact
Do not use the remote controller
authorized service stations of BYD.
near aircrafts or airports.
4.
Place a new battery in with the anode
(+) facing upward.
5.
Close the remote controller firm and
screw up the screw.
14
BYD AUTO
F0 Owner’s Manual
Electric door windows (if equipped)
Warning
Rear side door windows
For avoiding damage to people, please
read the following instructions:
z
Before closing the power windows,
make sure there is no man around the
window and make sure heads, hands and
other parts of passengers are in the car. If
necks, heads or hands of passengers are
caught by the closed window, severe
damage may be caused. Therefore,
operation safety should be ensured in
closing power windows.
z
Do not let children manipulate the
Open the side door glass as shown in the
power window switches without
above figure.
The front electric window switches at the
attendance; otherwise, they may be
left/right side of the auxiliary instrument
caught by the windows.
panel can respectively control the left/right
z
Make sure the ignition key is taken
front door windows.
away or is in “0” position when leaving
the car.
Operation of the front door window:
The ignition key should be in
“II”
position.
Open: Press down the switch lightly.
Close: Pull upward the switch lightly.
Push to open the side door glass
side-opening mechanism as shown in the
above figure.
15
