17

391_062

391_014

391_015

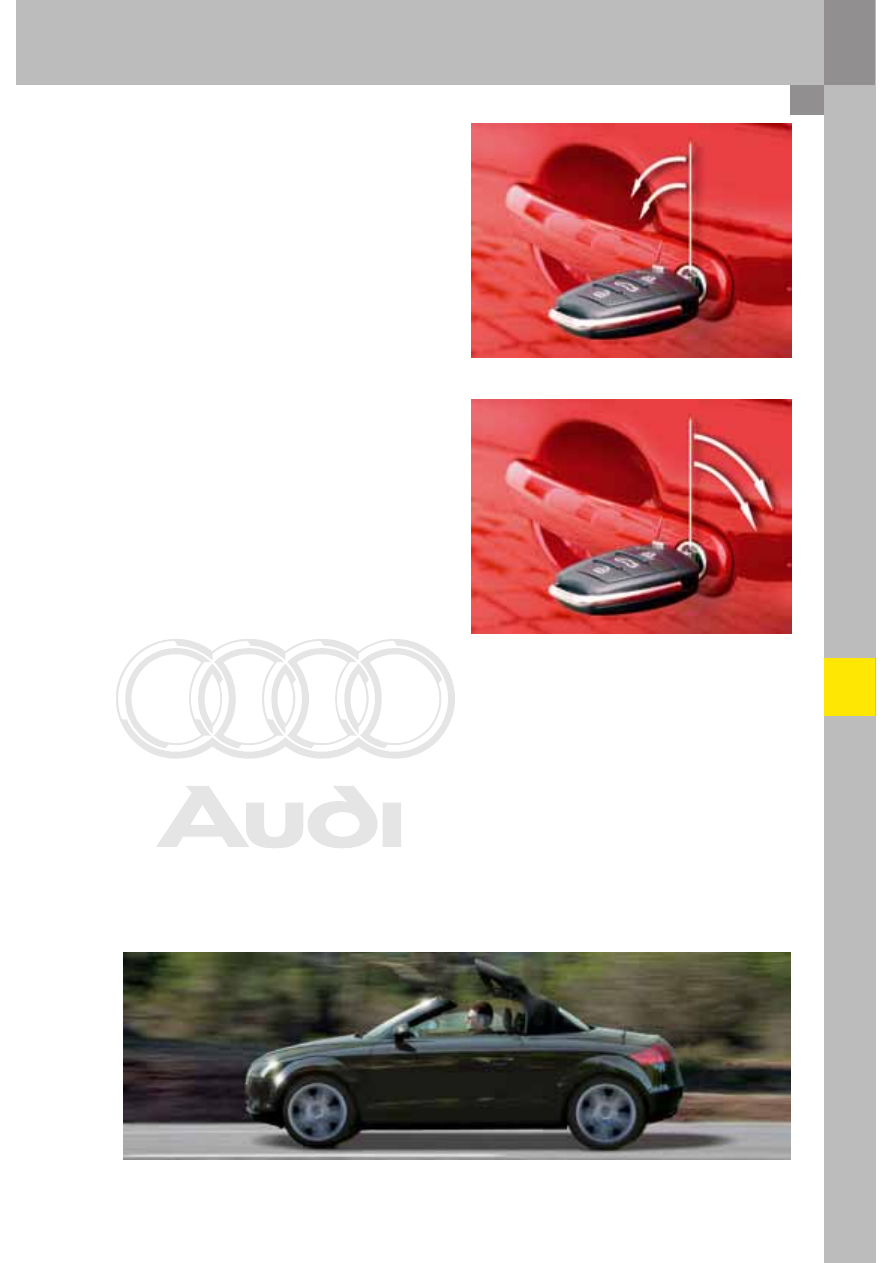

Convenience opening/closing

The convertible top can also be operated via the
locking cylinder in the driver's door.
To open the convertible top, the vehicle first has to
be unlocked. Turn the lock cylinder towards the
direction of travel using the ignition key.
To start the convertible top operating cycle, turn the
ignition key again to the "open" position within two
seconds and hold it engaged in this position.

To close the convertible top, lock the vehicle using
the ignition key. Now turn the ignition key back to
the "close" position within two seconds and hold it
engaged in this position.

If the convertible top is in an intermediate position
(neither closed nor open),  the convertible top
operating cycle can be started by actuating the lock
cylinder once and holding the lock engaged.

If the vehicle has an anti-theft alarm, the vehicle
must be opened with the remote control key before
opening the convertible top.
The anti-theft alarm is thereby deactivated. Please
read and observe the information given in the
vehicle's Owner's Manual.

Fully automatic convertible top operating
cycle

The convertible top can be opened fully automa-
tically while driving.
This function is active when the vehicle is travelling
at a speed of > 6 kph and < 50 kph. To start the
convertible top "opening" cycle, actuate the
convertible top operating switch E137 briefly
(for < 0.5 seconds).
If the convertible top "opening" cycle is started at a
speed of < 50 kph and the vehicle is subsequently
accelerated to a speed of > 50 kph, audible and
visual warnings are issued to the driver while the
convertible top is opening.
The convertible top "opening" cycle is not aborted.

Unlike the fully automatic opening cycle, the
convertible top can only close automatically.
This means: the convertible top operating switch
E137 must be kept pressed down throughout the
convertible top operating cycle.
If the vehicle exceeds a speed of 50 kph, the
automatic convertible top closing cycle is aborted.
The convertible top stops instantly, whatever its
position at that moment.
Audible and visual warnings are issued to the driver.
If the vehicle is travelling at a speed of less than
50 kph, the driver has to restart the convertible top
closing cycle by actuating the convertible top
operating switch.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

18

391_074

391_081

391_060

391_082

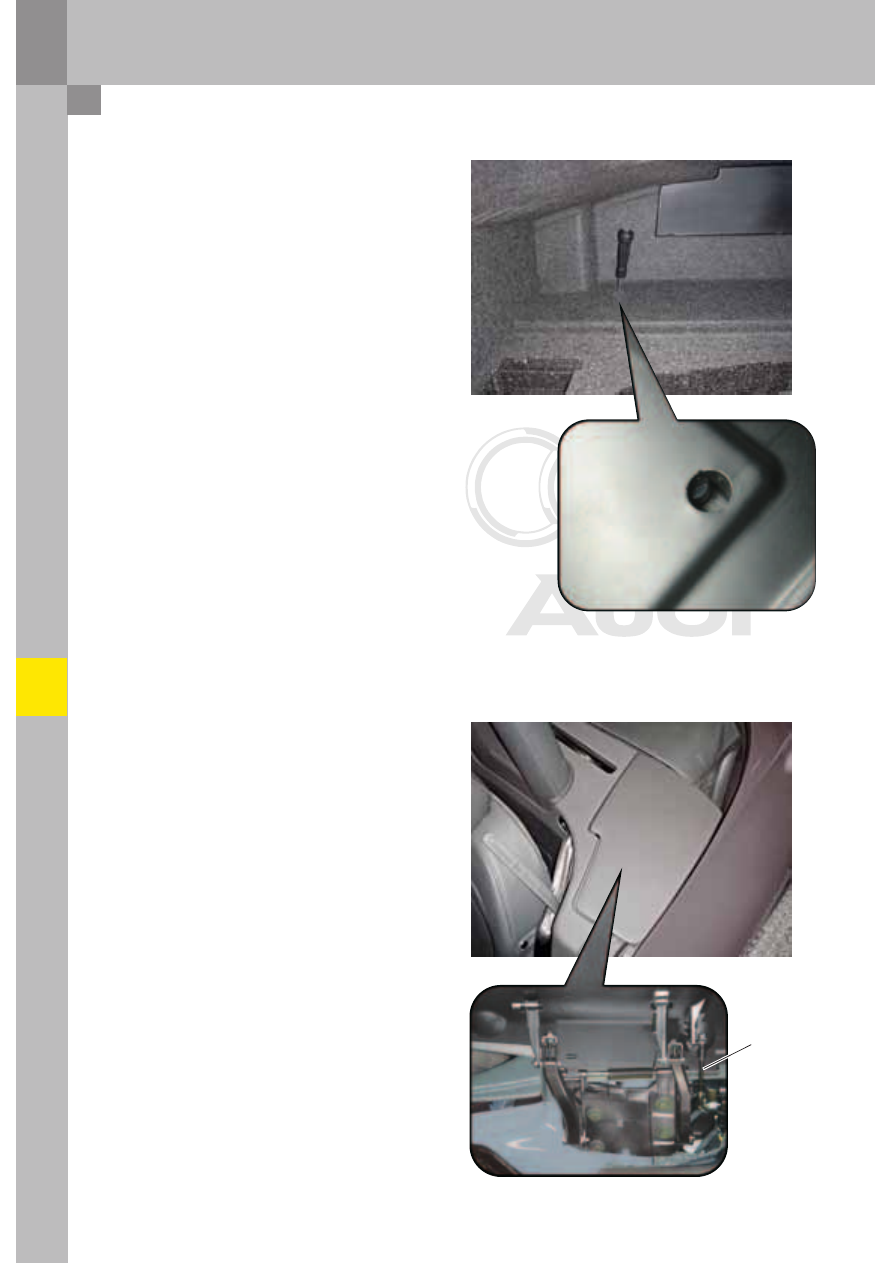

Electrical convertible top control system

Actuating rod

The convertible top covers can be raised after
disengaging the actuating rods between the left
and right convertible top cover motors.

The convertible top can now be lifted out of the
storage box and locked in place on the windscreen
frame.
This work should be done by two persons.
Do not reach into the linkage when closing the
convertible top.

Emergency release

If the convertible top cannot be operated because
of a malfunction, it is possible to close and open the
convertible top manually.

Closing the convertible top

Requirements:

–   Handbrake applied
–   Door glasses lowered
–   Ignition "off"
–   Ignition key removed

Firstly, the hydraulic system must be depressurised.
Using a screwdriver, turn the emergency release
screw on the hydraulic unit approx. one half turn
anticlockwise.

If the convertible top has been closed or opened
manually, the emergency release screw must be
closed again.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

19

Note

For further information on emergency
operation and operation of the convertible
top, please refer to the vehicle's Owner's
Manual.

391_078

391_079

391_080

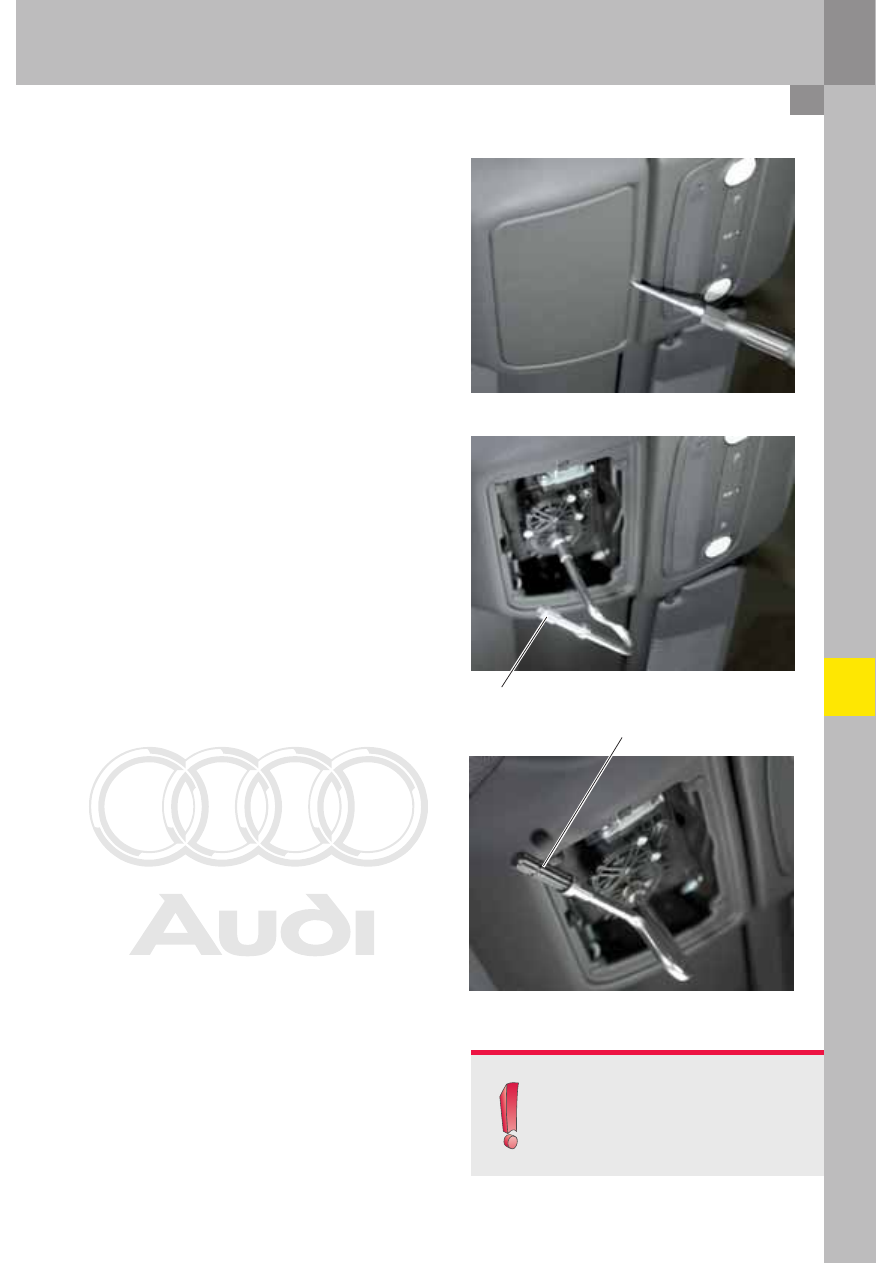

At the centre of the convertible top at the front
there is a blanking cap which can be removed using
a screwdriver.

The convertible top is opened in the reverse
order of closing.
A complete automatic convertible top operating
cycle (opening and closing) must be performed as
a function test after all emergency operation and
troubleshooting procedures.

The tools required for emergency operation are
included in the car tool kit.

In the spline shaft beneath, screw in the crank,
threaded end first, until fully home.
The spline shaft acts as the driving shaft between
the convertible top lock motor V223 and the linkage
of the convertible top locks.
Pull out the spline shaft downwards using the
crank.
In place of the spline shaft, insert the crank, spline
head first, as far as it will go. To open the
convertible top lock, turn the crank clockwise.
Now press the convertible top down onto the
windscreen frame by hand. To close and fully lock
the convertible top lock, turn the crank
anticlockwise.

Now insert the spline shaft until fully home and
unscrew the crank by turning it anticlockwise.

Spline head

Spline shaft

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

20

391_051

391_004

Electrical convertible top control system

Components of the convertible top control system

The central element of the convertible top control system in the Audi TT Roadster is the convertible top
operation control unit J256.
It controls and monitors the automatic convertible top operating cycle and is responsible for diagnostics.
If the diagnostics detect faulty components or if the signals from the individual components involved in the
convertible top operating cycle fail are not received in time, the convertible top operating cycle is stopped.

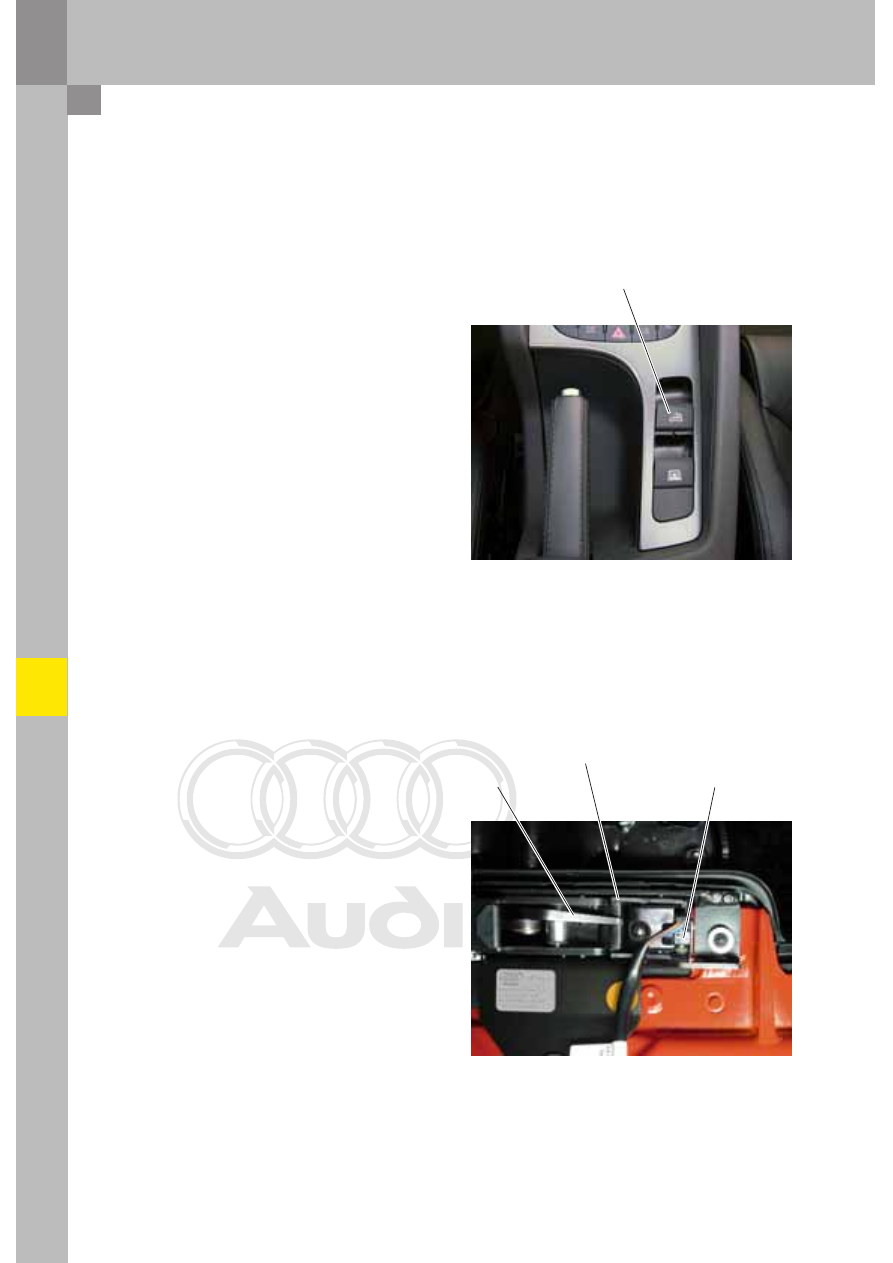

Convertible top operating switch E137

Rocker

Engaging hook

Convertible top front
latch switch F172

Convertible top operating switch E137

To start the convertible top operating cycle, push
or pull the convertible top operating switch E137.

–   Push:

the open convertible top is closed

–   Pull:

the closed convertible top is opened

If the switch is released during the convertible top
operating cycle, the convertible top stops moving
immediately.
To resume convertible top operation in any
direction, actuate the switch again.

If the vehicle is travelling at a speed of between
6 and 50 kph, a short pull (< 0.5 seconds) of the
convertible top operating switch is sufficient to
start fully automatic opening of the convertible top.
If the vehicle is travelling at faster than 50 kph, it is
no longer possible to start the convertible top
operating cycle.
The convertible top operating switch is located on
the vehicle's centre console.

Convertible top front latch switch F172

The convertible top front latch switch F172 is
integrated in the lock bottom part on the left-hand
side of the windscreen frame.
The engaging hook of the left lock top part actuates
the switch by means of a rocker.
The convertible top operation control unit J256
recognises from the position of the switch whether
the convertible top lock is "closed" or "open".
