13

381_014

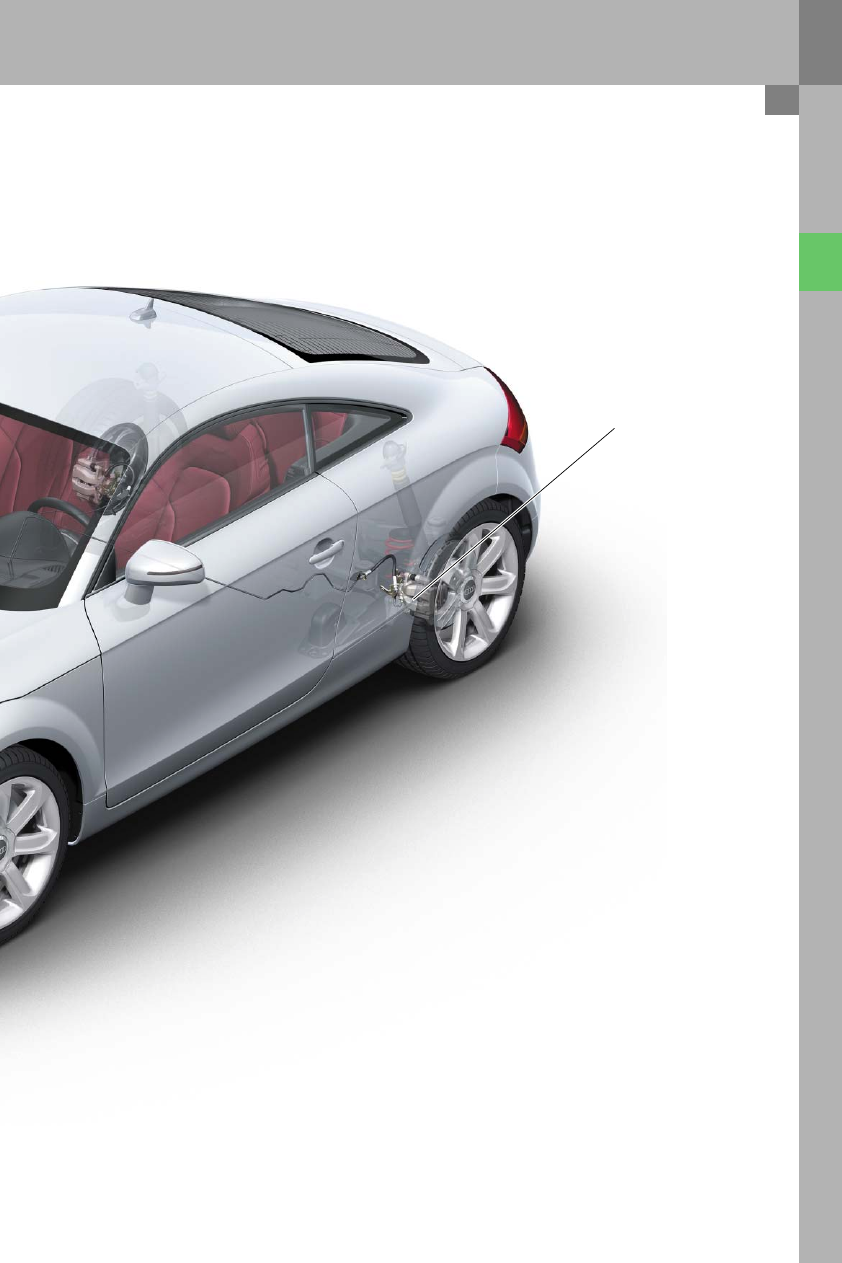

Rear axle brake caliper:
16" for all four-cylinder models
17" for all six-cylinder models

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

14

Brake system

Front axle

Engine

R4-4V 2.0l TFSI

VR6 3.2l MPI

Minimum wheel size

16"

17"

Brake type

FN3

FNR-G

Number of pistons

1

1

Piston diameter (mm)

54

57

Brake disc diameter (mm)

312

340

Engine

R4-4V 2.0l TFSI

VR6 3.2l MPI

Minimum wheel size

16"

17"

Brake type

CII 38

CII 41

Number of pistons

1

1

Piston diameter (mm)

38

41

Brake disc diameter (mm)

286

310

Rear axle

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

15

381_015

System components

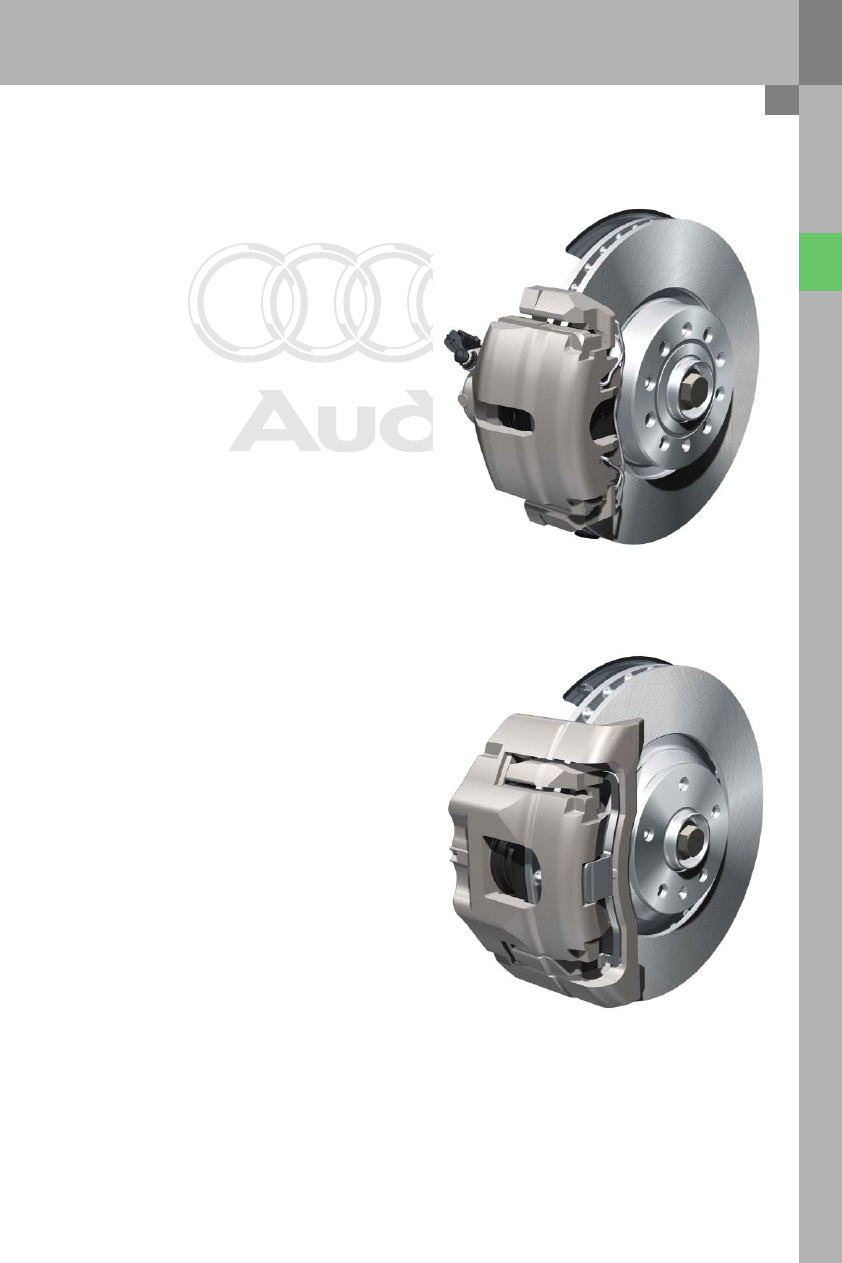

Front axle wheel brake

The brake calipers are identical in design and
principle of operation to the brake calipers on the
Audi A3. A zinc-nickel coating is now applied. Brake
calipers are optionally available in a grey finish. The
brake discs for the 16" system have been adopted
from the Audi A3. The brake discs for the 17" system
are a modified version of the discs used on the Audi
A3. This change was necessary due to the modified
rim geometry of the SST wheels.
The Audi TT has new brake hoses with modified
holders on the swivel bearing compared to the Audi
A3.The 16" and 17" splash plates have been adopted
from the Audi A3. Break pad wear is measured in a
conventional fashion on the interior lining of the left
wheel brake. The 17" system is equipped with a
vibration damper. The damper is attached to the
brake caliper by the lower fastening bolt.

381_016

16" wheel brake

17" wheel brake

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

16

Brake system

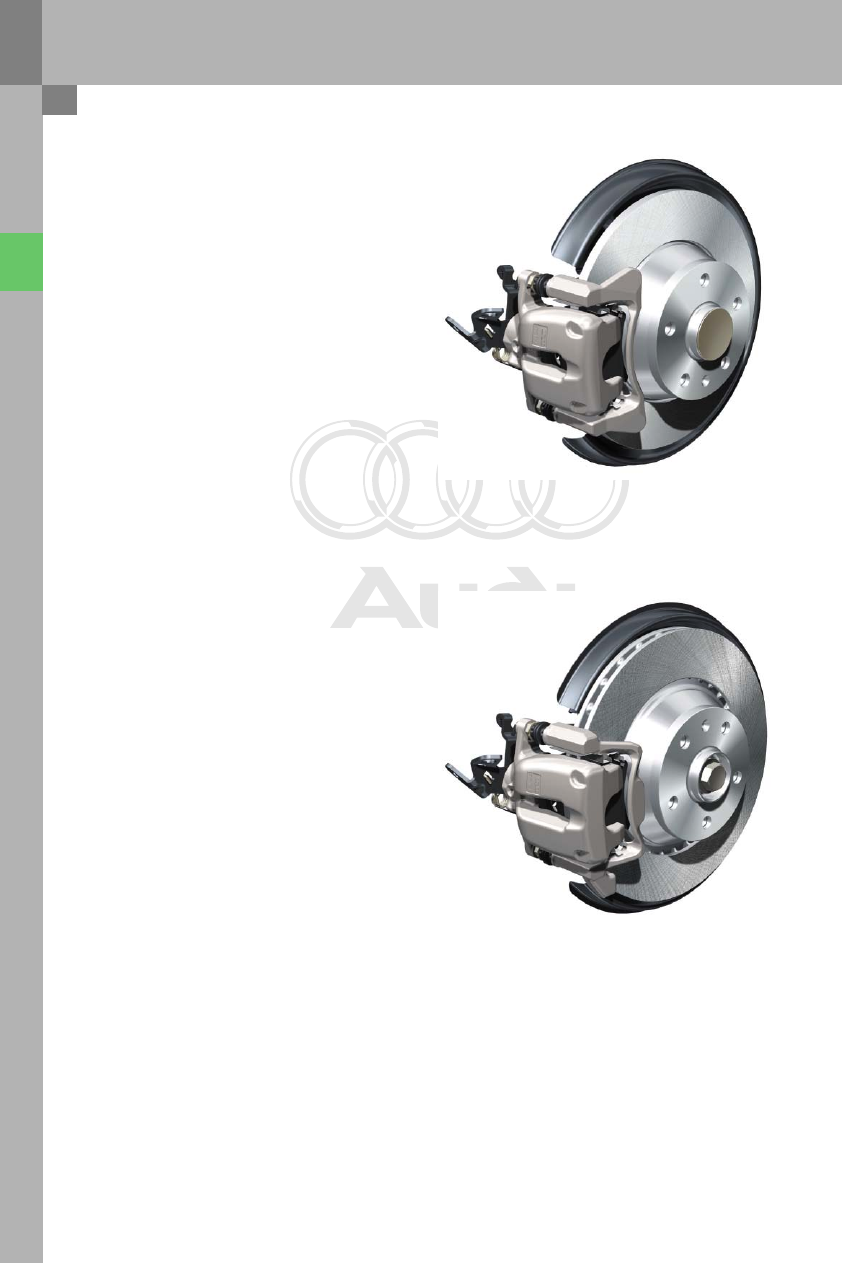

Rear axle wheel brake

The brake calipers are identical in design and princi-
ple of operation to those on the Audi A3. The brake
carriers have been modified since the Audi TT has
wider rims than the Audi A3 and, because of this,
the requisite clearance for the handbrake cable
would not have been assured had the A3 brake car-
rier been adopted unchanged.

381_017

Compared to the Audi A3, the brake calipers have
been shifted 10 mm further inwards. Two new 16"
and 17" splash plates are used. The brake hoses
have been modified. In the Audi TT the transition
point from brake hose to brake line is located on the
side member (it is located on the subframe in the
Audi A3) .

381_018

16" wheel brake

17" wheel brake
