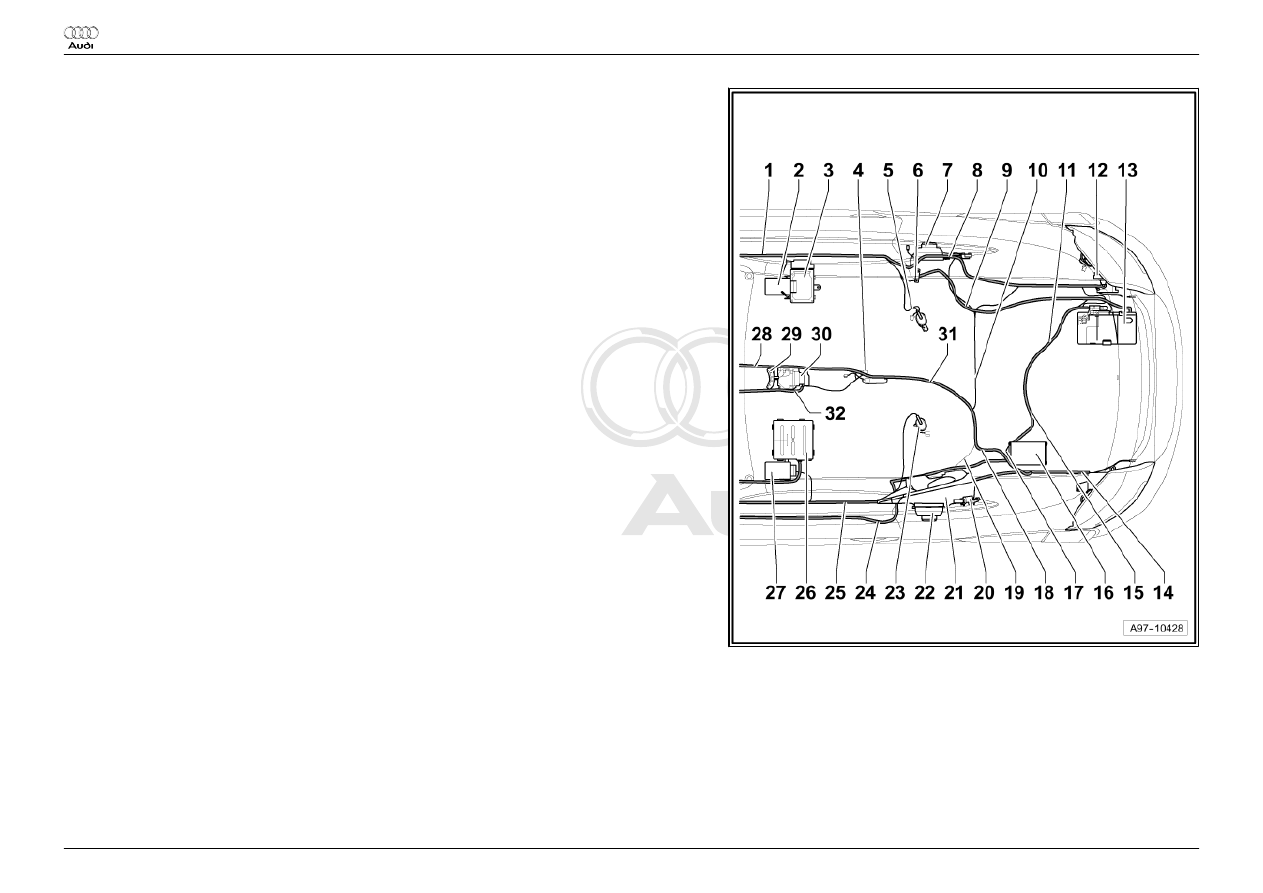

12 - Connections right tail light and right in luggage compartment control units
13 -

Battery -A- with main fuse box and battery isolation igniter -N253- in luggage compartment, rear right
14 - Wiring harness to control unit for digital sound package -J525- and left tail light
15 - Cable in luggage compartment to starter -B-
16 - Control units in insert right luggage compartment
17 - Duct starter cable under vehicle floor
18 - Wiring harness to control unit for digital sound package -J525-
19 - Wiring harness to speakers rear left
20 - Coupling station left rear lid behind side panel
21 - Middle loudspeaker -R148-

 Audi TT

Fitting Locations

No.  806 / 9

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

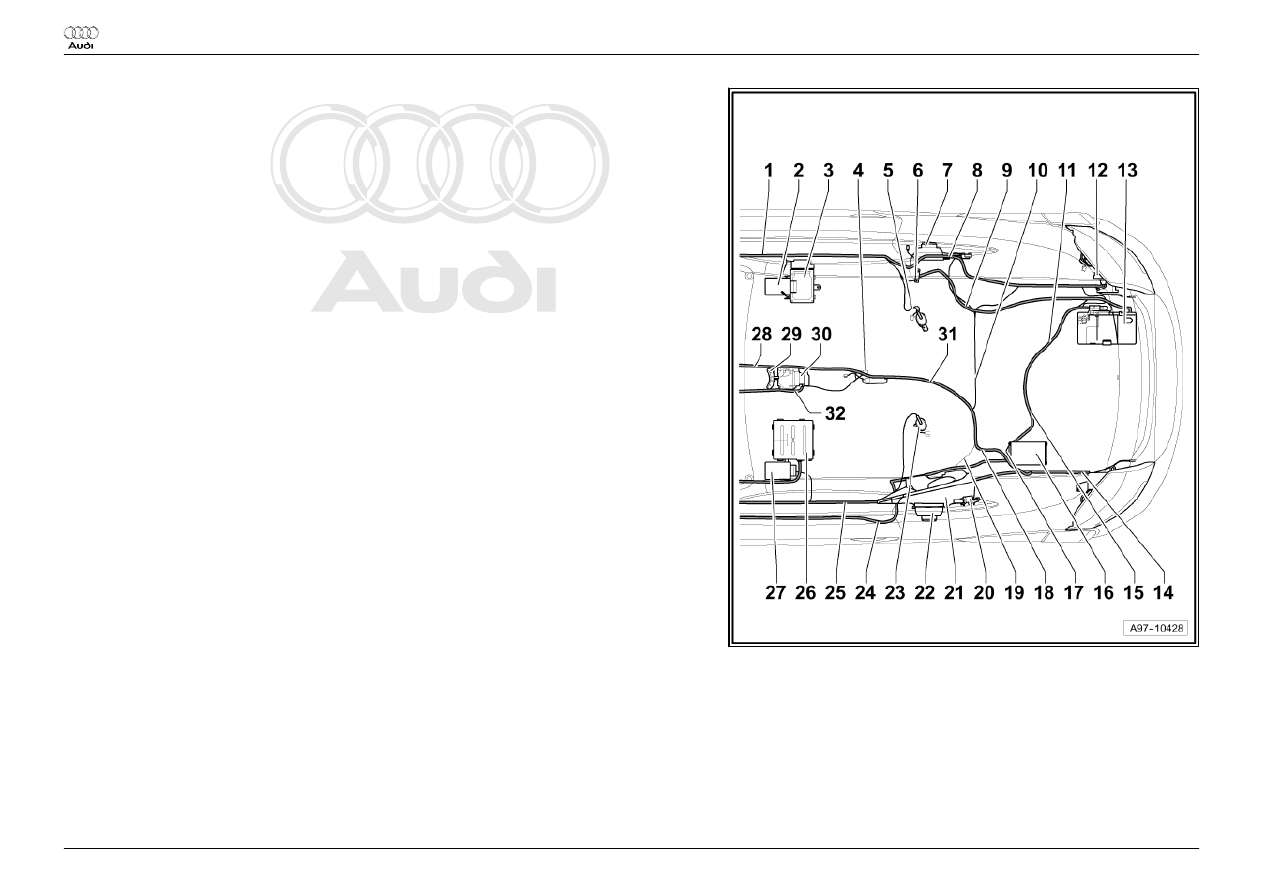

22 - Rear left mid-range and bass loudspeaker -R159-
23 - Connections left tank sender
24 - Starter cable under vehicle floor
25 - Wiring harness to A-pillar left
26 - Telephone transmitter and receiver unit -R36- under driver seat
27 - Coupling station under driver seat
28 - Wiring harness to centre console front right
29 - Row of switches centre console
30 - Airbag control unit -J234- under centre console
31 - Wiring harness from centre console to rear left under rear seat
32 - Wiring harness to centre console front left

 Audi TT

Fitting Locations

No.  806 / 10

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.5

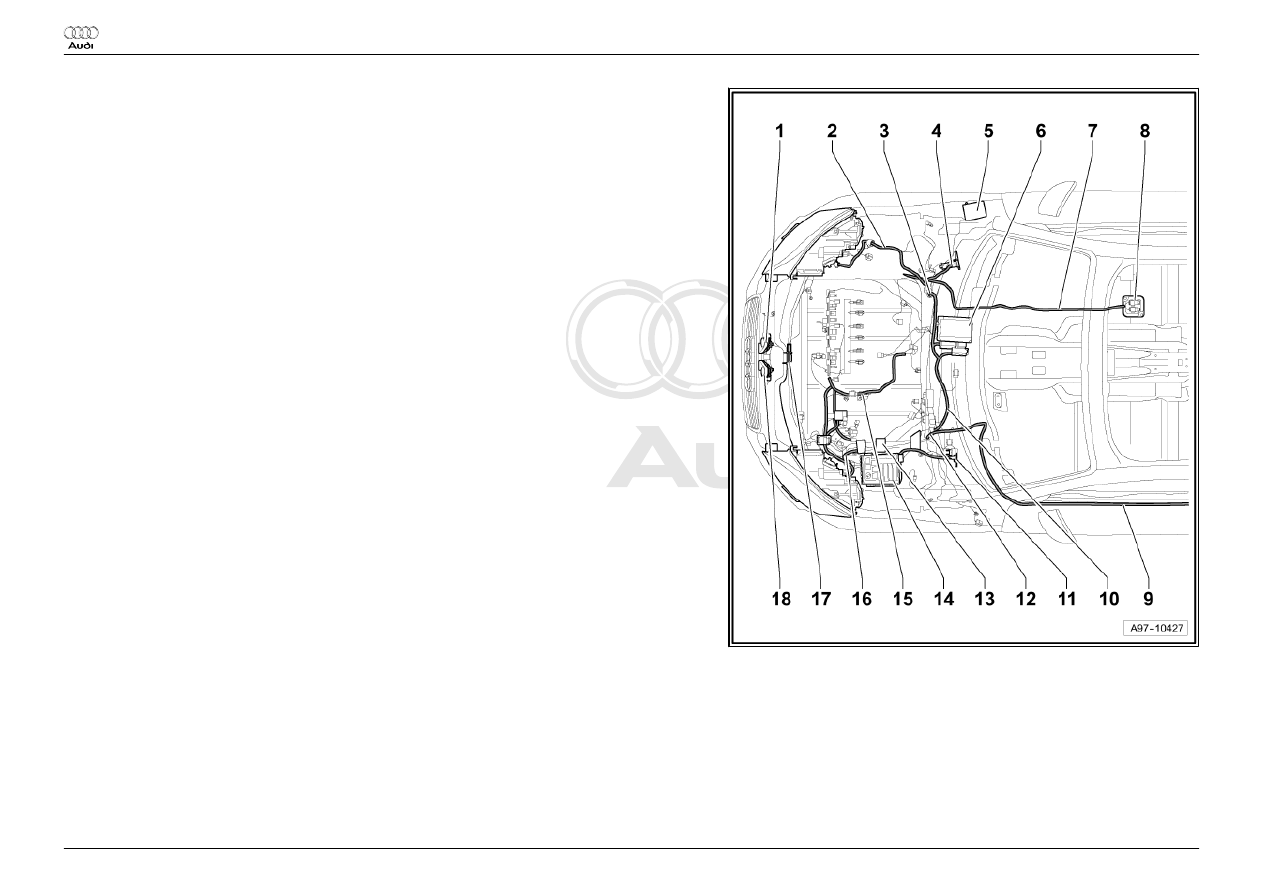

Routing wiring harness plenum chamber - engine compartment

1 - Treble tone horn -H2-
2 - Wiring harness engine compartment right to headlight
3 - Transition to plenum chamber right
4 - Duct to dash panel right
5 - Alarm horn -H12-
6 - Engine control unit -J623-
7 - Wiring harness to clutch Lambda probe
8 - Coupling Lambda probes on underbody
9 - Starter cable under vehicle floor
10 - Wiring harness in plenum chamber from engine control unit -J623-
11 - Duct to dash panel left

 Audi TT

Fitting Locations

No.  806 / 11

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

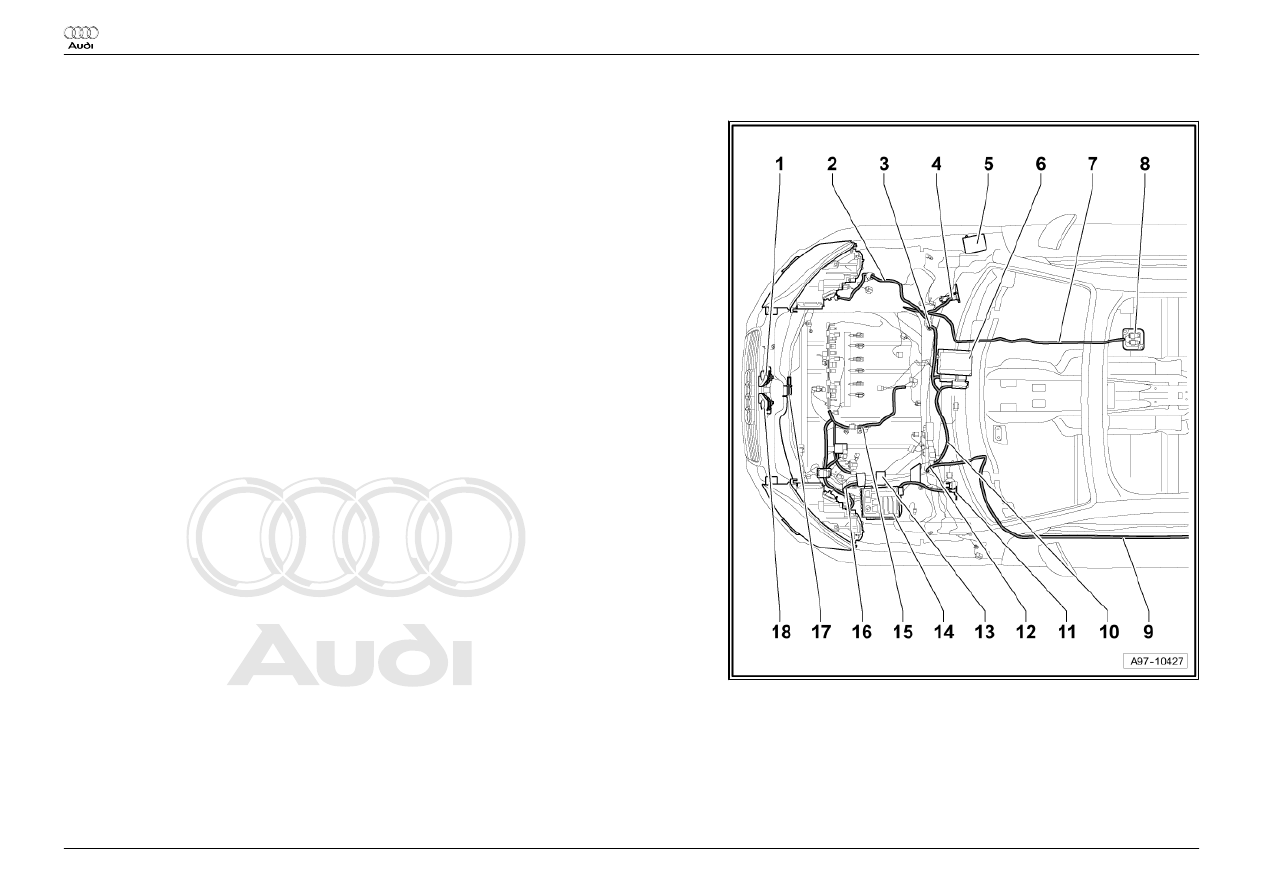

12 - Transition to dash panel left
13 - Cable channel in left engine compartment
14 - Electronics box engine compartment
15 - Engine prewiring
16 - Wiring harness engine compartment left to headlight
17 -

Crash sensor for front airbag -G190-, front airbag crash sensor for driver side -G283-, front airbag

crash sensor for front passenger side -G284- (only USA)
18 - Bass tone horn -H7-
