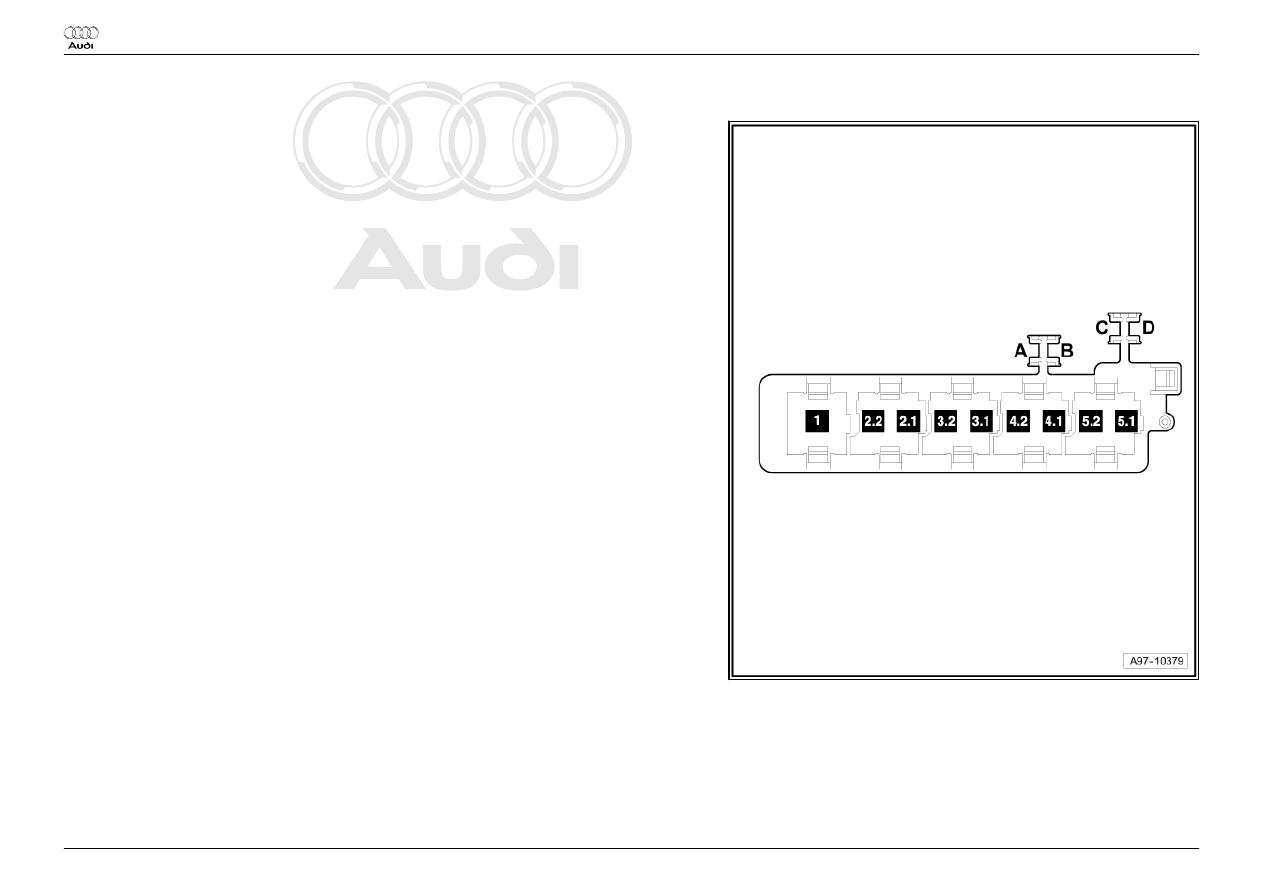

1.2

Relay positions under left dash panel

1 - Vacant
2.1 - Fuel pump relay -J17-

❑ TDI

2.1 - Control relay -J789-

❑ for engine code CEPA

2.2 - Relay for power sockets -J807-

❑ from June 2007

3 - Vacant

❑ up to August 2008

3 - High heat output relay -J360-

❑ from September 2008

4 - Terminal 50 voltage supply relay -J682-
5 - Cabrio windbreak control unit -J531- , windbreak relay

 Audi TT

Fitting Locations

No.  805 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

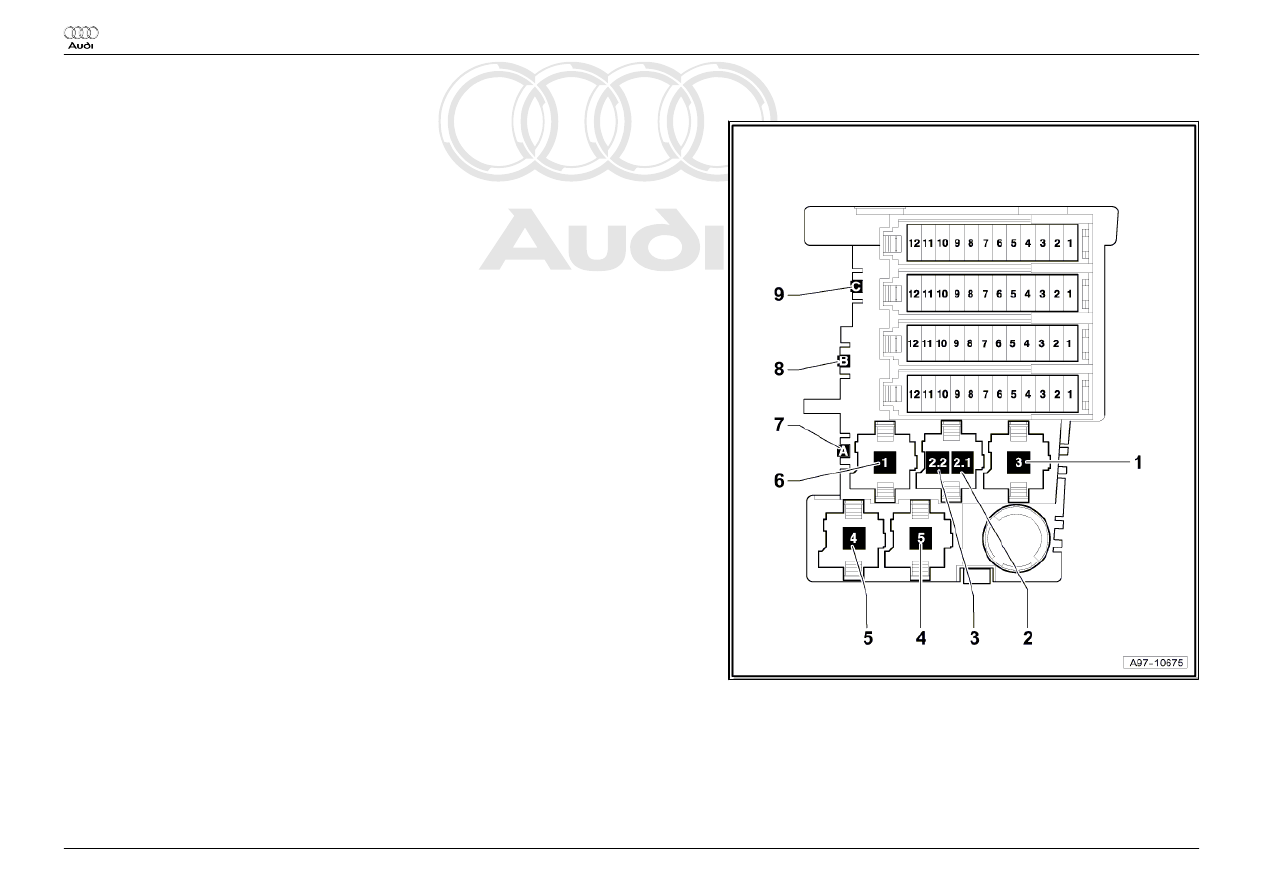

1.3

Relay locations on electronics box, engine compartment

1 - Secondary air pump relay -J299-
1 - Low heat output relay -J359-

❑ PDC heater (TDI)
❑ Plug position 3

2 - Fuel pump relay -J17-
2 - Relay for supplementary fuel pump -J832-

❑ TDI
❑ Plug position 2.1

3 - Continued coolant circulation relay -J151-
3 - Additional coolant pump relay -J496-

❑ for engine code CEPA
❑ Plug position 2.2

4 - Electric fuel pump 2 relay -J49-

❑ for engine code BUB

4 - Engine component current supply relay -J757-

❑ for engine codes BWA, CDMA, CDAA, CCZA, CCTA, CEPA

4 - Automatic glow period control unit -J179-

❑ TDI
❑ Plug position 5

5 - Motronic current supply relay -J271-
5 - Terminal 30 voltage supply relay -J317-

❑ TDI
❑ Plug position 4

6 - Headlight washer system relay -J39-

❑ Plug position 1, up to May 2009

7 - Glow plug fuse -S125- , 50 A

❑ Plug position A

8 - Vacant
9 - Vacant

 Audi TT

Fitting Locations

No.  805 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

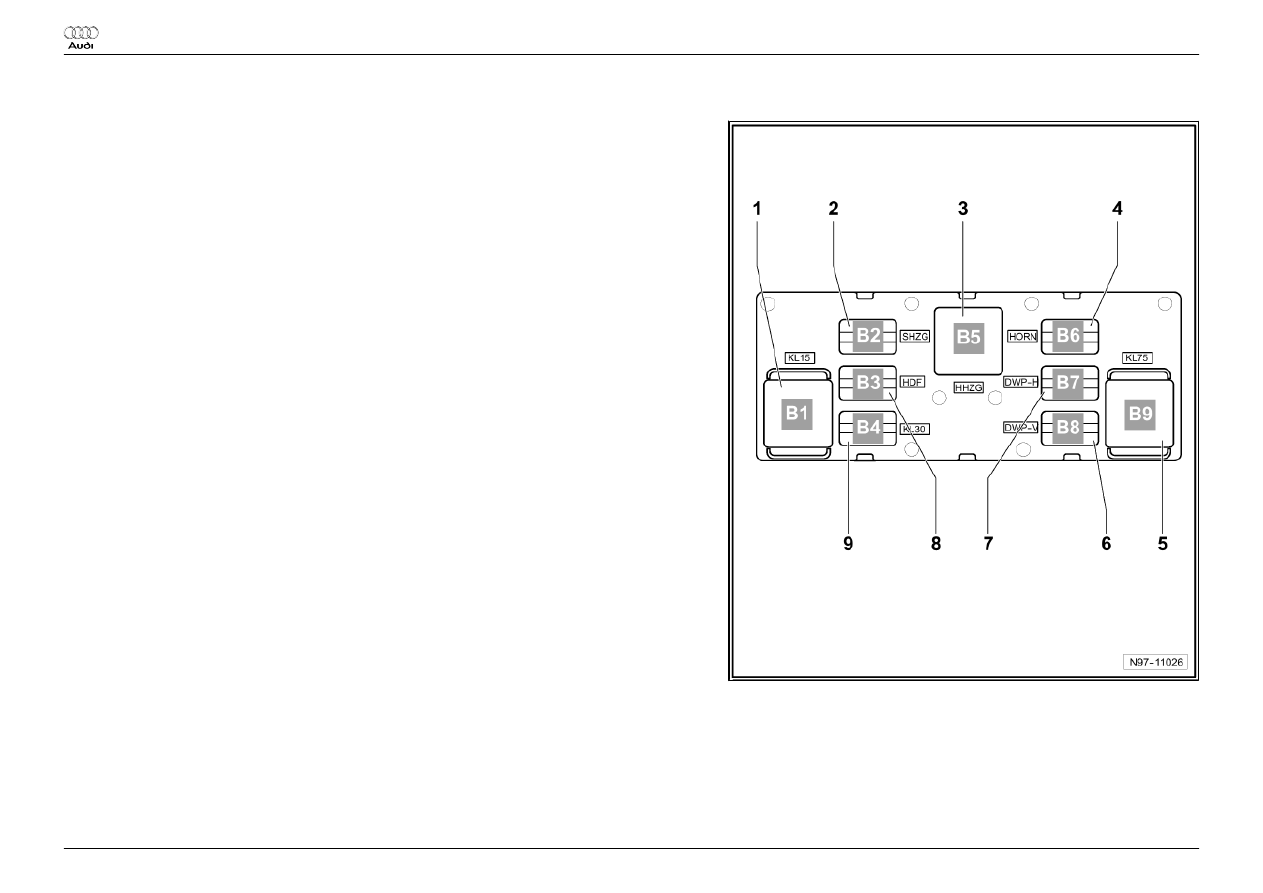

1.4

Relay positions on onboard supply control unit, under left dash panel, up to May 2009

1 - Terminal 15 voltage supply relay 2 -J681-

❑ Plug position B1

2 - Vacant

❑ Plug position B2

3 - Heated rear window relay -J9-

❑ Plug position B5

4 - Horn relay -J413-

❑ Plug position B6

5 - Vacant

❑ Plug position B9

6 - Washer pump relay -J576-

❑ Plug position B8

7 - Vacant

❑ Plug position B7

8 - Vacant

❑ Plug position B3

9 - Terminal 30 voltage supply relay 2 -J689-

❑ Plug position B4

 Audi TT

Fitting Locations

No.  805 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

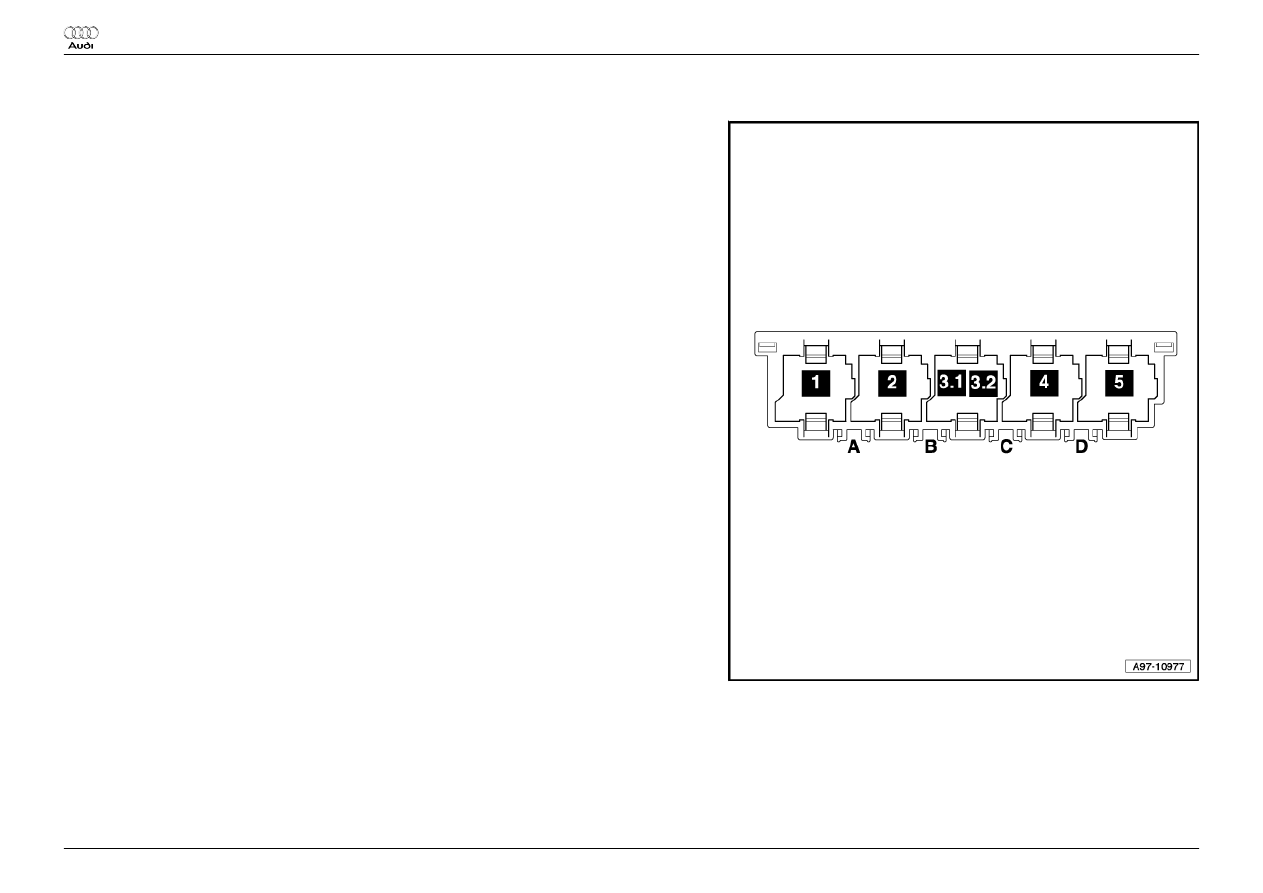

1.5

Relay positions on onboard supply control unit, under left dash panel, from June 2009

1 - Terminal 15 voltage supply relay 2 -J681-
2 - Heated rear window relay -J9-
3.1 - Horn relay -J413-
3.2 - Headlight washer system relay -J39-
4 - Vacant
5 - Vacant
