1.2

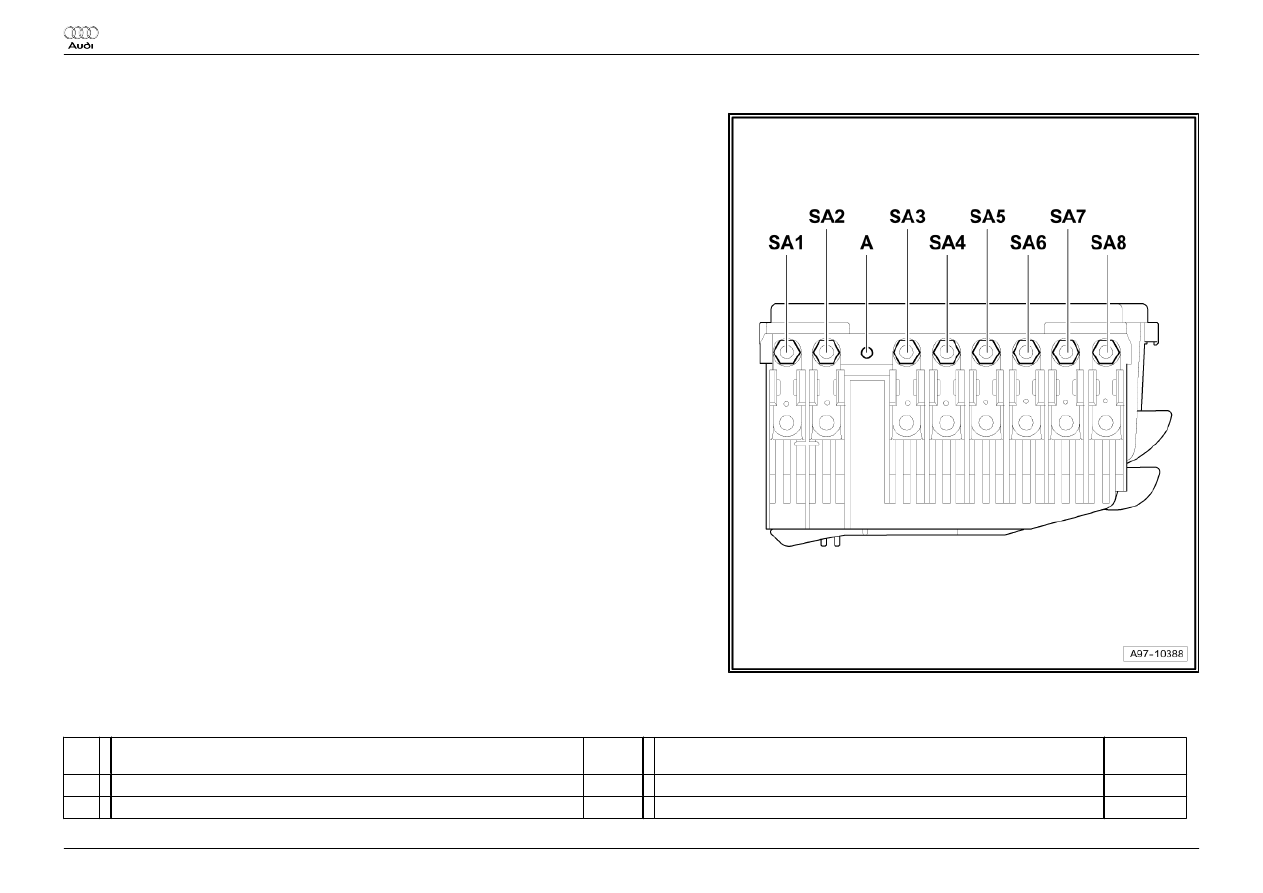

Location of fuses (SA) on fuse holder A

Torque settings
⇒ Electrical system, Repair Group 97, removing and installing fuse holders

Fuse colours
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

5 A - beige

A - Screw connection terminal 30 (C)

1.2.1

Fuse locations on main fuse holder, in front left engine compartment

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Fuse 1 on fuse holder A -SA1-

175 A - Alternator -C-

30

2 - Fuse 2 on fuse holder A -SA2-

80 A - Power steering control unit -J500-

30

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

3 - Fuse 3 on fuse holder A -SA3-

60 A - Radiator fan control unit -J293-

Radiator fan -V7-

30

4 - Fuse 4 on fuse holder A -SA4-

110 A - Supply for fuse carrier in electronics box engine compartment

30

5 - Fuse 5 on fuse holder A -SA5-

40 A - Secondary air pump motor -V101-

Auxiliary heater element -Z35/1-

1)

30

6 - Fuse 6 on fuse holder A -SA6-

80 A - Auxiliary heater element -Z35/2-

1)

Auxiliary heater element -Z35/3-

1)

30

7 - Vacant







8 - Vacant







Note

1)

 engine code CBBB, CFGB only

1.3

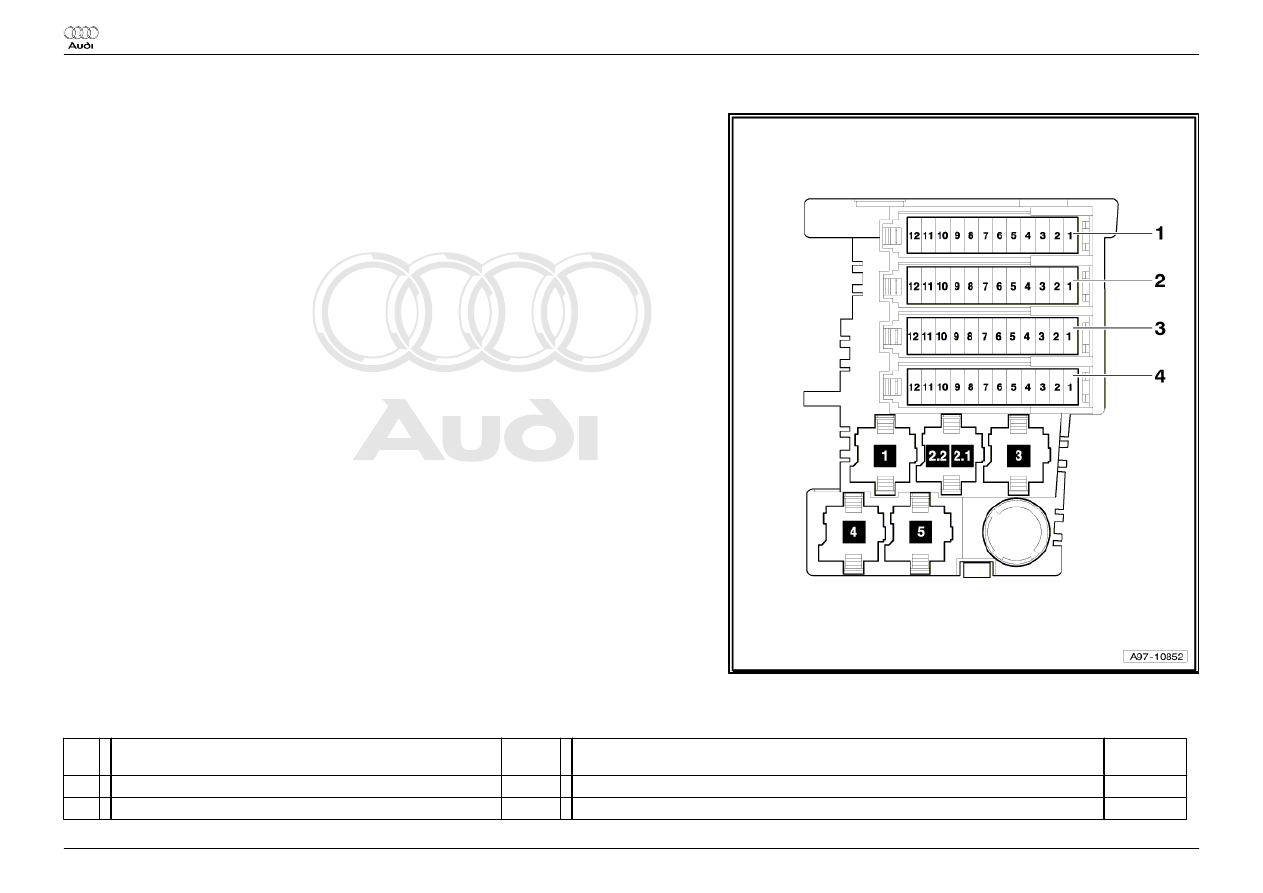

Location of fuses (SB) on fuse holder B

Torque settings
⇒ Electrical system, Repair Group 97, removing and installing fuse holders

Fuse colours
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

5 A - beige

1 - ST1 - Fuse carrier, black
2 - ST2 - Fuse carrier, brown
3 - Vacant
4 - Vacant

1.3.1

Position of fuses of fuse carrier 1 (black), fuse holder B in electronics box, engine compartment

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Vacant







2 - Vacant
