Audi TT (2007 year). Manual - part 93

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

8J0-011050409

43

44

45

46

47

48

49

50

51

52

53

54

55

56

J

250

T16b/1

E

461

T47a/21

sw/li

0,35

T47a/9

br/bl

0,35

T16b/14

T16b/4

43

B340

B341

gr/bl

0,35

gr/bl

0,5

T16b/2

31

br

0,35

gr/bl

0,35

43

E

387

L

156

gr/bl

0,5

J

519

58s

K

189

br

1,0

394

384

br

1,5

44

T47a/22

or/br

0,35

or/br

0,35

or/br

0,35

T20d/6

J

533

•

•

•

B391

B390

T47a/23

or/sw

0,35

or/sw

0,35

or/sw

0,35

T20d/16

J

533

•

•

•

B384

B383

✱

43

43

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

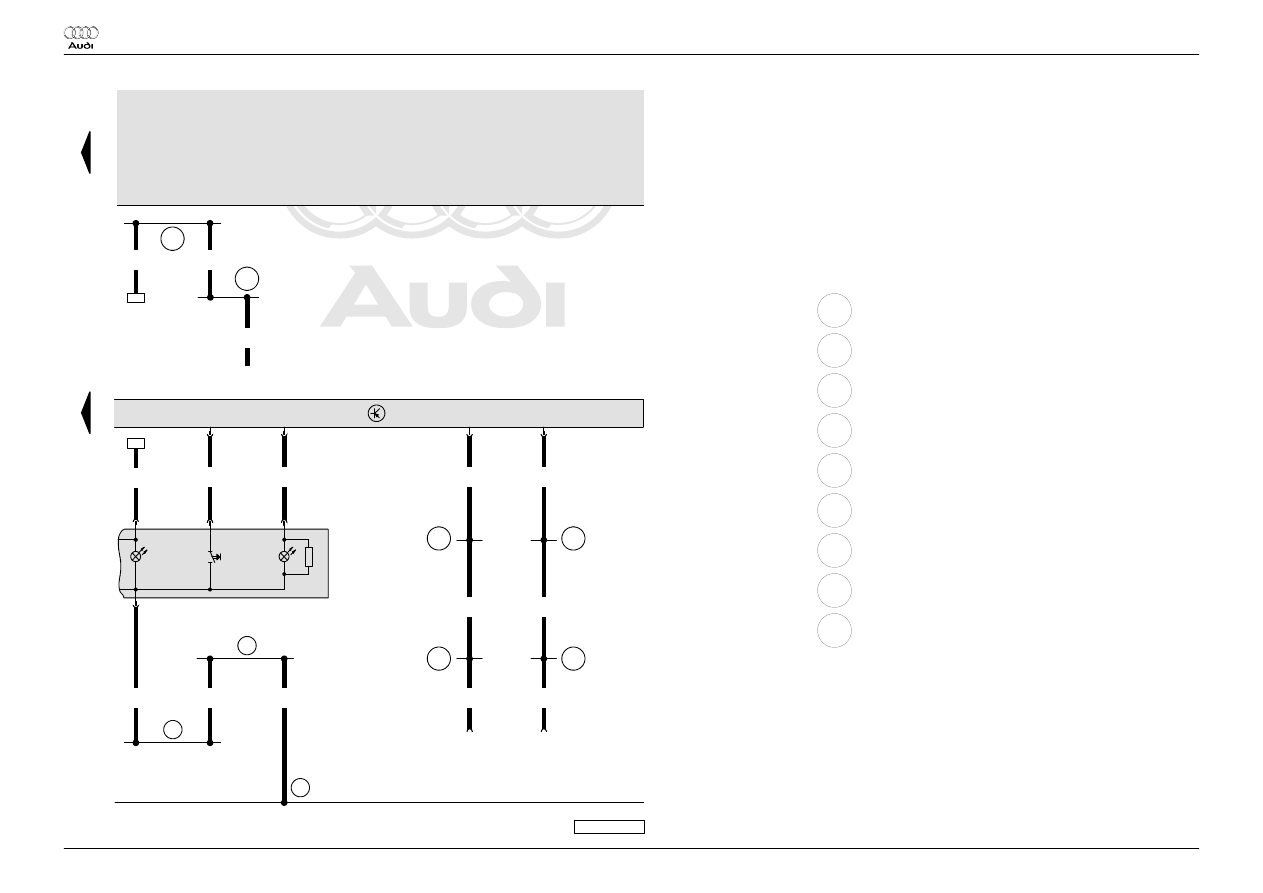

Electronically controlled damping control unit, shock

absorber damping adjustment button, shock absorber

damping adjustment warning lamp

E387 Shock absorber damping adjustment button

E461 Operating unit in front of centre console

J250 Electronically controlled damping control unit

J519 Onboard supply control unit

J533 Data bus diagnostic interface

K189 Shock absorber damping adjustment warning lamp

L156 Switch illumination bulb

T16b 16-pin connector, brown, on switch module centre console

T20d 20-pin connector, black, on data bus diagnostic interface

T47a 47-pin connector, on electronically controlled damping control

unit

44

Earth point, lower part of left A-pillar

384 Earth connection 19, in main wiring harness

394 Earth connection 29, in main wiring harness

B340 Connection 1 (58s), in main wiring harness

B341 Connection 2 (58s), in main wiring harness

B383 Connection 1 (drive train CAN bus, high), in main wiring harness

B384 Connection 2 (drive train CAN bus, high), in main wiring harness

B390 Connection 1 (drive train CAN bus, low), in main wiring harness

B391 Connection 2 (drive train CAN bus, low), in main wiring harness

•

CAN bus (data wire)

*

⇒ basic equipment Current Flow Diagram

 Audi TT

Current Flow Diagram

No.  11 / 5

Edition 09.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

Garage door opener

from model year 2007
Notes:

For information concerning

♦ Position of relays and fuses
♦ Multi-pin connections
♦ Control units and relays
♦ Earth connections
⇒  List of Fitting Locations!

For information concerning

♦ Fault Finding Programs
⇒  guided fault finding

 Audi TT

Current Flow Diagram

No.  12 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

8J0-012020409

1

2

3

4

5

6

7

8

9

10

11

12

13

14

E

284

B163

sw

4,0

sw

4,0

br

1,0

44

T6r/5

sw/ge

0,35

J

519

J

530

gn/ws

0,35

2

T6r/2

br

0,35

372

br

6,0

672

T6r/4

31

T2t/2

SC

7

5A

7

370

br

0,5

3/31

sw/ge

0,5

7a

B281

br

2,5

366

sw/ge

0,35

4

sw

4,0

J

681

8/87

✱

#

✱✱

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

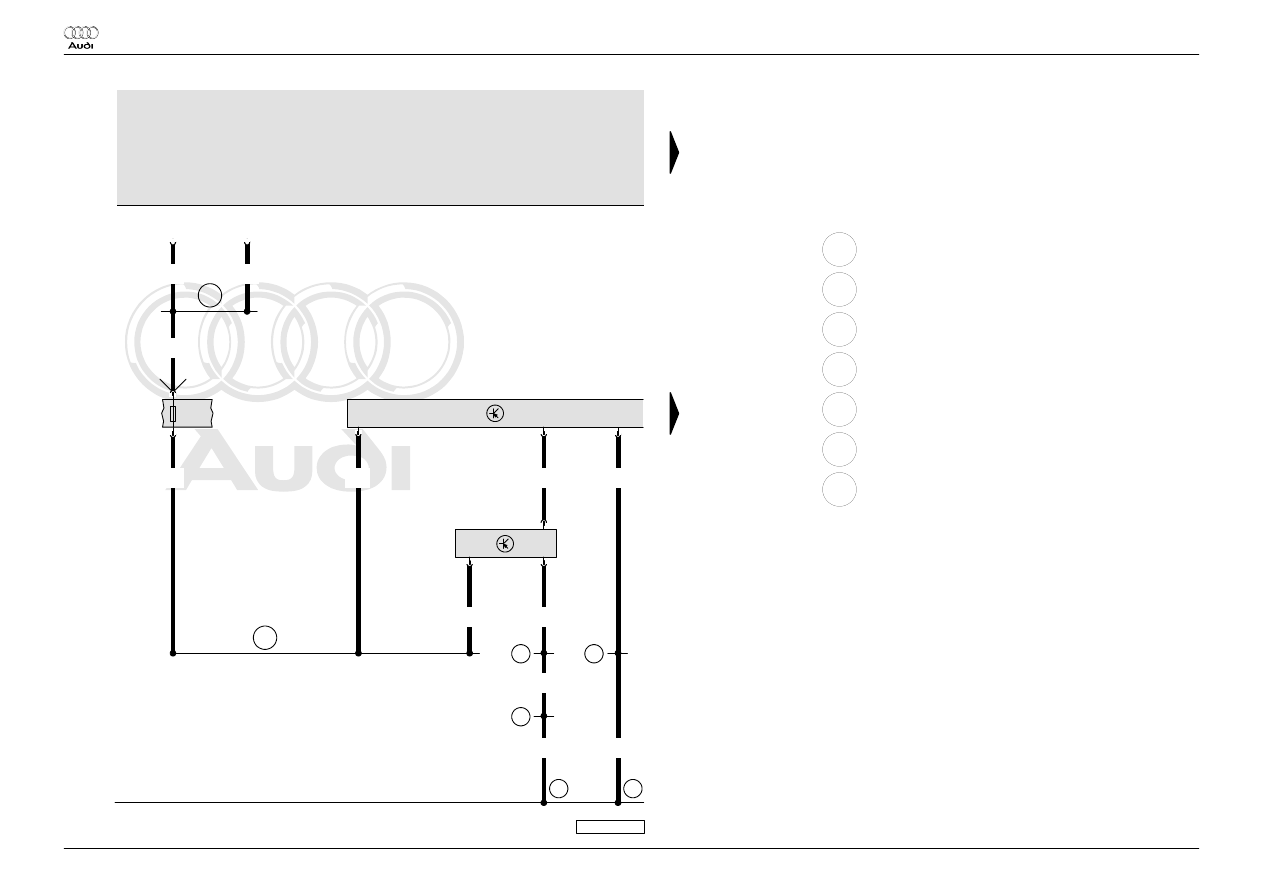

Garage door operation control unit, garage door operating

unit

E284 Garage door operating unit

J519 Onboard supply control unit

J530 Garage door operation control unit

J681 Terminal 15 voltage supply relay 2

SC7 Fuse 7 on fuse holder C

T2t

2-pin connector, black connector L, on onboard supply control

unit

T6r

6-pin connector, black, on garage door operating unit

44

Earth point, lower part of left A-pillar

366 Earth connection 1, in main wiring harness

370 Earth connection 5, in main wiring harness

372 Earth connection 7, in main wiring harness

672 Earth point 2, on front of left longitudinal member

B163 Positive connection 1 (15), in interior wiring harness

B281 Positive connection 5 (15a), in main wiring harness

*

up to May 2009

**

from June 2009

#

Relay carrier on onboard power supply control unit

 Audi TT

Current Flow Diagram

No.  12 / 2

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

8J0-012030409

15

16

17

18

19

20

21

22

23

24

25

26

27

28

E

284

E

392

E

393

E

394

T6r/3

T16a/5

gn/ge

0,35

J

519

T6r/1

58s

T12c/12

gr/bl

0,35

J

519

B340

T52b/51

gr/bl

0,5

58s

✱

✱ ✱

T52c/22

✱

✱ ✱

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

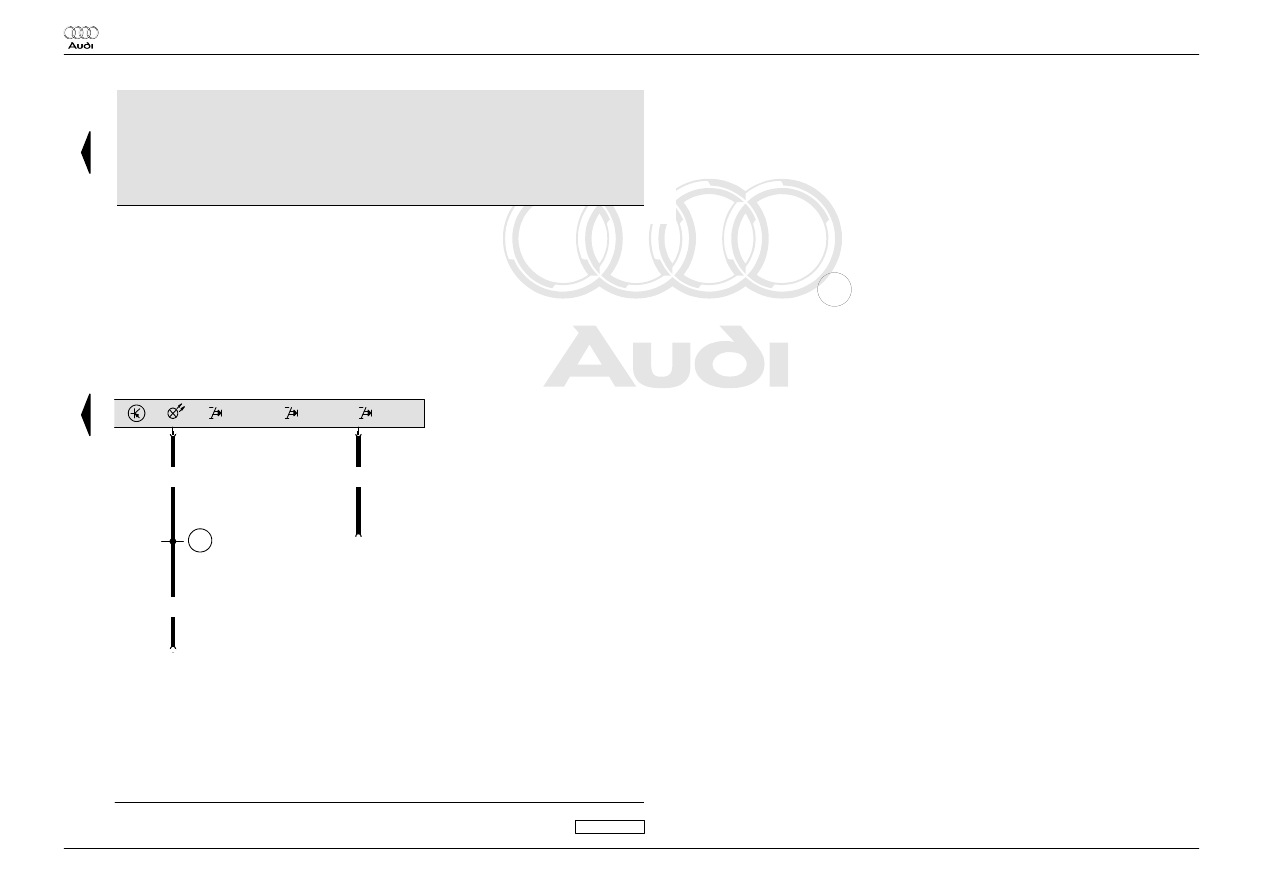

Garage door operating unit, garage door opener button

E284 Garage door operating unit

E392 Garage door opener button 1

E393 Garage door opener button 2

E394 Garage door opener button 3

J519 Onboard supply control unit

T6r

6-pin connector, black, on garage door operating unit

T12c 12-pin connector, black, connector B, on onboard power supply

control unit

T16a 16-pin connector, black, connector E, on onboard power supply

control unit

T52b 52-pin connector, yellow, on onboard supply control unit

T52c 52-pin connector, brown, on onboard supply control unit

B340 Connection 1 (58s), in main wiring harness

*

up to May 2009

**

from June 2009

 Audi TT

Current Flow Diagram

No.  12 / 3

Edition  04.2009
