Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks, become noisy, and
the hard surfaces of the blade may scratch the window glass.

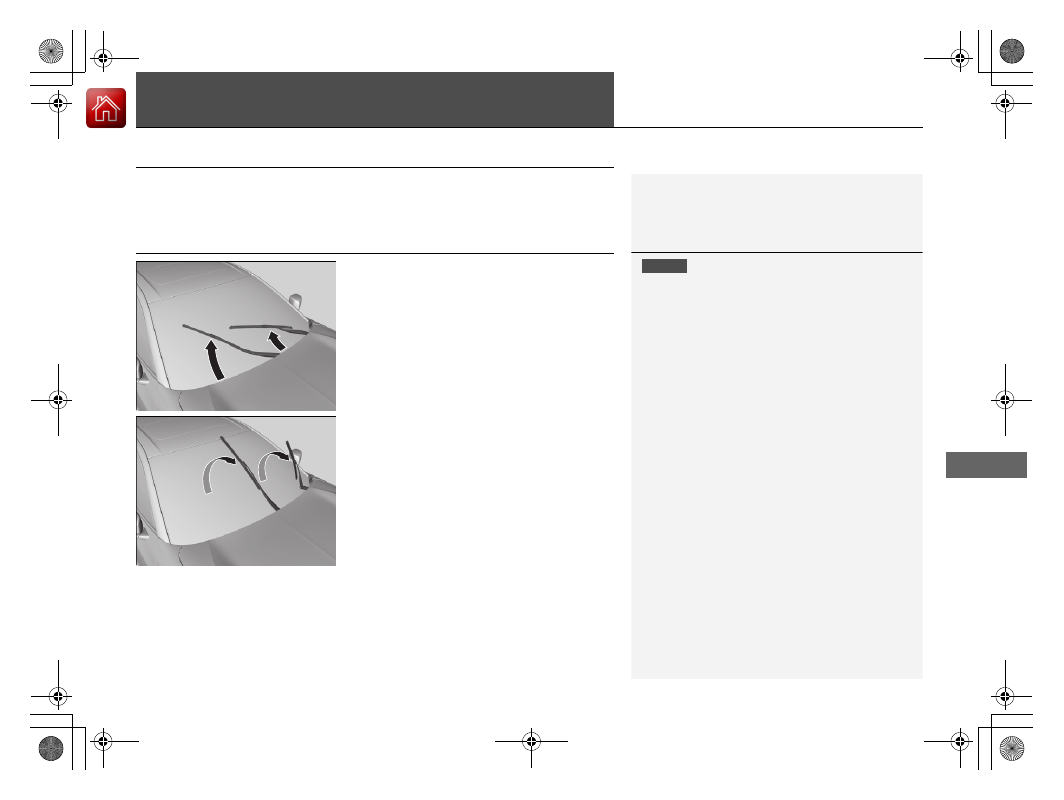

Changing the Wiper Blade Rubber

1.

Set the power mode to VEHICLE OFF.

2.

While holding the wiper switch in the

MIST

 position, set the power mode to ON,

then to VEHICLE OFF.

u

Both wiper arms are set to the
maintenance position as shown in the
image.

3.

Lift both wiper arms.

1

Changing the Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.

542

uu

Checking and Maintaining Wiper Blades

u

Changing the Wiper Blade Rubber

Main

tenan

ce

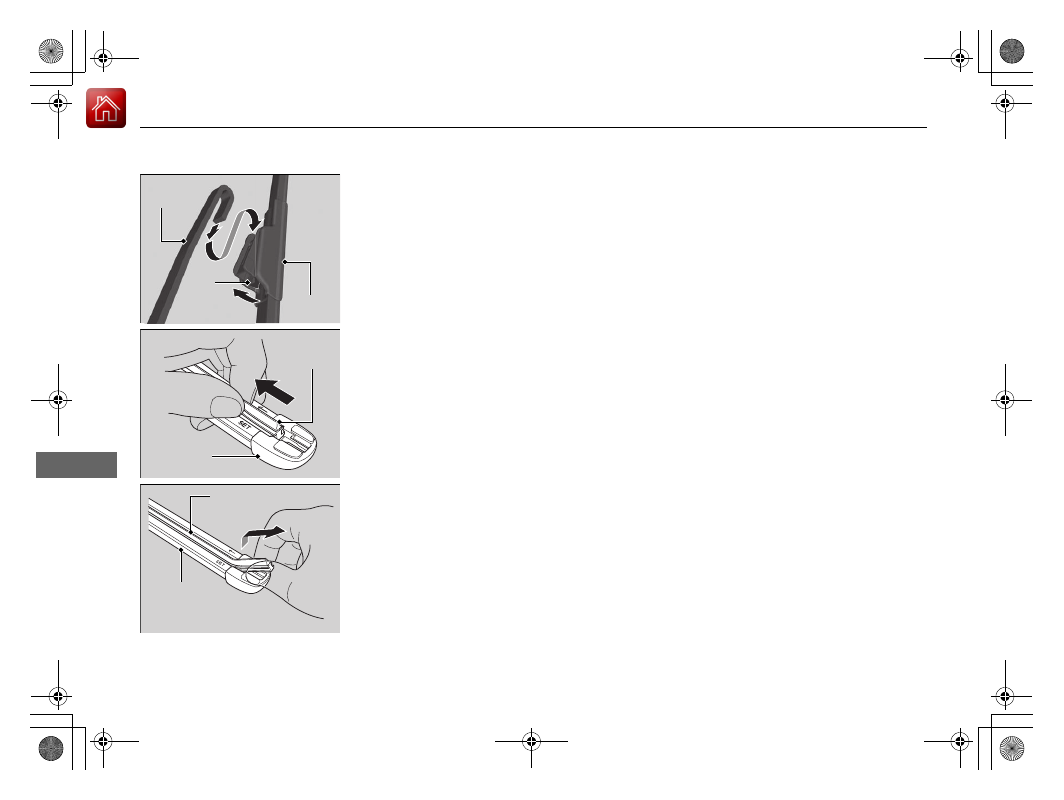

4.

Press up on and hold the tab, then slide
the holder off the wiper arm.

5.

Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.

6.

Pull the wiper blade in the opposite
direction to slide it out of the holder.

Tab

Wiper

Arm

Holder

Wiper

Blade

End cap at

the bottom

Holder

Wiper Blade

543

uu

Checking and Maintaining Wiper Blades

u

Changing the Wiper Blade Rubber

Main

tenan

ce

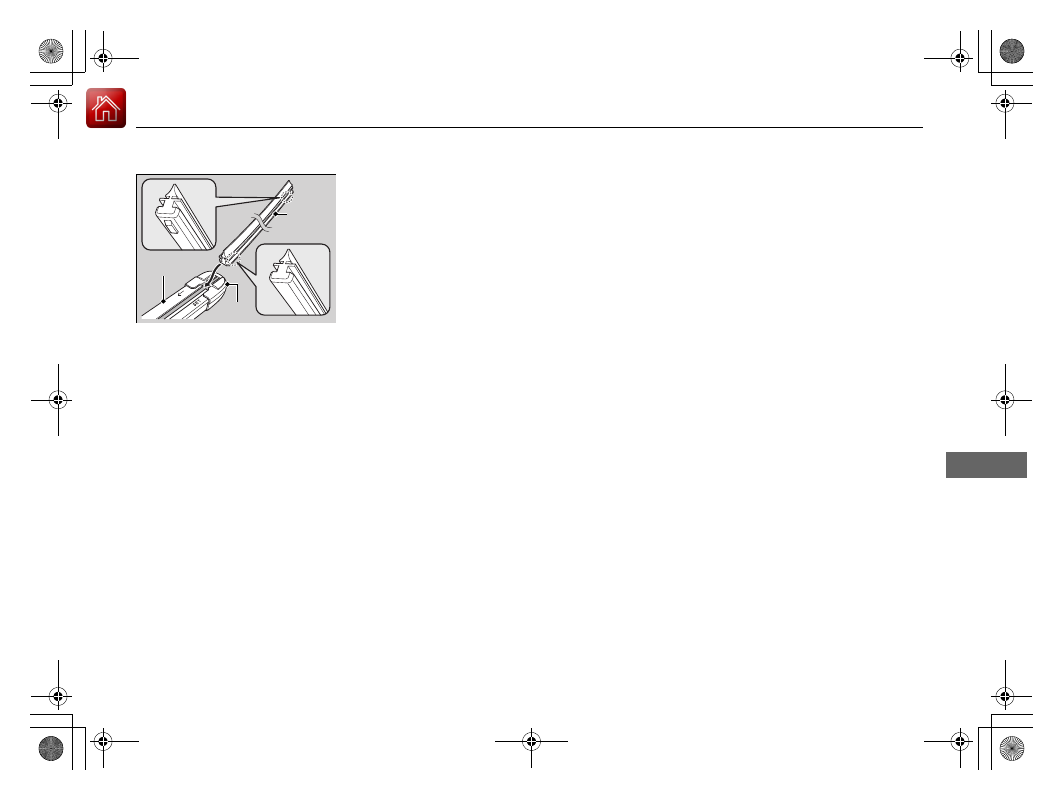

7.

Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.

8.

Install the end of the wiper blade into the
cap.

9.

Slide the holder onto the wiper arm until it
locks.

10.

Lower both wiper arms.

11.

Set the power mode to ON and hold the
wiper switch in the

MIST

 position until

both wiper arms return to the standard
position.

Cap

Wiper

Blade

Holder

544

Main

tenan

ce

Checking and Maintaining Tires

Checking Tires

To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.

■

Inflation guidelines

Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specifications page for the specified pressure.

Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.

Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.

Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.

At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare

*

. Even tires in good condition can lose 1–2 psi (10–20

kPa, 0.1–0.2 kgf/cm

2

) per month.

■

Inspection guidelines

Every time you check inflation, also examine the tires and valve stems.
Look for:

•

Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.

•

Remove any foreign objects and inspect for air leaks.

•

Uneven tread wear. Have a dealer check the wheel alignment.

•

Excessive tread wear.

2

Wear Indicators

 P. 549

•

Cracks or other damage around valve stem.

1

Checking Tires

Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.

If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm

2

) higher than if

checked when cold.

2

Tire Fill Assist

 P. 406

Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.

3

WARNING

Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

* Not available on all models

545

uu

Checking and Maintaining Tires

u

Tire and Loading Information Label

Continued

Main

tenan

ce

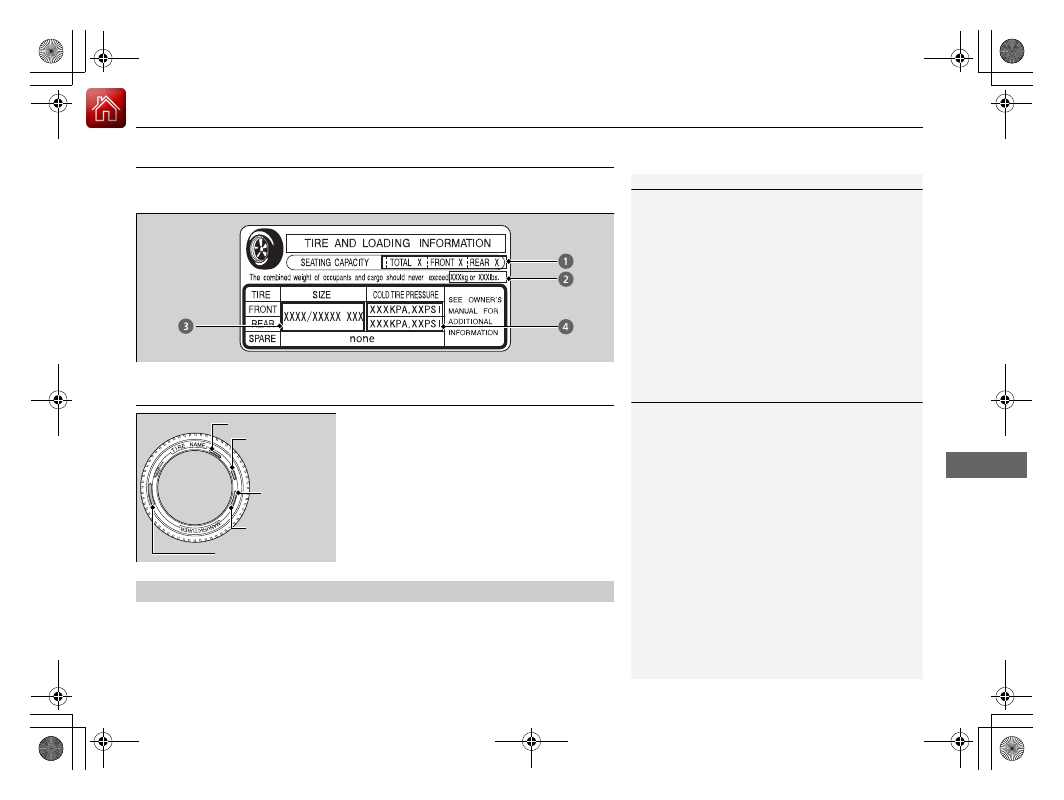

Tire and Loading Information Label

The label attached to the driver’s doorjamb provides necessary tire and loading
information.

Tire Labeling

The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described as shown.

Whenever tires are replaced, they should be replaced with tires of the same size.

1

Tire and Loading Information Label

The tire and loading information label attached to the
driver’s doorjamb contains:

a

The number of people your vehicle can carry.

b

The total weight your vehicle can carry. Do not
exceed this weight.

c

The original tire sizes for front, rear, and spare.

d

The proper cold tire pressure for front, rear, and
spare.

Label
Example

Example

Tire Size

Tire
Identification
Number (TIN)

Maximum
Tire Load

Maximum
Tire Pressure

Tire Size

■

Tire Sizes

1

Tire Sizes

Following is an example of tire size with an
explanation of what each component means.

P235/60 R18 102T

P: Vehicle type (P indicates passenger vehicle).
235: Tire width in millimeters.
60: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
18: Rim diameter in inches.
102: Load index (a numerical code associated with
the maximum load the tire can carry).
T: Speed symbol (an alphabetical code indicating the
maximum speed rating).

uu

Checking and Maintaining Tires

u

Tire Labeling

546

Main

tenan

ce

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.

Cold Tire Pressure

 – The tire air pressure when the vehicle has been parked for at

least three hours or driven less than 1 mile (1.6 km).

Load Rating

 – Means the maximum load that a tire is rated to carry for a given

inflation pressure.

Maximum Inflation Pressure

 – The maximum tire air pressure that the tire can

hold.

Maximum Load Rating

 – Means the load rating for a tire at the maximum

permissible inflation pressure for that tire.

Recommended Inflation Pressure

 – The cold tire inflation pressure recommended

by the manufacturer.

Treadwear Indicators (TWI)

 – Means the projections within the principal grooves

designed to give a visual indication of the degrees of wear of the tread.

■

Tire Identification Number (TIN)

■

Glossary of Tire Terminology

1

Tire Identification Number (TIN)

DOT B97R FW6X 2209

DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer’s identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.

Year
Week

547

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

Continued

Main

tenan

ce

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.

Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.

■

Uniform Tire Quality Grading

■

Treadwear

1

Uniform Tire Quality Grading

For example:

Treadwear 200
Traction AA
Temperature A

All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

548

Main

tenan

ce

The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire’s ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.

The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.

■

Traction

■

Temperature

1

Traction

Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.

1

Temperature

Warning: The temperature grade for
this tire is established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

549

uu

Checking and Maintaining Tires

u

Wear Indicators

Main

tenan

ce

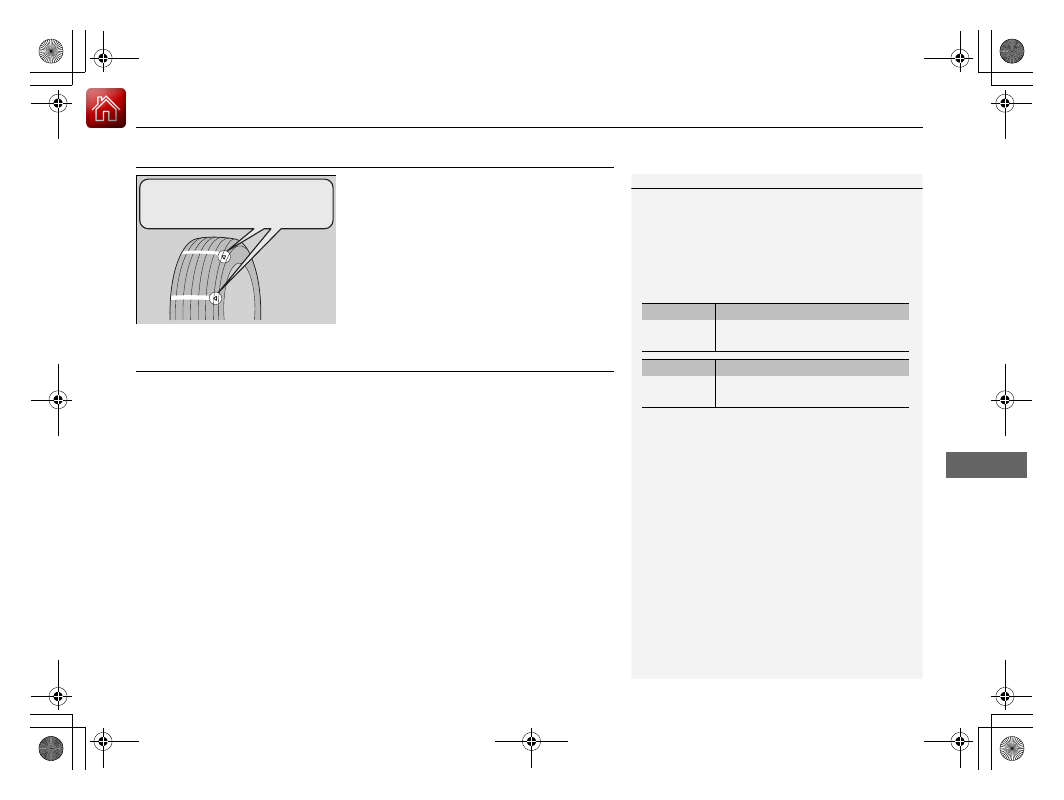

Wear Indicators

The groove where the wear indicator is
located is about 1/16 inch (about 1.6 mm)
shallower than elsewhere on the tire. If the
tread has worn so that the indicator is
exposed, replace the tire.

Worn out tires

have poor traction on wet roads.

Tire Service Life

The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).

In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare

*

, should be removed from service after 10

years from the date of manufacture, regardless of their condition or state of wear.

1

Checking Tires

High speed driving

We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 132 mph or 213
km/h)

*1

/(over 133 mph or 214 km/h)

*2

, adjust the

cold tire pressures as shown below to avoid excessive
heat build up and sudden tire failure.

*1: Models with 235/50R18 97V
*2: Models with 255/40R19 96W

Tire Size

235/50R18 97V

Pressure

Front: 36 psi (250 kPa, 2.5 kgf/cm

2

)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

2

)

Tire Size

255/40R19 96W

Pressure

Front: 38 psi (260 kPa, 2.6 kgf/cm

2

)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

2

)

Example of a Wear
Indicator mark

* Not available on all models

550

uu

Checking and Maintaining Tires

u

Tire and Wheel Replacement

Main

tenan

ce

Tire and Wheel Replacement

Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause certain vehicle systems such as the ABS and
Vehicle Stability Assist

TM

 (VSA

®

) system to work incorrectly.

It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.

Whenever you have a tire replaced or reset, make sure that the rubber valve stem is
replaced and that the TPMS sensor is transferred from the old valve stem to the new
one.

If you replace a wheel, make sure that the wheel’s specifications match those of the
original wheels.

1

Tire and Wheel Replacement

3

WARNING

Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.

Always use the size and type of tires
recommended in this owner’s manual.

551

uu

Checking and Maintaining Tires

u

Tire Rotation

Main

tenan

ce

Tire Rotation

Rotating tires according to the maintenance messages on the multi-information
display helps to distribute wear more evenly and increase tire life.

■

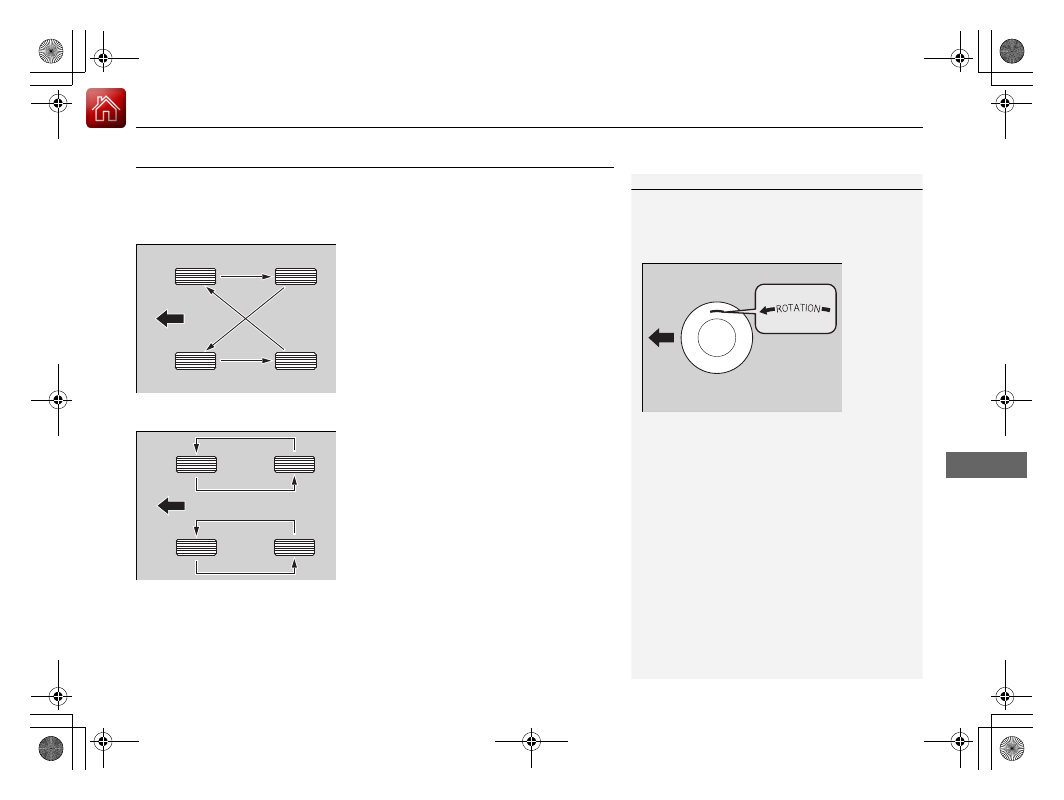

Tires without rotation marks

Rotate the tires as shown here.

■

Tires with rotation marks

Rotate the tires as shown here.

1

Tire Rotation

Tires with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.

Front

Direction Mark

Front

Front

552

uu

Checking and Maintaining Tires

u

Winter Tires

Main

tenan

ce

Winter Tires

If driving on snowy or frozen roads, mount all season marked

M+S

 tires, snow tires,

or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.

Be particularly careful when operating the steering wheel or brakes to prevent
skidding.

Use tire chains, snow tires, or all season tires when necessary or according to the law.

When mounting, refer to the following points.

For winter tires:

•

Select the size and load ranges that are the same as the original tires.

•

Mount the tires to all four wheels.

For tire chains:

•

Install them on the front tires only.

•

Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:

•

Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.

•

Check that the chains do not touch the brake lines or suspension.

•

Drive slowly.

Cable-type: Auto-Trac 0155505

1

Winter Tires

NOTICE

Traction devices that are the wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.

When tire chains are mounted, follow the chain
manufacturer’s instructions regarding vehicle
operational limits.

If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.

3

WARNING

Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.

Follow all instructions in this owner’s
manual regarding the selection and use of
tire chains.

553

Continued

Main

tenan

ce

Battery

Checking the Battery

The condition of the battery is monitored by a sensor located on the negative
terminal of the battery. If there is a problem with this sensor, the multi-information
display will display a warning message. If this happens, have your vehicle inspected
by a dealer.

Check the battery terminals for corrosion monthly.

1

Battery

WARNING:

Battery post, terminals,

and related accessories contain lead
and lead compounds.

Wash your hands after handling.

When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.

When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.

3

WARNING

The battery gives off explosive hydrogen
gas during normal operation.

A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.

When conducting any battery
maintenance, wear protective clothing and
a face shield, or have a skilled technician do
it.

uu

Battery

u

Checking the Battery

554

Main

tenan

ce

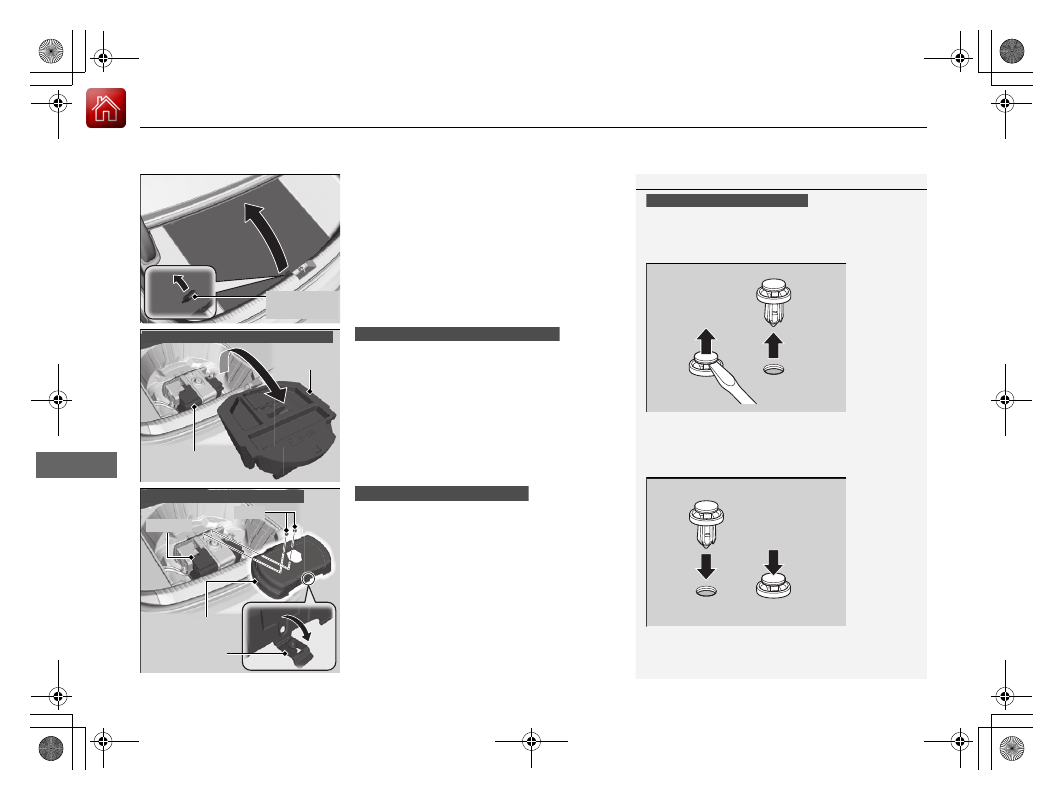

To access the battery terminals:

1.

Pull up on the trunk floor lid strap until it is
completely open.

2.

Remove the tool case.

2.

Remove the tool case and spare tire.

2

Getting Ready to Replace the Flat Tire



P. 584

3.

Remove the clips.

4.

Flip the tab to unlock the cover.

5.

Remove the battery cover.

1

Battery

To remove the clip:
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

To insert the clip:
Insert the clip with the center pin raised, and push
until it is flat.

Models with optional spare tire

Push until the pin

is flat.

Trunk Floor

Lid Strap

Models with temporary tire repair kit

Tool Case

Battery

Models with temporary tire repair kit

Models with optional spare tire

Tab

Battery Cover

Battery

Clips

Models with optional spare tire

555

uu

Battery

u

Checking the Battery

Main

tenan

ce

If your vehicle’s battery is disconnected or goes dead:

•

The audio system is disabled.

2

Reactivating the audio system

 P. 205

•

The clock resets.

2

Clock

 P. 116

•

The immobilizer system needs to be reset.

2

Immobilizer System Indicator

 P. 91

1

Battery

The battery installed in this vehicle is specifically
designed for a model with Auto Idle Stop. Using a
battery other than this specified type may shorten the
battery life, and prevent Auto Idle Stop from
activating. If you need to replace the battery, make
sure to select the specified type and size. Ask a dealer
for more details.

Canadian models only

556

uu

Battery

u

Charging the AGM Battery

Main

tenan

ce

Charging the AGM Battery

AGM labeled batteries like those installed in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equipment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.

1

Battery

The vehicle stability assist

TM

 (VSA

®

) system, vehicle

stability assist

TM

 (VSA

®

) OFF, adaptive cruise control

(ACC) with low speed follow, and safety support may
come on in amber along with a message in the multi-
information display when you set the power mode to
ON after re-connecting a battery.
Drive a short distance at more than 12 mph (20
km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

3

WARNING

•

Failure to use and correctly install a
battery and Battery Stopper (foam block)
specifically designed for this vehicle could
cause a hydrogen gas leak inside the
vehicle, resulting in a fire or explosion
that may cause injury or death.

•

Only install a 12V AGM battery designed
for use in this vehicle.

•

Contact your Acura dealer for more
information.
