Acura ILX (2021 year). Manual in english - page 4

uu

Child Safety

u

Safety of Infants and Small Children

60

Safe

Driving

Most child seats are LATCH-compatible (Lower Anchors and Tethers for Children).
Some have a rigid-type connector, while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child's safety.

In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.

■

Important consideration when selecting a child seat

Make sure the child seat meets the following three requirements:

•

The child seat is the correct type and size for the child.

•

The child seat is the correct type for the seating position.

•

The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.

■

Selecting a Child Seat

1

Selecting a Child Seat

Installation of a LATCH-compatible child seat is
simple.

LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.

Continued

61

uu

Child Safety

u

Safety of Infants and Small Children

Safe

Driving

A LATCH-compatible child seat can be installed in either of the two outer rear seats.
A child seat is attached to the lower anchors with either the rigid or flexible type of
connectors.

1.

Locate the lower anchors under the marks.

2.

Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.

u

When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.

■

Installing a LATCH-Compatible Child Seat

1

Installing a LATCH-Compatible Child Seat

For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle.
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

3

WARNING

Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.

Marks

Rigid Type

Lower Anchors

uu

Child Safety

u

Safety of Infants and Small Children

62

Safe

Driving

3.

Open the tether anchor cover behind the
head restraint.

4.

Raise the head restraint to its highest
position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor.

5.

Tighten the tether strap as instructed by the
child seat manufacturer.

6.

Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.

7.

Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

Flexible Type

1

Installing a LATCH-Compatible Child Seat

Installing a LATCH-compatible child seat in the
rear center seat

Each outer rear seat is equipped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 inches (280 mm). The distance
between the two inner anchors is 15 inches (380 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.

3

WARNING

Using the outer rear seats’ inner anchors to
secure a LATCH-compatible child seat in the
center seating position may result in failure
of the child seat, causing injury or death.

Only use the outer rear seats’ inner anchors
to install a child seat in the center seating
position if the manufacturer’s instructions
expressly permit.

Anchor

Straight Top Tether Type

Other Top Tether Type

Anchor

Tether Strap

Hook

Tether Strap

Hook

Continued

63

uu

Child Safety

u

Safety of Infants and Small Children

Safe

Driving

A child seat can be installed with a lap/shoulder belt in any rear seat or, if absolutely
necessary, the front passenger seat.

1.

Place the child seat on the vehicle seat.

2.

Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.

u

Insert the latch plate fully until it clicks.

3.

Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.

4.

Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.

u

If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.

■

Installing a Child Seat with a Lap/Shoulder Seat Belt

1

Installing a Child Seat with a Lap/Shoulder Seat Belt

A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

uu

Child Safety

u

Safety of Infants and Small Children

64

Safe

Driving

5.

Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.

u

When doing this, place your weight on
the child seat and push it into the vehicle
seat.

6.

Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.

7.

Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

1

Installing a Child Seat with a Lap/Shoulder Seat Belt

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

Continued

65

uu

Child Safety

u

Safety of Infants and Small Children

Safe

Driving

A tether anchor point is provided behind each
rear seating position.
If you have a child seat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.

1.

Locate the appropriate tether anchor point
and lift the cover.

2.

Put the head restraint to its upper-most
position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.

3.

Secure the tether strap hook to the anchor.

4.

Tighten the tether strap as instructed by the
child seat manufacturer.

■

Adding Security with a Tether

1

Adding Security with a Tether

Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.

Tether Anchor Points

Cover

Anchor

Outer Position

Outer Position

Anchor

Straight Top Tether Type

Tether Strap

Hook

Anchor

Other Top Tether Type

Tether Strap

Hook

66

uu

Child Safety

u

Safety of Infants and Small Children

Safe

Driving

Center Position

Center Position

Anchor

Straight Top Tether Type

Tether Strap

Hook

Anchor

Other Top Tether Type

Tether Strap

Hook

67

uu

Child Safety

u

Safety of Larger Children

Continued

Safe

Driving

Safety of Larger Children

The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.

When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.

■

Checklist

•

Do the child's knees bend comfortably over
the edge of the seat?

•

Does the shoulder belt cross between the
child's neck and arm?

•

Is the lap part of the seat belt as low as
possible, touching the child's thighs?

•

Will the child be able to stay seated like this
for the whole trip?

If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.

■

Protecting Larger Children

■

Checking Seat Belt Fit

1

Safety of Larger Children

3

WARNING

Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.

If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.

uu

Child Safety

u

Safety of Larger Children

68

Safe

Driving

If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.

Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:

•

Make sure you read and fully understand the instructions and safety information
in this manual.

•

Move the front passenger seat as far back as possible.

•

Have the child sit upright and well back in the seat.

•

Check that the seat belt is properly positioned so that the child is secure in the
seat.

■

Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.

■

Booster Seats

1

Booster Seats

When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.

Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.

■

Protecting Larger Children Final Checks

69

Safe

Driving

Exhaust Gas Hazard

Carbon Monoxide Gas

The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.

■

Have the exhaust system inspected for leaks whenever

•

The exhaust system is making an unusual noise.

•

The exhaust system may have been damaged.

•

The vehicle is raised for an oil change.

When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.

1.

Select the fresh air mode.

2.

Select the

 mode.

3.

Set the fan speed to high.

4.

Set the temperature control to a comfortable setting.

Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.

1

Carbon Monoxide Gas

An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.

3

WARNING

Carbon monoxide gas is toxic.

Breathing it can cause unconsciousness and
even kill you.

Avoid any enclosed areas or activities that
expose you to carbon monoxide.

70

Safe

Driving

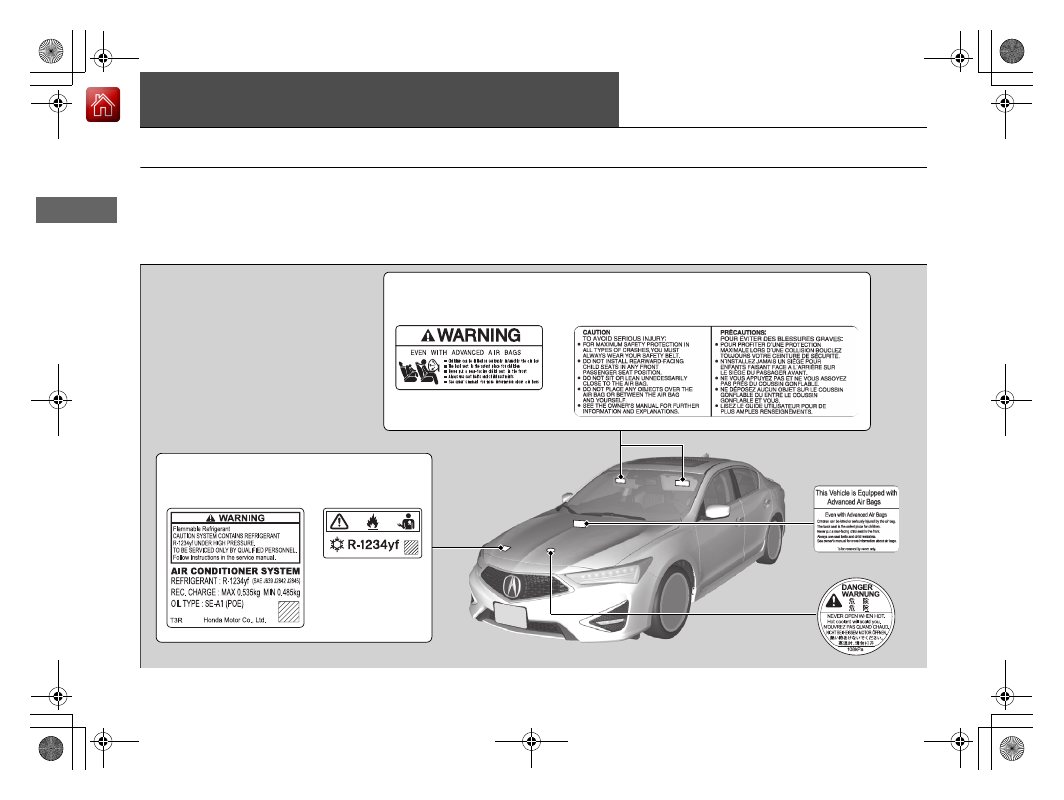

Safety Labels

Label Locations

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.

If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.

Radiator Cap

U.S. models only

Dashboard

U.S. models

Canadian models

Air Conditioner System

U.S. models

Canadian models

Sun Visor

72

In

strum

ent Pa

nel

Indicators

Indicator

Name

On/Blinking

Explanation

Message

Parking Brake and
Brake System
Indicator (Red)

●

Comes on for a few seconds when
you set the power mode to ON, then
goes off if the parking brake has
been released.

●

Comes on when the parking brake is
applied, and goes off when it is
released.

●

Comes on when the brake fluid level
is low.

●

Comes on if there is a problem with
the brake system.

●

The beeper sounds and the indicator
comes on if you drive with the
parking brake not fully released.

●

Comes on while driving

 - Make sure the

parking brake is released. Check the brake
fluid level.

2

What to do when the indicator comes
on while driving

 P. 594

●

Comes on along with the ABS indicator



- Have your vehicle checked by a dealer.

2

If the Brake System Indicator (Red)
Comes On

 P. 594

Brake System
Indicator (Amber)

●

Comes on for a few seconds when
you set the power mode to ON, then
goes off.

●

Comes on if there is a problem with a
system related to braking other than
the conventional brake system.

●

Comes on while driving

 - Have your

vehicle checked by a dealer.

●

With this indicator on, your vehicle still has
normal braking ability.

U.S.

Canada

U.S.

Canada

(Amber)

U.S.

Canada

73

uu

Indicators

u

Continued

In

strum

ent Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Low Oil Pressure
Indicator

●

Comes on when you set the power
mode to ON, and goes off when the
engine starts.

●

Comes on when the engine oil
pressure is low.

●

Comes on while driving

 - Immediately

stop in a safe place.

2

If the Low Oil Pressure Indicator
Comes On

 P. 592

Shift Lever
Position Indicator

●

Indicates the current gear selection.

2

Shifting

 P. 437

—

Transmission
System Indicator

●

Blinks if the transmission system has
a problem.

●

Blinks while driving

 - Avoid sudden starts

and acceleration and have your vehicle
checked by a dealer immediately.

M

 (sequential

mode) Indicator/
Gear Position
Indicator

●

Comes on when the manual
sequential mode is applied.

2

Sequential Mode Operation

 P. 440

—

74

uu

Indicators

u

In

strum

ent Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Malfunction
Indicator Lamp

●

Comes on when you set the power
mode to ON, and goes off either
when the engine starts or after
several seconds if the engine did not
start. If “readiness codes” have not
been set, it blinks five times before it
goes off.

●

Comes on if there is a problem with
the emissions control system.

●

Blinks when a misfire in the engine's
cylinders is detected.

●

Readiness codes are part of the on board
diagnostics for the emissions control
systems.

2

Testing of Readiness Codes

 P. 607

●

Comes on while driving

 - Have your

vehicle checked by a dealer.

●

Blinks while driving

 - Stop in a safe place

where there are no flammable objects. Stop
the engine for 10 minutes or more, and
wait for it to cool down. Then, take the
vehicle to a dealer.

2

If the Malfunction Indicator Lamp
Comes On or Blinks

 P. 593

Charging System
Indicator

●

Comes on when you set the power
mode to ON, and goes off when the
engine starts.

●

Comes on when the battery is not
charging.

●

Comes on while driving

 - Turn off the

climate control system and rear defogger in
order to reduce electricity consumption.

2

If the Charging System Indicator
Comes On

 P. 592

75

uu

Indicators

u

Continued

In

strum

ent Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Seat Belt
Reminder
Indicator

●

Comes on and the beeper sounds if
you are not wearing a seat belt when
you set the power mode to ON.

●

If the front passenger is not wearing
a seat belt, the indicator comes on a
few seconds later.

●

Blinks while driving if either you and/
or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.

●

The beeper stops and the indicator goes off
when you and the front passenger fasten
their seat belts.

●

Stays on after you and/or the front
passenger has fastened the seat belt(s)



- A detection error may have occurred in the
sensor. Have your vehicle checked by a
dealer.

2

Seat Belt Reminder

 P. 35

Low Fuel Indicator

●

Comes on when the fuel reserve is
running low (approximately 1.9 U.S.
gal./7.5 Liter left).

●

Blinks if there is a problem with the
fuel gauge.

●

Comes on

 - Refuel your vehicle as soon as

possible.

●

Blinks

 - Have your vehicle checked by a

dealer.

Anti-lock Brake
System (

ABS

)

Indicator

●

Comes on for a few seconds when
you set the power mode to ON, then
goes off.

●

If it comes on at any other time, there
is a problem with the ABS.

●

Stays on constantly

 - Have your vehicle

checked by a dealer. With this indicator on,
your vehicle still has normal braking ability
but no anti-lock function.

2

Anti-lock Brake System (ABS)

 P. 498

76

uu

Indicators

u

In

strum

ent Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Supplemental
Restraint System
Indicator

●

Comes on for a few seconds when
you set the power mode to ON, then
goes off.

●

Comes on if a problem with any of
the following is detected:

-

Supplemental restraint system

-

Side airbag system

-

Side curtain airbag system

-

Seat belt tensioner

●

Stays on constantly or does not come
on at all

 - Have your vehicle checked by a

dealer.

Electric Power
Steering (EPS)
System Indicator

●

Comes on when you set the power
mode to ON, and goes off when the
engine starts.

●

Comes on if there is a problem with
the EPS system.

●

Stays on constantly or does not come
on at all

 - Have your vehicle checked by a

dealer.

2

If the Electric Power Steering (EPS)
System Indicator Comes On

 P. 594

Vehicle Stability
Assist

TM

 (VSA

®

)

System Indicator

●

Comes on for a few seconds when
you set the power mode to ON, then
goes off.

●

Blinks when VSA

®

 is active.

●

Comes on if there is a problem with
the VSA

®

 system or hill start assist

system.

●

Stays on constantly

 - Have your vehicle

checked by a dealer.

2

Vehicle Stability Assist

TM

 (VSA

®

), aka

Electronic Stability Control (ESC),
System

 P. 441
