Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

−

−

2

Front Seat Heaters/AVS

*

20 A

3

Rear Passenger’s Side

Power Window

20 A

4

Front Passenger’s Lumbar

Support

7.5 A

5

Daytime Running Lights

7.5 A

6

A/C Water Pump

10 A

7

Passenger’s Power Seat

Sliding

20 A

8

Passenger’s Power Seat

Reclining

20 A

9

Rear Seat Heaters

20 A

10

−

−

11

Fly Start

15 A

12

Accessory Power Socket

(Console Compartment)

20 A

13

Accessory Power Socket

(Center Pocket)

20 A

14

AS ECU

7.5 A

15

Glove Box

7.5 A

16

−

−

17

−

−

18

Front Passenger’s Power

Window

20 A

19

SRS1

10 A

*1:Models without surround view camera

system

*2:Models with surround view camera

system

20

ABS/VSA

7.5 A

21

BATT ECU

7.5 A

22

e-pretensioner

7.5 A

23

−

−

24

SRS2

7.5 A

25

Illumination

7.5 A

26

Right e-pretensioner

20 A

27

Heated Steering Wheel

10 A

28

Audio AMP

30 A

*1

40 A

*2

Circuit Protected

Amps

* Not available on all models

579

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

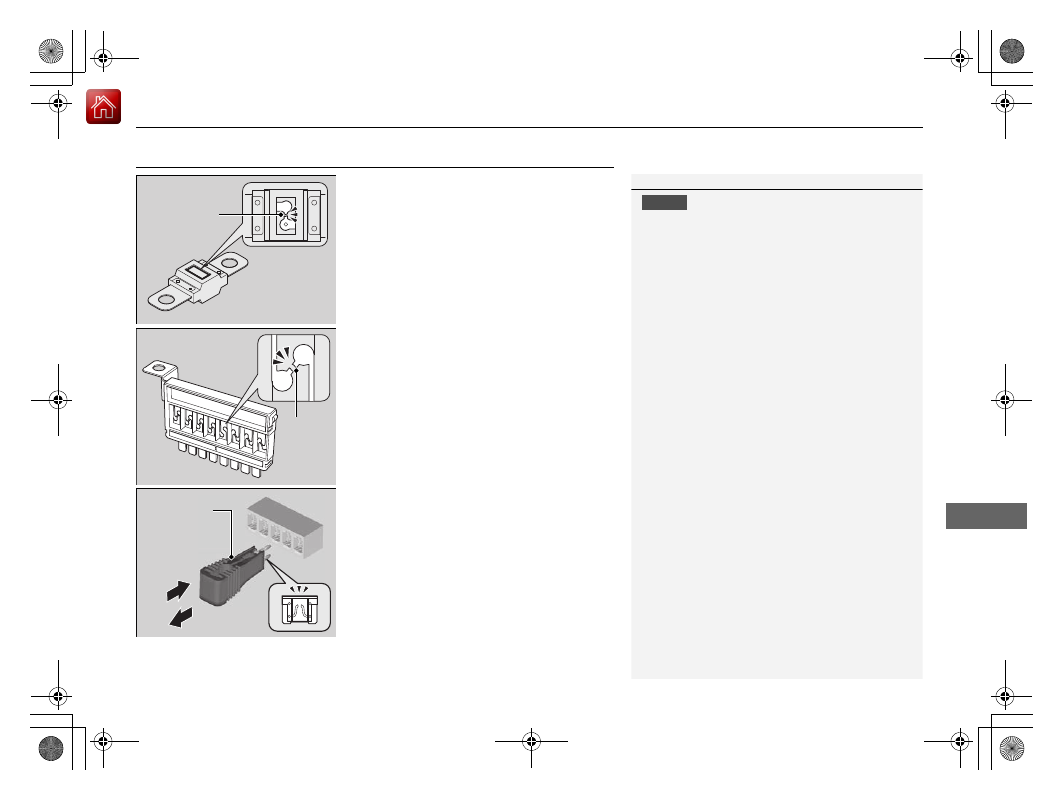

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

Check the large fuse in the engine
compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 572 to 577.

There is a fuse puller in the engine compartment fuse
box located near the brake fluid reserve tank.

Blown Fuse

Combined Fuse

Blown
Fuse

Fuse Puller

580

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.

This is the only way you can safely transport your vehicle.

Any other towing method will damage the vehicle’s drive system.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

581

Han

d

lin
g the U

n

expected

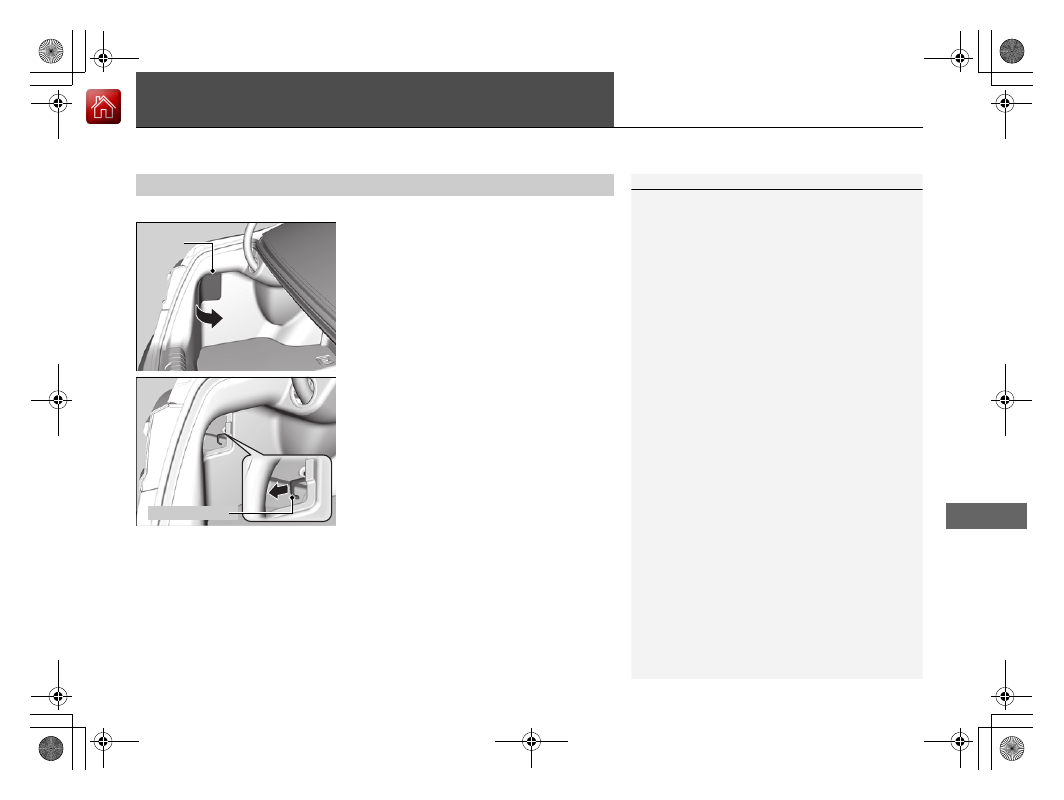

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1.

Open the trunk and remove the cover.

2.

Pull the release lever toward you.

u

The release lever unlocks the fuel fill door
when it is pulled.

■

What to Do When Unable to Unlock the Fuel Fill Door

1

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have
your vehicle checked.

Cover

Release Lever

582

Han

d

lin
g the U

n

expected

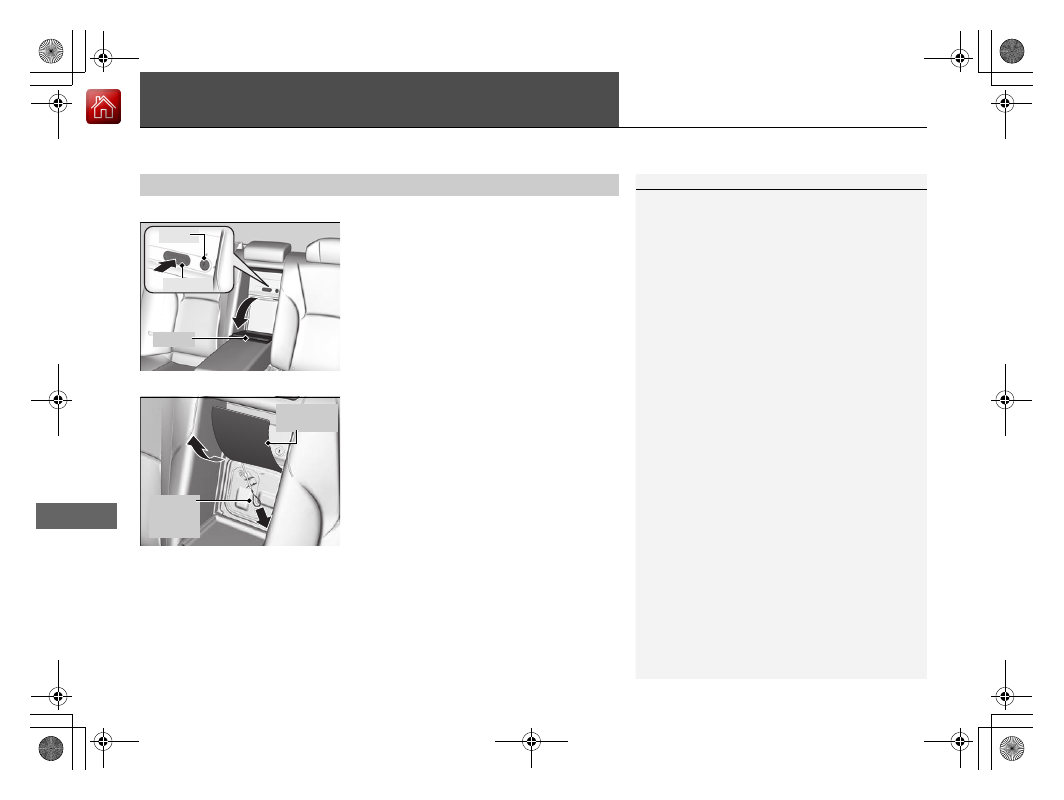

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1.

Pull the rear seat armrest down.

2.

Push the button to open the cover.

u

The cover latches when you push it back
to the original position.

u

You can lock and unlock this cover using
the built-in key.

To lock the cover

: Insert the key to the

lock, then turn it the right.

To unlock the cover

: Insert the key to

the lock, then turn it the left.

3.

With pulling the inner partition up, pull the
trunk release handle down to the direction
of the arrow in the image.

■

What to Do When Unable to Open the Trunk

1

What to Do When Unable to Open the Trunk

Following up:
After taking these steps, contact a dealer to have
your vehicle checked.

Lock

Button

Cover

Trunk
Release
Handle

Inner
Partition

583

Han

d

lin
g the U

n

expected

Refueling

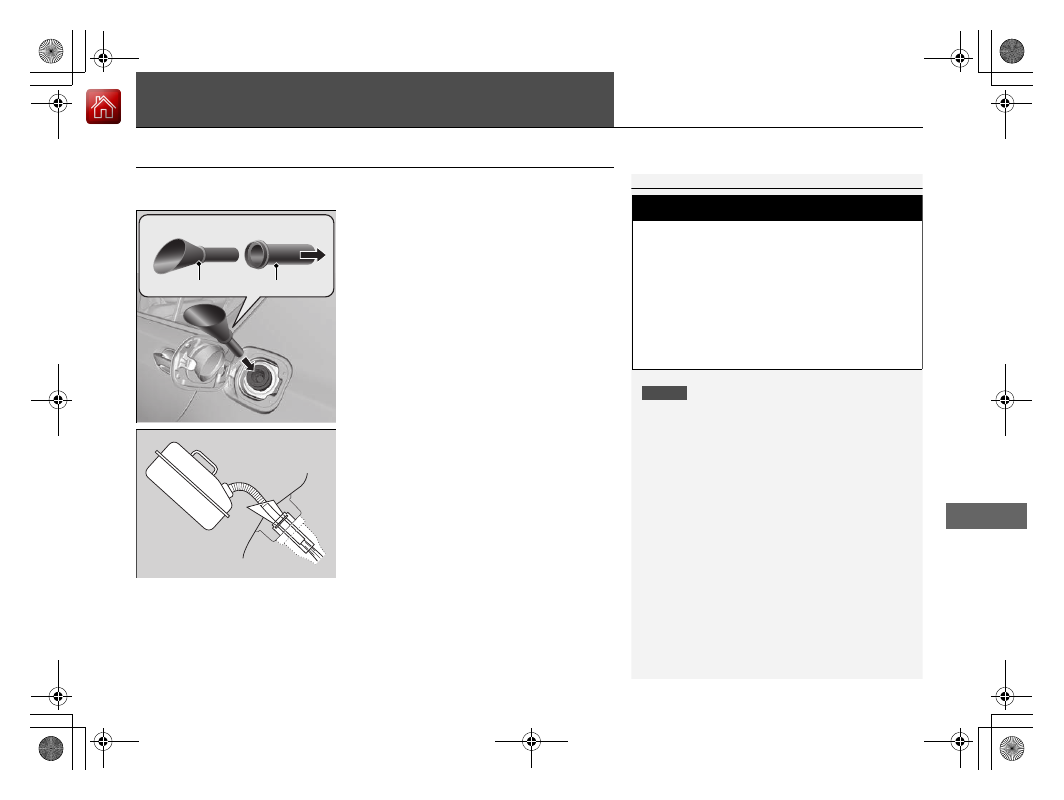

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the power system.

2.

Press the fuel fill door release button.

u

The fuel fill door opens.

3.

Take the funnel out of the tool case in the
trunk.

2

Types of Tools

 P. 540

4.

Remove the

funnel from the case

.

5.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

6.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

7.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

8.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Turn the power system off, and keep
heat, sparks, and flame away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

Case

585

Information

This chapter includes your vehicle’s specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 586

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, Motor Number, and
Transmission Number..................... 588

Devices that Emit Radio Waves

....... 589

Reporting Safety Defects

................. 590

Emissions Testing

Testing of Readiness Codes.............. 591

Warranty Coverages

........................ 593

Authorized Manuals

......................... 595

Client Service Information

............... 596

586

Info

rm

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

Model

RLX

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFC-134a (R-134a)

Charge Quantity

15.3 - 17.1 oz (435 - 485 g)

Lubricant Type

ND-OIL 11

Quantity

7.9 - 8.8 cu-in (130.0 - 145.0 cm

3

)

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

212 cu-in (3,471 cm

3

)

Spark Plugs

NGK

DILZKR7B11G

Type

Unleaded premium gasoline, Pump octane
number of 91 or higher

Fuel Tank Capacity

15.2 US gal (57 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 5.3 US qt (5.0 L)

■

Light Bulbs

*1: Not available on all models

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

*1

LED

Front Turn Signal Lights

LED

Parking/Daytime Running Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake Lights

LED

Taillights

LED

Rear Side Marker Lights

LED

Back-Up Lights

LED

Rear Turn Signal Lights

LED

High-Mount Brake Light

LED

Rear License Plate Lights

LED

Door Outer Handle Ambient Lights

LED

Interior Lights

Front and Rear Map Lights

LED

Front and Rear Ambient Lights

LED

Vanity Mirror Lights

1.4 W

Front Door Pocket Lights

LED

Center Pocket Light

LED

Beverage Holder Light

LED

Door Courtesy Lights

3.4 W

Console Compartment Light

LED

Glove Box Light

LED

Front and Rear

*1

 Foot Lights

LED

Door Inner Handle Lights

LED

Trunk Light

5 W

587

uu

Specifications

u

Info

rm

ation

■

Brake Fluid

■

Dual Clutch Transmission Fluid

■

Twin Motor Unit Fluid

Specified

Acura Heavy Duty Brake Fluid DOT 3

Specified

Acura ATF DW-1

Capacity

Change

3.7 US qt (3.5 L)

Specified

Acura ATF DW-1

Capacity

Change

2.56 US qt (2.42 L)

■

Engine Oil

■

Engine Coolant

■

Inverter Coolant

Recommended

·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.5 US qt (4.3 L)

Specified

Acura Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

2.1 US gal (7.9 L)
(change including the remaining
0.225 US gal (0.85 L) in the reserve tank)

Specified

Acura Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

0.32 US gal (1.23 L)
(change including the remaining
0.03 US gal (0.11 L) in the reserve tank)

■

Tire

*1: Vehicles with optional spare tire kit

Regular

Size

245/40R19 98W

Pressure
psi (kPa [kgf/cm

2

])

36 (250 [2.5])

Compact
Spare

*1

Size

T155/70D17 110M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

19 x 8J

Compact Spare

*1

17 x 4T

588

Info

rm

ation

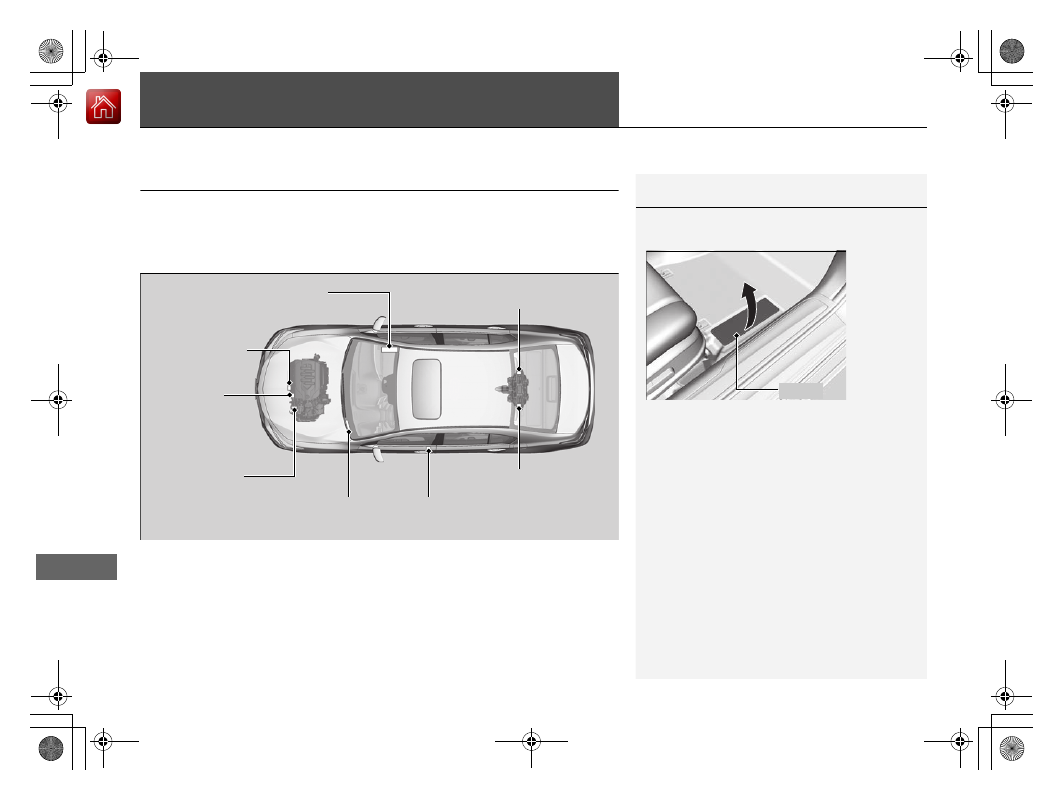

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Dual Clutch
Transmission
Number

Certification Label/
Vehicle Identification Number

Vehicle Identification Number

Motor Number

Motor Number

Motor Number

589

Info

rm

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

590

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,

Washington, DC 20590. You can also obtain other information about motor vehicle safety from

http://

www.safercar.gov

.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to

http://www.tc.gc.ca/

roadsafety

.

591

Continued

Info

rm

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the 12-volt
battery has gone dead or been disconnected.

To check if they are set, set the power mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness codes are set. If it blinks five times, the readiness codes
are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1.

Fill the gas tank to approximately 3/4 full.

2.

Park the vehicle and leave the power system off for 6 hours or more.

3.

Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).

4.

Turn the power system on.

1

Testing of Readiness Codes

The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

592

uu

Emissions Testing

u

Testing of Readiness Codes

Info

rm

ation

5.

Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in

(

D



with SPORT mode. Do not use cruise control.

6.

Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

7.

Park the vehicle and leave the power system off for 40 minutes.

593

Continued

Info

rm

ation

Warranty Coverages

■

U.S.Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty –

 covers your new vehicle, except for the

emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty –

 these two warranties cover your vehicle’s emissions control systems.

Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty –

 a seat belt that fails to function properly is covered

by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty –

 all exterior body panels are covered against

rusting from the inside out for the specified time period, regardless of mileage.

Accessory Limited Warranty –

 Acura accessories are covered under this warranty.

Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.

Replacement Parts Limited Warranty –

 covers all Acura replacement parts

against defects in materials and workmanship.

594

uu

Warranty Coverages

u

Info

rm

ation

Replacement 12-Volt Battery Limited Warranty –

 provides prorated coverage

for a replacement battery purchased from your dealer.

Replacement Muffler Lifetime Limited Warranty –

 provides coverage for as

long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

■

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

■

EPA Contact Information

An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:

U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: complianceinfo@epa.gov
