Cleaning

u

Exterior Care

Continued

Main

tenan

ce

Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.

The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

Maintaining Aluminum Wheels

Fogged Exterior Light Lenses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Cleaning

u

Exterior Care

610

Main

tenan

ce

Refer to the temperature notice label affixed to the driver’s doorjamb before
painting the vehicle.

Painting the Vehicle

1

Painting the Vehicle

U.S. models

Canadian models

-------------------------------------------------------------------------------------------------------------------------------------------------------------

611

Main

tenan

ce

Accessories and Modifications

Accessories

When installing accessories, check the following:

Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.

Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.

Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.

2

Fuses

 P. 648

Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.

1

Accessories and Modifications

Acura Genuine accessories are recommended to
ensure proper operation on your vehicle.

3

WARNING

Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

3

WARNING

Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.

A vehicle fire could result in a crash or
injury.

Only use a genuine Acura high-voltage
battery assembly, or its equivalent, in your
vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

612

uu

Accessories and Modifications

u

Modifications

Main

tenan

ce

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura parts or accessories that may have a similar
effect.

Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.

If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Acura high-
voltage battery assembly. Genuine Acura high-voltage battery assemblies are
designed to work with your vehicle's hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have been similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

613

Handling the Unexpected

This chapter explains how to handle unexpected troubles.

Tools

Types of Tools .................................. 614

If a Tire Goes Flat

Changing a Flat Tire ......................... 615

Temporarily Repairing a Flat Tire....... 623

Power System Won’t Start

............... 635

Checking the Procedure ................... 635
If the Keyless Access Remote Battery is

Weak ............................................. 636

Emergency Power System Off........... 637

Jump Starting

.................................... 638

Models with a compact spare tire

Models with temporary tire repair kit

Overheating

How to Handle Overheating............. 640

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes On... 642
If the 12-Volt Battery Charging System

Indicator Comes On ....................... 642

If the Malfunction Indicator Lamp Comes

On or Blinks ................................... 643

If the Brake System Indicator (Red) Comes

On ................................................... 644

If the Speed-Sensitive Electric Power Steering

(EPS) System Indicator Comes On ..........644

If the Low Tire Pressure/TPMS Indicator

Comes On or Blinks........................ 646

If the Transmission System Indicator Blinks

along with the Warning Message...... 646

If the Power System Indicator Comes On.. 647

Fuses

Fuse Locations ................................. 648
Inspecting and Changing Fuses........ 656

Emergency Towing

........................... 657

When You Cannot Unlock the Fuel Fill

Door

................................................. 658

When You Cannot Open the Tailgate

..659

Refueling

........................................... 660

Refueling From a Portable Fuel

Container ................................... 660

-------------------------------------------------------------------------------------------------------------------------------------------------------------

614

Han

d

lin

g the U

n

expected

Tools

Types of Tools

1

Types of Tools

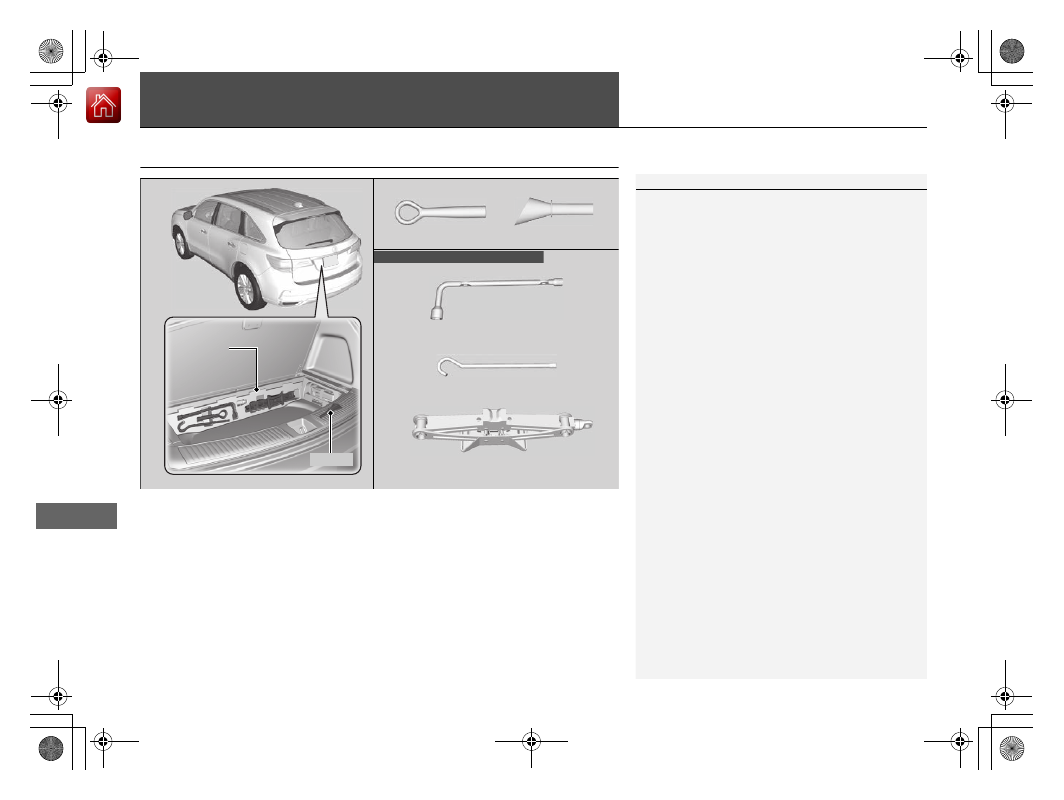

The tools are stored in the cargo area.

Wheel Nut Wrench/Jack Handle

Jack

Jack Handle Bar

Models with a compact spare tire

Towing Hook

Funnel

Funnel

Tool Case

-------------------------------------------------------------------------------------------------------------------------------------------------------------

615

Continued

Han

d

lin

g the U

n

expected

If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1.

Park the vehicle on firm, level, non-slippery surface and apply the parking brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

Models with a compact spare tire

1

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

2

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle (if
equipped). If a different agent is used, you may
permanently damage the tire pressure sensor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

If a Tire Goes Flat

u

Changing a Flat Tire

616

Han

d

lin

g the U

n

expected

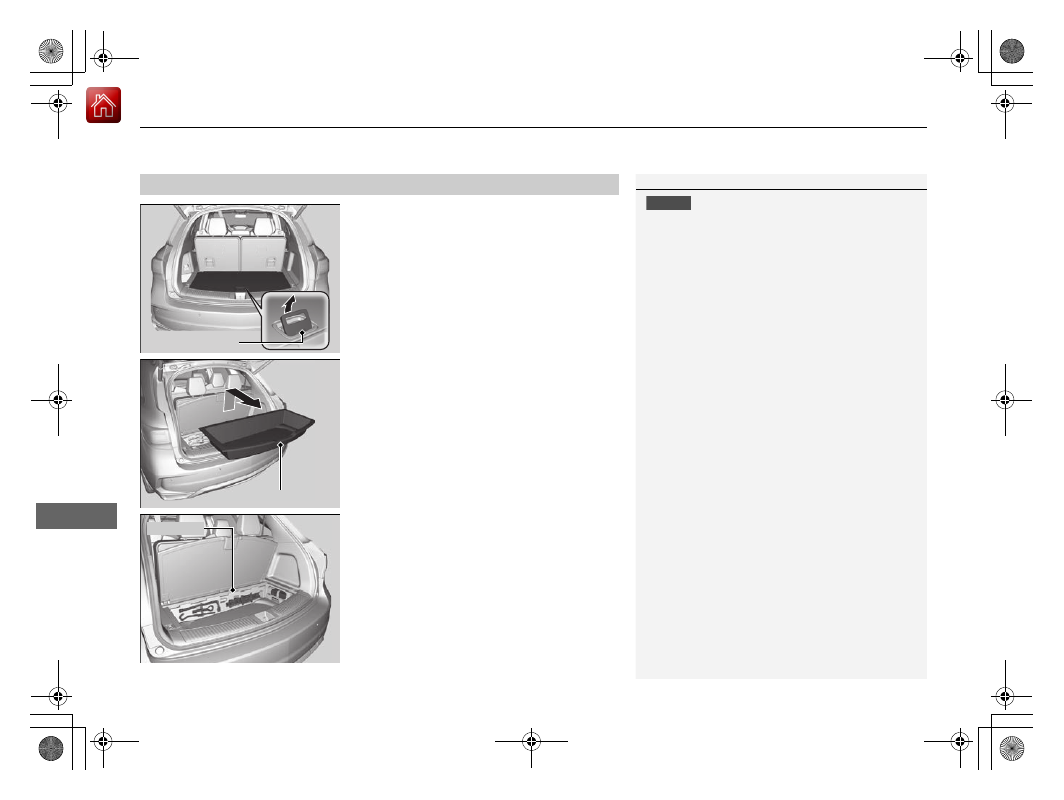

1.

Push the rear edge of the handle on the
floor lid and open the lid.

2.

Take out the cargo floor box.

3.

Take the jack, wheel nut wrench, and jack
handle bar out of the tool case.

Getting Ready to Replace the Flat Tire

1

Changing a Flat Tire

NOTICE

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

The wheel nut wrench supplied with your vehicle is
specially adapted to fit the holder shaft. Do not use
any other tool.

The subwoofer is located on the rear right side. Do
not store anything in this area. Doing so may
compromise vehicle audio performance.

Handle

Cargo Floor Box

Tool Case

-------------------------------------------------------------------------------------------------------------------------------------------------------------

617

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

4.

Remove the cover on the cargo area lining
to access the shaft for the spare tire hoist.

5.

Put the wheel nut wrench with the jack
handle bar on the hoist shaft.
Turn the wrench to the left to lower the
spare tire to the ground.

6.

Keep turning the wheel nut wrench to
create slack in the cable.

7.

Remove the bracket from the spare tire.

Cover

Jack Handle Bar

Wheel Nut Wrench

Bracket

-------------------------------------------------------------------------------------------------------------------------------------------------------------

618

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

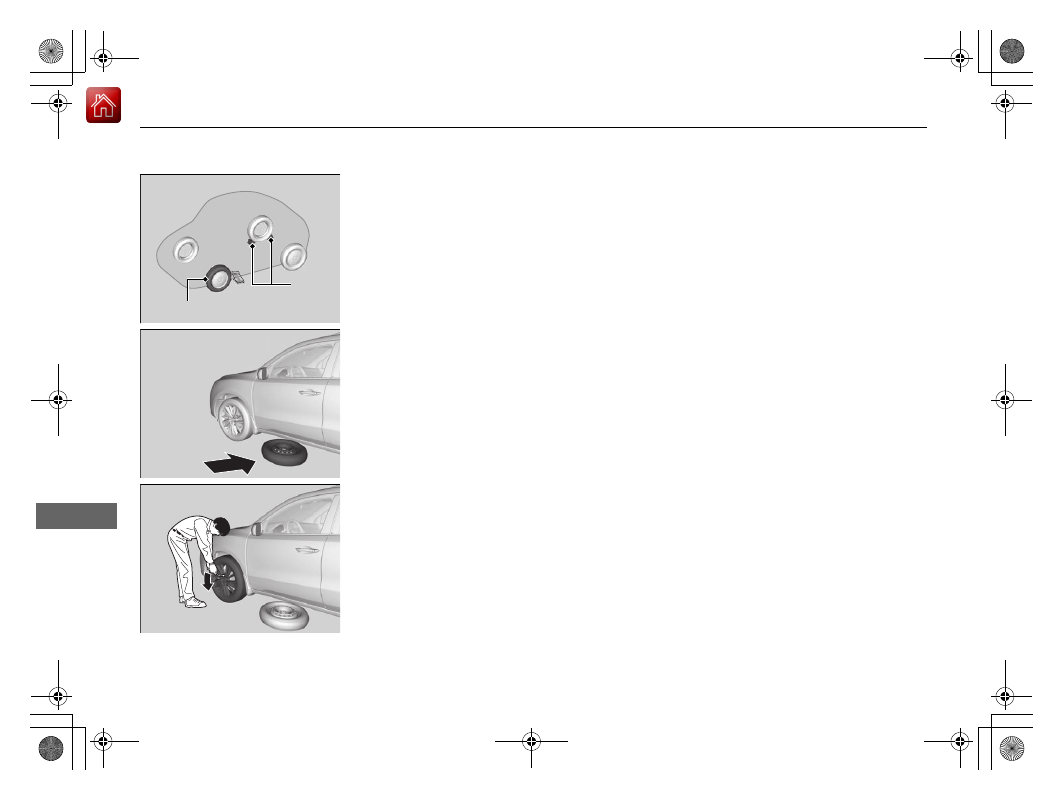

8.

Place a wheel block or rock in front and
rear of the wheel diagonal to the flat tire.

9.

Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.

10.

Loosen each wheel nut about one turn
using the wheel nut wrench.

Wheel

Blocks

The tire to be replaced.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

619

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

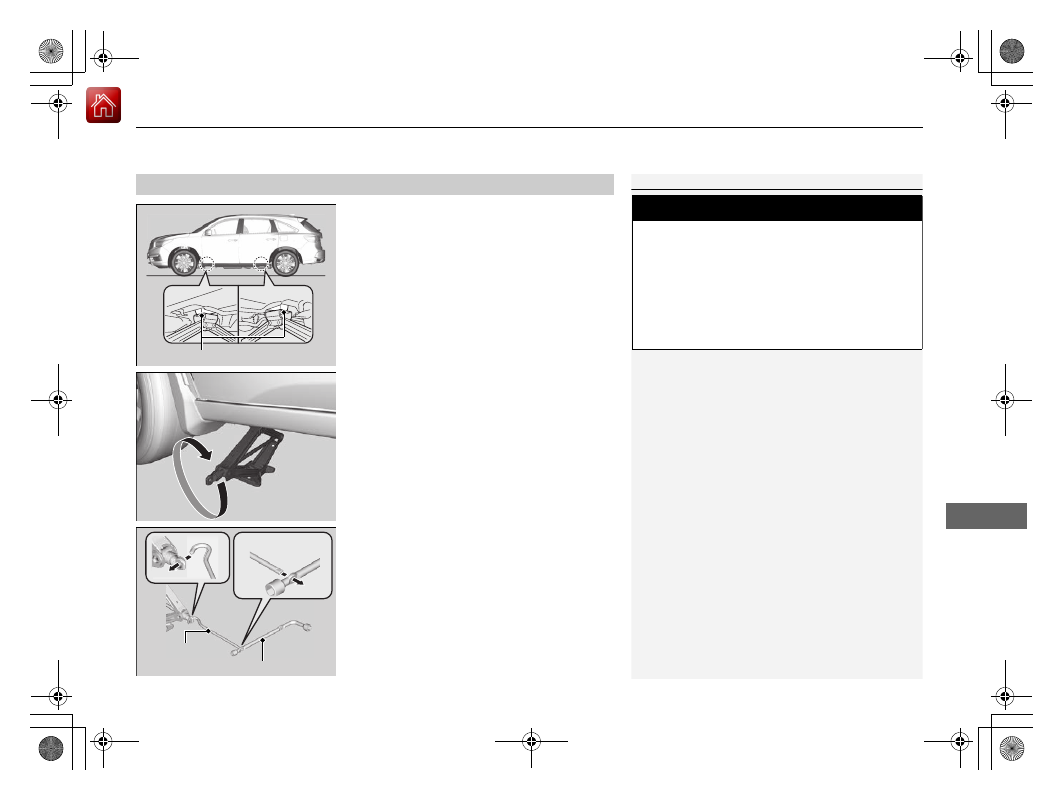

1.

Place the jack under the jacking point
closest to the tire to be changed.

2.

Turn the end bracket clockwise as shown in
the image until the top of the jack contacts
the jacking point.

u

Make sure that the jacking point tab is
resting in the jack notch.

3.

Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.

How to Set Up the Jack

1

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

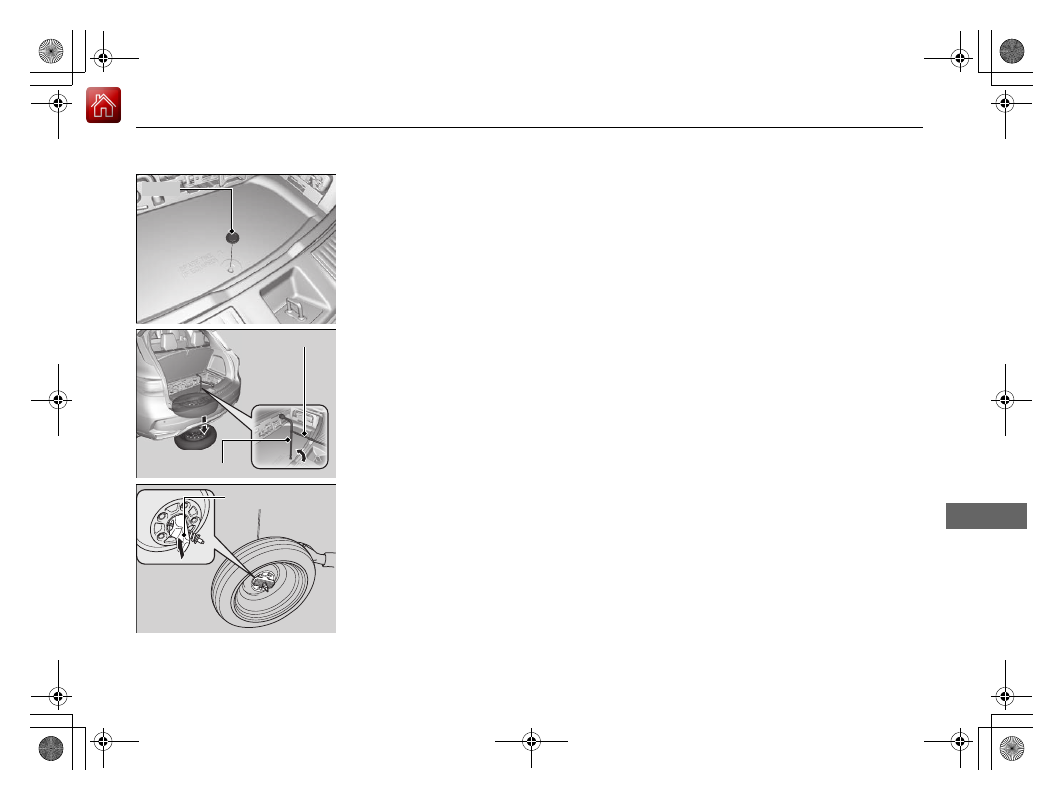

The following instructions must be followed to use
the jack safely:

Do not use while the power system is on.

Use only where the ground is firm and level.

Use only at the jacking points.

Do not get in the vehicle while using the jack.

Do not put anything on top of or underneath the
jack.

3

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.

Jacking Points

Jack Handle Bar

Wheel Nut Wrench as Jack Handle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

If a Tire Goes Flat

u

Changing a Flat Tire

620

Han

d

lin

g the U

n

expected

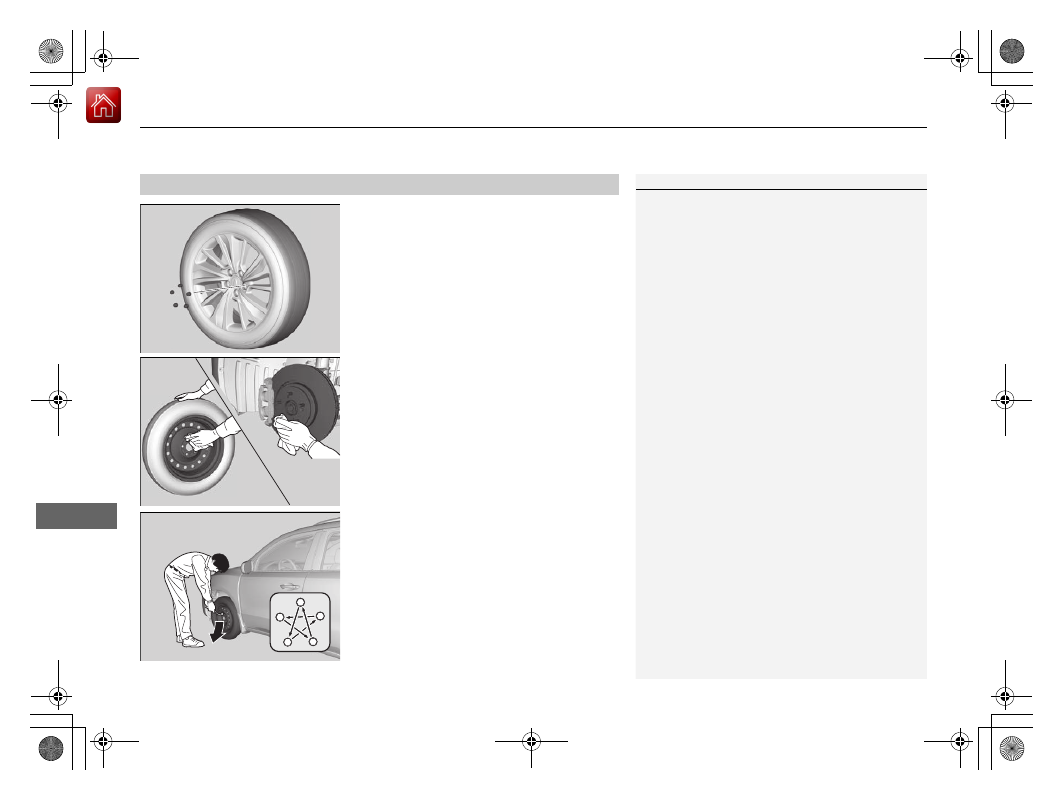

1.

Remove the wheel nuts and flat tire.

2.

Wipe the mounting surfaces of the wheel
with a clean cloth.

3.

Mount the compact spare tire.

4.

Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.

5.

Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.

Wheel nut torque:

94 lbf∙ft (127 N∙m, 13.0 kgf∙m)

Replacing the Flat Tire

1

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

621

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

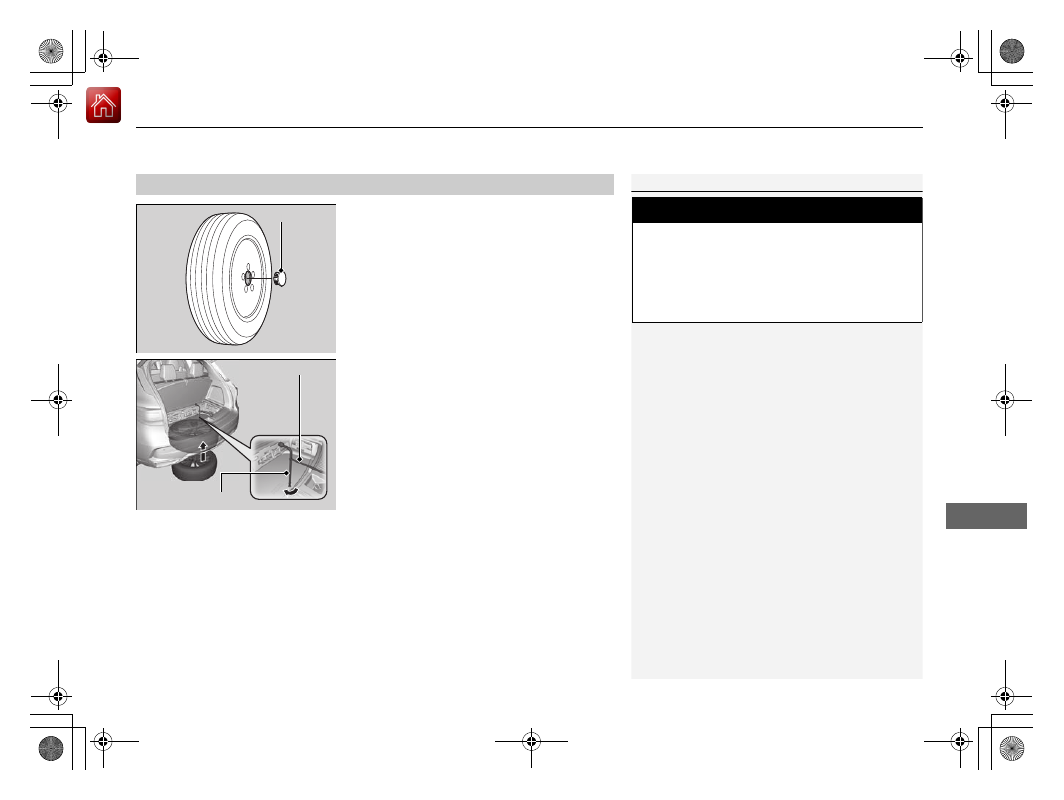

1.

Remove the center cap.

2.

Place the flat tire face up under the hoist.

3.

Insert the hoist bracket into the center hole
of the flat tire.

4.

Slowly turn the wheel nut wrench clockwise
to take up the hoist cable slack. Make sure
the bracket is seated in the center hole of
the flat tire.

5.

Turn the wheel nut wrench with the jack
handle bar (clockwise) until the flat tire rests
against the underbody of the vehicle, and
you hear the hoist click.

6.

Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
Store the case in the cargo area.

Storing the Flat Tire

1

Storing the Flat Tire

3

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.

Center Cap

Wheel Nut Wrench

Jack Handle Bar

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

If a Tire Goes Flat

u

Changing a Flat Tire

622

Han

d

lin

g the U

n

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers),

Tire

Pressure Monitor Problem

 will appear on the multi-information display and the

indicator will start blinking for a short time and then stay on; however, this is normal
and is no cause for concern.

If you replace the tire with a full-size tire, the warning message on the MID and the
low tire pressure/TPMS indicator will go off after a few miles (kilometers).

TPMS and the Compact Spare Tire

1

TPMS and the Compact Spare Tire

The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.

Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

623

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

Temporarily Repairing a Flat Tire

If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.

1.

Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

Models with temporary tire repair kit

1

Temporarily Repairing a Flat Tire

The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.

The tire sealant has expired.

More than one tire is punctured.

The puncture or cut is larger than 3/16 inch (4mm).

The tire side wall is damaged or the puncture is
outside the contact area.

Damage has been caused by driving with the tires
extremely under inflated.

The tire bead is no longer seated.

The rim is damaged.

Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.

NOTICE

Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.

When the puncture is:

Use Kit

Smaller than 3/16 inch

(4 mm)

Yes

Larger than 3/16 inch

(4 mm)

No

Contact
Area

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

624

Han

d

lin

g the U

n

expected

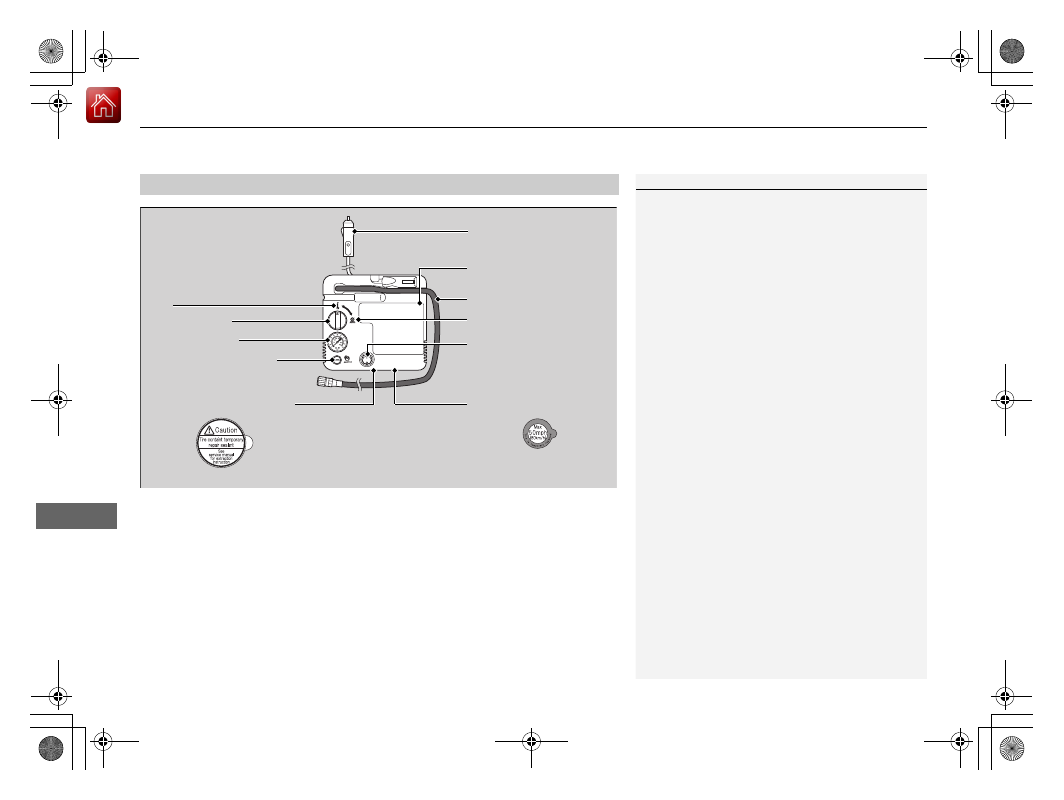

Getting Ready to Temporarily Repair the Flat Tire

1

Getting Ready to Temporarily Repair the Flat Tire

Repair notification label and speed restriction label
are applied to the side of temporary tire repair kit.

When making a temporary repair, carefully read the
instruction manual provided with the kit.

Pressure Relief Button

AIR

Repair Notification Label

Speed Restriction Label

Pressure Gauge

Power Plug

Instruction Manual

Sealant/Air Hose

Inflator Switch

REPAIR

Selector Knob

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     36      37      38      39     ..
