Acura MDX HYBRID (2020 year). Manual in english - page 29

465

uu

When Driving

u

Shifting

Continued

Driving

Shifting

Change the gear position in accordance with your driving needs.

■

Shift button positions

1

Shifting

To prevent malfunction and unintended
engagement:

•

Do not spill any liquids on or around shift buttons.

•

Do not place or drop any objects on or around shift
buttons.

•

Do not let passengers or children operate the shift
buttons.

You may occasionally find that it takes longer than
usual for the vehicle to start moving when you select

(

R

, release the brake pedal, and/or depress the

accelerator pedal. This may occur when the High
Voltage battery level is extremely low, and does not
indicate a vehicle malfunction.

3

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

P

 is shown

on the gear position indicator.

Park

Used when parking, before turning off or

starting the power system

Reverse

Used when reversing

Neutral

Transmission is not locked

Drive

Used for:

●

Normal driving (gears change between 1st
and 7th automatically)

●

Temporarily driving in the sequential
mode

Drive (S)

Used for:

●

Automatically changing gears between 1st
and 6th (6th gear is used only at high
speed)

●

Driving in the sequential mode

uu

When Driving

u

Shifting

466

Driving

■

(

P

 (parking) button

The gear position changes to

(

P

 when you

press the

(

P

 button while the vehicle is

parked with the power mode in ON.
The indicators on the sides of the

(

P

 button

come on.

1

Shifting

When shifting gears in extremely low temperatures
(−22°F/−30°C), there may be a short delay before the
shift is indicated in the display. Always confirm you
are in the correct gear before driving.

(

P

 Button

Continued

467

uu

When Driving

u

Shifting

Driving

■

Shift Operation

1

Shift Operation

NOTICE

When you change

(

D

 to

(

R

 and vice versa, come to

a complete stop and keep the brake pedal depressed.
Operating the shift button before the vehicle has
come to a complete standstill can damage the
transmission.

Use the gear position indicator and the shift button
indicator to check the gear position before selecting
a shift button.

If the indicator of the currently selected gear position,
or all the gear position indicators are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.

The fuel supply may be cut off if you drive at engine
speeds in or over the tachometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.

When the engine speed is increased while the
transmission is in

(

N

,

(

P

 or

(

R

, the fuel supply may

be cut off even without the engine speed entering
the tachometer’s red zone.

The beeper sounds once when you change to

(

R

.

2

Customized Features

 P. 131, 362

Gear Position Indicator

Tachometer’s red zone

Press the

(

P

 button.

Pull back the

(

R

 button.

Press the

(

N

 button.

Press the

 button.

D/S

Shift Button
Indicator

M

 (sequential mode)

Indicator

Sequential Mode Gear

Selection Indicator

Press the

 button twice.

If the gear position is in

(

D

,

press the

 button again.

D/S

D/S

uu

When Driving

u

Shifting

468

Driving

■

When opening the driver’s door

If you open the driver’s door under the following conditions, the gear position
automatically changes to

(

P

.

•

The vehicle is in stationary with the power mode in ON, or moving at 1 mph (2
km/h) or slower.

•

The transmission is in other than

(

P

.

•

You have unfastened the driver side seat belt.

u

If you manually change the gear position from

(

P

 with the brake pedal

depressed, the gear position will automatically return to

(

P

 once you release

the brake pedal.

■

When turning off the power mode

If you turn the power system off while the vehicle is stationary, and the transmission
is in other than

(

P

, the gear position automatically changes to

(

P

.

1

When opening the driver’s door

While the system is designed to automatically change
the gear position to

(

P

 under the described

conditions, in the interest of safety you should always
select

(

P

 before opening the driver’s door.

Make sure to park the vehicle in a safe place.

2

When Stopped

 P. 535

If you want to drive the vehicle after the gear position
has automatically changed to

(

P

 under the described

conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the gear
position.

If you leave the vehicle, turn off the power system
and lock the doors.

Continued

469

uu

When Driving

u

Shifting

Driving

■

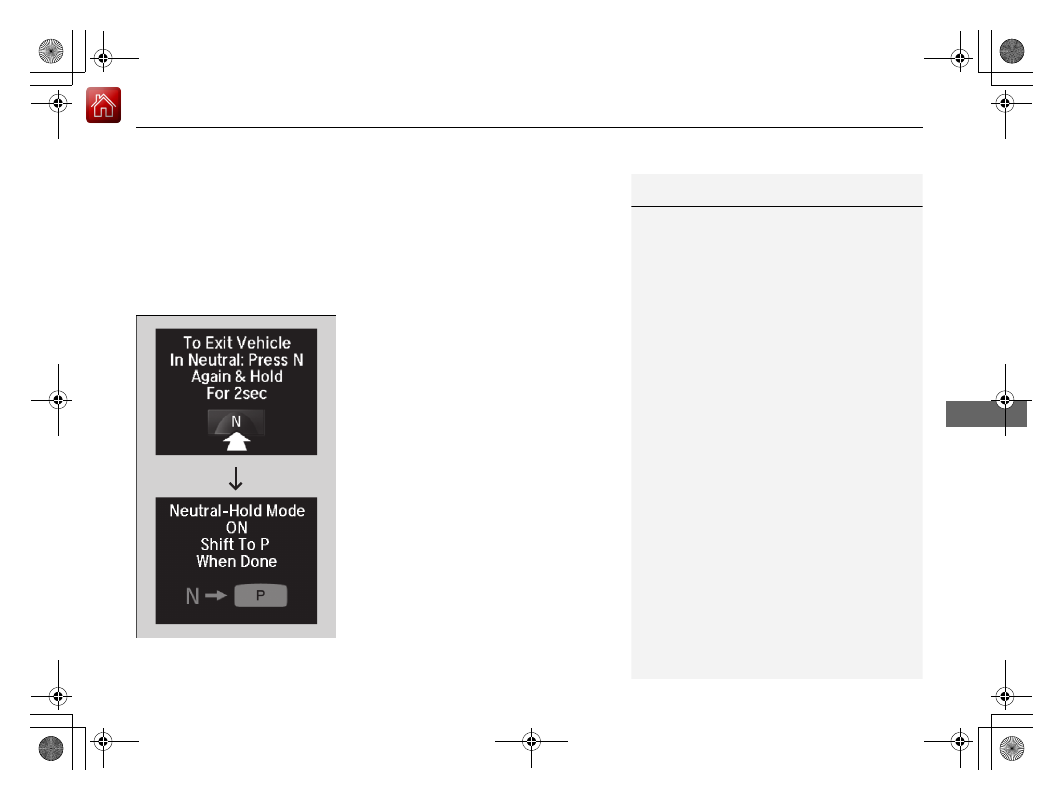

If you want to keep the transmission in

(

N

 position [car wash mode]

With the

READY

 indicator on:

1.

Press and hold the brake pedal.

2.

Select

(

N

, then release the button to display

(

N

 (Neutral) hold mode on the MID.

3.

Press and hold

(

N

 again for two seconds.

u

This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.

If the

POWER

 button is pressed after car wash

mode has been activated, the power mode
will change to ACCESSORY and a message
will be displayed on the MID.

u

The gear position remains in

(

N

 with the

power mode in ACCESSORY for 15
minutes, then, it automatically changes
to

(

P

 and the power mode changes to

OFF.

u

Manually changing to

(

P

 cancels

ACCESSORY mode. The

(

P

 indicator

comes on and the power mode changes
to OFF. You must always shift to

(

P



when car wash mode is no longer
needed.

1

If you want to keep the transmission in

(

N

 position [car wash

mode]

The transmission may not stay in

(

N

 position while

the following indicators are on or when the message
below appears:

•

Malfunction indicator lamp

•

Transmission system indicator

•

POWER SYSTEM

 indicator

•

12-Volt battery charging system indicator

•

The

Charging System Problem

 message on the

MID.

470

uu

When Driving

u

Shifting

Driving

■

Restriction on selecting a gear position

You cannot select a gear position under certain circumstances that may lead to a crash.

When the
transmission is in:

1. Under the circumstances
of that:

2. You cannot select:

3. The gear position
remains in/changes to:

How to change the
gear position

(

P

The brake pedal is not
depressed.

Other gear position

(

P

Release the accelerator
pedal and depress the
brake pedal.

The accelerator pedal is
depressed.

(

N

The vehicle is moving at low
speed without the brake pedal
depressed.

(

N

The vehicle is moving at low
speed with the accelerator
pedal depressed.

(

N

,

(

D

 or

(

S

The vehicle is moving forward.

(

R

Stop your vehicle in a
safe place, depress the
brake pedal, and select
the appropriate gear
position.

(

R

 or

(

N

The vehicle is moving backward.

(

D

,

(

S

(

R

,

(

N

,

(

D

 or

(

S

The vehicle is moving.

(

P

(

P

 or

(

N

The

READY

 indicator is not on.

A gear position other than

(

P



or

(

N

(

P

 or

(

N

Make sure that the

READY

 indicator

comes on.

Continued

471

uu

When Driving

u

Shifting

Driving

Use the paddle shifters to change between 1st and 7th gears without releasing your
hands from the steering wheel. The transmission will switch to the sequential mode.

■

When the transmission is in

(

D

:

The vehicle will go into the sequential mode momentarily, and the sequential mode
gear selection indicator will come on.
Once you start traveling at a constant speed, the sequential mode will automatically
switch off, and the sequential mode gear selection indicator will go off.

Hold the

(

+

 paddle shifter for two seconds or push the

 button to return to

normal drive.

■

When the transmission is in

(

S

The vehicle will go into the sequential mode, and the

M

 (sequential mode) indicator

and sequential mode gear selection indicator will come on.
If the vehicle speed increases and the engine speed reaches near the tachometer’s
red zone, the transmission automatically shifts up to the next gear.
You can cancel this mode by holding the

(

+

 paddle shifter for two seconds or push

the

 button. When the sequential mode is canceled, the sequential mode

indicator and sequential mode gear selection indicator will turn off.

■

Sequential Mode

1

Sequential Mode

The vehicle is engine operated when SPORT+ mode is
on.

D/S

D/S

uu

When Driving

u

Shifting

472

Driving

■

Sequential Mode Operation

1

Sequential Mode Operation

Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.

If the sequential mode gear selection indicator blinks
when you try to shift up or down, this means your
vehicle speed is not in its allowable gear range.
Slightly accelerate to shift up and decelerate to shift
down while the indicator is blinking.

The transmission is in

(

S

 and SPORT+ mode, to

prioritize the engine performance enhancement, the
transmission may not allow for shifting up while the
engine speed is low.

Downshifting when pulling

the

 paddle shifter.

(Changes to a lower gear)

Upshifting when pulling

the

 paddle shifter.

(Changes to a higher gear)

Paddle Shifter

(Shift down)

Paddle Shifter

(Shift up)

473

uu

When Driving

u

Acoustic Vehicle Alerting System

Driving

Acoustic Vehicle Alerting System

Alerts pedestrians when a vehicle is propelled solely by electricity, approaching at
speeds around 12 mph (20 km/h) or less.

474

uu

When Driving

u

Integrated Dynamics System

Driving

Integrated Dynamics System

Modifies the dynamic character of the vehicle. There are four modes to select from:

Comfort

,

Normal

,

Sport

, and

Sport+

.

Press the

Dynamic Mode

 button to select a mode. The mode you have selected appears on the MID.

You can customize the mode default setting using the MID.

2

Customized Features

 P. 131, 362

When you restart the power system with

Sport+

 mode, the mode is changed to

Sport

 automatically.

Normal

Balanced driving performance for most driving situations.

Sport

Enhances vehicle response feel through decreased steering

assist, increased SPORT HYBRID SH-AWD

®

 torque bias,

modified Active Sound Control, and a more firm Active

Damper setting.

Comfort

Maximizes driver comfort through increased steering assist

and a softer Active Damper setting.

Dynamic Mode



Button

SPORT+

 Mode

Indicator

Sport+

Adds to

Sport

 to allow for increased performance by locking

out EV mode, enhancing throttle response, and changing

the shift map.

475

uu

When Driving

u

Front Sensor Camera

Continued

Driving

Front Sensor Camera

The camera, used in systems such as LKAS, RDM, ACC with Low Speed Follow,
CMBS

TM

, and auto high-beam, is designed to detect an object that triggers any of

the systems to operate its functions.

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

■

Camera Location and Handling Tips

1

Front Sensor Camera

Never apply a film or attach any objects to the
windshield, the hood, or the front grille that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the camera’s field of vision or
installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor

Camera

uu

When Driving

u

Front Sensor Camera

476

Driving

1

Front Sensor Camera

If the

Some Driver Assist Systems Cannot

Operate: Camera Temperature Too High

 message

appears:

•

Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.

•

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the

Some Driver Assist Systems Cannot

Operate: Clean Front Windshield

 message

appears:

•

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

477

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

Adaptive Cruise Control (ACC) with Low Speed
Follow

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours and, if the detected vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with Low Speed Follow slows your vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.

1

Adaptive Cruise Control (ACC) with Low Speed Follow

Important Reminder

As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.

Be careful not to severely impact the radar sensor
cover.

3

WARNING

Improper use of ACC with Low Speed
Follow can lead to a crash.

Use ACC with Low Speed Follow only when
driving on expressways or freeways and in
good weather conditions.

3

WARNING

ACC with Low Speed Follow has limited
braking capability and may not stop your
vehicle in time to avoid a collision with a
vehicle that quickly stops in front of you.

Always be prepared to apply the brake
pedal if the conditions require.

When to use

■

Vehicle speed for ACC with Low Speed Follow:

A vehicle is detected ahead

within ACC with Low Speed Follow range

 – ACC with Low Speed Follow

operates at speeds up to 90 mph (145 km/h).

No vehicle is detected within ACC with Low Speed Follow range

 – ACC with

Low Speed Follow operates at the speed of about 25 mph (40 km/h) or above.

■

Gear position for ACC with Low Speed Follow: In

(

D

 or

(

S

.

The radar sensor is

behind the emblem.

The camera is

located behind the

rearview mirror.

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow

478

Driving

■

How to activate the system

1

Adaptive Cruise Control (ACC) with Low Speed Follow

When the

MAIN

 button is pressed, both ACC with

Low Speed Follow and the Lane Keeping Assist
System (LKAS) are either turned on or off.

ACC with Low Speed Follow may not work properly
under certain conditions.

2

ACC with Low Speed Follow Conditions
and Limitations

 P. 484

When not using ACC with Low Speed Follow: Turn
off adaptive cruise by pressing the

MAIN

 button. This

also will turn off the Lane Keeping Assist System
(LKAS).

Do not use ACC with Low Speed Follow under the
following conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with Low Speed Follow will not apply
the brakes to maintain the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

■

Press the

MAIN

 button on

the steering wheel.

ACC

 (green) is on in the

instrument panel.
ACC with Low Speed

Follow is ready to use.

How to use

479

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

When driving at about 25 mph (40 km/h) or above:

Take your foot off the

pedal and press down the

RES/+

/

SET/–

 switch when you reach the desired speed.

The moment you release the switch, the set speed is fixed, and ACC with Low Speed
Follow begins.

When driving at slower than about 25 mph (40 km/h):

If the vehicle is moving

and the brake pedal is not depressed, pressing the switch fixes the set speed to
about 25 mph (40 km/h) regardless of current vehicle speed. If your vehicle is
stationary, you can set the vehicle speed even with the brake pedal depressed.

■

To Set the Vehicle Speed

On when ACC with Low

Speed Follow begins

Press down and release

RES/+

/

SET/−

 Switch

480

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

When ACC with Low Speed Follow starts
operating, the vehicle icon, interval bars and
set speed appear on the MID.

Set Vehicle Speed

Set Vehicle Interval
