Jump Starting

u

Han

d

lin
g the U

n

expected

5.

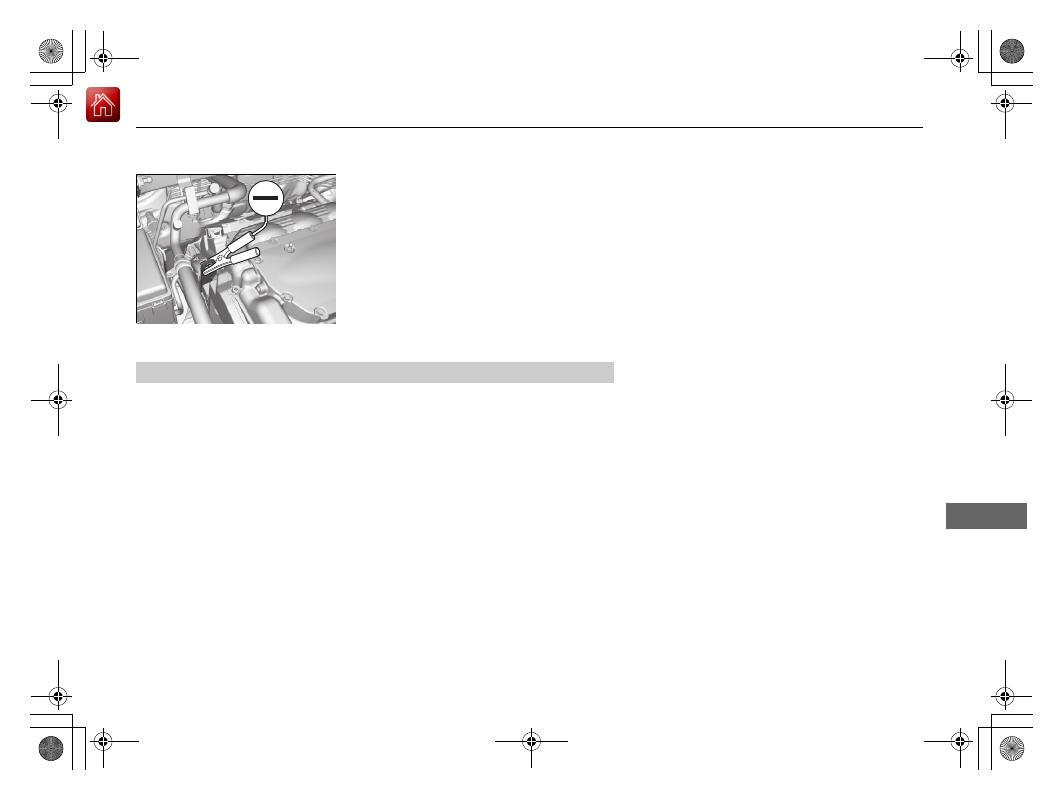

Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.

6.

If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

7.

Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1.

Disconnect the jumper cable from your vehicle’s ground.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle’s battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

654

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge needle is at the

 mark or the engine suddenly loses

power.

•

The

Stop Driving When Safe. Engine Temperature Too Hot

 message appears

on the multi-information display (MID).

•

Steam or spray comes out of the engine compartment.

■

First thing to do

1.

Immediately park the vehicle in a safe place.

2.

Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present:

Keep the engine running and open the hood.

u

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the

 mark may damage the engine.

Continuing to drive with the

Stop Driving When

Safe. Engine Temperature Too Hot

 message on

the multi-information display may damage the
engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

655

uu

Overheating

u

How to Handle Overheating

Han

d

lin
g the U

n

expected

■

Next thing to do

1.

Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

 mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

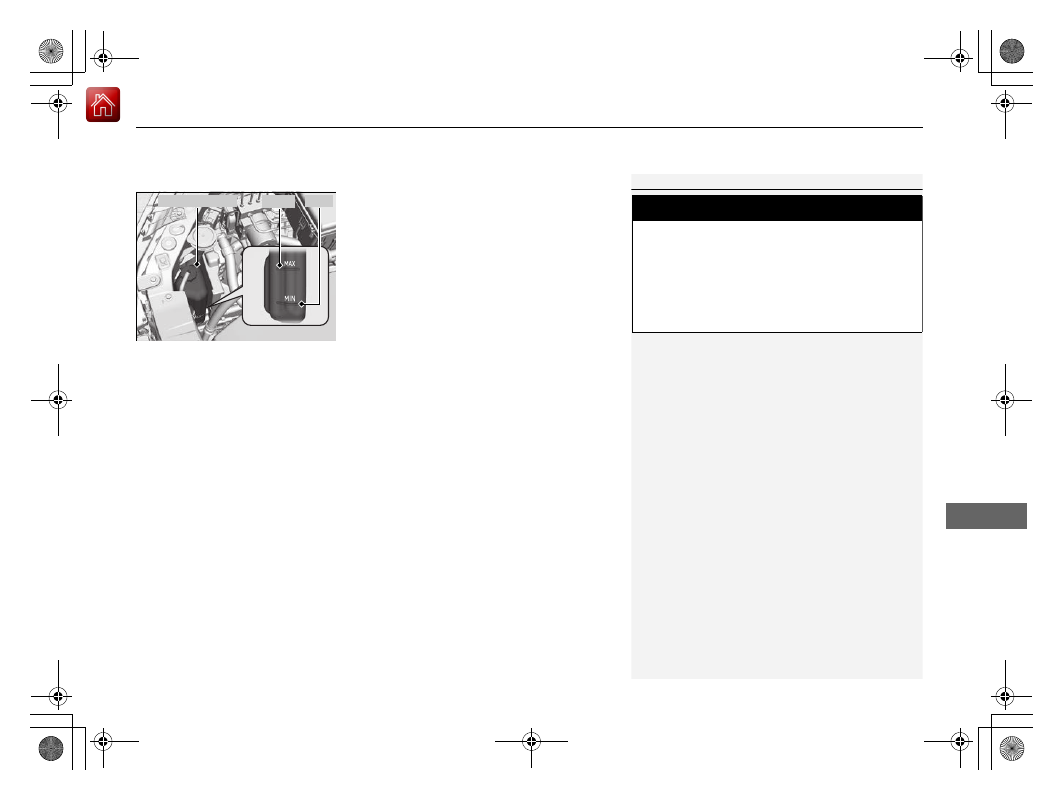

Reserve Tank

MAX

MIN

656

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the engine oil pressure is low.

■

What to do as soon as the indicator comes on

1.

Immediately park the vehicle on level ground in a safe place.

2.

If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1.

Stop the engine and let it sit for approximately three minutes.

2.

Open the hood and check the oil level.

2

Oil Check

 P. 585

3.

Start the engine and check the low oil pressure indicator.

u

The indicator goes off: Start driving again.

u

The indicator does not go off within 10 seconds: Immediately stop
the engine and contact a dealer for repairs.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

1

If the Low Oil Pressure Indicator Comes On

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

657

uu

Indicator, Coming On/Blinking

u

If the Malfunction Indicator Lamp Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

658

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On

■

Reasons for the indicator to come on

•

Comes on when there is a problem with the EPS system.

•

If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

1

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator and

ABS

 indicator come

on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

U.S.

Canada

659

uu

Indicator, Coming On/Blinking

u

If the Electric Parking Brake System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Parking Brake System Indicator Comes
On

■

Reasons for the indicator to come on

Comes on when there is a problem with the electric parking brake
system.

■

What to do when the indicator comes on

Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.

■

What to do when the electric parking brake indicator comes on
or blinks at the same time

Release the parking brake.

2

Parking Brake

 P. 529

•

If the electric parking brake indicator remains on or blinks even after
releasing the parking brake, immediately stop the vehicle in a safe
place, and call a dealer.

u

To prevent your vehicle from moving, put the transmission into

(

P

.

•

If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at a dealer.

1

If the Electric Parking Brake System Indicator Comes On

If you apply the parking brake, it may not release.

If the electric parking brake indicator also turns on,
the parking brake is still applied.

When the electric parking brake indicator blinks at
the same time as the electric parking brake system
indicator, the system must be checked. The parking
brake may not operate under these conditions.

660

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire

*

 is installed, the indicator

blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire causes the indicator to come on, change the
tire to a full-size tire.

■

What to do when the indicator blinks

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 causes the indicator to first blink, and then stays on, change

the tire to a full-size tire. The indicator goes off after driving for a few
miles (kilometers).

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

TPMS with Tire Fill Assist provides visual and audible
assistance during tire pressure adjustment. With the
power mode in ON, while you adjust tire pressure up
or down, the system alerts you as follows:

Below recommended pressure:

The beeper

sounds and exterior lights flash once every five
seconds.

At recommended pressure:

The beeper sounds

and exterior lights flash rapidly for three seconds with
five seconds intervals.

Above recommended pressure:

The beeper

sounds and lights flash twice every two seconds.

* Not available on all models

661

uu

Indicator, Coming On/Blinking

u

If the Transmission System Indicator Blinks along with the Warning Message

Han

d

lin
g the U

n

expected

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

There is a problem with the transmission system.

■

What to do when the indicator blinks

•

Immediately have your vehicle inspected by a dealer.

•

Select

(

N

 after starting the engine.

u

Check if the

(

N

 position in the instrument panel and the indicator

on the

(

N

 button light/blink.

u

The engine cannot be turned on unless the parking brake is set.

2

Starting the Engine

 P. 464

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to start the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2

Emergency Towing

 P. 670

662

Han

d

lin
g the U

n

expected

Fuses

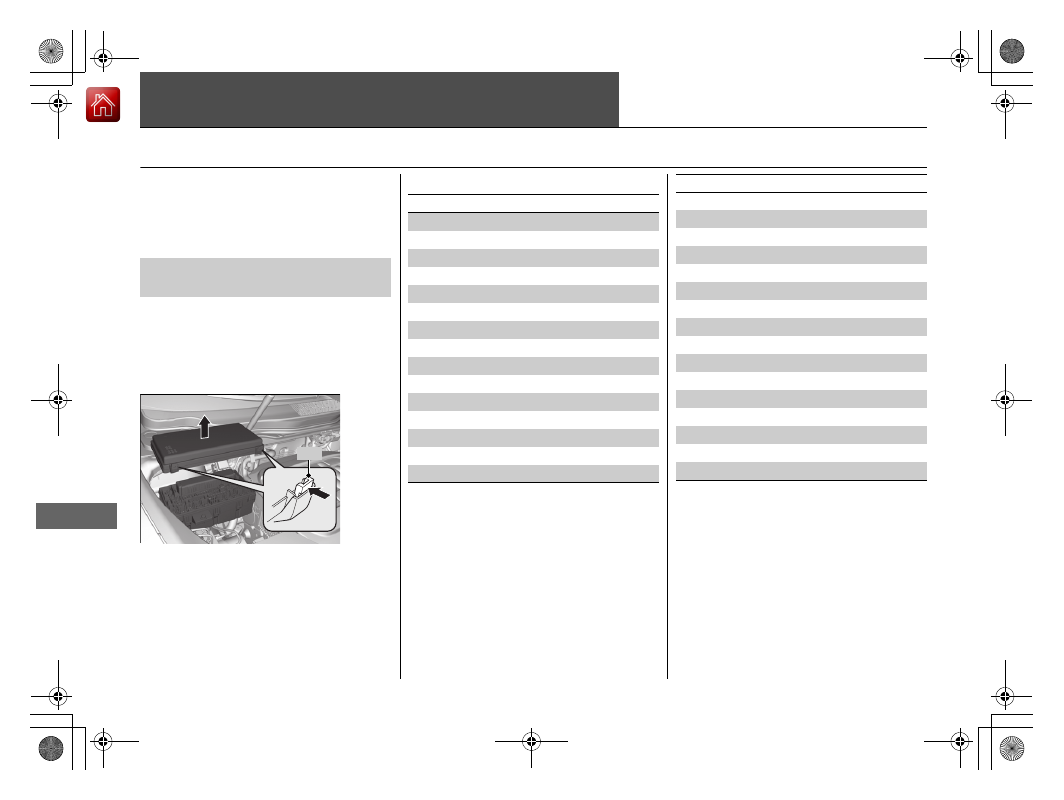

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse

Box Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

STRLD

7.5 A

2

−

−

3

ACG FR

15 A

4

Washer

15 A

5

IG1 OP

(7.5 A)

6

ECU FR

7.5 A

7

Starter

7.5 A

8

FI  Sub

15 A

9

DBW

15 A

10

FI Main

15 A

11

IG Coil

15 A

12

DRL R

10 A

13

DRL L

10 A

14

Injector

20 A

15

−

−

16

Back Up

10 A

17

MG Clutch

(7.5 A)

18

FR Fog

*

(7.5 A)

19

−

−

20

H/L HI R

7.5 A

21

−

−

22

Small

10 A

23

−

−

24

H/L HI L

7.5 A

25

SBW

15 A

26

H/L LO R

10 A

27

H/L LO L

10 A

28

Oil LVL

7.5 A

29

Main Fan

30 A

30

Sub Fan

30 A

31

Wiper Main

30 A

Circuit Protected

Amps

* Not available on all models

663

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

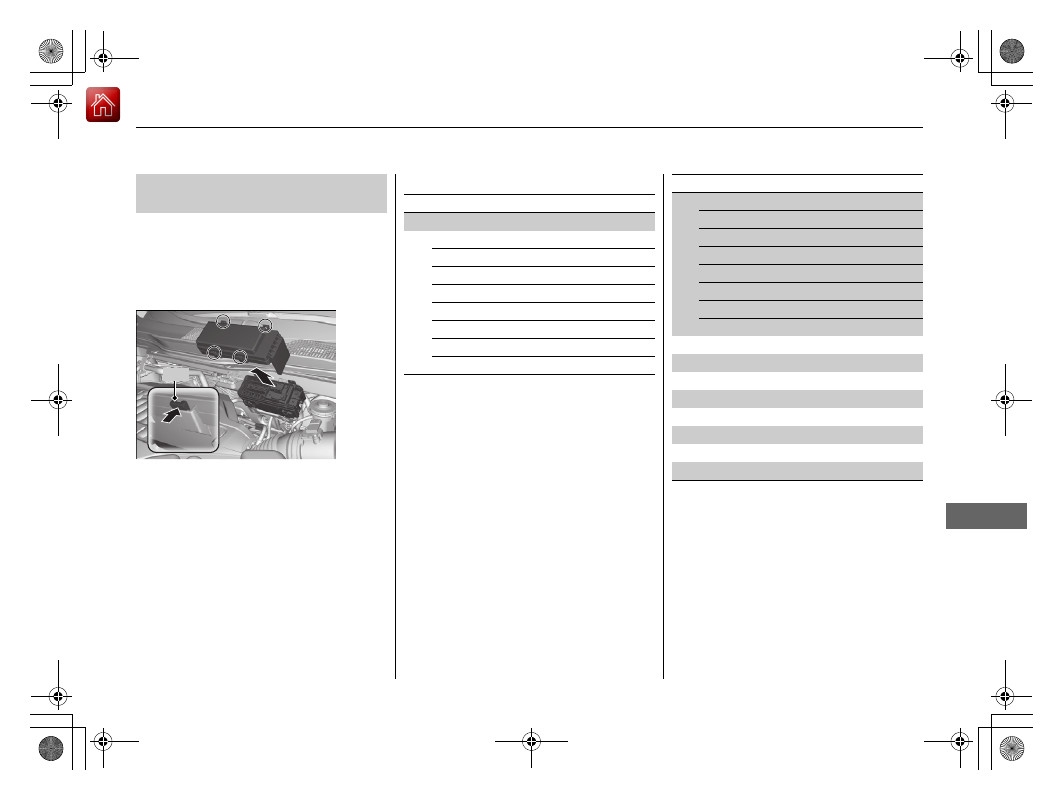

Located near the battery. Push the tabs to
open the box.

■

Engine Compartment Fuse

Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

Main Fuse

150 A

2

VSA MTR

40 A

VSA FSR

20 A

Hazard

30 A

RR BLOWER&BMS

30 A

DC/DC 3

60 A

RR F/B-2

60 A

AS F/B-2

60 A

EPS

60 A

3

H/L Washer

*

(30 A)

IG1B Main

30 A

R/B Main

60 A

DR F/B-1

50 A

AS F/B-1

50 A

RR F/B-1

60 A

IG1A Main

30 A

DR F/B-2

50 A

4

FI Main

40 A

5

FR Blower

40 A

6

RR  DEF

40 A

7

IG1 Main ST

30 A

8

−

−

9

Hazard

10 A

10

BMS

7.5 A

11

−

−

Circuit Protected

Amps

* Not available on all models

664

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

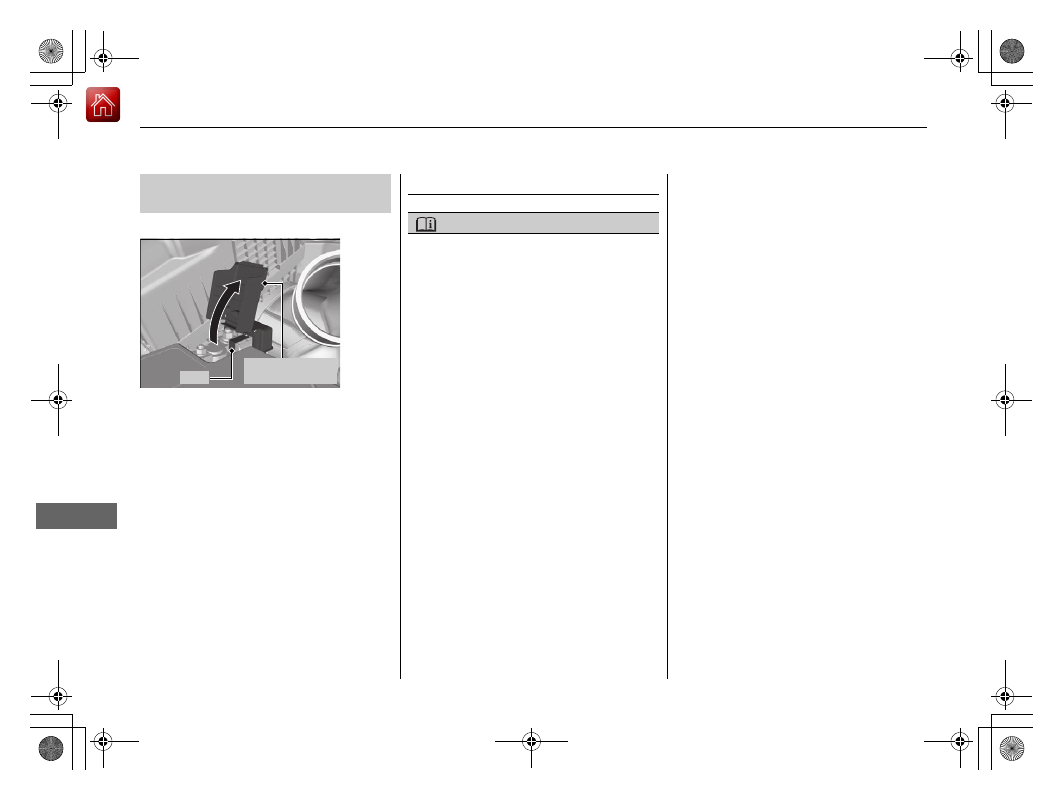

Located near the

+

 terminal on the battery.

Pull up the cover.
Replacement of this fuse should be done by
a dealer.

Fuse location is shown on the back of the
positive battery terminal cover.

■

Engine Compartment Fuse

Box Type C

Fuse

Positive Battery
Terminal Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

Fan Main

60 A

665

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

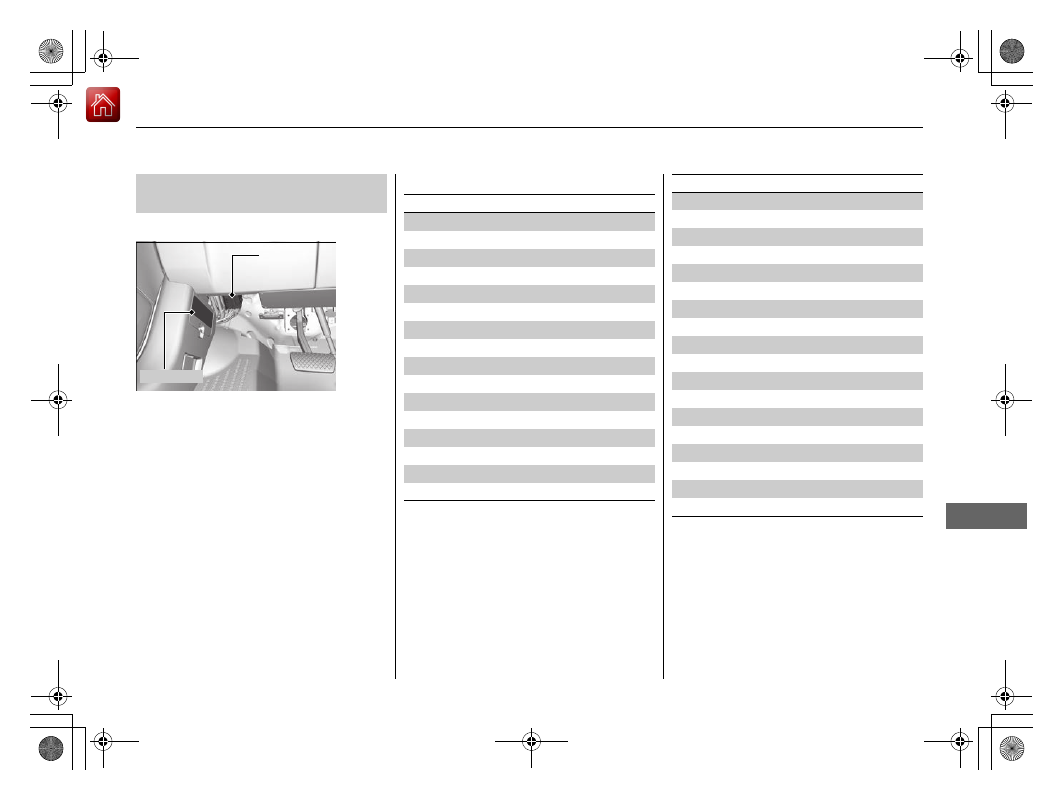

Located under the dashboard.

Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box

Type A

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

AS Door Lock

10 A

2

RR DR Door Lock

7.5 A

3

DR Door Lock

7.5 A

4

FR AS Door Unlock

10 A

5

RR DR Door Unlock

7.5 A

6

DR Door Unlock

(7.5 A)

7

D/L Main

20 A

8

−

−

9

ETS TELE

20 A

10

IG1 RR

15 A

11

Shifter

7.5 A

12

IG1 FR

20 A

13

ACC

7.5 A

14

−

−

15

DR P/Seat (SLI)

20 A

16

S/R

20 A

17

RR DR P/W

20 A

18

Smart

10 A

19

FR DR P/W

20 A

20

−

−

21

Fuel Pump

20 A

22

IG1 AS

15 A

23

Smart

7.5 A

24

ACG AS

7.5 A

25

−

−

26

IG2 HAC

7.5 A

27

DRL

7.5 A

28

ACC Key Lock

7.5 A

29

DR P/Seat (LUM)

7.5 A

30

INT Lights

7.5 A

31

ETS TILT

20 A

32

DR P/Seat (REC)

20 A

33

−

−

34

−

−

Circuit Protected

Amps

666

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

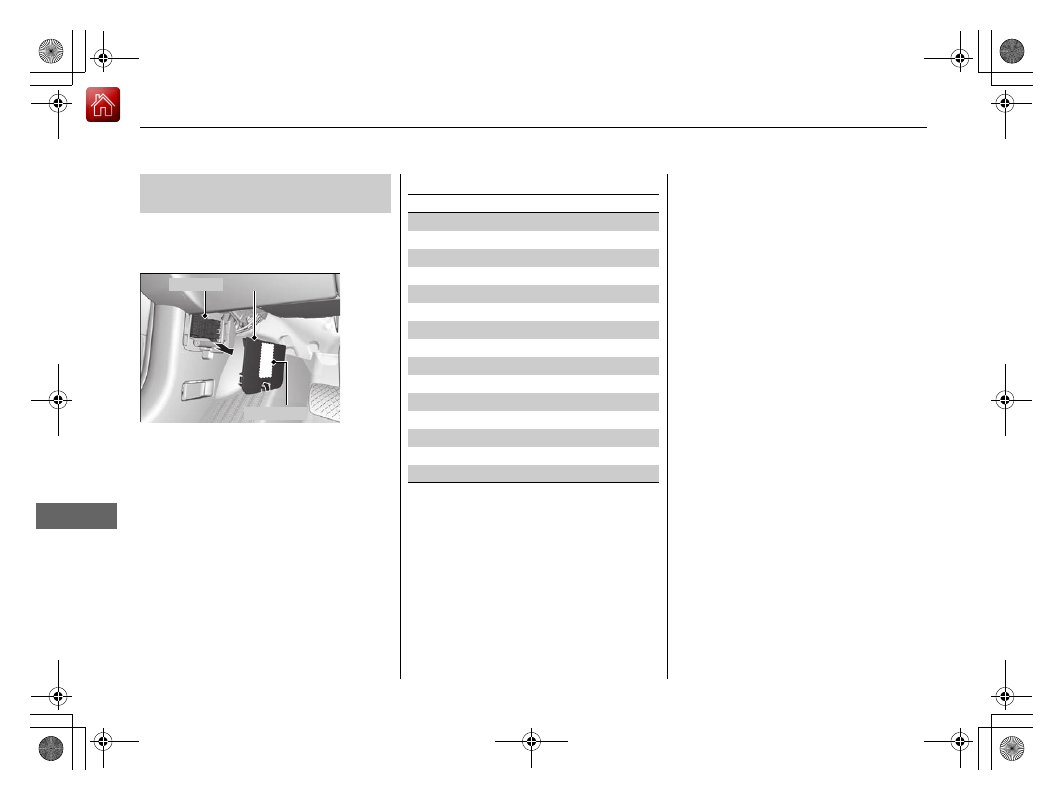

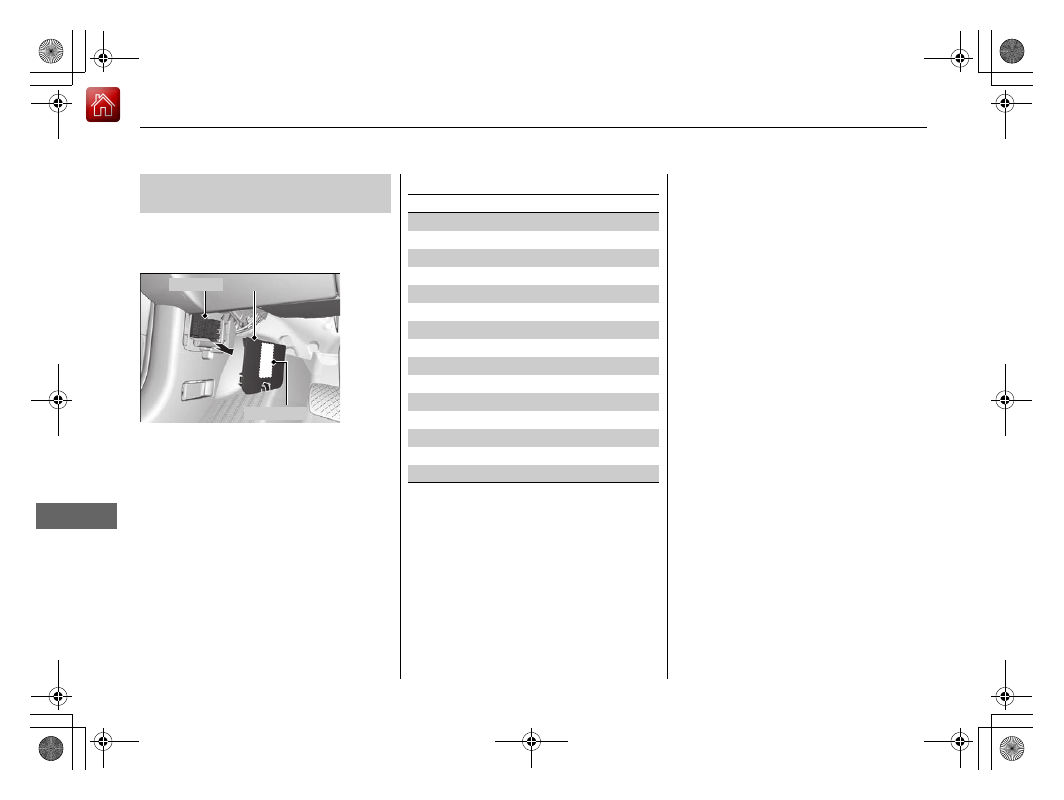

Located under the type A driver’s side
interior fuse box. Take off the cover to
open.

Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box

Type B

Fuse Box

Side Panel Cover

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

VST 1

30 A

2

Horn

10 A

3

VST 2

30 A

4

−

−

5

−

−

6

−

−

7

−

−

8

−

−

9

Meter

10 A

10

RES/CP/AA

*

10 A

11

MICU

7.5 A

12

EPS/VSA

7.5 A

13

Audio/TCU

7.5 A

14

Back Up

10 A

15

Audio/ANC

20 A

* Not available on all models

667

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

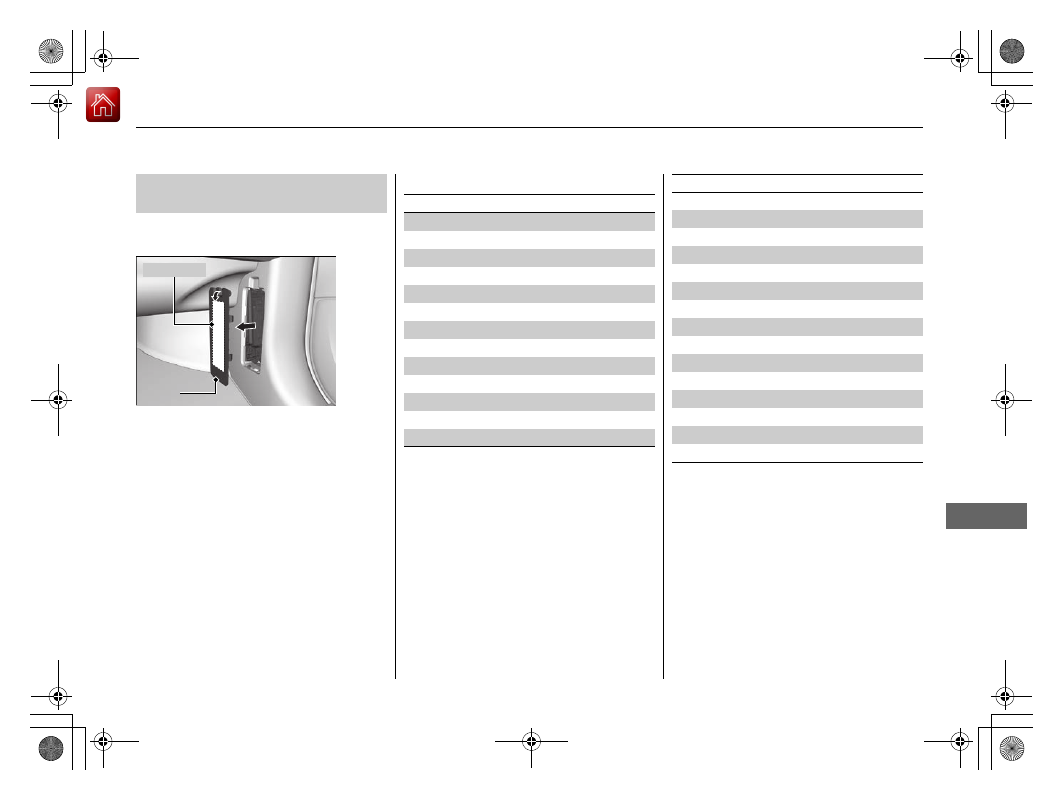

Located on the lower side panel. Take off
the cover to open.

Fuse locations are shown on the cover.

■

Passenger’s Side Interior Fuse

Box

Cover

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

EPTR

*

(30 A)

2

RR AS P/W

20 A

3

ACM

20 A

4

FR DEF

*

(15 A)

5

AVS Heated Seat

20 A

6

FR AS P/W

20 A

7

AS P/Seat (SLI)

20 A

8

AS P/Seat (REC)

20 A

9

AS P/Seat (LUM)

(7.5 A)

10

Spare

5 A

11

Heated Steering

*

(10 A)

12

−

−

13

−

−

14

RR ACC Socket

20 A

15

FR ACC Socket

20 A

16

−

−

17

−

−

18

AMP

30 A

19

SRS

10 A

20

AS ECU

7.5 A

21

Option

7.5 A

22

−

−

23

−

−

24

OPDS

7.5 A

25

ILLUMI (INT)

5 A

26

EPTL

*

(30 A)

27

CTR ACC Socket

20 A

28

AC INVTR

*

(30 A)

Circuit Protected

Amps

* Not available on all models

668

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

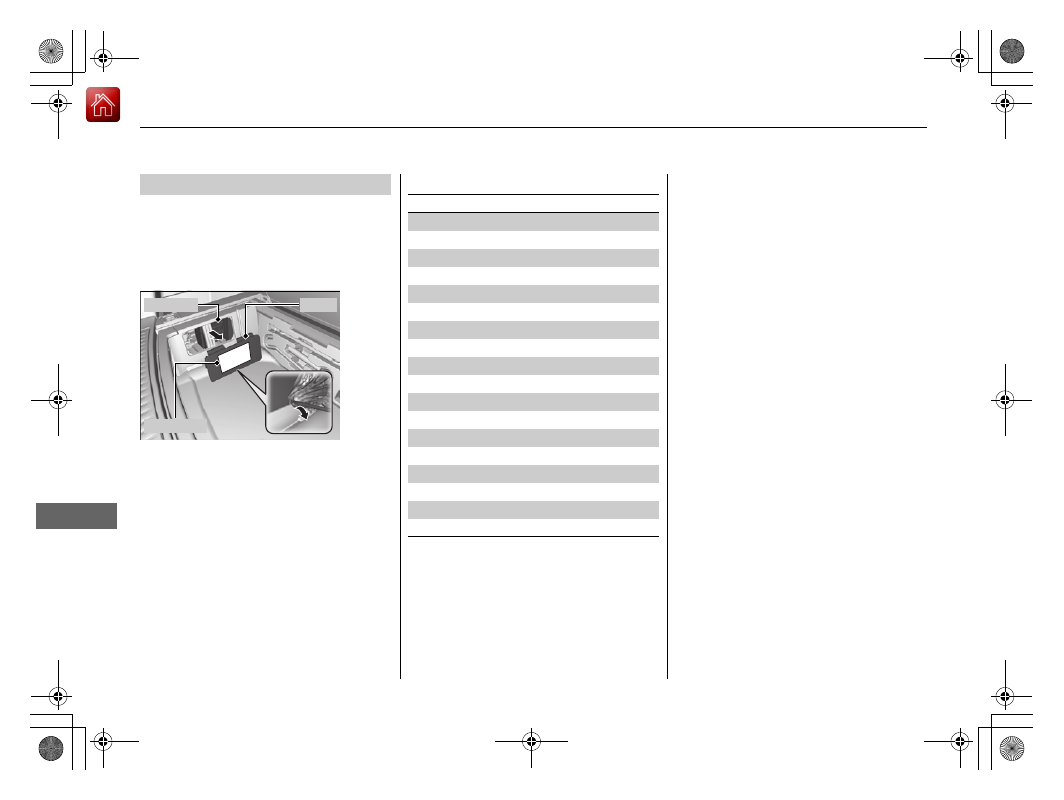

Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.

u

Wrap the flat-tip screwdriver with a
cloth to prevent scratches.

Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.

■

Rear Fuse Box

Fuse Label

Fuse Box

Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

PTG Closer

20 A

2

−

−

3

USB CHARGE

15 A

4

Fuel Lid

7.5 A

5

Seat Slide

20 A

6

−

−

7

RR Heat Seat

*

(20 A)

8

−

−

9

−

−

10

−

−

11

−

−

12

Rear Wiper

10 A

13

Rear ECU

7.5 A

14

SH-AWD

*

(20 A)

15

EPB-R

30 A

16

EPB-L

30 A

17

−

−

18

PTG MTR

40 A

* Not available on all models
