Driving

Multi-View Rear Camera

*

About Your Multi-View Rear Camera

The information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

R

.

■

Multi-View Rear Camera Display Area

1

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the

Fixed Guideline

 and

Dynamic

Guideline

 settings.

2

Customized Features

 P. 358

Fixed Guideline
On:

Guidelines appear when you put the

transmission into

(

R

.

Off:

Guidelines do not appear.

Dynamic Guideline
On:

Guidelines move according to the steering wheel

direction.

Off:

Guidelines do not move.

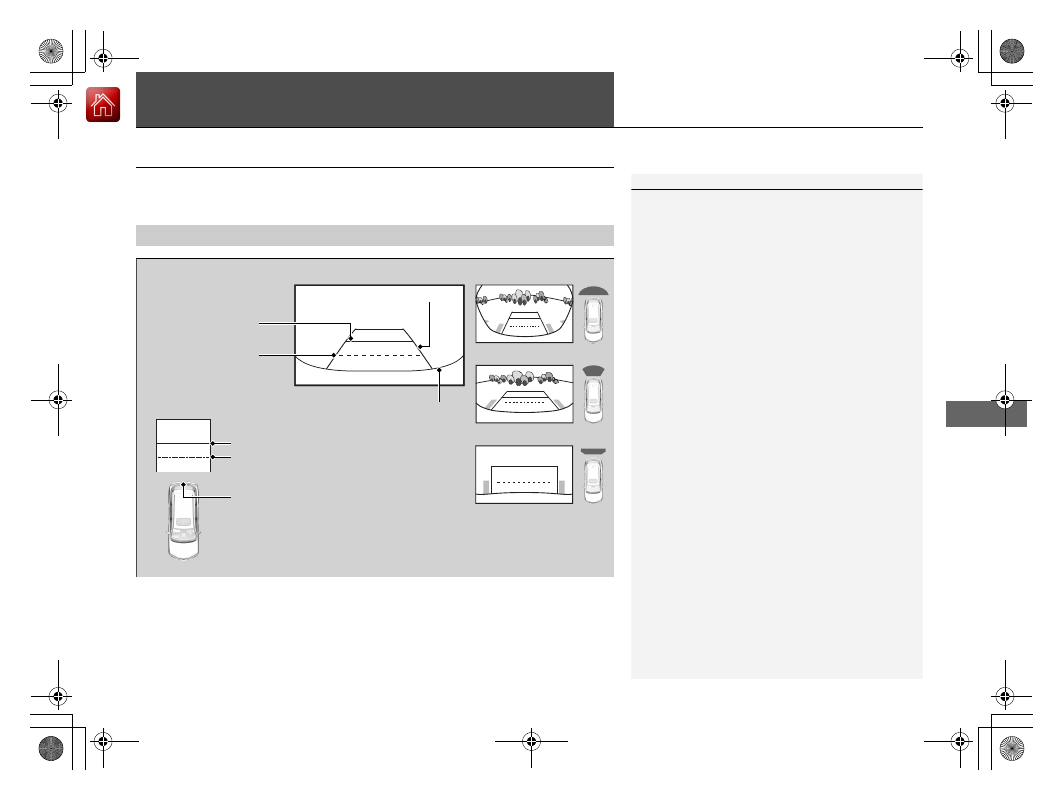

Guidelines

Bumper

Camera

Approx. 20 inches (50 cm)
Tailgate Open Range

Approx. 39 inches (1 m)

Wide View Mode

Normal View Mode

Top Down View Mode

Approx. 39 inches
(1 m)

Approx. 20 inches
(50 cm)
Tailgate Open Range

* Not available on all models

558

uu

Multi-View Rear Camera

*

u

About Your Multi-View Rear Camera

Driving

You can view three different camera modes on the rearview display. Press the
selector knob to switch the mode.

: Wide view mode
: Normal view mode
: Top down view mode

•

If the last used viewing mode was Wide or Normal view mode, the same mode is
selected the next time you put the transmission into

(

R

.

•

If Top down view mode was last used before you turned the power mode to OFF,
Wide View mode is selected next time you set the power mode to ON and put the
transmission into

(

R

.

•

If Top down view mode was last used more than 10 seconds after you change
from

(

R

, Wide View mode is selected the next time you put the transmission into

(

R

.

559

Driving

Surround View Camera System

*

Is a four camera system that views areas commonly known as “blind spots” from
different angles, then displays the images on the information screen. This system
can be used to:

•

Check the right and left sides of the vehicle while crossing at intersections with
poor visibility (fog, heavy rain, obstructed view, etc.).

2

Checking from the front wide view at intersections

 P. 567

•

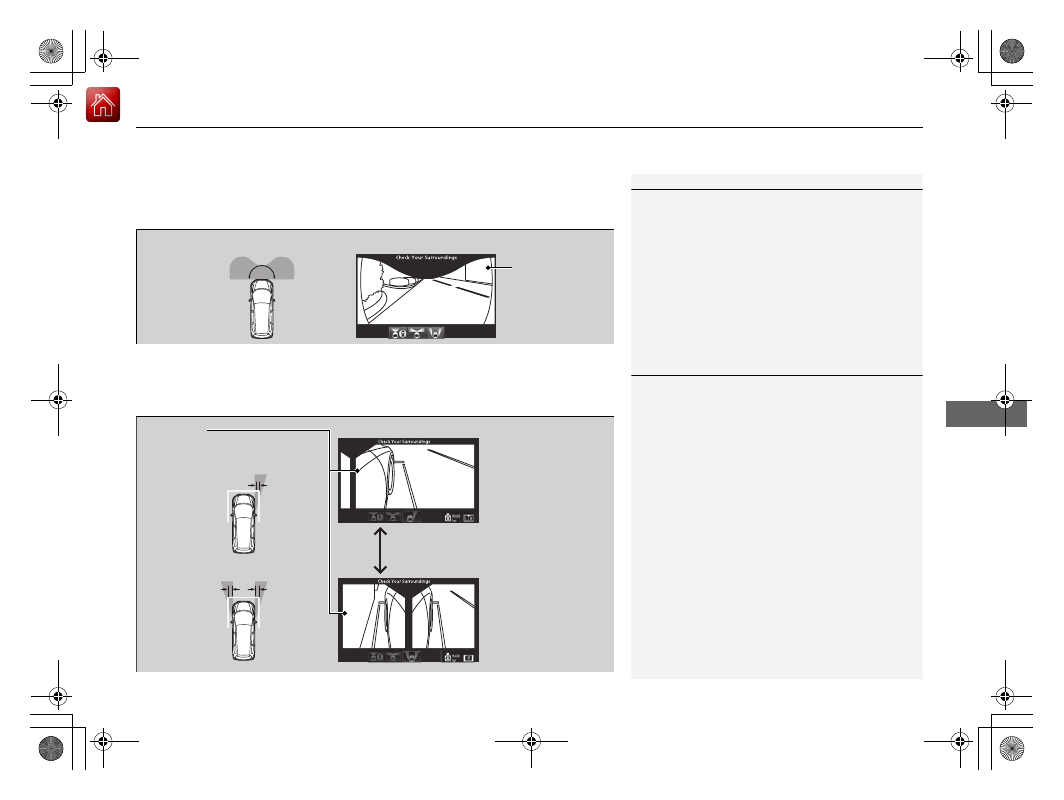

Check for obstacles in front of the vehicle when parking or maneuvering in
confined areas.

2

Checking the sides of your vehicle

 P. 567

•

Check for obstacles when you are moving in

(

R

.

2

Checking for Obstacles at the Back of Your Vehicle

 P. 563

•

Assist you when backing into or parallel parking the vehicle in a lined parking
space.

2

Reversing into a Parking Space Marked with Parking Lines

 P. 564

2

Parallel Parking into a Parking Space Marked with Parking Lines

 P. 565

1

Surround View Camera System

*

3

WARNING

Failure to visually assess the area around
the vehicle (directly or by use of the
mirrors) may result in a crash causing
serious injury or death.

The areas shown in the surround view
camera system display are limited. The
display may not show all pedestrians or
other objects around your vehicle.

Do not solely rely only on the surround
view camera system display to assess
whether it is safe to move your vehicle.

3

WARNING

Failure to pay proper attention to your
surroundings while driving may result in a
crash causing serious injury or death.

To help mitigate the chances of a collision,
only look at the surround view camera
system display when it is safe to do so.

* Not available on all models

560

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

Driving

Displaying an Image From the Surround View
Cameras

■

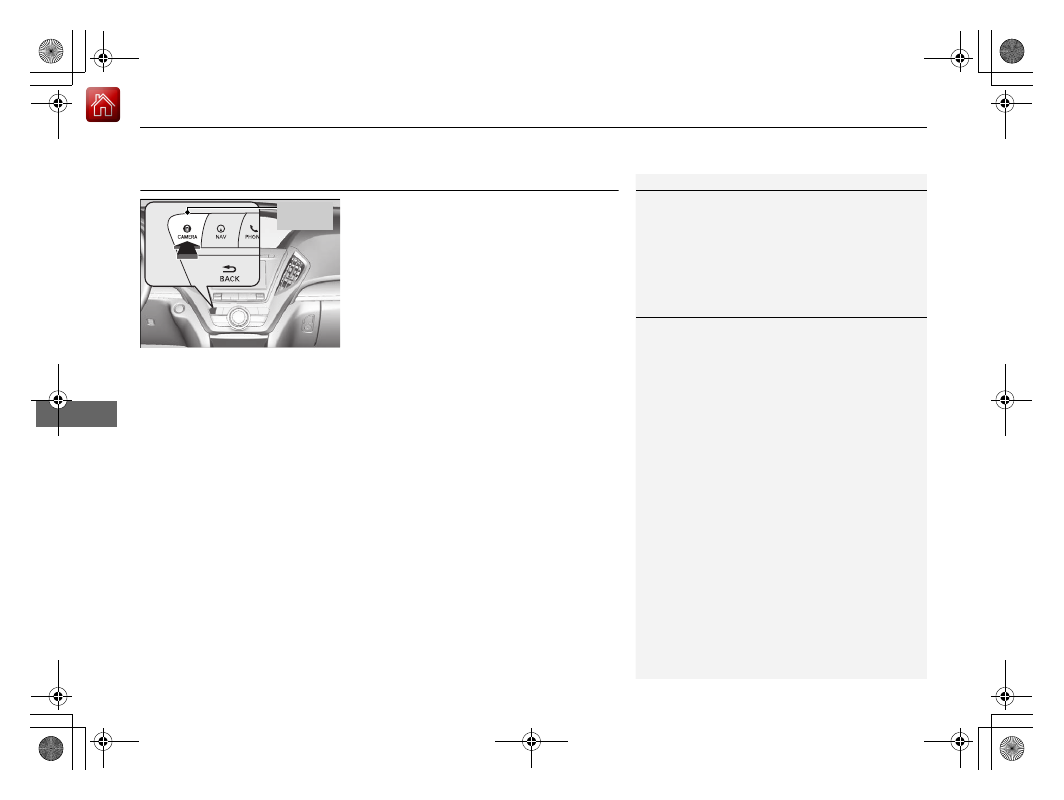

For frontal views:

Press the

CAMERA

 button when the vehicle is

stationary or moving at 7 mph (12 km/h) or
slower. Press the button again to switch
camera views.

■

For rear reviews:

Change the gear position to

(

R

 when the

vehicle is stationary. Press the

CAMERA

button to switch to rear view mode.

You can customize the display setting.

2

Customized Features

 P. 358

1

Surround View Camera System

*

The surround view camera system does not eliminate
all blind spots. The system is for your convenience
only.

Always keep the camera lenses clean and free from
debris.

1

Displaying an Image From the Surround View Cameras

The navigation system is disabled when the gear
position is in

(

R

.

Operating the navigation system while the surround
view camera system screen is displayed cancels the
surround view camera system screen and starts up
the navigation system screen.

If you press the

CAMERA

 button while the vehicle

speed is more than 9 mph (15 km/h), the standby
screen appears.
When

Show Camera When Decelerating

 is on,

and the vehicle speed is reduced below 7 mph (12
km/h), the screen switches to a surround view camera
system image.

2

Customized Features

 P. 358

CAMERA



Button

* Not available on all models

561

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

Continued

Driving

■

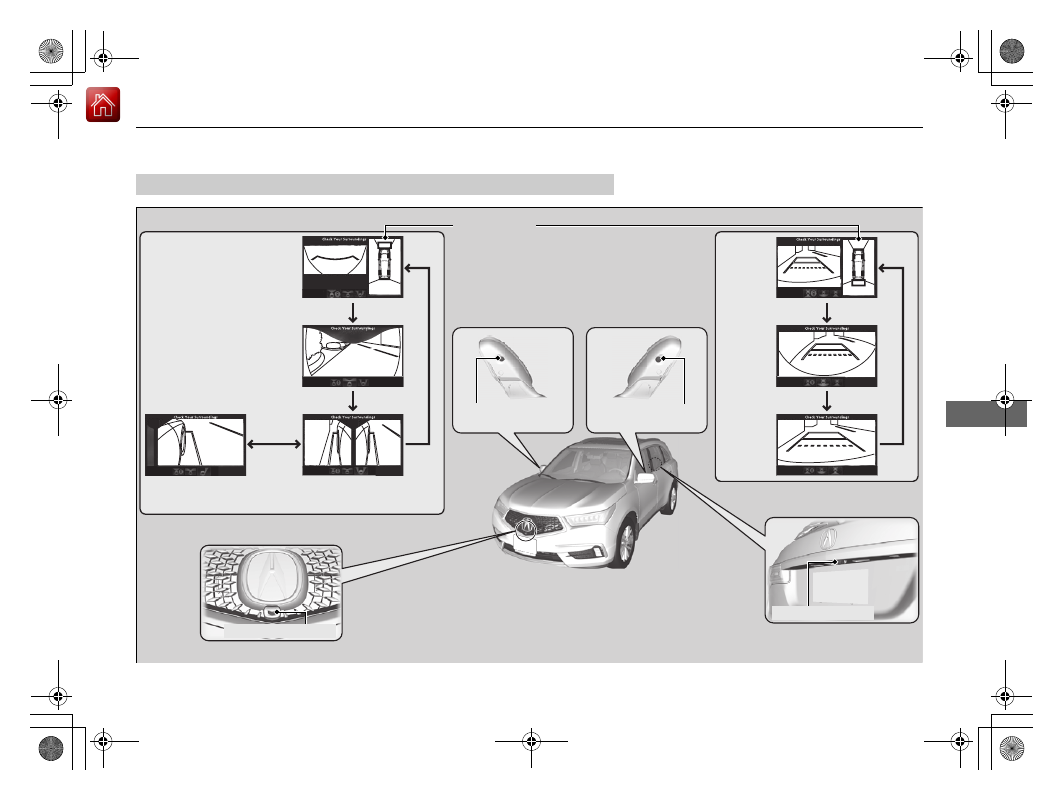

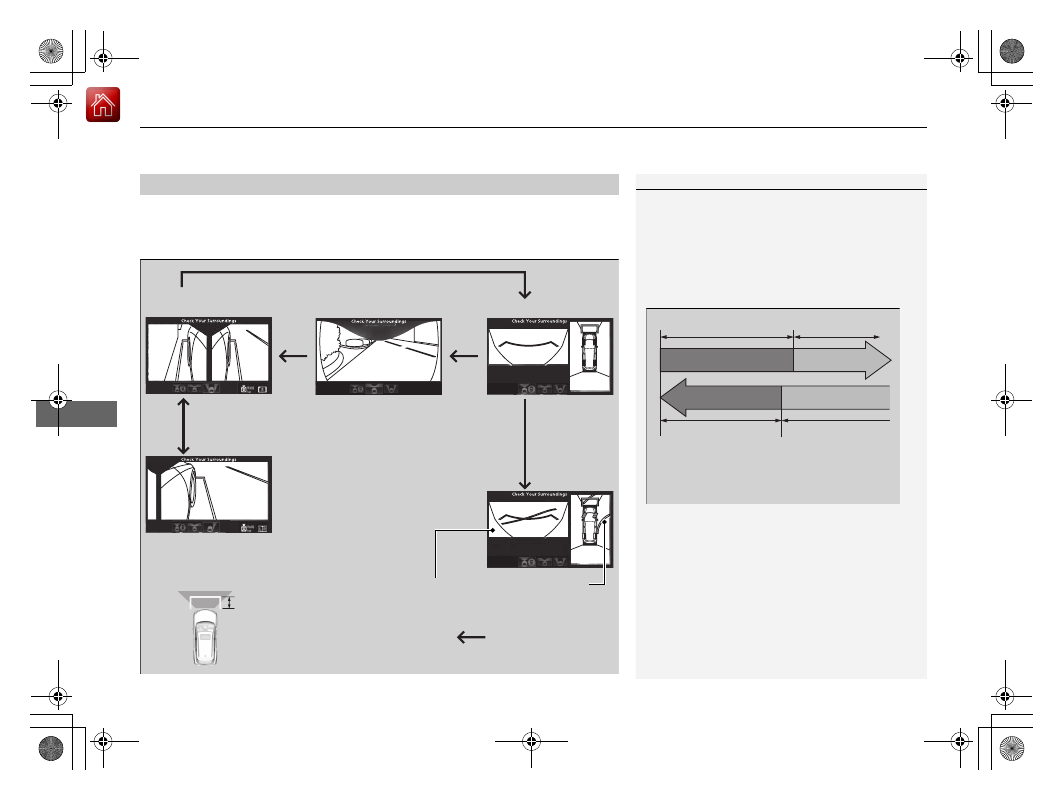

Camera Locations and Images

Ground View
An overhead view created by the
combination of images captured
by four cameras.

Left and Right
Side View

Front Ground View

Right Side View

Front Wide View

Sideview Camera
(Passenger side)

Sideview Camera
(Driver side)

The unique surround view camera lenses make distances appear
differently than they actually are - objects seen on the information screen
may appear closer or further away, and may be distorted. This becomes
more apparent the further away an object is from your vehicle.

CAMERA



Button

Rear
Ground
View

Rear
Wide
View

Rear
Normal
View

CAMERA

 Button

CAMERA

 Button

CAMERA

 Button

Press and
hold

CAMERA



button.

CAMERA



Button

CAMERA

 Button

Rearview Camera

Front-view Camera

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

562

Driving

The following can be displayed when the system is on.

Guide lines

: Help you to get a sense of a distance between your vehicle and the

rear surroundings. The distance may appear differently than the actual distance.

Projection lines

: Indicate vehicle direction while the steering wheel is in the current

position.

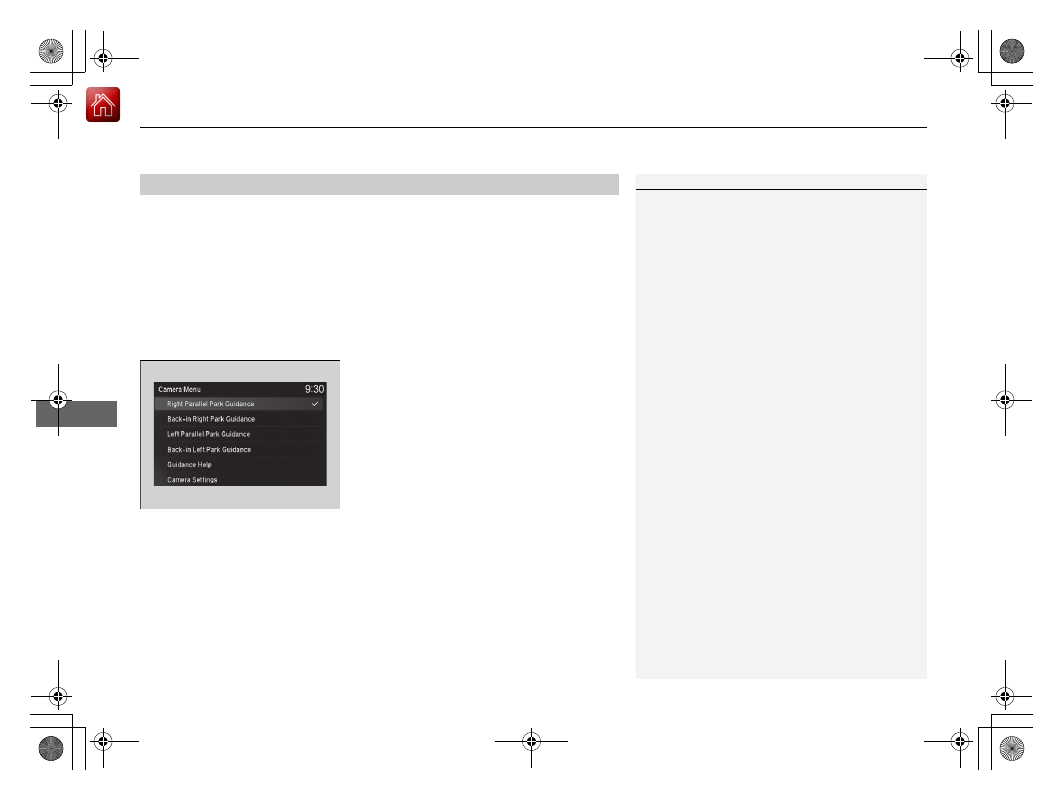

Depending on your parking situation, you can select

Back-in Left Park Guidance

,

Back-in Right Park Guidance

,

Left Parallel Park Guidance

, or

Right Parallel

Park Guidance

 from

Camera Menu

 to display:

Initial position guide

: Marks the point

where your vehicle is headed when reversing.

Steering position alignment guide

:

Indicates when to change the steering wheel
position.

■

Reference Lines and Guides

1

Reference Lines and Guides

The positions/distances indicated by the guide lines
and camera views on the display may differ from the
actual positions/distances due to the changes in the
vehicle height, road conditions, and other factors.
The guide lines should be used as a reference only.

The guide lines can be turned on and off using the
information screen.

2

Customized Features

 P. 358

If you turn the guide lines off, they remain off until
you turn them back on.

563

uu

Surround View Camera System

*

u

Using the Surround View Camera System

Continued

Driving

Using the Surround View Camera System

■

Checking for Obstacles at the Back of Your Vehicle

The display automatically changes to the rear view when the gear position is
changed to

(

R

.

■

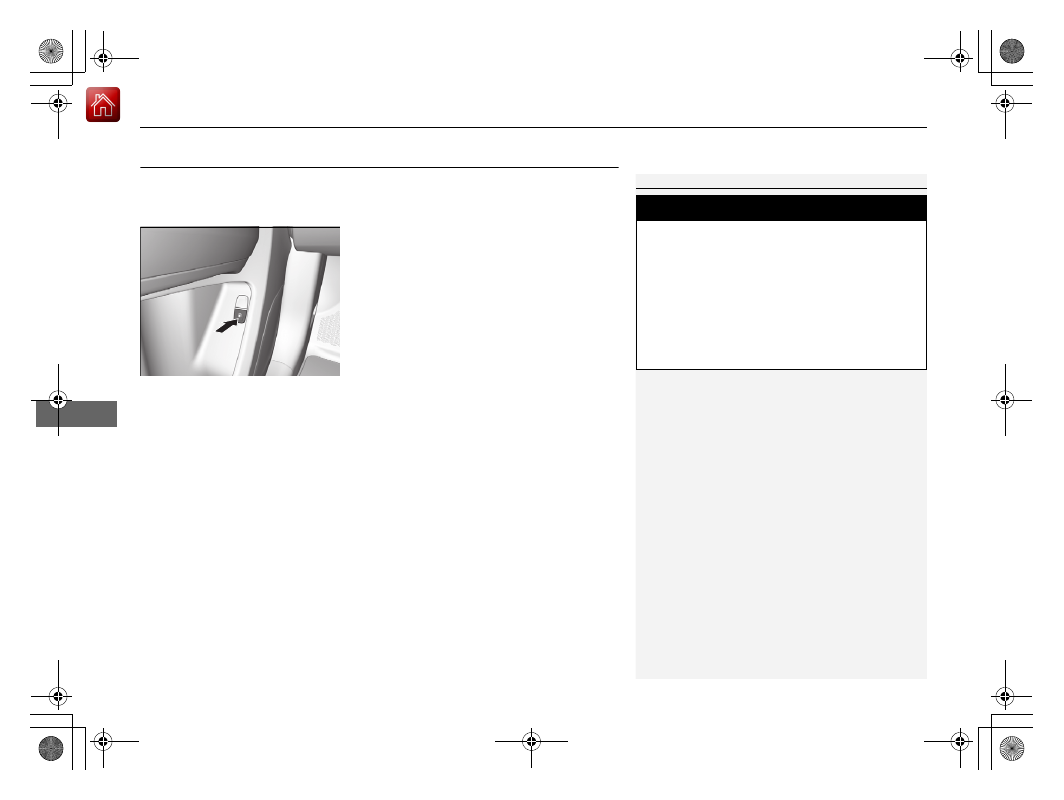

When Parking Your Vehicle

1

When Parking Your Vehicle

The ground view can be displayed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.

Folded

Not folded

1

Checking for Obstacles at the Back of Your Vehicle

When changing the gear position from/to

(

R

, you

may experience a delay in switching between the
information screen and a rear view image.

Rear Wide View

Rear Normal View

Rear Ground View

When the
steering wheel
is turned more
than 90
degrees.

The projection lines
appear approx. 16
inches (40 cm) outside
the vehicle body.

Blind spots
appear in
black.

Press the

CAMERA



button.

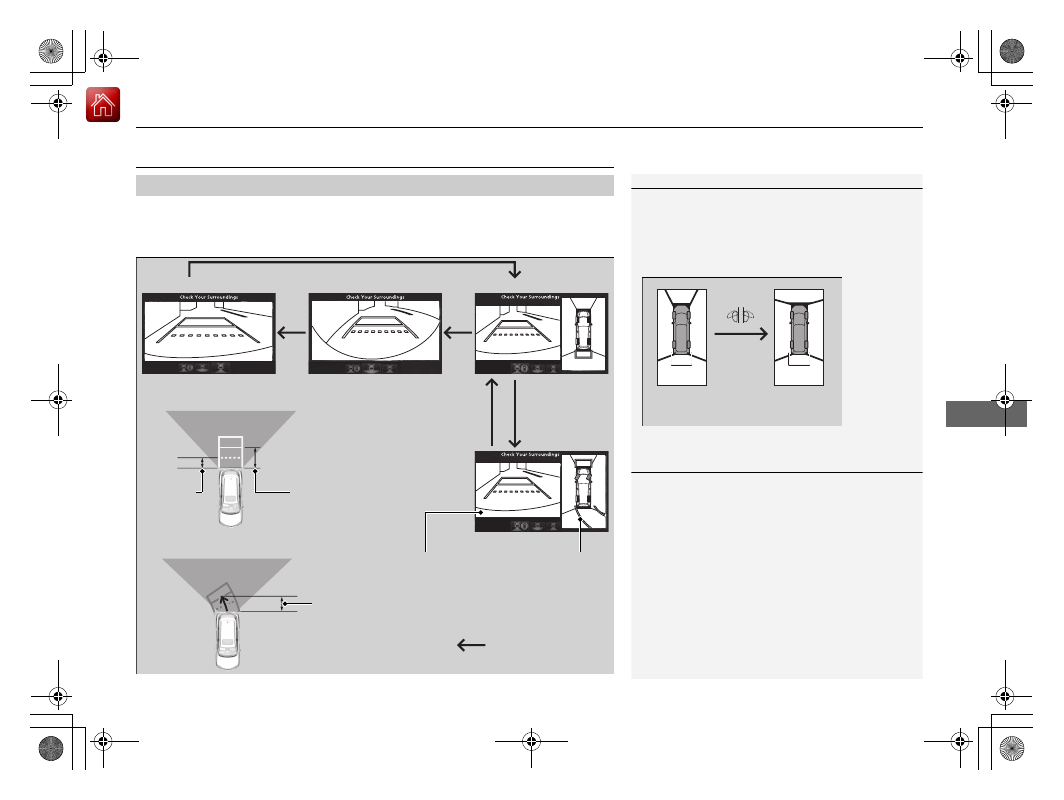

Approximate distances
the guide lines indicate

Approximate distances the
projection lines indicate

39 inches (1 m)

20 inches
(50 cm)

39 inches
(1 m)

uu

Surround View Camera System

*

u

Using the Surround View Camera System

564

Driving

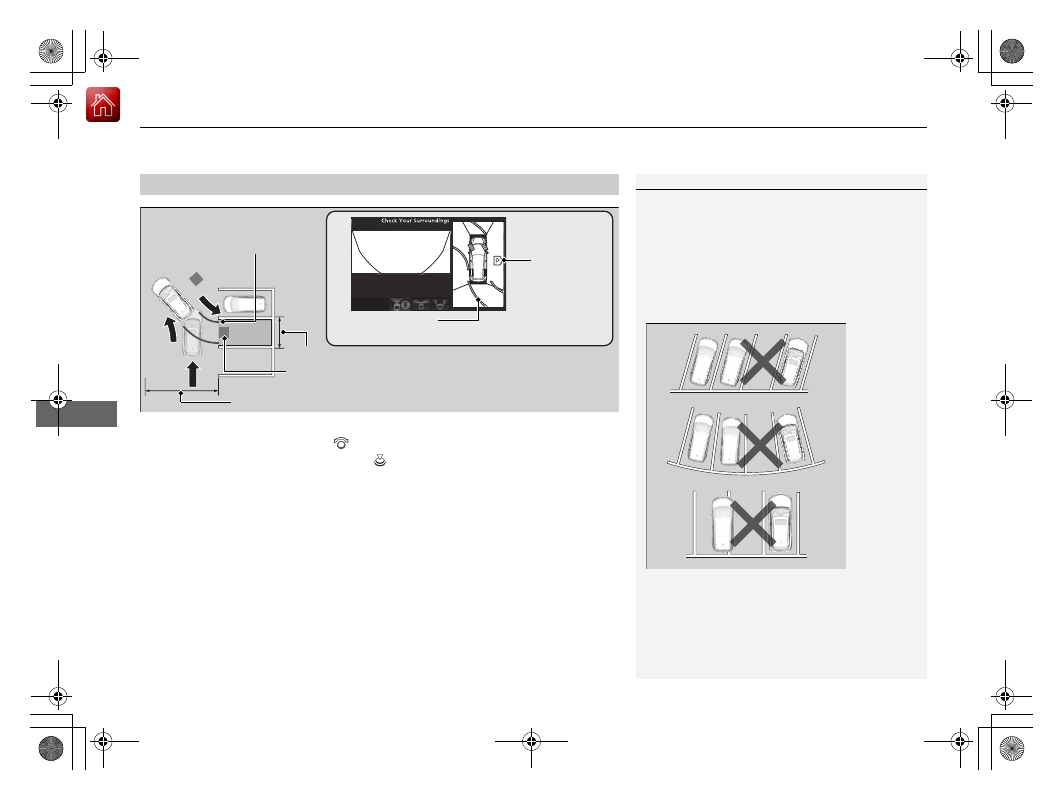

1.

With your vehicle at a complete stop, press the

CAMERA

 button, then press the

ENTER/MENU

 button. Rotate

 to select

Back-in Left Park Guidance

 or

Back-in Right Park Guidance

. Press

.

2.

Move the vehicle forward perpendicular to the parking space and stop where the
initial positioning guide in the display is at the center of the parking space.

3.

Turn the steering wheel fully to the left (if the parking space is on the passenger
side) at a stop.

u

The steering position alignment guide is displayed.

4.

Slowly move the vehicle forward.

u

Stop the vehicle when the steering position alignment guide enters the parking space.

5.

Turn the steering wheel fully to the right (if the parking space is on the passenger
side) at a stop. Start reversing the vehicle slowly.

6.

Stop the vehicle when it is parallel to the parking lines.

7.

Return the steering wheel to its center position, then reverse the vehicle slowly
until it is parked within the space.

■

Reversing into a Parking Space Marked with Parking Lines

1

Reversing into a Parking Space Marked with Parking Lines

If the steering position alignment guide does not fit in
the parking lines, the parking space is too small for
the vehicle.

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Must be wider than approx. 8 feet (2.5 m)

The initial positioning
guide must come here.

Must be wider than approx. 20 feet (6 m)

Make sure the guides
are within the parking
space when reversing.

Initial
Positioning
Guide

Steering Position
Alignment Guide

A

B

C

Steering position alignment
guide enters the parking
space. (Step 4)

Continued

565

uu

Surround View Camera System

*

u

Using the Surround View Camera System

Driving

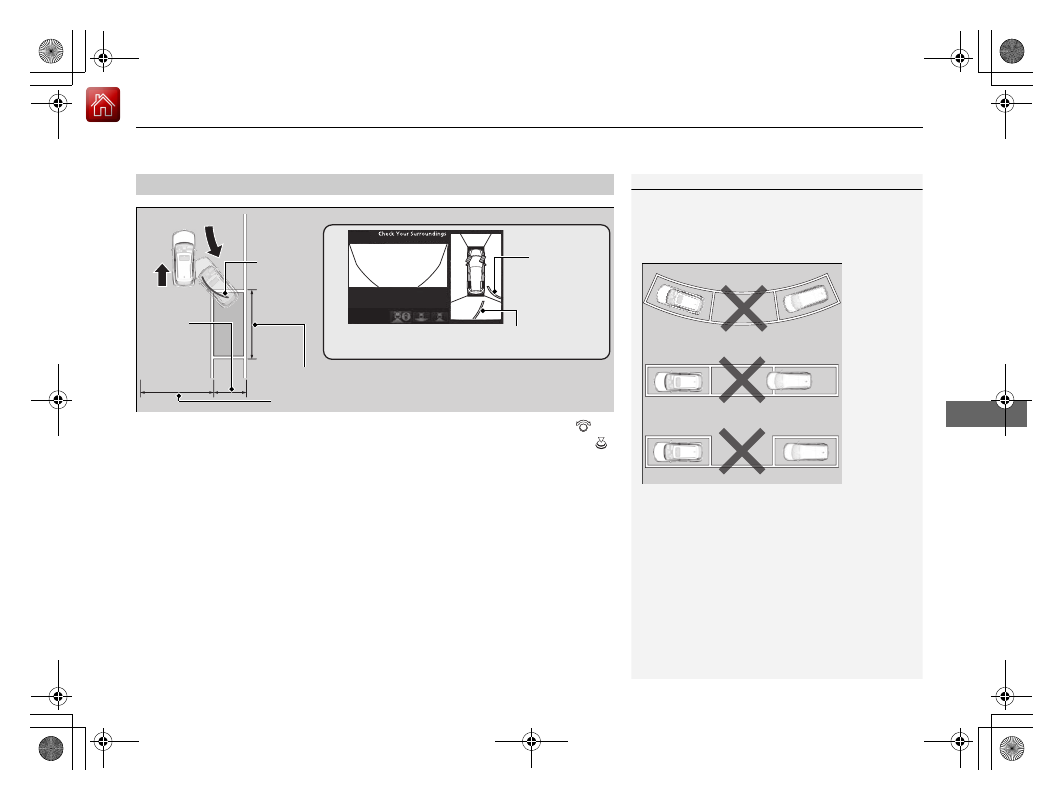

1.

Press the

CAMERA

 button, then press the

ENTER/MENU

 button. Rotate

 to

select

Left Parallel Park Guidance

 or

Right Parallel Park Guidance

. Press

.

2.

Move the vehicle forward parallel to the parking space and stop when the initial
positioning guide shown in the display overlaps the front corner of the space.

3.

Turn the steering wheel fully to the right (if the parking space is on the passenger
side) at a stop.

u

The steering position alignment guide is displayed.

4.

Slowly reverse the vehicle.

u

Stop the vehicle when the steering position alignment guide overlaps the
sideline of the parking space.

5.

Turn the steering wheel fully to the left (if the parking space is on the passenger
side) at a stop. Reverse the vehicle slowly.

6.

Stop the vehicle when it is parallel to the parking lines.

7.

Return the steering wheel to its center position, then reverse the vehicle slowly
until it is parked within the space.

■

Parallel Parking into a Parking Space Marked with Parking Lines

1

Parallel Parking into a Parking Space Marked with Parking Lines

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Initial
Positioning
Guide

Steering Position
Alignment Guide

Must be wider than approx. 20 feet (6 m)

Must be
wider than
approx. 8
feet (2.5 m)

Must be longer than approx. 21 feet (6.5 m)

A

B

C

Initial
positioning
guide
overlaps the
front corner
of the space.
(Step 2)

uu

Surround View Camera System

*

u

Using the Surround View Camera System

566

Driving

You can display the front ground view screen using all the four cameras for the
system. Pressing the

CAMERA

 button when the vehicle speed is at below 7 mph (12

km/h) changes the image as follows.

■

Checking for the Sides of Your Vehicle

1

Checking for the Sides of Your Vehicle

When the vehicle speed exceeds 9 mph (15 km/h),
the front or side view on the screen automatically
switches to the information screen. The front or side
view screen resumes when

Show Camera When

Decelerating

 is on, and the vehicle speed is reduced

below 7 mph (12 km/h).

2

Customized Features

 P. 358

0 mph (0 km/h)

Down

Up

Camera

Screen

Camera

Screen

*1

Information

Screen

Information

Screen

9 mph (15 km/h)

7 mph (12 km/h)

0 mph (0 km/h)

*1 : When

Show Camera When Decelerating

 is on.

Side
View

Front Wide View

Front Ground View

Press and hold the

CAMERA

 button.

A Combined Image of
Both Side Views

Approximate distance
the reference line
indicates.

Blind spots
appear in black.

Projection lines
appear.

Press the

CAMERA



button.

When the
steering wheel
is turned more
than 90
degrees.

approx. 3 feet (1 m)

Continued

567

uu

Surround View Camera System

*

u

Using the Surround View Camera System

Driving

■

Checking from the front wide view at intersections

The front wide view screen is useful when you need to check for vehicles crossing
from either direction at an intersection with poor visibility.

■

Checking the sides of your vehicle

The side view screens are convenient when you pull over at a curb or tollbooth, or
slowly pass by oncoming vehicles on a narrow road.

1

Checking from the front wide view at intersections

The front wide view image is a wide-angled view. The
displayed image will be largely distorted, and objects
may appear closer or more distant than they actually
are.

The angle
provided by the
front wide view
screen is 180
degrees.

Front Wide View Screen

When the vehicle
speed is below 7
mph (12 km/h),
press the

CAMERA

 button

repeatedly until
the front wide
view comes on.

1

Checking the sides of your vehicle

When the door mirrors are folded, the side views
cannot be displayed.

Side View Screen

12 inches
(30 cm)

12 inches

(30 cm)

Press and hold the

CAMERA

 button.

Approximate distance
the projection lines
indicate is 12 inches
(30 cm) from the
vehicle.

Side Views
The images
from the side
cameras.

12 inches
(30 cm)

568

uu

Surround View Camera System

*

u

Using the Surround View Camera System

Driving

The system may not work properly under the following conditions.

■

Surround View Camera System Limitations

Conditions

Solutions

The images may not
appear clearly when:

●

You activate the system in bad weather (heavy rain,
snow, fog, etc.) or in the dark.

●

Camera temperatures are high.

●

A sudden change between light and dark such as an
entrance or exit of a tunnel.

●

You drive into the sunlight (e.g., at dawn or dusk.)

Do not use the surround view camera system but rely
only on visual confirmation until the conditions allow
the system to work properly.

●

A camera lens is covered with dirt, moisture, or
debris.

●

A camera lens is scratched.

Clean camera lenses with a soft cloth moisturized with
water, mild detergent or glass cleaner.

The information screen is dirty.

Wipe off the screen using a soft dry cloth.

A camera angle is
altered.

A camera or the area around the camera has been
severely impacted.

Do not use the surround view camera system and
contact a dealer.

An error message is displayed while the surround view camera system is in use.

569

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of a lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of a gasoline with a pump octane less than 87 can lead to engine damage.
The use of regular unleaded gasoline can cause metallic knocking noises in the
engine and will result in decreased engine performance.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at

owners.acura.com

 In

Canada, visit

 www.acura.ca

 for additional information on gasoline. For more

information on top tier gasoline, visit

www.toptiergas.com

.

■

Fuel tank capacity: 19.5 US gal (73.8 L)

Unleaded premium gasoline, pump octane number 91 or higher

1

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

570

uu

Refueling

u

How to Refuel

Driving

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1.

Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.

2.

Turn off the engine.

3.

Press the fuel fill door release button.

u

The fuel fill door opens.

1

How to Refuel

The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Stop the engine, and keep heat, sparks,
and flame away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Press

571

uu

Refueling

u

How to Refuel

Driving

4.

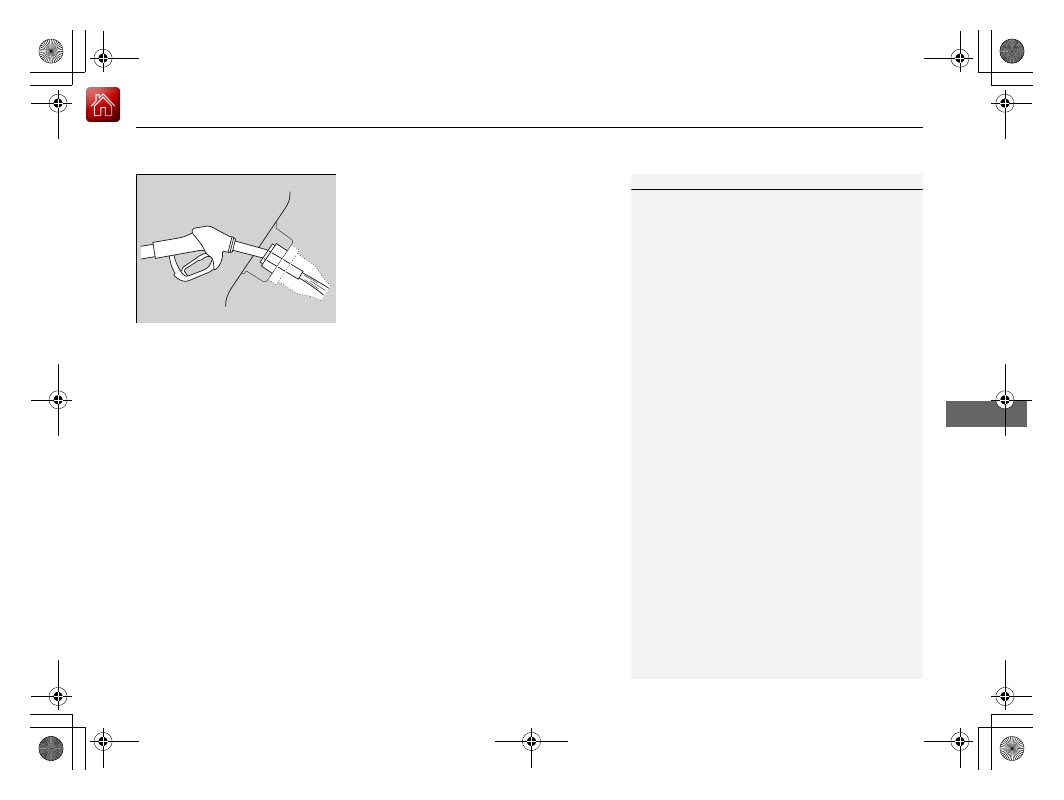

Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.

u

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

u

Keep the filler nozzle level.

u

When the tank is full, the filler nozzle will
click off automatically.

u

After filling, wait about five seconds
before removing the filler nozzle.

5.

Shut the fuel fill door by hand.

1

How to Refuel

If the fuel filler nozzle keeps turning off when the
tank is not full, there may be a problem with the
pump’s fuel vapor recovery system. Try filling at
another pump. If this does not fix the problem,
consult a dealer.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2

Refueling From a Portable Fuel Container



P. 673

572

Driving

Fuel Economy and CO

2

 Emissions

Improving Fuel Economy and Reducing CO

2



Emissions

Achieving fuel economy and reducing CO

2

 emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
MID.

•

Use the recommended viscosity engine oil.

2

Recommended Engine Oil

 P. 584

•

Maintain the specified tire pressure.

•

Do not load the vehicle with excess cargo.

•

Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

1

Improving Fuel Economy and Reducing CO

2

 Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit

http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

Liters of fuel

Kilometers

driven

L per 100 km
