Acura RDX (2019 year). Manual

615

Continued

Han

lin
g the U

expected

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

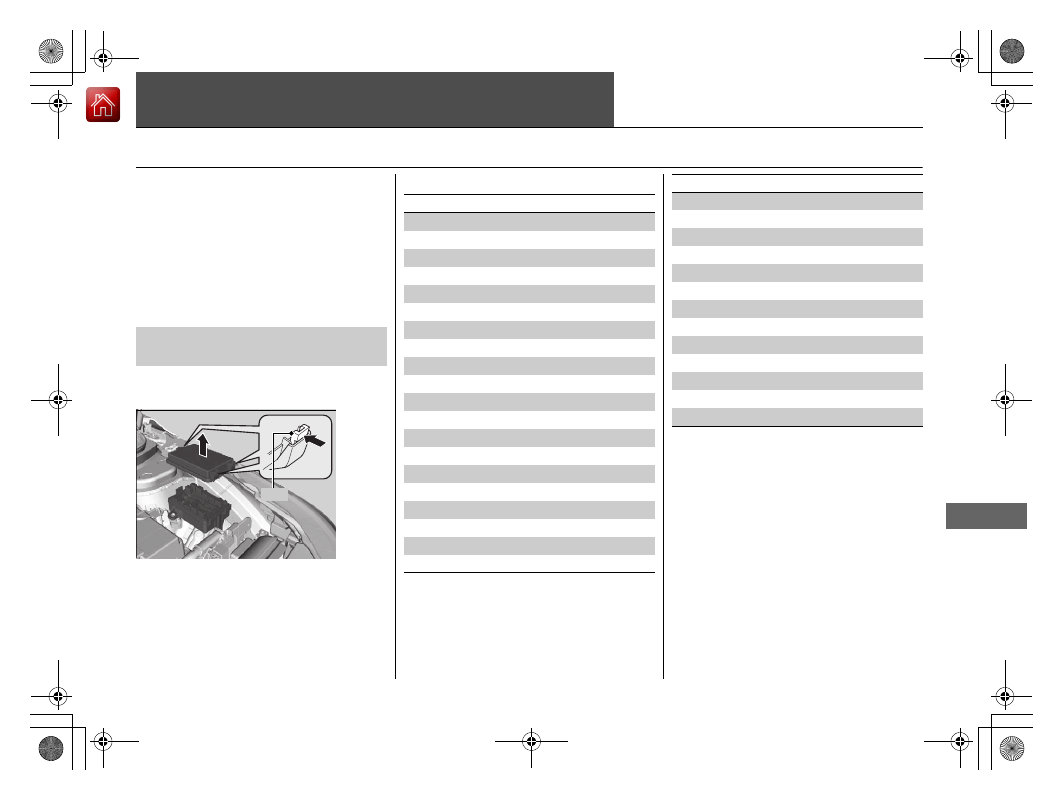

Located near the battery. Push the tabs to
open the box.

■

Engine Compartment Fuse
Box Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

IG1 VBSOL2

10 A

IG1 RR WIPER

10 A

IG1 VSA

10 A

HTR MTR

40 A

DBW

15 A

TCU

15 A

FI MAIN

15 A

STARTER CUT

30 A

INJ

20 A

HAZARD

15 A

TCU 2

10 A

TCU 3

10 A

FET MODULE

30 A

SUB FAN

30 A

HORN

10 A

BACK UP

10 A

STOP

7.5 A

FET MODULE

30 A

VBU

10 A

FRT DEICER

15 A

IG COIL

15 A

WASHER

15 A

MAIN FAN

30 A

STRLD

7.5 A

IGPS

10 A

−

R H/L LO

10 A

L H/L LO

10 A

VBACT

10 A

IGPS (LAF)

10 A

−

Circuit Protected

Amps

* Not available on all models

19 ACURA RDX-31TJB6000.book 615 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

616

Fuses

Fuse Locations

Han

lin
g the U

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.

■

Engine Compartment Fuse
Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

(50 A)

ABS/VSA MTR

40 A

F/B MAIN 2

50 A

F/B MAIN

60 A

ABS VSA FSR

40 A

WIPER

30 A

IDLE STOP

30 A

IDLE STOP

30 A

−

4WD

(30 A)

IG MAIN 2

30 A

IG MAIN

30 A

H/L WASHER

(30 A)

DR P/SEAT 3

30 A

EBB

40 A

TRL SMALL

7.5 A

*1:Models without seat ventilation
*2:Models with seat ventilation

PTG CLOSER MTR

20 A

−

DR P/SEAT 1

30 A

AS P/SEAT 2

30 A

AS P/SEAT 1

30 A

RR DEF

40 A

AMP

30 A

40 A

SUNSHADE

20 A

DR P/SEAT 2

30 A

AS P/SEAT 3

30 A

SBW

10 A

TRL HAZARD

7.5 A

BMS

10 A

PTG MTR

40 A

Circuit Protected

Amps

* Not available on all models

19 ACURA RDX-31TJB6000.book 616 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

617

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

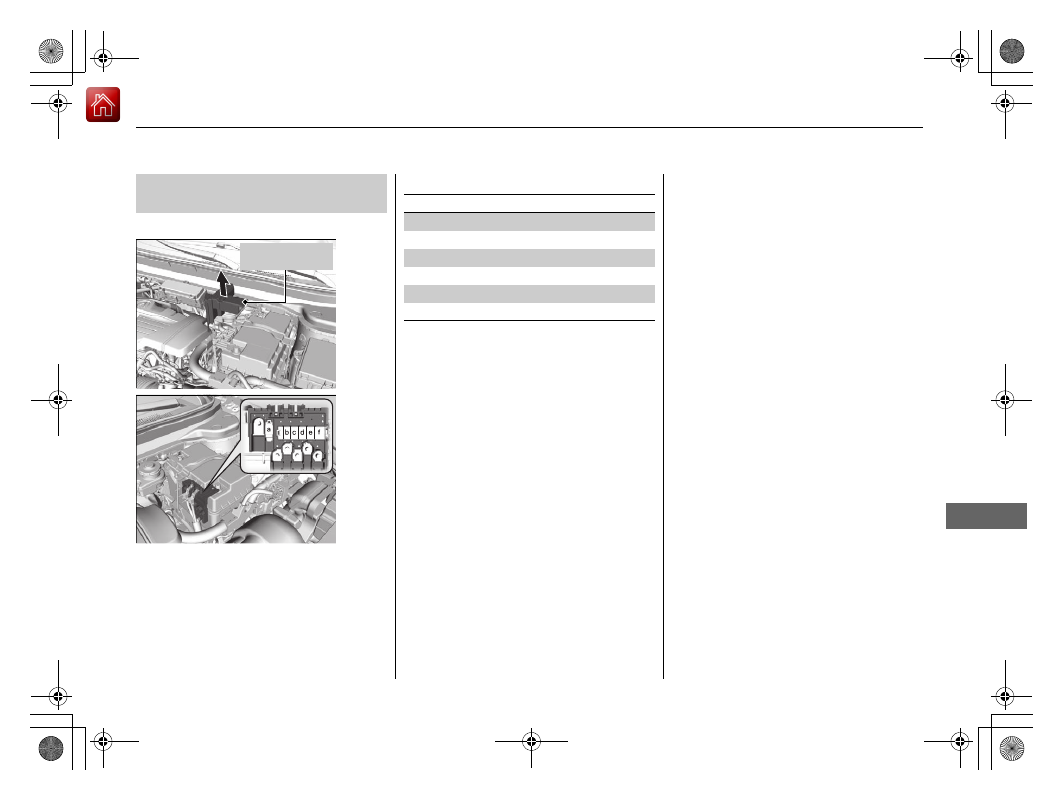

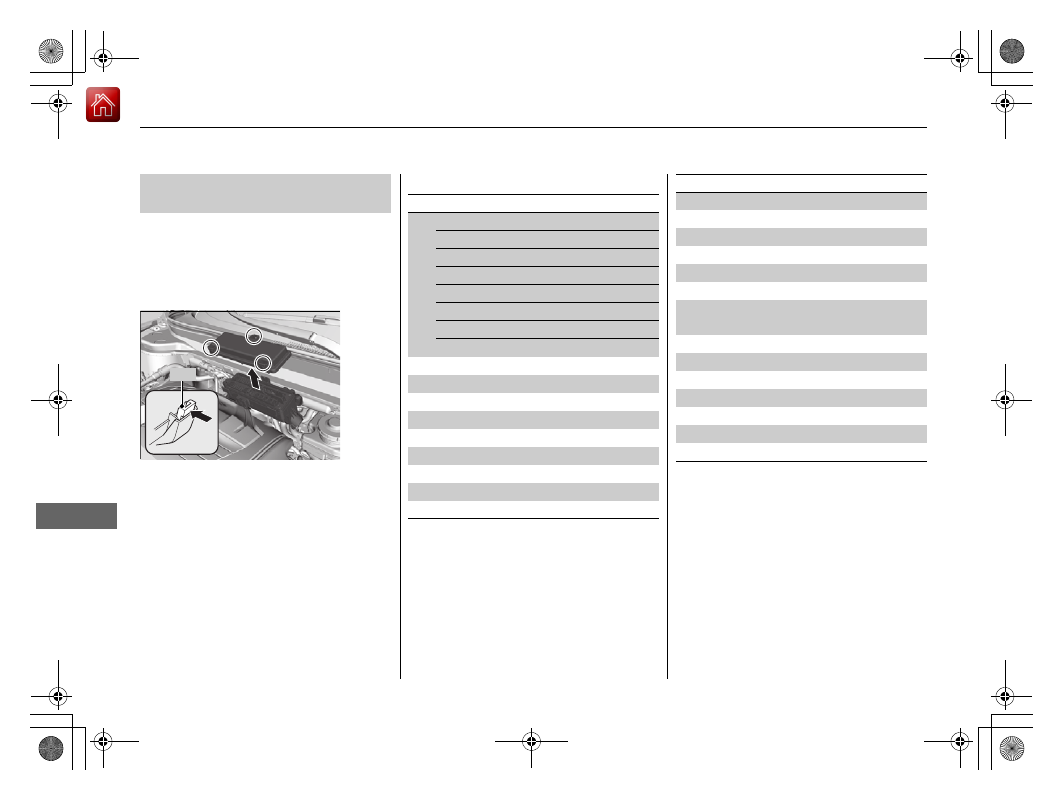

Located near the + terminal on the battery.

Remove the cover on the + terminal (as
shown).
Replacement of this fuse should be done by
a dealer.

■

Engine Compartment Fuse
Box Type C

Positive Battery
Terminal Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

MAIN

120 A

−

70 A

R/B 1

70 A

R/B 2

70 A

EPS

70 A

FET

60 A

19 ACURA RDX-31TJB6000.book 617 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

618

Fuses

Fuse Locations

Han

lin
g the U

expected

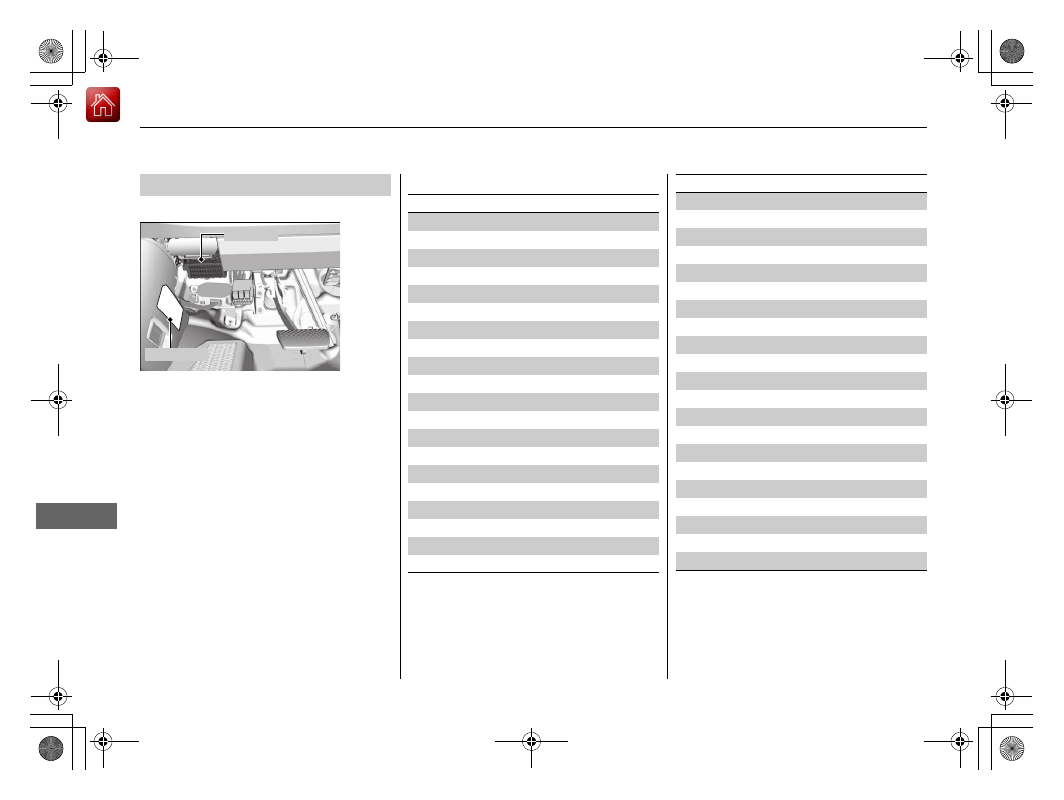

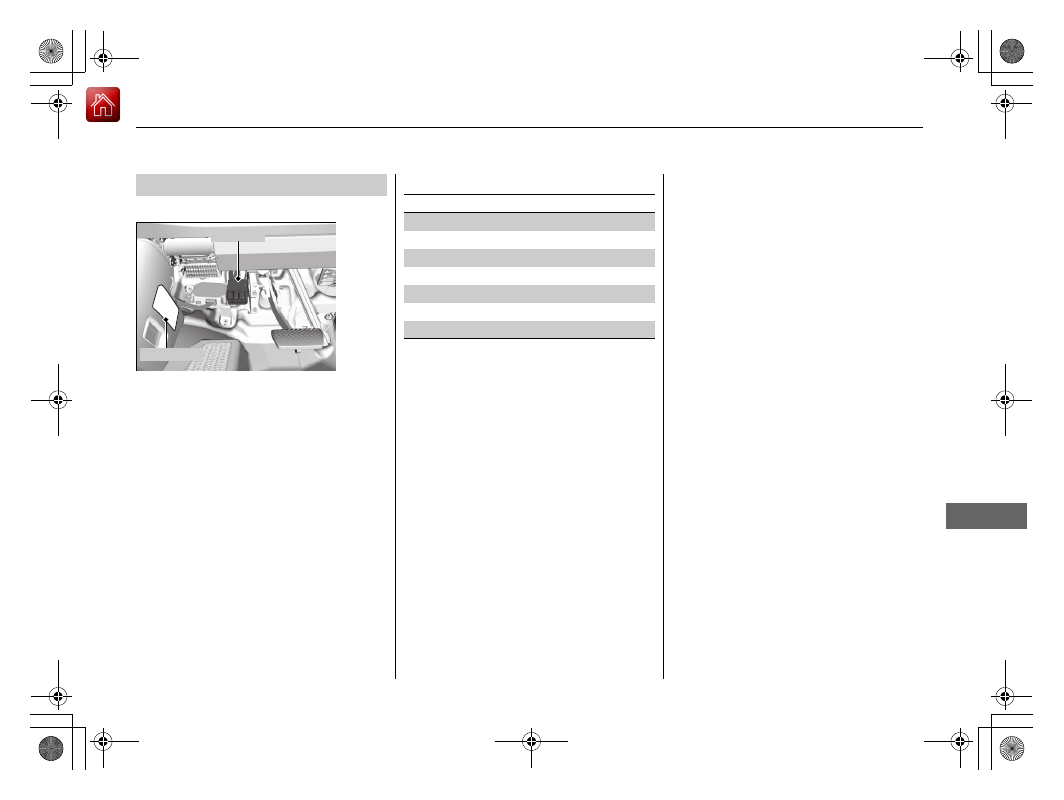

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box Type A

Fuse Label

Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

BACK-UP LIGHT

10 A

STARTER MOTOR

10 A

OPTION

10 A

−

(10 A)

−

IG1 R/B

15 A

DR REAR DOOR LOCK

10 A

DR DOOR LOCK

10 A

AS SIDE DOOR LOCK

10 A

AS SIDE DOOR UNLOCK

10 A

DR DOOR UNLOCK

10 A

OPTION 2

10 A

SMART

10 A

SUNROOF

20 A

HEATED STRG WHEEL

(10 A)

REAR LEFT P/W

20 A

SRS

10 A

FUEL PUMP

20 A

FRONT ACC SOCKET

20 A

LEFT H/L HI

10 A

RIGHT H/L HI

10 A

DRIVER P/W

20 A

DR REAR DOOR UNLOCK

10 A

ACCESSORY

10 A

PASS SRS IND

(10 A)

PDM

10 A

ADS

(15 A)

REAR RIGHT P/W

20 A

−

TRANSMISSION

10 A

ACG

10 A

DRL

10 A

A/C

10 A

AUDIO

15 A

DOOR LOCK

20 A

AS P/W

20 A

REAR SEAT HEATER

20 A

−

Circuit Protected

Amps

* Not available on all models

19 ACURA RDX-31TJB6000.book 618 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

619

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box Type B

Fuse Label

Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

METER

10 A

VSA

10 A

OPTION

10 A

BCM

10 A

AUDIO

20 A

BACKUP

10 A

ACCESSORY

(10 A)

19 ACURA RDX-31TJB6000.book 619 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

620

Fuses

Fuse Locations

Han

lin
g the U

expected

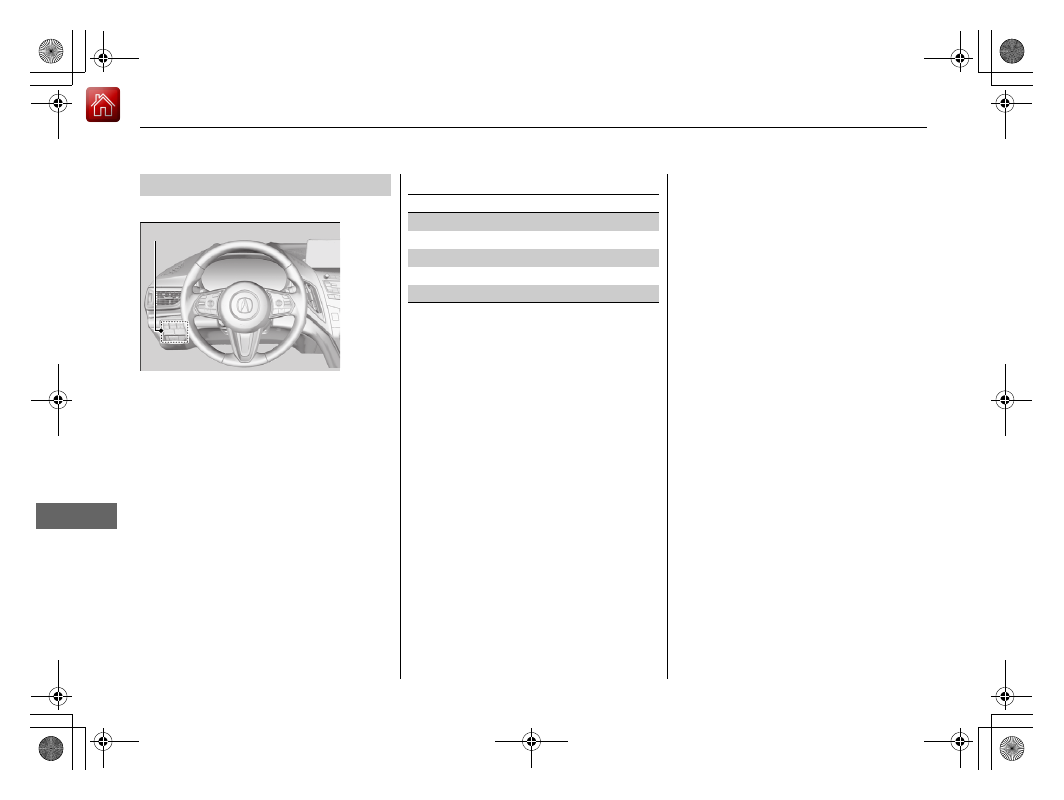

Located inside the driver’s side outer panel.

Replacement of this fuse should be done by
a dealer.

■

Interior Fuse Box Type C

Fuse Box C

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

A/C MG CL

10 A

−

FR H/SEAT

20 A

19 ACURA RDX-31TJB6000.book 620 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

621

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

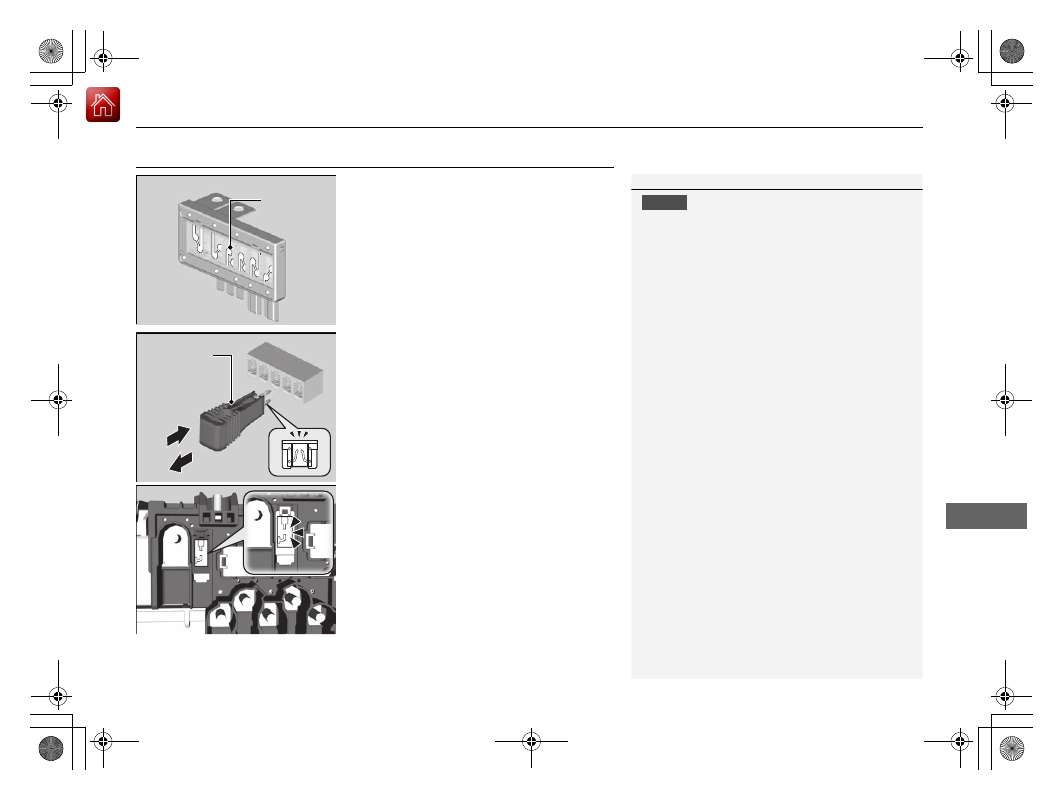

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF

(LOCK). Turn headlights and all accessories
off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2 Fuse Locations P. 615

There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.

Combined
Fuse

Blown Fuse

Fuse Puller

19 ACURA RDX-31TJB6000.book 621 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

622

Han

lin
g the U

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

All models

2WD models

19 ACURA RDX-31TJB6000.book 622 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

623

Han

lin
g the U

expected

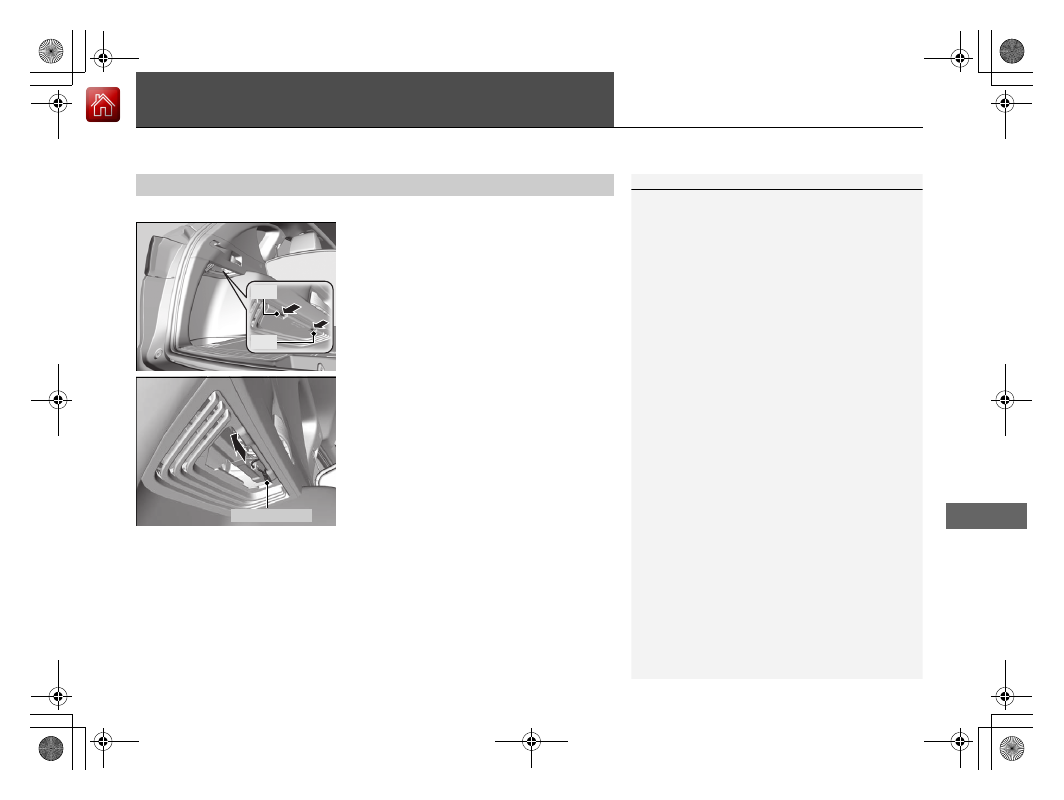

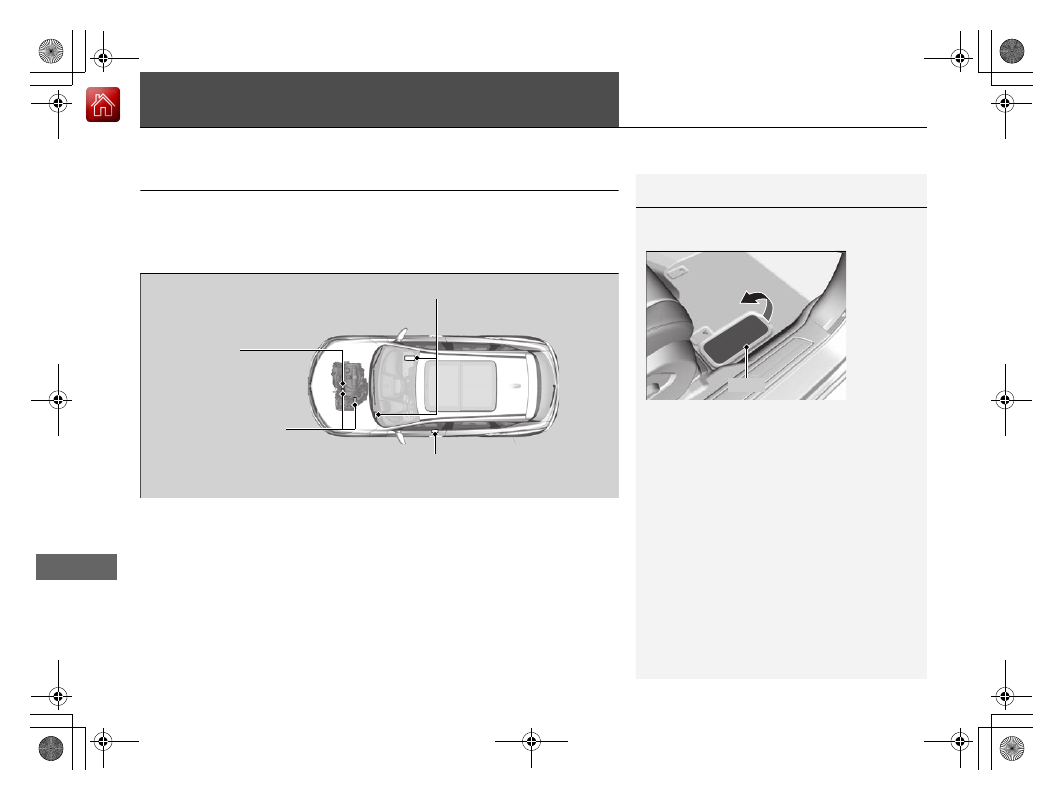

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1. Open the tailgate.
2. Push the tabs to open the cover on the left

side of cargo area.

3. Pull the release lever toward you.

The release lever unlocks the fuel fill door
when it is pulled.

■

What to Do When Unable to Unlock the Fuel Fill Door

What to Do When Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Tab

Release Lever

19 ACURA RDX-31TJB6000.book 623 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

624

Han

lin
g the U

expected

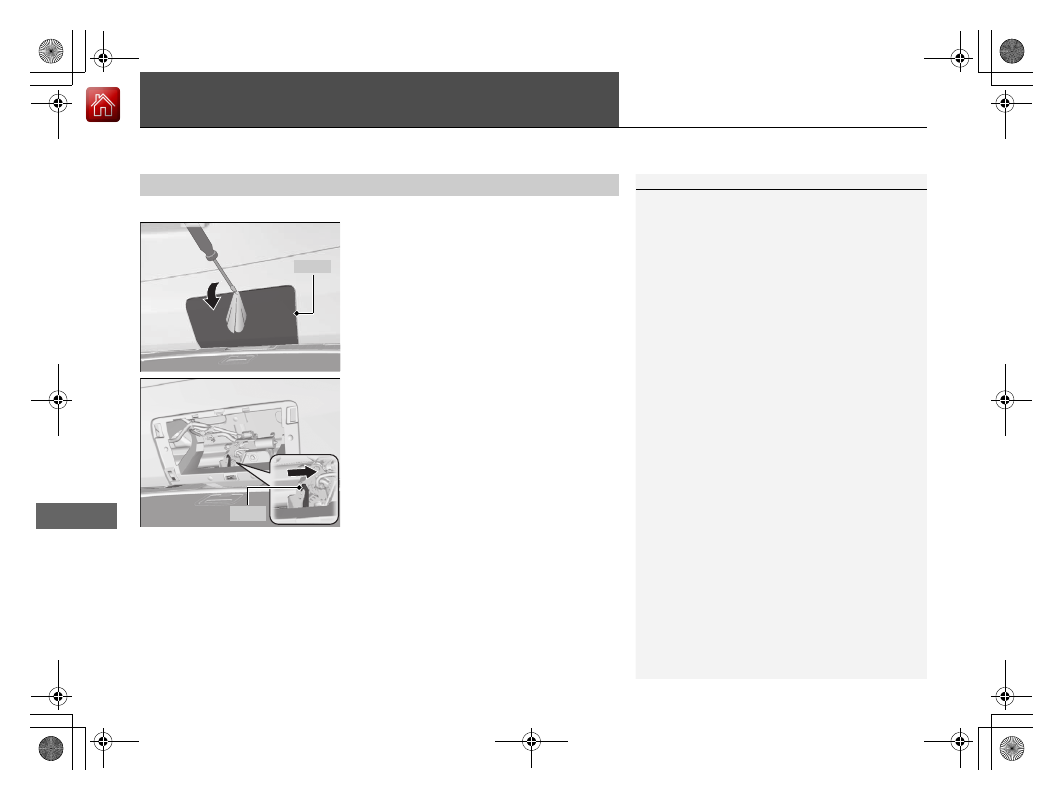

When You Cannot Open the Tailgate

If you cannot open the tailgate, use the following procedure.

1. Use a flat-tip screwdriver and remove the

cover on the inside of the tailgate.

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. To open the tailgate, push the tailgate

while sliding the lever to the right.

■

What to Do When Unable to Open the Tailgate

What to Do When Unable to Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

19 ACURA RDX-31TJB6000.book 624 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

625

Han

lin
g the U

expected

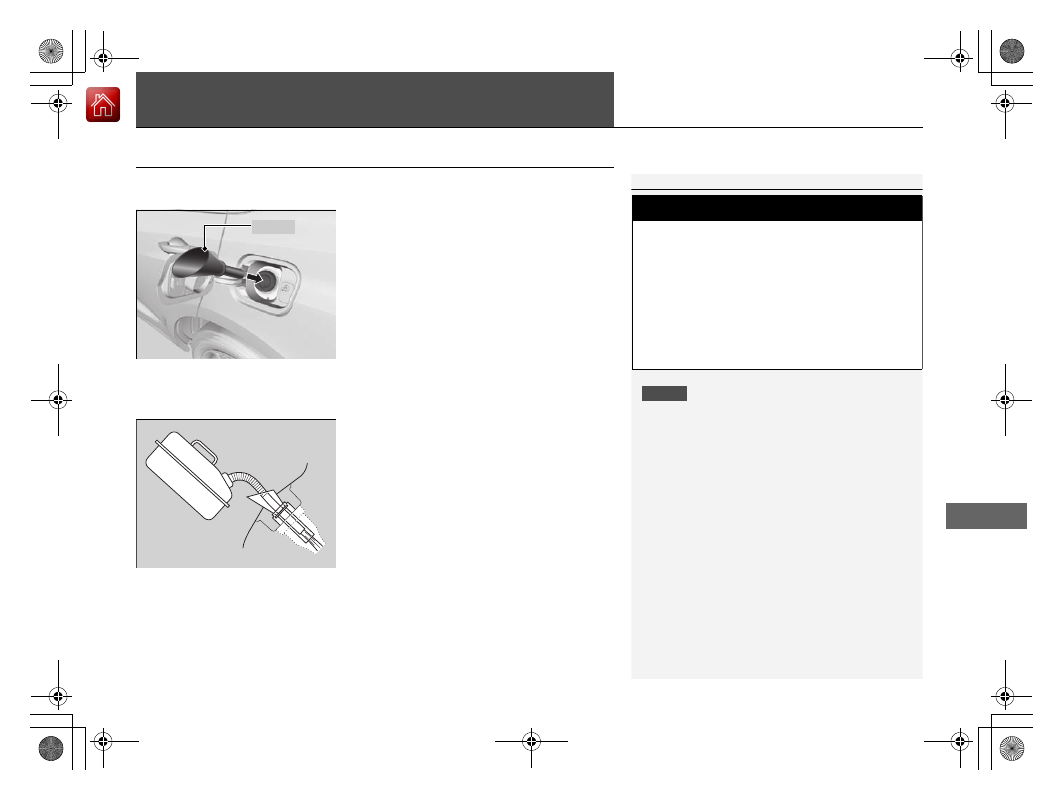

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door to

make it pop up slightly.

The fuel fill door opens.

3. Take the funnel out of tool box in the cargo

area.

2 Types of Tools P. 578

4. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

Make sure that the end of the funnel
goes down along with the filler pipe.

5. Fill the tank with fuel from the portable fuel

container.

Pour fuel carefully so you do not spill any.

6. Remove the funnel from the filler neck.

Wipe up any fuel from the funnel before
storing it.

7. Shut the fuel fill door by hand.

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

19 ACURA RDX-31TJB6000.book 625 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

628

Info

ation

Specifications

■

Vehicle Specifications

*1: 2WD models
*2: AWD models

■

Air Conditioning

Model

Acura RDX

No. of Passengers:
Front

Rear

Total

Weights:
Gross Vehicle
Weight Rating

U.S.:

4,784 lbs (2,170 kg)

5,027 lbs (2,280 kg)

Canada: 2,280 kg

Gross Axle Weight
Rating (Front)

U.S.:

2,579 lbs (1,170 kg)

2,623 lbs (1,190 kg)

Canada: 1,190 kg

Gross Axle Weight
Rating (Rear)

U.S.:

2,337 lbs (1,060 kg)

2,513 lbs (1,140 kg)

Canada: 1,140 kg

Gross Combined Weight
Rating

U.S.:

5,975 lbs (2,710 kg)

Canada: 2,710 kg

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

17.8 – 19.6 oz (505 – 555 g)

Lubricant Type

ND-OIL14 (POE)

Quantity

4.3 – 5.2 cu-in (70 – 85 cc)

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

121.76 cu-in (1,996 cm

)

Spark Plugs

NGK

DILKAR8P8SY

Type

Unleaded premium gasoline, Pump octane
number of 91 or higher

Fuel Tank Capacity

17.1 US gal (64.7 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 5.8 US qt (5.5 L)

■

Light Bulbs

■

Brake Fluid

Headlights (High Beam)

LED

Headlights (Low Beam)

LED

Fog Lights

LED

Parking/Daytime Running Lights

LED

Front Turn Signal Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Front Side Marker Lights

LED

Brake Lights

LED

Taillights/Rear Side Marker Lights

LED

Taillights

LED

Back-Up Lights

LED

Rear Turn Signal Lights

21 W (PY21W Amber/Silver)

High-Mount Brake Light

LED

Rear License Plate Light

LED

Puddle Lights

LED

Interior Lights

Map Lights

LED

Ambient Lights

LED

Vanity Mirror Lights

1.4 W

Door Courtesy Lights

3.4 W

Glove Box Light

1.4 W

Cargo Area Light

LED

Door Inner Handle Lights LED

Specified

Acura Heavy Duty Brake Fluid DOT 3

* Not available on all models

19 ACURA RDX-31TJB6000.book 628 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

629

Specifications

Info

ation

■

Automatic Transmission Fluid

*1: 2WD models
*2: AWD models

■

Rear Differential Fluid

■

Transfer Assembly Fluid

Specified

Acura Automatic Transmission Fluid ATF-type 2.0

Capacity

Change

4.5 US qt (4.3 L)

5.1 US qt (4.8 L)

Specified

Acura DPSF-II

Capacity

Change

1.76 US qt (1.67 L)

Specified

Acura Hypoid Gear Oil HGO-1

Capacity

Change

0.61 US qt (0.58 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.6 US qt (4.4 L)

Change
including
filter

5.0 US qt (4.8 L)

Specified

Acura Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.50 US gal (5.69 L)
(change including the remaining 0.23 US gal
(0.86 L) in the reserve tank)

■

Tire

*1: Models with 19 inch wheel
*2: Models with 20 inch wheel

Regular

Size

235/55R19 101H

255/45R20 101V

Pressure
psi (kPa [kgf/cm

])

33 (230 [2.3])

36 (250 [2.5])

Compact
Spare

Size

T155/90D17 101M

Pressure
psi (kPa [kgf/cm

])

60 (420 [4.2])

Wheel Size

Regular

19 x 8J

20 x 8J

Compact Spare

17 x 4T

* Not available on all models

19 ACURA RDX-31TJB6000.book 629 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Acura RDX (2019 year). Manual - part 39
