Acura RLX (2018 year). Manual - part 30

473

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

1. Make sure that the parking sensor system is not activated. Set the power mode to

VEHICLE OFF.

2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator

in the button blinks.

u

The beeper sounds once.

4. Press the button again. The indicator in the button goes off.

u

The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.

■

Turning off All Rear Sensors

1

Turning off All Rear Sensors

When you select

(

R, the indicator in the parking

sensor system button blinks as a reminder that the
rear sensors have been turned off.

18 ACURA RLX E-AWD-31TY36400.book  473 ページ  ２０１７年７月２０日　木曜日　午後６時８分

474

uu

Parking Your Vehicle

u

Cross Traffic Monitor

Driving

Cross Traffic Monitor

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

1

Cross Traffic Monitor

The parking sensor system’s alerting buzzer overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.

3

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

Models with parking sensor system

18 ACURA RLX E-AWD-31TY36400.book  474 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Continued

475

uu

Parking Your Vehicle

u

Cross Traffic Monitor

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.

2 Cross Traffic Monitor On and Off P. 477
2 Customized Features P. 297

• The transmission is in

(

R.

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

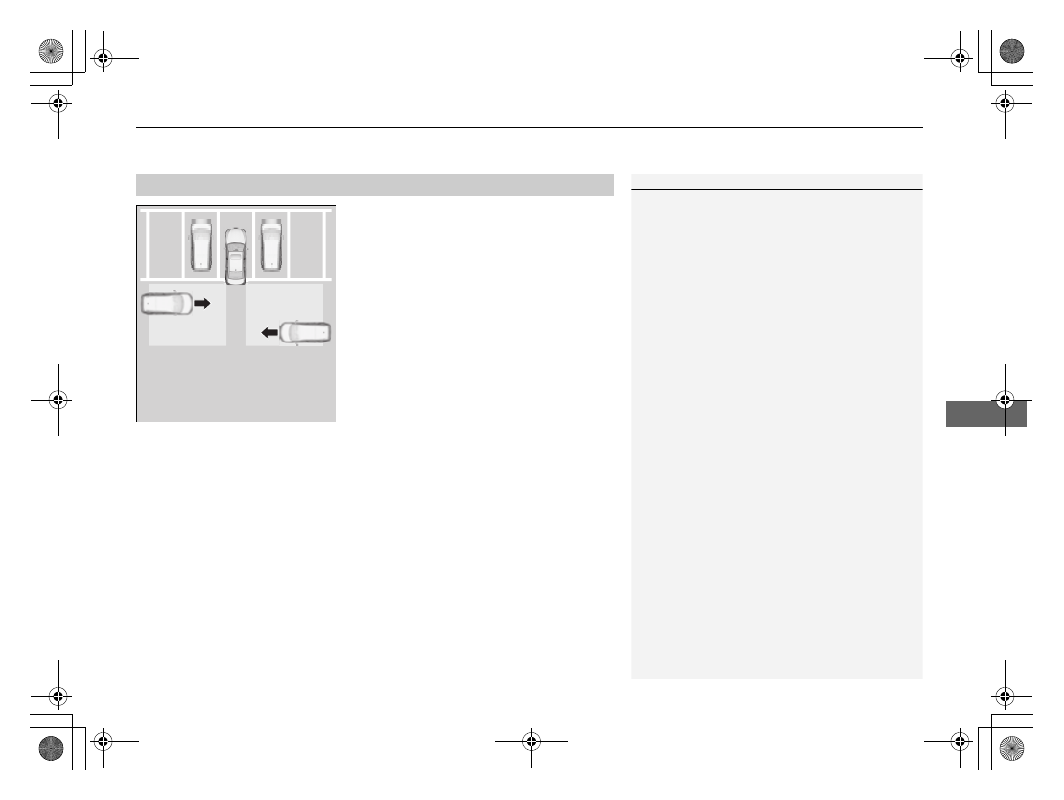

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning or accelerator pedal resistibility.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may not detect or alert for pedestrians, bicycles, or stationary
objects.

■

How the System Works

1

Cross Traffic Monitor

Cross Traffic Monitor may not detect or may delay
alerting an approaching vehicle, or may alert without
an approaching vehicle under the following
conditions:

•

An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.

•

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

•

A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).

•

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

•

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

•

When there is bad weather.

•

Your vehicle is on an incline.

•

Your vehicle is tilted due to a heavy load in the rear.

•

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

18 ACURA RLX E-AWD-31TY36400.book  475 ページ  ２０１７年７月２０日　木曜日　午後６時８分

uu

Parking Your Vehicle

u

Cross Traffic Monitor

476

Driving

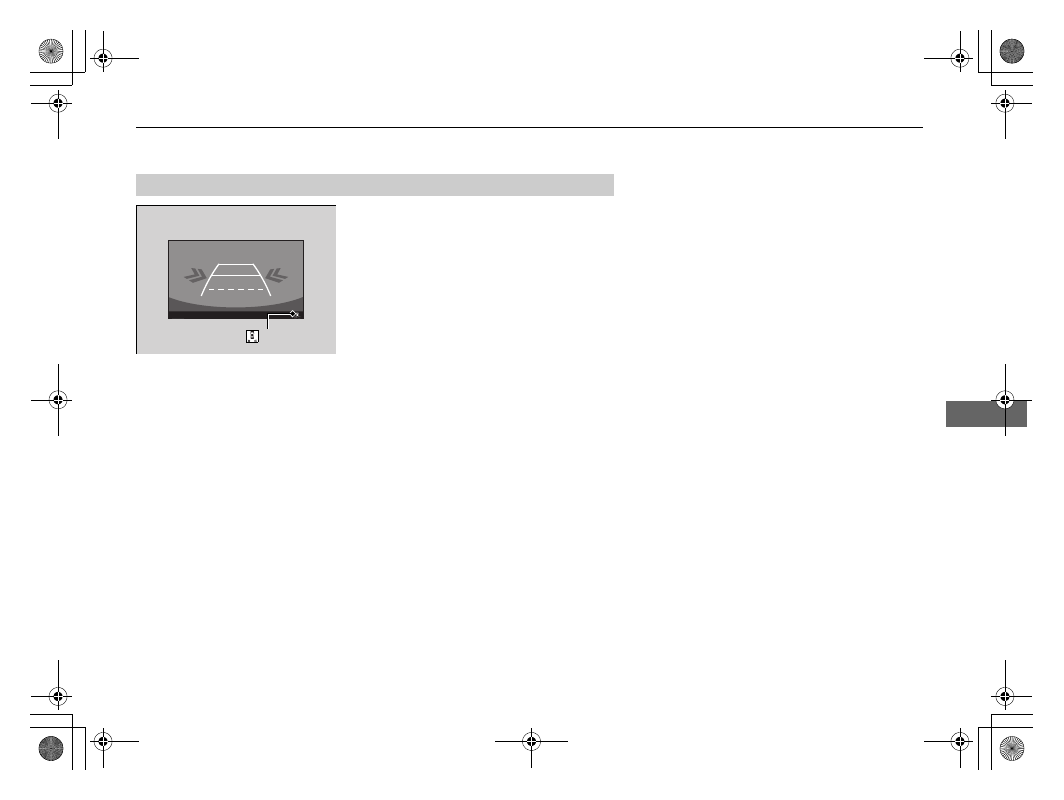

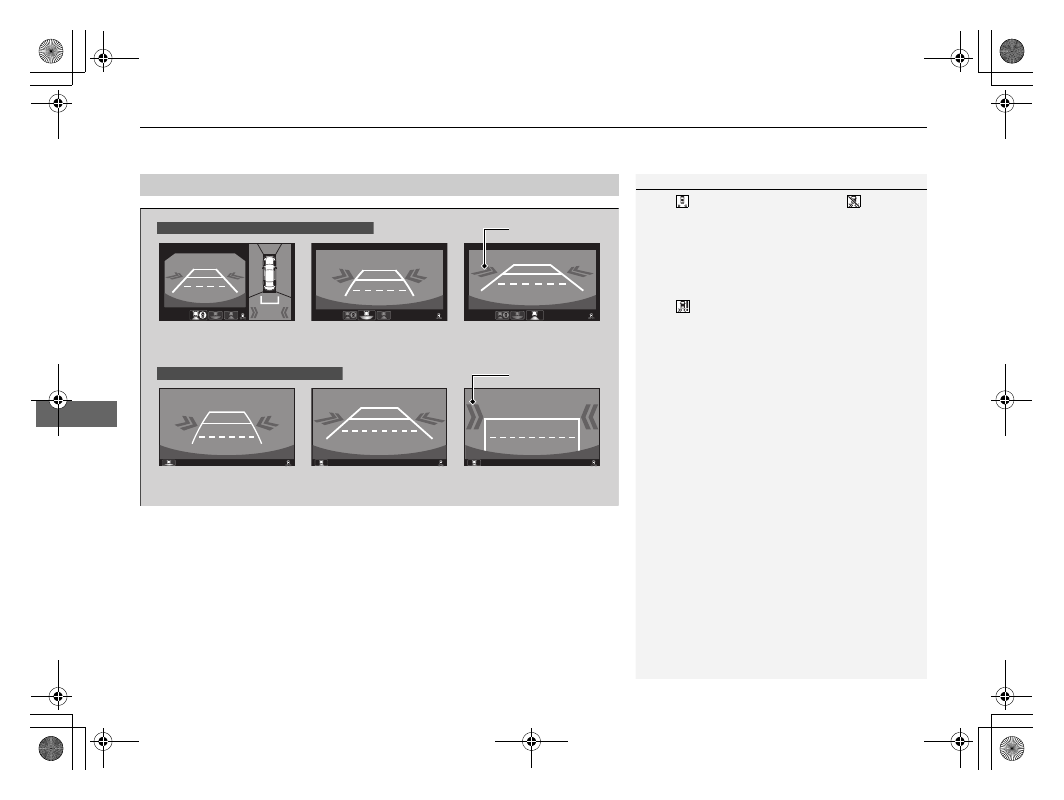

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

■

When the System Detects a Vehicle

1

When the System Detects a Vehicle

If the

 on the lower right changes to

 in amber

when the transmission is in

(

R, mud snow or ice, etc.

may have accumulated in the vicinity of the sensor.
The system is temporarily canceled. Check the
bumper corners for any obstructions, and thoroughly
clean the area if necessary.

If the

 comes on when the transmission is in

(

R,

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Rear Wide View

Rear Normal View

Arrow Icon

Arrow Icon

Models with surround view camera system

Rear Ground View

Models with multi-view rear camera

Wide View

Normal View

Top Down View

18 ACURA RLX E-AWD-31TY36400.book  476 ページ  ２０１７年７月２０日　木曜日　午後６時８分

477

uu

Parking Your Vehicle

u

Cross Traffic Monitor

Driving

You can switch on and off the system using
the audio/information screen.

2 Customized Features P. 297

■

Cross Traffic Monitor On and Off

 Icon

18 ACURA RLX E-AWD-31TY36400.book  477 ページ  ２０１７年７月２０日　木曜日　午後６時８分

478

Driving

Multi-View Rear Camera

*

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

R.

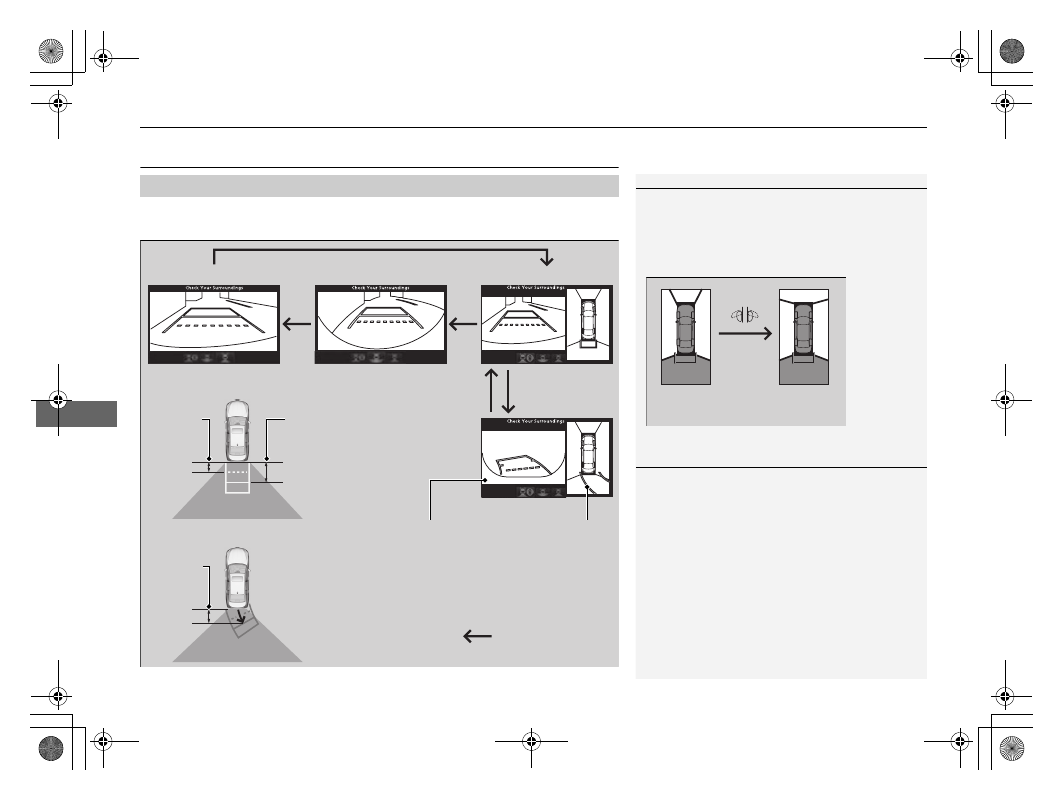

You can view three different camera angles on the rearview display. Press the
interface dial to switch the angle.

■

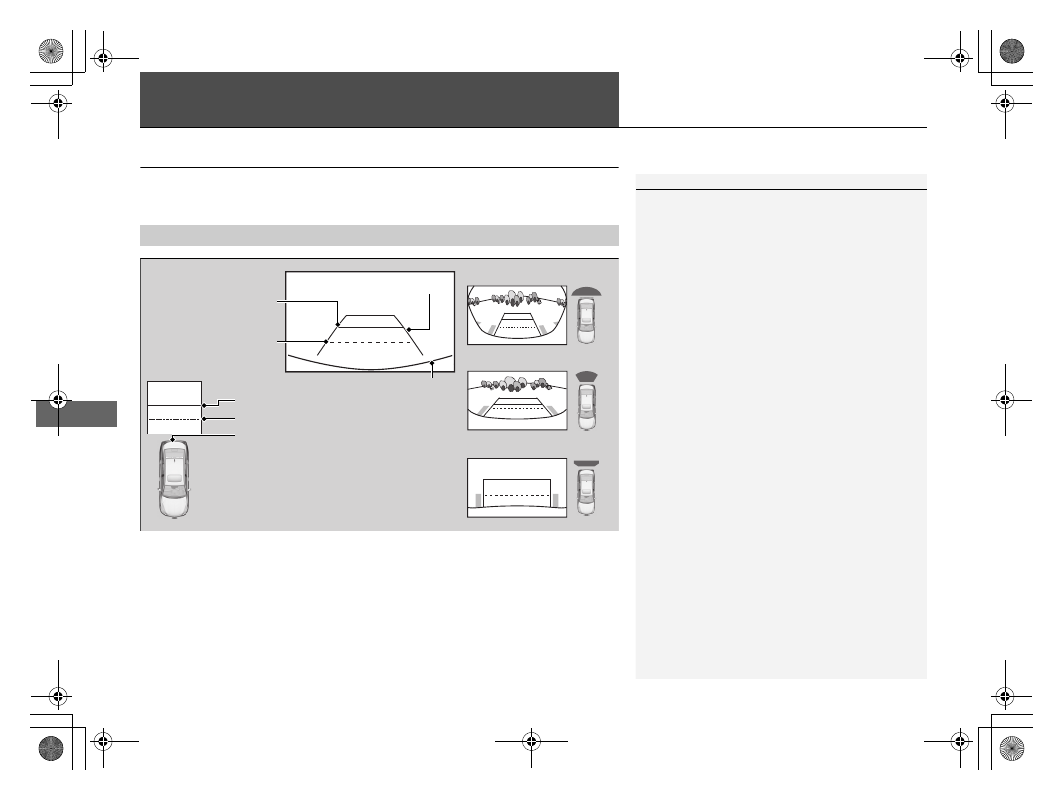

Multi-View Rear Camera Display Area

1

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Fixed Guideline and Dynamic
Guideline settings.

2 Customized Features P. 297

Fixed Guideline
On: Guidelines appear when you put the
transmission into

(

R.

Off: Guidelines do not appear.
Dynamic Guideline
On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.

Top Down View Mode

Normal View Mode

Wide View Mode

Guidelines

Bumper

Camera

Approx. 20 inches (50 cm)

Approx. 39 inches (1 m)

Approx. 39 inches
(1 m)

Approx. 20 inches
(50 cm)

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  478 ページ  ２０１７年７月２０日　木曜日　午後６時８分

479

uu

Multi-View Rear Camera

*

u

About Your Multi-View Rear Camera

Driving

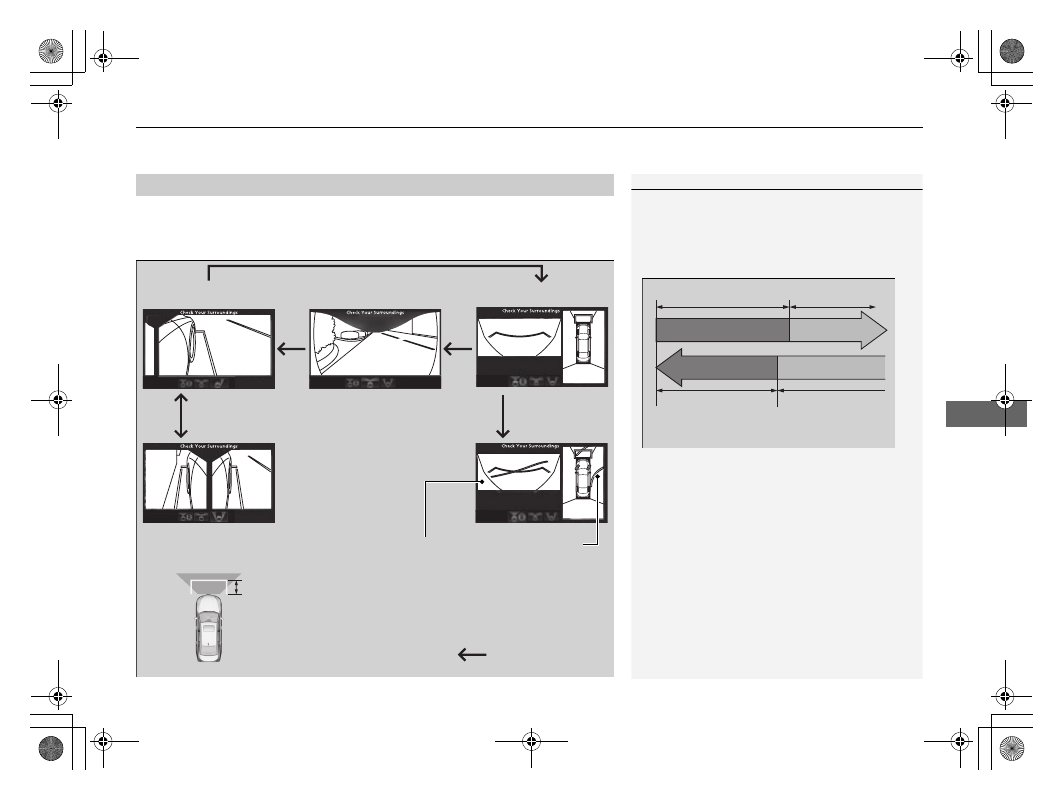

• If you were last using Wide view or Normal view, the same view will be activated

the next time you put the transmission into

(

R.

• If you were using Top down view before you turned the power mode to OFF,

Wide view will be activated the next time you set the power mode to ON and put
the transmission into

(

R.

• If you were using Top down view and 10 seconds elapsed after you took the

transmission out of

(

R, Wide view will be activated the next time you put the

transmission into

(

R.

18 ACURA RLX E-AWD-31TY36400.book  479 ページ  ２０１７年７月２０日　木曜日　午後６時８分

480

Driving

Surround View Camera System

*

Is a four camera system that views areas commonly known as “blind spots” from
different angles, then displays the images on the audio/information screen. This
system can be used to:
• Check the right and left sides of the vehicle while crossing at intersections with

poor visibility (fog, heavy rain, obstructed view, etc.).

2 Checking from the front wide view at intersections P. 488

• Check for obstacles in front of the vehicle when parking or maneuvering in

confined areas.

2 Checking the sides of your vehicle P. 488

• Check for obstacles when you are moving in

(

R.

2 Checking for Obstacles at the Back of Your Vehicle P. 484

• Assist you when backing into or parallel parking the vehicle in a lined parking

space.

2 Reversing into a Parking Space Marked with Parking Lines P. 485
2 Parallel Parking into a Parking Space Marked with Parking Lines P. 486

1

Surround View Camera System

*

3

WARNING

Failure to visually assess the area around
the vehicle (directly or by use of the
mirrors) may result in a crash causing
serious injury or death.

The areas shown in the surround view
camera system display are limited. The
display may not show all pedestrians or
other objects around your vehicle.

Do not solely rely only on the surround
view camera system display to assess
whether it is safe to move your vehicle.

3

WARNING

Failure to pay proper attention to your
surroundings while driving may result in a
crash causing serious injury or death.

To help mitigate the chances of a collision,
only look at the surround view camera
system display when it is safe to do so.

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  480 ページ  ２０１７年７月２０日　木曜日　午後６時８分

481

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

Continued

Driving

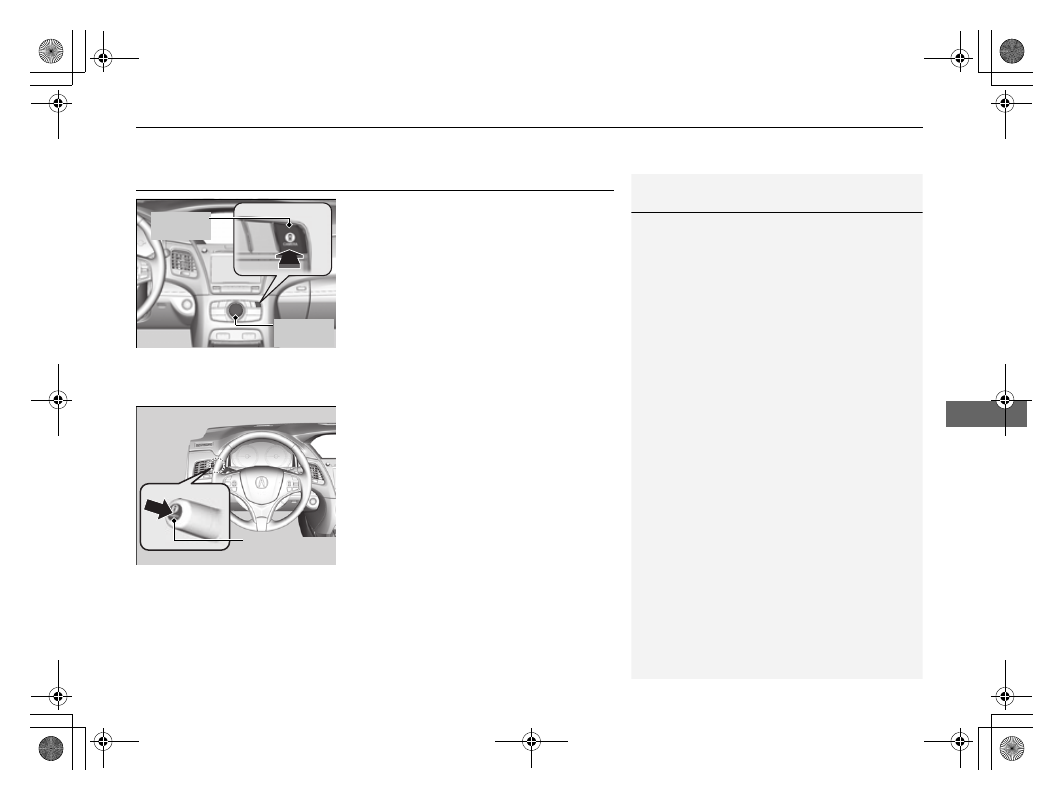

Displaying an Image From the Surround View
Cameras

■

For frontal views:

Press the CAMERA button when the vehicle is
stationary or moving at 12 mph (20 km/h) or
slower. Press the button again or the interface
dial to switch camera views.

■

For rear reviews:

Change the gear position to

(

R when the

vehicle is stationary. Press the CAMERA
button or the interface dial to switch to rear
view mode.

You can customize the display setting.

2 Customized Features P. 297

1

Surround View Camera System

*

The surround view camera system does not eliminate
all blind spots. The system is for your convenience
only.

Always keep the camera lenses clean and free from
debris.

The navigation system is disabled when the gear
position is in

(

R.

CAMERA
Button

Interface
Dial

CAMERA
Button

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  481 ページ  ２０１７年７月２０日　木曜日　午後６時８分

482

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

Driving

■

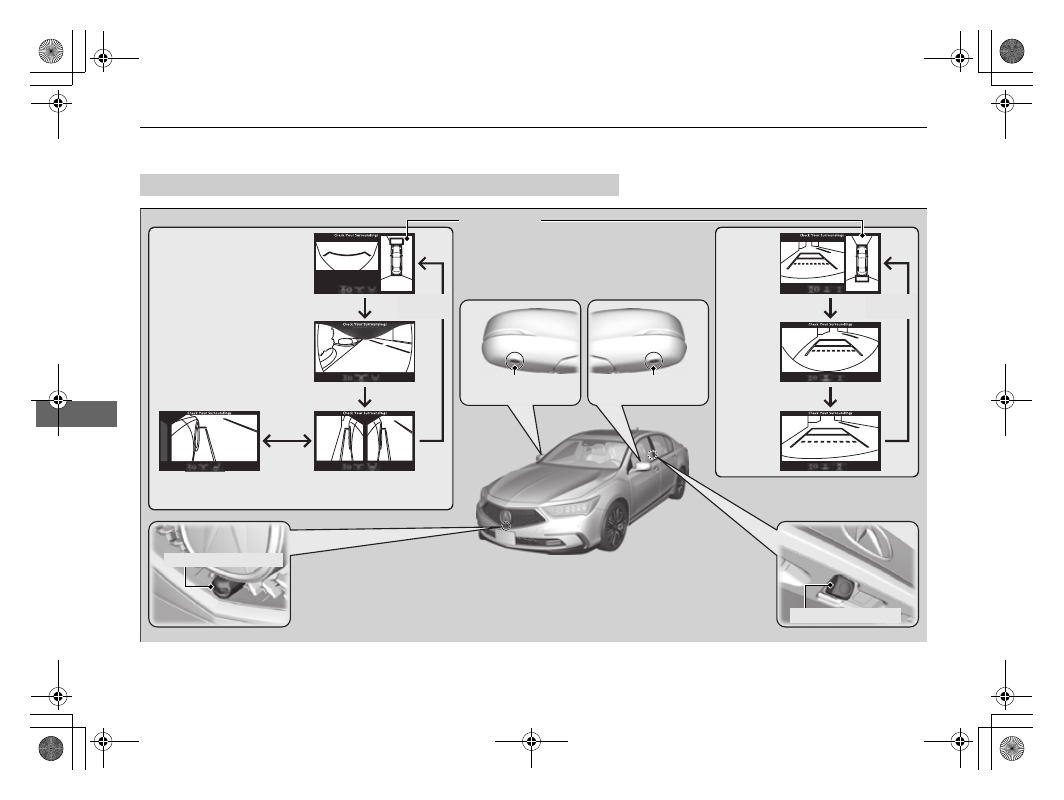

Camera Locations and Images

Ground View
An overhead view created by the
combination of images captured
by four cameras.

Left and Right
Side View

Front Ground View

Right Side View

Front Wide View

Sideview Camera
(Passenger side)

Sideview Camera
(Driver side)

Rearview Camera

Front-view Camera

The unique surround view camera lenses make distances appear
differently than they actually are - objects seen on the audio/information
screen may appear closer or further away, and may be distorted. This
becomes more apparent the further away an object is from your vehicle.

CAMERA

Button

Rear
Ground
View

Rear
Wide
View

Rear
Normal
View

CAMERA Button

CAMERA Button

CAMERA Button

Press and
hold
CAMERA
button.

CAMERA

Button

CAMERA Button

18 ACURA RLX E-AWD-31TY36400.book  482 ページ  ２０１７年７月２０日　木曜日　午後６時８分

483

uu

Surround View Camera System

*

u

Displaying an Image From the Surround View Cameras

Driving

Following can be displayed when the system is on.
Guide lines: Help you to get a sense of a distance between your vehicle and the
rear surroundings. The distance may appear differently than the actual distance.
Projection lines: Indicate vehicle direction while the steering wheel is in the current
position.

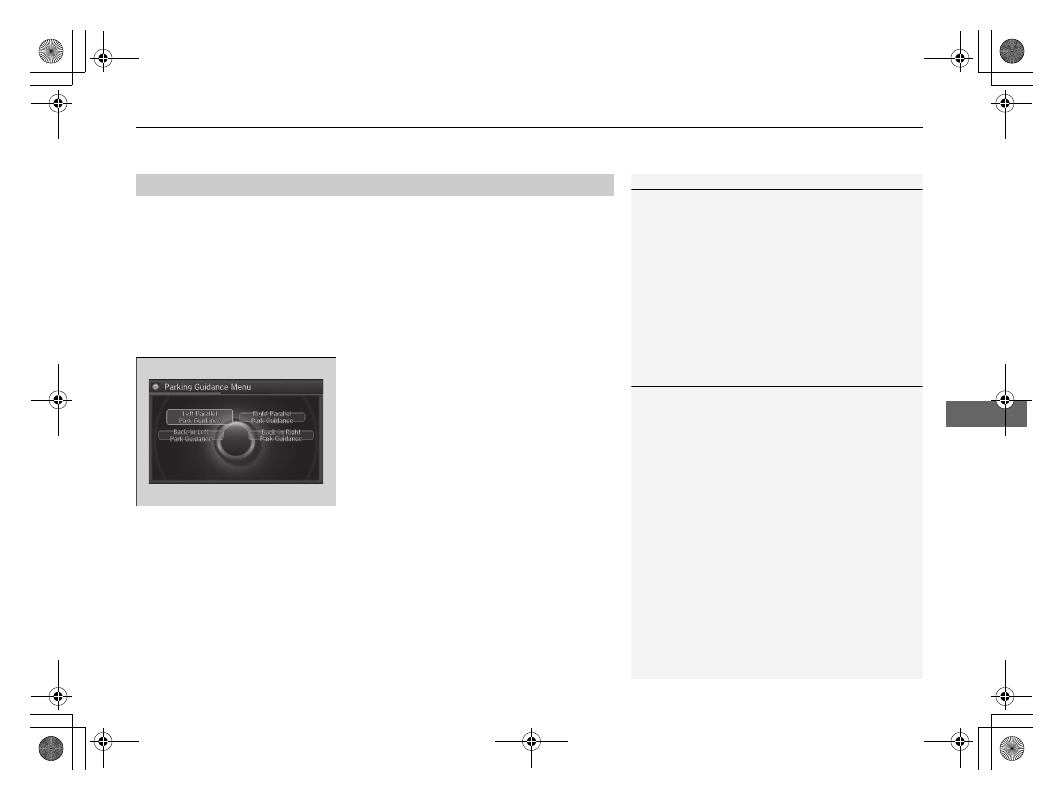

Depending on your parking situation, you can select Back-in Left Park Guidance,
Back-in Right Park Guidance, Left Parallel Park Guidance, or Right Parallel
Park Guidance from Parking Guidance Menu to display:

Initial position guide: Marks the point
where your vehicle is headed when reversing.
Steering position alignment guide:
Indicates when to change the steering wheel
position.

■

Reference Lines and Guides

1

Displaying an Image From the Surround View Cameras

Operating the navigation system or audio system
while the surround view camera system screen is
displayed cancels the surround view camera system
screen and starts up the navigation system screen.

If you press the CAMERA button while the vehicle
speed is more than 15 mph (25 km/h), the standby
screen appears.
When the vehicle speed is reduced below 12 mph (20
km/h), the screen switches to a surround view camera
system image.

1

Reference Lines and Guides

The positions/distances indicated by the guide lines
and camera views on the display may differ from the
actual positions/distances due to the changes in the
vehicle height, road conditions, and other factors.
The guide lines should be used as a reference only.

The guide lines can be turned on and off using the
audio/information screen.

2 Customized Features P. 297

If you turn the guide lines off, they remain off until
you turn them back on.

To see the guidance on how to use the reference
lines and guides while they appear on the display,
press and hold the CAMERA button or the interface
dial. To close the guidance, press and hold the
CAMERA button or the interface dial again, or press
the BACK button.

18 ACURA RLX E-AWD-31TY36400.book  483 ページ  ２０１７年７月２０日　木曜日　午後６時８分

484

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

When Parking Your Vehicle

The display automatically changes to the rear view when the gear position is
changed to

(

R.

■

Checking for Obstacles at the Back of Your Vehicle

1

When Parking Your Vehicle

The ground view can be displayed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.

Folded

Not folded

1

Checking for Obstacles at the Back of Your Vehicle

When changing the gear position from/to

(

R, you

may experience a delay in switching between the
audio/information screen and a rear view image.

Rear Wide View

Rear Normal View

Rear Ground View

When the

steering wheel is

turned more than

90 degrees.

The projection lines
appear approx. 10
inches (25 cm)
outside the vehicle
body.

Blind spots
appear in
black.

Press the CAMERA
button.

Approximate distances
the guide lines indicate

Approximate distances the
projection lines indicate

39 inches (1 m)

20 inches
(50 cm)

39 inches
(1 m)

18 ACURA RLX E-AWD-31TY36400.book  484 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Continued

485

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

1. With your vehicle at a complete stop, press the CAMERA button, then press the

MENU button. Rotate

 to select Back- in left park guidance or Back-in right

park guidance. Press

.

2. Move the vehicle forward perpendicular to the parking space and stop where the

initial positioning guide in the display is at the center of the parking space.

3. Turn the steering wheel fully to the left (if the parking space is on the passenger

side) at a stop.

u

The steering position alignment guide is displayed.

4. Slowly move the vehicle forward.

u

Stop the vehicle when the steering position alignment guide enters the parking space.

5. Turn the steering wheel fully to the right (if the parking space is on the passenger

side) at a stop. Start reversing the vehicle slowly.

6. Stop the vehicle when it is parallel to the parking lines.
7. Return the steering wheel to its center position, then reverse the vehicle slowly

until it is parked within the space.

■

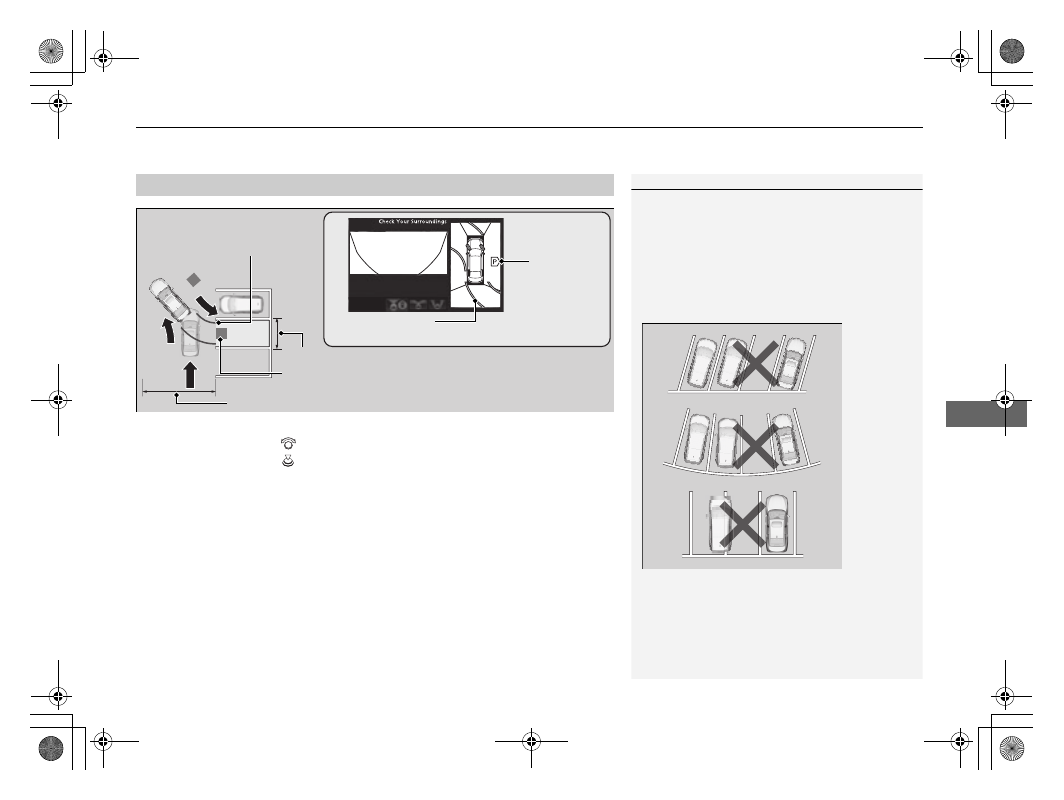

Reversing into a Parking Space Marked with Parking Lines

1

Reversing into a Parking Space Marked with Parking Lines

If the steering position alignment guide does not fit in
the parking lines, the parking space is too small for
the vehicle.

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Must be wider than approx. 8 feet (2.5 m)

The initial positioning
guide must come here.

Must be wider than approx. 20 feet (6 m)

Make sure the guides
are within the parking
space when reversing.

Initial
Positioning
Guide

Steering Position
Alignment Guide

A

B

C

Steering position alignment
guide enters the parking
space. (Step 4)

18 ACURA RLX E-AWD-31TY36400.book  485 ページ  ２０１７年７月２０日　木曜日　午後６時８分

uu

Surround View Camera System

*

u

When Parking Your Vehicle

486

Driving

1. Press the CAMERA button, then press the MENU button. Rotate

 to select

Left parallel park guidance or Right Parallel park guidance. Press

.

2. Move the vehicle forward parallel to the parking space and stop when the initial

positioning guide shown in the display overlaps the front corner of the space.

3. Turn the steering wheel fully to the right (if the parking space is on the passenger

side) at a stop.

u

The steering position alignment guide is displayed.

4. Slowly reverse the vehicle.

u

Stop the vehicle when the steering position alignment guide overlaps the
sideline of the parking space.

5. Turn the steering wheel fully to the left (if the parking space is on the passenger

side) at a stop. Reverse the vehicle slowly.

6. Stop the vehicle when it is parallel to the parking lines.
7. Return the steering wheel to its center position, then reverse the vehicle slowly

until it is parked within the space.

■

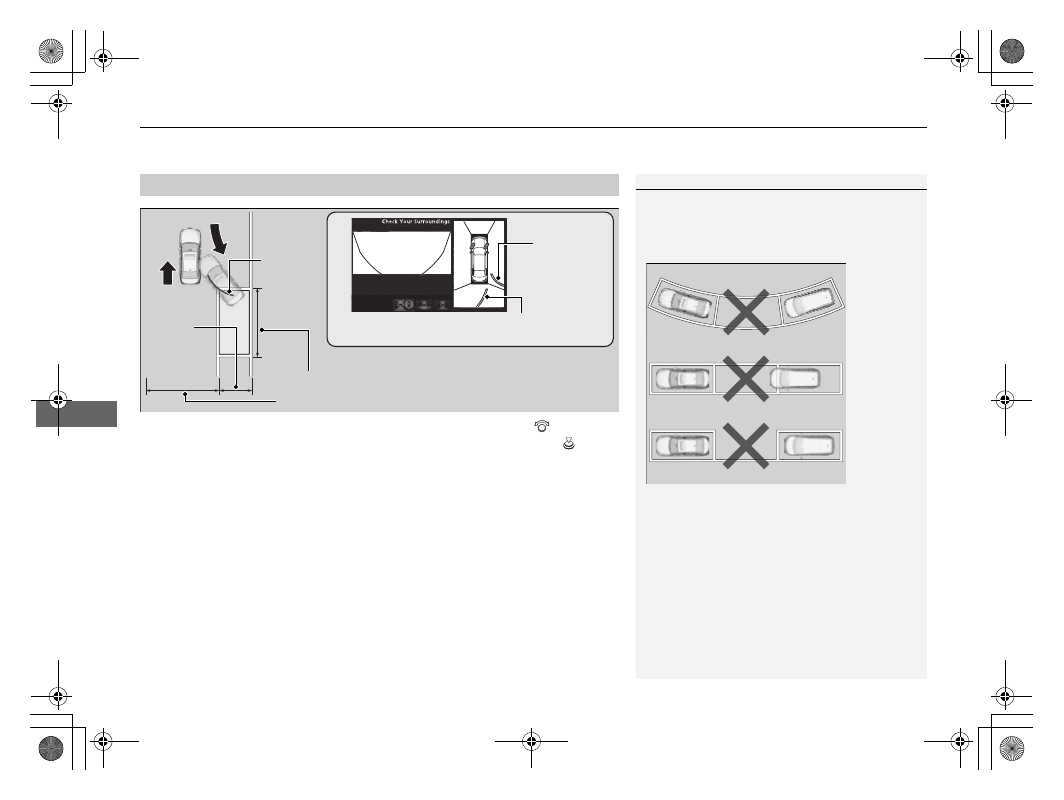

Parallel Parking into a Parking Space Marked with Parking Lines

1

Parallel Parking into a Parking Space Marked with Parking Lines

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Initial
Positioning
Guide

Steering Position
Alignment Guide

Must be wider than approx. 20 feet (6 m)

Must be
wider than
approx. 8
feet (2.5 m)

Must be longer than approx. 21 feet (6.5 m)

A

B

C

Initial
positioning
guide
overlaps the
front corner
of the space.
(Step 2)

18 ACURA RLX E-AWD-31TY36400.book  486 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Continued

487

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

You can display the front ground view screen using all the four cameras for the
system. Pressing the CAMERA button when the vehicle speed is at below 12 mph
(20 km/h) changes the image as follows.

■

Checking for the Sides of Your Vehicle

1

Checking for the Sides of Your Vehicle

When the vehicle speed exceeds 15 mph (25 km/h),
the front or side view on the screen automatically
switches to the audio information screen. The front
or side view screen resumes when the vehicle speed
is reduced below 12 mph (20 km/h).

0 mph (0 km/h)

Down

Up

Camera
Screen

Camera
Screen

Audio/information
Screen

Audio/information
Screen

15 mph (25 km/h)

12 mph (20 km/h)

0 mph (0 km/h)

Side
View

Front Wide View

Front Ground View

Press and hold the
CAMERA button.

A Combined Image of
Both Side Views

Approximate distance
the reference line
indicates.

Blind spots
appear in black.

Projection lines
appear.

Press the CAMERA
button.

When the
steering wheel is
turned more
than 90 degrees.

approx. 3 feet (1 m)

18 ACURA RLX E-AWD-31TY36400.book  487 ページ  ２０１７年７月２０日　木曜日　午後６時８分

uu

Surround View Camera System

*

u

When Parking Your Vehicle

488

Driving

■

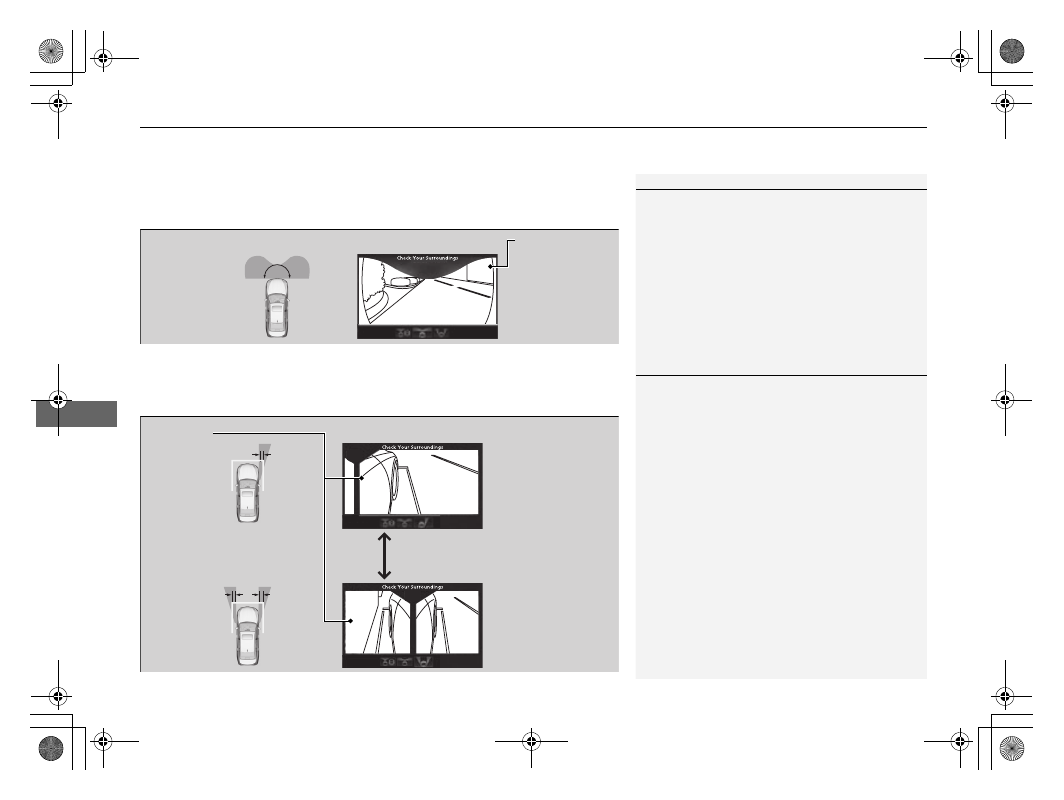

Checking from the front wide view at intersections

The front wide view screen is useful when you need to check for vehicles crossing
from either direction at an intersection with poor visibility.

■

Checking the sides of your vehicle

The side view screens are convenient when you pull over at a curb or tollbooth, or
slowly pass by oncoming vehicles on a narrow road.

1

Checking from the front wide view at intersections

The front wide view image is a wide-angled view. The
displayed image will be largely distorted, and objects
may appear closer or more distant than they actually
are.

The angle
provided by the
front wide view
screen is 180
degrees.

Front Wide View Screen

When the vehicle
speed is below 12
mph (20 km/h),
press the
CAMERA button
repeatedly until
the front wide
view comes on.

1

Checking the sides of your vehicle

When the door mirrors are folded, the side views
cannot be displayed.

Side View Screen

12 inches
(30 cm)

12 inches
(30 cm)

Press and hold the
CAMERA button.

Approximate distance
the projection lines
indicate is 12 inches
(30 cm) from the
vehicle.

Side Views
The images
from the side
cameras.

12 inches
(30 cm)

18 ACURA RLX E-AWD-31TY36400.book  488 ページ  ２０１７年７月２０日　木曜日　午後６時８分
