Quick Reference Guide

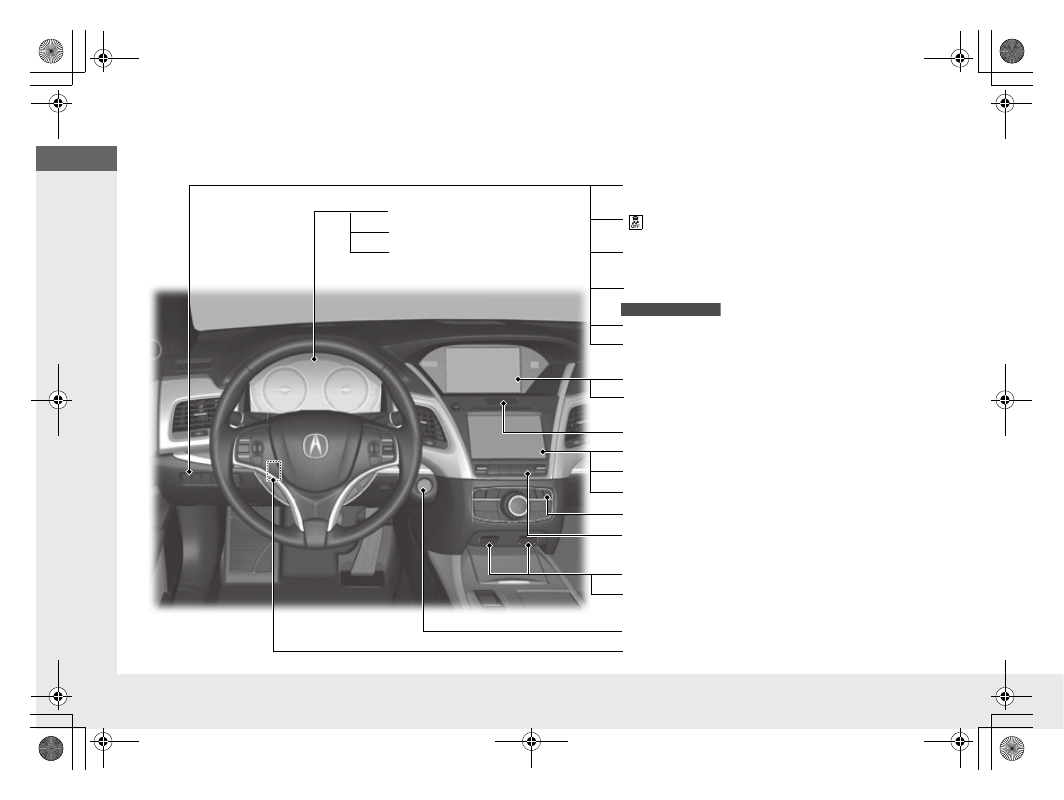

Visual Index

❙

Steering Wheel Adjustments

(P 171)

❙

POWER Button

(P 152)

❙

Road Departure Mitigation (RDM)
Button

(P 420)

❙

Parking Sensor System Button

*



(P 471)

❙

Collision Mitigation Braking System

TM



(CMBS

TM

) OFF Button

(P 463)

❙

Navigation System

() See the Navigation System Manual

❙

Audio/Information Screen

(P 225)

❙

Hazard Warning Button

❙

On Demand Multi-Use Display

TM



(P 217)

❙

Audio System

(P 212)

❙

System Indicators

(P 76)

❙

Gauges

(P 112)

❙

Multi-Information Display

(P 114)

❙

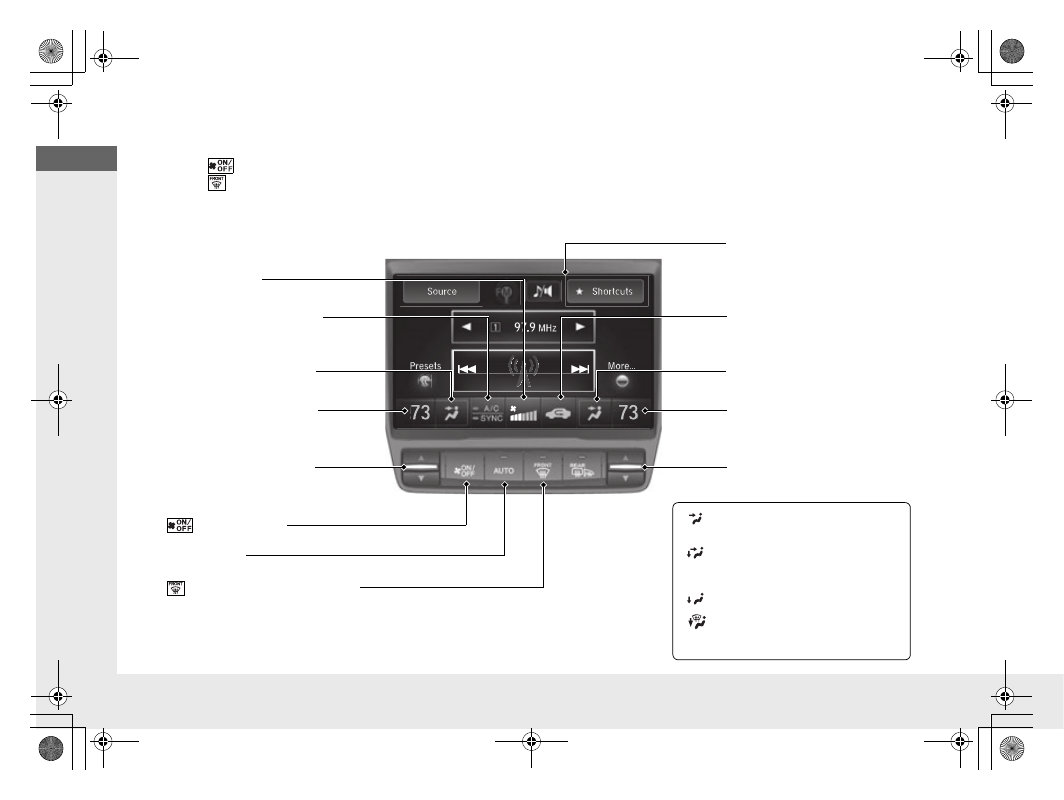

Climate Control System

(P 200)

❙

Rear Window Defogger/Heated Mirror/
Heated Windshield Button

(P 168)

❙

Headlight Washer Button

(P 165)

❙

CAMERA Button

*



(P 481)

Canadian models

❙

Acoustic Vehicle Alerting System OFF
Button

(P 397)

❙

Front Seat Heater Buttons

*



(P 195)

❙

Front Seat Heaters and Ventilation
Buttons

*



(P 196)

❙

 (Vehicle Stability Assist (VSA®)

System OFF) Button

(P 442)

18 ACURA RLX E-AWD-31TY36400.book  4 ページ  ２０１７年７月２０日　木曜日　午後６時８分

5

Quick

 Referenc

e Guide

❙

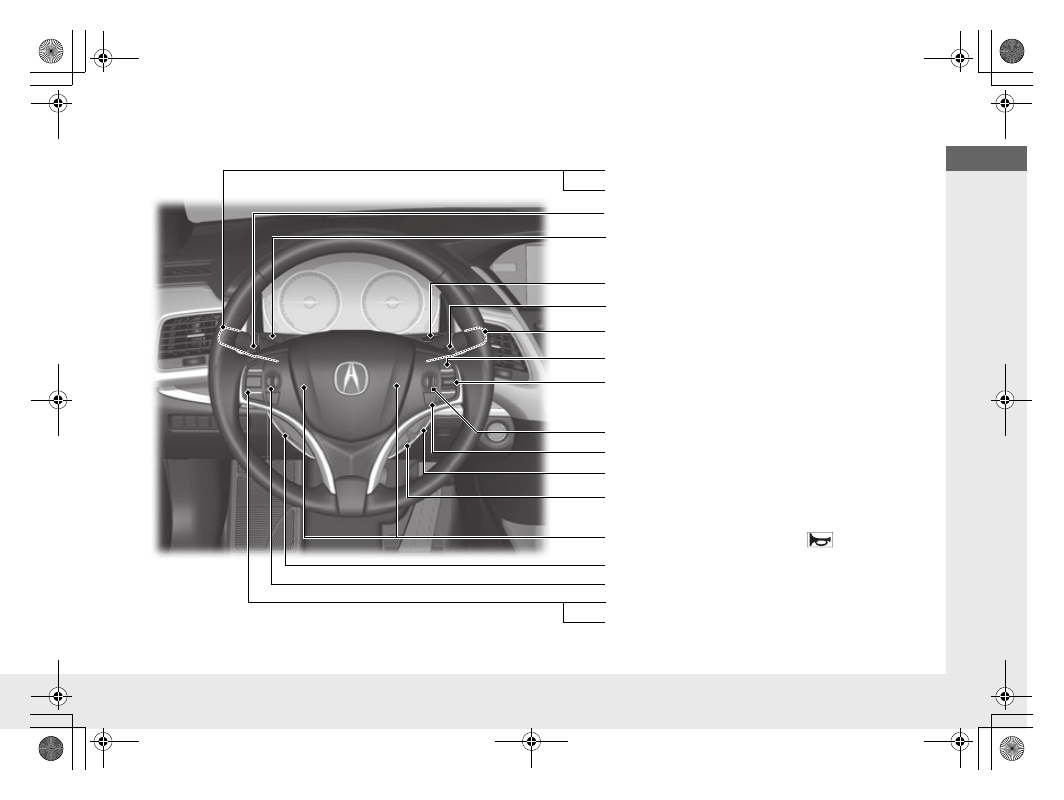

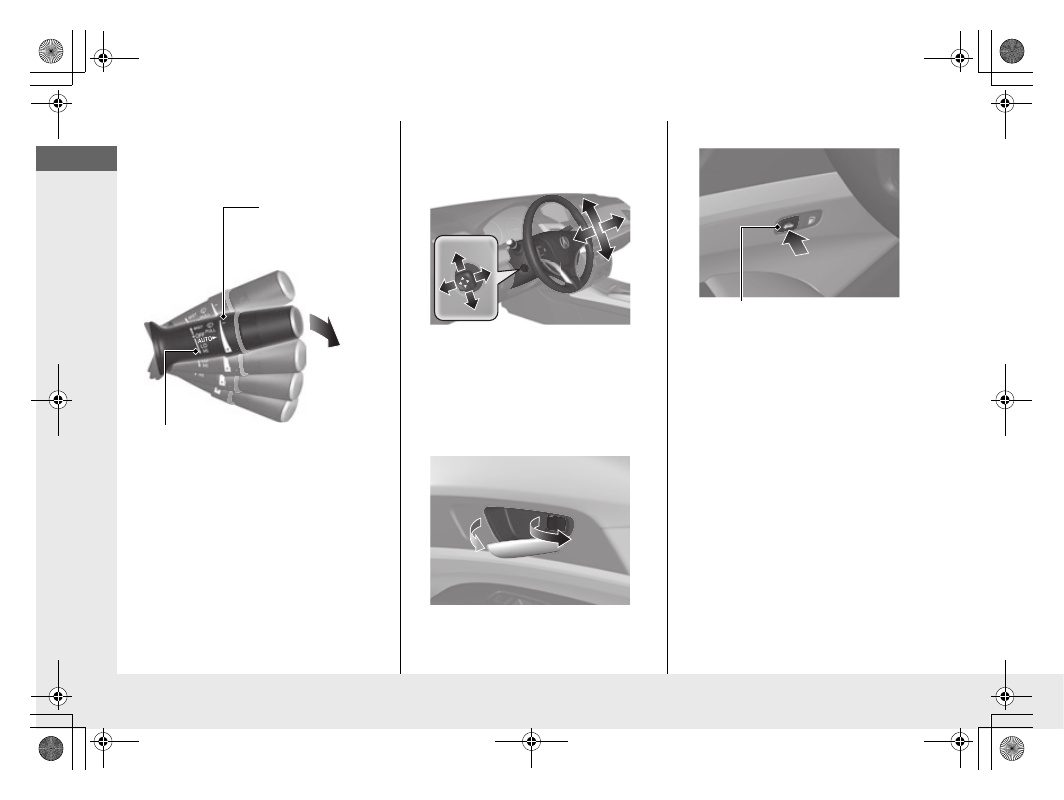

Headlights/Turn Signals

(P 155, 156)

❙

Paddle Shifter (Shift down)

(P 394)

❙

Paddle Shifter (Shift up)

(P 394)

❙

Horn (Press an area around

.)

❙

Voice Control Buttons

(P 232)

❙

Bluetooth® HandsFreeLink® System
Voice Control Buttons

(P 326)

❙

Brightness Control

(P 166)

❙

Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons

(P 399, 404)

❙

TRIP Button

(P 115, 116)

❙

Interval Button

(P 399, 412)

❙

Lane Keeping Assist System (LKAS) Button

(P 399, 425)

❙

Right Selector Wheel

(P 114)

❙

Heated Steering Wheel Button

(P 194)

❙

Head-Up Display Buttons

(P 119)

❙

Audio Remote Controls

(P 215)

❙

CAMERA Button

*



(P 481)

❙

Wipers/Washers

(P 163)

❙

MAIN Button

(P 399, 405, 425)

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  5 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Visual Index

6

Quick

 Referenc

e Guide

❙

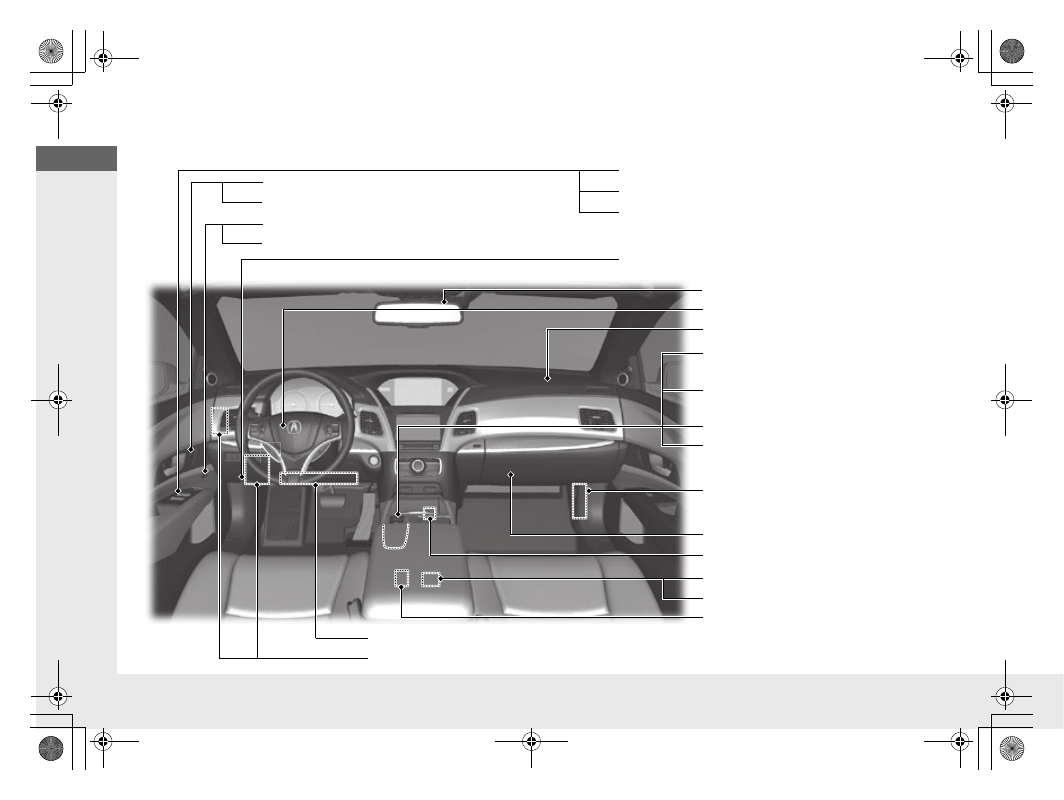

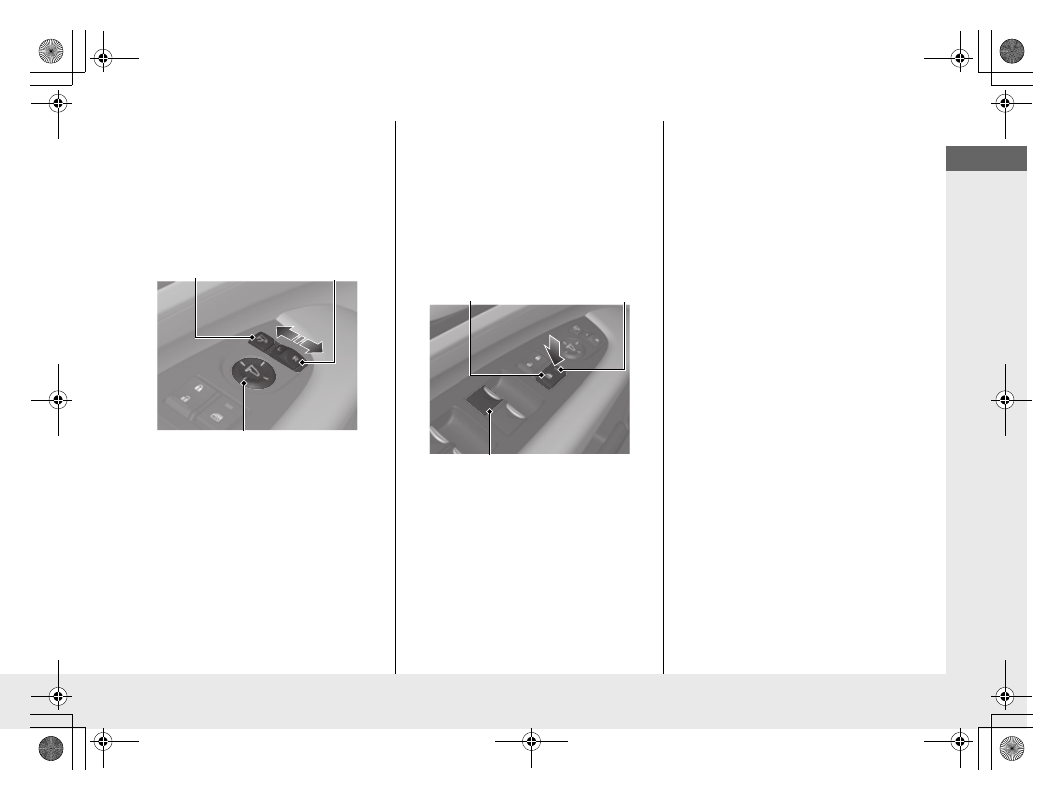

Power Window Switches

(P 149)

❙

Driver’s Front Airbag

(P 48)

❙

Trunk Opener

(P 143)

❙

Hood Release Handle

(P 503)

❙

Passenger’s Front Airbag

(P 48)

❙

Glove Box

(P 184)

❙

Driver’s Knee Airbag

(P 52)

❙

Door Mirror Controls

(P 173)

❙

Power Door Lock Master Switch

(P 141)

❙

Passenger’s Side Interior Fuse
Box

(P 579)

❙

Accessory Power Socket

(P 190)

❙

Memory Buttons

(P 170)

❙

SET Button

(P 170)

❙

Rearview Mirror

(P 172)

❙

Accessory Power Socket

(P 190)

❙

Driver’s Side Interior Fuse Boxes

(P 577)

❙

Electric Parking Brake Switch

(P 452)

❙

Automatic Brake Hold Button

(P 456)

❙

SPORT Button

(P 395)

❙

Shift Button
Electronic Gear Selector

(P 387)

❙

USB Port

(P 213)

❙

Auxiliary Input Jack

(P 213)

❙

Fuel Fill Door Release Button

(P 491)

18 ACURA RLX E-AWD-31TY36400.book  6 ページ  ２０１７年７月２０日　木曜日　午後６時８分

7

Quick

 Referenc

e Guide

❙

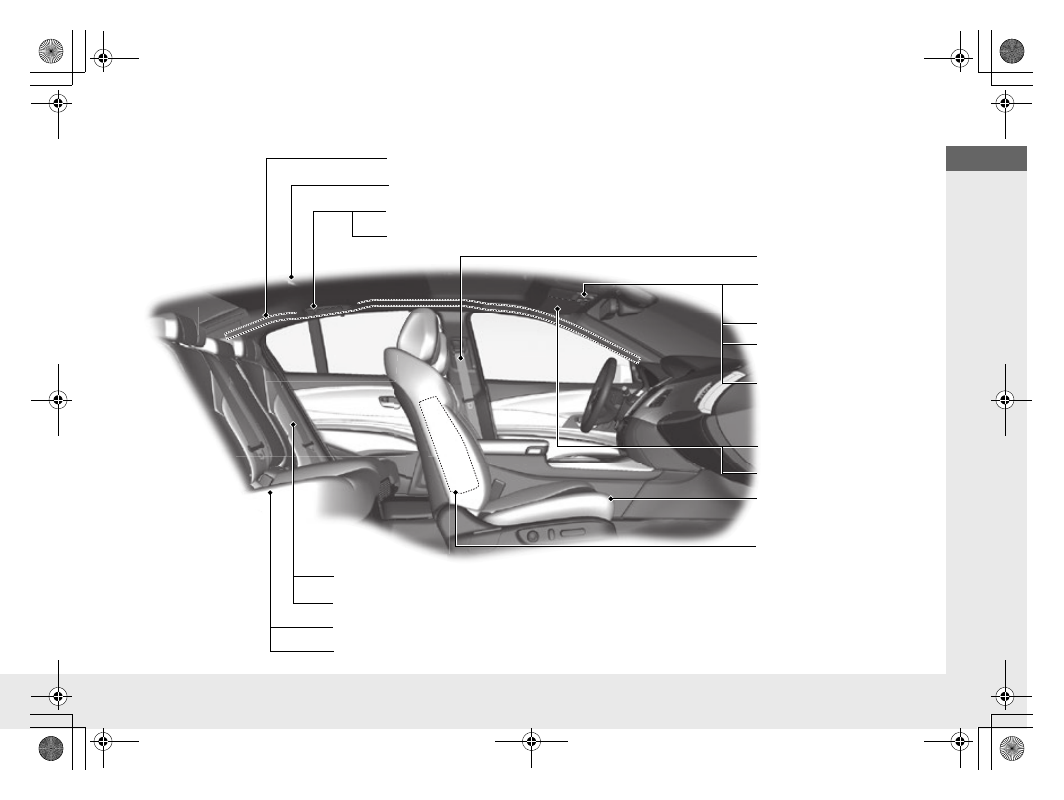

Side Airbags

(P 54)

❙

Map Lights

(P 183)

❙

Side Curtain Airbags

(P 56)

❙

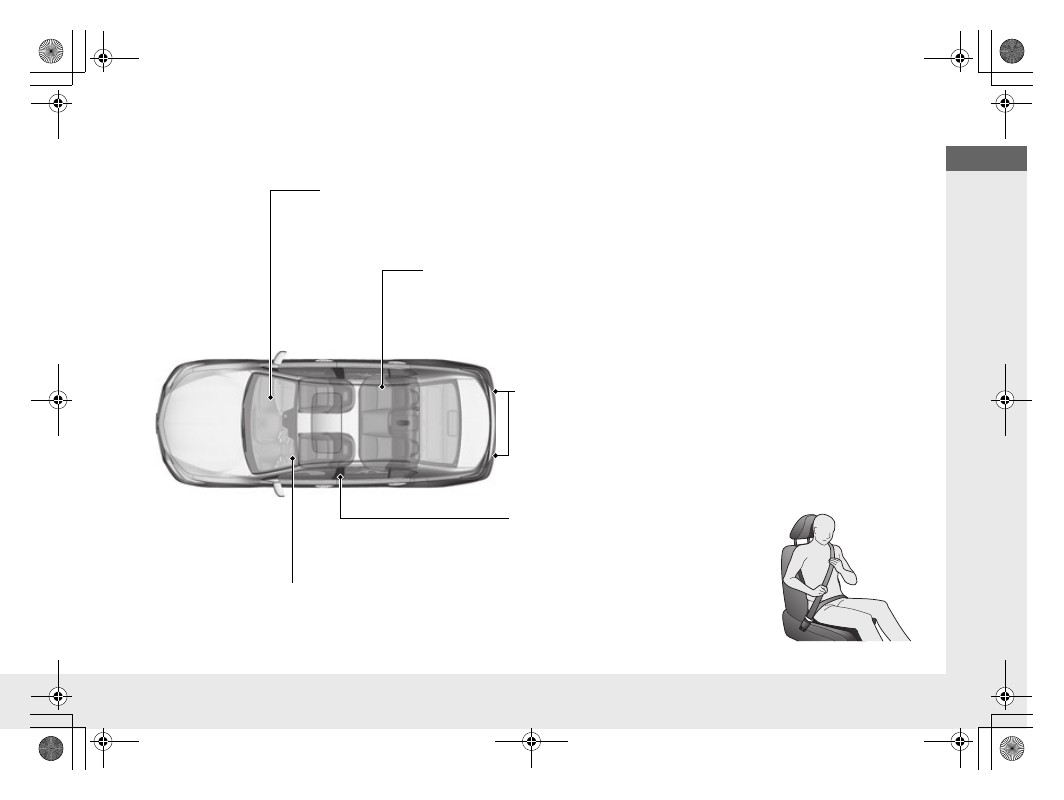

Seat Belts

(P 38)

❙

Seat Belt to Secure a Child Seat

(P 69)

❙

LATCH to Secure a Child Seat

(P 65)

❙

Seat Belt (Installing a Child Seat)

(P 67)

❙

Rear Seat

❙

Front Seat

(P 175)

❙

Coat Hook

(P 191)

❙

Grab Handle

❙

Moonroof Switch

(P 151)

❙

Map Lights

(P 183)

❙

Sunglasses Holder

(P 197)

❙

Power Rear Sunshade
Button

*



(P 198)

❙

Sun Visors

❙

Vanity Mirrors

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  7 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Visual Index

8

Quick

 Referenc

e Guide

❙

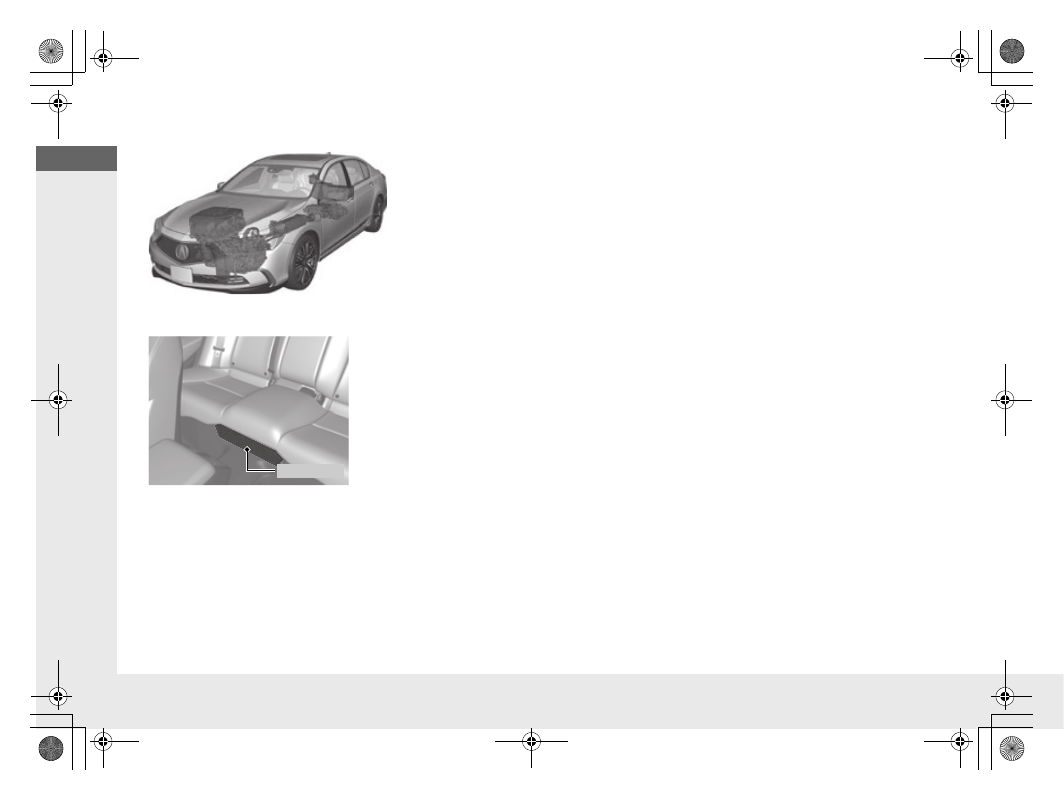

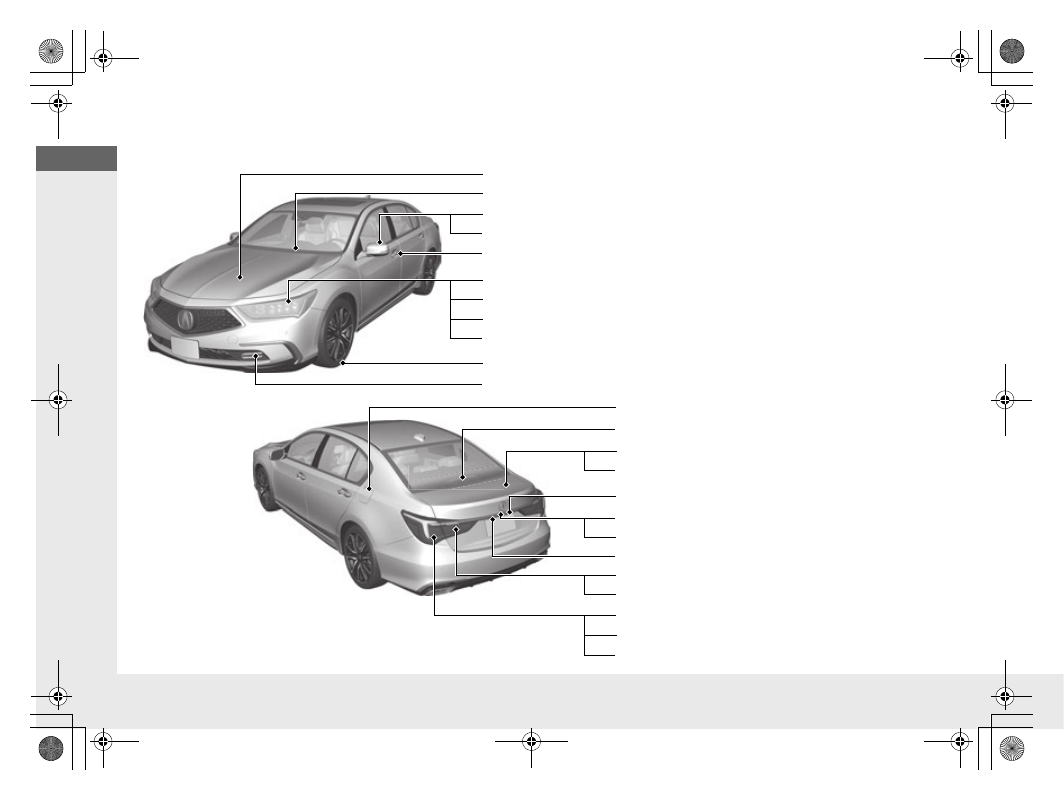

Maintenance Under the Hood

(P 502)

❙

Windshield Wipers

(P 163, 518)

❙

Tires

(P 521, 543)

❙

Door Lock/Unlock Control

(P 131)

❙

Power Door Mirrors

(P 173)

❙

Headlights

(P 156, 515)

❙

How to Refuel

(P 491)

❙

High-Mount Brake Light

(P 517)

❙

Emergency Trunk Release Lever

(P 145)

❙

Opening/Closing the Trunk

(P 143)

❙

Multi-View Rear Camera

*



(P 478)

❙

Rear Side Marker Lights

(P 516)

❙

Brake/Taillights

(P 516)

❙

Rear Turn Signal Lights

(P 516)

❙

Back-Up Lights

(P 517)

❙

Rear License Plate Lights

(P 517)

❙

Taillights

(P 516)

❙

Fog Lights

*



(P 159, 515)

❙

Surround View Camera System

*



(P 480)

❙

Trunk Release Button

(P 144)

❙

Side Turn Signal Lights

(P 155, 516)

❙

Front Turn Signal Lights

(P 155, 156, 515)

❙

Parking/Daytime Running Lights

(P 159, 515)

❙

Front Side Marker Lights

(P 156, 516)

18 ACURA RLX E-AWD-31TY36400.book  8 ページ  ２０１７年７月２０日　木曜日　午後６時８分

10

Quick

 Referenc

e Guide

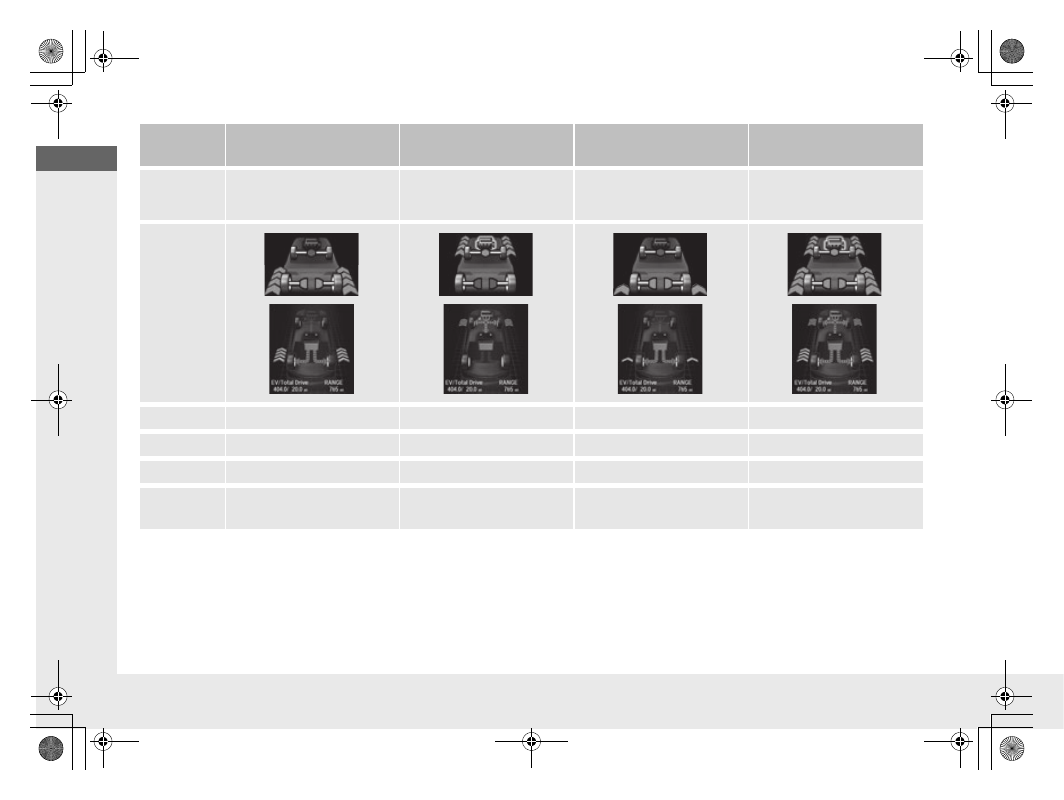

*1:Upper: Head-up display, Lower: Audio/information screen

Operating

mode

EV Launch

Engine Drive

EV Cruising

Power Acceleration

Vehicle

Speed

Launch Acceleration:

●

Rear Motor Drive

Gentle Acceleration:

●

Engine Drive

Low Speed Cruise:

●

Rear Motor Drive

Aggressive Acceleration:

●

Engine Drive

●

Motor Assist

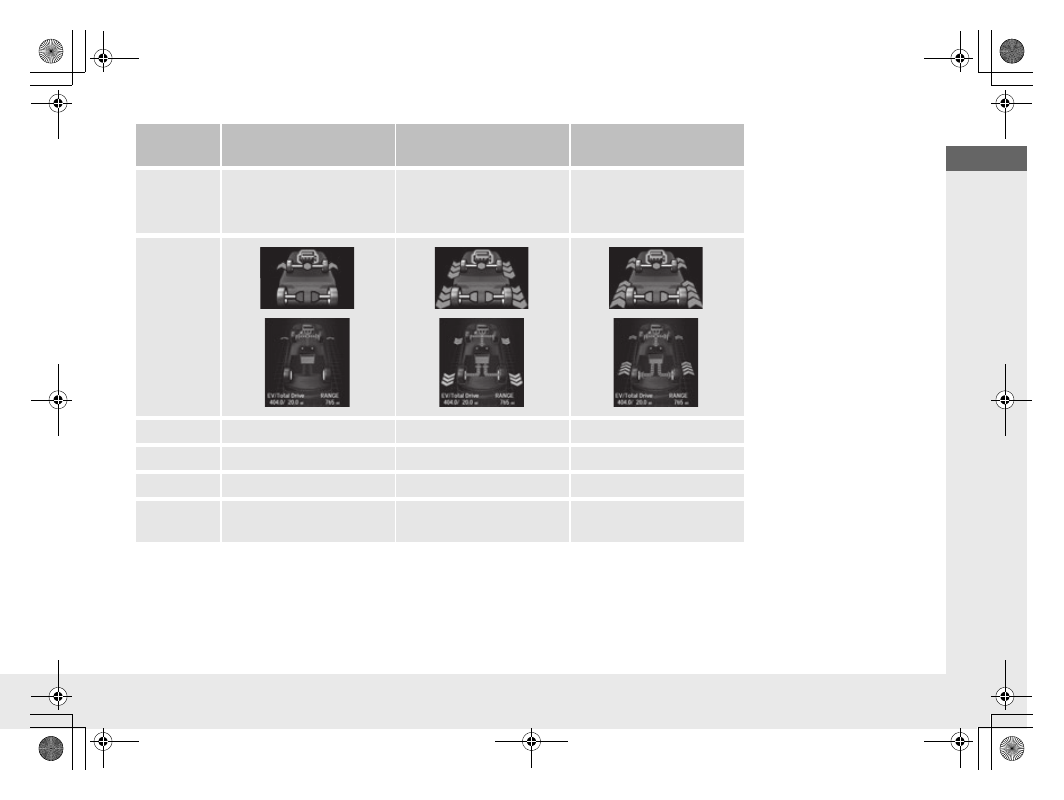

Power Flow

Monitor

*1

Electric motors

Drive

-  /  Drive

Drive

Drive

Generators

-

Generate  /  -

-

-

Engine

Stopped

Running

Stopped

Running

High Voltage

battery

Discharges

Charges/Discharges

Discharges

Discharges

18 ACURA RLX E-AWD-31TY36400.book  10 ページ  ２０１７年７月２０日　木曜日　午後６時８分

11

Quick

 Referenc

e Guide

*1:Upper: Head-up display, Lower: Audio/information screen

Operating

mode

Engine Cruising

Regeneration

AWD Mode

Vehicle

Speed

High Speed Cruise:

●

Engine Drive

Deceleration:

●

Front & Rear Regeneration

Slippery Condition:

●

Engine Drive

●

Front Generation

●

Rear Motor Drive

Power Flow

Monitor

*1

Electric motors

Drive

Regenerate

Drive

Generators

Generate

Regenerate

Generate

Engine

Running

Stopped

Running

High Voltage

battery

Charges/Discharges

Charges

Charges/Discharges

18 ACURA RLX E-AWD-31TY36400.book  11 ページ  ２０１７年７月２０日　木曜日　午後６時８分

12

Quick

 Referenc

e Guide

Energy Efficiency

As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engine.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery’s state of charge.

Battery Types

There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.

Regenerative Energy and Regenerative Braking

When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the electric motors
act as generators that recovers a portion of the electrical energy that was used to accelerate the vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle.
When the high voltage battery is fully charged or its condition is affected by extreme temperatures or other factors, regenerative braking
may not work.

18 ACURA RLX E-AWD-31TY36400.book  12 ページ  ２０１７年７月２０日　木曜日　午後６時８分

13

Quick

 Referenc

e Guide

Auto Engine Stop/Start

Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.

In the following cases, however, Auto Engine Stop may not activate.
● The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.

● The climate control system is in heavy use.

● The High Voltage battery temperature is high or low.

● The High Voltage battery state of charge is low.

When in SPORT mode, Auto Engine Stop does not activate.

Sounds Unique to the SPORT HYBRID SH-AWD® System

When you first start driving this vehicle, you will likely hear some unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of these sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a
vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unusual noise
should one develop.

18 ACURA RLX E-AWD-31TY36400.book  13 ページ  ２０１７年７月２０日　木曜日　午後６時８分

14

Quick

 Referenc

e Guide

Safety Precautions

Do not touch the High Voltage system

Attempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system is performed by a Acura dealer.

If a crash occurs

●Be careful of electric shock hazard.

u

If a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical shock

due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.

u

The High Voltage battery contains a flammable electrolyte that could leak as a result of a severe

crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you accidentally come into
contact with the electrolyte, rinse the exposed skin or flush your eyes with copious amounts of water
for at least five minutes, and seek medical attention immediately.
●Use a fire extinguisher for an electrical fire.

u

Attempting to extinguish an electrical fire with a small quantity of water, from a garden hose for

instance, can be dangerous.
●Anytime the vehicle is damaged in a crash, have it repaired by an Acura dealer.

Emergency Shutdown System for the High Voltage System

If the vehicle is involved in a crash, the emergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult an Acura dealer.

Acura collects and recycles High Voltage batteries used in its vehicles – consult an Acura
dealer for more information.

Do not cover the air intake.

If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may limit the battery’s
output and cause the power
system and 12-volt battery
charging system indicators to come
on.

Air Intake

18 ACURA RLX E-AWD-31TY36400.book  14 ページ  ２０１７年７月２０日　木曜日　午後６時８分

15

Quick

 Referenc

e Guide

Safe Driving

(P 33)

Airbags

(P 45)

● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety

(P 60)

● All children 12 and younger should be seated in the rear seat.

● Smaller children should be properly restrained in a forward-facing child seat.

● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard

(P 72)

● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P 37)

● Before driving, check that the front seats, head restraints,

steering wheel, and mirrors have been properly adjusted.

Seat Belts

(P 38)

● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

their seat belts correctly.

Fasten your lap belt as
low as possible.

18 ACURA RLX E-AWD-31TY36400.book  15 ページ  ２０１７年７月２０日　木曜日　午後６時８分

16

Quick

 Referenc

e Guide

Instrument Panel

(P 75)

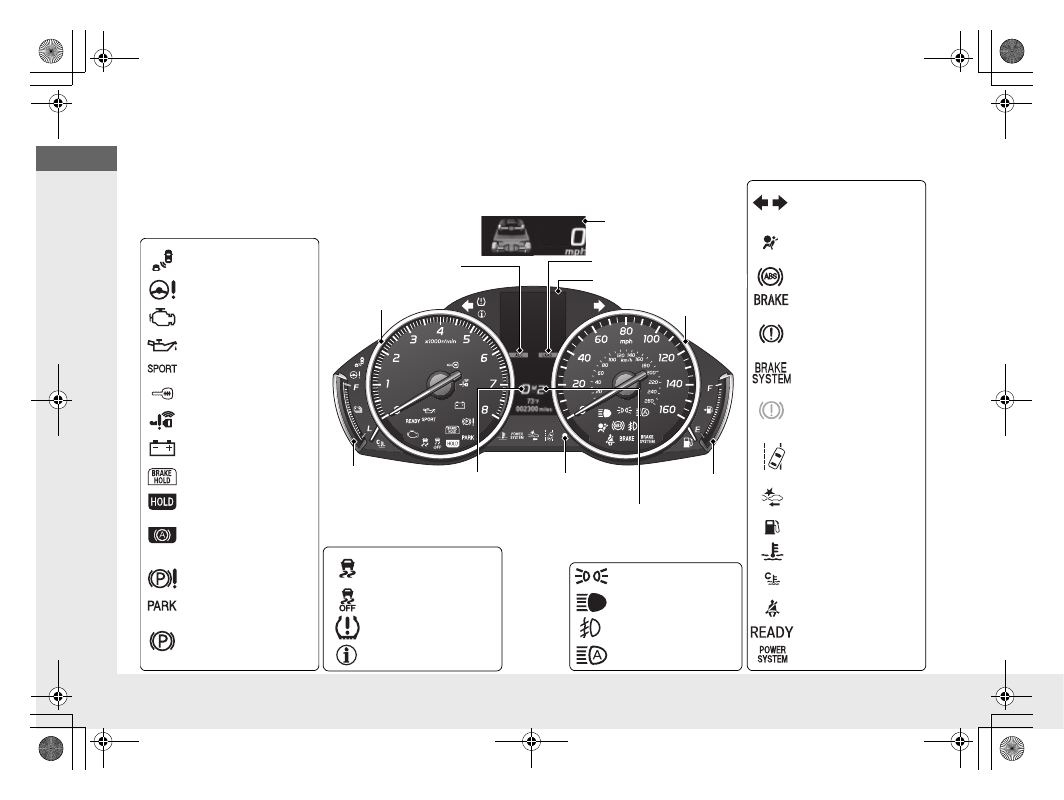

System Indicators

Malfunction Indicator

Lamp
Low Oil Pressure

Indicator

12-Volt Battery Charging

System Indicator

Anti-lock Brake System

(ABS) Indicator

Vehicle Stability Assist

(VSA®) System

Indicator

VSA® OFF Indicator

Electric Power Steering

(EPS) System Indicator

Lights Indicators

Lights On Indicator

High Beam Indicator

Immobilizer System

Indicator

Seat Belt Reminder

Indicator

System Indicators

System Message

Indicator

Brake System

Indicator (Red)

Supplemental

Restraint System

Indicator

Low Temperature

Indicator

Low Fuel Indicator

Gauges

(P 112)

/Multi-Information Display

(P 114)

/

Head-Up Display

(P 119)

/System Indicators

(P 76)

Low Tire Pressure/

TPMS Indicator

Turn Signal and

Hazard Warning

Indicators

Keyless Access System

Indicator

High Voltage
Battery Charge
Level Gauge

Security System

Alarm Indicator

Fuel

Gauge

Tachometer

Multi-Information Display

Speedometer

Gear Position

Indicator

M (sequential mode)

Indicator/Sequential Mode

Gear Selection Indicator

Electric Parking Brake

System Indicator

Electric Parking Brake

Indicator

Automatic Brake Hold

System Indicator

Brake System

Indicator (Amber)

SPORT Mode Indicator

Blind Spot Information

(BSI) Indicator

System Indicators

Collision Mitigation

Brake System

TM



(CMBS

TM

) Indicator

High Temperature

Indicator

Road Departure

Mitigation (RDM)

Indicator

Lane Keeping Assist

System (LKAS) Indicator

Adaptive Cruise Control

(ACC) with Low Speed

Follow (LSF) Indicator

Automatic Brake Hold

Indicator

U.S.

Canada

U.S.

Canada

U.S.

Canada

U.S.

Canada

Fog Light Indicator

*

Head-Up Display

READY Indicator

POWER SYSTEM

Indicator

Auto High-Beam

Indicator

18 ACURA RLX E-AWD-31TY36400.book  16 ページ  ２０１７年７月２０日　木曜日　午後６時８分

17

Quick

 Referenc

e Guide

Controls

(P 127)

Clock

(P 128)

The navigation system receives signals from
GPS satellites, updating the clock
automatically.

You can also adjust the time manually.

a

Enter the Clock Adjustment screen.

2 Clock (P 128)

b

Rotate

 to change hour, then press

.

c

Rotate

 to change minute, then

press .

POWER Button

(P 152)

Press the button to changes the vehicle’s
power mode.

Turn Signals

(P 155)

Lights

(P 156)

Turn Signal Control Lever

Right

Left

Light Control Switches

Low Beam

High Beam

Flashing

* Not available on all models

18 ACURA RLX E-AWD-31TY36400.book  17 ページ  ２０１７年７月２０日　木曜日　午後６時８分

18

Quick

 Referenc

e Guide

Wipers and Washers

(P 163)

AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield

● Driving through a car wash

● No rain present

Wiper/Washer Control Lever

Adjustment Ring

(

-: Low Sensitivity

(

+: High Sensitivity

MIST
OFF
AUTO: Wiper speed varies automatically
LO: Low speed wipe
HI: High speed wipe

Pull toward
you to spray
washer fluid.

Steering Wheel

(P 171)

● To adjust, push and hold the adjustment

switch to move the steering wheel to the
desired position.

Unlocking the Front
Doors from the Inside

(P 140)
● Pull either front door inner handle to

unlock and open it in one motion.

● Unlocking and opening the driver’s door

from the inner handle unlocks all the
other doors.

Trunk

(P 143)

● To unlock and open the trunk:

• Press the trunk opener on the driver’s

door.

• Press the trunk release button on the

keyless access remote.

• Press the trunk release button on the

trunk lid.

Trunk Opener

18 ACURA RLX E-AWD-31TY36400.book  18 ページ  ２０１７年７月２０日　木曜日　午後６時８分

19

Quick

 Referenc

e Guide

Power Door Mirrors

(P 173)
● With the power mode in ON, move the

selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

● Press the folding button to fold in and

out the door mirrors.

Selector Switch

Adjustment Switch

Folding Button

Power Windows

(P 149)

● With the power mode in ON, open and

close the power windows.

● If the power window lock button is in the

off position, each passenger’s window
can be opened and closed with its own
switch.

● If the power window lock button is in the

on position (indicator on), each
passenger’s window switch is disabled.

Power Window Lock Button

Window Switch

Indicator

18 ACURA RLX E-AWD-31TY36400.book  19 ページ  ２０１７年７月２０日　木曜日　午後６時８分

20

Quick

 Referenc

e Guide

Climate Control System

(P 200)

● Press the AUTO button to activate the climate control system.

● Press the

 button to turn the system on or off.

● Press the

 button to defrost the windshield.

The climate control system is voice operable.

(P 236)

Driver’s Side Temperature
Control Switch

Air flows from floor and
windshield defroster vents.
(driver’s side only)

Air flows from floor vents.

Air flows from floor and
dashboard vents, and back of
the center console.

Air flows from dashboard vents
and back of the center console.

AUTO Button

Passenger’s Side Temperature
Control Switch

 (On/off) Button

Driver’s Side Temperature
Icon

Passenger’s Side Temperature
Icon

On Demand Multi-Use Display

TM

 (Windshield Defroster) Button

Driver’s Side Mode Control
Icon

A/C (Air Conditioning) and
SYNC (Synchronized) Icon

Passenger’s Side Mode Control
Icon

Recirculation/Fresh Air Mode
Icon

Fan Control Icon

18 ACURA RLX E-AWD-31TY36400.book  20 ページ  ２０１７年７月２０日　木曜日　午後６時８分
