Acura MDX Hybrid (2017 year). Manual - part 12

184

Co
ntrols

Adjusting the Mirrors

Interior Rearview Mirror

Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.

When you are driving after dark, the
automatic dimming rearview mirror and
power door mirrors

*

 reduce the glare from

headlights behind you, based on inputs from
the mirror sensor. This feature is always active.

■

Automatic Dimming Rearview Mirror and Power Door
Mirrors

*

1

Adjusting the Mirrors

Keep the inside and outside mirrors clean and
adjusted for best visibility.

Adjust the mirrors before you start driving.

2 Front Seats P. 187

1

Automatic Dimming Rearview Mirror and Power Door Mirrors

*

The auto dimming function cancels when the
transmission is in

(

R.

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  184 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

185

uu

Adjusting the Mirrors

u

Power Door Mirrors

Continued

Co
ntrols

Power Door Mirrors

You can adjust the door mirrors when the
power mode is set to ON.

■

Mirror position adjustment

L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.

■

Folding door mirrors

Press the fold button to fold the door mirrors.

If activated, either side door mirror
automatically tilts downward when you pull
back

(

R; this improves close-in visibility on the

selected side of the vehicle when backing up.
The mirror automatically returns to its original
position when you select out of

(

R.

To activate this feature, set the power mode
to ON and slide the selector switch to the left
or right side.

Selector Switch

Adjustment Switch

Fold Button

■

Reverse Tilt Door Mirror

Selector Switch

17 ACURA MDX E-AWD-31TRX6000.book  185 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Adjusting the Mirrors

u

Power Door Mirrors

186

Co
ntrols

■

Folding the door mirrors

Lock all doors from outside the vehicle.

u

The mirrors start folding automatically.

2 Locking and Unlocking the Doors P. 137

■

Unfolding the door mirrors

Unlock the driver’s or all doors from outside the vehicle.

u

The mirrors start unfolding automatically.

2 Locking and Unlocking the Doors P. 137

■

Automatic Folding Door Mirror Function

1

Automatic Folding Door Mirror Function

You can turn the automatic folding door mirror
function on and off.

2 Customized Features P. 125
2 Refer to the Navigation System Manual

Door mirrors will not fold automatically when locking
from inside the vehicle using lock tab or master door
lock switch.

Door mirrors will not unfold automatically if fold
button is pressed.

2 Folding door mirrors P. 185

17 ACURA MDX E-AWD-31TRX6000.book  186 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

187

Continued

Co
ntrols

Adjusting the Seats

Front Seats

Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.

■

Adjusting the front power seats

1

Adjusting the Seats

The National Highway Traffic Safety Administration
and Transport Canada recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.

Always make seat adjustments before driving.

3

WARNING

Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.

Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.

Move back.

Allow sufficient
space.

■

Adjusting the Seat Positions

Horizontal Position
Adjustment

Height Adjustment

Seat-back Angle
Adjustment

Driver’s Side/
Passenger’s Side

*



Lumbar Support
Adjustment

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  187 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Adjusting the Seats

u

Front Seats

188

Co
ntrols

Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.

The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.

Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.

■

Adjusting the Seat-Backs

1

Adjusting the Seat-Backs

Do not put a cushion, or other object, between the
seat-back and your back. Doing so may interfere with
proper seat belt or airbag operation.

If you cannot get far enough away from the steering
wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.

3

WARNING

Reclining the seat-back too far can result in
serious injury or death in a crash.

Adjust the seat-back to an upright position,
and sit well back in the seat.

17 ACURA MDX E-AWD-31TRX6000.book  188 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

189

uu

Adjusting the Seats

u

Second Row Seats

Continued

Co
ntrols

Second Row Seats

■

Adjusting the Seat Positions

1

Second Row Seats

Once a seat is adjusted correctly, rock it back and
forth to make sure it is locked in position.

Seat-back Angle
Adjustment
Pull up the lever to change
the angle.

Horizontal Position
Adjustment
Pull up the bar to move the
seat, then release the bar.

Models with bench seat

17 ACURA MDX E-AWD-31TRX6000.book  189 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

190

uu

Adjusting the Seats

u

Second Row Seats

Co
ntrols

Models with captain seat

Seat-back Angle
Adjustment
Pull up the lever to change
the angle.

Horizontal Position
Adjustment
Pull up the bar to move the
seat, then release the bar.

17 ACURA MDX E-AWD-31TRX6000.book  190 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

191

uu

Adjusting the Seats

u

Second Row Seats

Co
ntrols

Pressing the button on the seat-back, or seat
cushion tilts the second row outer seat's seat-
back forward.

u

The whole seat slides forward.

Pulling up on the strap also tilts the seat-back
forward.

■

Third Row Seat Access

1

Third Row Seat Access

The button is disabled when the vehicle is moving.

When you enter the third row seat, be careful not to
trip over the second row seat belt.

Strap

17 ACURA MDX E-AWD-31TRX6000.book  191 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Adjusting the Seats

u

Second Row Seats

192

Co
ntrols

Separately fold down the left and right halves of the second row seat to make room
for cargo.

1. Store the center seat belt first. Insert the latch plate into the slot on the side of the

anchor buckle.

2. Retract the seat belt into the holder on the ceiling.

2 Seat Belt with Detachable Anchor P. 42

3. Lower the center head restraint to its lowest position. Put the armrest back into

the seat-back.

4. Pull up on the seat-back angle adjustment

lever.

To return the seat to the original position, pull
up the seat-back in the upright position.

■

Folding Down the Second Row Seat

1

Folding Down the Second Row Seat

Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.

2 Passenger Front Airbag Off Indicator P. 58

The front seats must be far enough forward so they
do not interfere with the second row seats as they
fold down.

To lock the seat-back upright, push it backwards until
it locks.

Make sure the seat-back, head restraints and seat
cushion are securely latched back into place before
driving. Also, make sure all rear shoulder belts are
positioned in front of the seat-back.

Make sure the center shoulder belt is re-positioned in
the holding slot.

Models with bench seat

Models with bench seat

Lever

All Models

17 ACURA MDX E-AWD-31TRX6000.book  192 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

193

uu

Adjusting the Seats

u

Head Restraints

Continued

Co
ntrols

Head Restraints

Your vehicle is equipped with head restraints in all seating positions.

Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.

■

Adjusting the Front and Second Row Outer Head Restraint
Positions

1

Head Restraints

In order for the head restraint system to work
properly:

•

Do not hang any items on the head restraints, or
from the restraint legs.

•

Do not place any objects between an occupant and
the seat-back.

•

Install each restraint in its proper location.

3

WARNING

Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.

Make sure head restraints are in place and
positioned properly before driving.

Position head in the center
of the head restraint.

17 ACURA MDX E-AWD-31TRX6000.book  193 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

194

uu

Adjusting the Seats

u

Head Restraints

Co
ntrols

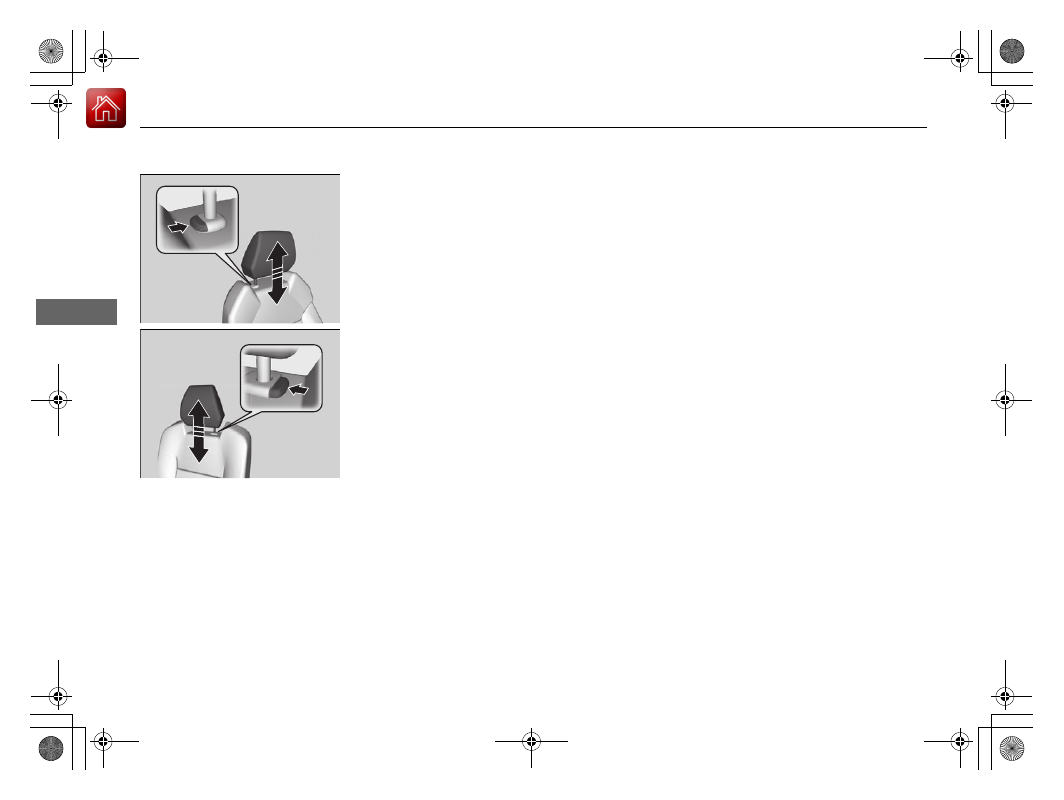

To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.

17 ACURA MDX E-AWD-31TRX6000.book  194 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

195

uu

Adjusting the Seats

u

Head Restraints

Co
ntrols

A passenger sitting in the second row center
seating position should adjust the height of
their head restraint to an appropriate position
before the vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.

Head restraints can be removed for cleaning or repair.

To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.

To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.

■

Changing the Second Row Center Seat Head Restraint
Position

*

■

Removing and Reinstalling the Head Restraints

1

Removing and Reinstalling the Head Restraints

3

WARNING

Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.

Always replace the head restraints before
driving.

Front and second row head restraints

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  195 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

196

uu

Adjusting the Seats

u

Head Restraints

Co
ntrols

A passenger in the third row seating position
should put the head restraint in the upright
position before the vehicle begins moving.

To fold down the head restraint:
Pull the handle.

To put the head restraint back in the
upright position:
Pull up the head restraint and push rearward
until it latches.

■

Folding Down the Third Row Head Restraint

Handle

17 ACURA MDX E-AWD-31TRX6000.book  196 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

197

uu

Adjusting the Seats

u

Maintain a Proper Sitting Position

Co
ntrols

Maintain a Proper Sitting Position

After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor until the vehicle is safely parked and the power
system is off.

Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.

In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.

1

Maintain a Proper Sitting Position

3

WARNING

Sitting improperly or out of position can
result in serious injury or death in a crash.

Always sit upright, well back in the seat,
with your feet on the floor.

17 ACURA MDX E-AWD-31TRX6000.book  197 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

198

uu

Adjusting the Seats

u

Third Row Seats

Co
ntrols

Third Row Seats

Separately fold down the left and right halves of the third row seat to make room
for cargo.

■

To fold down the seat

1. Pull the handle on the seat-back fully.

u

The head restraint tilts downward.

2. Push the seat-back forward while pulling

the handle.

■

To return the seat to the original position

1. Pull the seat-back up with the handle pulled.
2. Push the head restraint up to its original position.

■

Folding Down the Third Row Seat

1

Folding Down the Third Row Seat

Make sure all items in the cargo area or items
extending to the third row seats are properly
secured. Loose items can fly forward if you have
to brake hard.

Handle

1

To return the seat to the original position

Make sure the seat-back and head restraints are
securely latched back into place before driving.

17 ACURA MDX E-AWD-31TRX6000.book  198 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

199

uu

Adjusting the Seats

u

Armrest

Continued

Co
ntrols

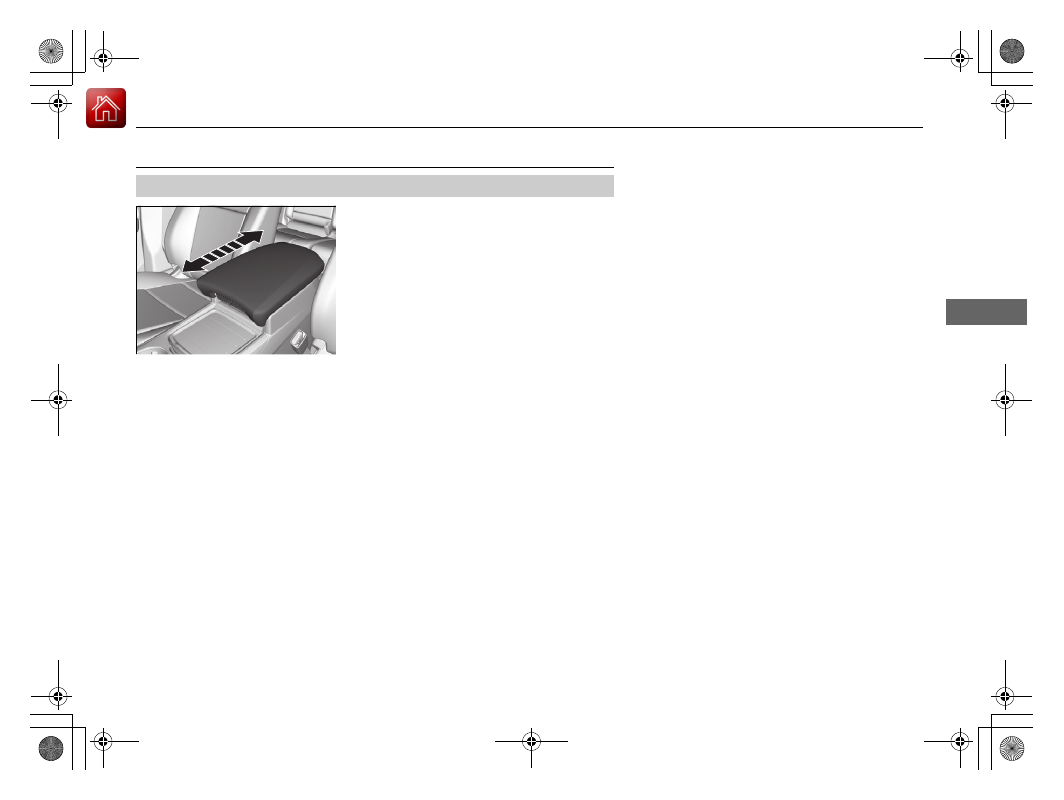

Armrest

The console lid can be used as an armrest.

To adjust:
Slide the armrest to a desired position.

■

Using the Front Seat Armrest

17 ACURA MDX E-AWD-31TRX6000.book  199 ページ  ２０１７年１月２０日　金曜日　午後２時５３分
