233

uu

Maintenance Minder

TM

u

Continued





■

Maintenance Service Items

1

Maintenance Service Items

•

Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.

•

Inspect idle speed every 160,000 miles (256,000
km).

•

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

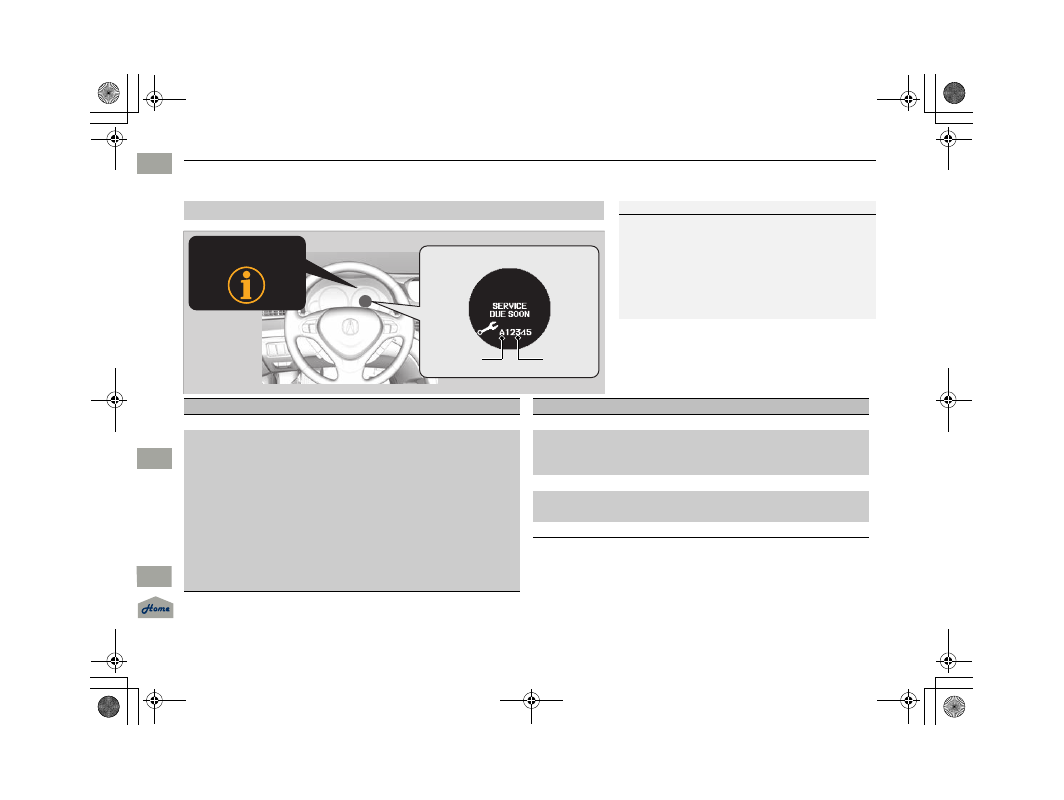

Maintenance Minder Message

System Message
Indicator

Sub Items

Main Items

*1: If message, SERVICE DUE NOW does not appear more than 12 months after the display is reset,

change the engine oil every year.

*2: If you drive primarily in dusty conditions, replace the air cleaner element every 15,000 miles (24,000

km).

CODE

Maintenance Main Items

A

●

Replace engine oil

*1

B

●

Replace engine oil

*1

 and oil filter

●

Inspect front and rear brakes

●

Check parking brake adjustment

●

Check expiration date for TRK bottle

●

Inspect tie rod ends, steering gear box, and boots

●

Inspect suspension components

●

Inspect driveshaft boots

●

Inspect brake hoses and lines (Including ABS)

●

Inspect all fluid levels and condition of fluids

●

Inspect exhaust system

#

●

Inspect fuel lines and connections

#

*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission

temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed at 60,000 miles (100,000 km), then every 30,000 miles (48,000 km).

# : See information on maintenance and emissions warranty.

CODE

Maintenance Sub Items

1

●

Rotate tires

2

●

Replace air cleaner element

*2

●

Replace dust and pollen filter

*3

●

Inspect drive belt

3

●

Replace transmission fluid

*4

4

●

Replace spark plugs

●

Inspect valve clearance

5

●

Replace engine coolant

14 ACURA TSX 5D-31TL76300.book  233 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

uu

Maintenance Minder

TM

u

234







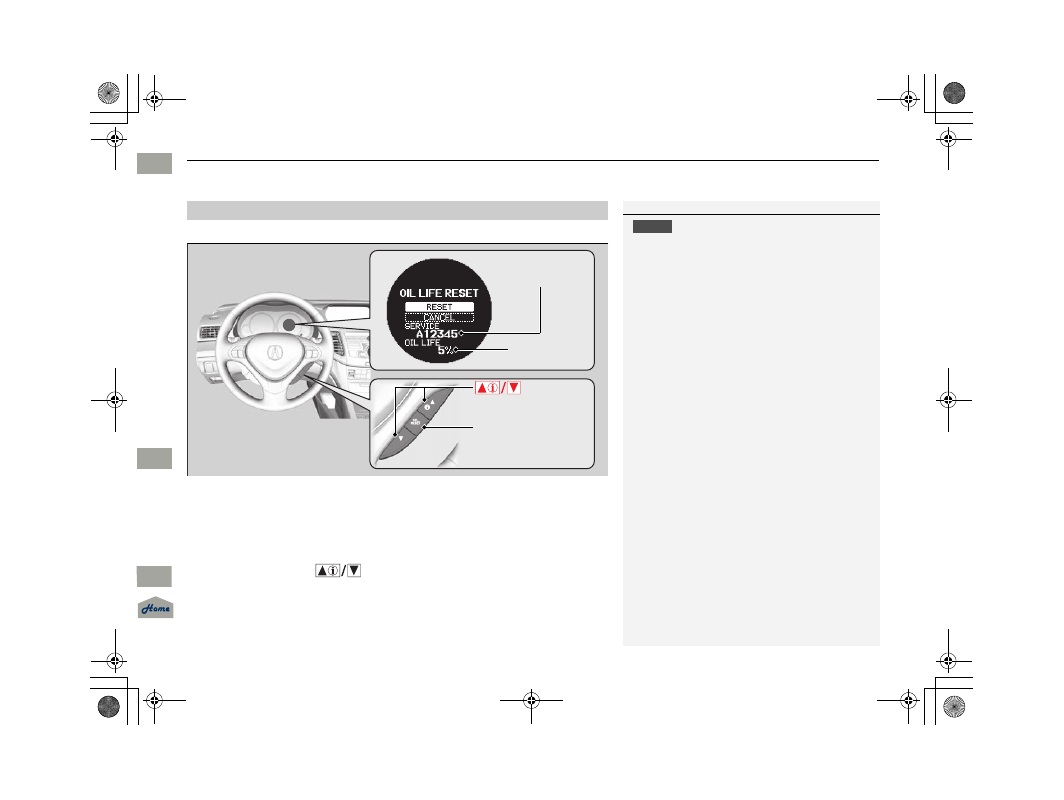

Reset the engine oil life display if you have performed the maintenance service.

1. Turn the ignition switch to ON

 (

w .

2. Display the engine oil life by repeatedly pressing the SEL/RESET button.

3. Press and hold the SEL/RESET button for 10 seconds or more.

u

The oil life reset mode is displayed on the multi-information display.

4. Select RESET with the

 button.

u

The service code will disappear and the engine oil life display will return to
100%.

To cancel the oil life reset mode, select CANCEL, then press the SEL/RESET button.

■

Resetting the Display

1

Resetting the Display

NOTICE

Failure to reset the engine oil life after a maintenance
service results in the system showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.

The dealer will reset the engine oil life display after
completing the required maintenance service. If
someone other than a dealer performs maintenance
service, reset the engine oil life display yourself.

Maintenance
Item Codes

Engine Oil Life

SEL/RESET Button

 (Information)

Button

14 ACURA TSX 5D-31TL76300.book  234 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

235





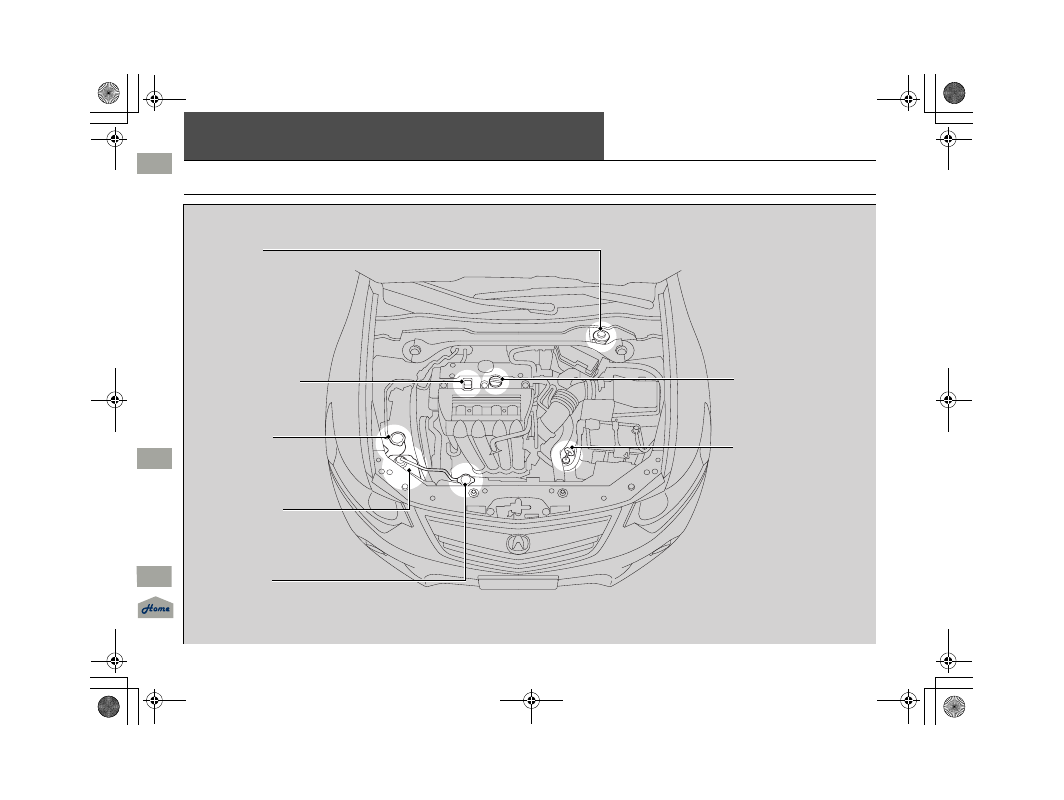

Maintenance Under the Hood

Maintenance Items Under the Hood

Brake Fluid

(Black Cap)

Engine Coolant
Reservoir

Radiator Cap

Washer Fluid

(

Blue

 Cap)

Engine Oil Dipstick

(

Orange

 Handle)

Engine Oil Fill Cap

Automatic Transmission
Fluid Dipstick 

(

Yellow

 Loop)

14 ACURA TSX 5D-31TL76300.book  235 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

236

uu

Maintenance Under the Hood

u

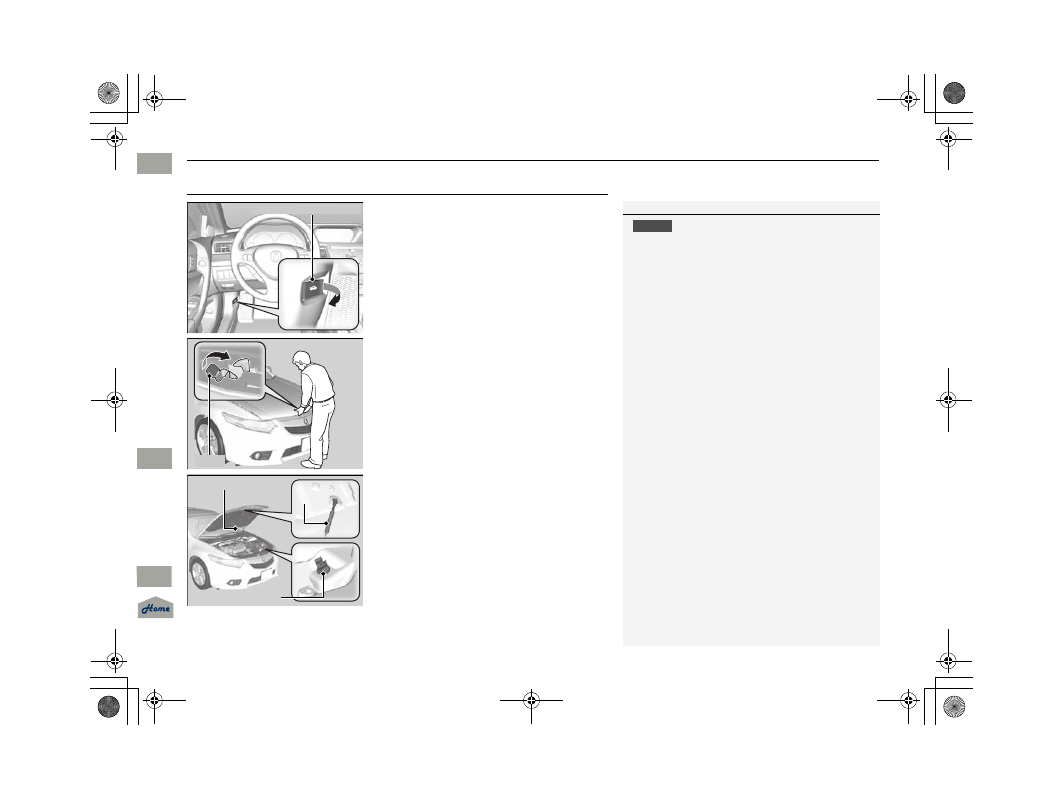

Opening the Hood







Opening the Hood

1. Park the vehicle on a level surface, and set

the parking brake.

2. Pull the hood release handle under the

lower left corner of the dashboard.

u

The hood will pop up slightly.

3. Push up the hood latch lever in the center

of the hood to release the lock mechanism,
and open the hood.

4. Remove the support rod from the clamp

using the grip. Mount the support rod in
the hood.

When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.

1

Opening the Hood

NOTICE

Do not open the hood when the wiper arms are
raised.

The hood will strike the wipers, and may damage
either the hood or the wipers.

When closing the hood, check that the hood is
securely latched.

If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.

Hood Release Handle

Pull

Lever

Support Rod

Grip

Clamp

14 ACURA TSX 5D-31TL76300.book  236 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

237

uu

Maintenance Under the Hood

u

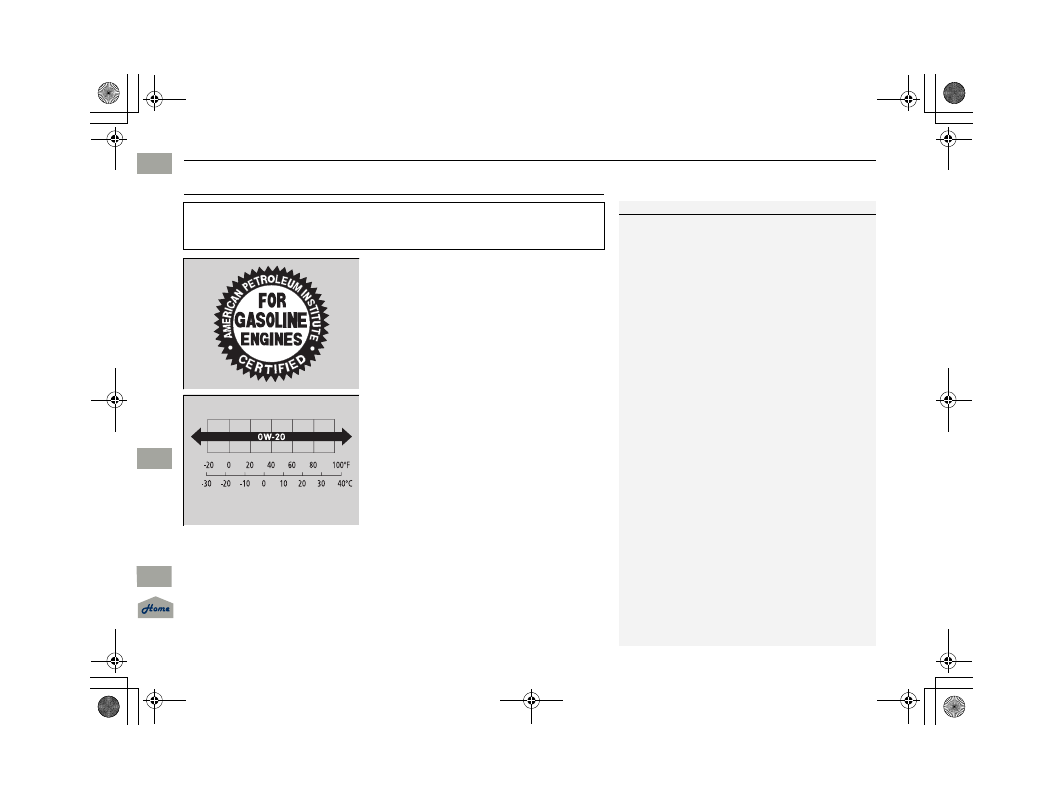

Recommended Engine Oil





Recommended Engine Oil

Oil is a major contributor to your engine’s
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.

This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.

Use Genuine Acura Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown below.

■

Synthetic oil

You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.

• Genuine Acura Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the

container.

1

Recommended Engine Oil

Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.

Ambient Temperature

14 ACURA TSX 5D-31TL76300.book  237 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

238

uu

Maintenance Under the Hood

u

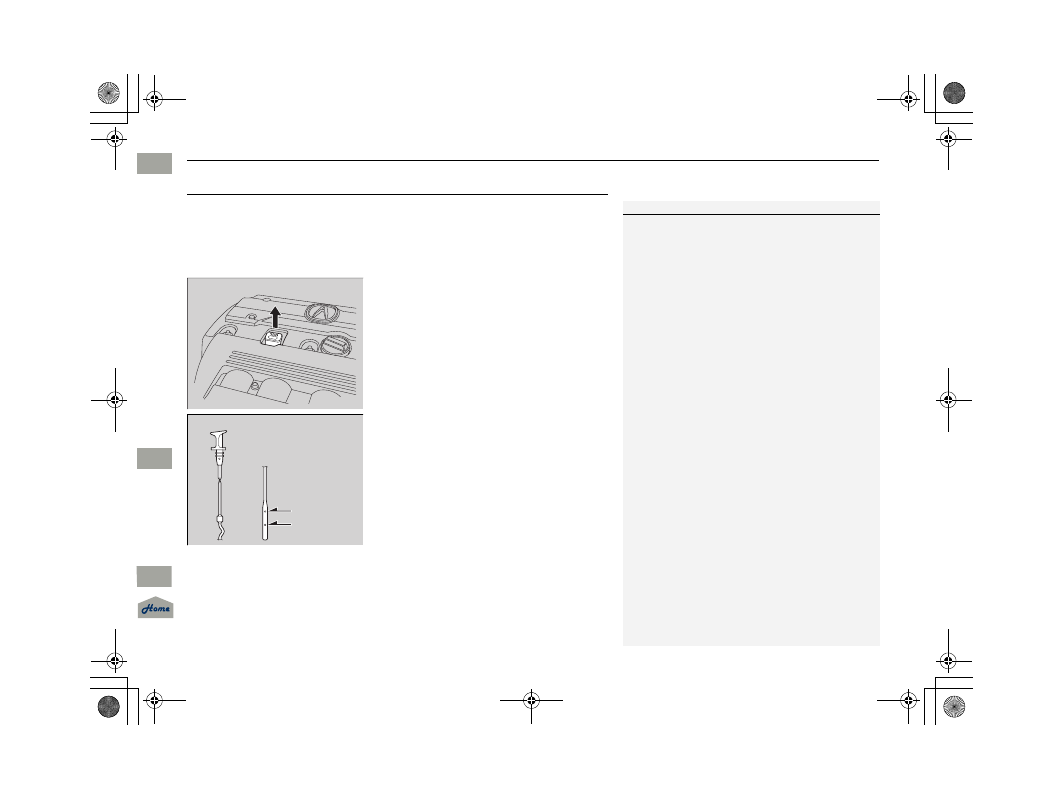

Oil Check







Oil Check

We recommend that you check the engine oil level every time you refuel.

Park the vehicle on level ground.

Wait approximately three minutes after turning the engine off before you check
the oil.

1. Remove the dipstick (orange handle).

2. Wipe the dipstick with a clean cloth or

paper towel.

3. Insert the dipstick back all the way into

its hole.

4. Remove the dipstick again, and check the

level. It should be between the upper and
lower marks. Add oil if necessary.

1

Oil Check

If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.

Upper Mark
Lower Mark

14 ACURA TSX 5D-31TL76300.book  238 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

239

uu

Maintenance Under the Hood

u

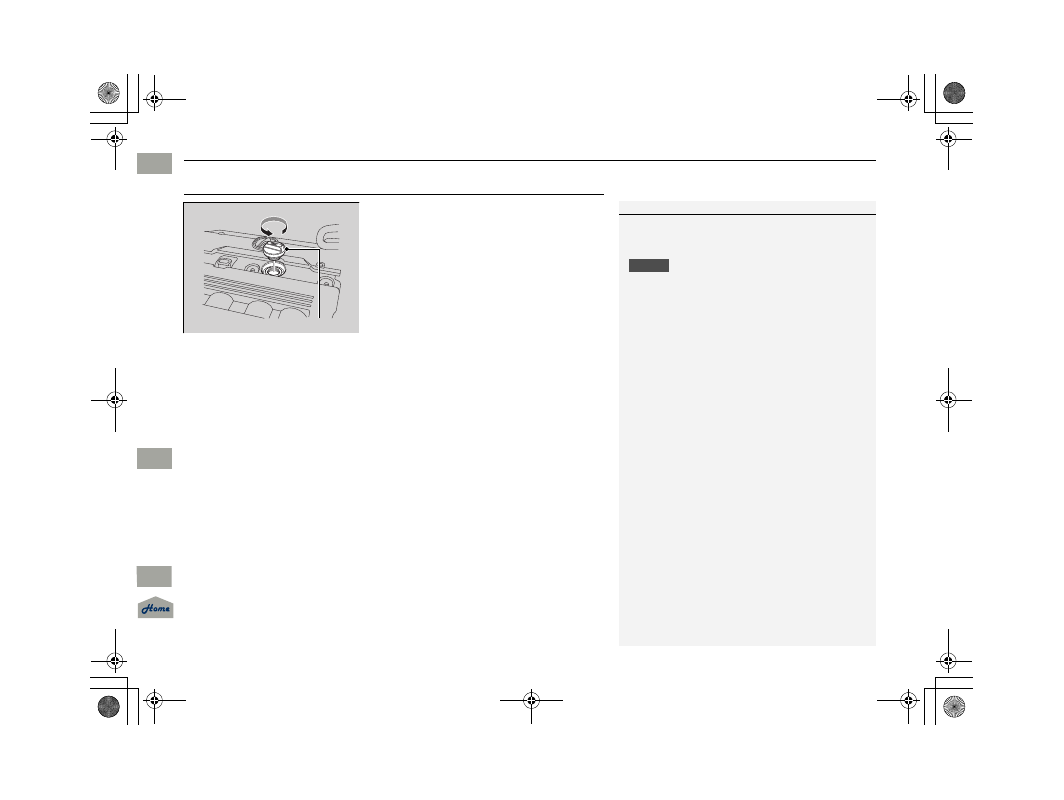

Adding Engine Oil





Adding Engine Oil

1. Unscrew and remove the engine oil fill cap.

2. Add oil slowly.

3. Reinstall the engine oil fill cap, and tighten

it securely.

4. Wait for three minutes and recheck the

engine oil dipstick.

1

Adding Engine Oil

If any oil spills, wipe it up immediately. Spilled oil may
damage the engine compartment components.

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.

Engine Oil Fill Cap

14 ACURA TSX 5D-31TL76300.book  239 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

240

uu

Maintenance Under the Hood

u

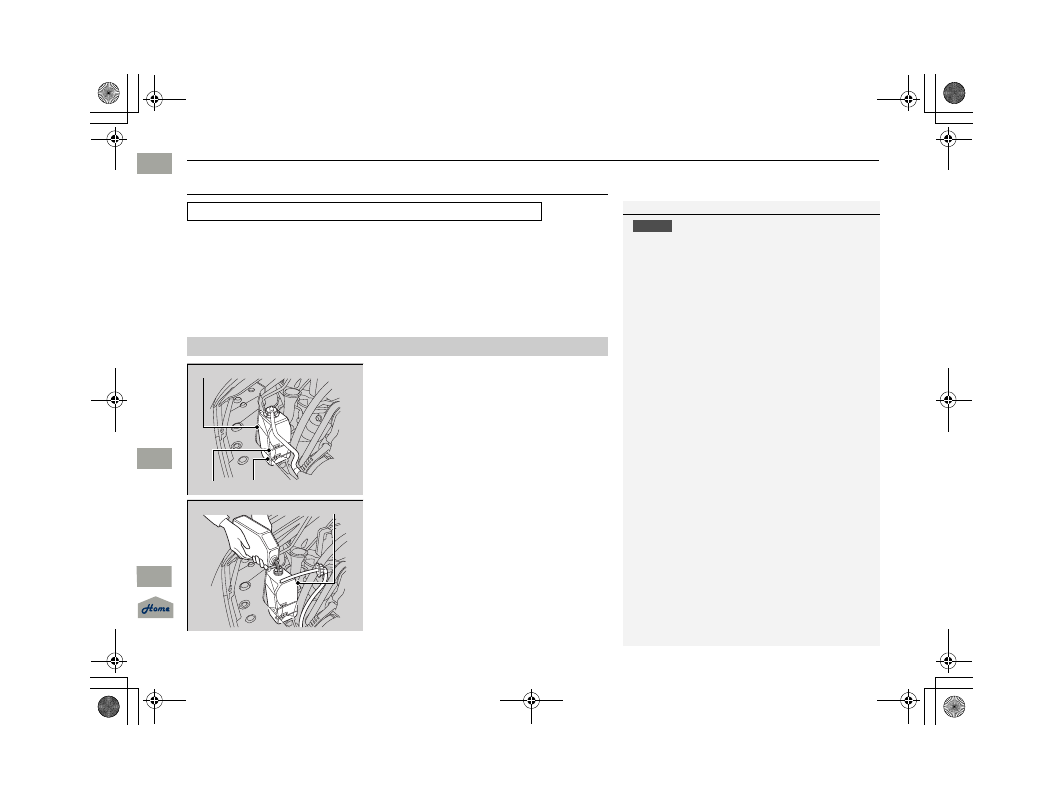

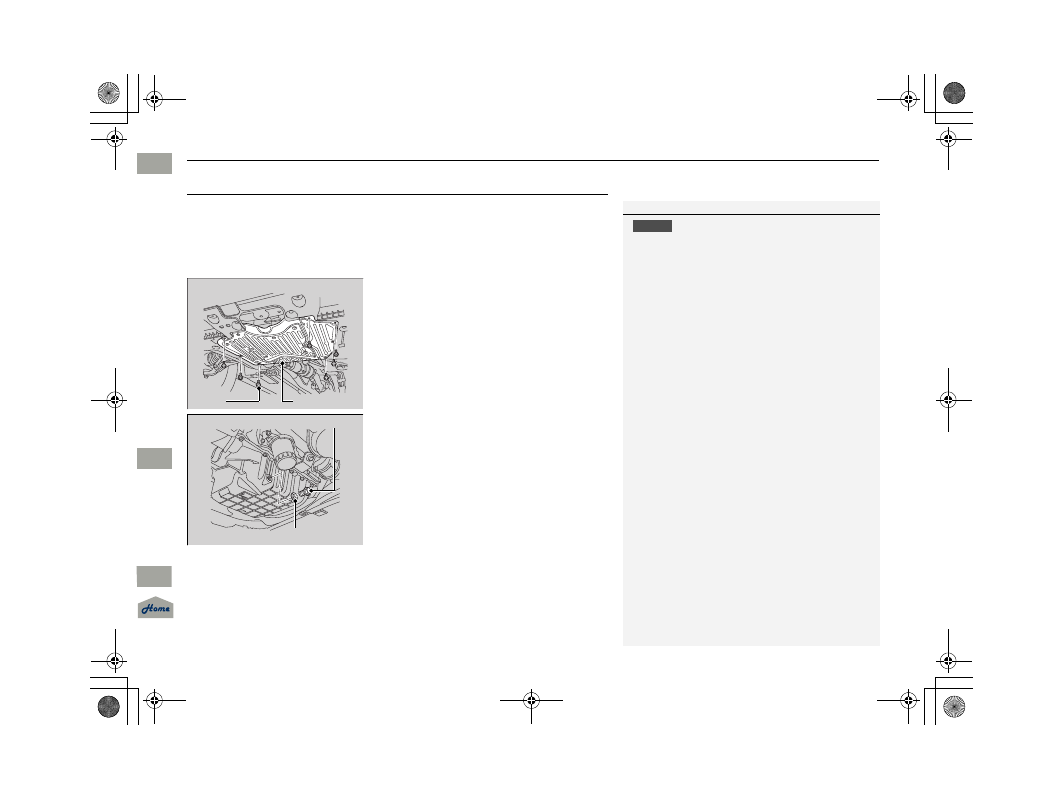

Changing the Engine Oil and Oil Filter







Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the multi-
information display.

1. Run the engine until it reaches normal

operating temperature, and then turn the
engine off.

2. Open the hood and remove the engine oil

fill cap.

3. Remove the bolts on the undercarriage

and remove the under cover.

4. Remove the drain bolt and washer from

the bottom of the engine, and drain the
oil into a suitable container.

5. Remove the oil filter and dispose of the

remaining oil.

1

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

Under Cover

Bolt

Washer

Drain Bolt

14 ACURA TSX 5D-31TL76300.book  240 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

241

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter





6. Check that the filter gasket is not stuck to

the engine contact surface.

u

If it is stuck, you must detach it.

7. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the oil filter rubber seal.

8. Put a new washer on the drain bolt, then

reinstall the drain bolt.

u

Tightening torque: 29 lbf∙ft (39 N∙m,
4.0 kgf∙m)

9. Pour the recommended engine oil into

the engine.

u

Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)

10. Reinstall the engine oil fill cap securely and

start the engine.

11. Run the engine for a few minutes, and

then check that there is no leak from the
drain bolt or oil filter.

12. Stop the engine, wait for three

minutes, and then check the oil level on
the dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine.
The low oil pressure indicator should go off within
five seconds. If it does not, turn off the engine, and
check your work.

Oil Filter

14 ACURA TSX 5D-31TL76300.book  241 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

242

uu

Maintenance Under the Hood

u

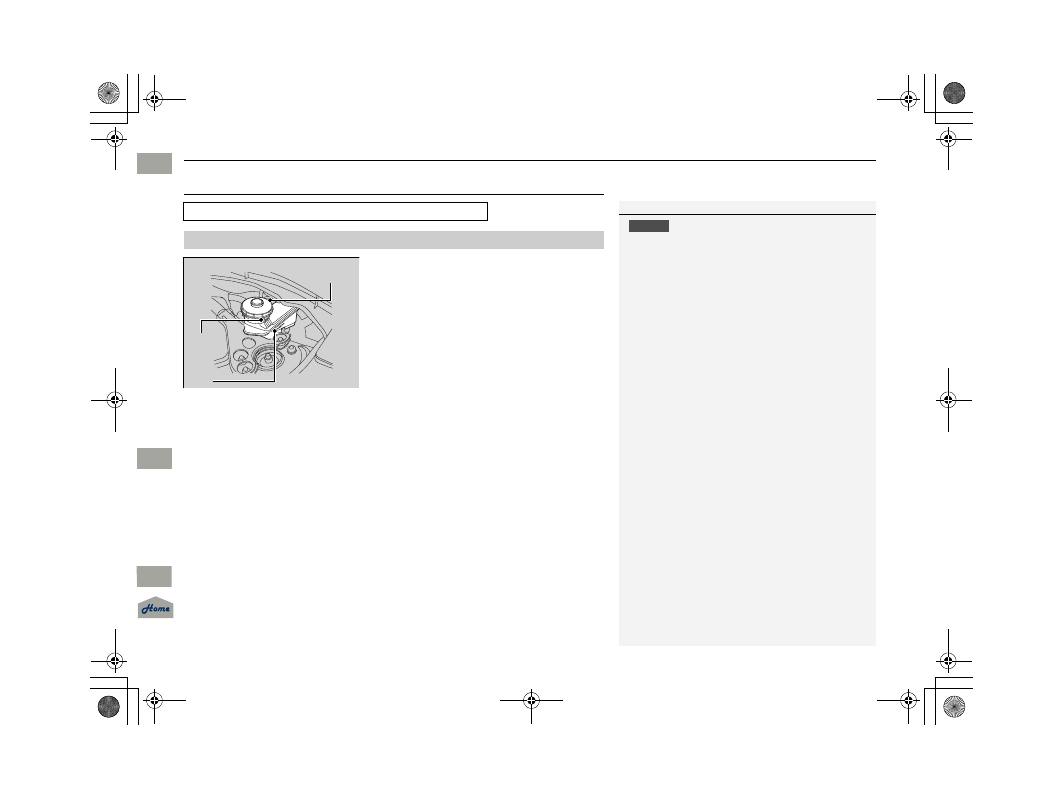

Engine Coolant







Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1 . Check the amount of coolant in the

reserve tank.

2. If the coolant level is below the MIN mark,

add the specified coolant until it reaches
the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

■

Reserve Tank

1

Engine Coolant

NOTICE

If temperatures consistently below -22°F (-30°C) are
expected, the coolant mixture should be changed to
a higher concentration. Consult a dealer for more
information.

If Honda antifreeze/coolant is not available, you may
use another major brand non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

Reserve Tank

MAX

MIN

Reserve Tank

14 ACURA TSX 5D-31TL76300.book  242 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

243

uu

Maintenance Under the Hood

u

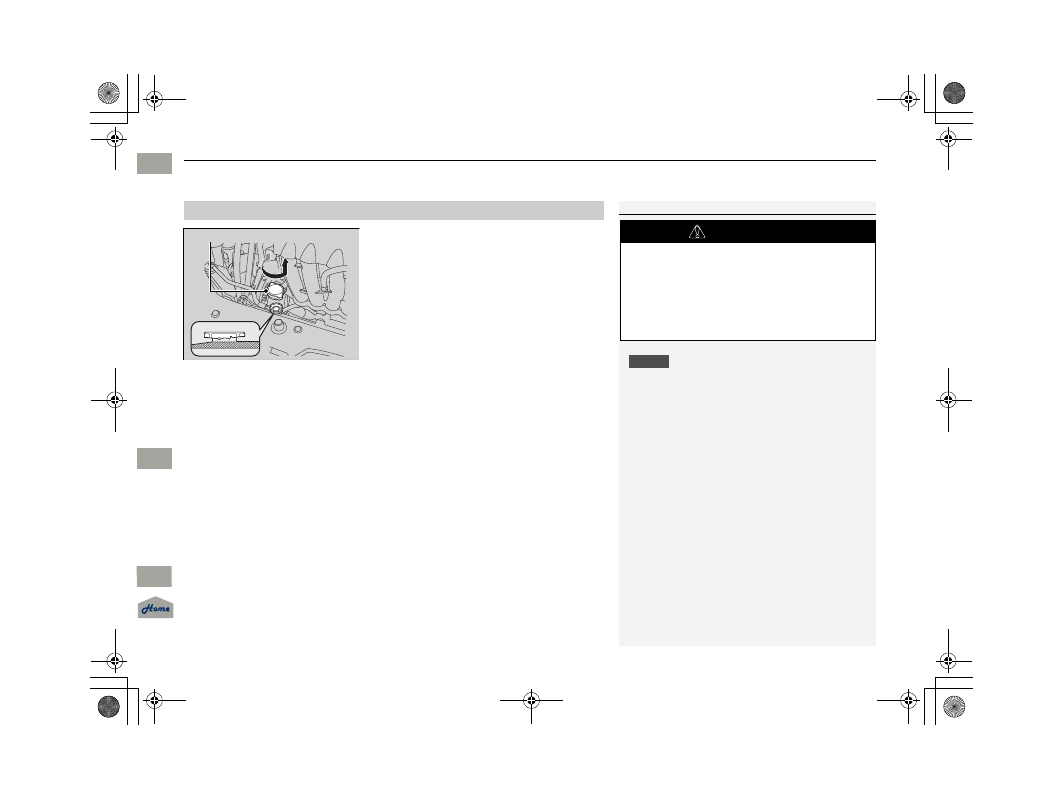

Engine Coolant





1. Make sure the engine and radiator

are cool.

2. Turn the radiator cap counterclockwise and

relieve any pressure in the coolant system.
Do not push the cap down when turning.

3. Push down and turn the radiator cap

counterclockwise to remove it.

4. The coolant level should be up to the base

of the filler neck. Add coolant if it is low.

5 . Put the radiator cap back on, and

tighten it fully.

6. Pour coolant into the reserve tank until it

reaches the MAX mark. Put the cap back
on the reserve tank.

■

Radiator

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Radiator Cap

14 ACURA TSX 5D-31TL76300.book  243 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

244

uu

Maintenance Under the Hood

u

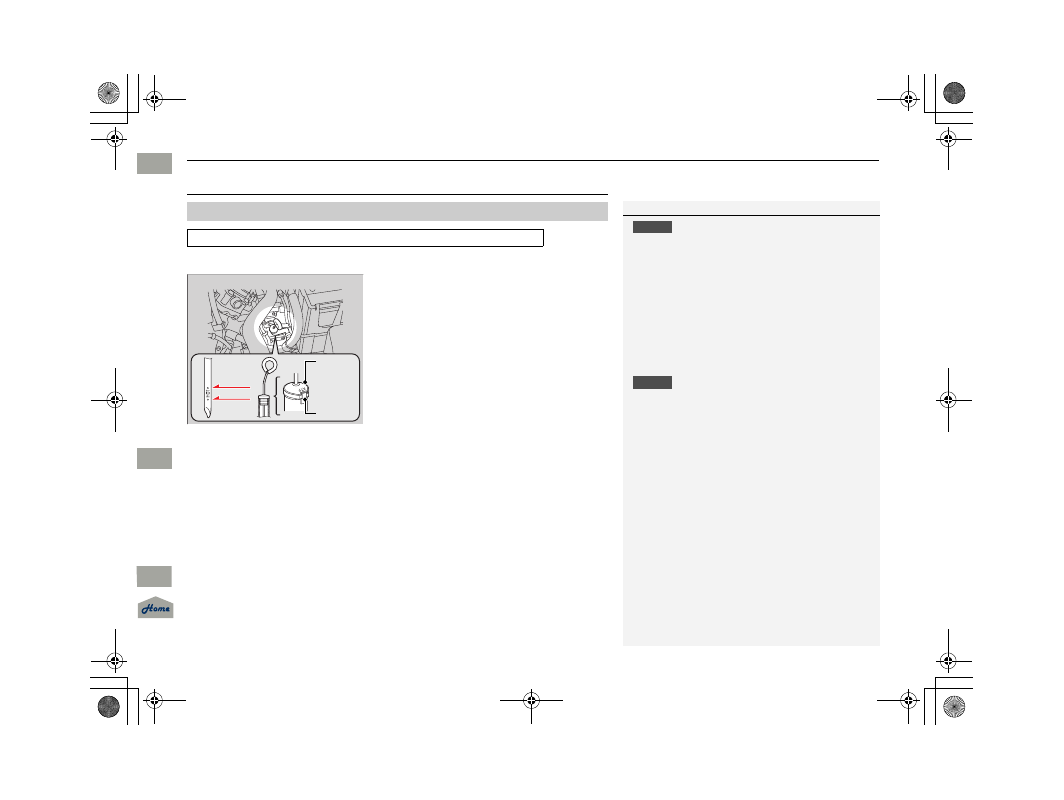

Transmission Fluid







Transmission Fluid

Check the fluid level when the engine is at normal operating temperature.

1. Park on level ground, and start the engine.

2. Wait until the radiator fan starts and then

turn off the engine.

u

Perform step 3 after waiting for about 60
seconds (less than 90 seconds).

3. Remove the dipstick (yellow loop) from the

transmission and wipe it with a clean cloth.

4. Insert the dipstick all the way back

into the transmission securely, as shown
in the image.

5. Remove the dipstick and check the
fluid level.

u

It should be between the upper and
lower marks in the HOT range.

6. If the level is below the lower mark,

add fluid into the dipstick hole to bring it
to the level between the upper and lower
marks, and have your vehicle checked by
a dealer immediately.

■

Automatic Transmission Fluid

Specified fluid: Acura ATF DW-1 (automatic transmission fluid)

1

Automatic Transmission Fluid

NOTICE

Do not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission fluid other than Acura ATF
DW-1 may adversely affect the operation and
durability of your vehicle’s transmission, and damage
the transmission.

Any damage caused by using a transmission fluid that
is not equivalent to Acura ATF DW-1 is not covered
by Acura’s new vehicle warranty.

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Upper
Lower
Marks

Rubber
Cap

Guide

14 ACURA TSX 5D-31TL76300.book  244 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

245

uu

Maintenance Under the Hood

u

Brake Fluid





Brake Fluid

The fluid level should be between the MIN
and MAX marks on the side of the reservoir.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

1

Brake Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect for leaks or worn brake pads as
soon as possible.

Brake
Reservoir

MIN

MAX

14 ACURA TSX 5D-31TL76300.book  245 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

246

uu

Maintenance Under the Hood

u

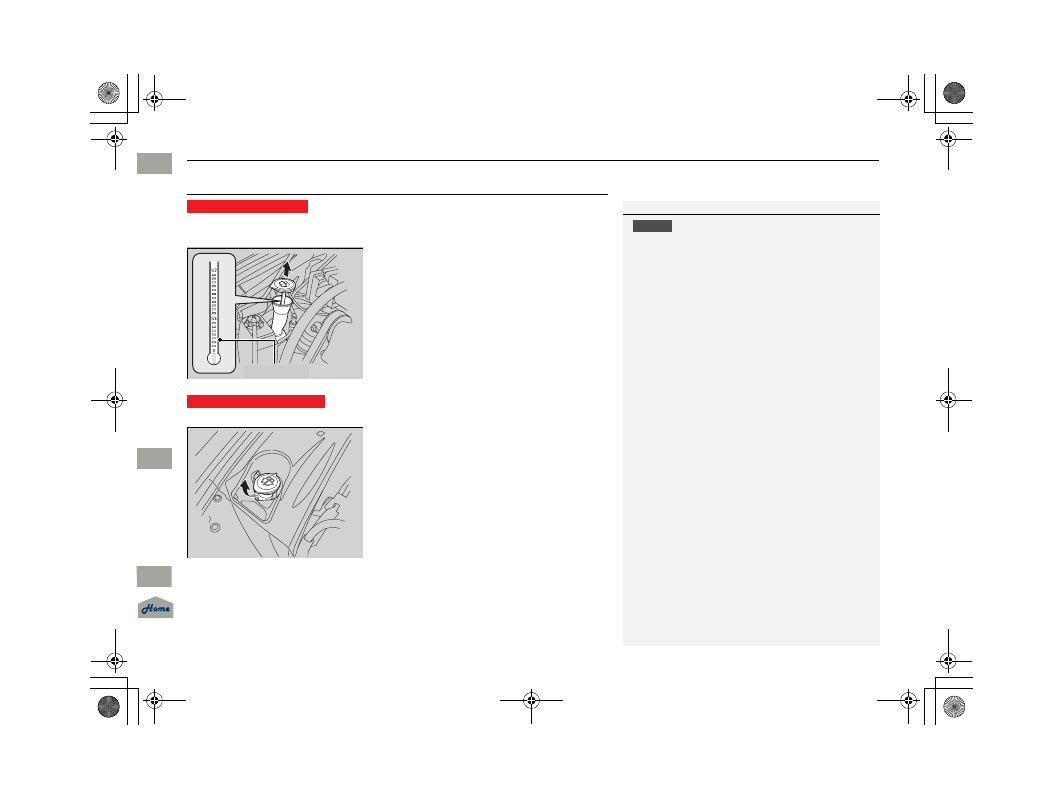

Refilling Window Washer Fluid







Refilling Window Washer Fluid

Check the amount of window washer fluid using the washer fluid level gauge
on the cap.

If the level is low, fill the washer reservoir.

Check the amount of window washer fluid by looking at the reservoir.

If the level is low, fill the washer reservoir.

Pour the washer fluid carefully. Do not overflow the reservoir.

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.

Models with level gauge

Level Gauge

Models without level gauge

14 ACURA TSX 5D-31TL76300.book  246 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

247

Continued





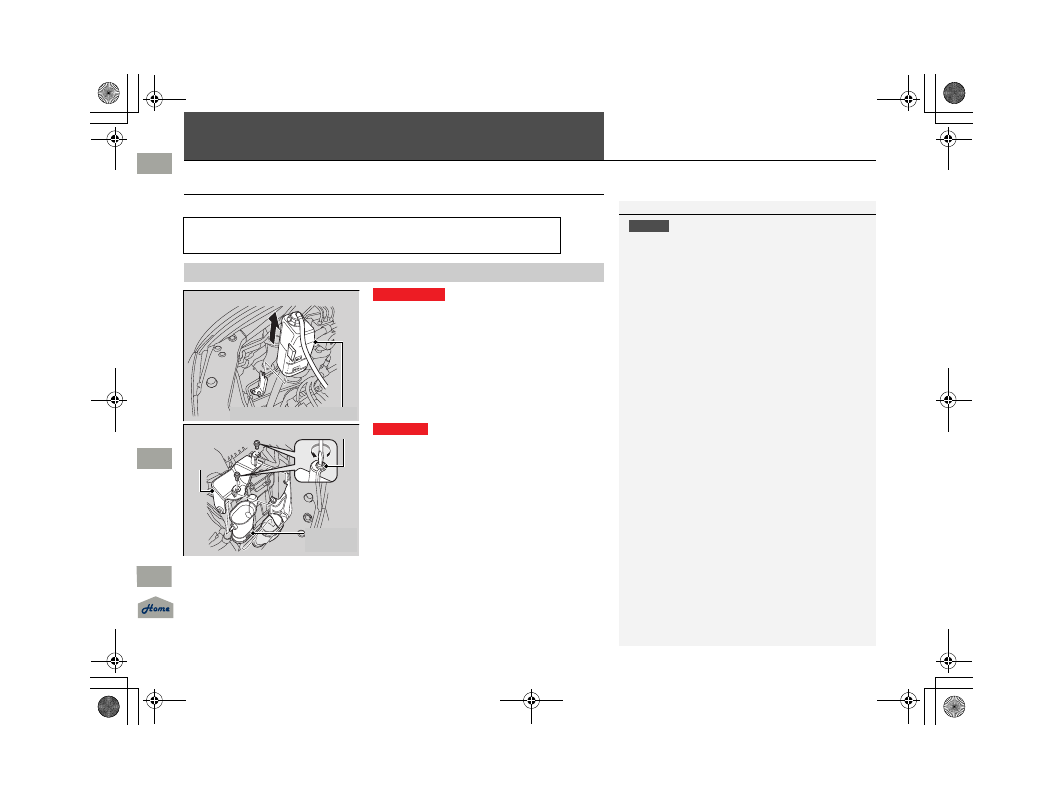

Replacing Light Bulbs

Headlight Bulbs

When replacing, use the following bulbs.

1. Remove the engine coolant reservoir.

2. Remove the fasteners, using a flat-tip

screwdriver. Remove the cover of the air
intake duct and its upper part.

High beam headlight: 60 W (HB3 for halogen bulb type)

Low beam headlight:

35 W (D2S for high voltage discharge type)

■

High Beam Headlight

1

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.

Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

The exterior lights’ inside lenses (headlights, brake
lamps, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a large amount of water or ice
accumulated inside the lenses, have your vehicle
inspected by a dealer.

Engine Coolant Reservoir

Passenger side

Fastener

Cover

Air Intake
Duct

Driver side

14 ACURA TSX 5D-31TL76300.book  247 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon

uu

Replacing Light Bulbs

u

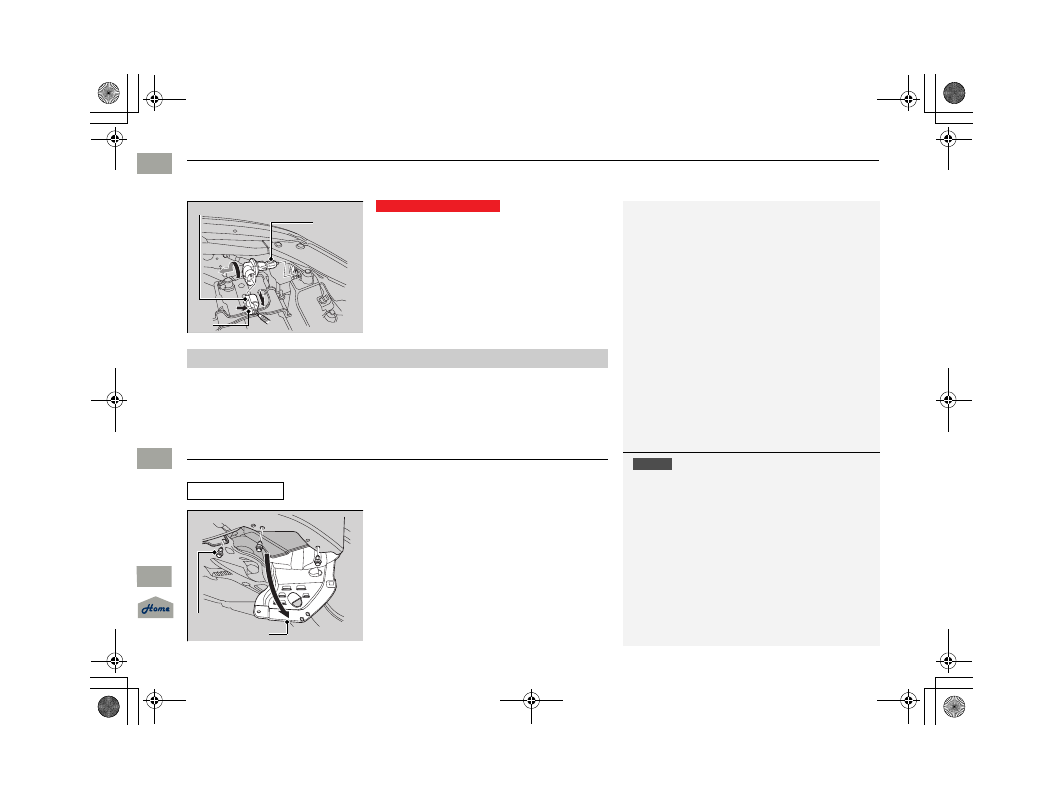

Fog Light Bulbs

248







3. Remove the coupler.

u

It can be removed by pushing the tab.

4. Rotate the old bulb to the left to remove.

5. Insert a new bulb into the headlight

assembly and turn it to the right.

6. Insert the coupler into the connector of

the bulb.

High voltage can remain in the circuit for a long period of time after the light is
switched off. Do not attempt to inspect or replace the high voltage discharge type
bulbs yourself. Ask a dealer to inspect and replace low beam headlights.

Fog Light Bulbs

When replacing, use the following bulbs.

1. Remove the clips using a flat-tip

screwdriver, and lower the under cover.

Bulb

Coupler

Tab

Driver and passenger side

■

Low Beam Headlights

Fog Light: 55 W

1

Fog Light Bulbs

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

The fog lights are halogen bulbs.

When replacing a bulb, handle it by its plastic case,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Clip

Under Cover

14 ACURA TSX 5D-31TL76300.book  248 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Maint

e

nance

TOC

2014 TSX Sport Wagon
