Floor Wire Harness (Rear branch) (’05-06 models) (cont’d)

Fuel Subharness (’05-06 models)

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-38

Connectors and Harnesses

Connector to Harness Index (cont’d)

Driver’s door switch

18

1

Left B-pillar

Driver’s seat belt tensioner

17

2

Left B-pillar

Driver’s side impact sensor

16

2

Left B-pillar

EVAP emission bypass solenoid
valve

11

2

Fuel tank

Fuel gauge sending unit/Fuel pump

8

5

Fuel tank

Left rear wheel sensor

13

2

Left rear of floor

Left rear speaker

15

2

Left quarter panel

Passenger’s door switch

2

1

Right B-pillar

Passenger’s seat belt tensioner

3

2

Right B-pillar

Passenger’s side impact sensor

1

2

Right B-pillar

Rear BOSE stereo amplifier/woofer

12

6

At spare tire

Right rear speaker

4

2

Right quarter panel

C601

5

20

Right quarter panel

Rear wire harness
(see page 22-42)

C651

9

6

Fuel tank

Fuel subharness

C701

7

8

Right quarter panel

Hatch wire harness
(see page 22-44)

C702

6

2

Right quarter panel

Hatch wire harness
(see page 22-44)

G502

14

Behind left rear seat-back

Body ground via floor wire
harness

BOSE

EVAP emission control canister vent
shut valve

10

2

Fuel tank

Fuel tank pressure sensor

11

3

Fuel tank

C651

9

6

Fuel tank

Floor wire harness

05/06/27 18:02:51 61S6M040_220_0039

０１

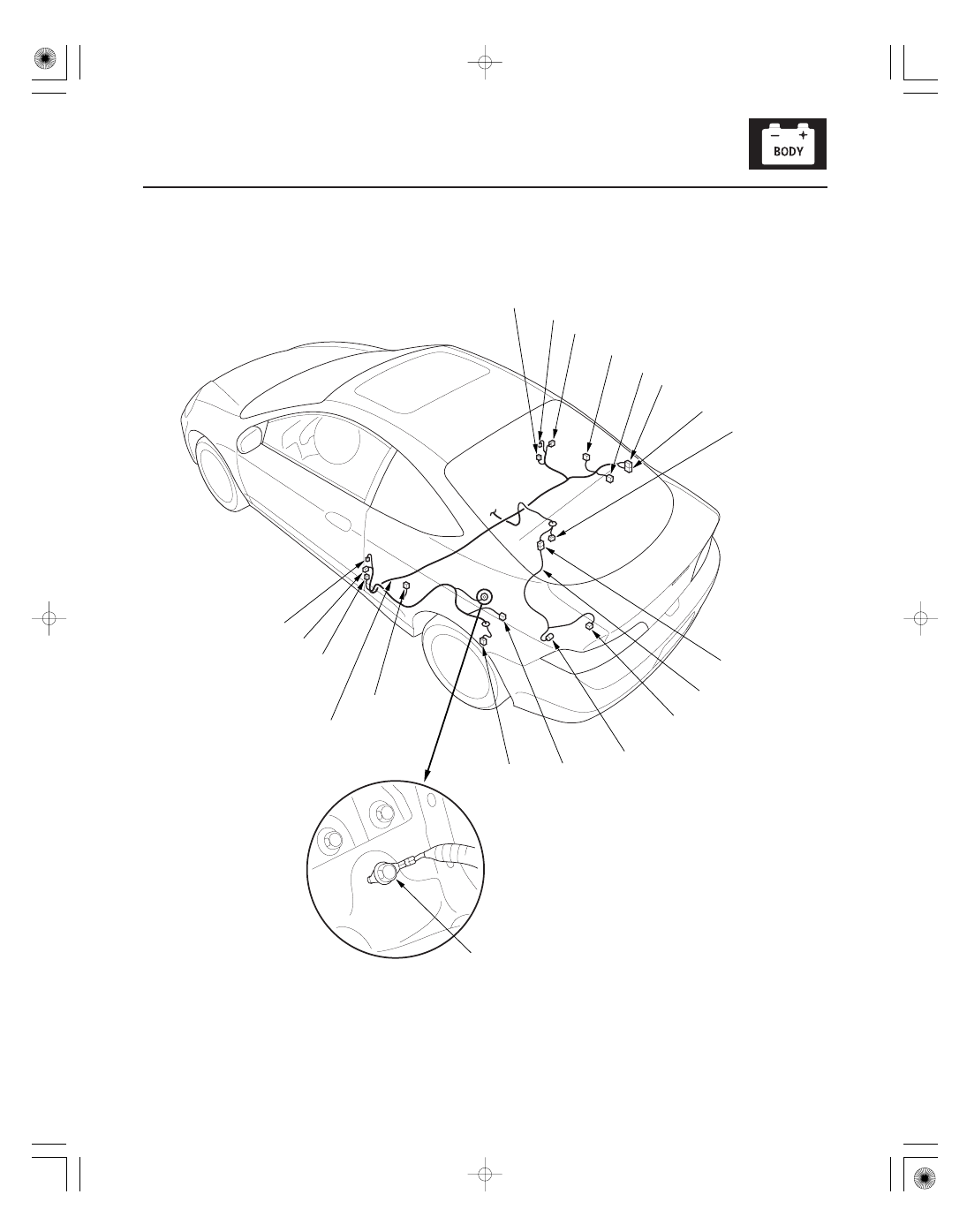

22-39

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

FUEL SUBHARNESS

FLOOR WIRE HARNESS

05/06/27 18:02:51 61S6M040_220_0040

＋

−

Ｓ６Ｍ６ＡＺＦＪ５４２８３２５０５０１ＤＢＡＴ２０

Rear Wire Harness (’02-04 models)

License Plate Light Subharness (’02-04 models)

Rear Window Defogger Wire Harness (’02-04 models)

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-40

Connectors and Harnesses

Connector to Harness Index (cont’d)

Cargo area light

3

2

Right side of cargo area

Left back-up light

13

2

Left taillights

Left rear side marker light

17

2

Left taillights

Left rear turn signal light

16

2

Left taillights

Left taillight/brake light connector A

15

3

Left taillights

Left taillight/brake light connector B

14

3

Left taillights

Right back-up light

9

2

Right taillights

Right rear wheel sensor

2

2

Under right rear of floor

Right rear side marker light

4

2

Right taillights

Right rear turn signal light

5

2

Right taillights

Right taillight/brake light connector A

6

3

Right taillights

Right taillight/brake light connector B

7

3

Right taillights

Trailer lighting connector

8

6

Middle of cargo area

C601

1

10

Right rear side of floor

Floor wire harness
(see page 22-34)

C602

10

2

Middle of cargo area

License plate light
subharness

G601

12

Middle of cargo area

Body ground via rear wire
harness

License plate light connector

11

2

Behind rear bumper

C602

10

2

Middle of cargo area

Rear wire harness

Rear window defogger connector A (

)

19

1

Left C-pillar

Rear window defogger connector B (

)

20

1

Right C-pillar

Window antenna coil connector B

18

2

Middle of hatch

05/06/27 18:02:51 61S6M040_220_0041

０１

22-41

1

2

3

11

5

LICENSE
PLATE LIGHT
SUBHARNESS

4

6

8

7

9

10

12

13

14

15

16

17

18

19

20

REAR WINDOW DEFOGGER
WIRE HARNESS

REAR WIRE HARNESS
