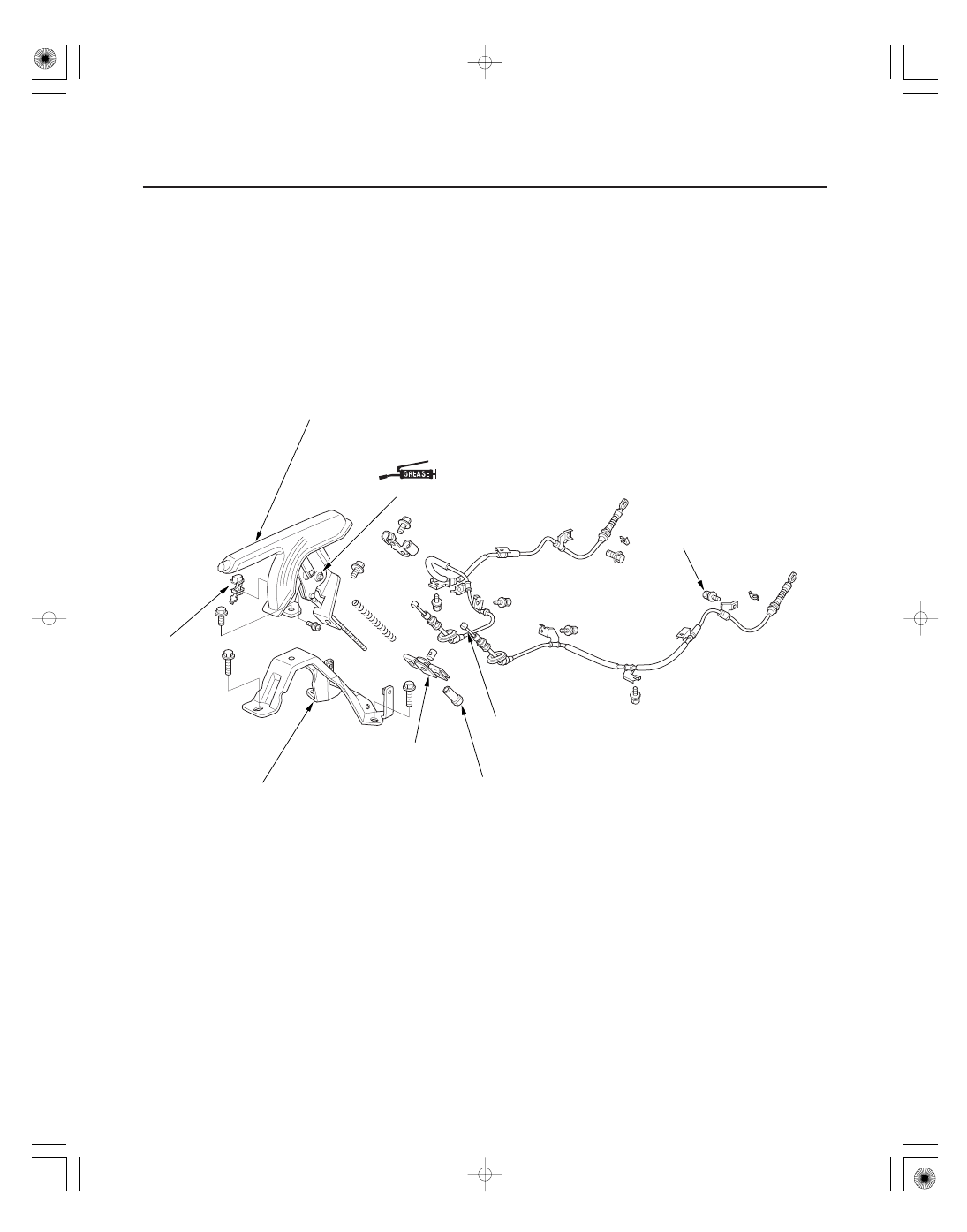

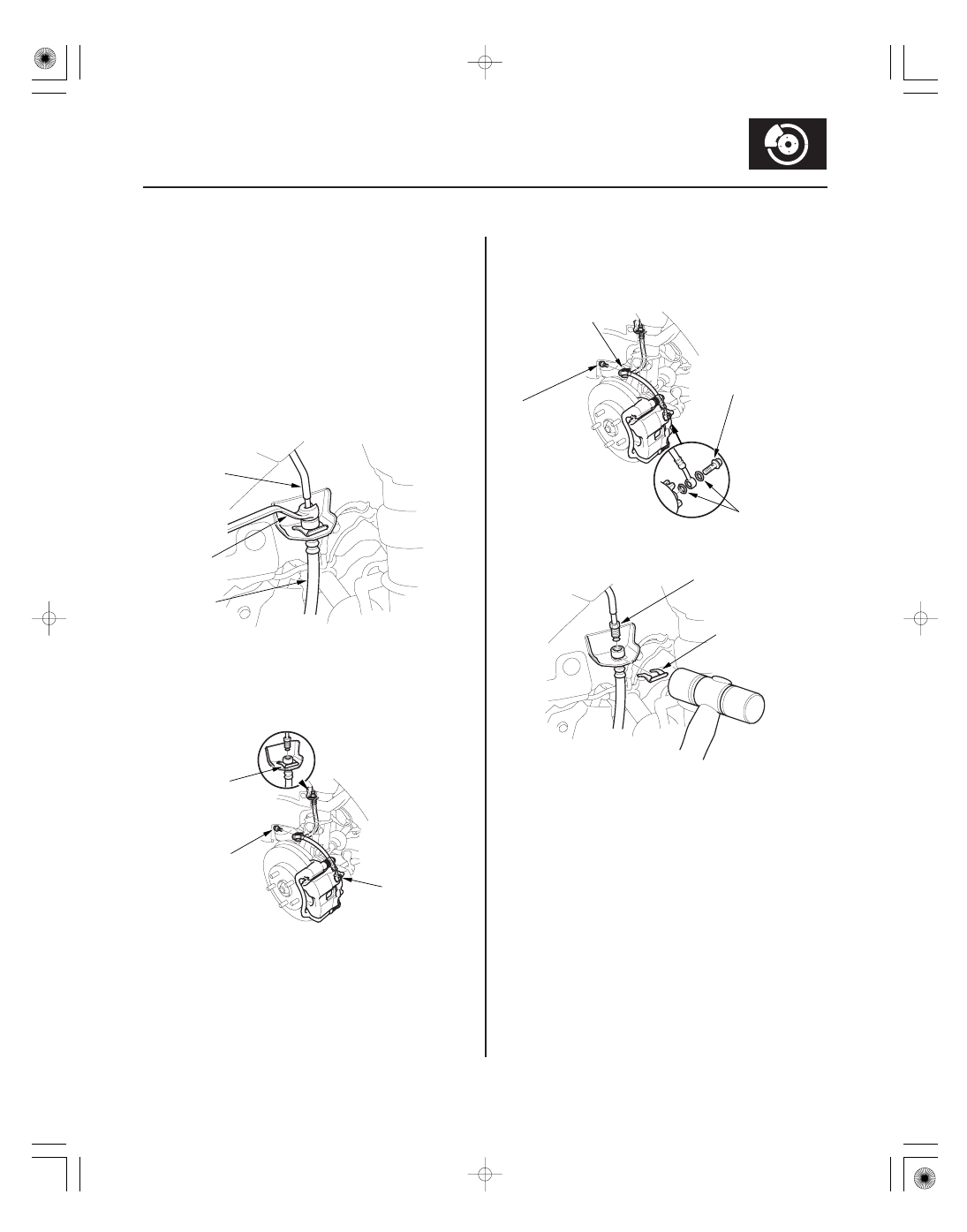

01 02 03 04 S6M6A00D14300014751KBAT00 19-25 Brake Hose Replacement B C A B A C B C A D 10 x 1.0 mm A NOTE: • Before reassembling, check that all parts are free of dust and other foreign particles. • Replace parts with new ones whenever specified to do so. • Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off • To prevent dripping, cover disconnected line joints with rags or shop towels. 1. Replace the brake hose (A) if the hose is twisted, cracked, or if it leaks. 2. Disconnect the brake hose from the brake line (B) using a 10 mm flare nut wrench (C). 3. Remove the flange bolt (A), and remove the brake hose brackets from the damper. 4. Remove and discard the hose clip (B). 5. Remove the banjo bolt (C), and remove the brake hose from the caliper. 6. Install the brake hose bracket (A) on the damper with the flange bolt (B) first, then connect the brake 7. Install the brake hose onto the hose bracket with a new hose clip (A). 8. Connect the brake line to the brake hose. 9. After installing the brake hose, bleed the brake system (see page 19-8). 10. Do the following checks: • Check the brake hose and line joint for leaks, and tighten if necessary. • Check the brake hoses for interference and twisting. 05/06/27 18:19:48 61S6M040_190_0025 |
